Foreword

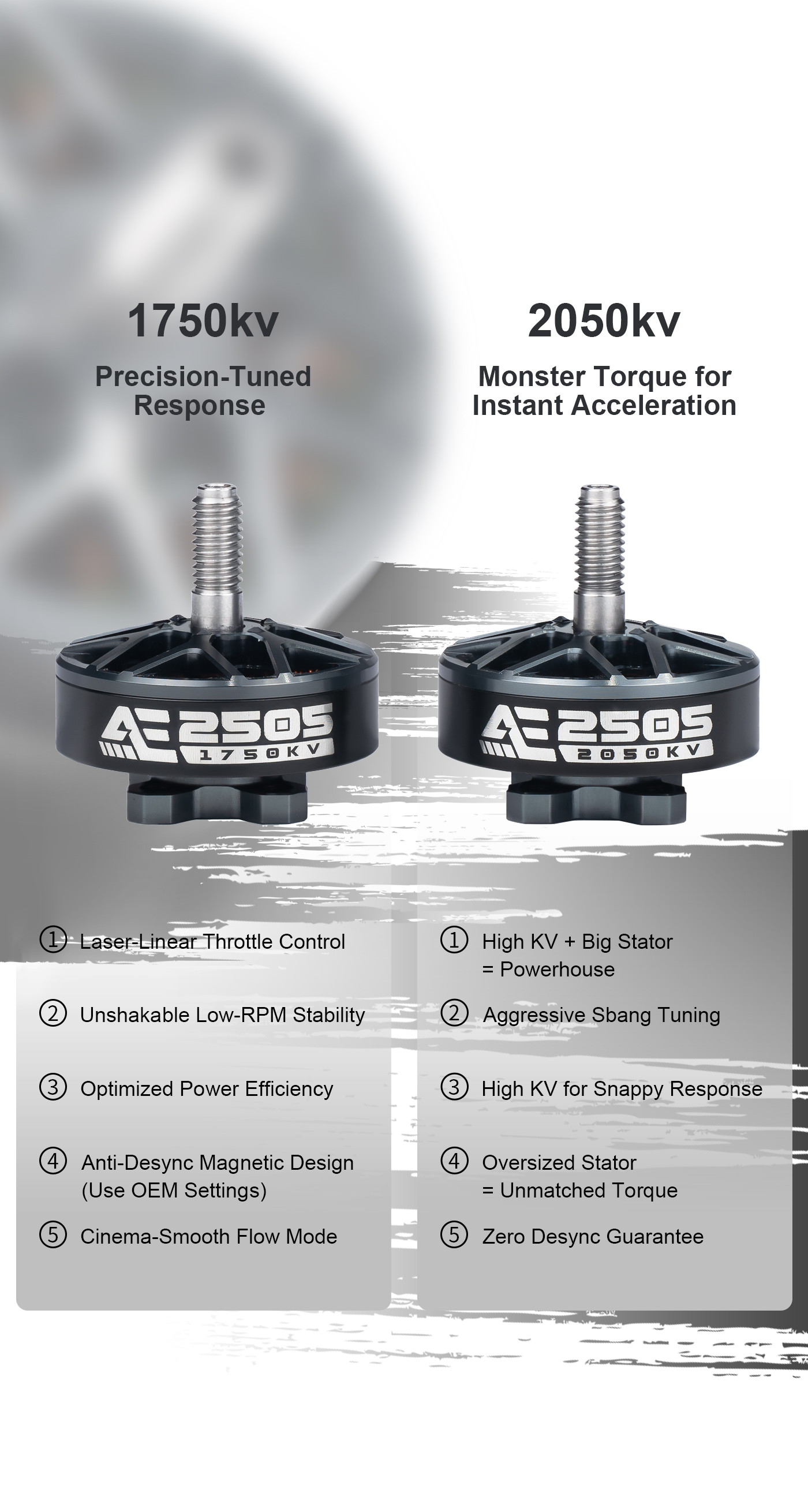

Feature

• Dual flying style: cinema-smooth flow & aggressive sbang tuning
• Laser-linear throttle control with zero desync
• Monster torque for instant acceleration & snappy response
• Anti-desync magnetic design, stable at low RPM
• Oversized stator for unmatched torque output
• High efficiency & durable for long-time freestyle flight
• Compatible with 6S power for maximum performance

Recommended Configuration

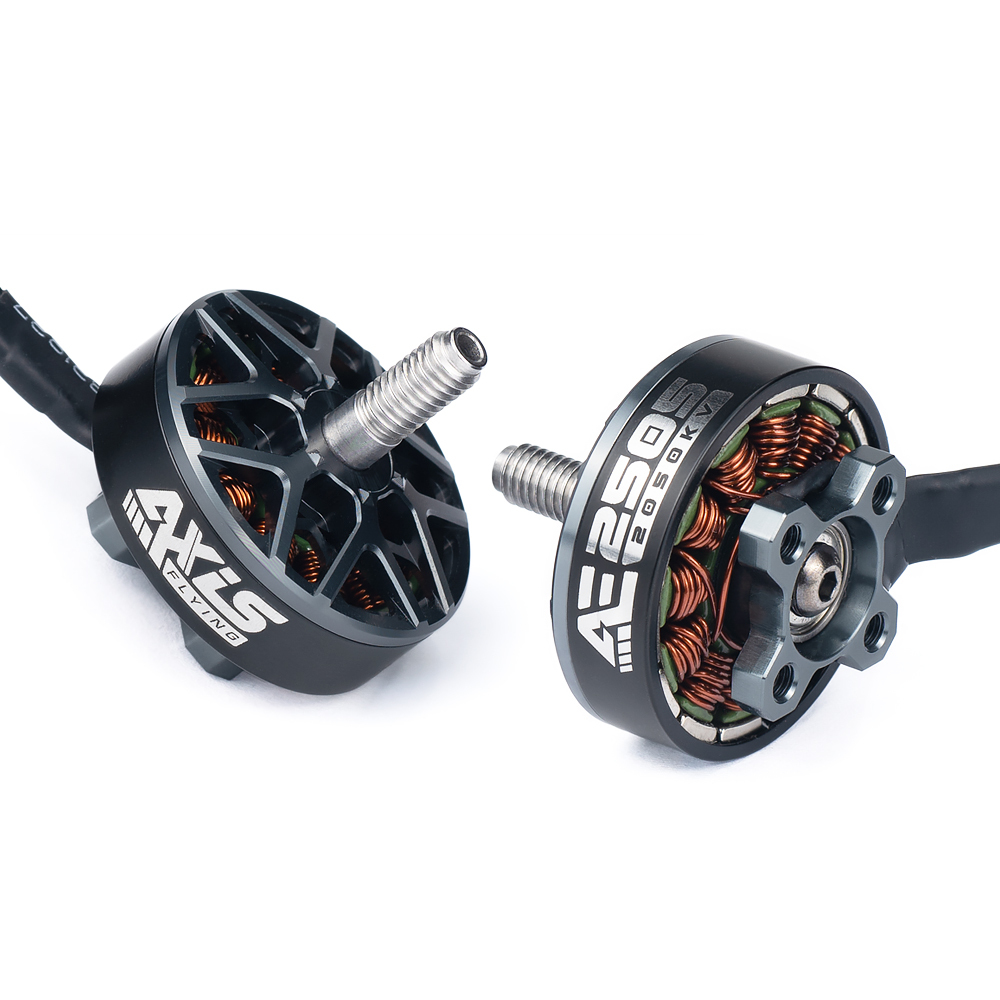

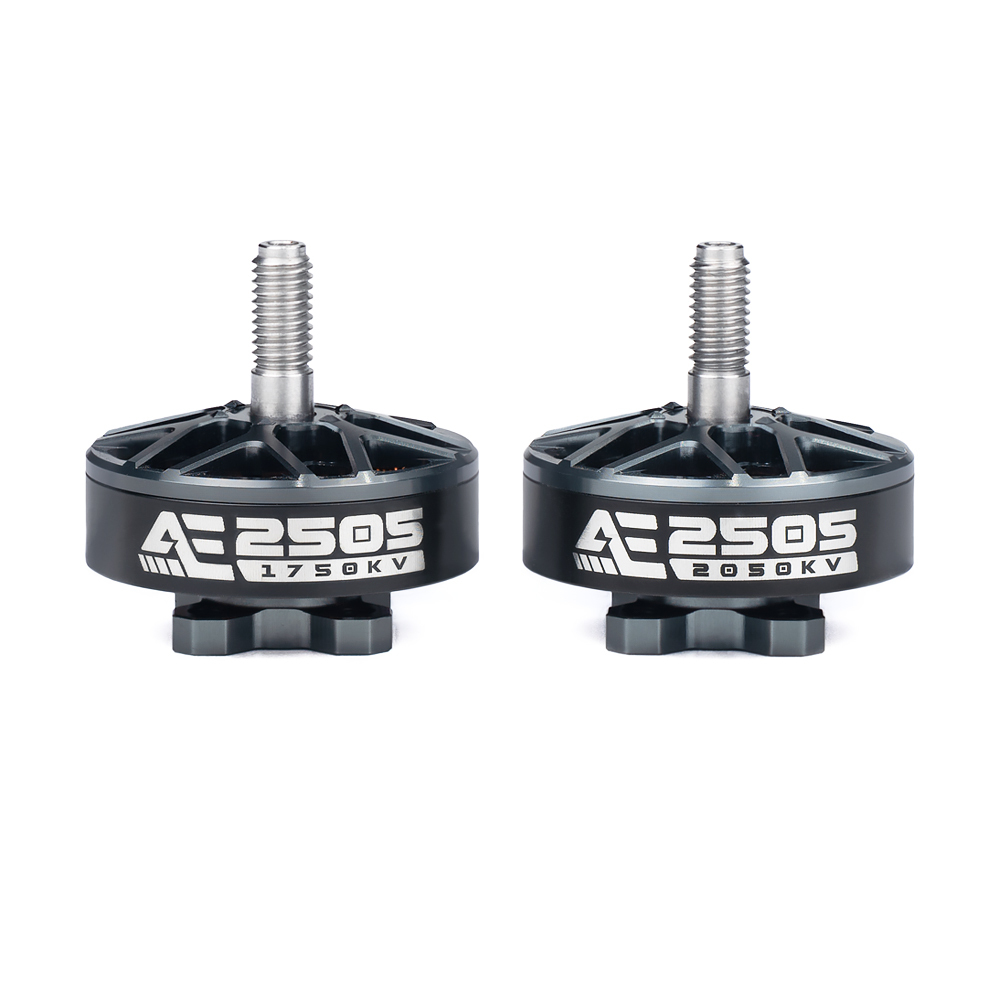

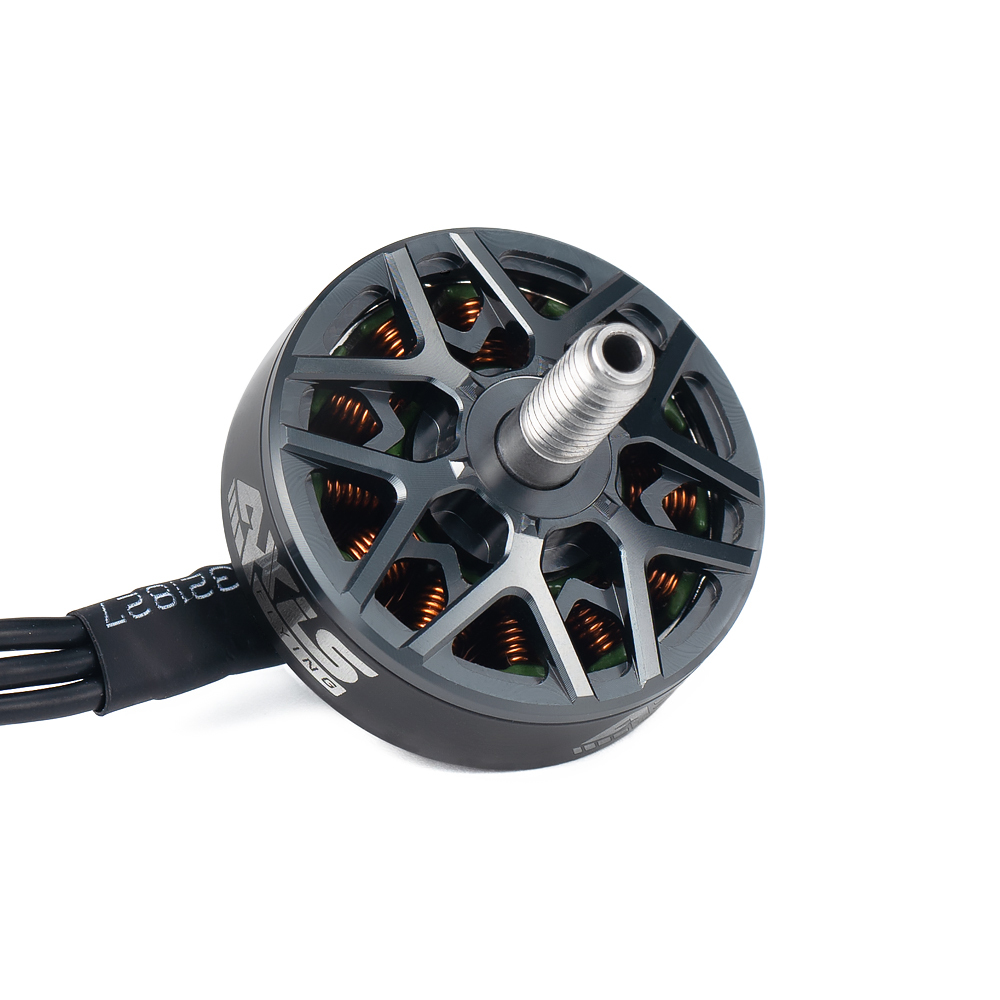

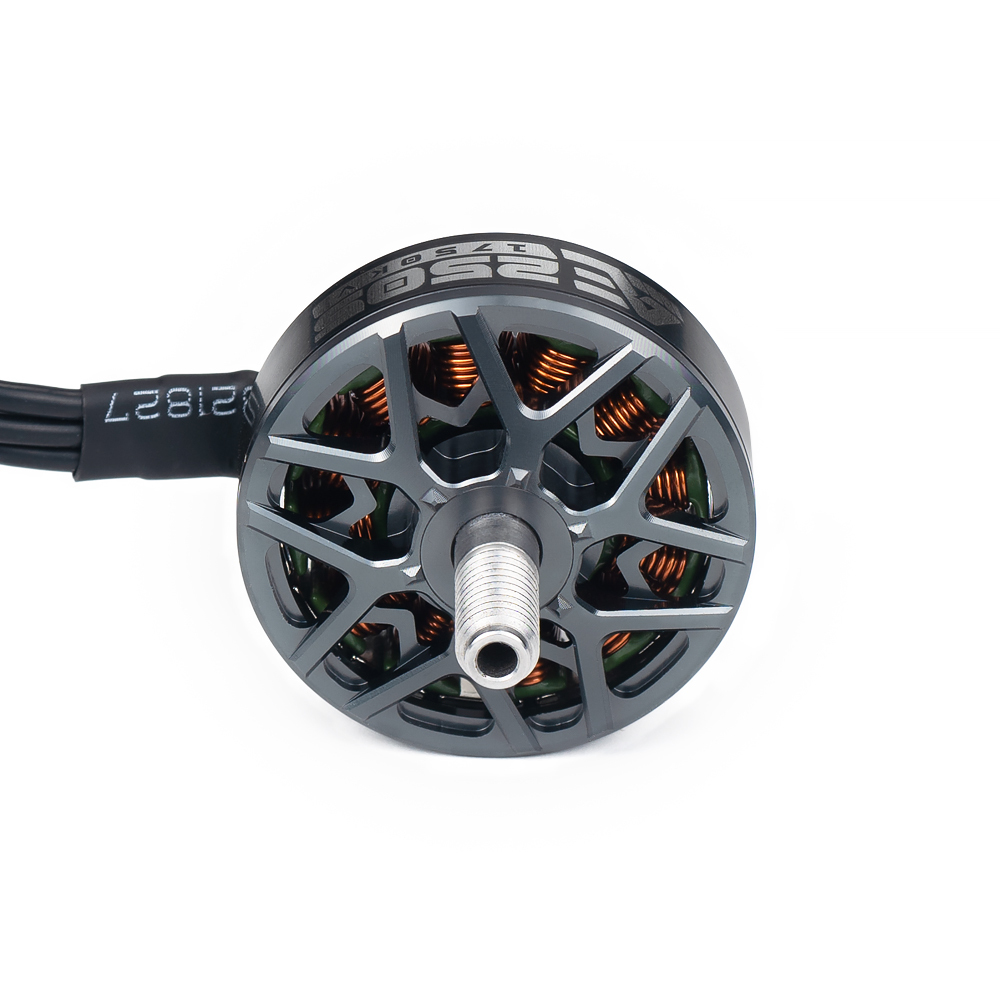

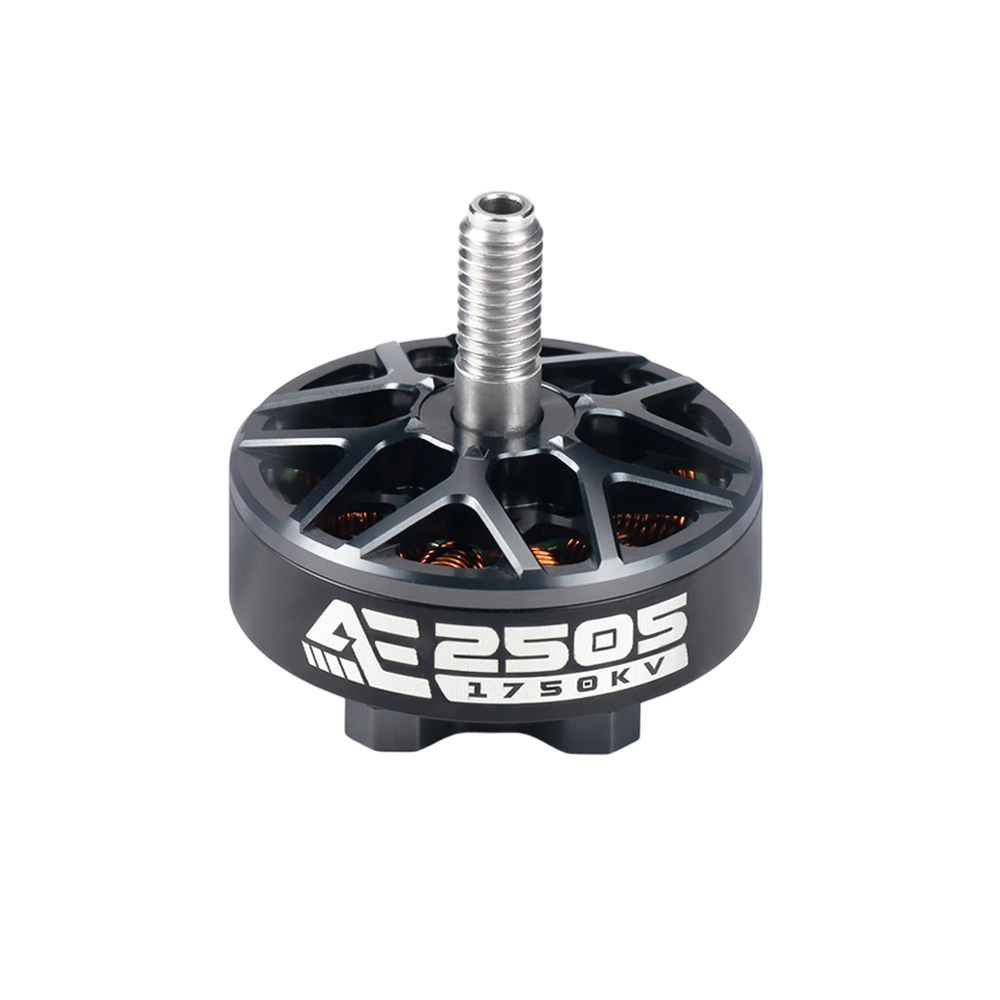

• Motor: Axisflying AE2505 1750KV / 2050KV
• Voltage: 6S LiPo
• Props: 51466 V2 / HQ 6×3×3 / HQ MCK / 51366
• Application: 5-inch FPV freestyle, acro, sbang

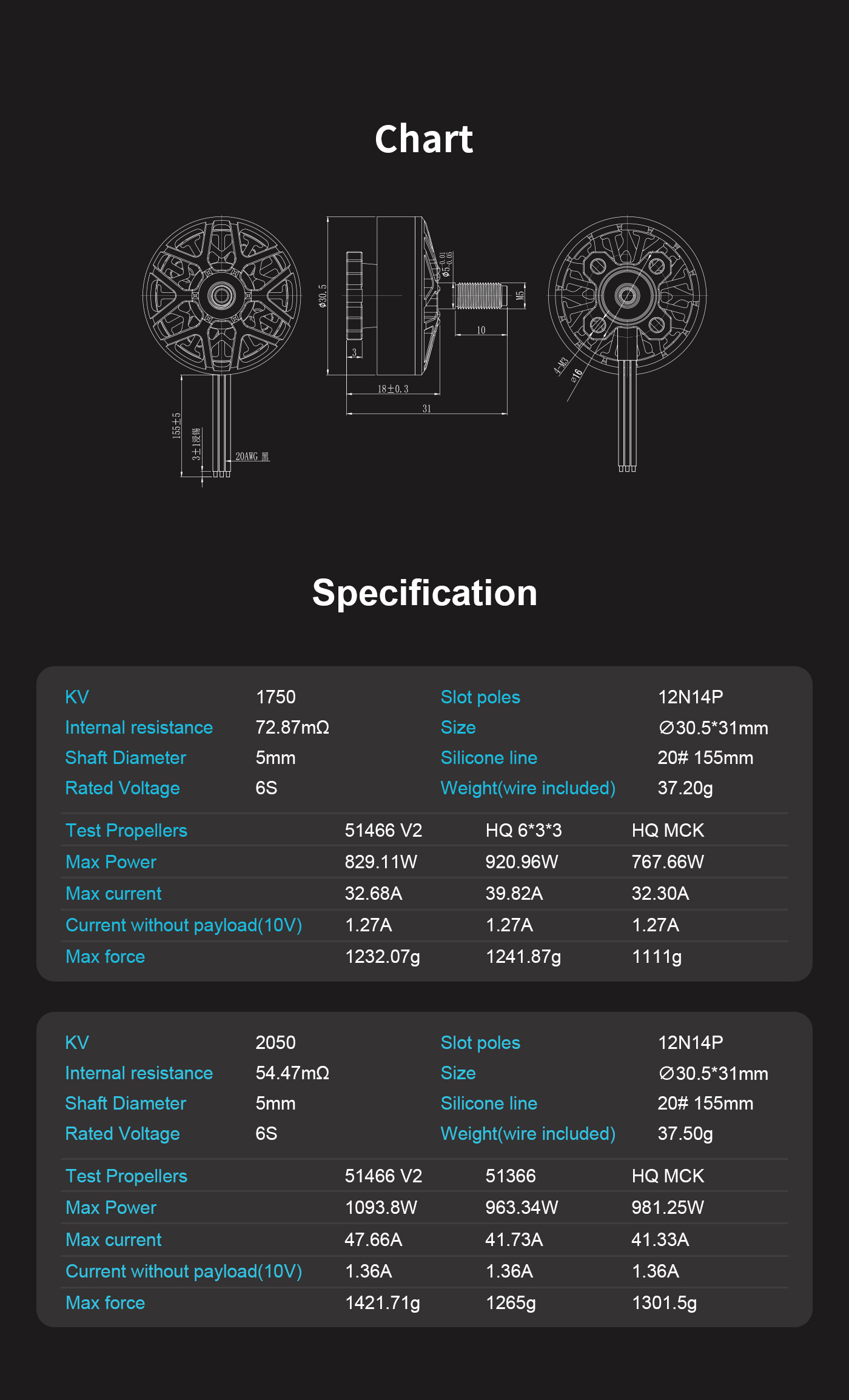

Specifications

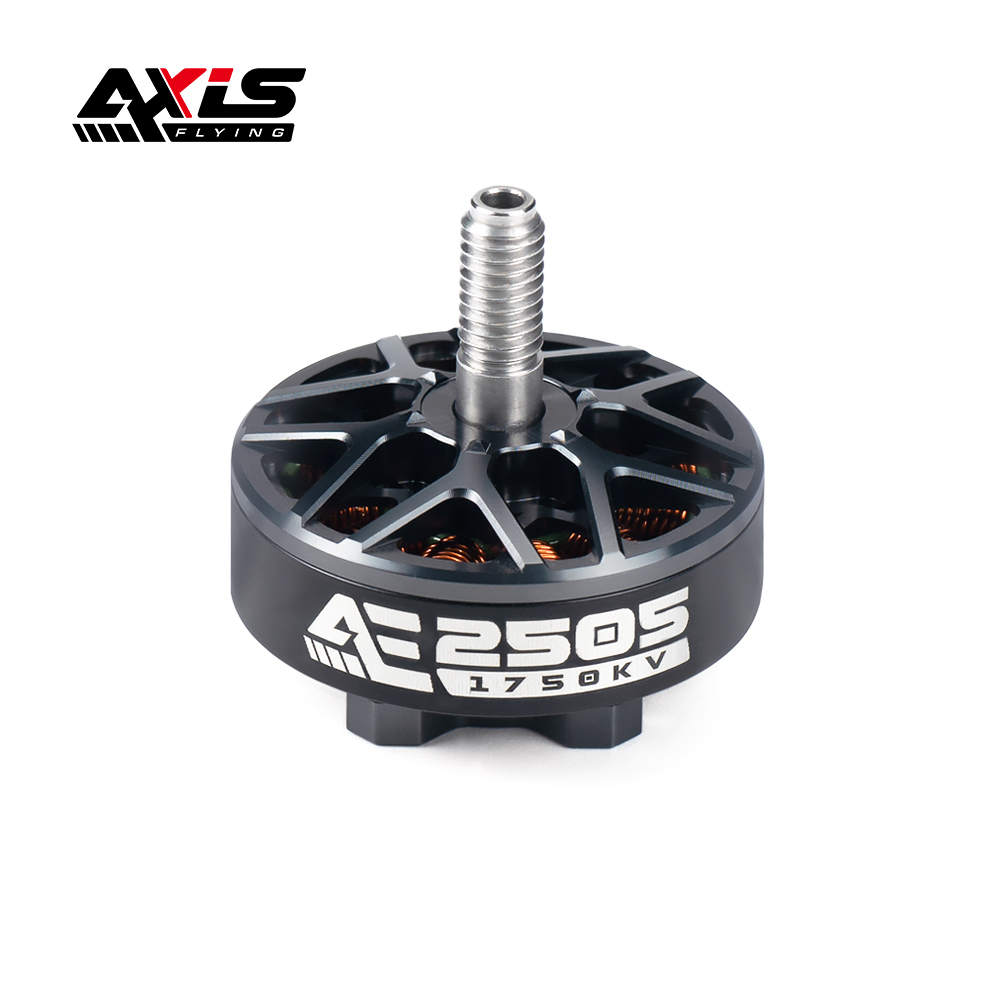

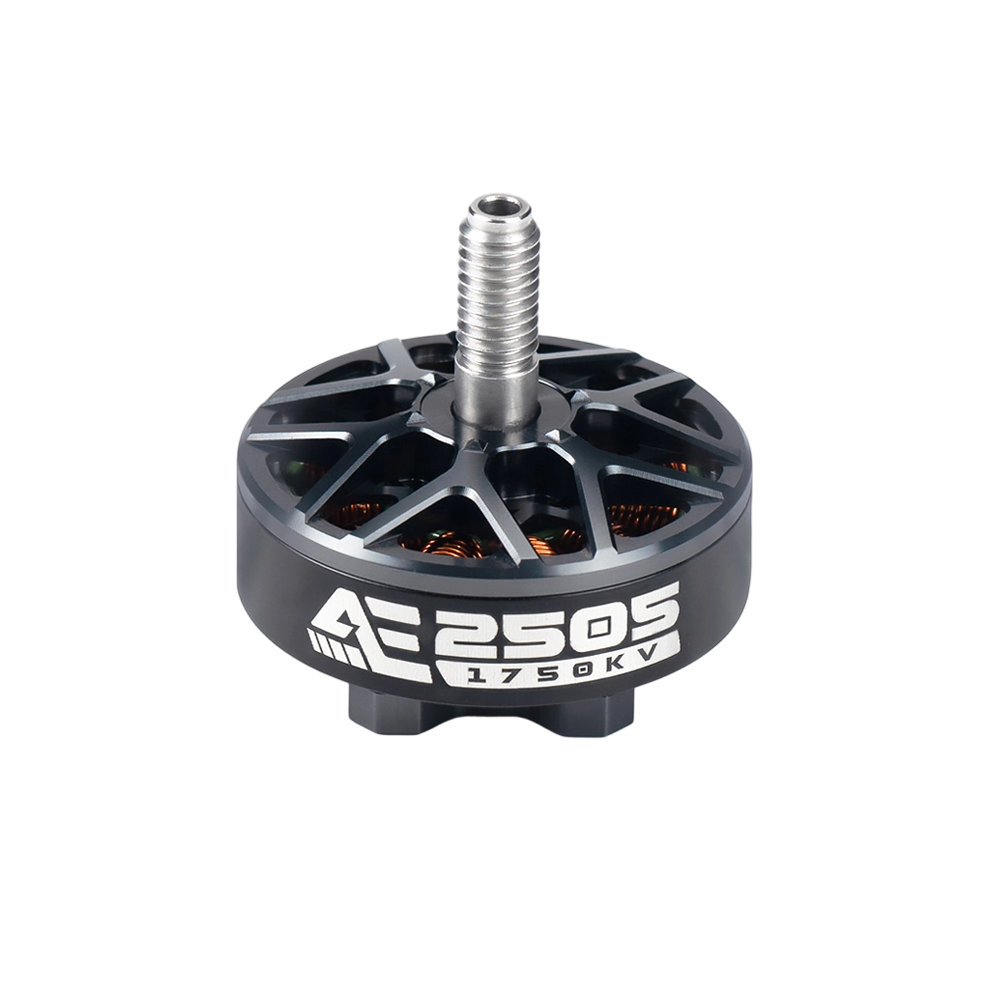

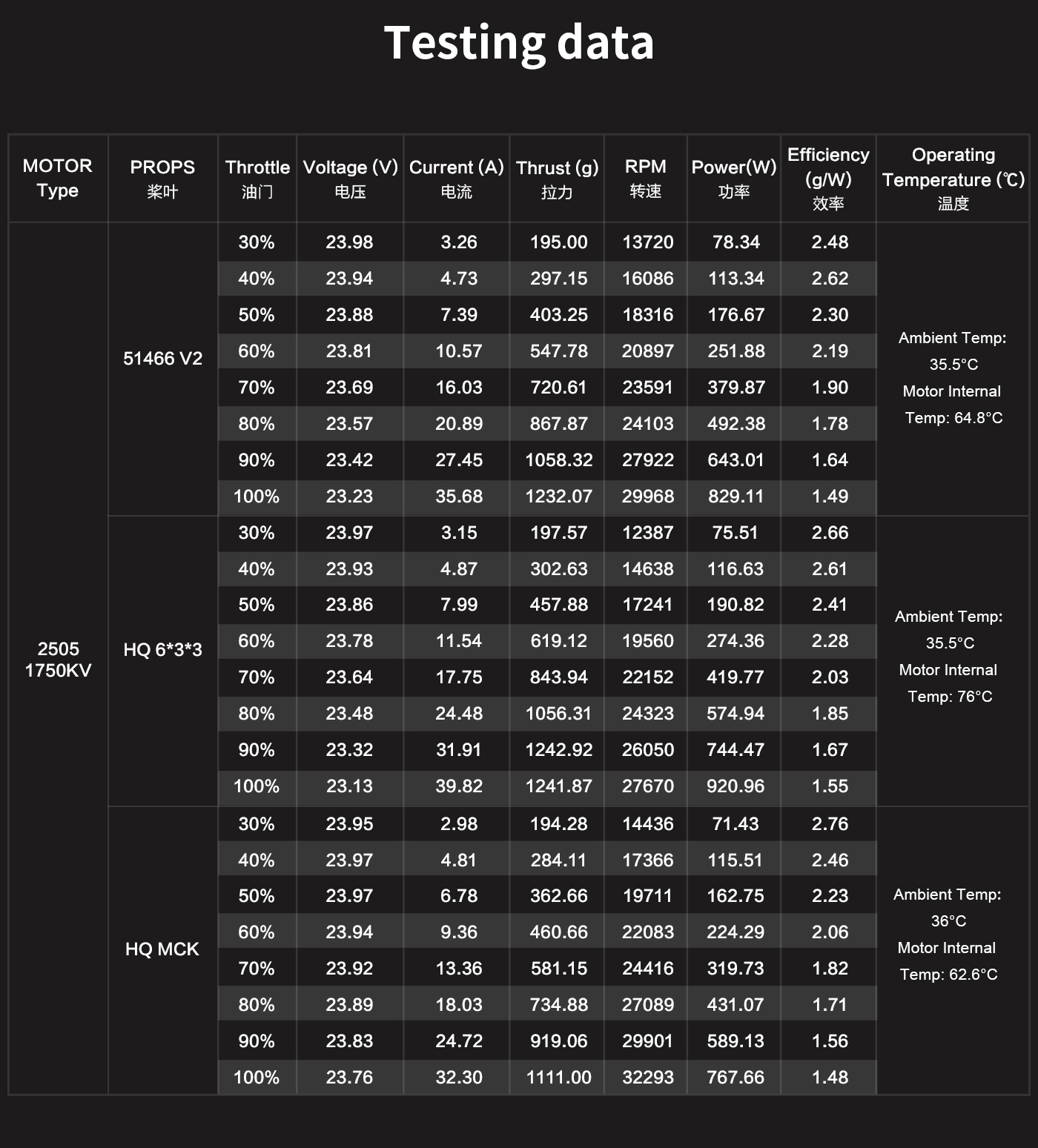

AE2505 1750KV

• KV: 1750KV
• Configuration: 12N14P
• Internal Resistance: 72.87mΩ
• Size: 30.5×31mm
• Shaft Diameter: 5mm
• Silicone Wire: 20# 155mm
• Rated Voltage: 6S
• Weight (with wire): 37.20g
• Max Power: 920.96W
• Max Current: 39.82A
• Max Thrust: 1241.87g
• Idle Current (10V): 1.27A
• Mount: 4×M3

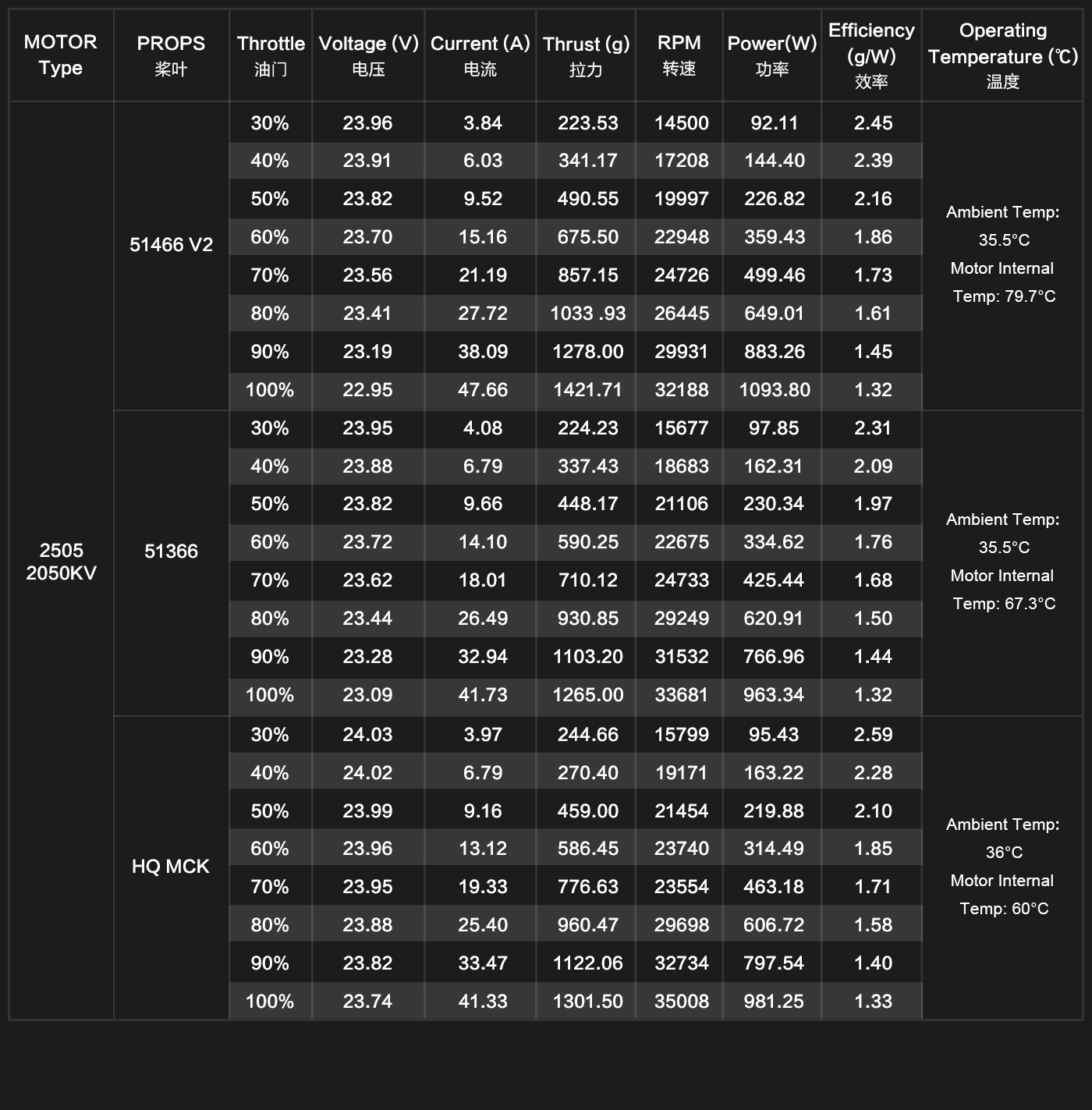

AE2505 2050KV

• KV: 2050KV
• Configuration: 12N14P
• Internal Resistance: 54.47mΩ
• Size: 30.5×31mm
• Shaft Diameter: 5mm
• Silicone Wire: 20# 155mm
• Rated Voltage: 6S
• Weight (with wire): 37.50g
• Max Power: 1093.8W
• Max Current: 47.66A
• Max Thrust: 1421.71g
• Idle Current (10V): 1.36A
• Mount: 4×M3

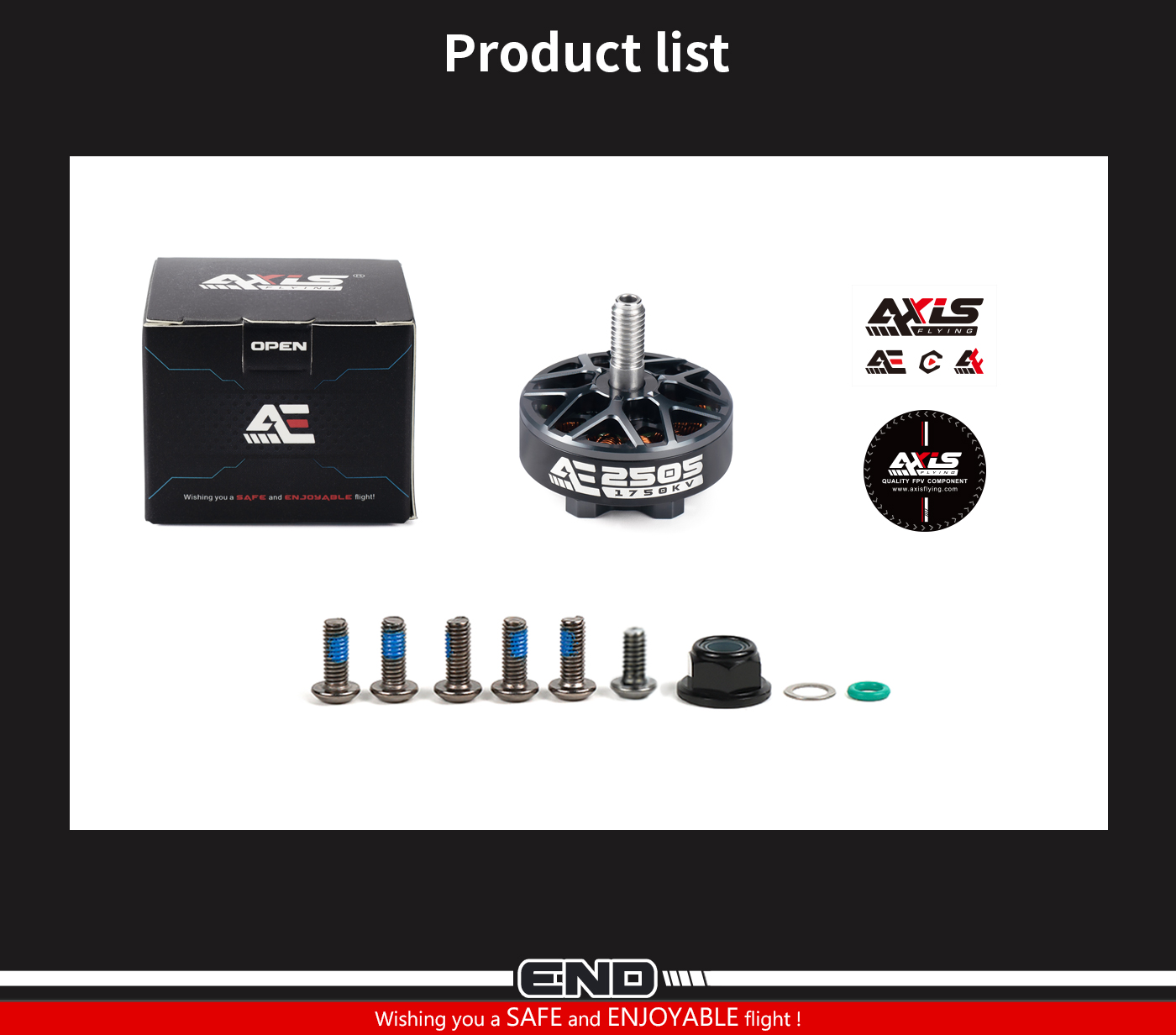

Package Contents

1. AE2505 Brushless Motor ×1
2. Mounting screws set ×1
3. Shaft lock screw & nut ×1
4. Damping ring & washer ×1
