Foreword
Axisflying focuses on user experience and carefully studies user sore points. In the field of freestyle and BANDO flying, we continuously absorb user feedback and summarise product design experience. Axisflying combines full aluminum skeleton, zero‑gap interlocking structure and high‑strength T700 carbon plates to create the BANDO 5 series — a true battle‑ready frame built for extreme BANDO flight.
Feature
- BANDO 5 True X is a 5‑inch freestyle frame Born for BANDO flight, designed for tight space, high‑intensity tricks and extreme crash resistance.

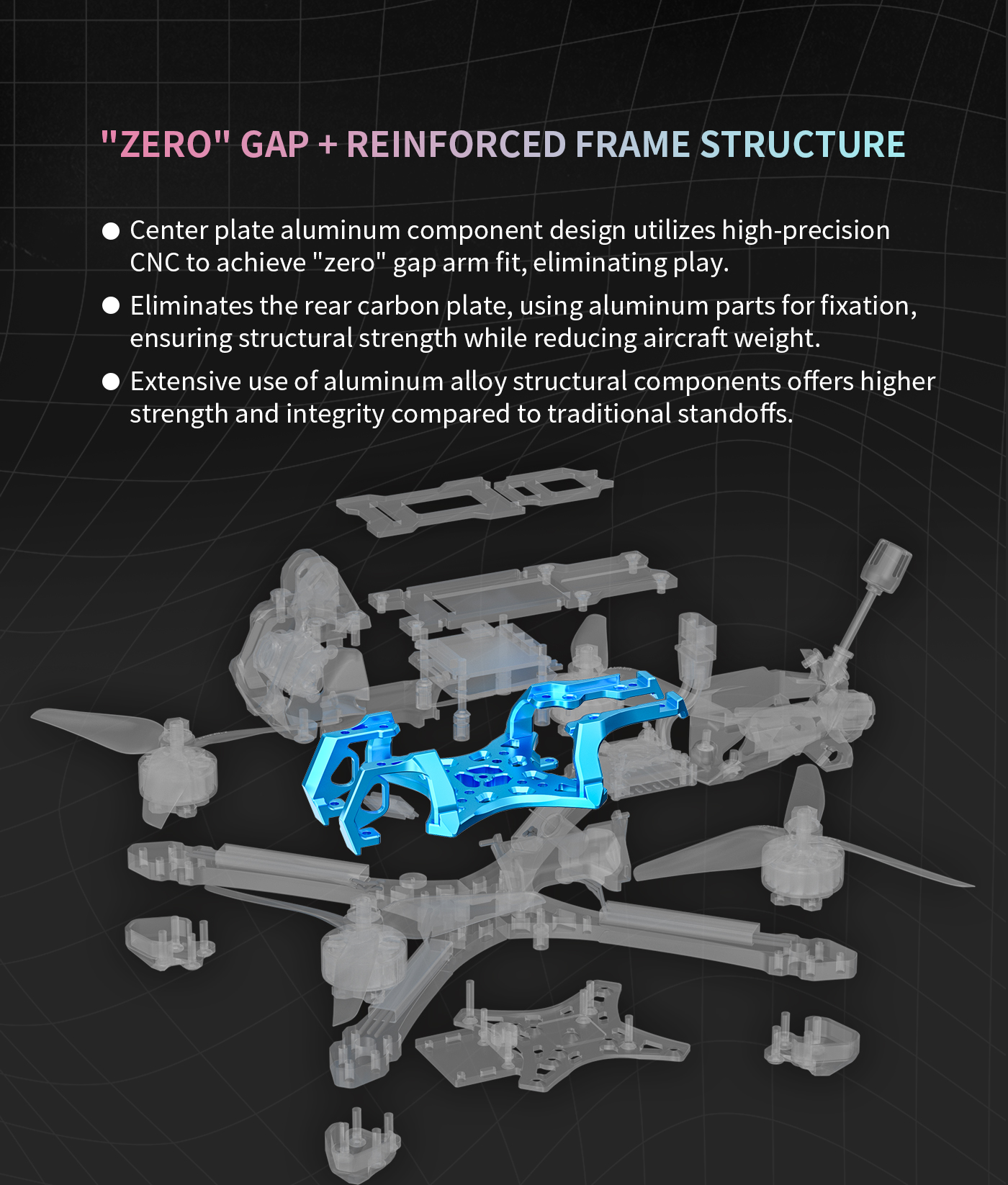

- Industry first full aluminum skeleton + zero‑gap interlocking arm structure for zero play, ultra‑high integrity and maximum durability.

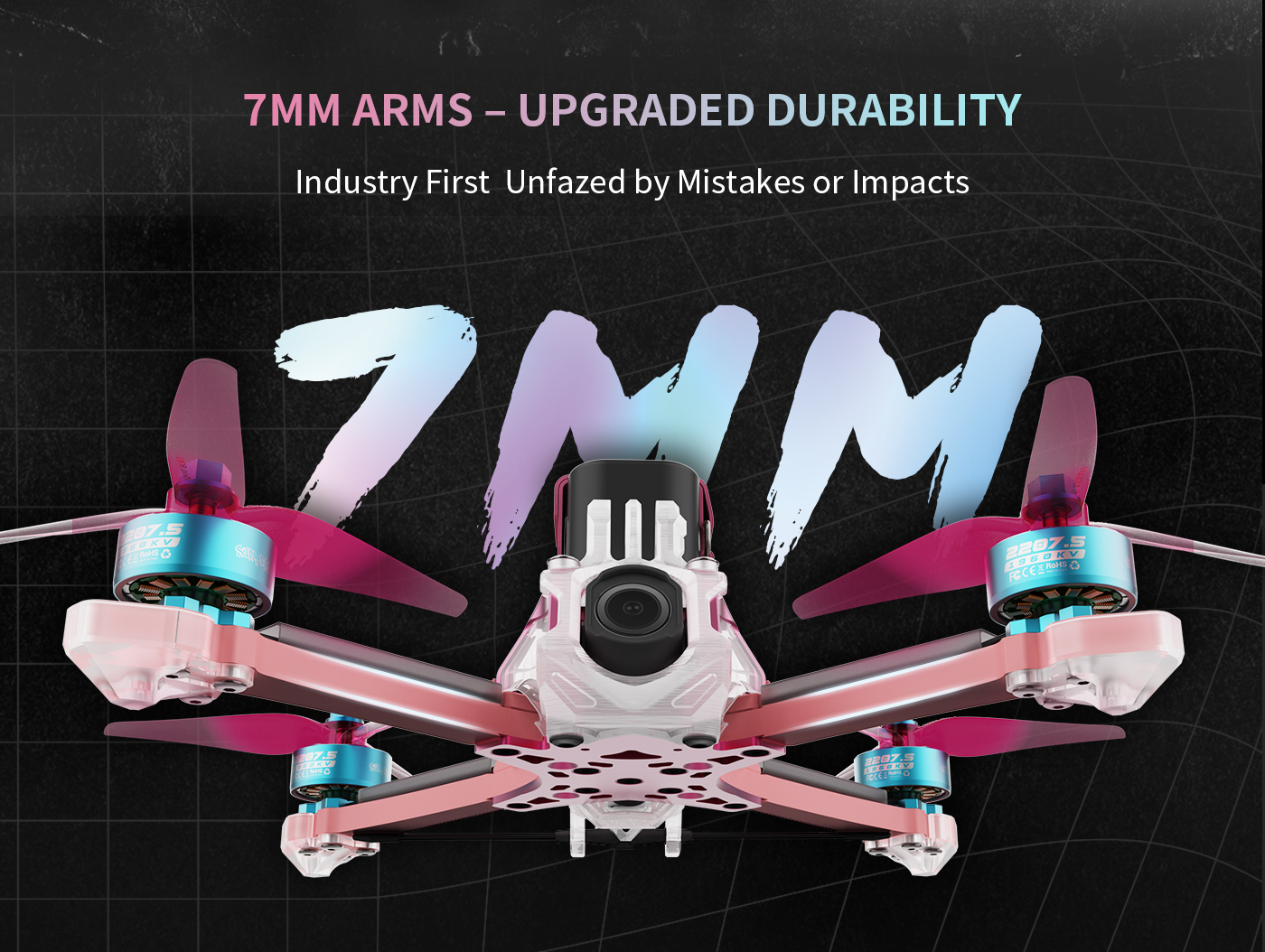

- 7mm ultra‑thick arms with 7075 aerospace aluminum parts, far beyond ordinary 5‑inch frames, unfazed by frequent crashes.

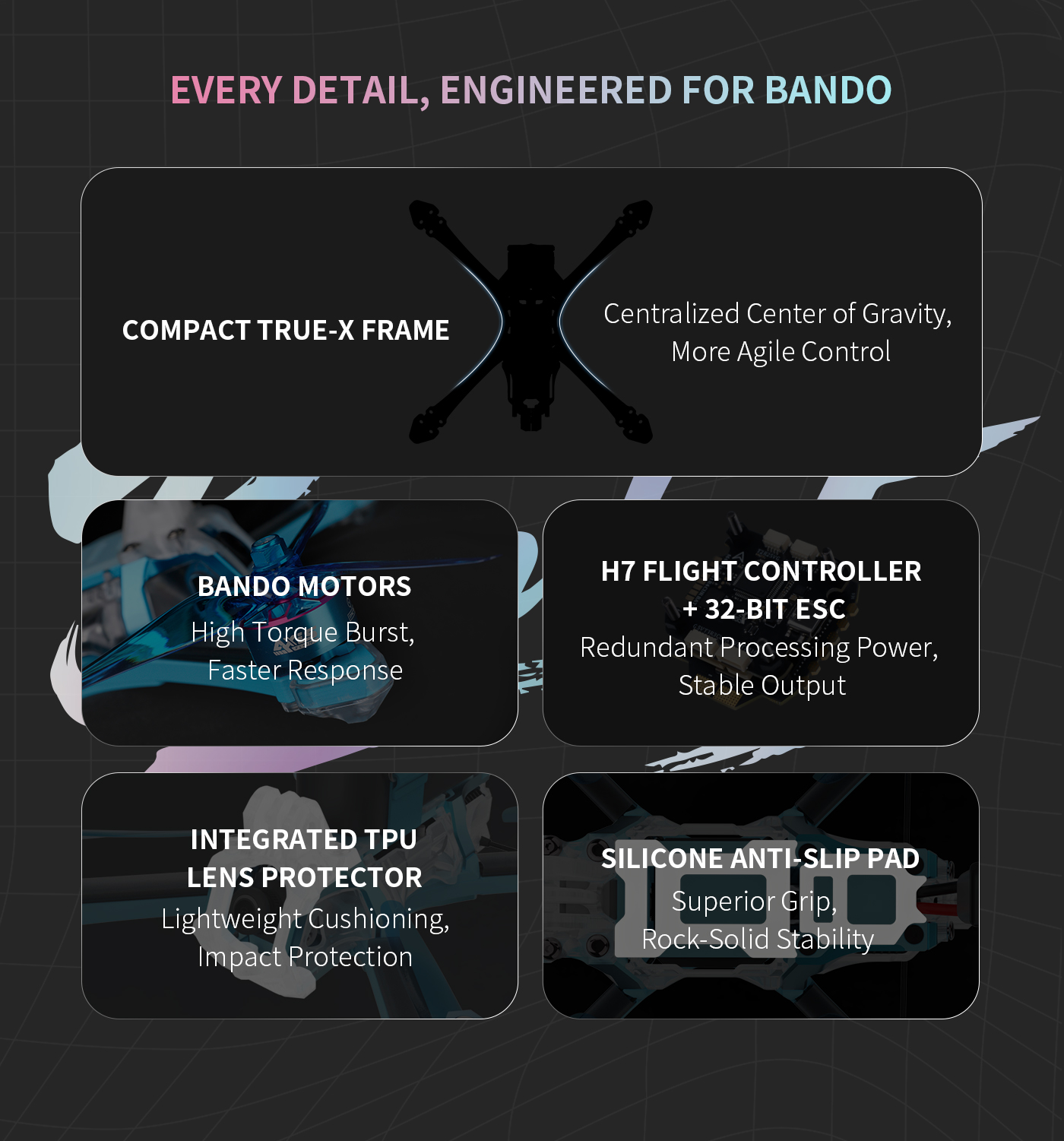

- Compact True X layout with centralized center of gravity for agile control and instant response.
- Equipped with H743 Pro flight controller + dual ICM‑42688 gyro + DPS368 barometer for stable and precise flight.
- 32‑bit high‑performance ESC and BANDO 2207.5 motor for strong torque burst and stable output.

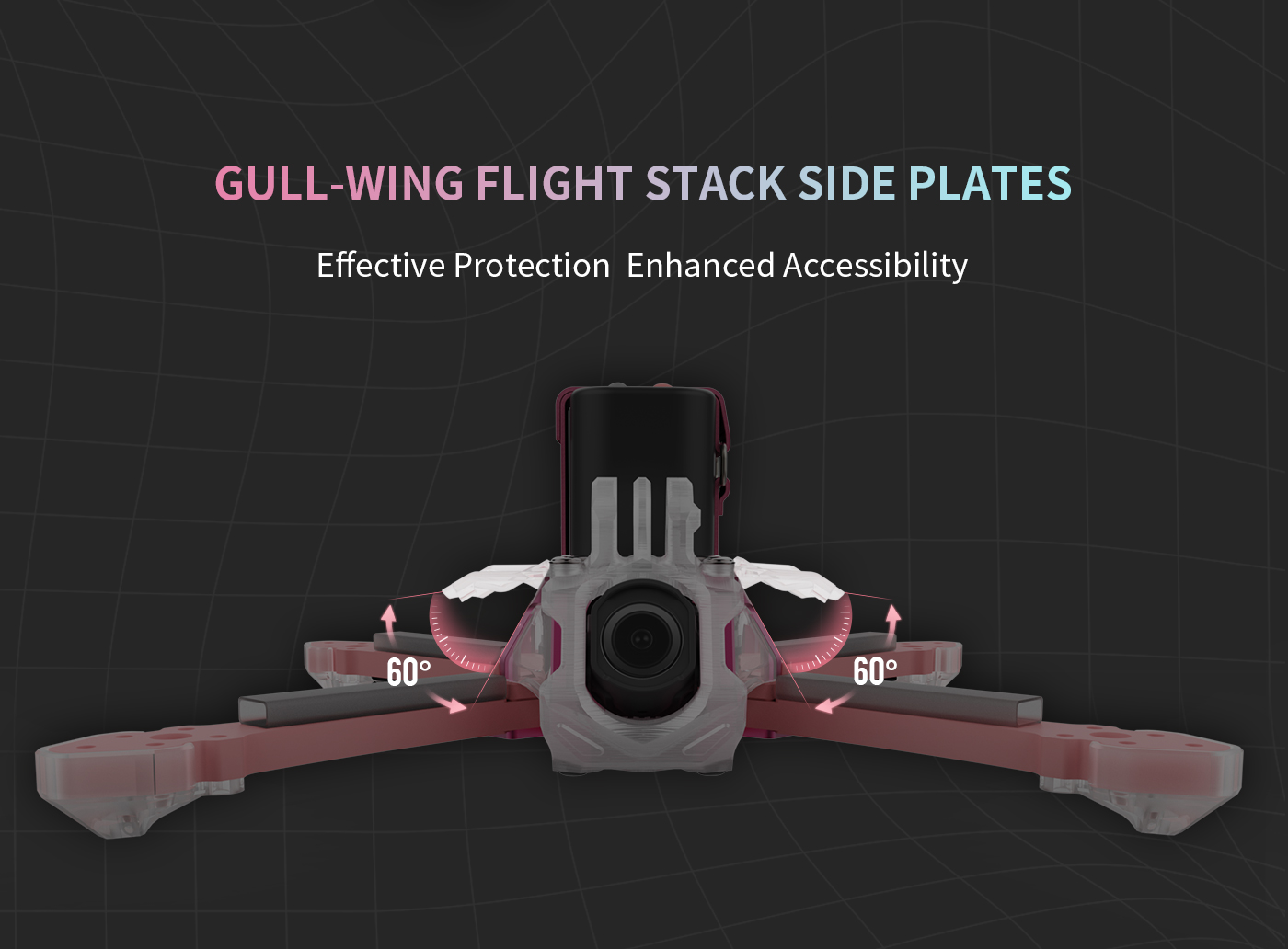

- Gull‑wing design side plates provide effective protection and better accessibility.
- Integrated TPU lens protector for lightweight cushioning and impact resistance.
- Silicone anti‑slip pad ensures solid and stable landing.
- Supports Analog / DJI O4 Lite / O4 PRO VTX, dual antenna for long‑range stable signal.

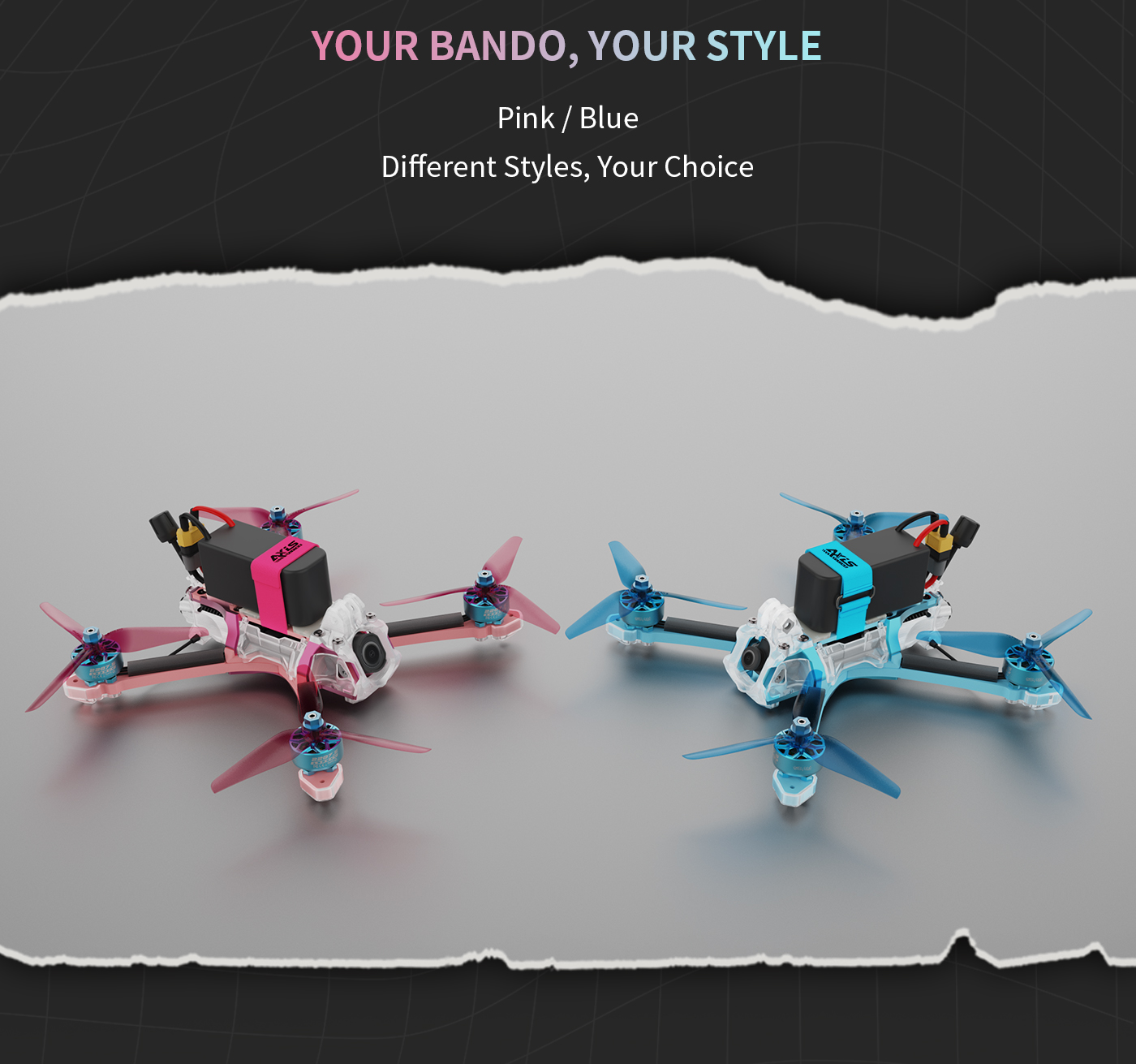

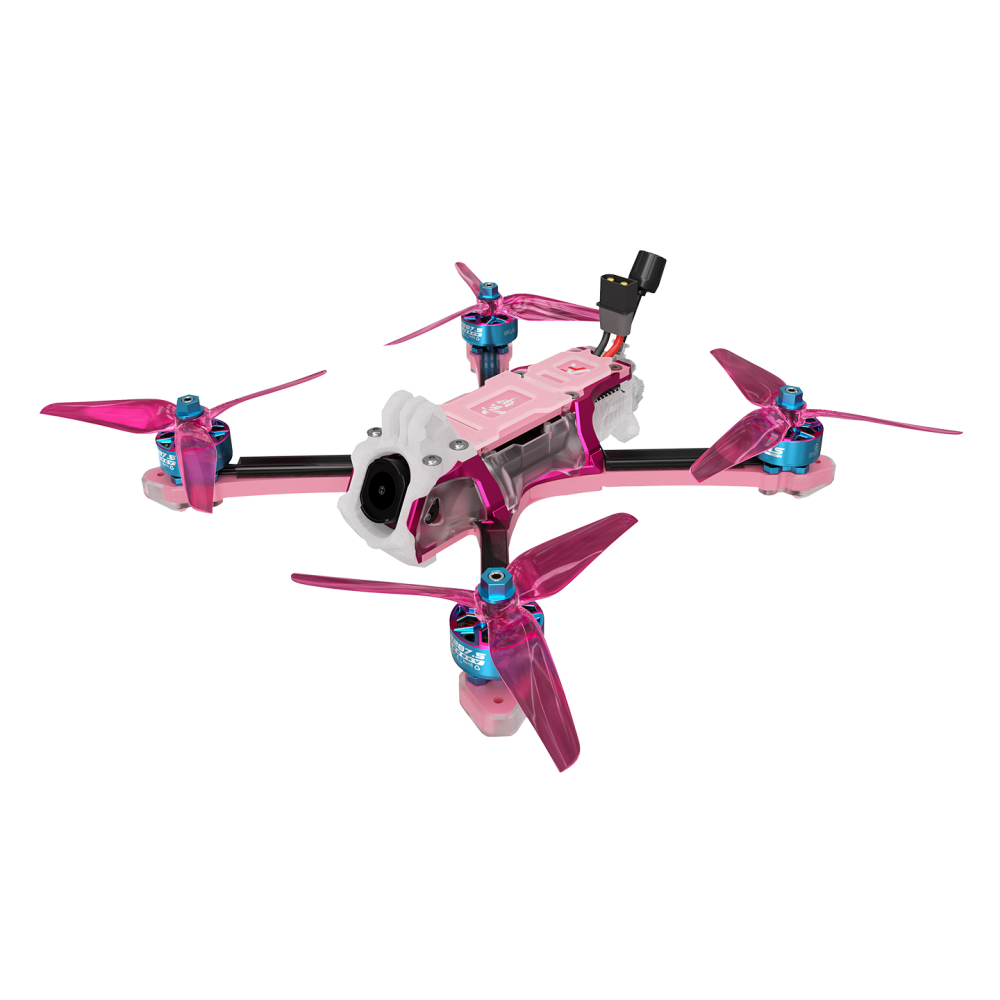

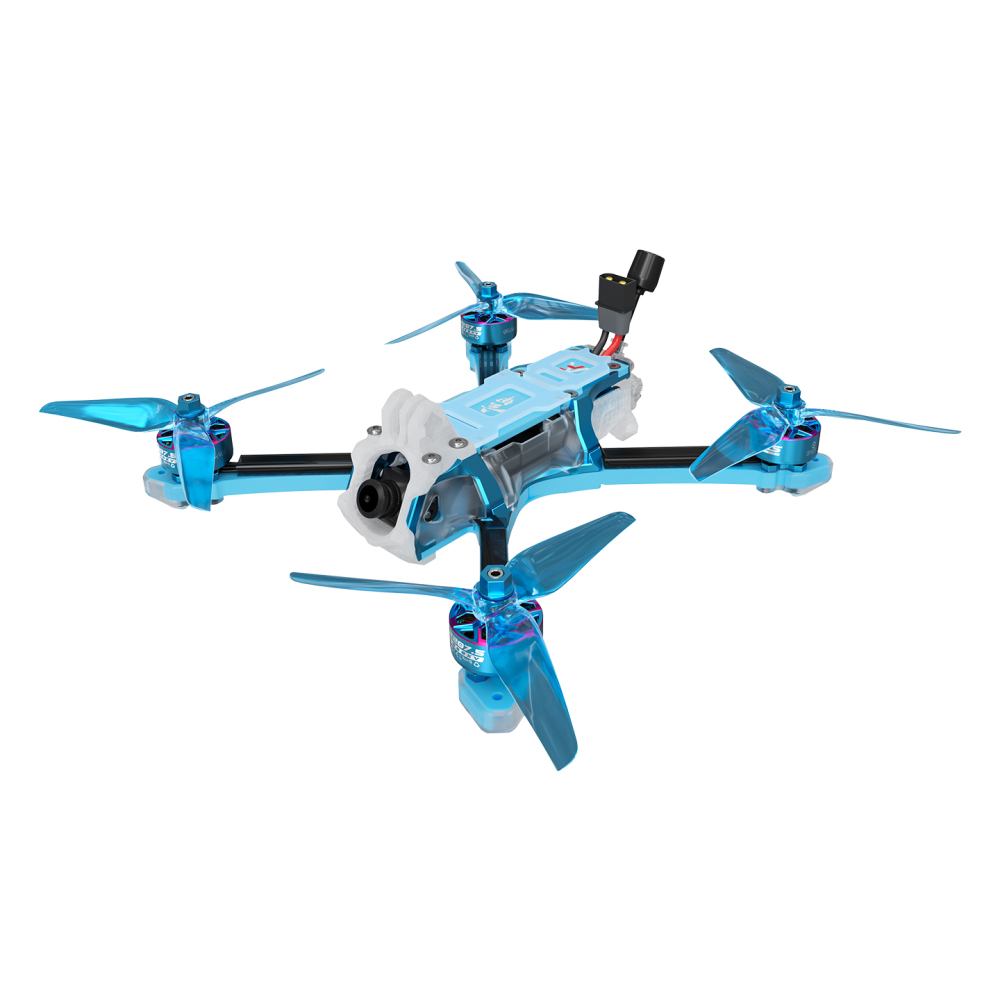

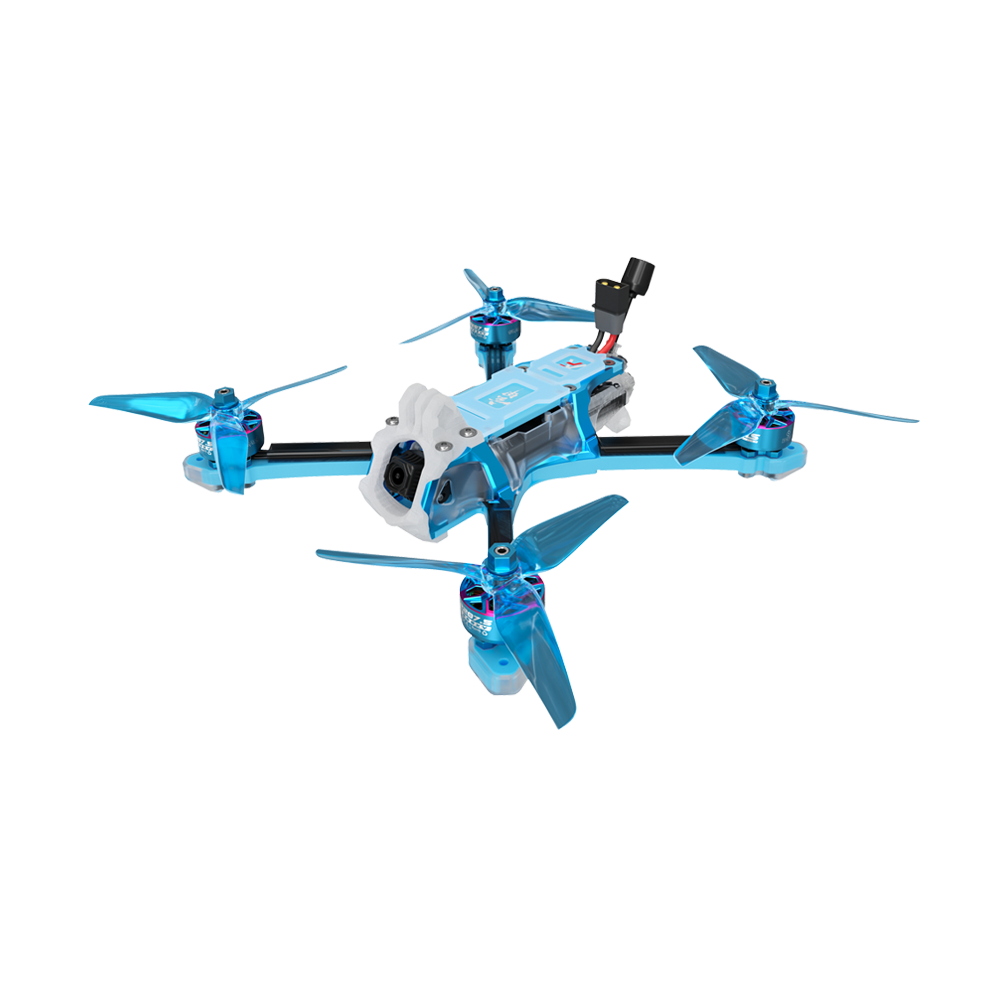

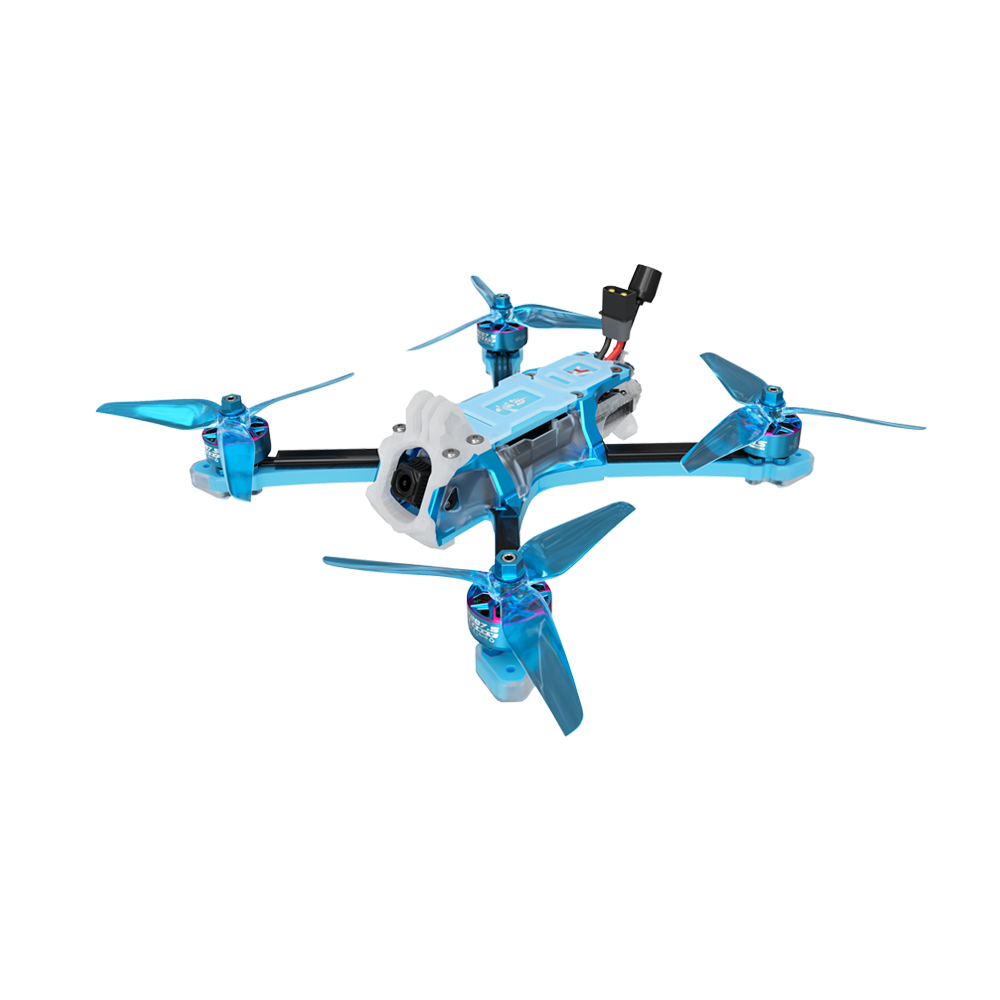

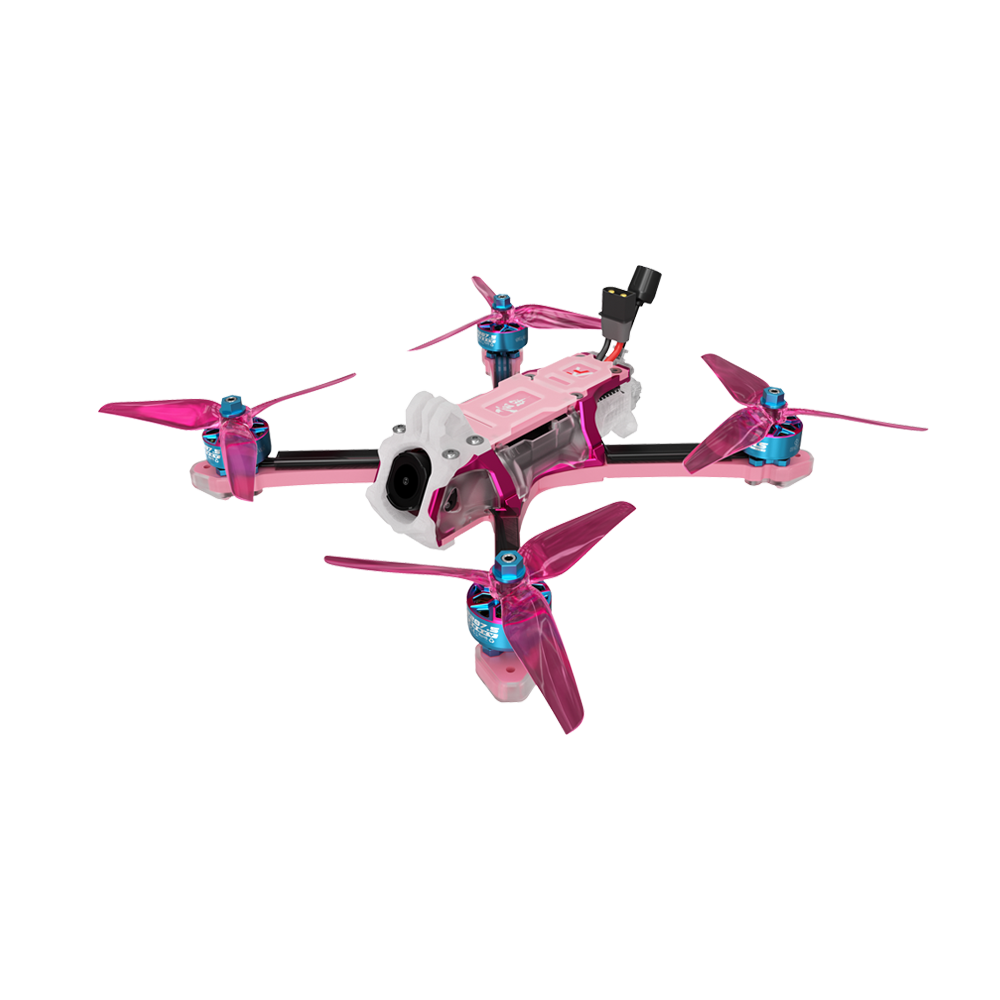

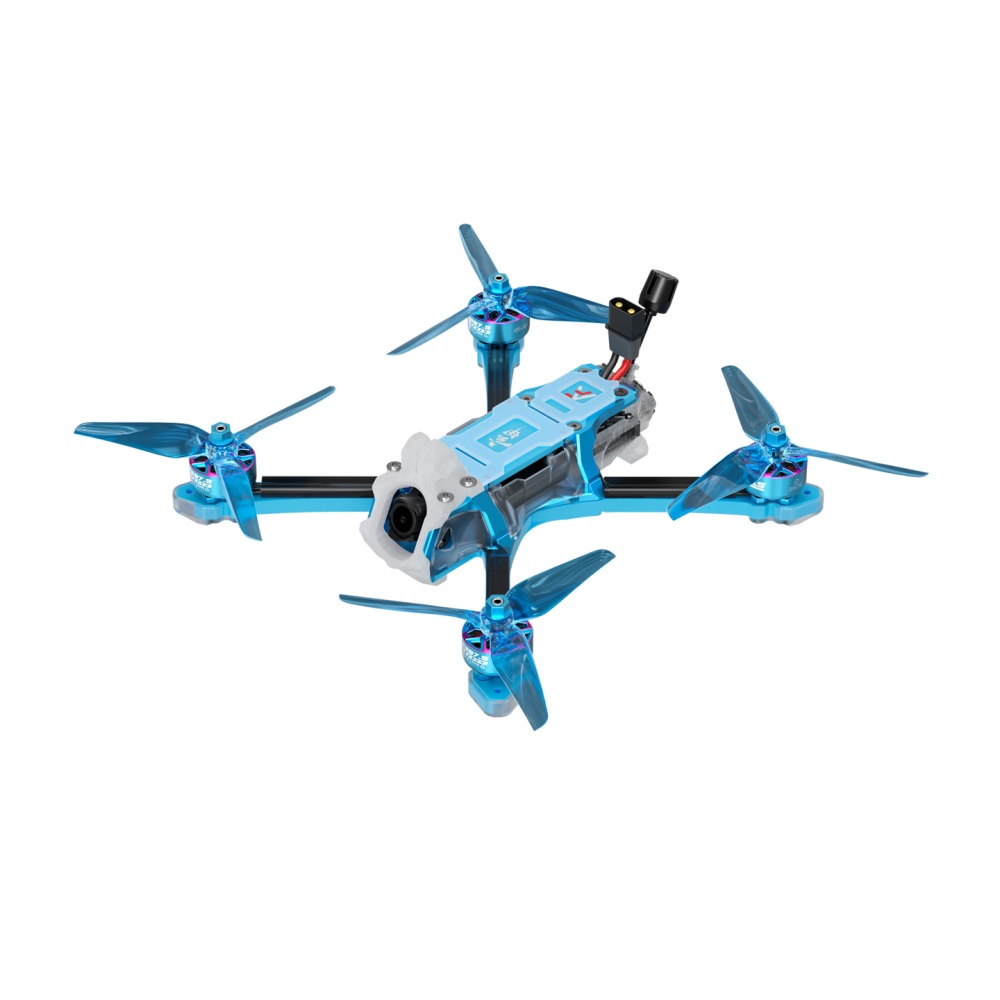

- Available in Pink / Blue colors, stylish and personalized for BANDO pilots.
Recommended configuration
Motor: BANDO 2207.5 1960KV 6S
Battery: 6S LiPo 1300–1800mAh
Stack: Axisflying H743 Pro FC + 32‑bit ESC
Props: HQ R37
VTX: Smurfs V2 / DJI O4 Lite / O4 PRO
Receiver: AXIS ELRS 2.4G
GPS: Beizheng 121

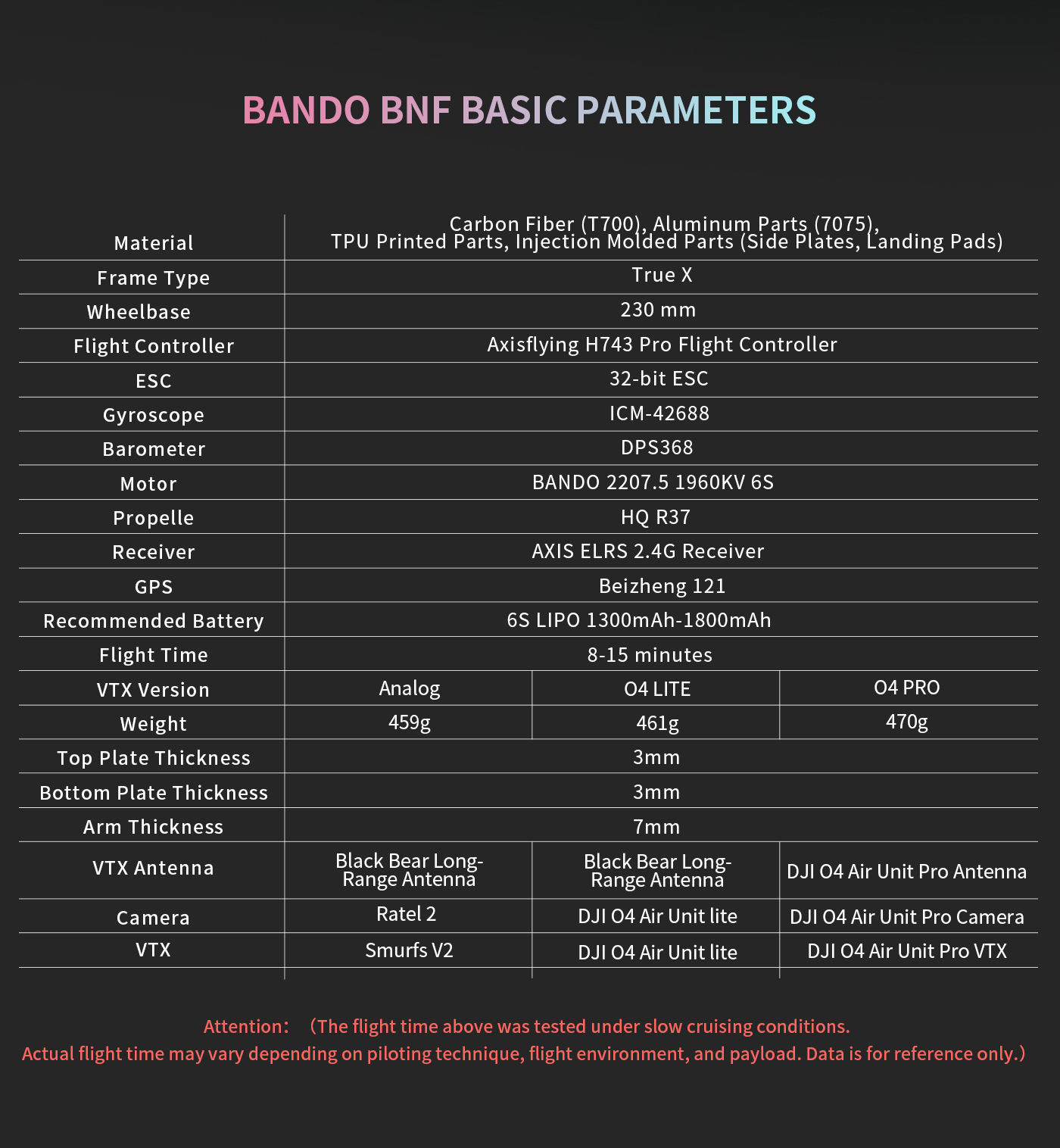

Specifications

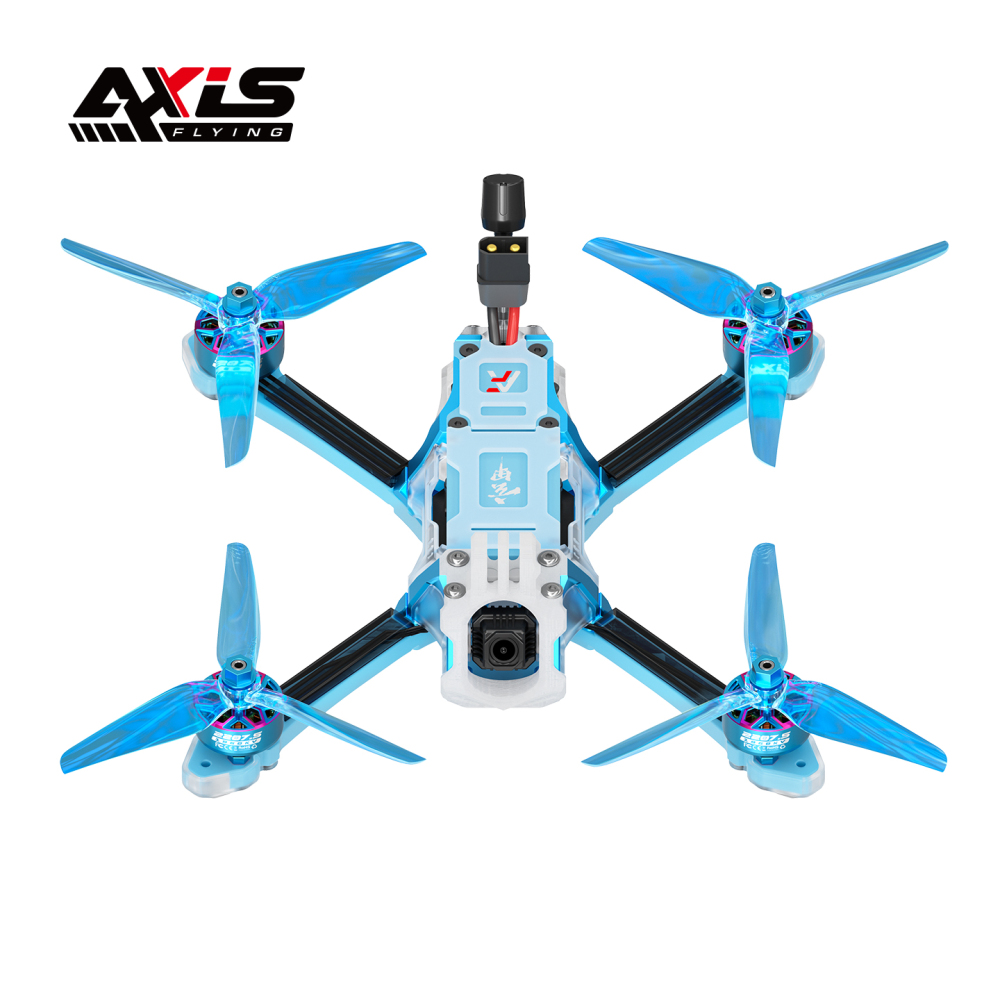

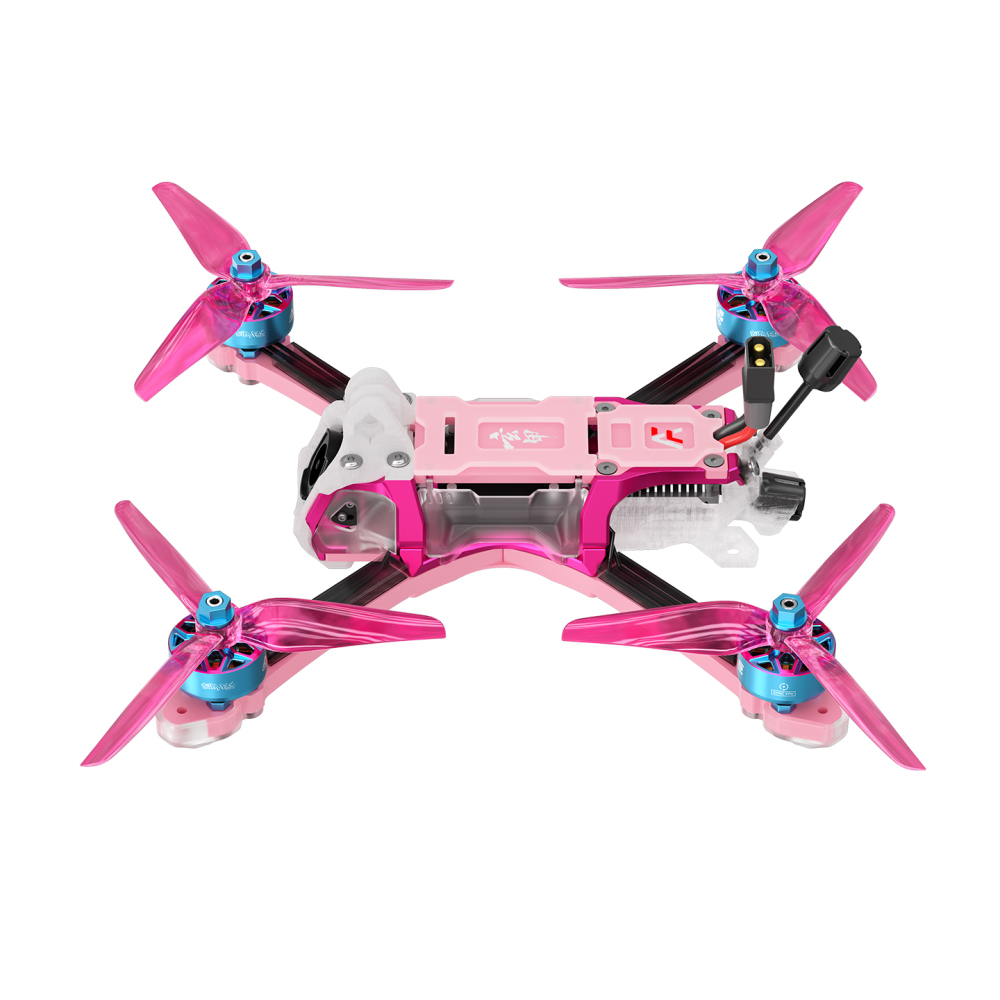

Name: Axisflying BANDO 5 True X
Frame Type: True X
Wheelbase: 230mm
Material: T700 Carbon Fiber + 7075 Aluminum Alloy + TPU / Injection Parts
Arm Thickness: 7mm
Top Plate Thickness: 3mm
Bottom Plate Thickness: 3mm
Flight Controller: Axisflying H743 Pro
Gyro: Dual ICM‑42688
Barometer: DPS368
ESC: 32‑bit ESC
Motor: BANDO 2207.5 1960KV 6S
Prop: HQ R37
VTX Option: Analog / O4 Lite / O4 PRO
Receiver: AXIS ELRS 2.4G
GPS: Beizheng 121
Recommended Battery: 6S 1300–1800mAh LiPo
Flight Time: 8–15 minutes
Weight: 459g / 461g / 470g (by VTX version)

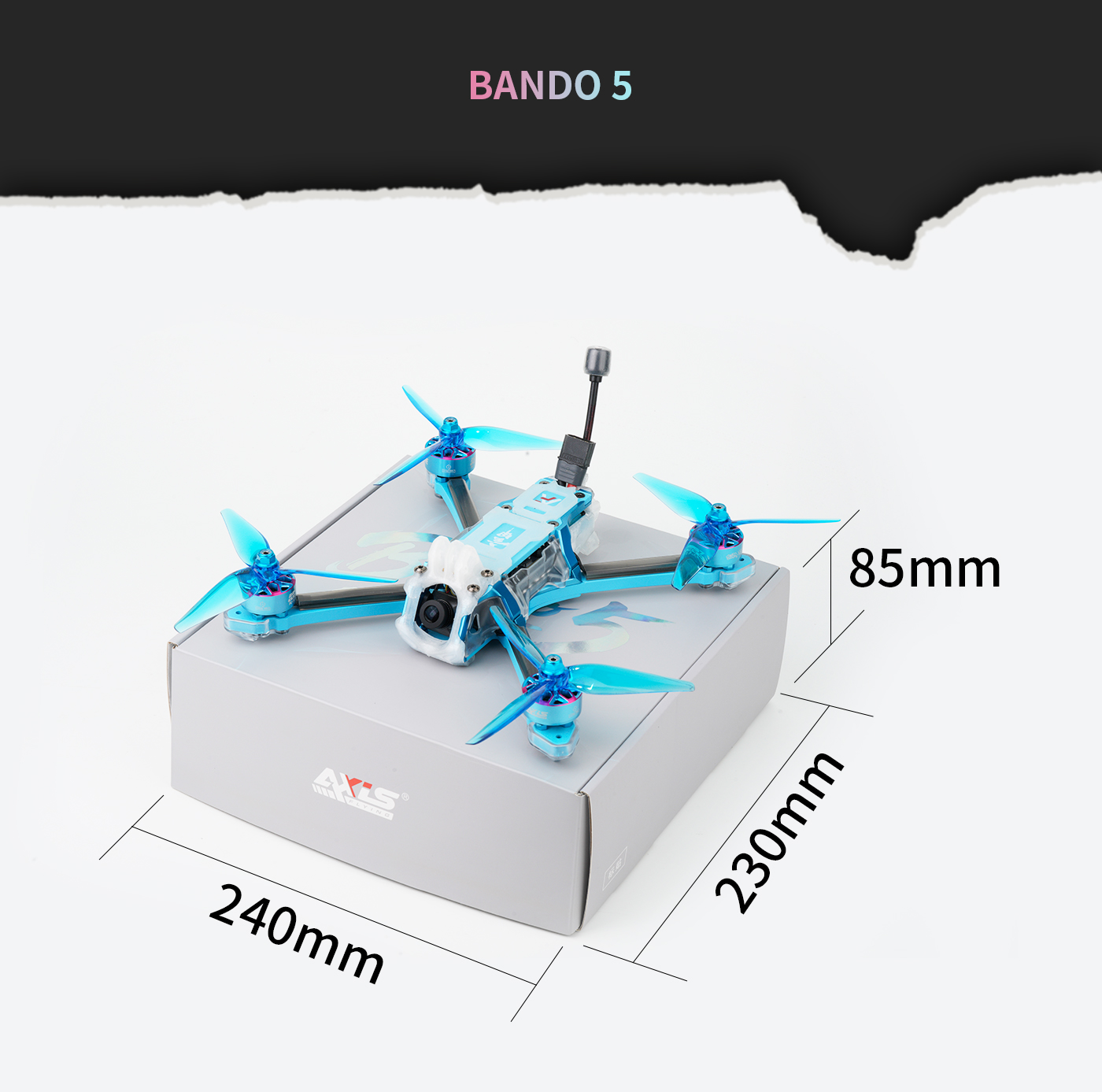

Overall Size: 240mm × 85mm
Package Contents
- BANDO 5 True X Complete Drone ×1
- Propellers ×1 set
- VTX Antenna ×1 / ×2 (by version)
- Mounting Screws & Accessories ×1 set
- User Manual ×1
