Foreword
Axisflying focuses on user experience and carefully studies user sore points. In the field of freestyle and cinematic filming, we continuously absorb user feedback and summarise product design experience. Axisflying combines high-strength carbon plates with fully molded resilient materials to bring the CINEON series of cinematic drones with professional performance and innovative design.
Feature

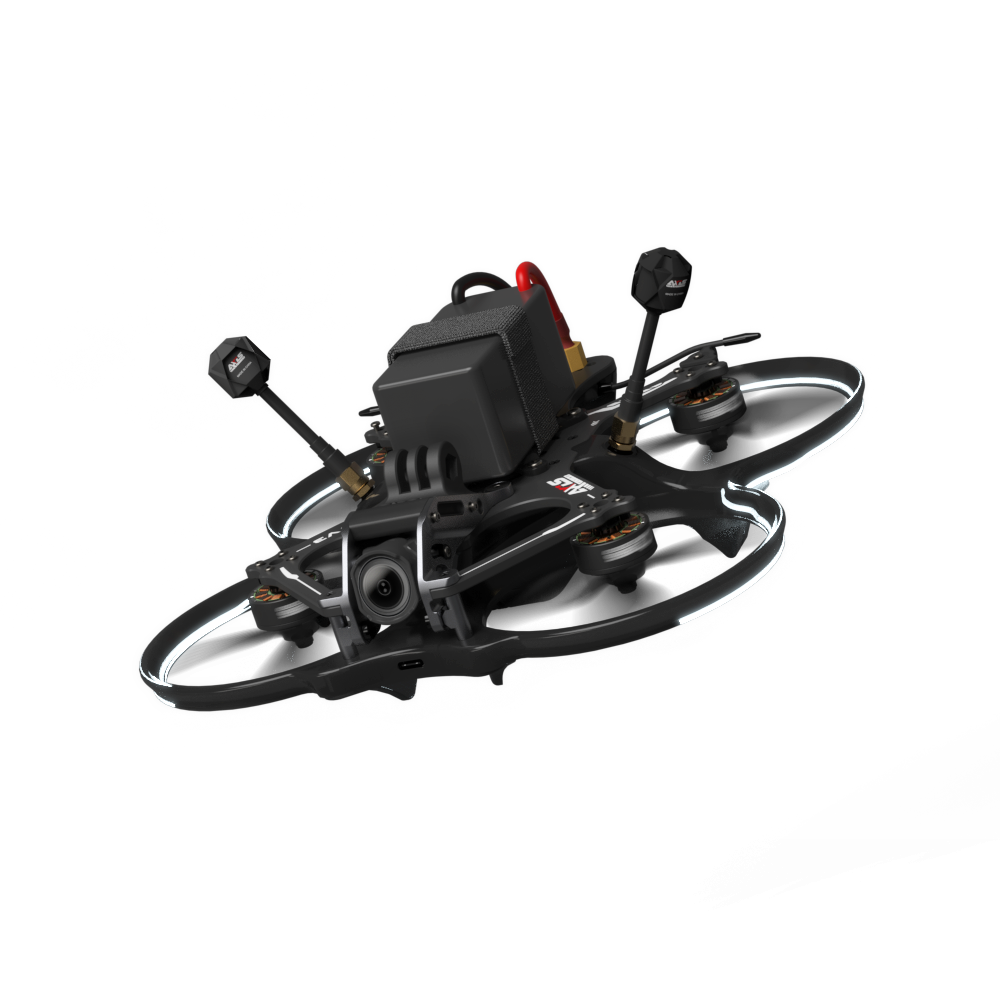

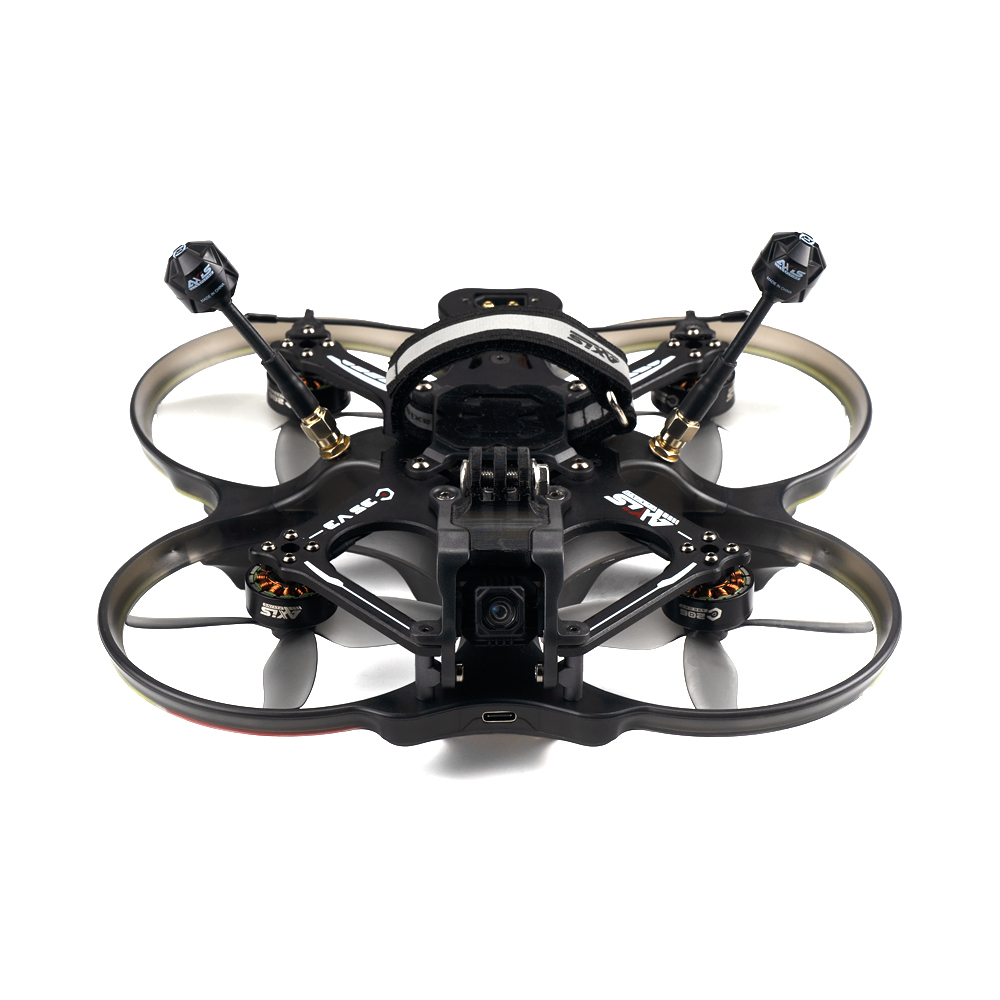

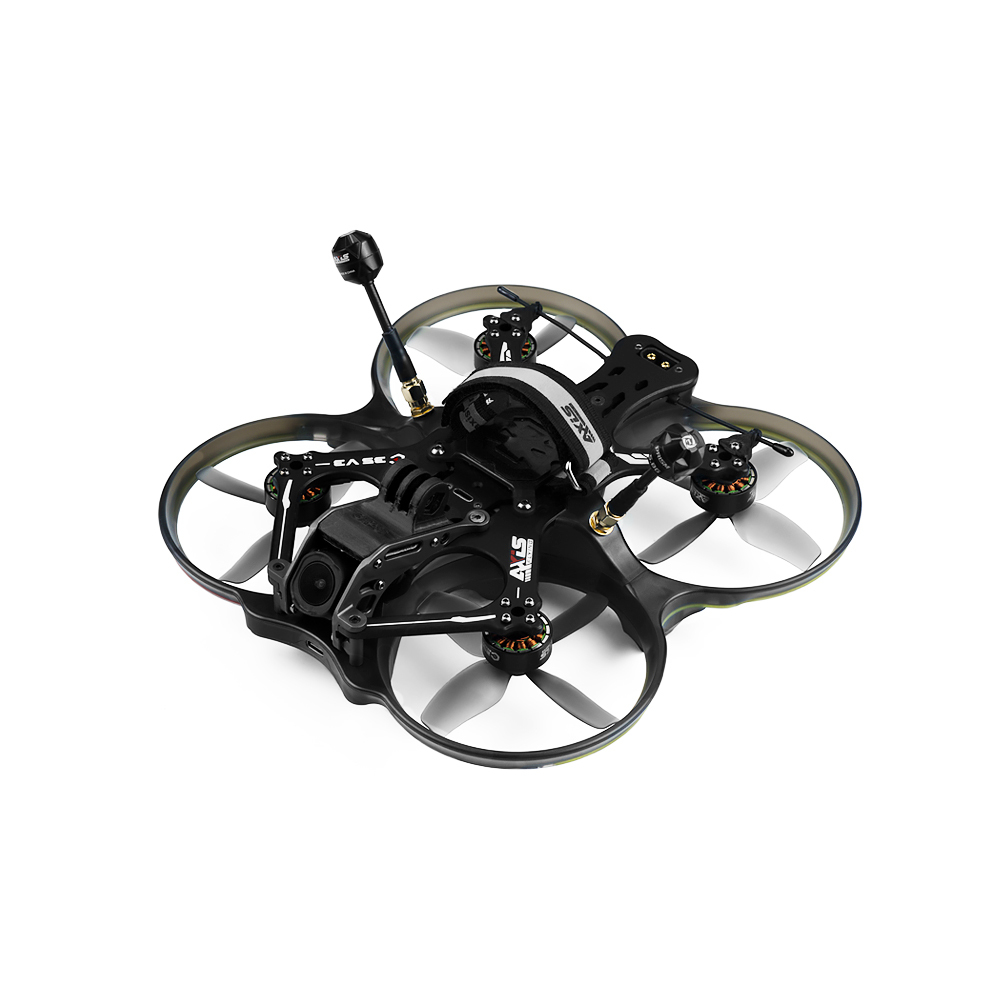

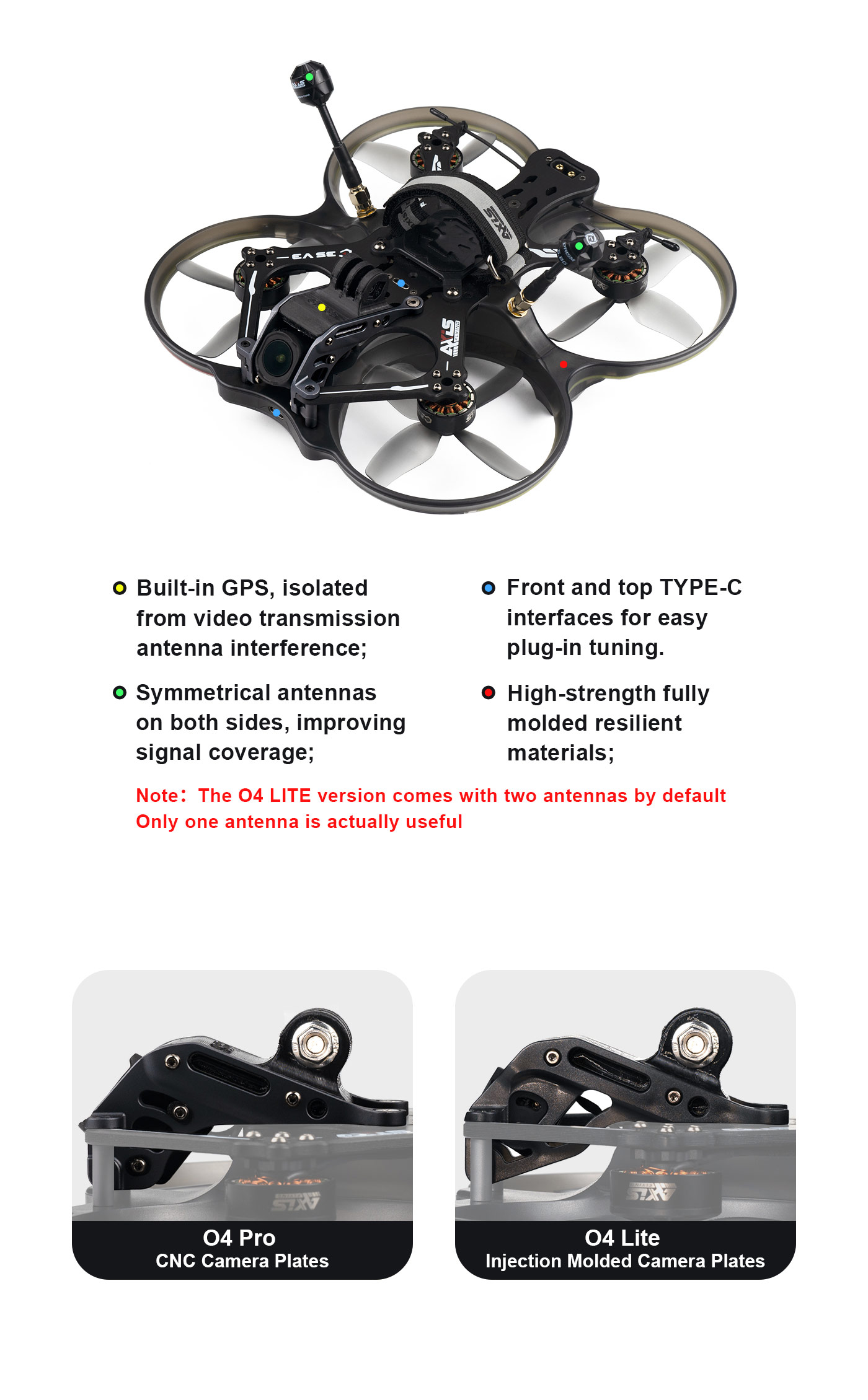

- C35 V3 is a 3.5‑inch cinewhoop drone born for cinematic filming, equipped with GPS and compatible with DJI O4 Lite / O4 Pro.

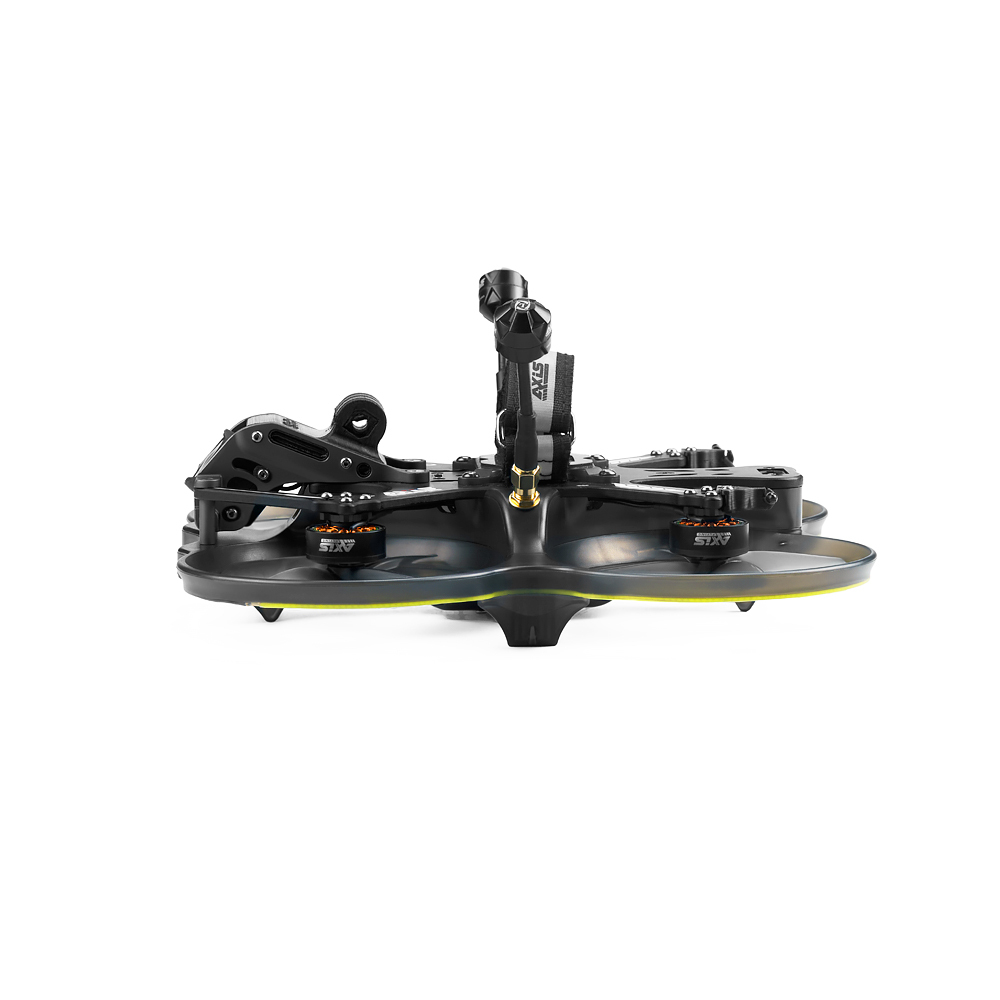

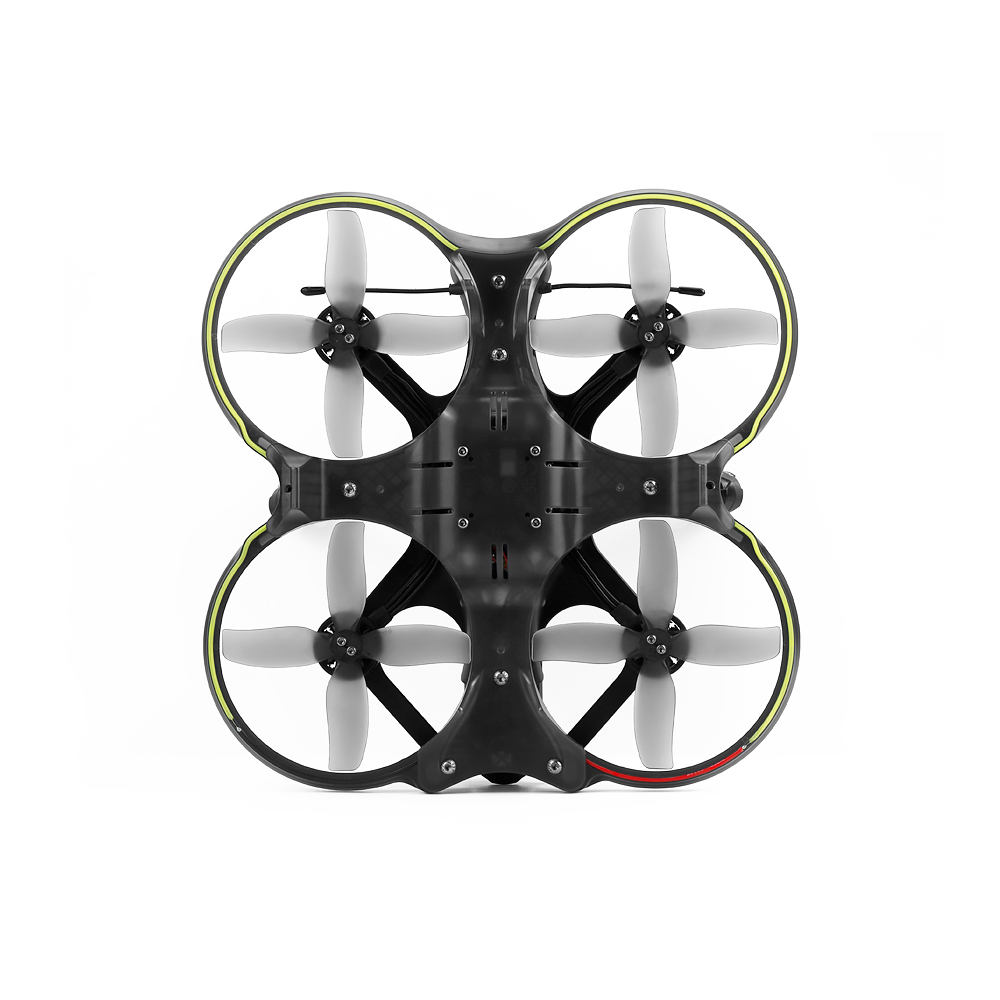

- Semi‑enclosed duct design ensures safer and smoother flight, ideal for indoor and outdoor cinematic shooting.
- Built‑in GPS module, isolated from VTX antenna interference, supports position hold and return‑to‑home.
- Symmetrical dual‑antenna layout greatly improves signal coverage and transmission stability.
- Adopts high‑strength fully molded resilient parts and 3.5mm carbon plate for enhanced durability.
- Hatchback design for fast maintenance and easy equipment replacement.

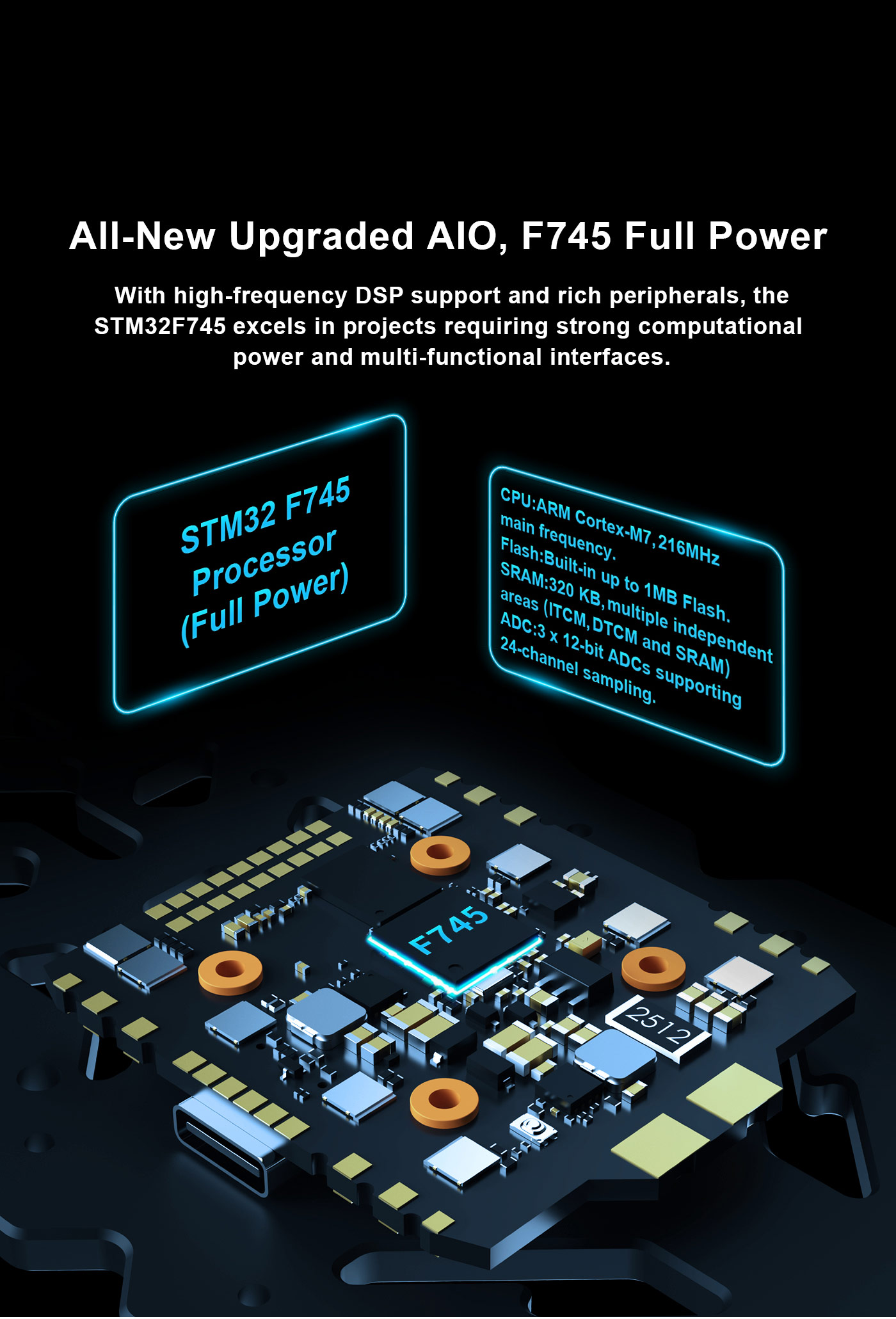

- Equipped with AXISFLYING F745 AIO V4 flight controller, powerful computing for stable and precise control.

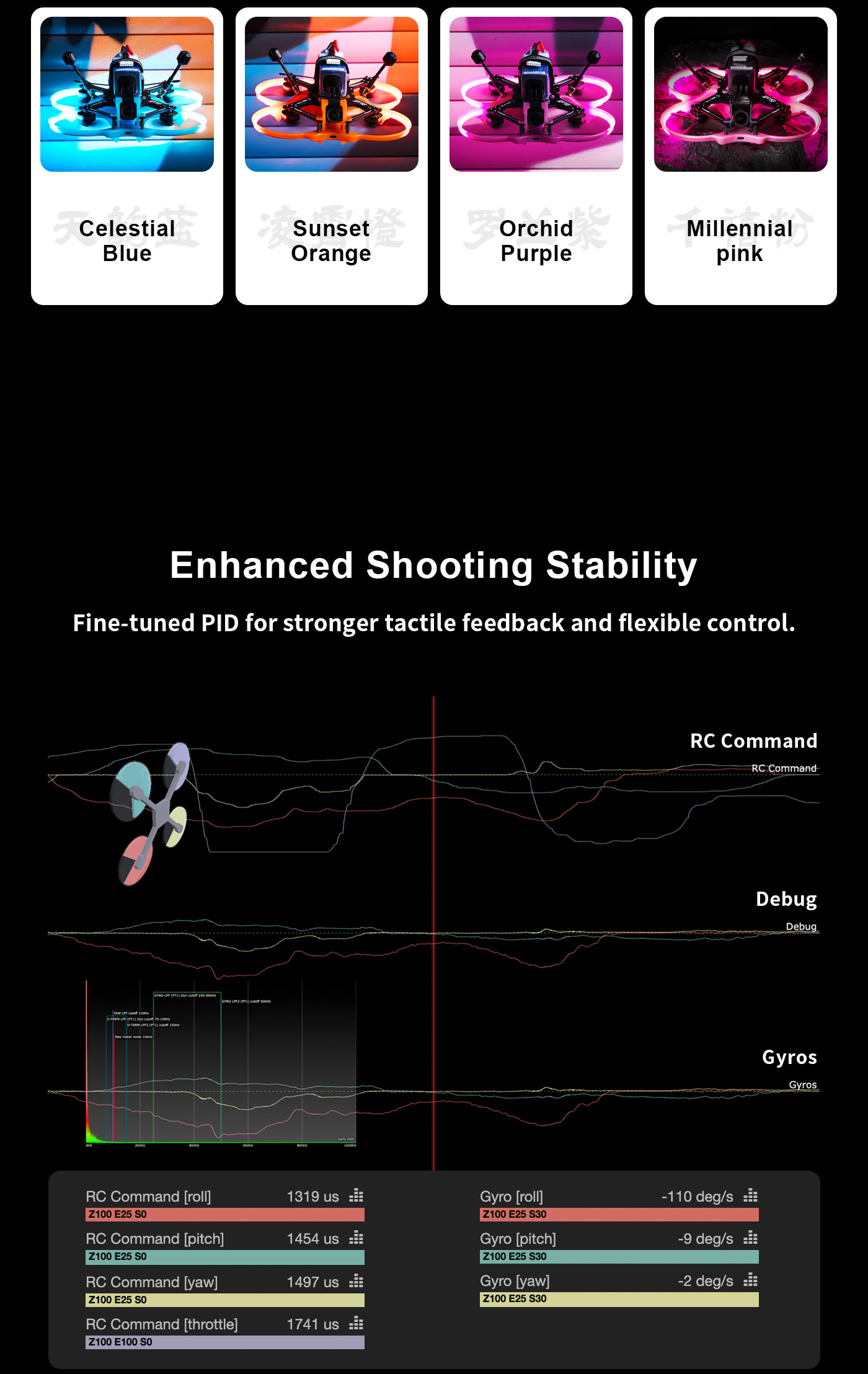

- Factory fine‑tuned PID for stronger tactile feedback and flexible, smooth control.
- Front and top TYPE‑C interfaces for easy plug‑in tuning and parameter adjustment.

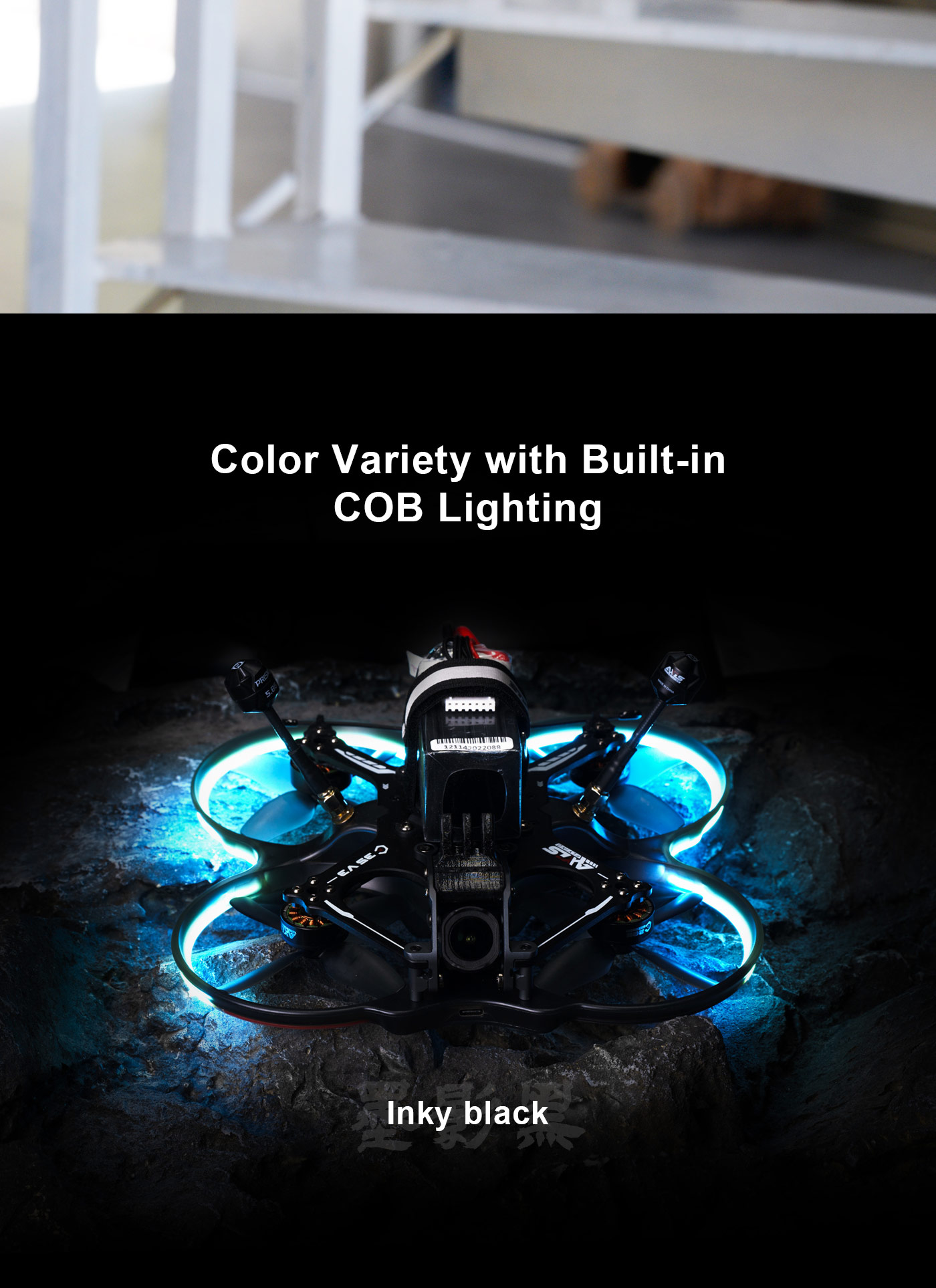

- Built‑in COB lighting and multiple color options for stylish and personalized appearance.

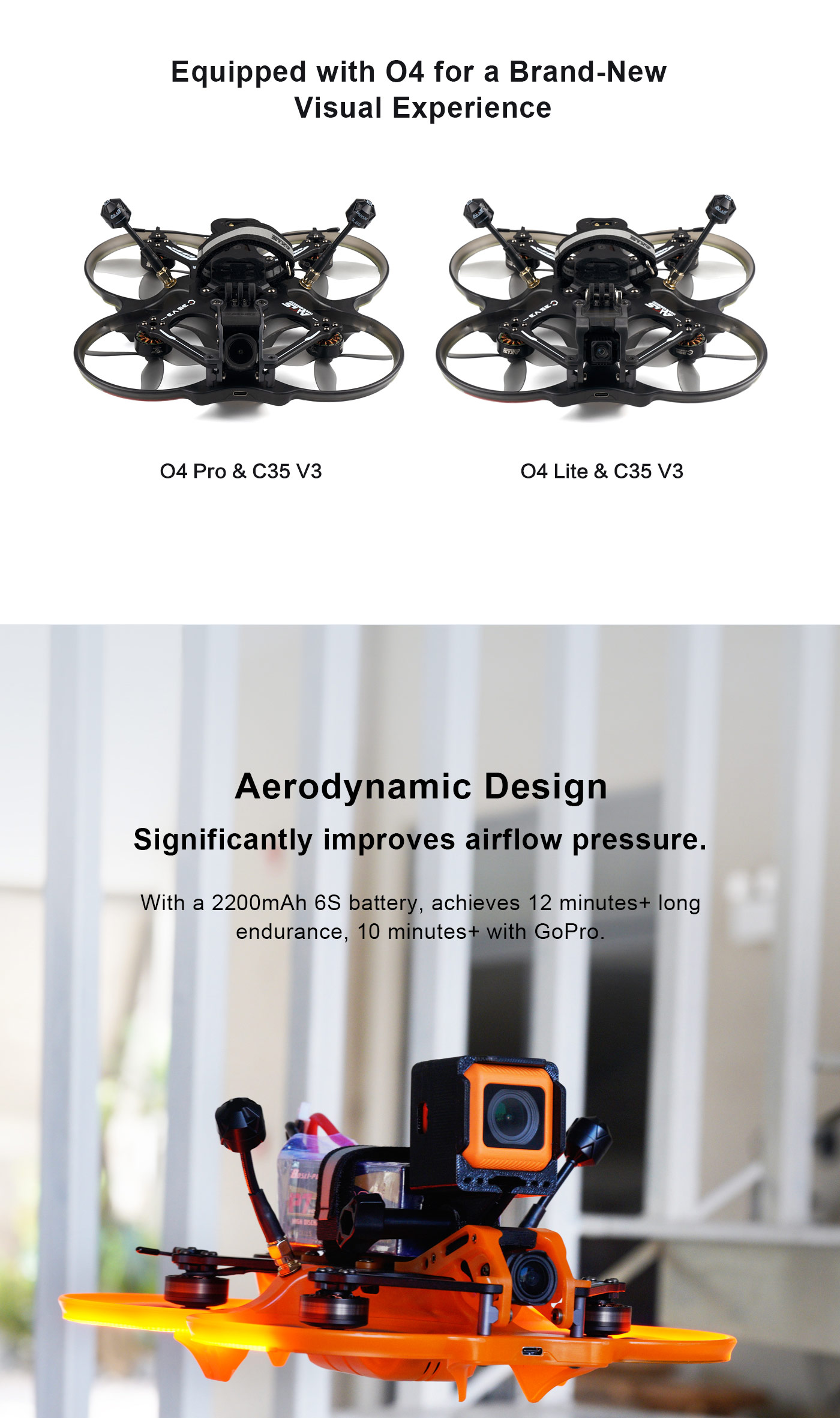

- Long endurance design: up to 12 minutes with 2200mAh 6S battery, 10+ minutes with GoPro.
Recommended configuration
Motor: Axisflying C206‑1960KV
Battery: 1050–2200mAh 6S LiHV / LiPo
Stack: Axisflying F745 AIO V4.6.0
Props: HQ‑DT90MMX4
VTX: DJI O4 Lite / DJI O4 Pro
Receiver: ELRS 2.4G / TBS Nano RX

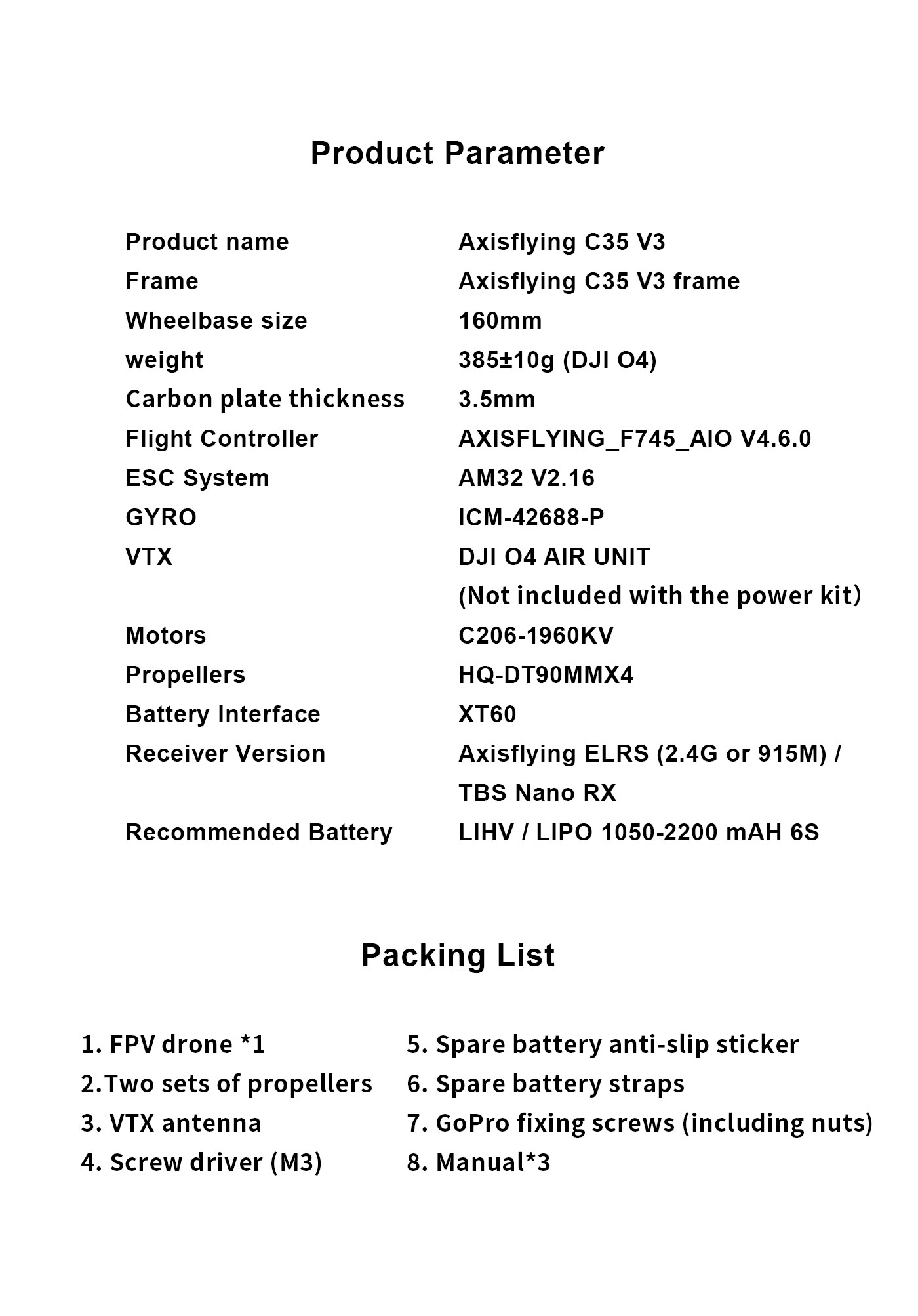

Specifications
Name: Axisflying C35 V3
Wheelbase: 160mm
Structure: Cinewhoop semi‑enclosed
Carbon plate thickness: 3.5mm
Flight controller: AXISFLYING_F745_AIO V4.6.0
Gyro: ICM‑42688‑P
ESC System: AM32 V2.16

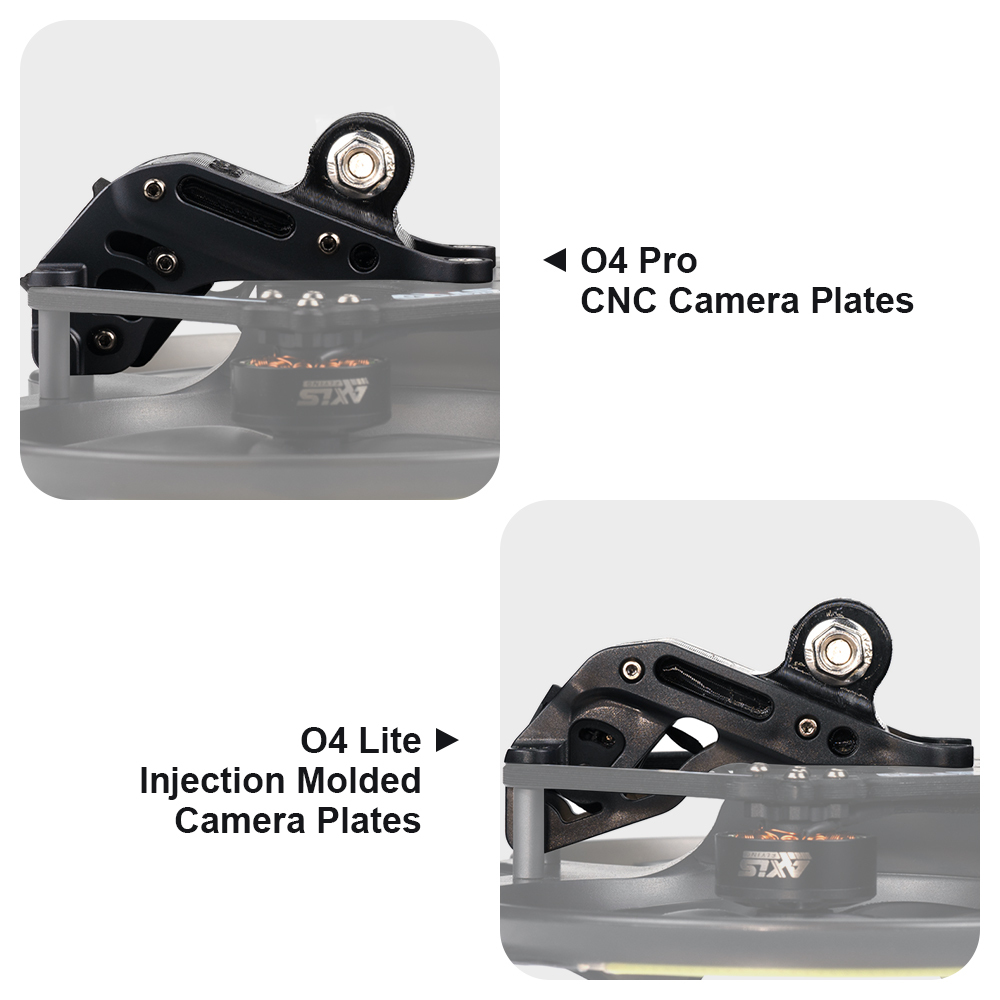

VTX: DJI O4 Lite / O4 Pro
Motor: C206‑1960KV
Prop size: 3.5 inch (HQ‑DT90MMX4)
Battery connector: XT60
Input voltage: 6S
Weight: 385±10g (with DJI O4)
Maximum flight speed: 28 m/s
Flight altitude: 120m (relative)
Endurance: About 10 minutes (up to 12 minutes with 2200mAh 6S)
Wind resistance: 6 m/s
Effective distance: 1 km
Max takeoff weight: 800g

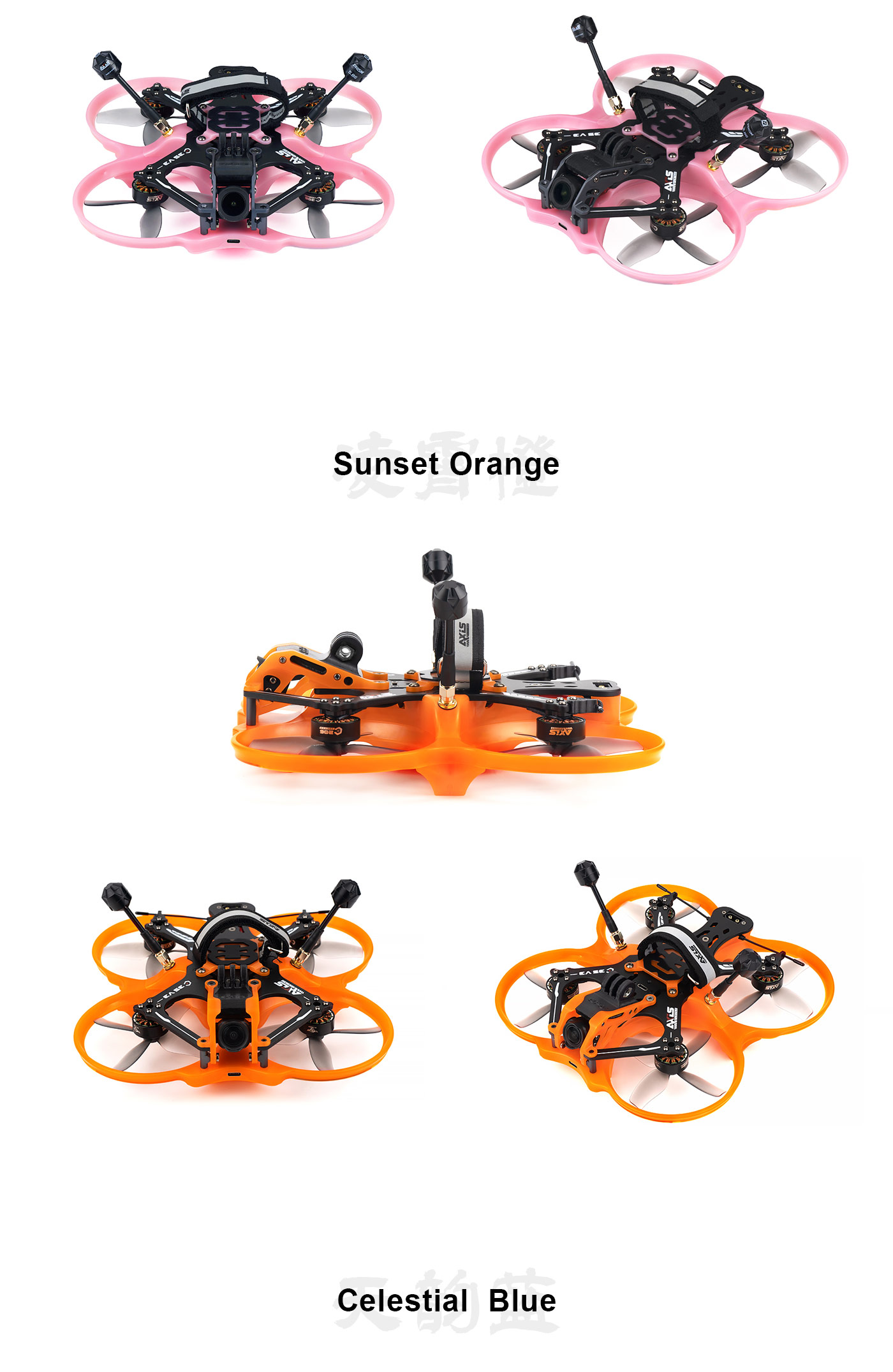

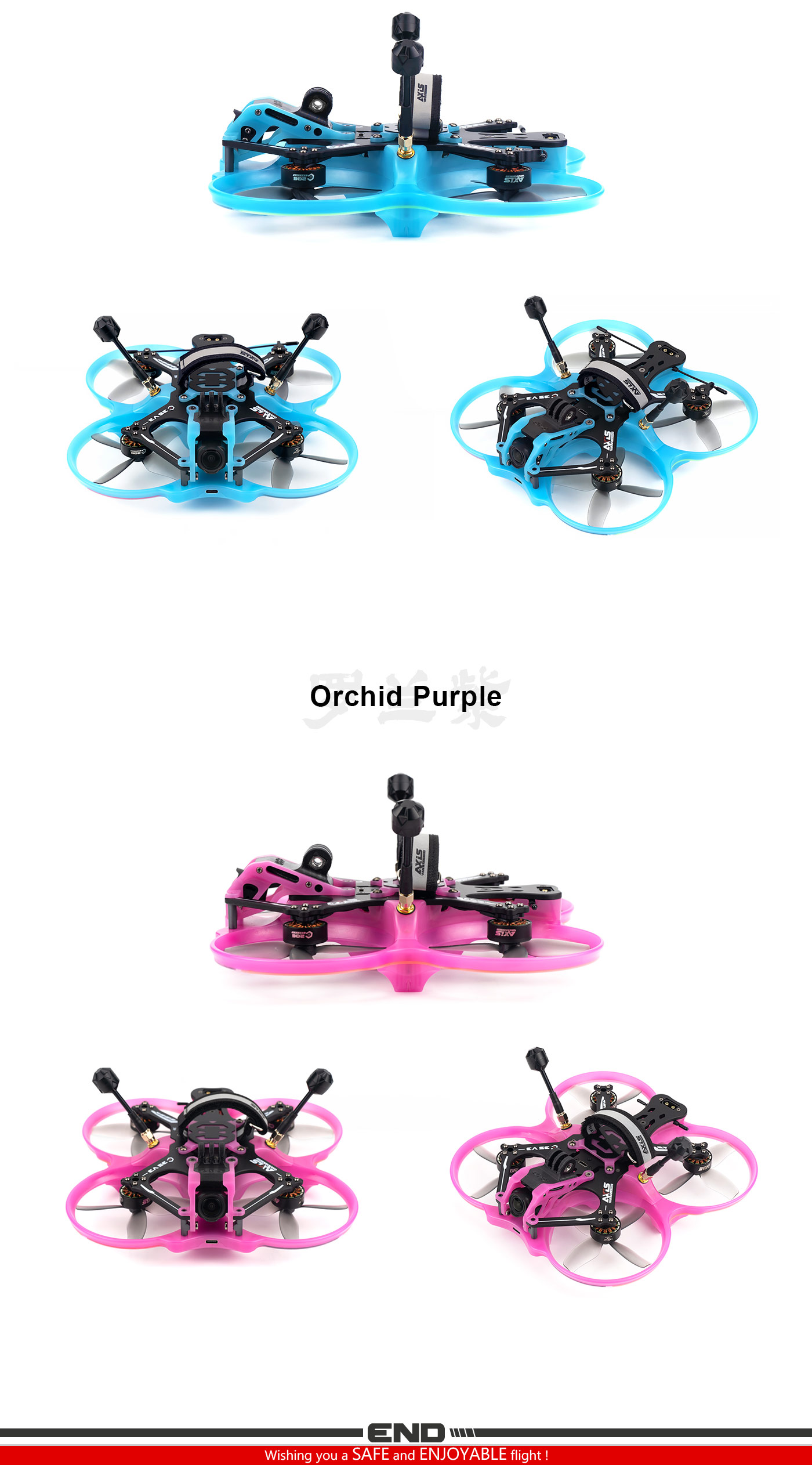

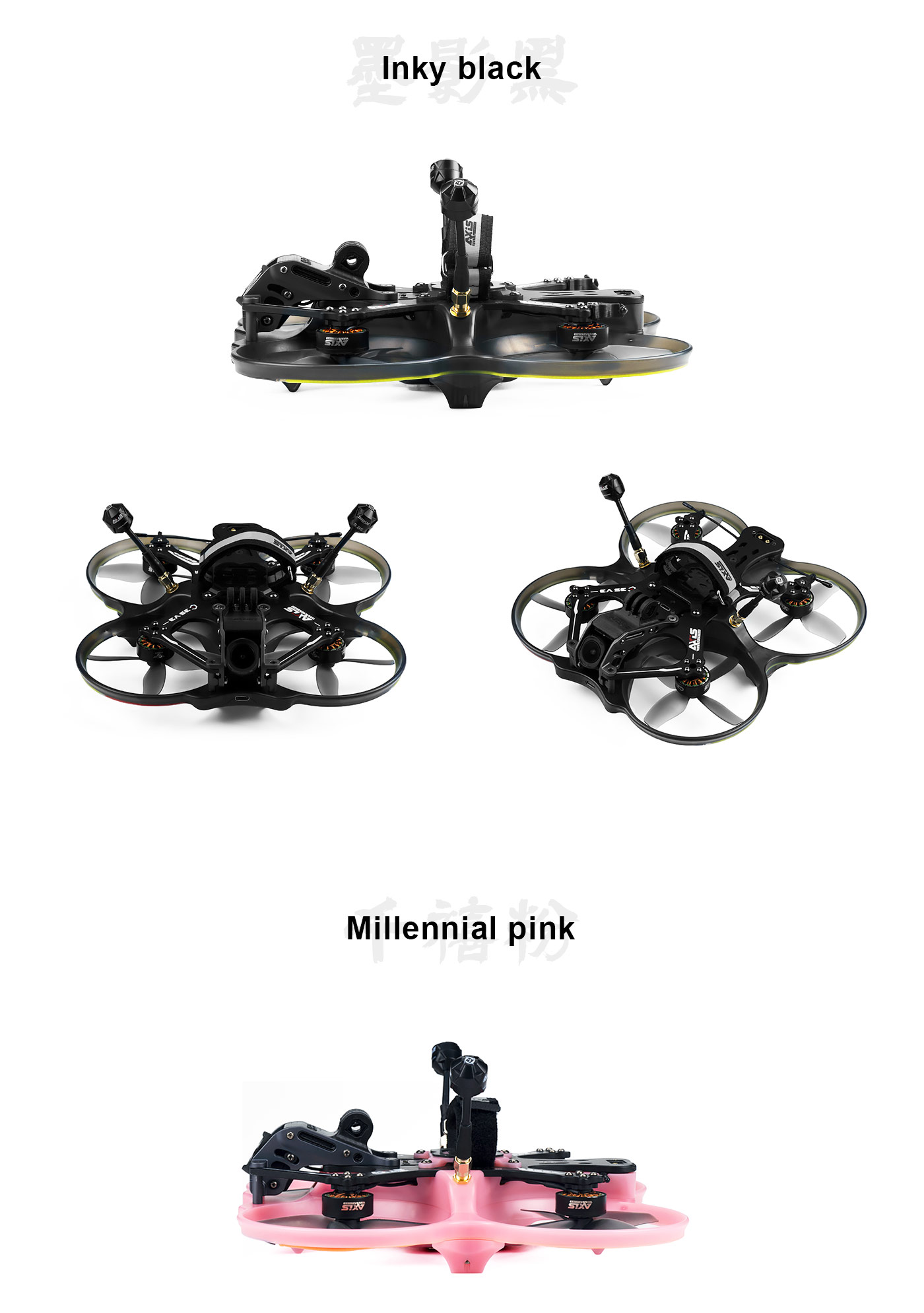

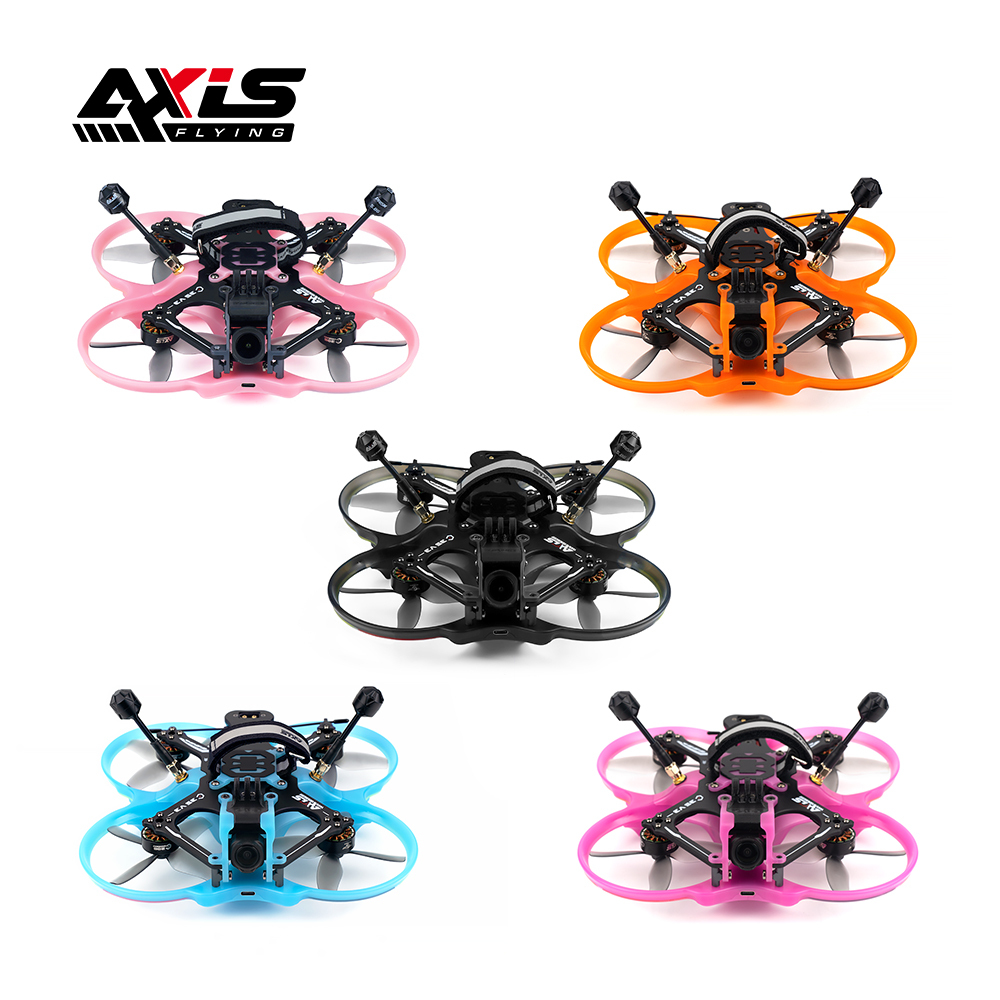

Color options: Inky black, Celestial Blue, Sunset Orange, Orchid Purple, Millennial pink
Package Contents
- FPV Drone ×1
- Propellers ×2 sets
- VTX antenna ×1 (Analog) / ×2 (HD)
- Screwdriver (M3 Hex) ×1
- Spare battery anti‑slip sticker ×1
- Spare battery strap ×1
- GoPro fixing screws (with nuts) ×1
- User manual ×3
