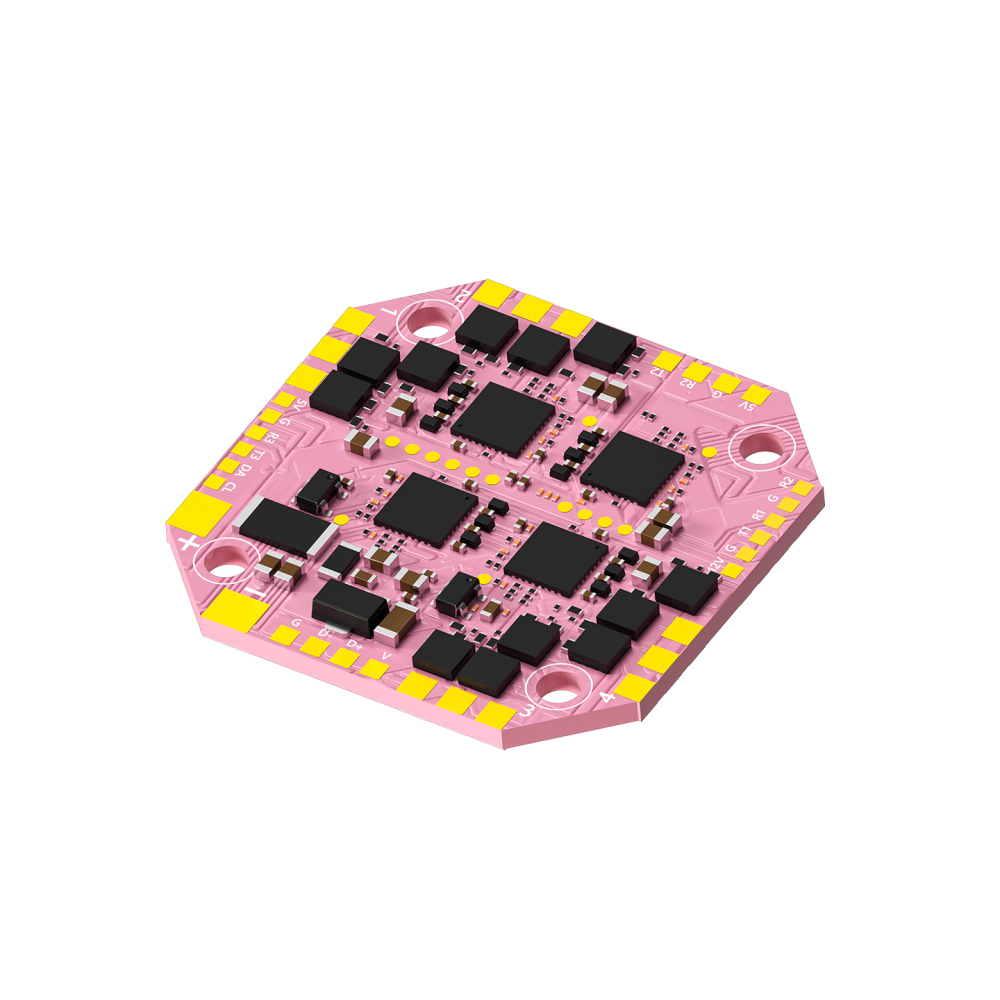

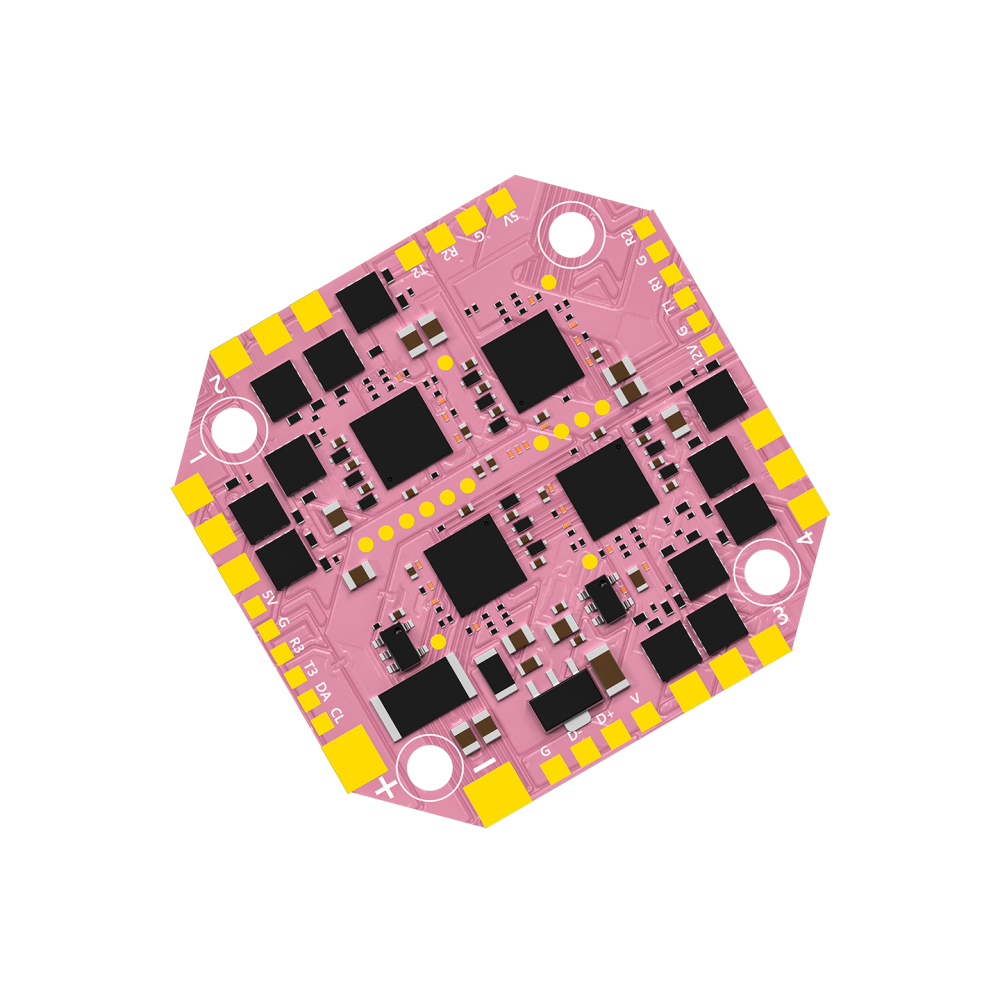

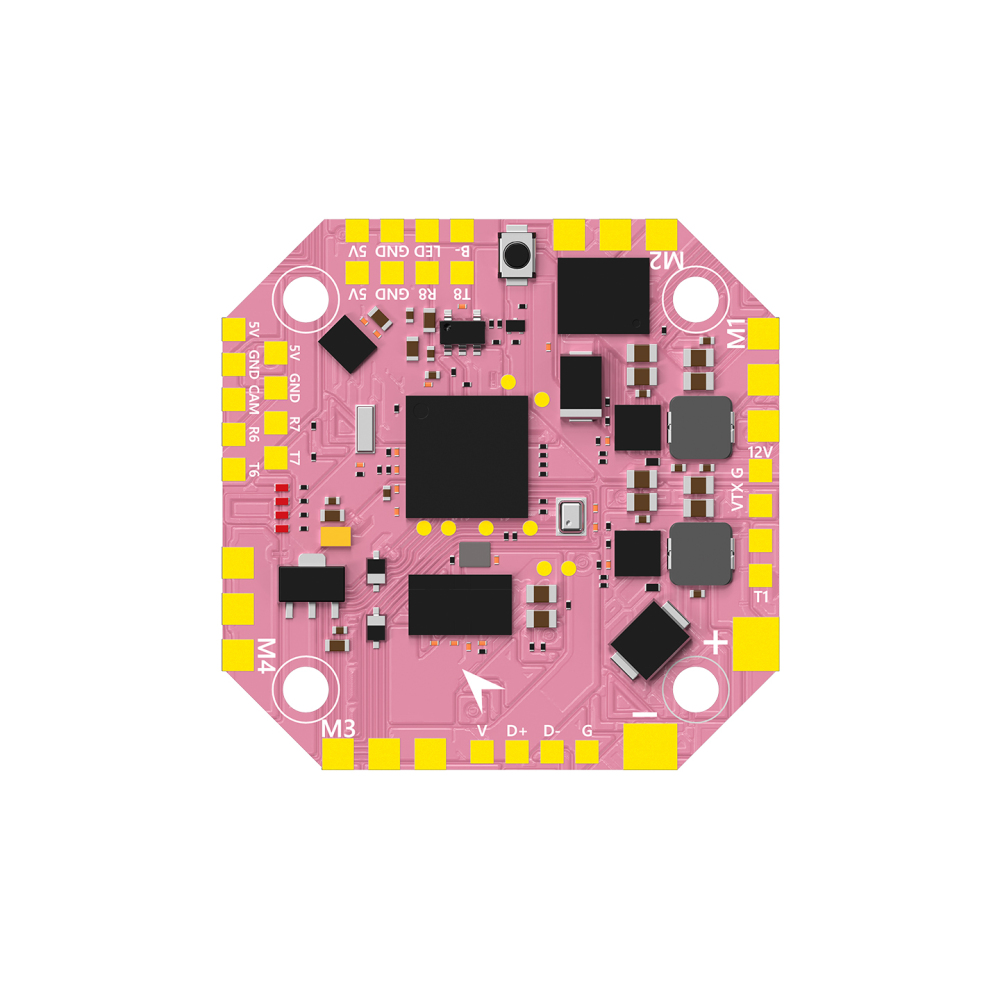

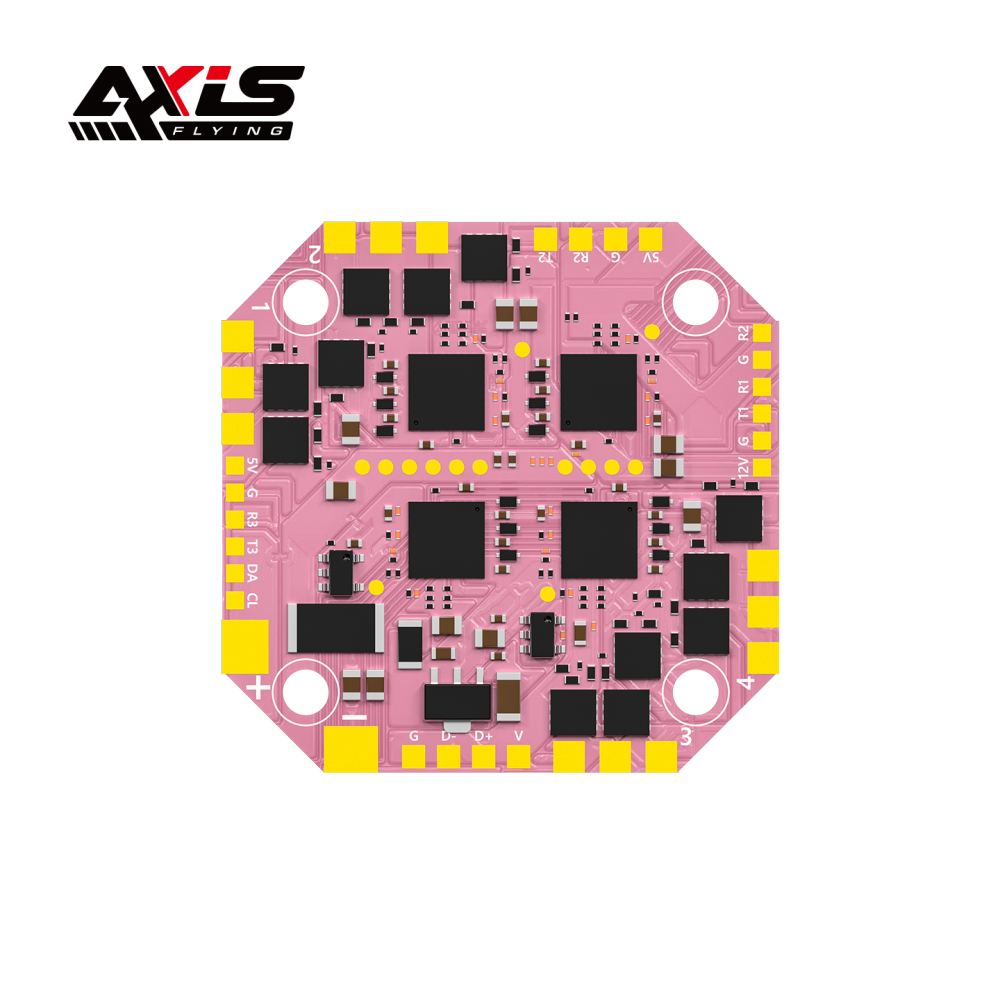

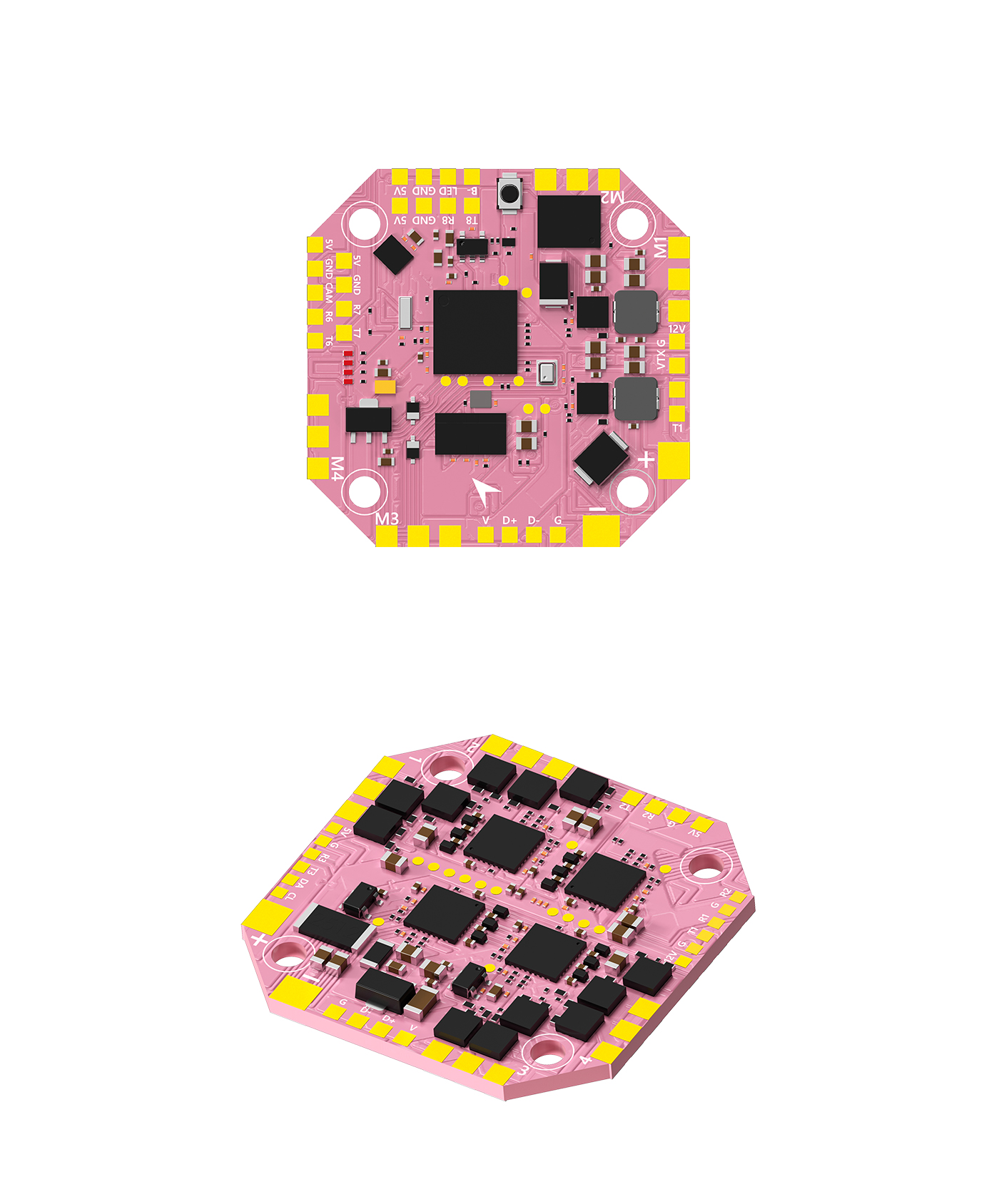

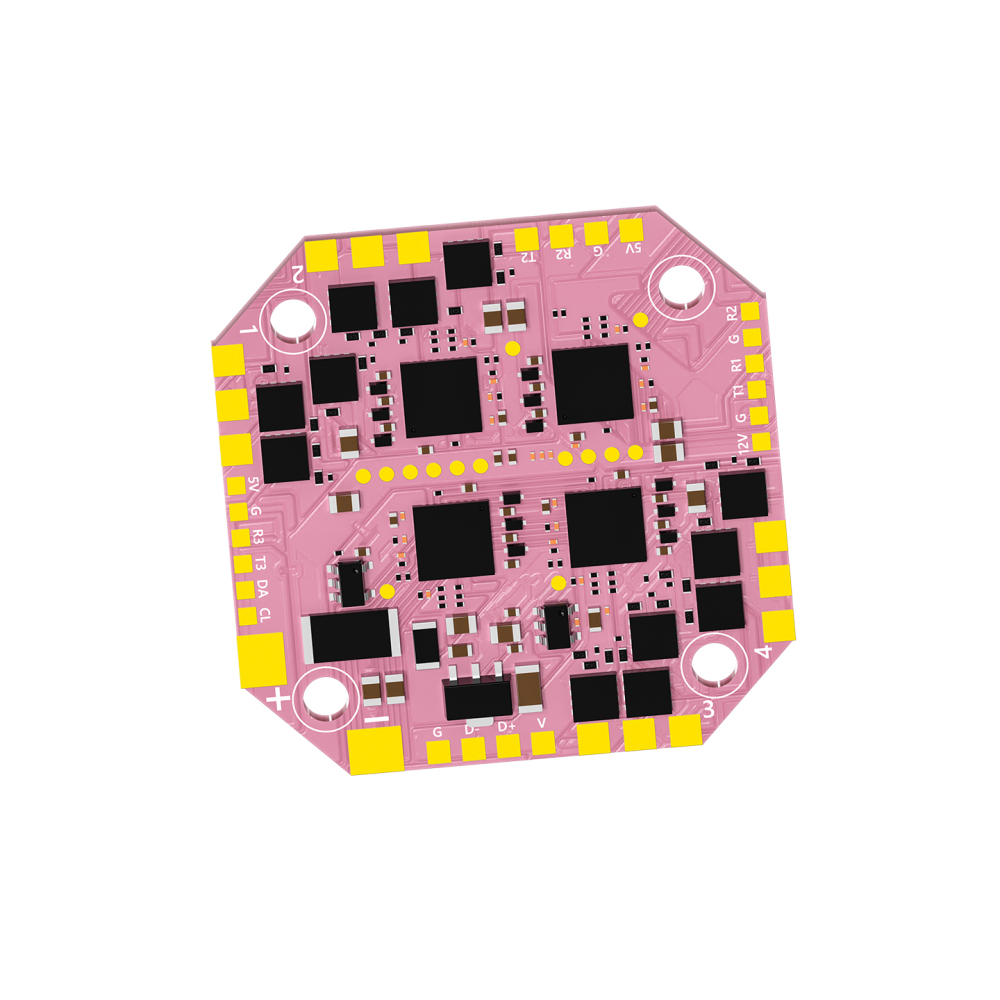

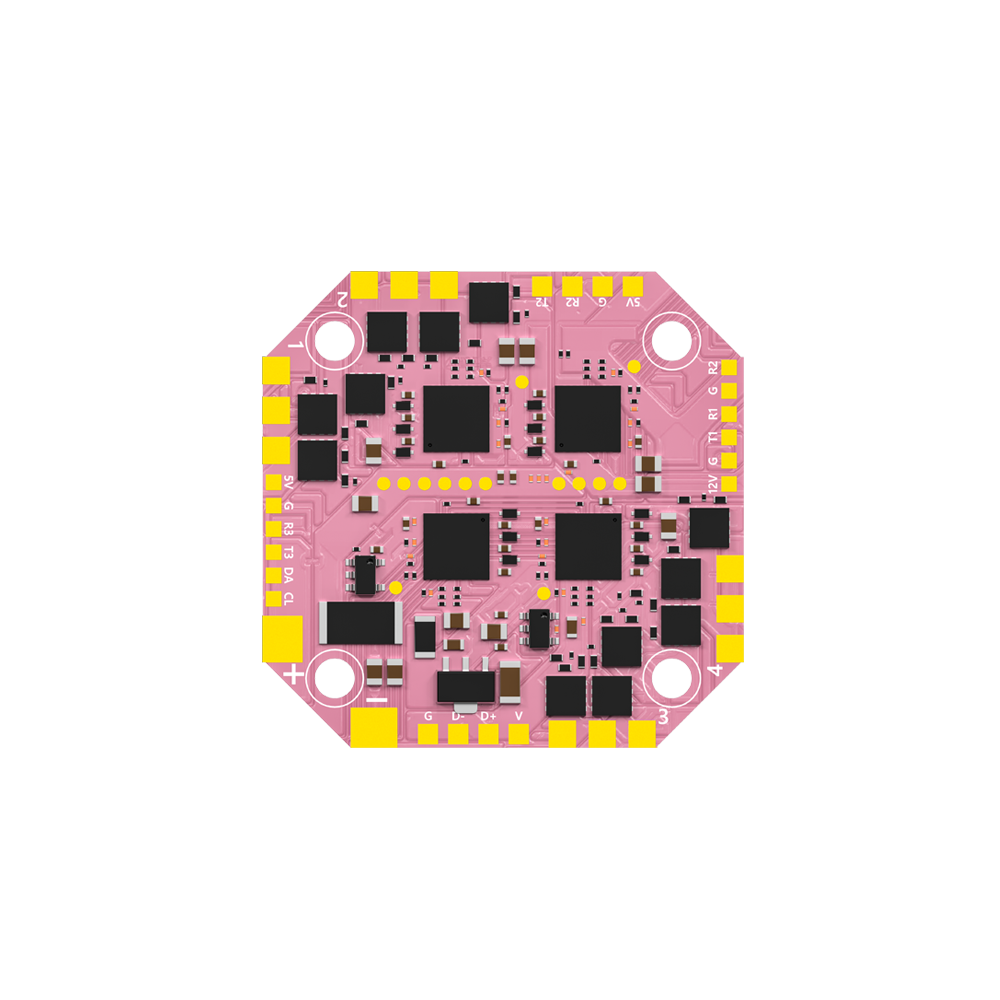

25A Flight Controller | 25.5×25.5mm H743 All-in-One FC
SKU: A03100048
Sufficient stock available, DHL delivery in 3-7 days (excluding drone assembly time).
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • AIO
    H743 AIO 25A
Need Help?
Need Help?
Our experts are online 24/7 to help you choose the right drone and gear
Chat Now
H743 AIO 25A H743
H743 AIO 25A H743
H743 AIO 25A H743
$69.90
Quantity
-
+
Reward points
Total
1 * $69.9 = $69.9
Starting at $27.22/mo or as low as 0% APR with  Learn more
Learn more
Free shipping on select items over $200
Global Support
Payment Method
  • Paypal
  • ApplePay
  • GooglePay
H743 AIO 25A H743
H743 AIO 25A H743
H743 AIO 25A H743
H743 AIO 25A H743
H743 AIO 25A H743
H743 AIO 25A H743
H743 AIO 25A H743
H743 AIO 25A H743
H743 AIO 25A H743
H743 AIO 25A H743
H743 AIO 25A H743
H743 AIO 25A H743
  • Description

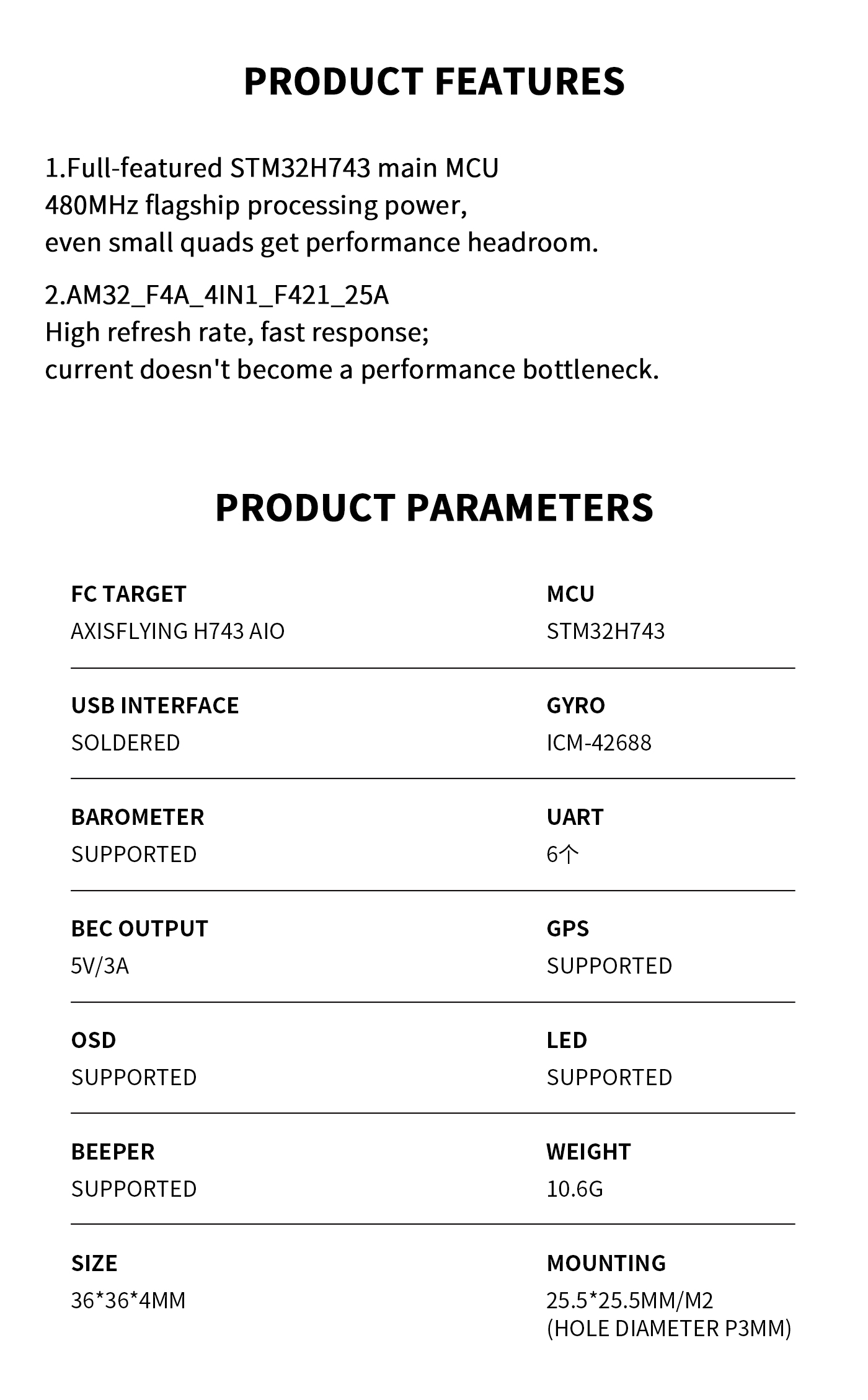

Features

  • Flagship STM32H743 main controller, 480MHz high computing frequency
  • High-performance ICM-42688 gyro for stable attitude control
  • Built-in 25A AM32 4-in-1 ESC, high refresh & fast response
  • Onboard barometer for stable altitude hold
  • 6 UART ports for rich expansion

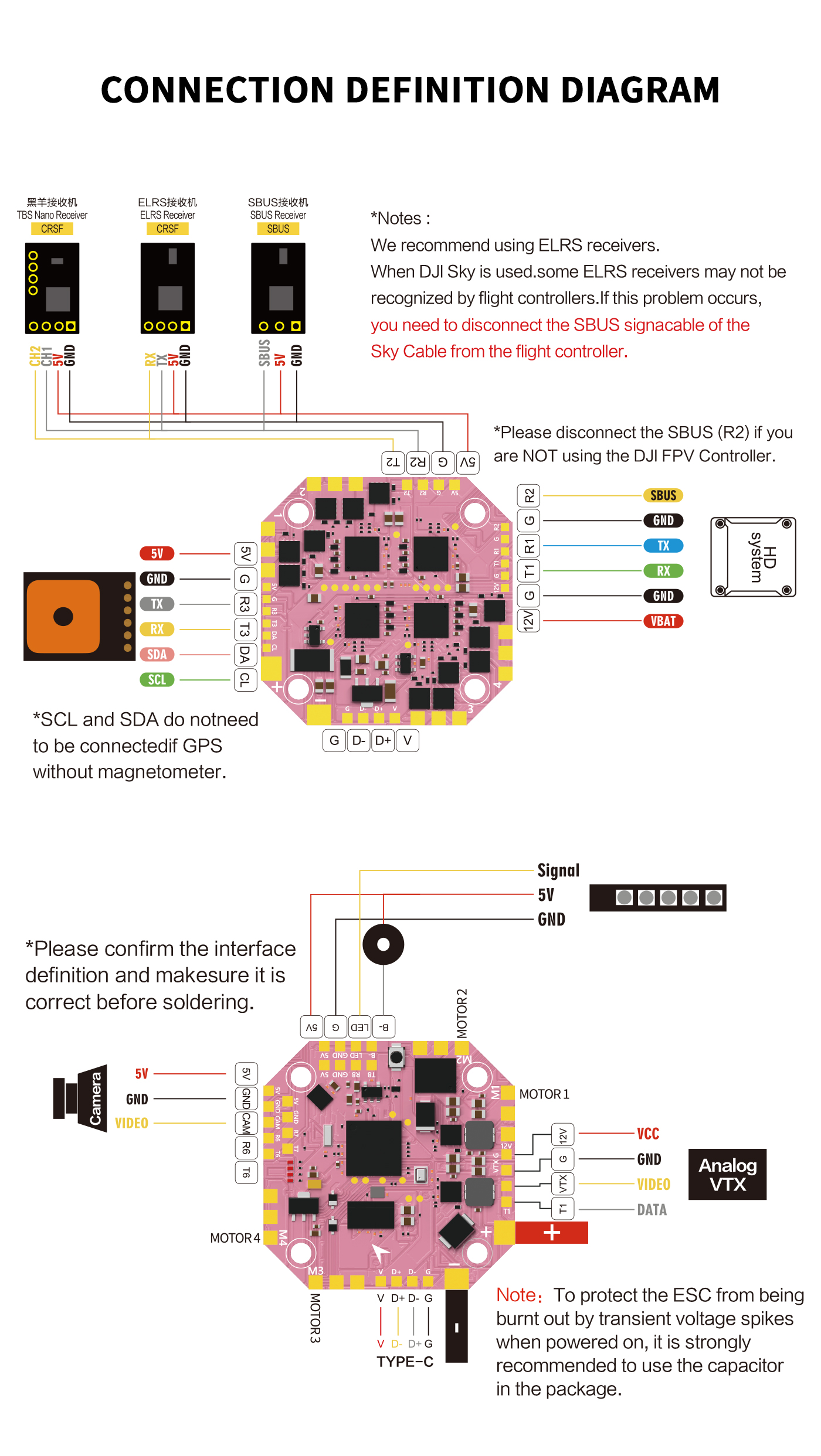

  • Support GPS, LED, buzzer, current sensor
  • Compact 25.5×25.5mm mounting, lightweight design
  • Plug-and-play, easy wiring for mini FPV drones

Specifications

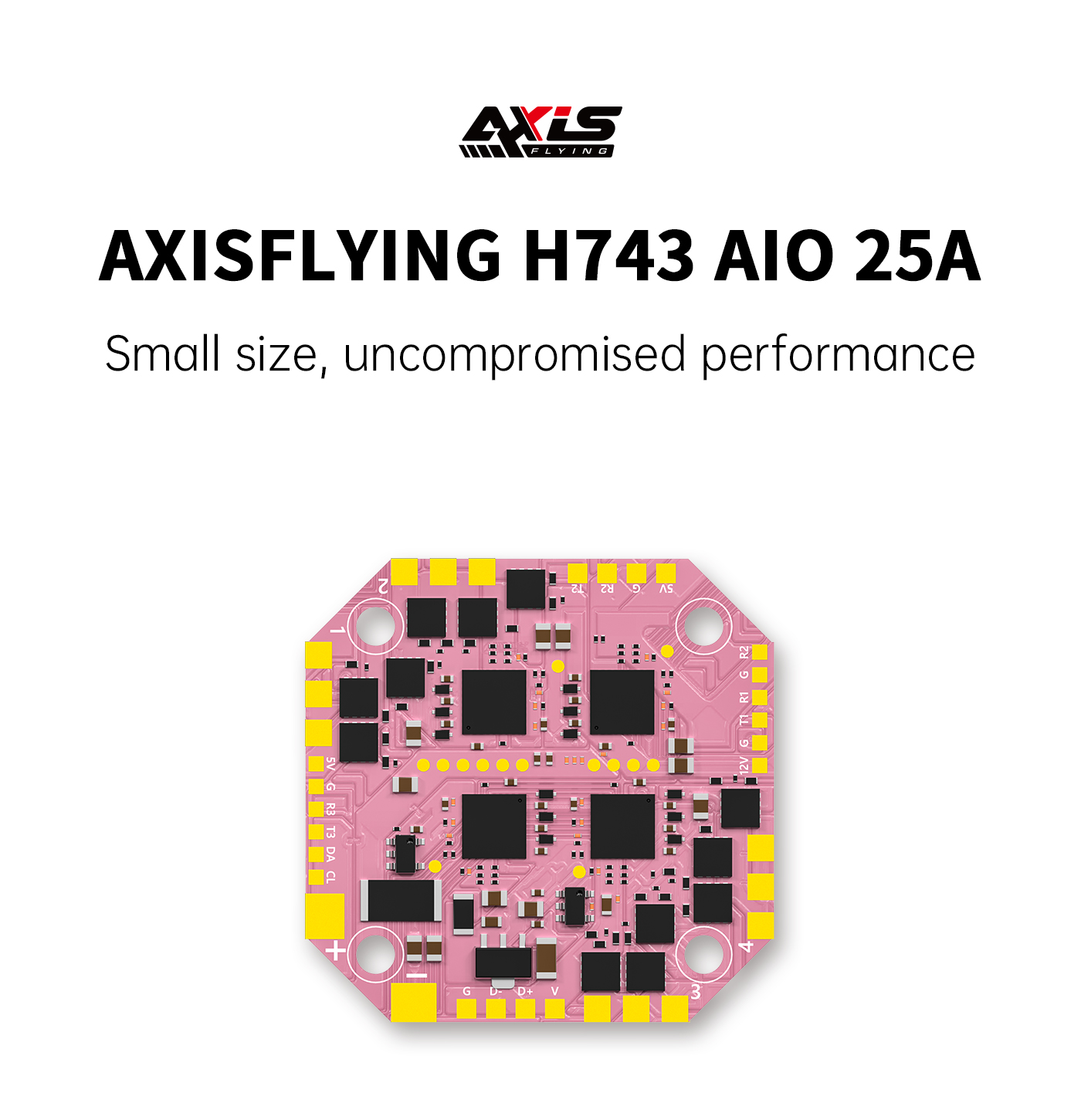

  • Model: AXISFLYING H743 AIO 25A
  • MCU: STM32H743
  • Gyro: ICM-42688
  • Barometer: Supported
  • ESC: AM32 4-in-1 25A
  • UART: 6 channels
  • GPS: Supported
  • BEC: 5V / 12V supported
  • OSD: Supported
  • Blackbox: 16MB Flash
  • Input Voltage: 2-6S LiPo

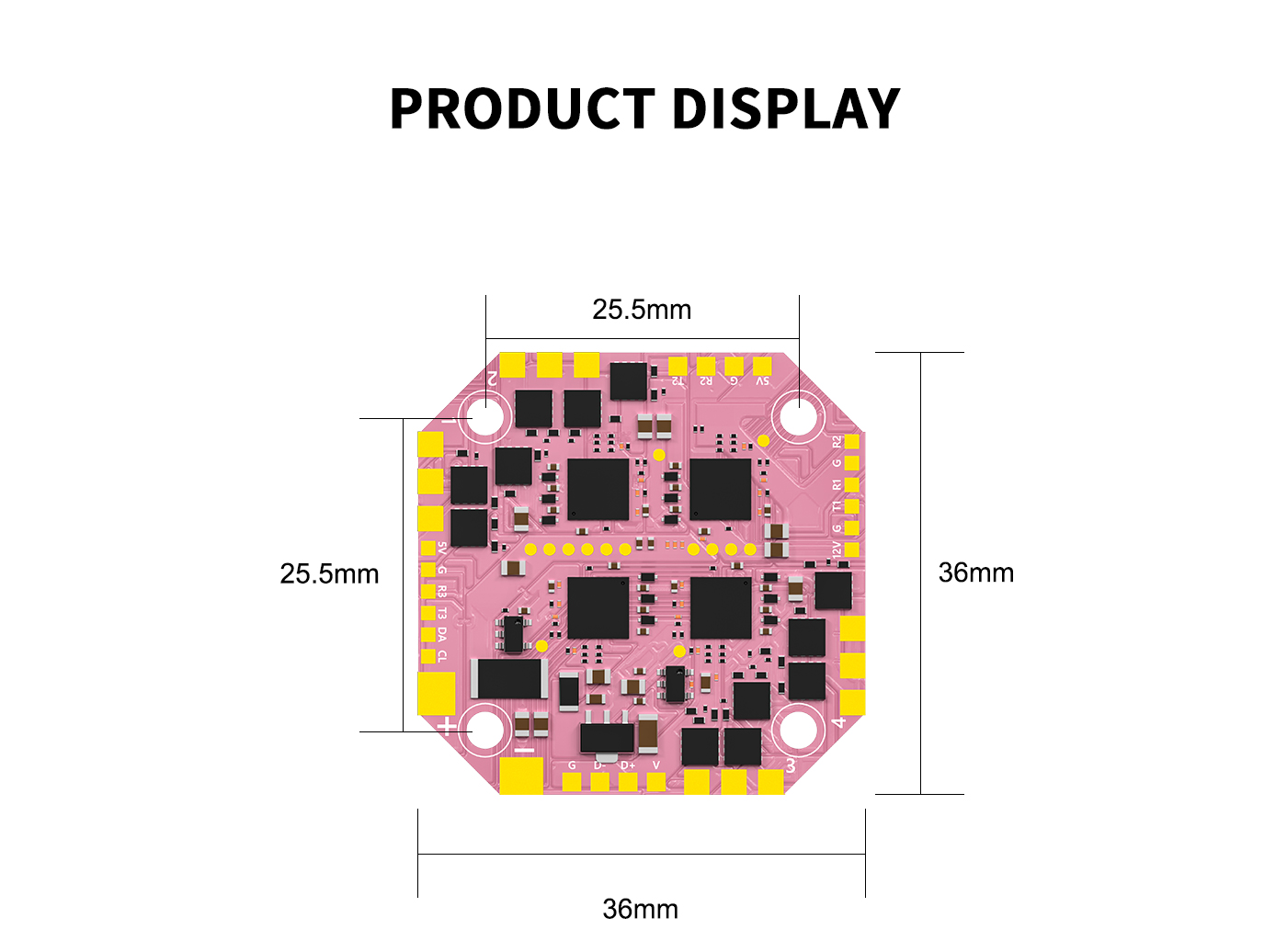

  • Mounting: 25.5×25.5mm / M3
  • Dimensions: 36×25.5mm

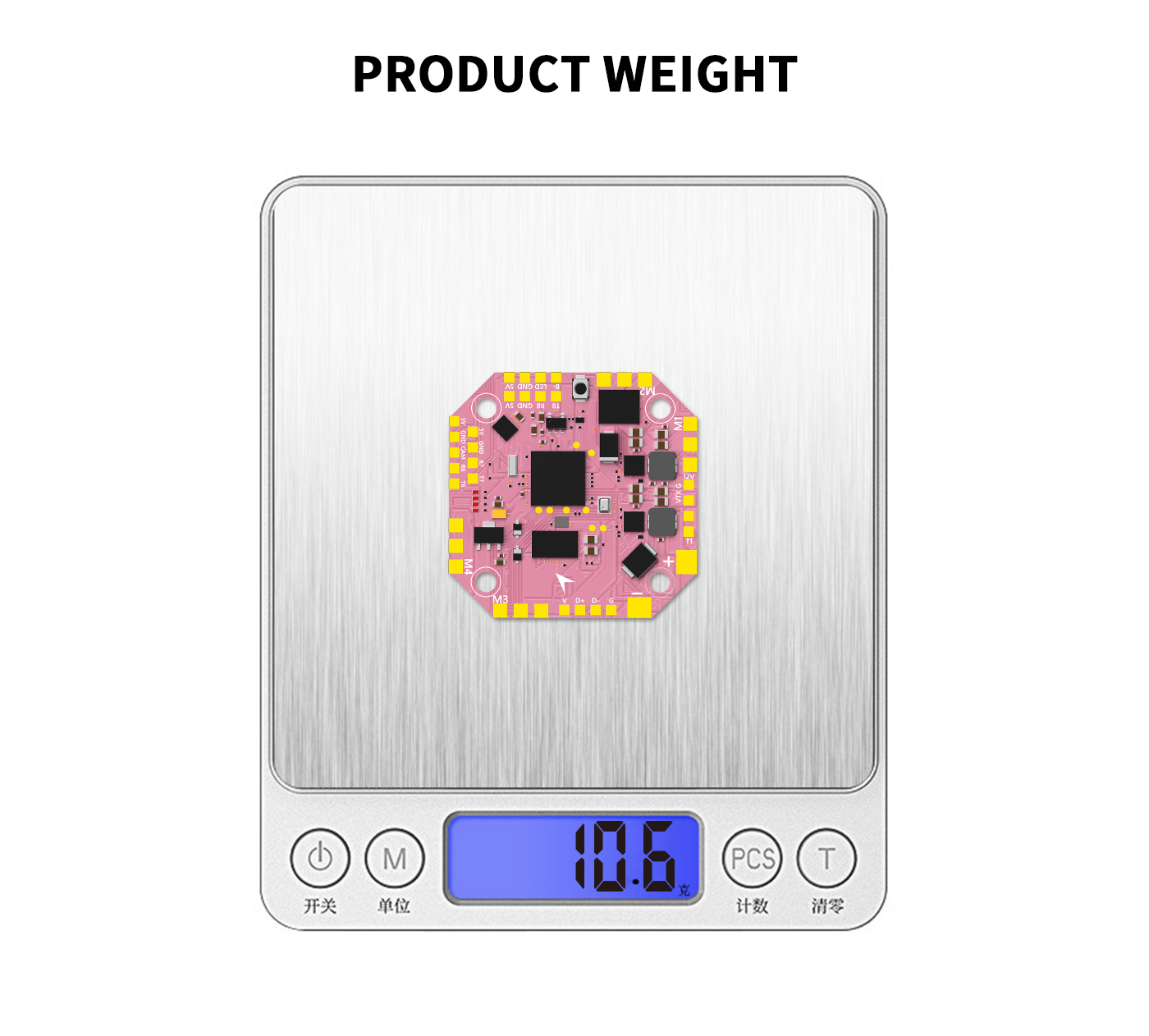

  • Weight: 10.6g

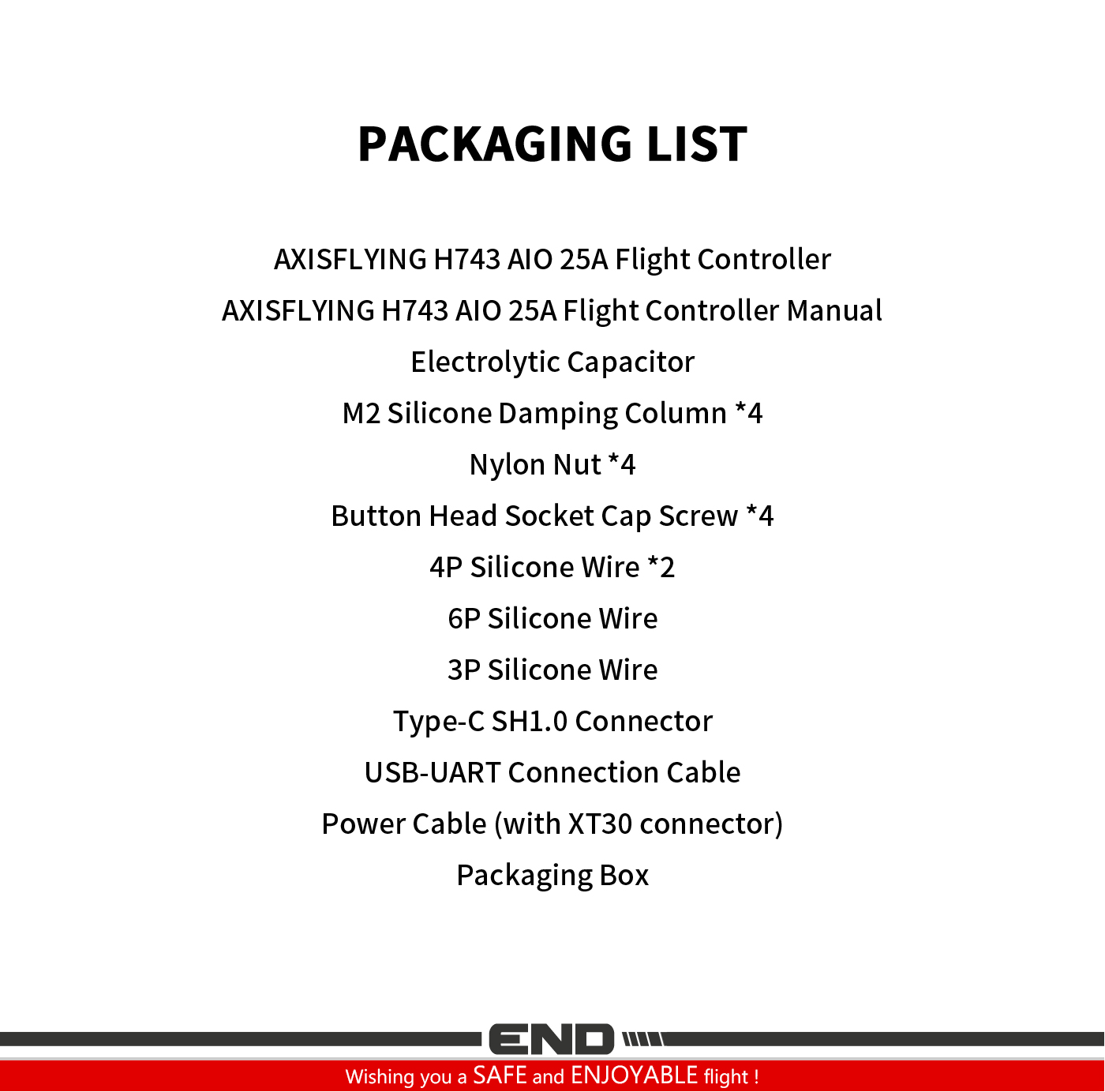

Package List

  1. AXISFLYING H743 AIO 25A ×1
  2. User manual ×1
  3. Electrolytic capacitor ×1
  4. M3 silicone damping column ×4
  5. Nylon nut ×4
  6. Button head socket cap screw ×4
  7. 4P silicone wire ×2
  8. 6P silicone wire ×1
  9. 3P silicone wire ×1
  10. Type‑C SH1.0 connector ×1
  11. USB‑UART connection cable ×1
  12. Power cable (XT30) ×1
  13. Packaging box ×1
Frequently Bought Together
more
Frequently Bought Together
FAQ
Are Axisflying products universal for most FPV drones?
Yes, all Axisflying parts are standard size and universal, compatible with most mainstream FPV models for easy assembly and replacement.
Do you provide after-sales support and technical guidance?
Sure. We offer professional technical support, installation tips and after-sales service to solve your usage problems.
Do I need to pay import duties or taxes?
 Import duties, taxes and customs clearance fees are not included in the product price. They are the buyer’s responsibility and vary by country/region, local tax policy and order value.
We can provide commercial invoice, packing list, CE/RoHS certificates to help with customs clearance. For detailed rates, please check with your local customs office.
Where can I download product manuals and printable documents?
All user manuals, quick guides, specification sheets and printable files are available in the Support / Download Center on our official website.
