Foreword

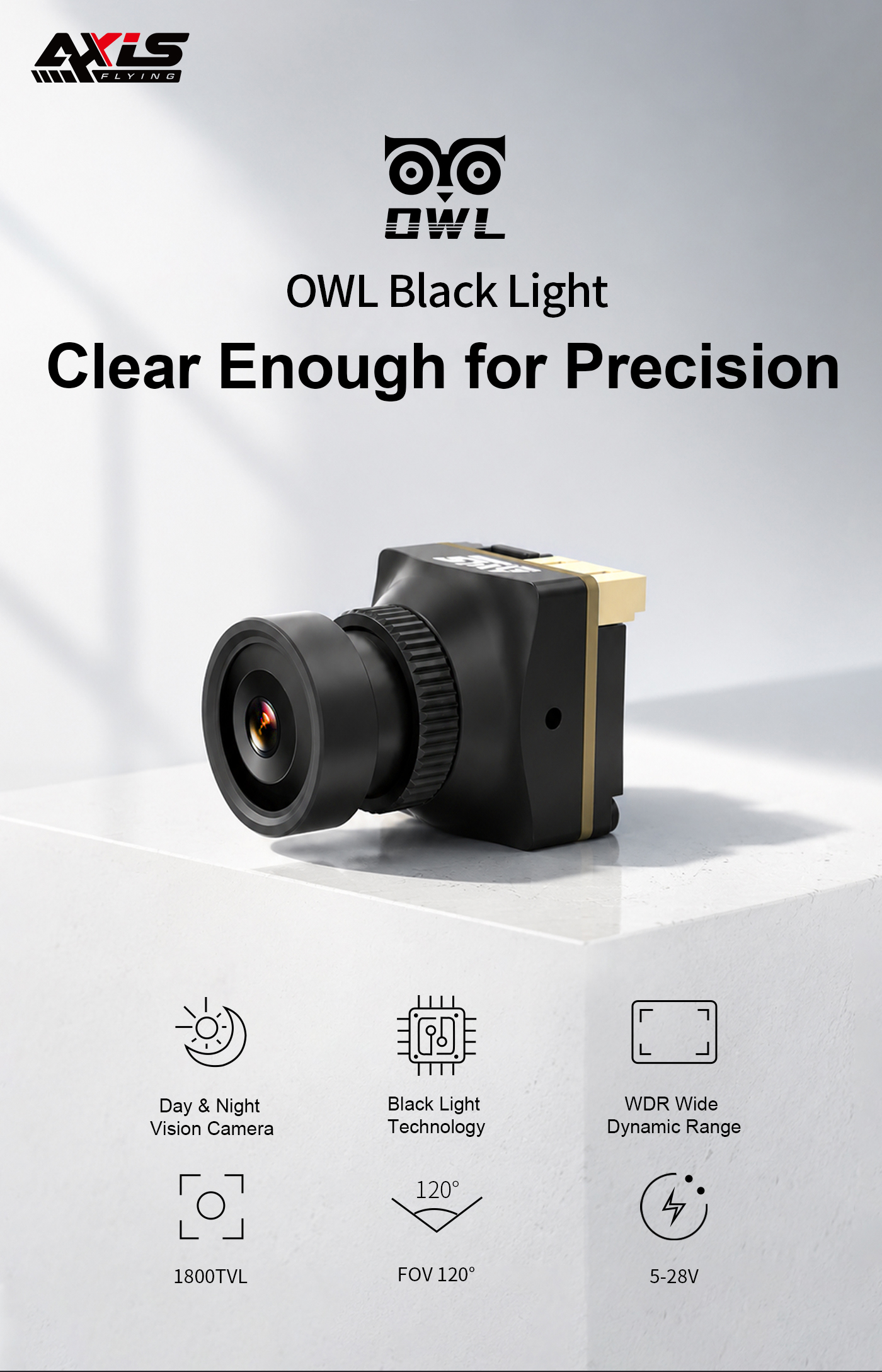

Axisflying focuses on user experience and carefully studies user sore points. In FPV cameras and imaging systems, we keep absorbing user feedback and optimizing product performance. Axisflying OWL Black Light Camera adopts advanced black-light low-light technology, professional WDR, and wide-angle design to provide pilots with clear, stable, and reliable analog FPV vision in all lighting environments.
Recommended configuration

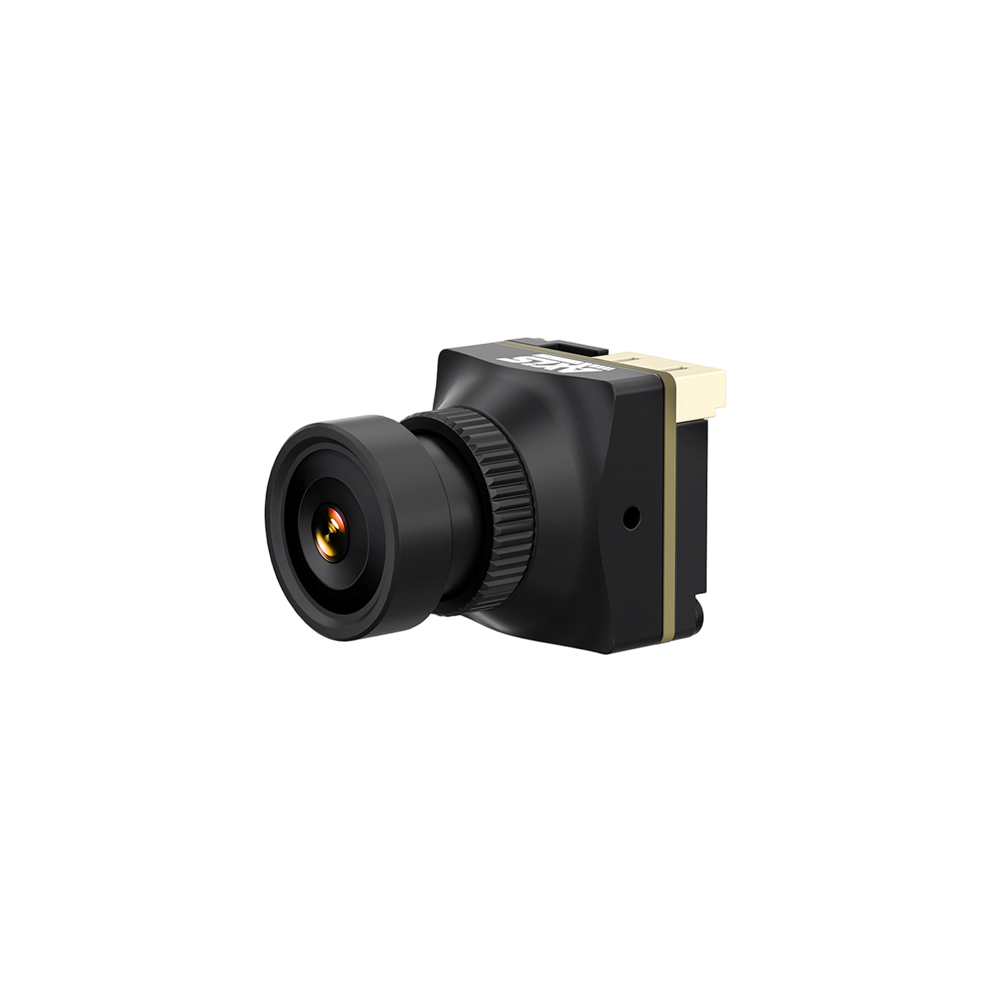

Model: OWL Black Light CVBS 1800 TVL FPV Camera

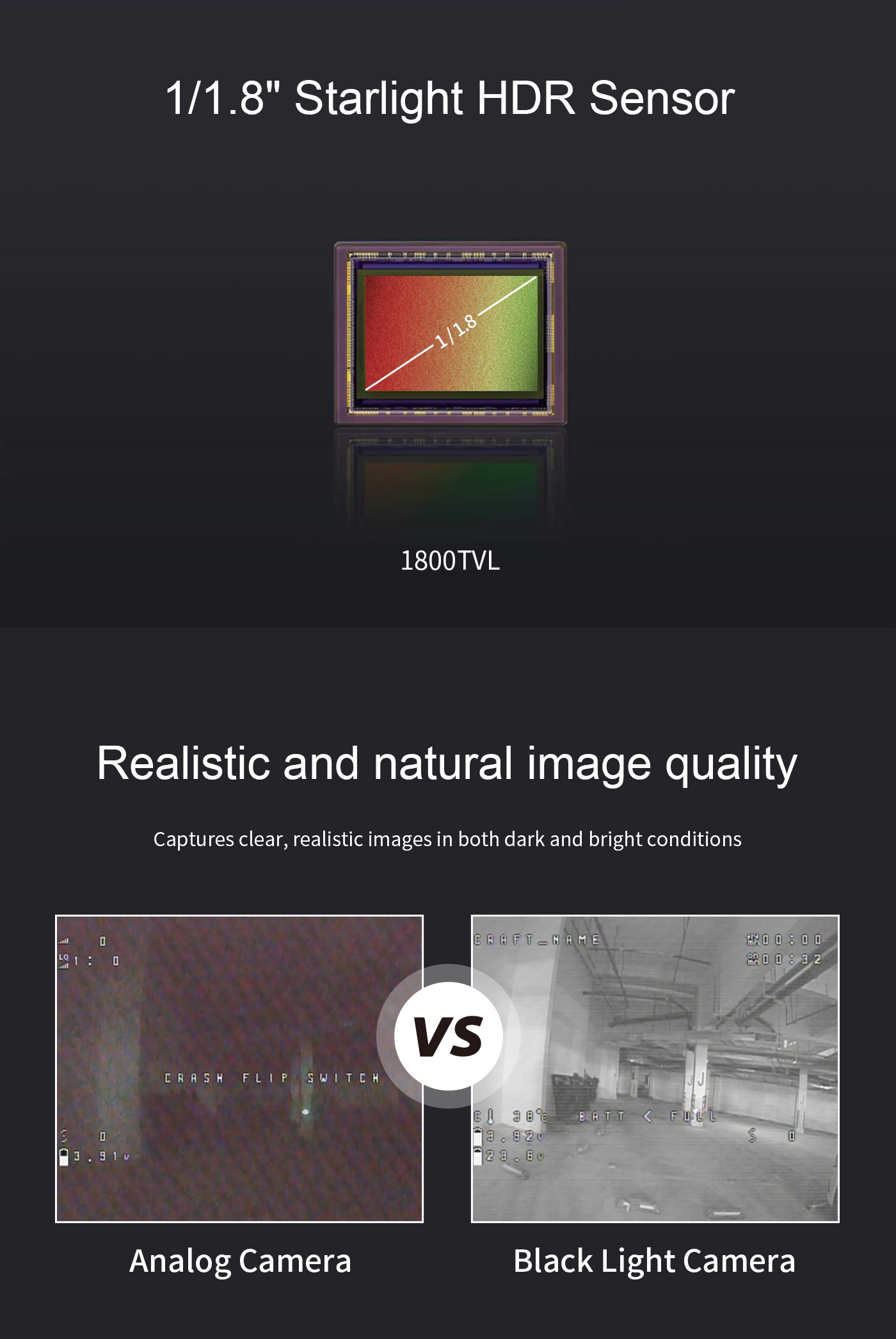

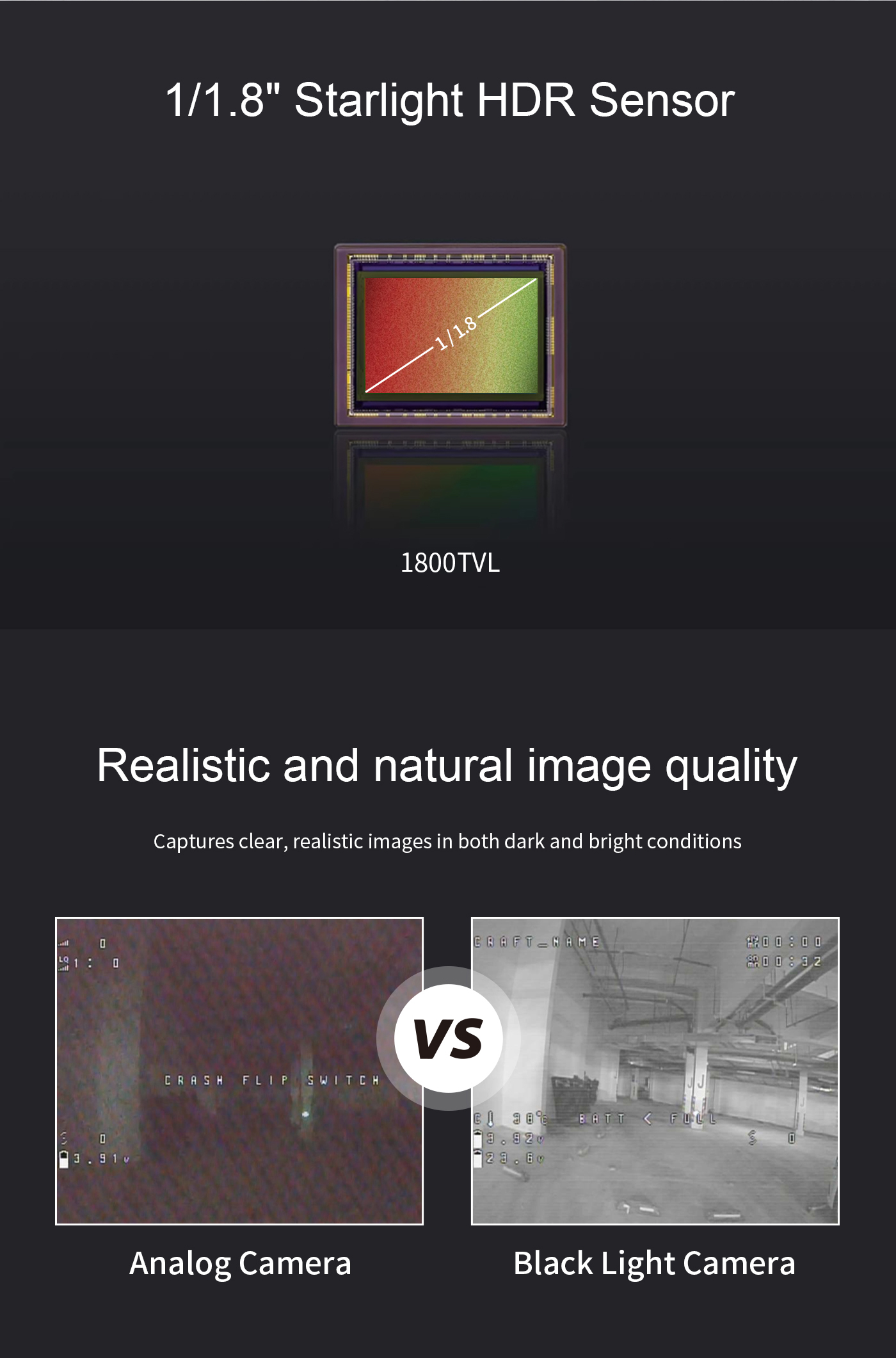

Sensor: 1/1.8" IMX LQR CMOS
Effective pixels: 1920H × 1080V
Minimum illumination: 0.00001 Lux@F1.0
Video output: AHD/TVI/CVI/CVBS
Lens: 3.2mm F1.07, FOV 120° (Undistorted)
Power supply: 5–28V, 110mA@12V
Operating temperature: -20°C ~ 70°C

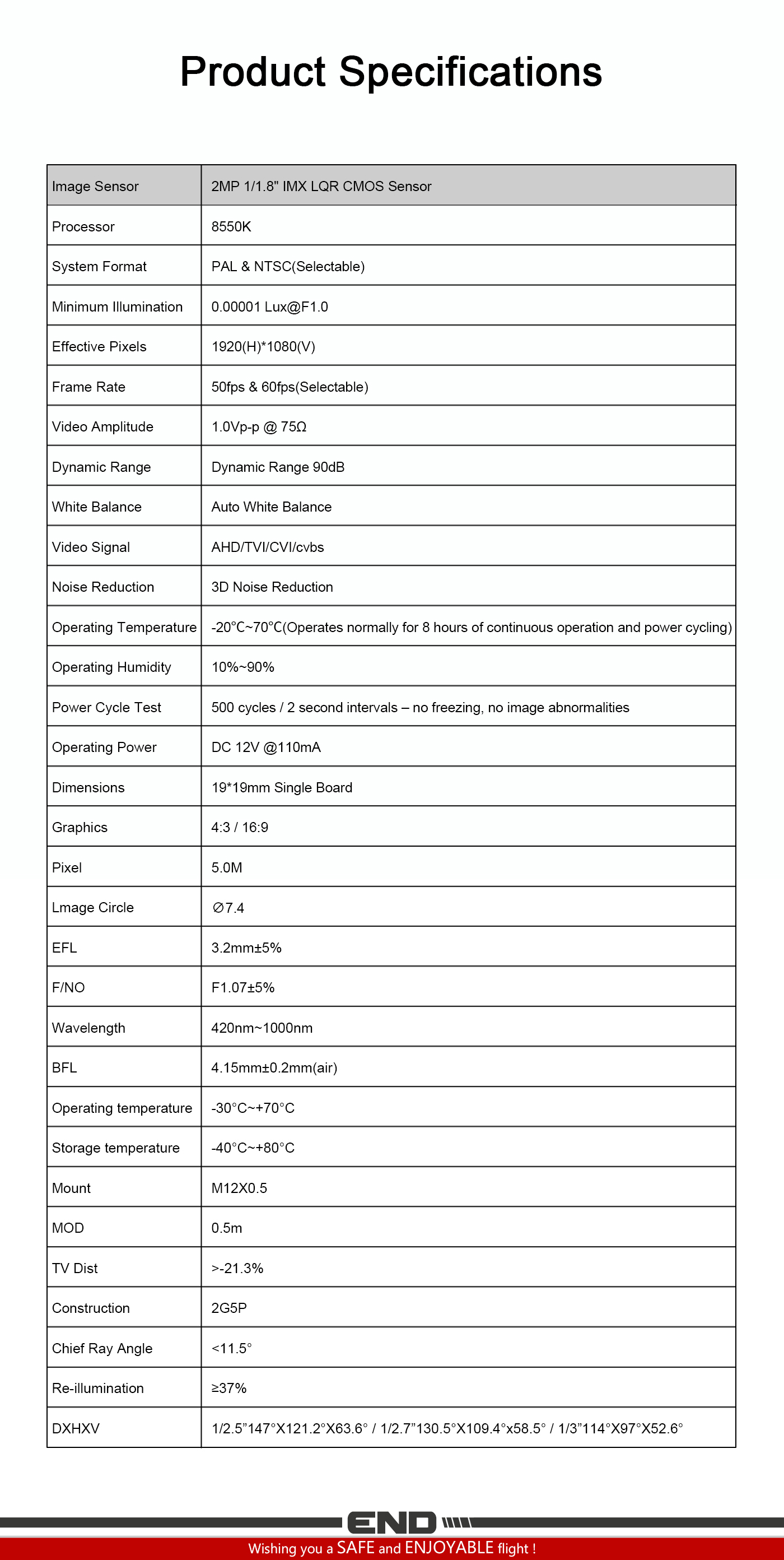

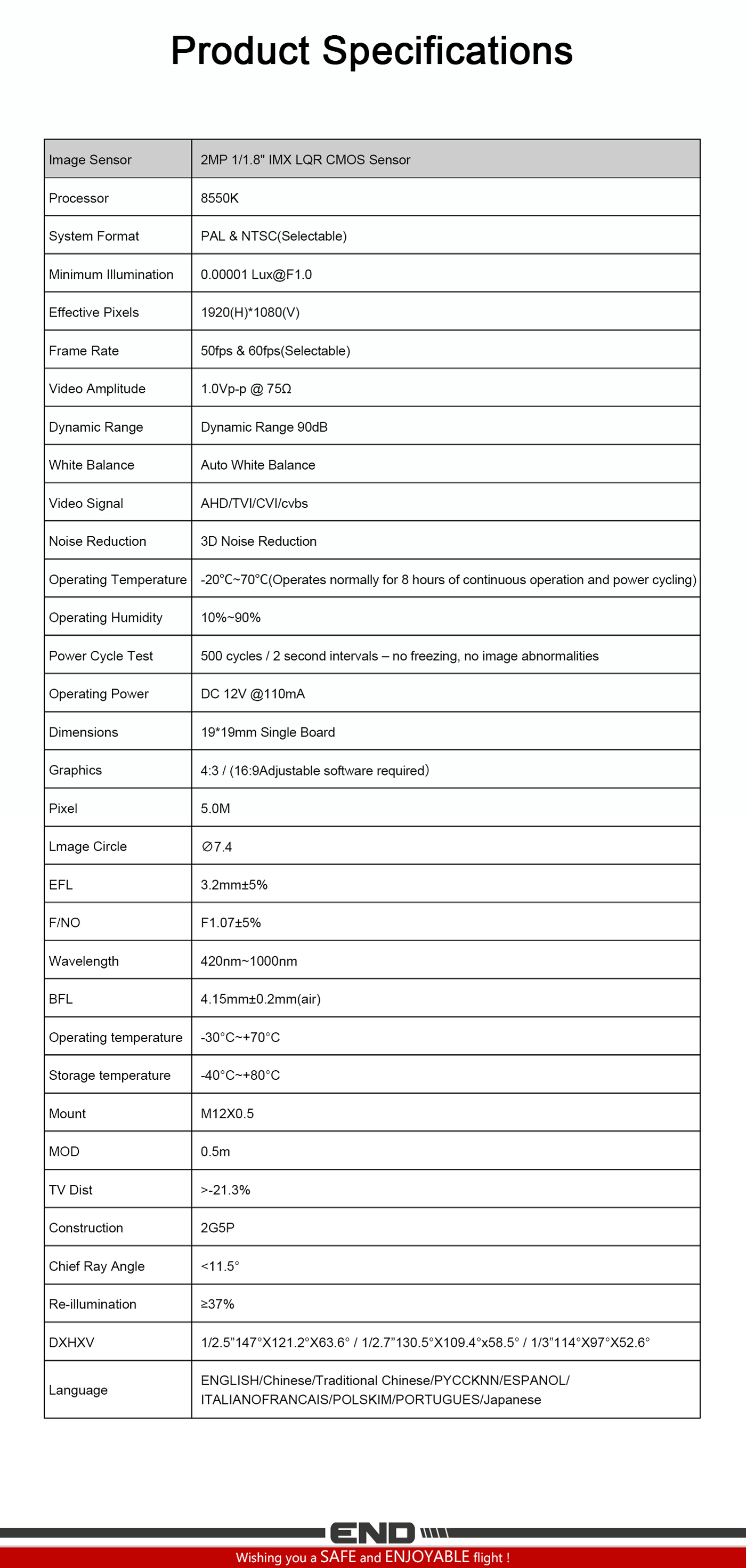

Specifications

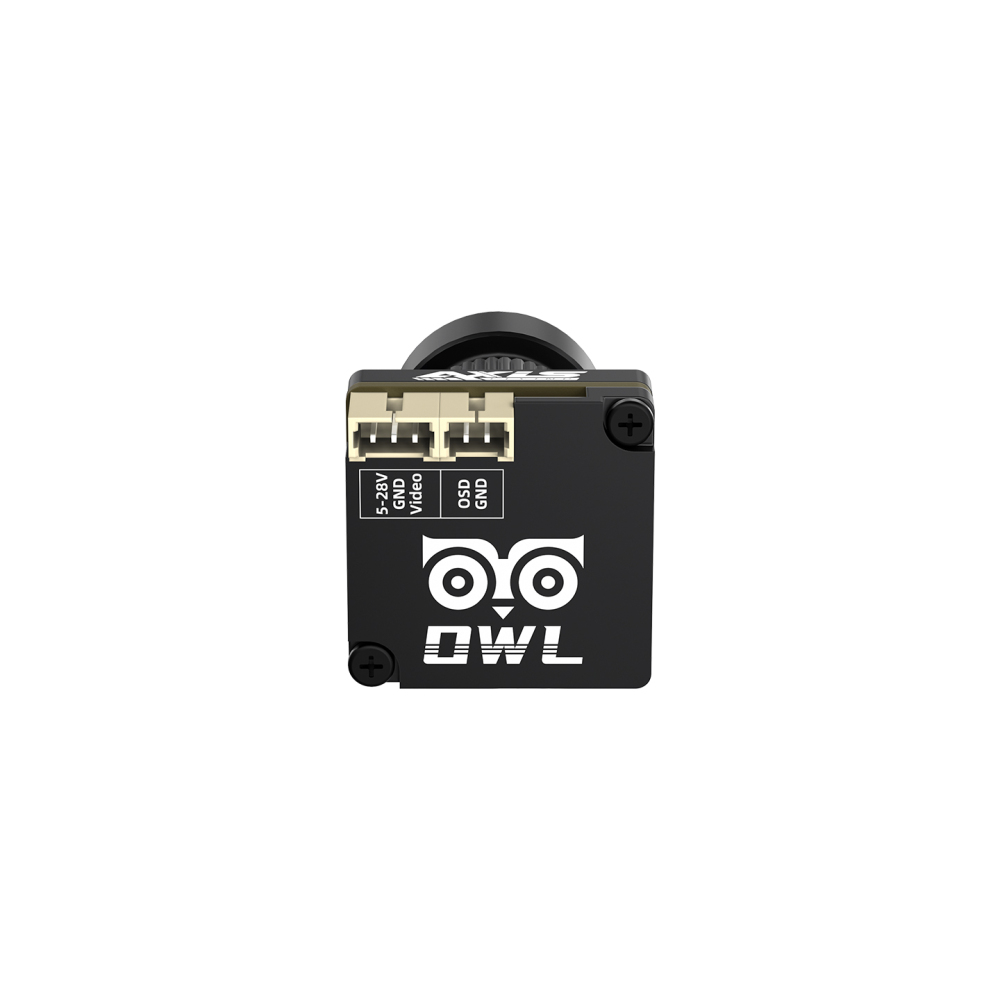

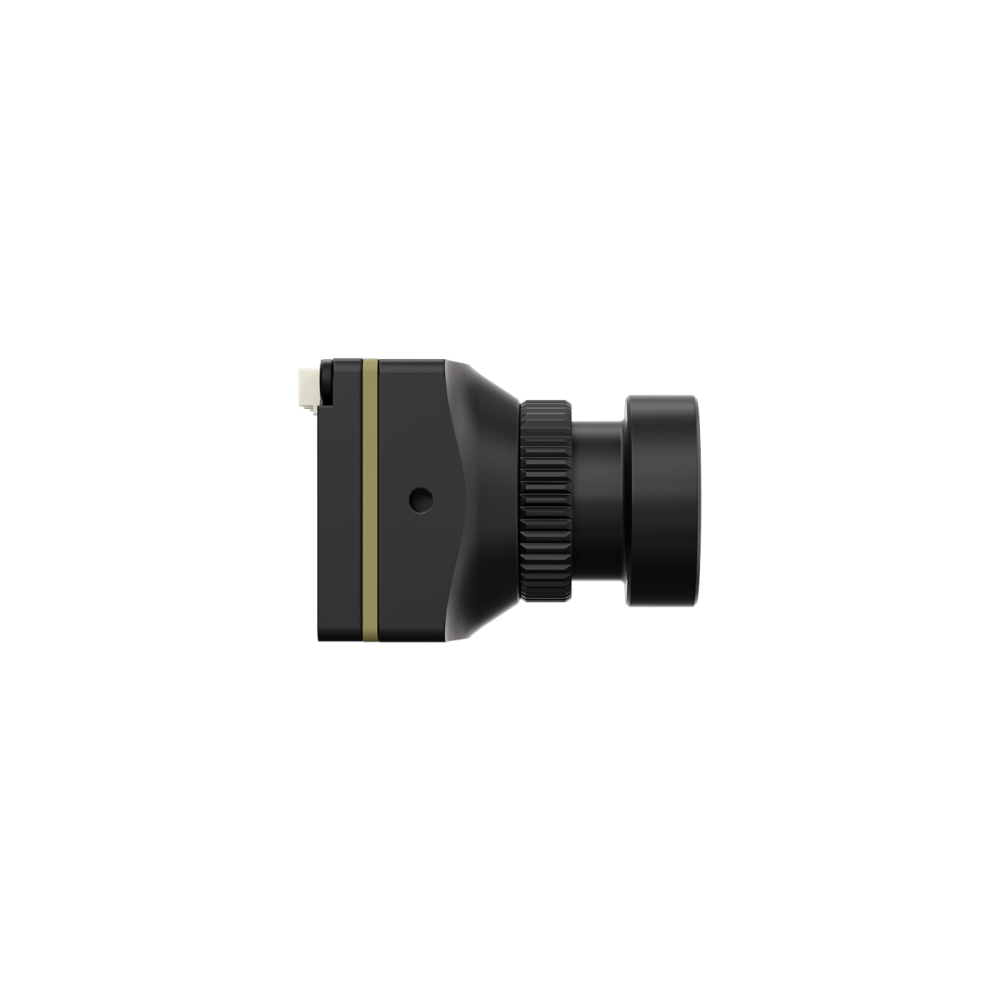

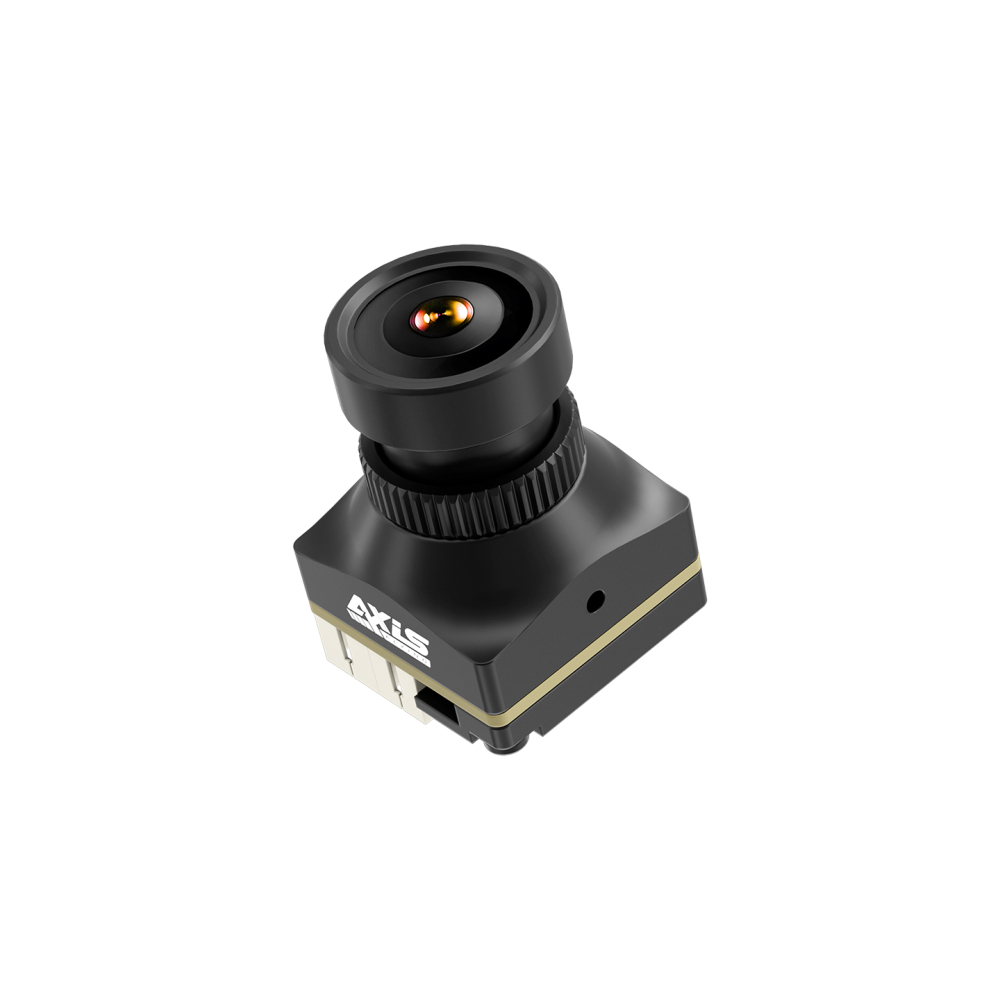

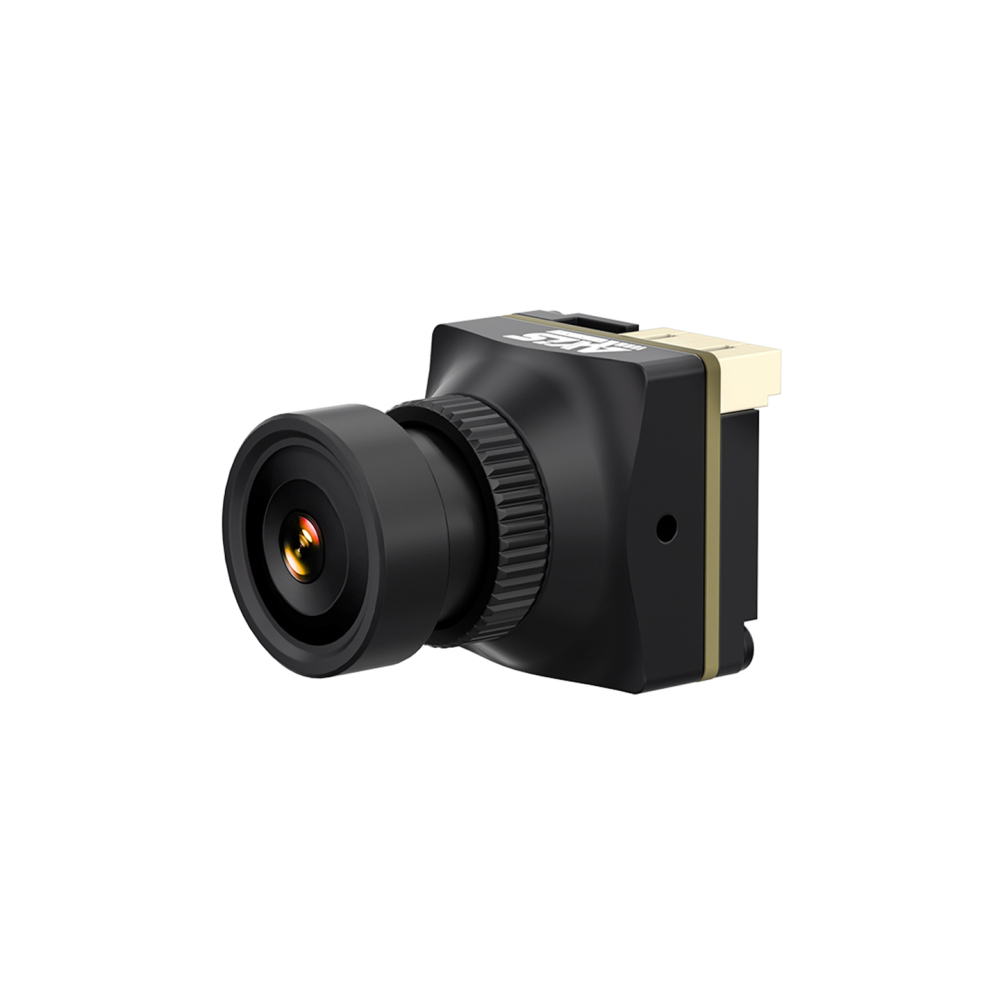

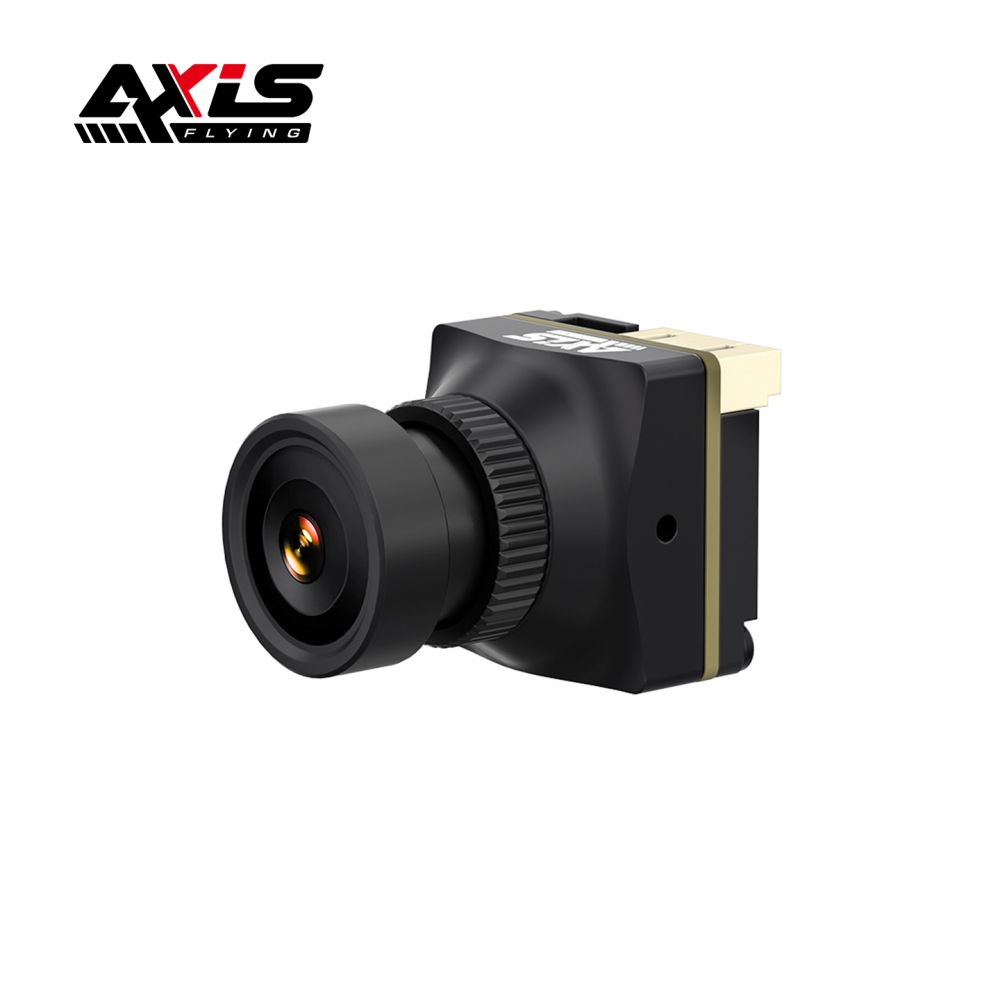

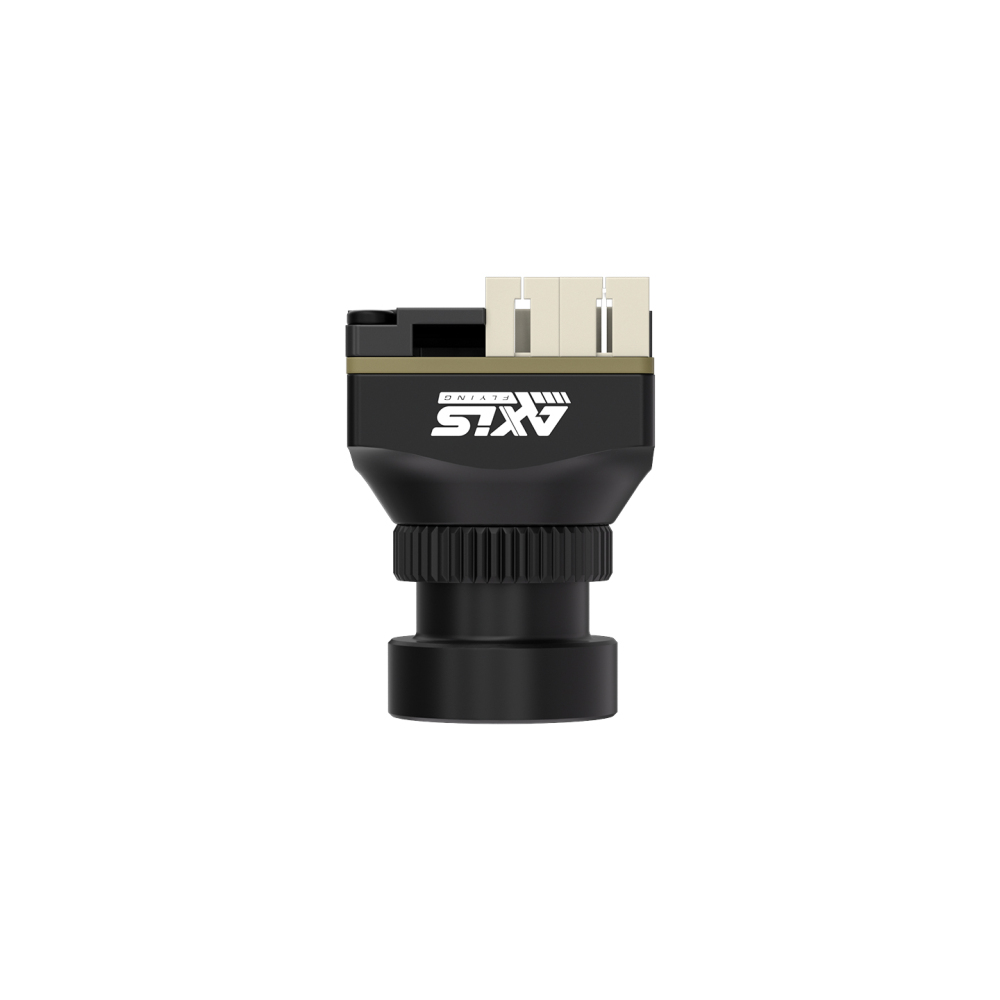

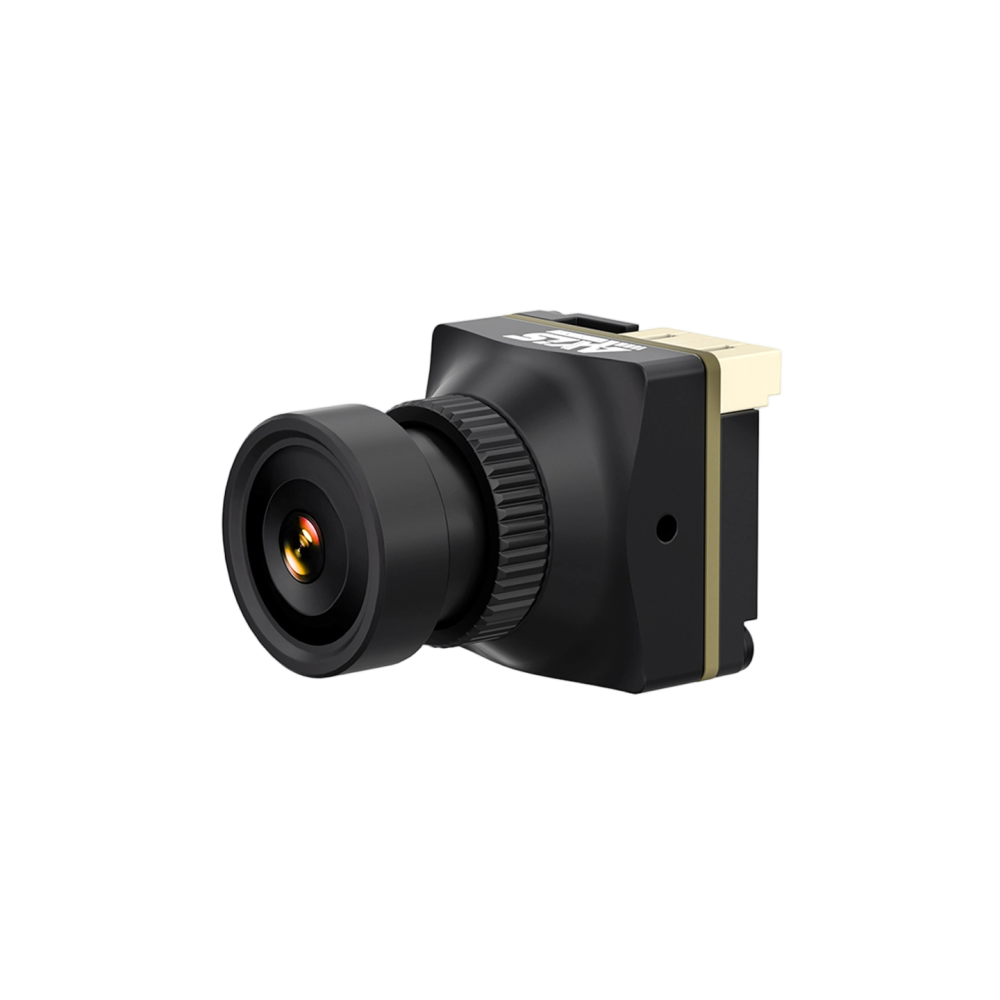

Name: OWL Black Light CVBS 1800 TVL FPV Camera
Sensor Type: 1/1.8" IMX LQR CMOS
System Format: PAL/NTSC (Selectable)
Effective Pixels: 1920H × 1080V
Minimum Illumination: 0.00001 Lux@F1.0
Day/Night Mode: External Control / Auto / Color / B/W
Night Vision: Supported (no IR needed)
Sync Method: Internal Sync
Frame Rate: 50fps & 60fps (Selectable)
Video Output: AHD/TVI/CVI/CVBS
Video Amplitude: 1.0Vp-p @75Ω
Lens Focal Length: 3.2mm±5%

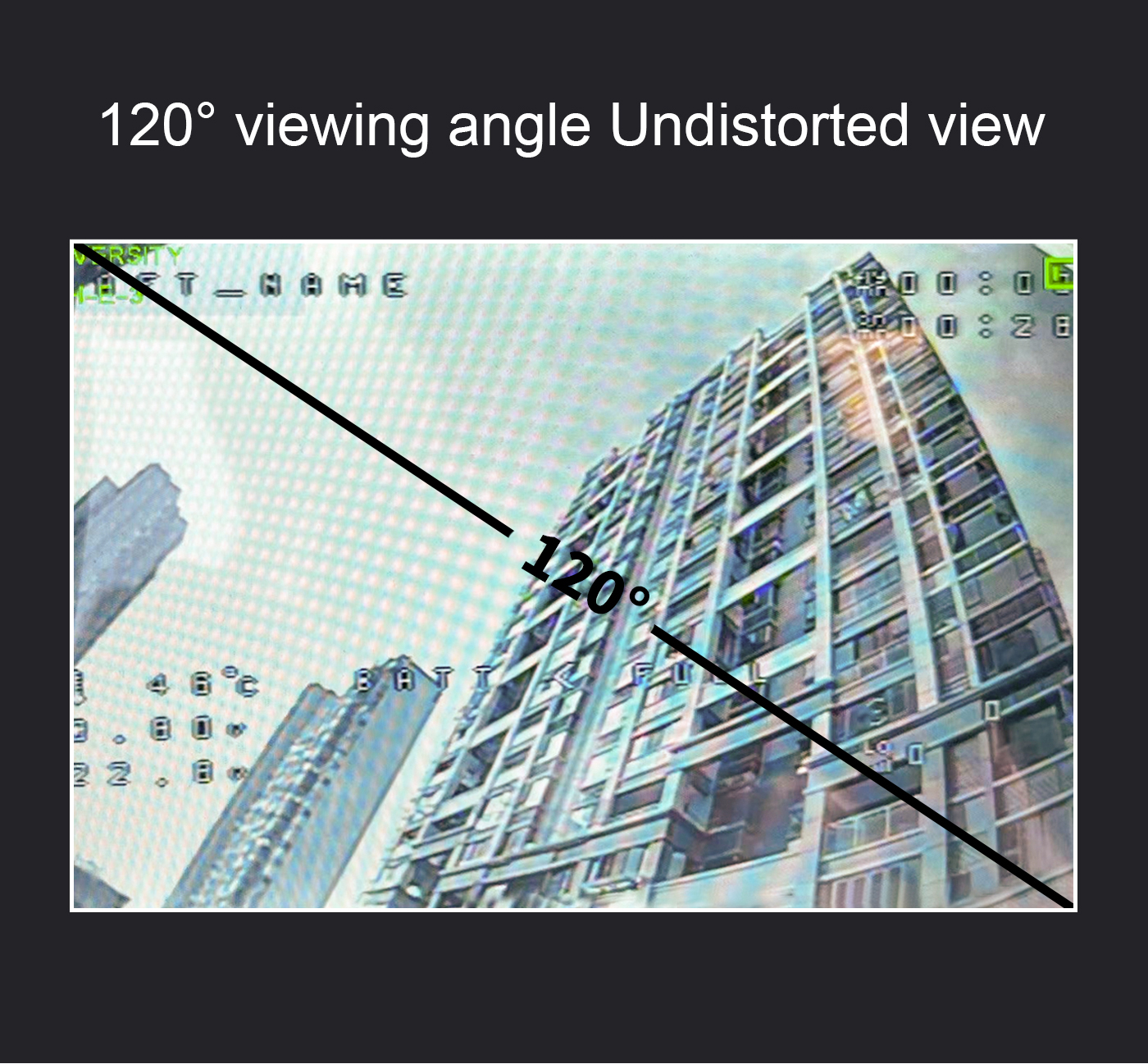

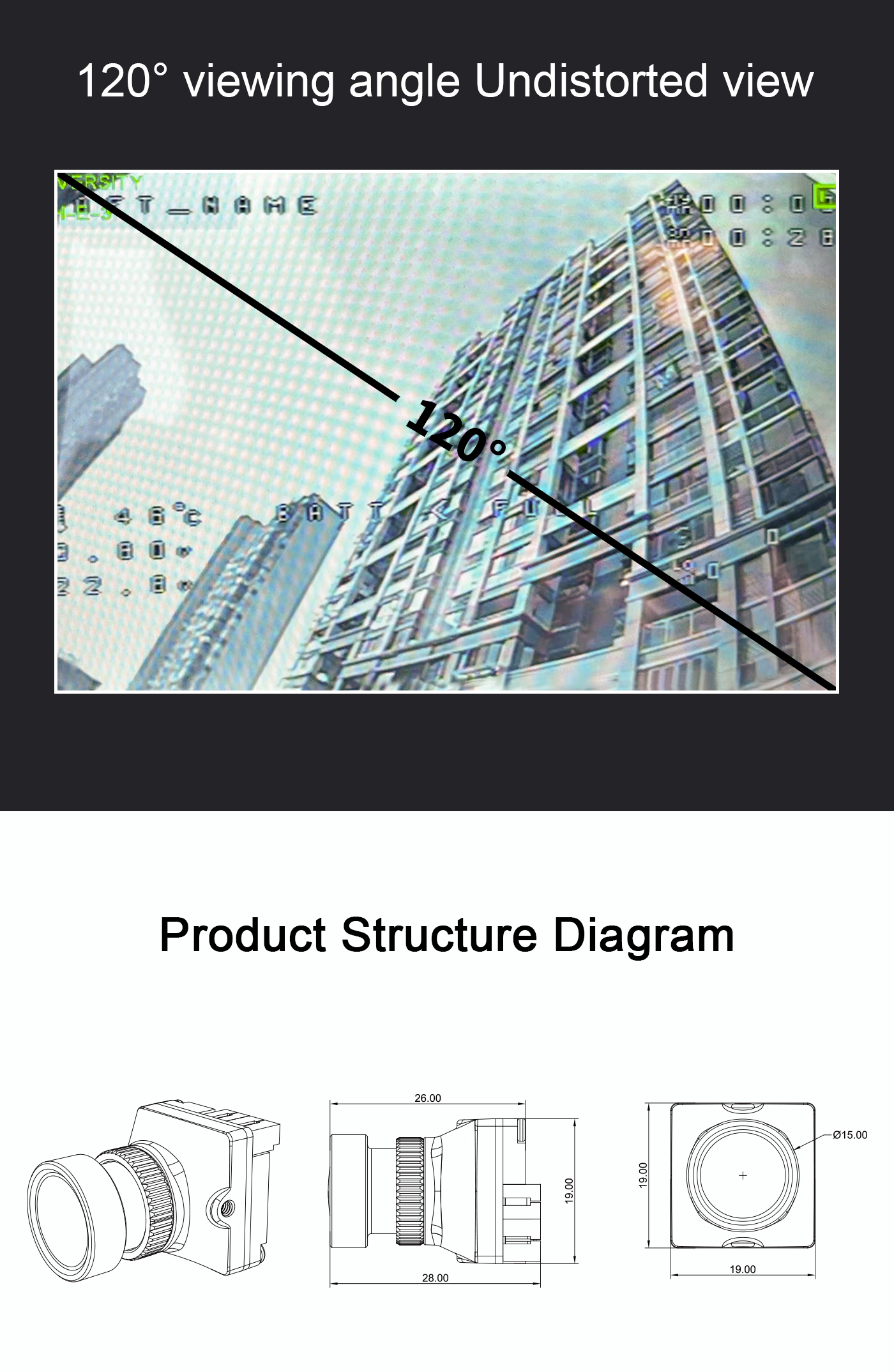

Total FOV: 120° (Undistorted)
Noise Reduction: 3D Noise Reduction
Functions: OSD, WDR, AWB, DNR, Mirroring, Reset
Power Supply: 5–28V, 110mA@12V
Operating Temp: -20°C ~ 70°C (8 hours continuous operation normal)
Operating Humidity: 10%~90% RH
Power Cycle Test: 500 cycles / 2 second intervals - no freezing, no image abnormalities
Storage Temperature: -40°C ~ +80°C
Aspect Ratio: 4:3 / 16:9 (Selectable)

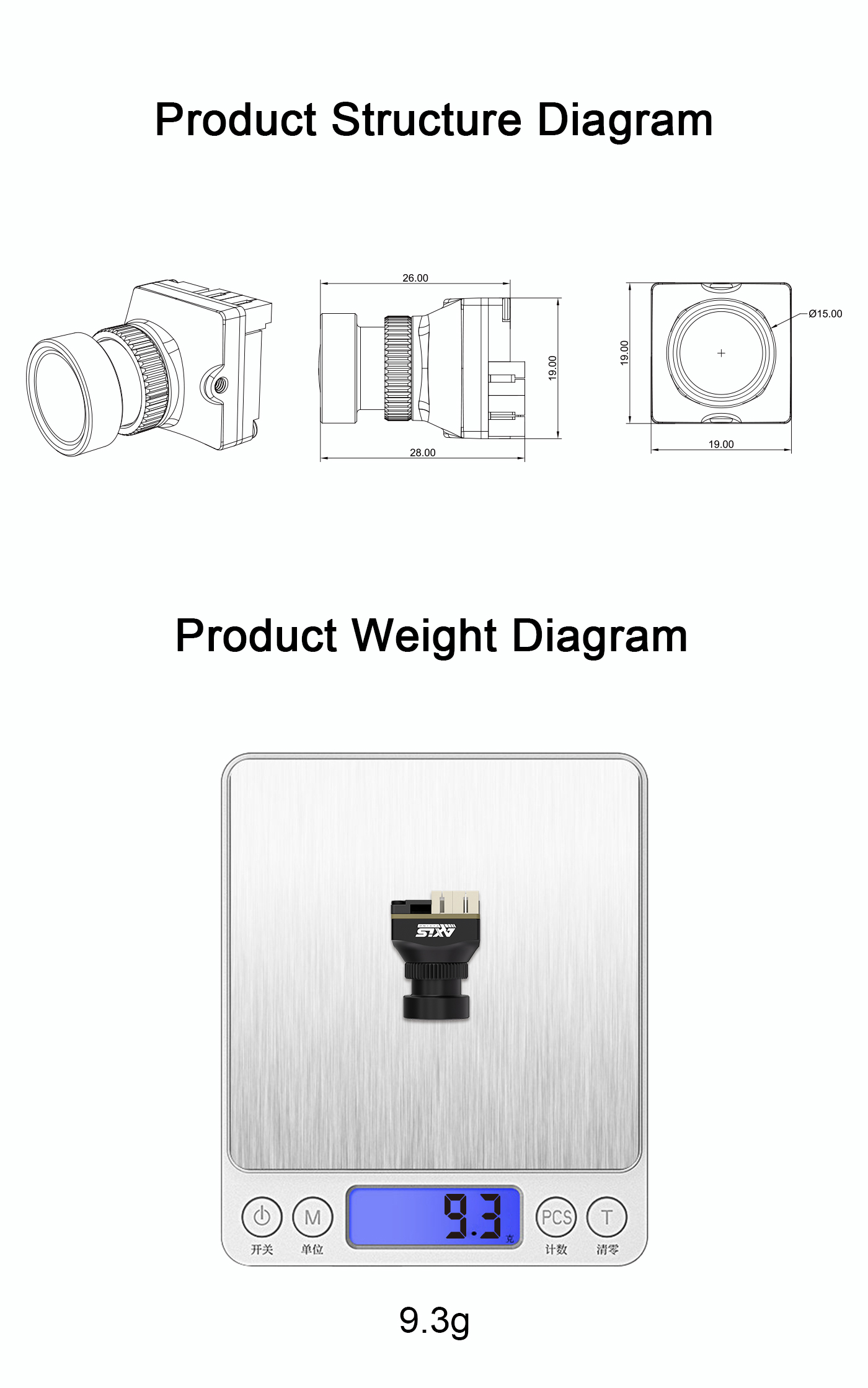

Dimensions: 19×19mm Single Board
US Tariff Information (for export to USA)
Current US tariff for FPV cameras from China: 30% (composite tariff, valid as of May 2026)
Key policy changes:
Entry Type 86 ($800 duty-free) is terminated; all shipments are dutiable.
Tariff reduced from 145% to 30% temporarily (90 days).
Tariff calculation: Total Order Value × 30%
