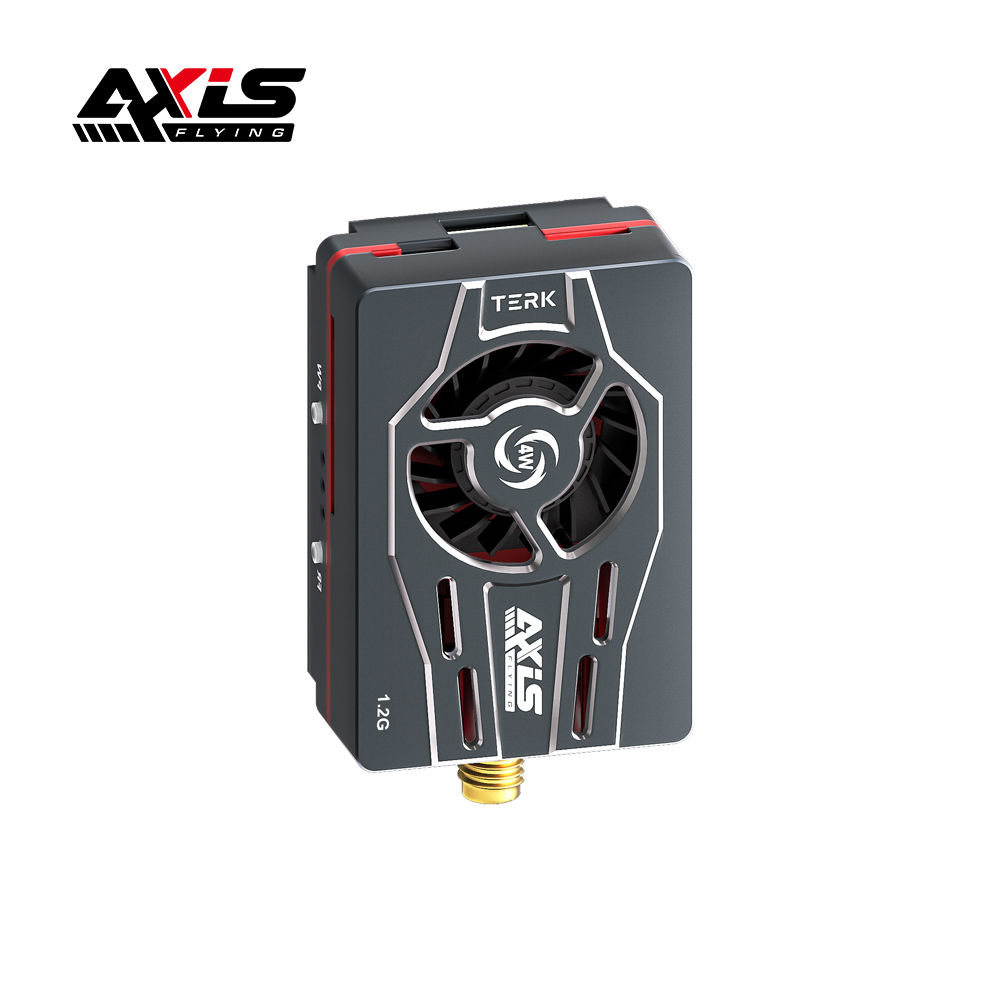

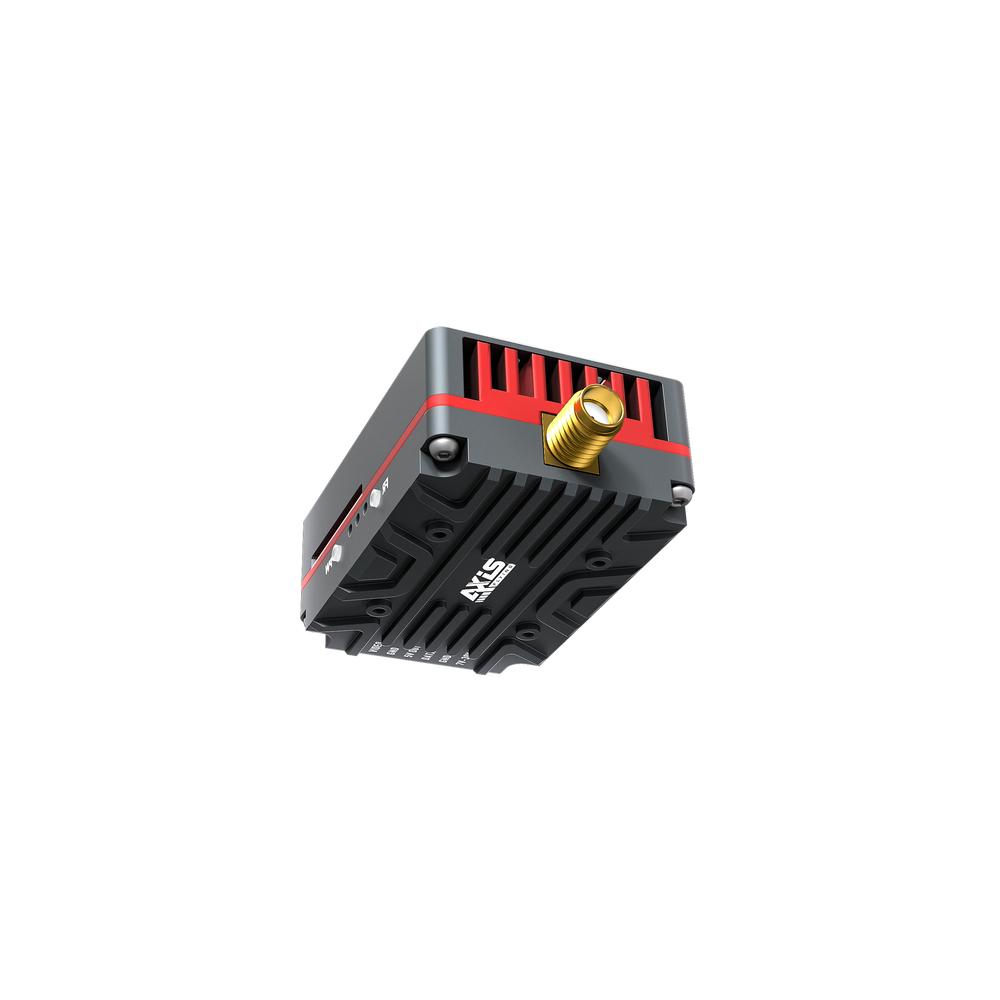

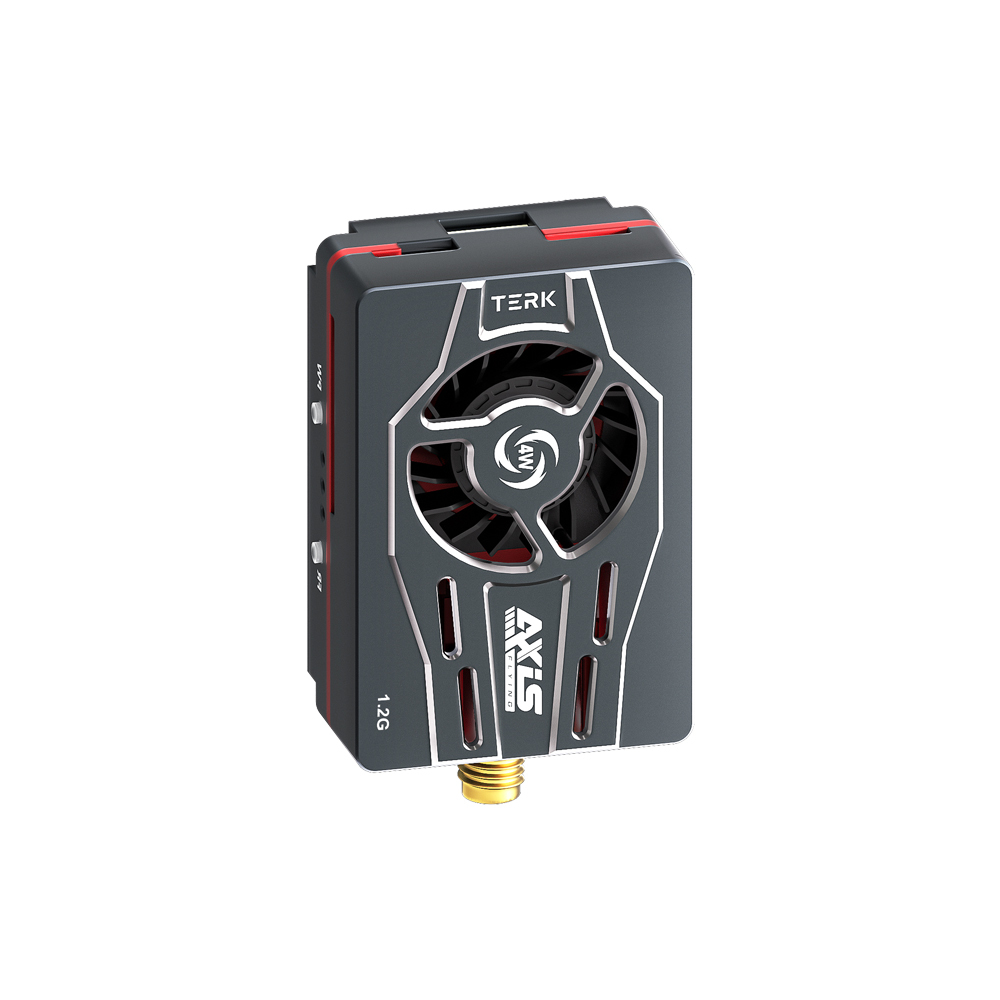

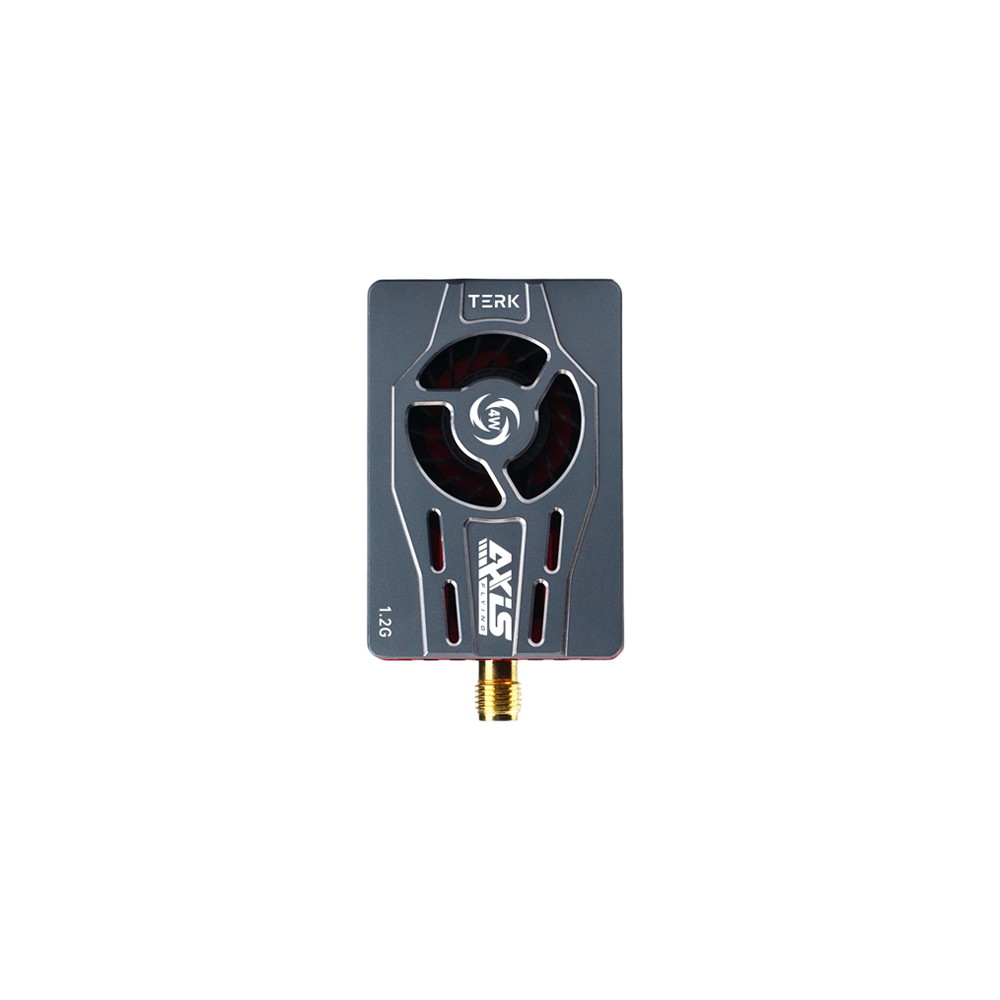

TERK 1.2G 4W VTX

lightweight /suitable for large long‑range FPV drones

SKU: A03030044

Sufficient stock available, DHL delivery in 3-7 days (excluding drone assembly time).

Received successfully

Coupon Code

CONTINUE SHOPPING

Need Help?

Our experts are online 24/7 to help you choose the right drone and gear

Chat Now

TERK 1.2G 4W VTX

$77.90

Quantity

Reward points

Total

1 * $77.9 = $77.9

Starting at $27.22/mo or as low as 0% APR with

Learn more

Free shipping on select items over $200

Global Support

Payment Method

Description

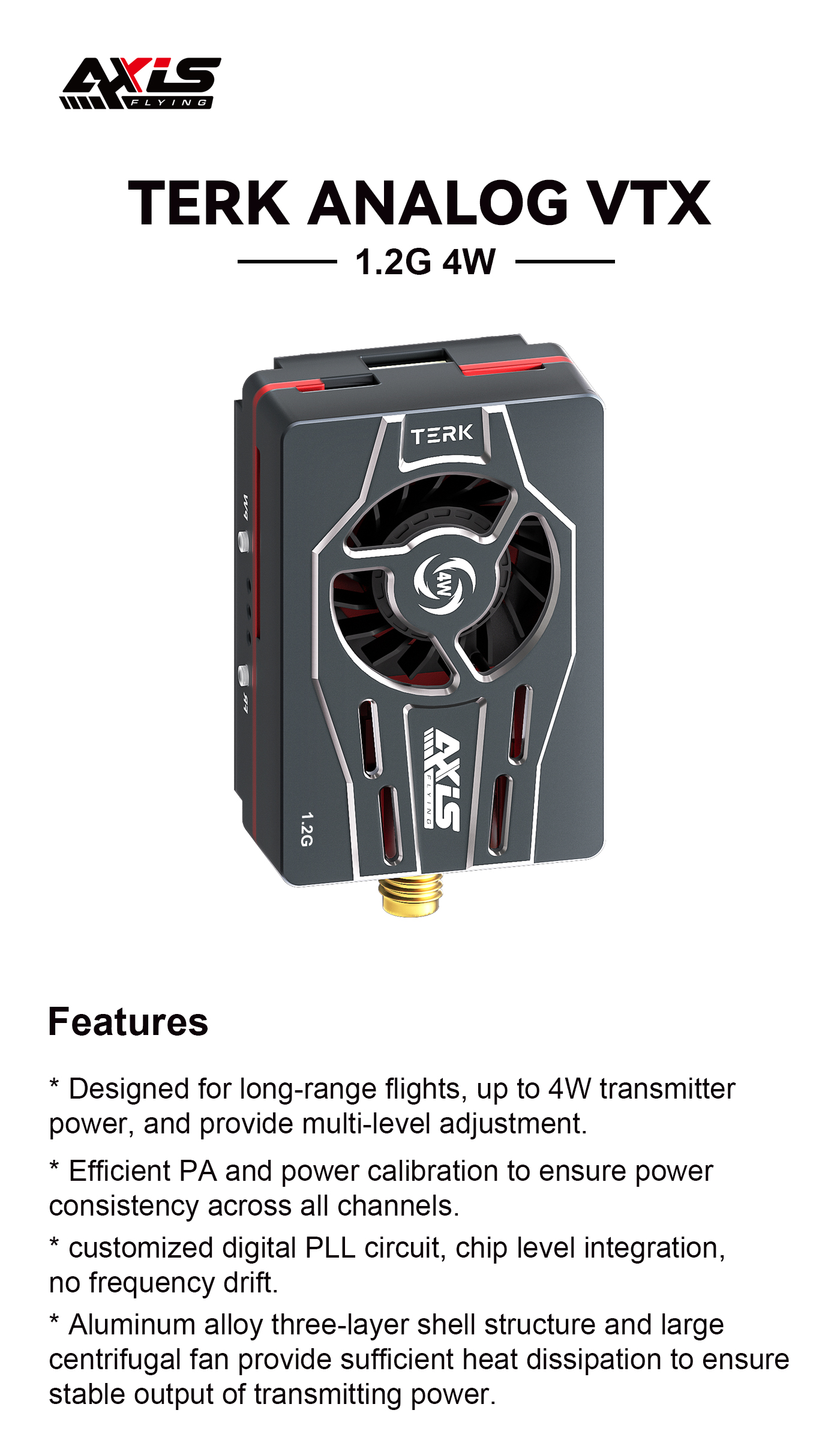

Features

Designed for long‑range FPV flights, up to 4W adjustable output power
Efficient PA design & power calibration for stable power across all channels
Customized digital PLL circuit, chip‑level integration, no frequency drift

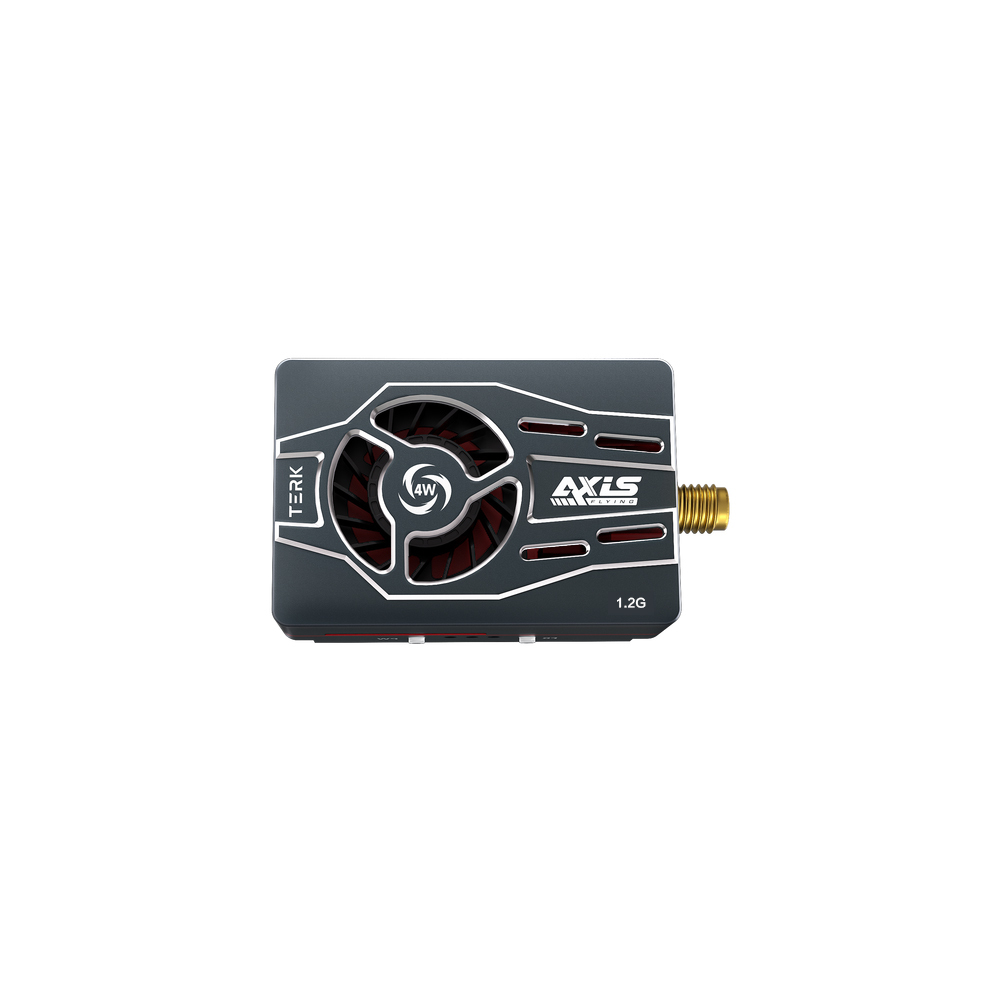

Aluminum alloy three‑layer shell + centrifugal cooling fan for excellent heat dissipation
Support IRC / TRAMP protocol for channel & power control

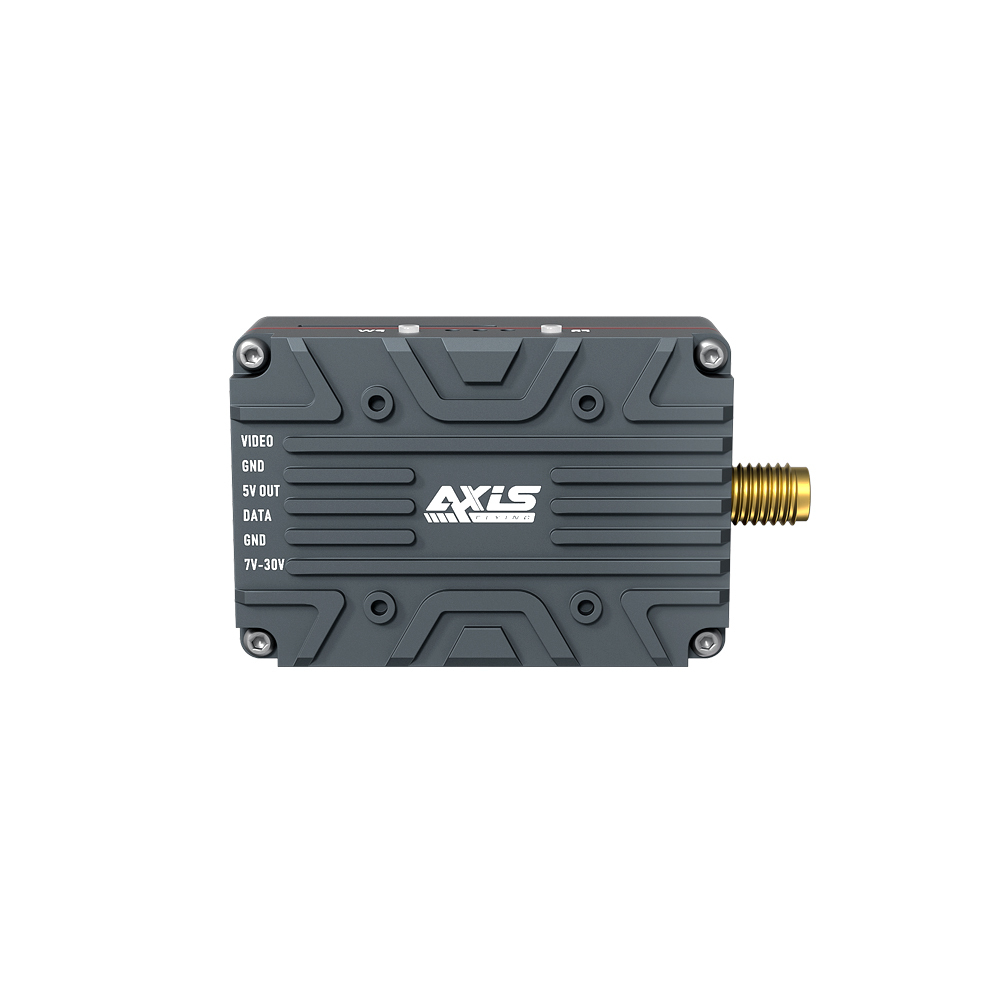

Wide voltage input: 7V–30V, onboard 5V output for peripheral power supply
16 available channels, dual frequency band (A/B) switchable
Compact size, lightweight, suitable for large long‑range FPV drones

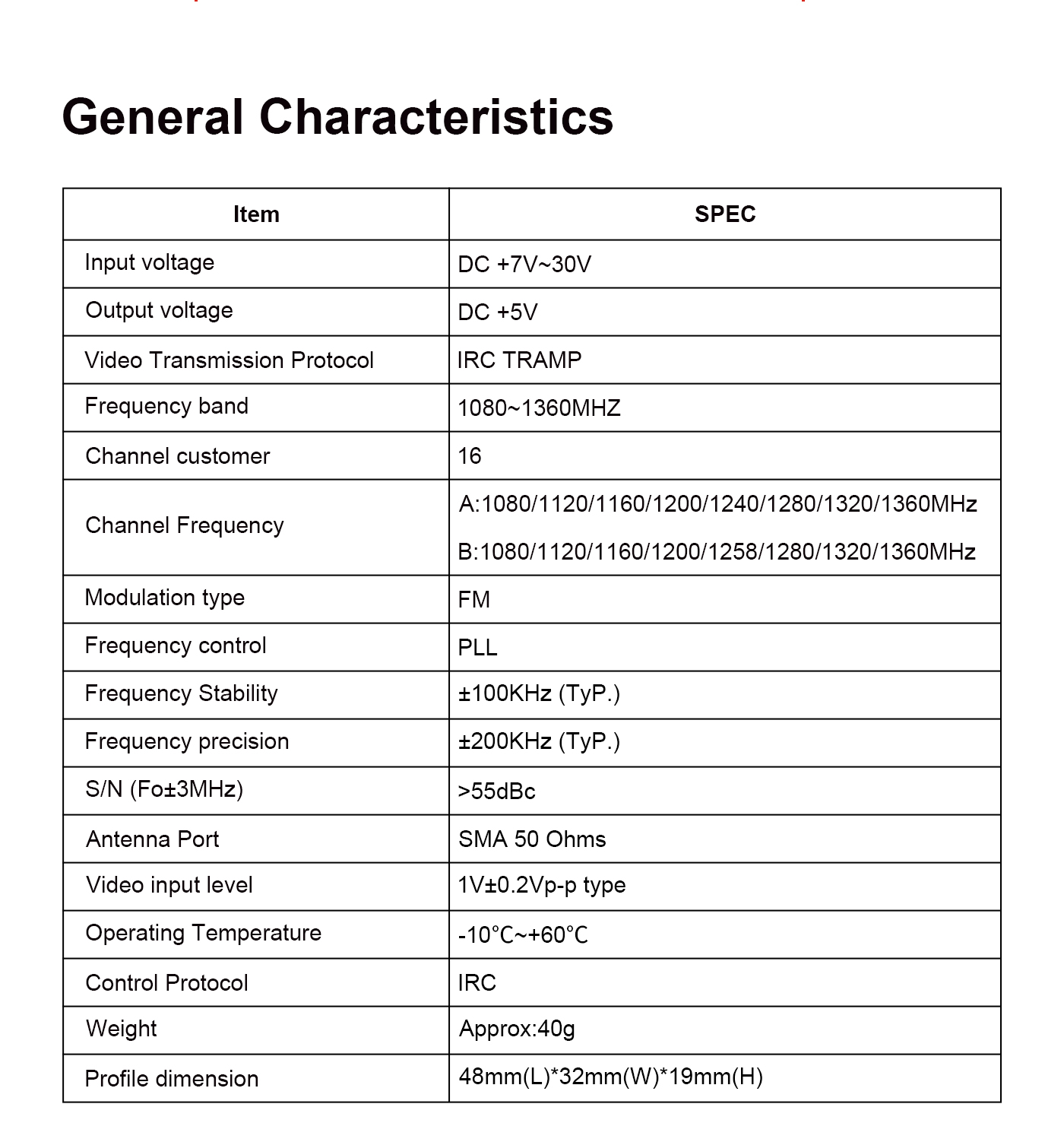

Specifications

Item	Specification
Model	TERK 1.2G 4W VTX
Input Voltage	DC 7V–30V
Output Voltage	DC 5V OUT
Frequency Band	1080–1360MHz
Channels	16CH (Band A / Band B)

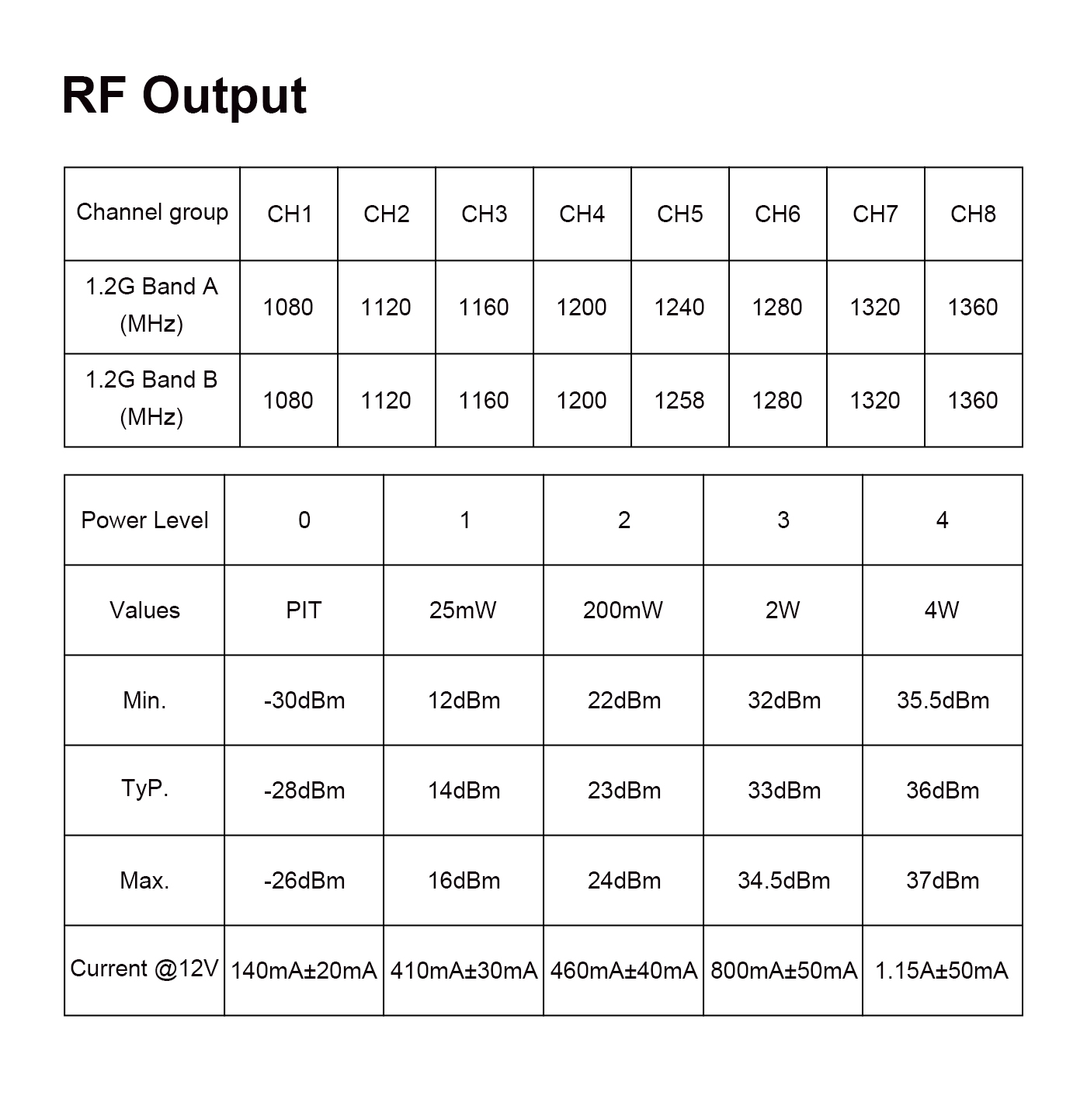

Band A	1080/1120/1160/1200/1240/1280/1320/1360MHz
Band B	1080/1120/1160/1200/1258/1280/1320/1360MHz
Modulation	FM
Frequency Control	PLL
Frequency Stability	±100kHz (Typ.)
S/N Ratio	>55dBc
Antenna Port	SMA 50Ω
Video Input	CVBS 1V±0.2Vp‑p
Control Protocol	IRC / TRAMP
Operating Temp	-10°C ~ +60°C

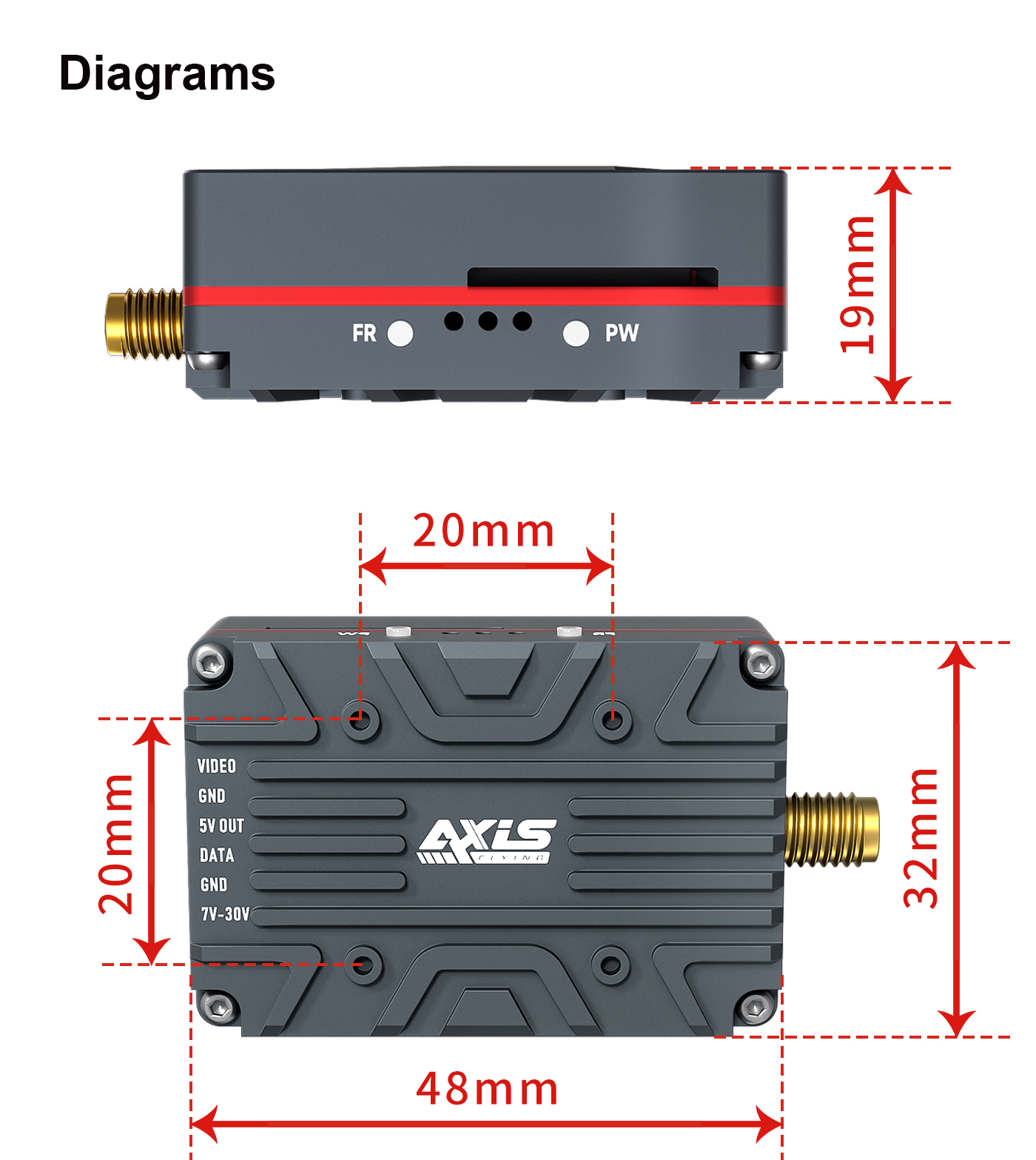

Dimensions	48mm(L) × 32mm(W) × 19mm(H)
Weight	Approx. 40g

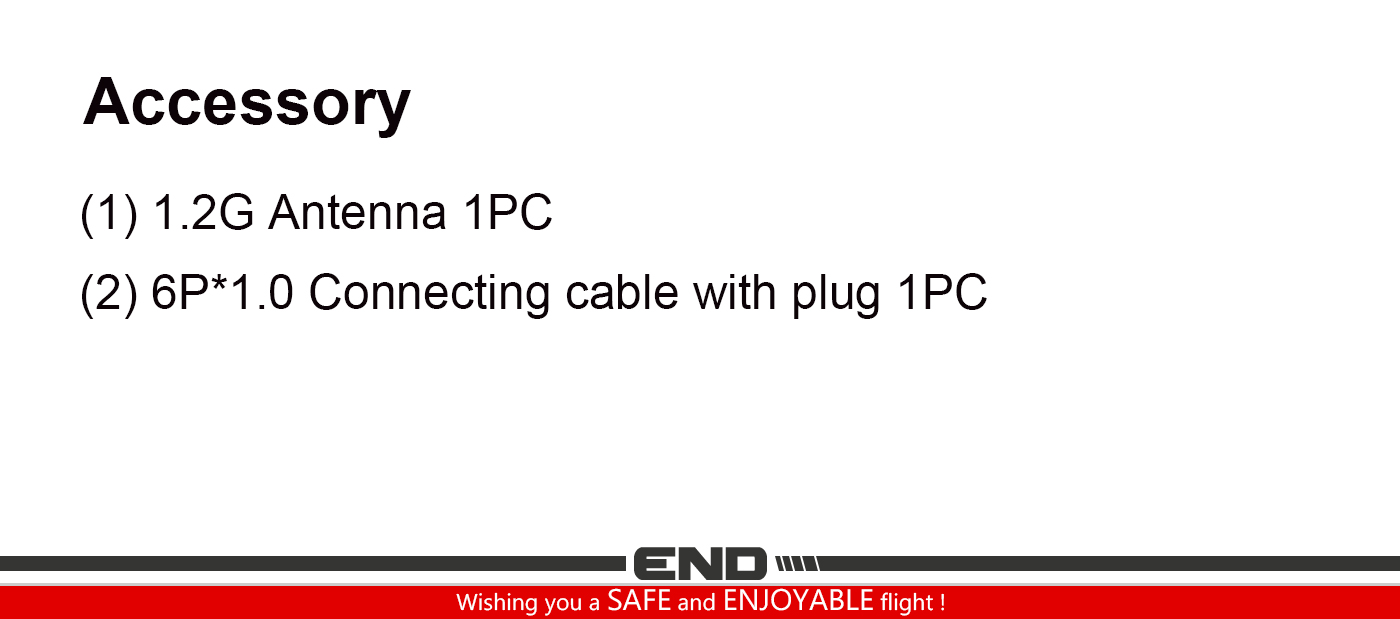

Package List

TERK 1.2G 4W VTX ×1
1.2G Antenna ×1
6P×1.0 connection cable ×1
User manual ×1

FAQ

Are Axisflying products universal for most FPV drones?

Yes, all Axisflying parts are standard size and universal, compatible with most mainstream FPV models for easy assembly and replacement.

Do you provide after-sales support and technical guidance?

Sure. We offer professional technical support, installation tips and after-sales service to solve your usage problems.

Do I need to pay import duties or taxes?

Import duties, taxes and customs clearance fees are not included in the product price. They are the buyer’s responsibility and vary by country/region, local tax policy and order value.

We can provide commercial invoice, packing list, CE/RoHS certificates to help with customs clearance. For detailed rates, please check with your local customs office.

Where can I download product manuals and printable documents?

All user manuals, quick guides, specification sheets and printable files are available in the Support / Download Center on our official website.
