Foreword

Feature

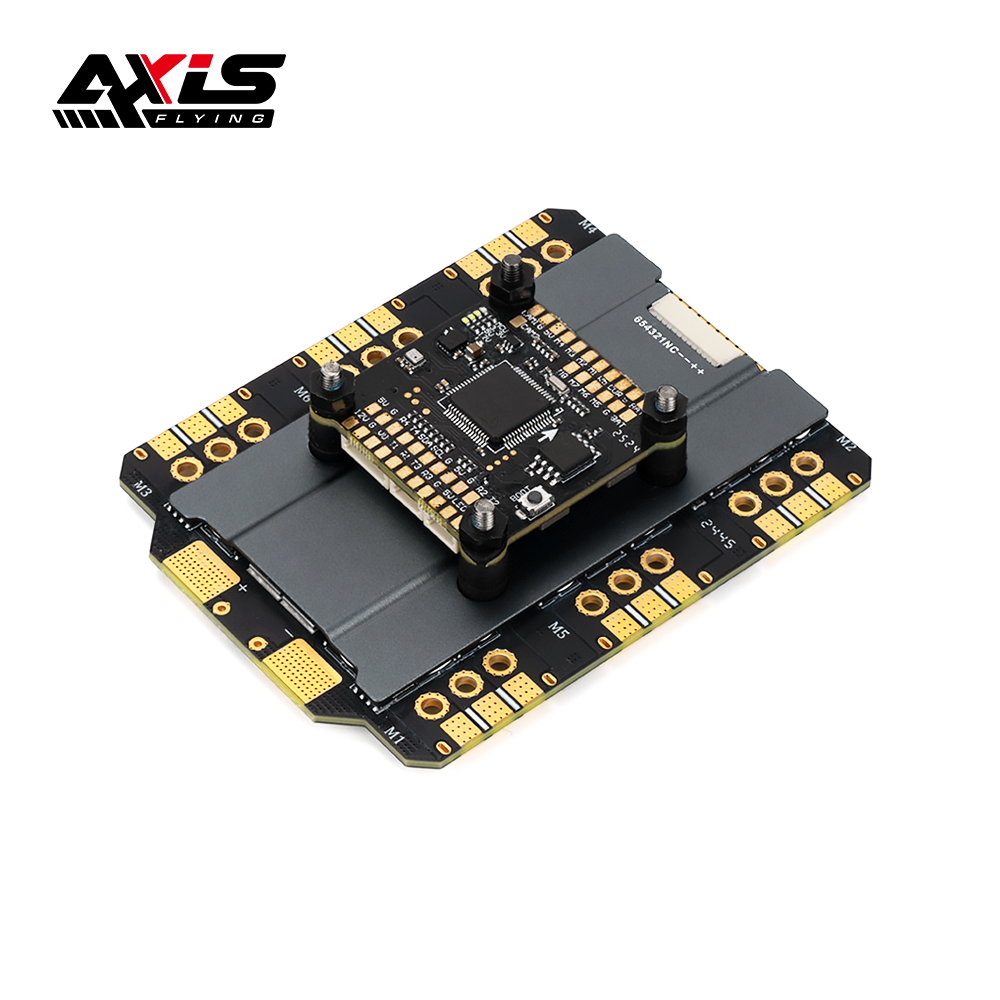

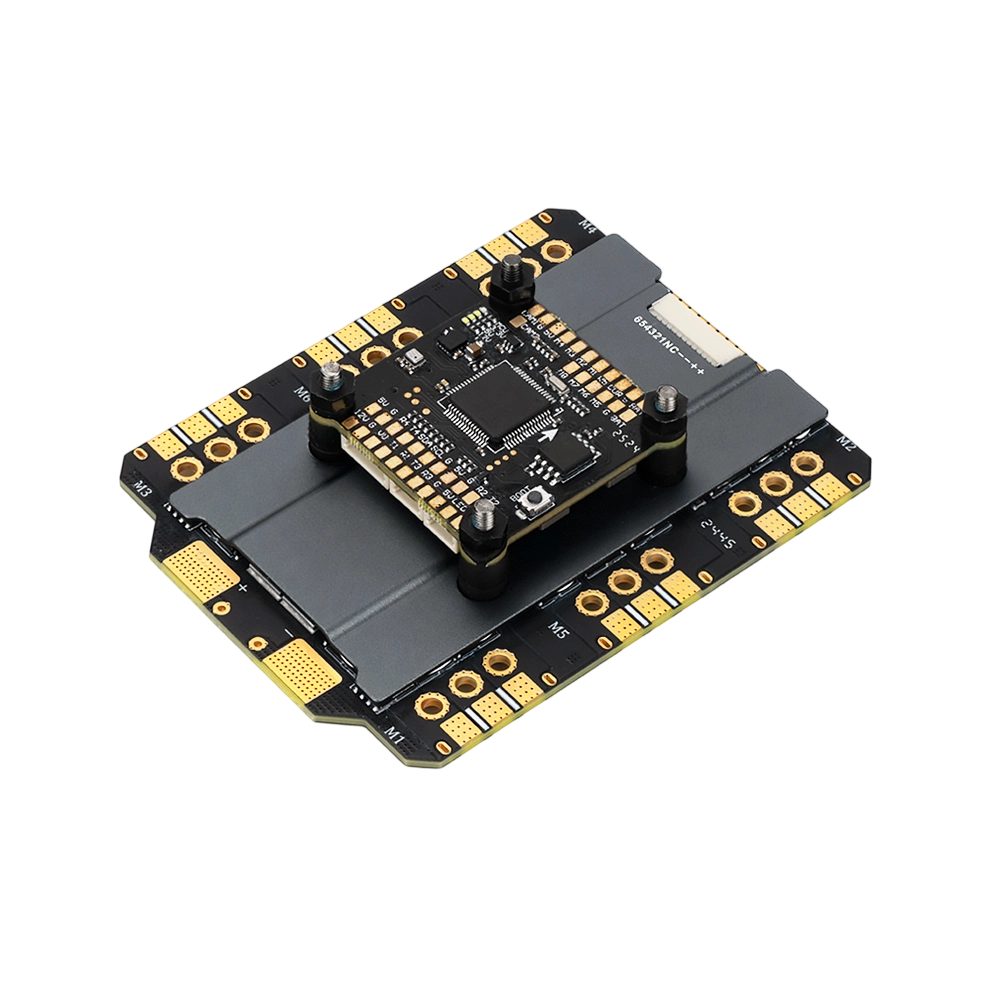

• Integrated stack: Argus Pro 6‑in‑1 ESC + ECO F722 Flight Controller, ready to use for 13–15 inch 6‑arm drones.
• ESC: 80A/100A high current, supports 2–8S input, with temperature protection and ammeter.
• FC: STM32 F722 processor, ICM42688P gyro, barometer, 16M black box, 5 UARTs, OSD supported.
• BEC: 5V 3A / 12V 2A, sufficient for HD systems and peripherals.
• Standard 30.5×30.5mm mounting, compatible with most heavy‑lift frames.
• Stable wiring, high heat dissipation, designed for long‑time heavy‑load flight.

Recommended Configuration

Specifications

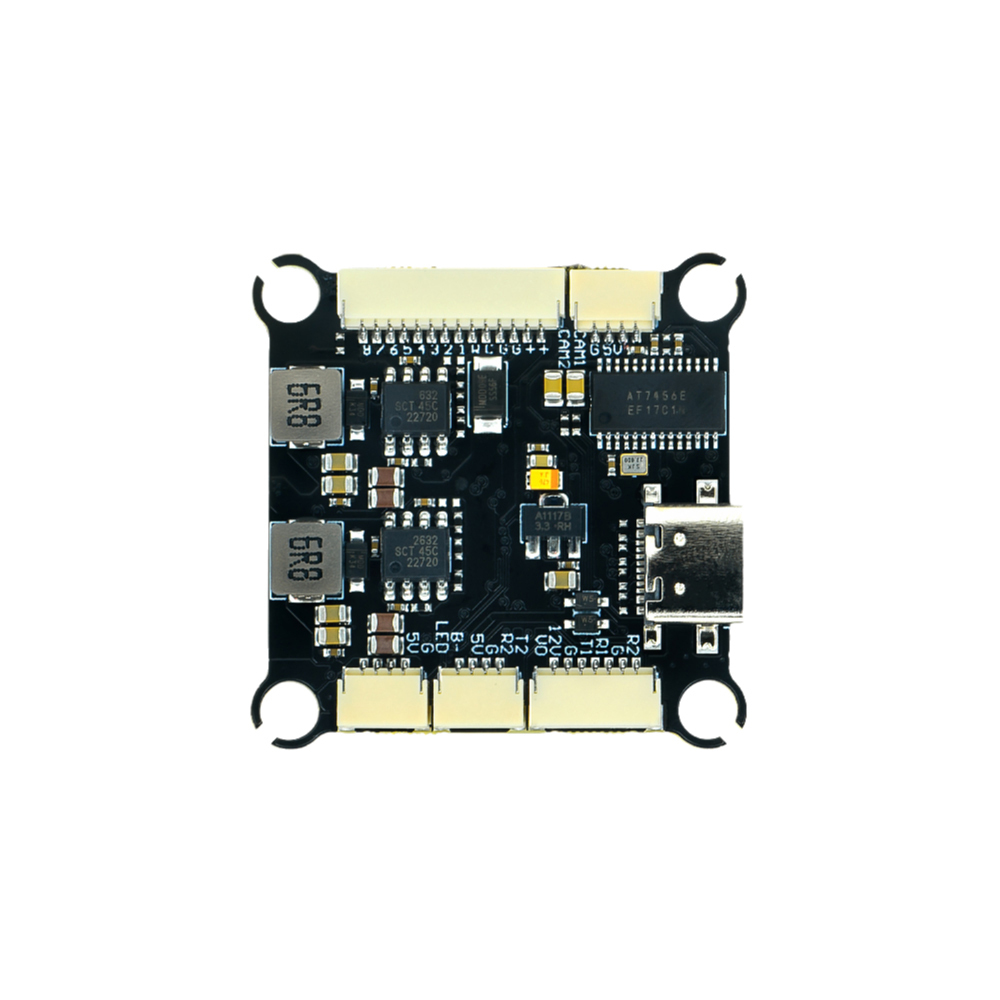

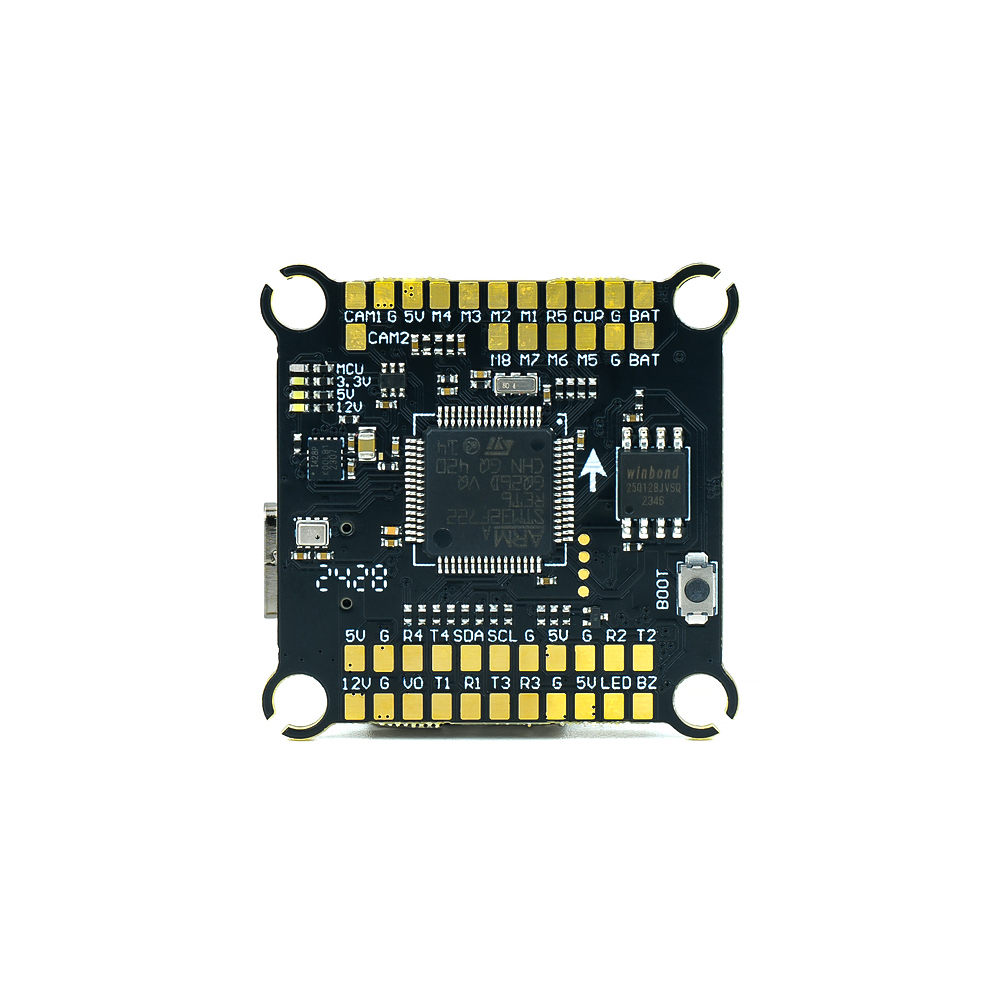

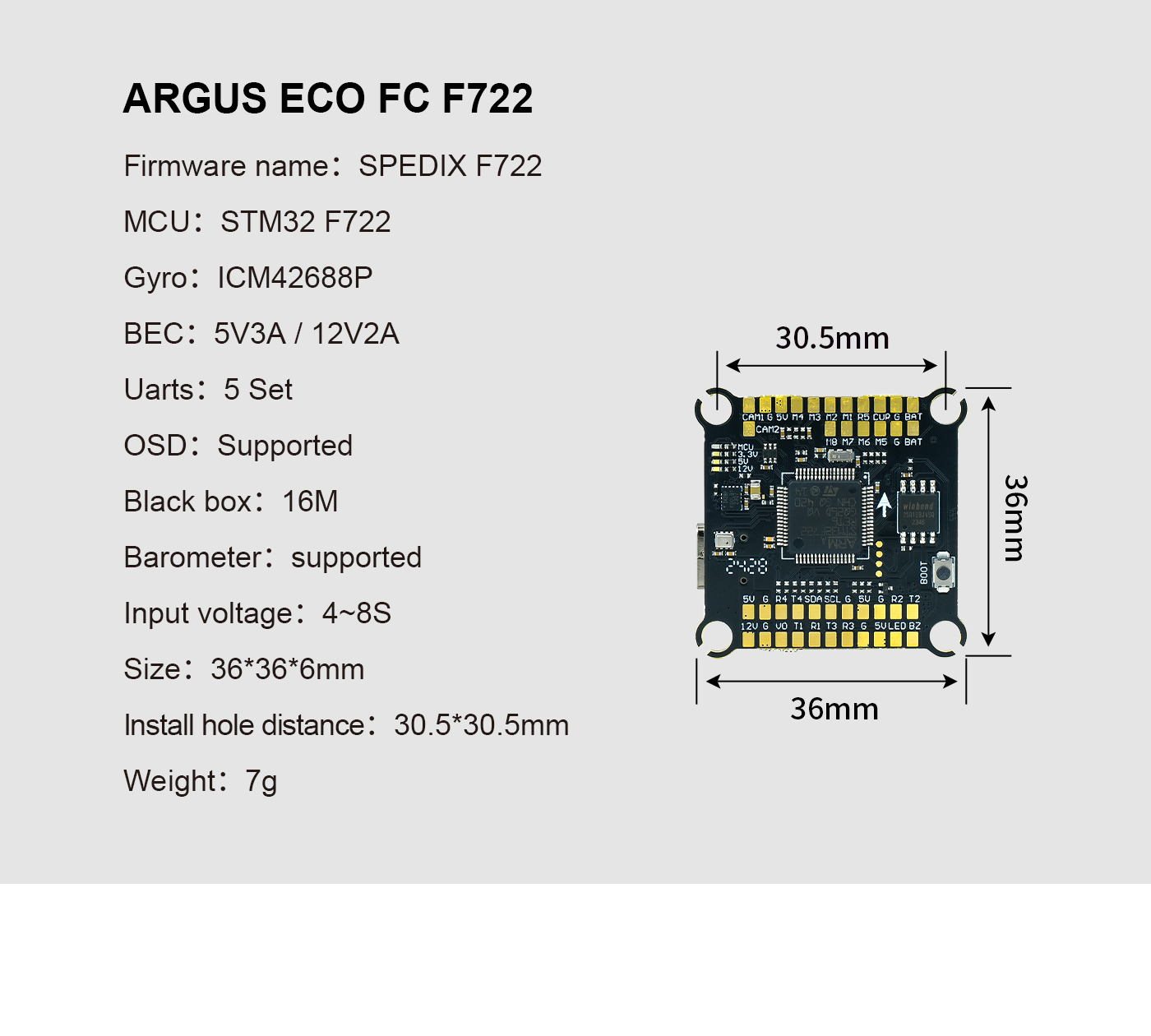

Flight Controller: ECO F722

• Firmware: SPEDIX F722
• MCU: STM32 F722
• Gyro: ICM42688P
• Barometer: Supported
• Black box: 16M
• Input: 4–8S
• BEC: 5V 3A / 12V 2A
• UARTs: 5 sets
• OSD: Supported
• Size: 36×36×6mm
• Mount: 30.5×30.5mm
• Weight: 7g

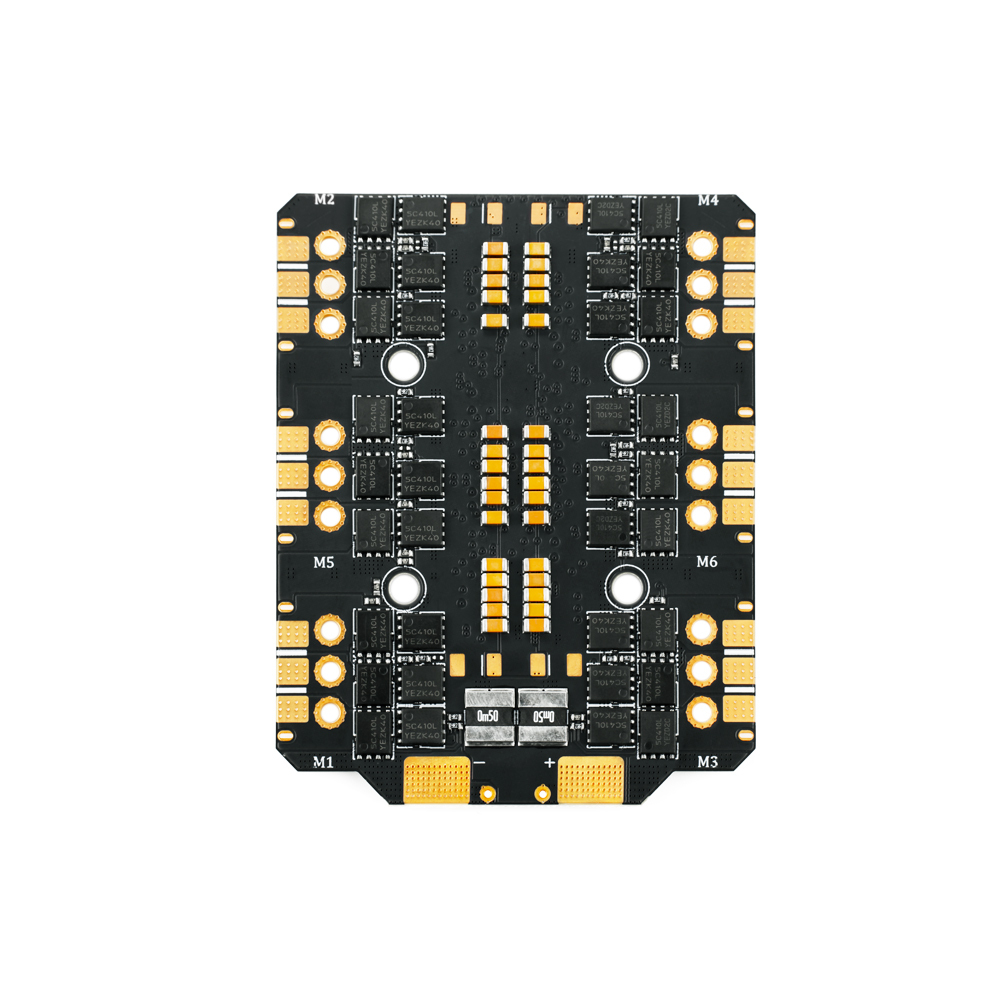

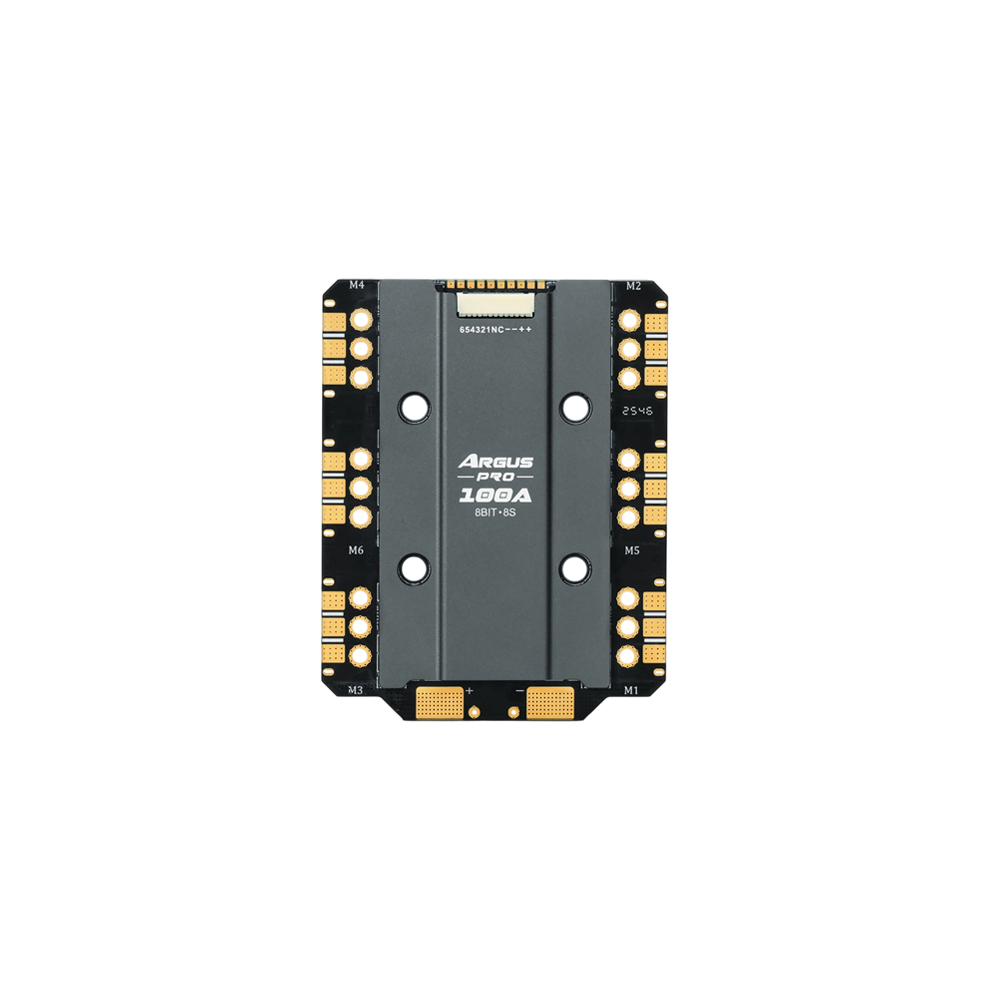

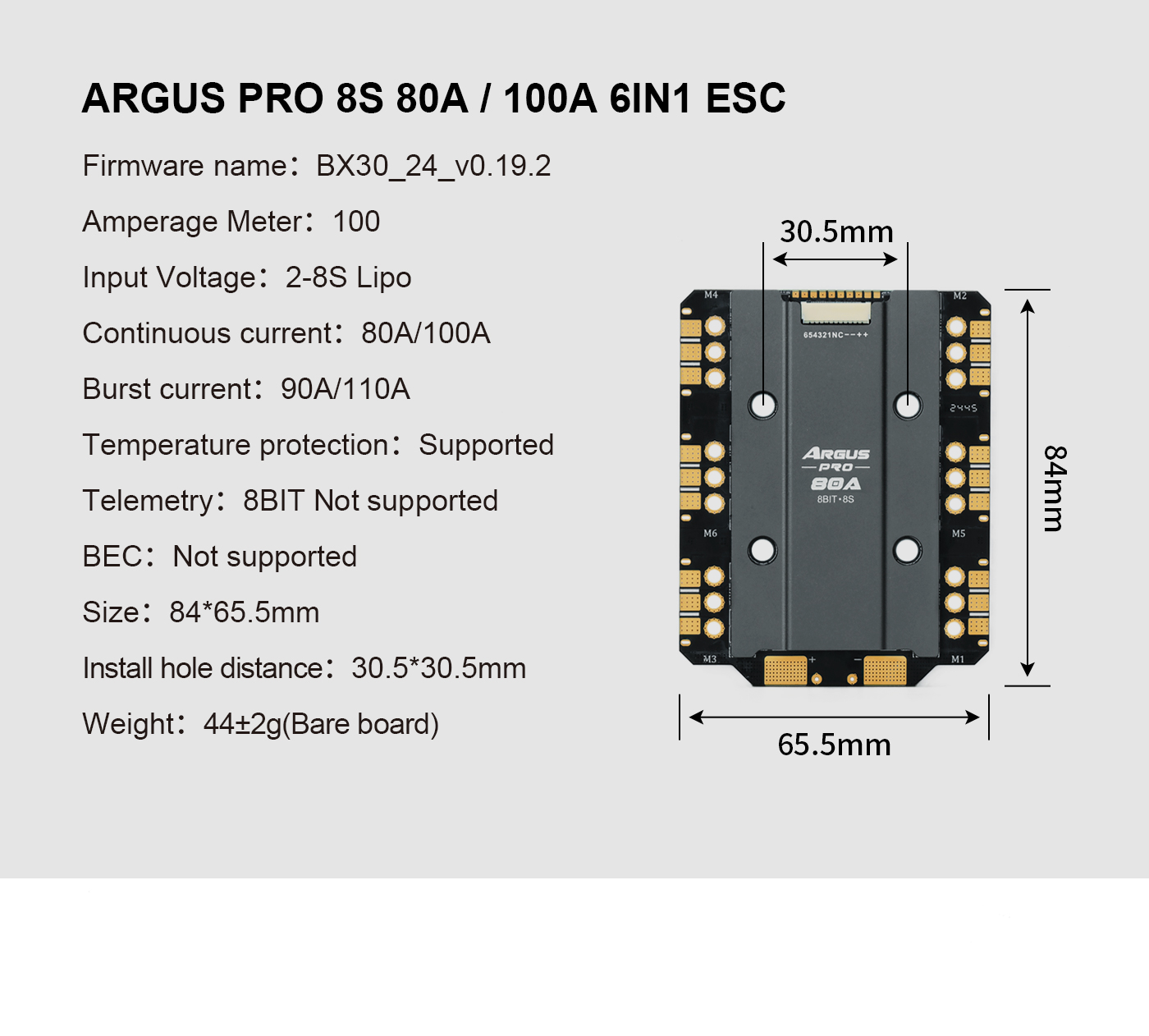

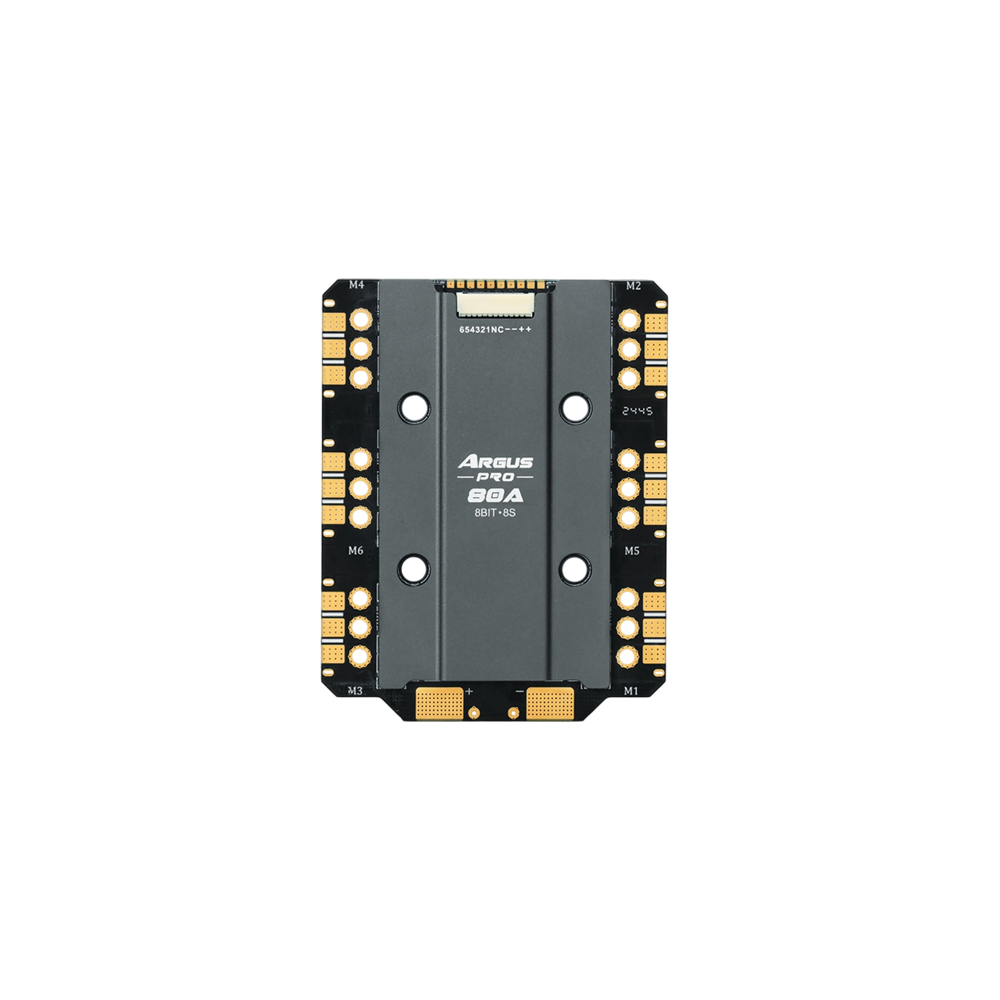

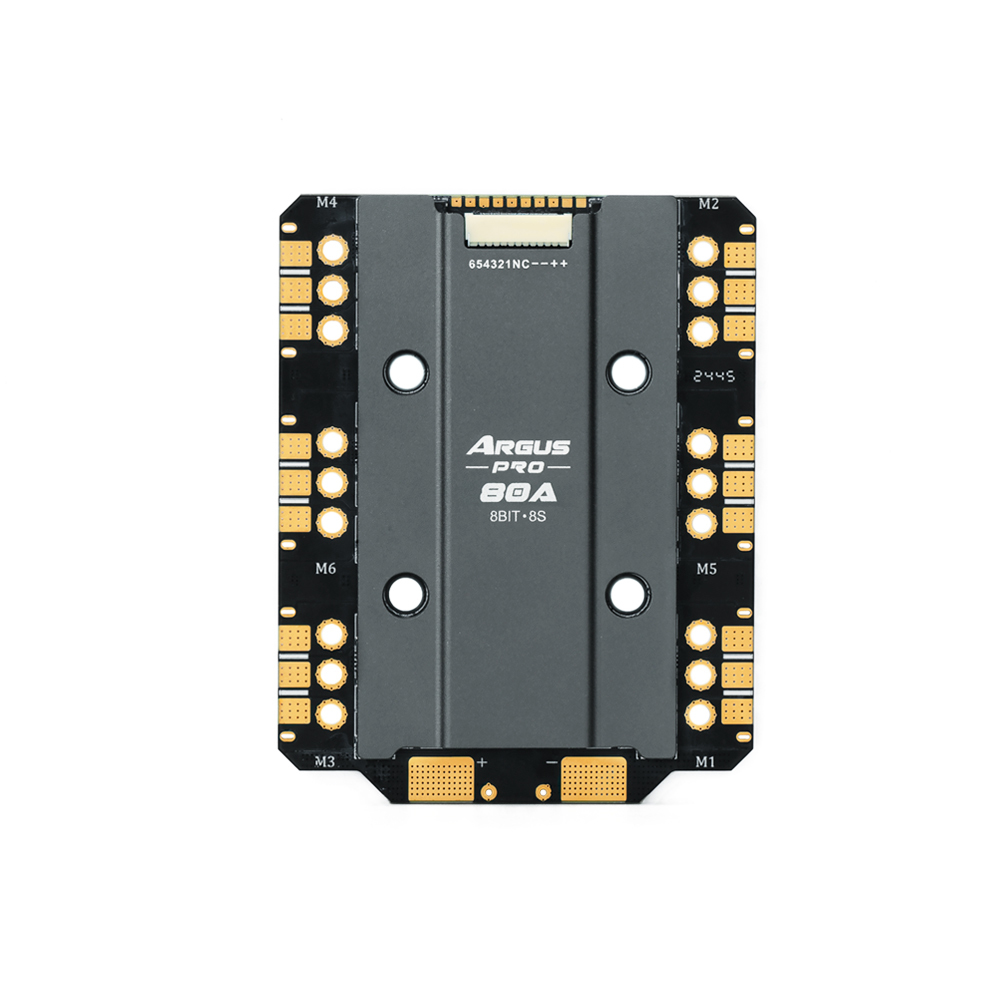

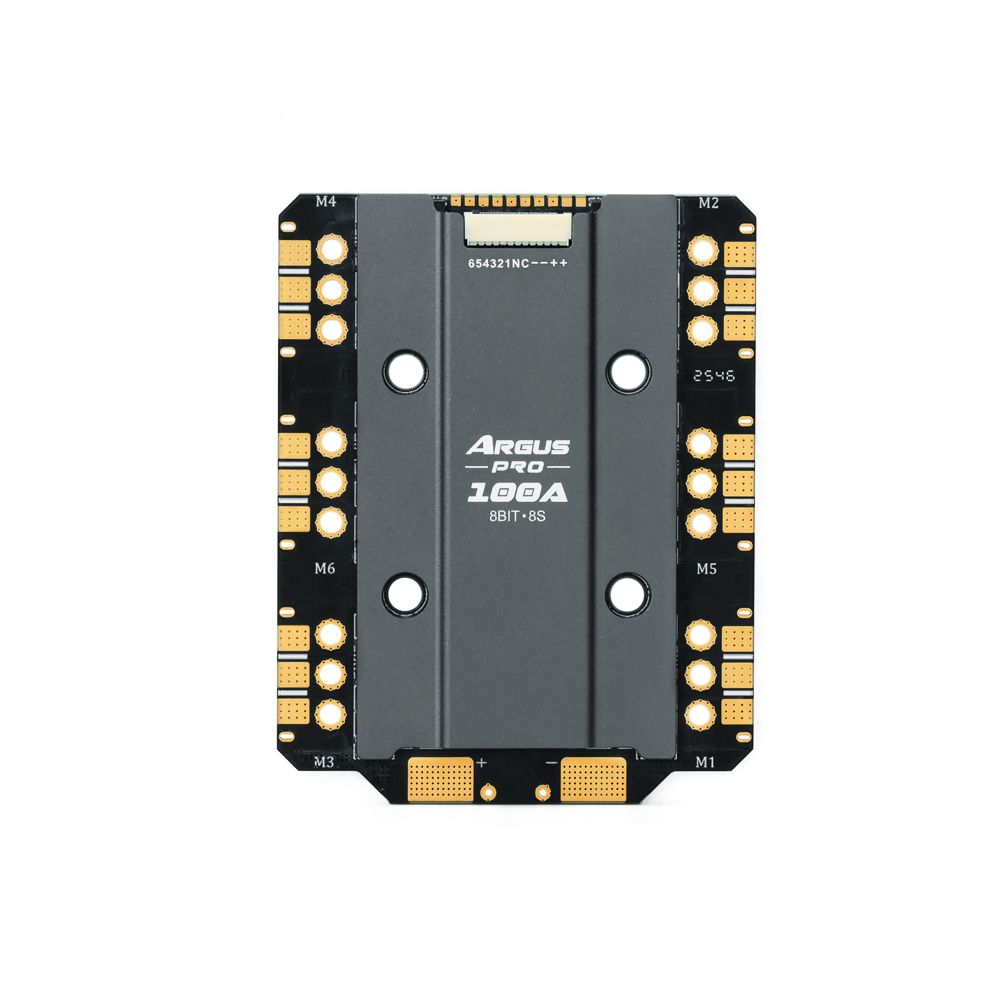

6‑IN1 ESC: Argus Pro

• Firmware: BX30_24_v0.19.2
• Input: 2–8S LiPo
• Continuous current: 80A / 100A
• Burst current: 90A / 110A
• Ammeter: 100
• Temperature protection: Supported
• Telemetry: Not supported
• BEC: Not supported
• Size: 84×65.5mm
• Mount: 30.5×30.5mm
• Weight: 44±2g (bare board)

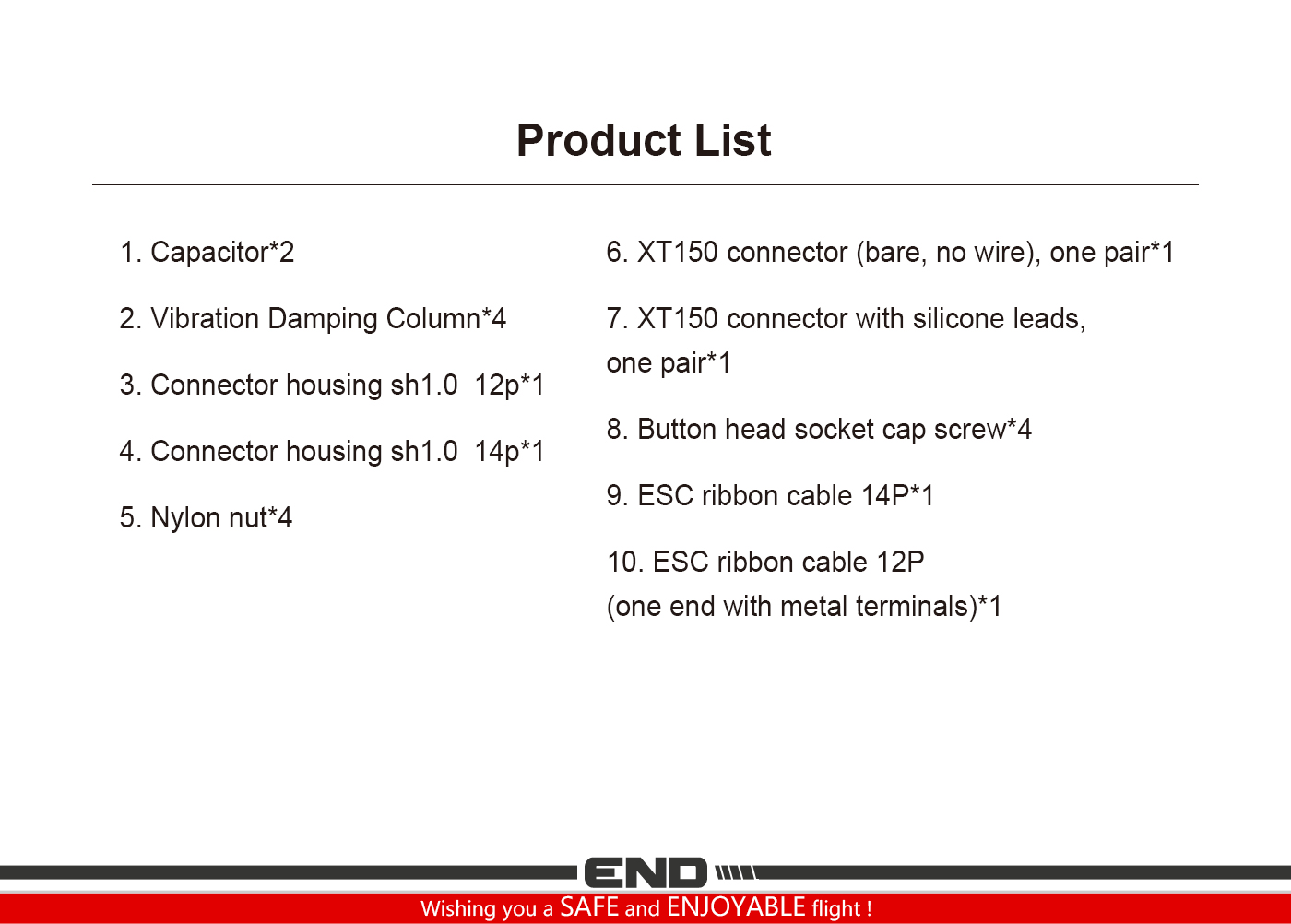

Package Contents

1. Capacitor ×2
2. Vibration Damping Column ×4
3. Connector housing SH1.0 12P ×1
4. Connector housing SH1.0 14P ×1
5. Nylon nut ×4
6. XT150 connector (bare) ×1 pair
7. XT150 connector with wire ×1 pair
8. Button head screws ×4
9. ESC ribbon cable 14P ×1
10. ESC ribbon cable 12P
    (one end with metal terminals)*1
