*Forward
Plug and Play Argus is Axisflying electronic series that integrates FC, ESC and full stack system. Argus PRO H743 series adopts full CNC aluminum wrapped cover, reaching IP54 splash-proof level to fully protect the internal PCB. This series is professional FPV drone electronic assembly with complete peripheral compatibility. It is equipped with upgraded 65A high-power ESC and advanced STM32H743 flight controller, supporting 4-8S wide voltage and X8 multi-rotor layout.
*Feature
- Dustproof and waterproof with IP54 splash-proof rating. Effectively resists daily splashing and dust erosion.Do not immerse in water or use underwater!
- Full CNC aluminum wrapped cover expands heat dissipation area, realizes fast and uniform heat dissipation, ensures long-term stable operation of the stack.
- Adopts high-grade low internal resistance MOSFETs with low heat generation. Cooperated with integrated CNC aluminum heat dissipation structure, no overheating risk even under long-time high throttle operation, providing stable and continuous power output.

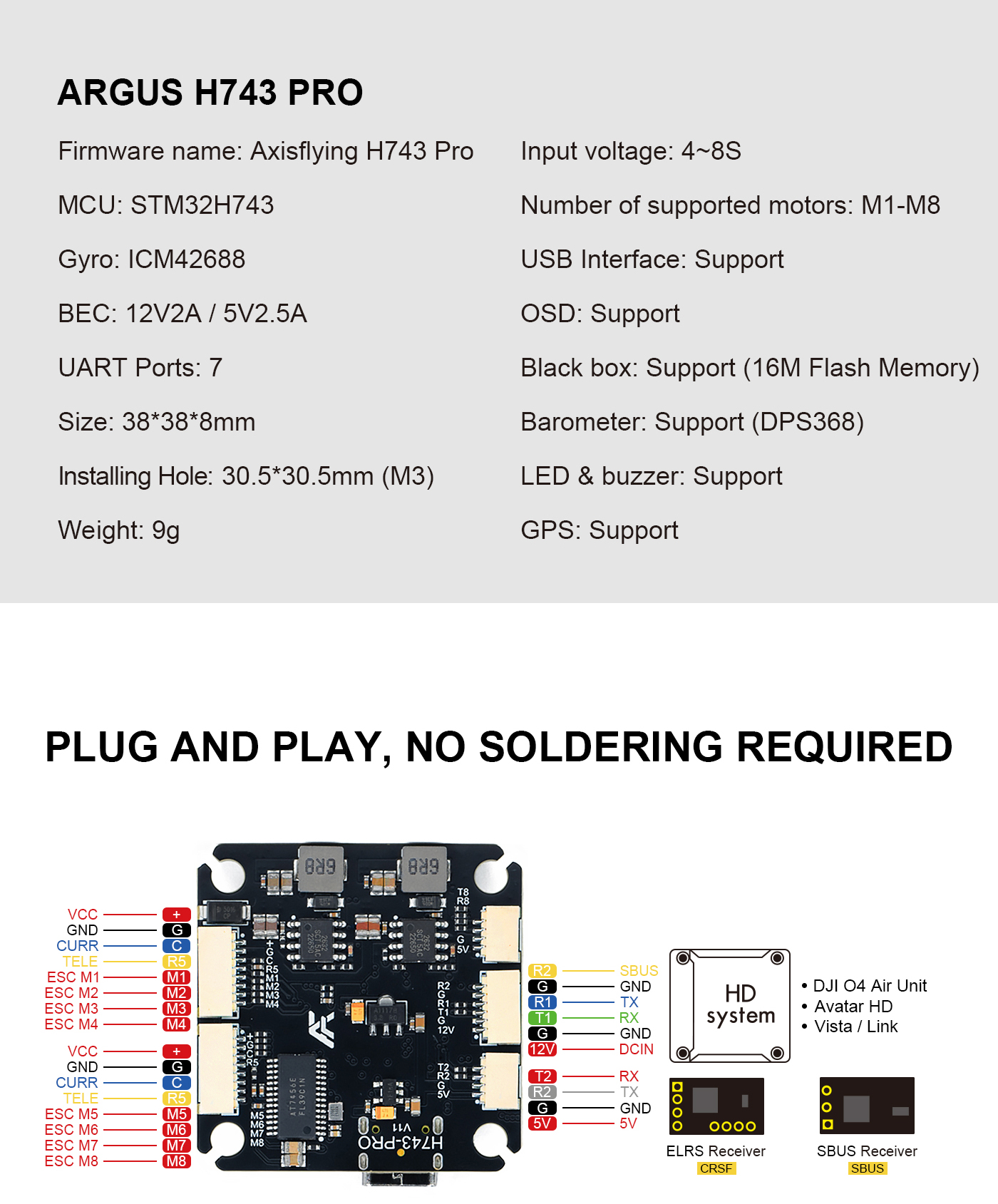

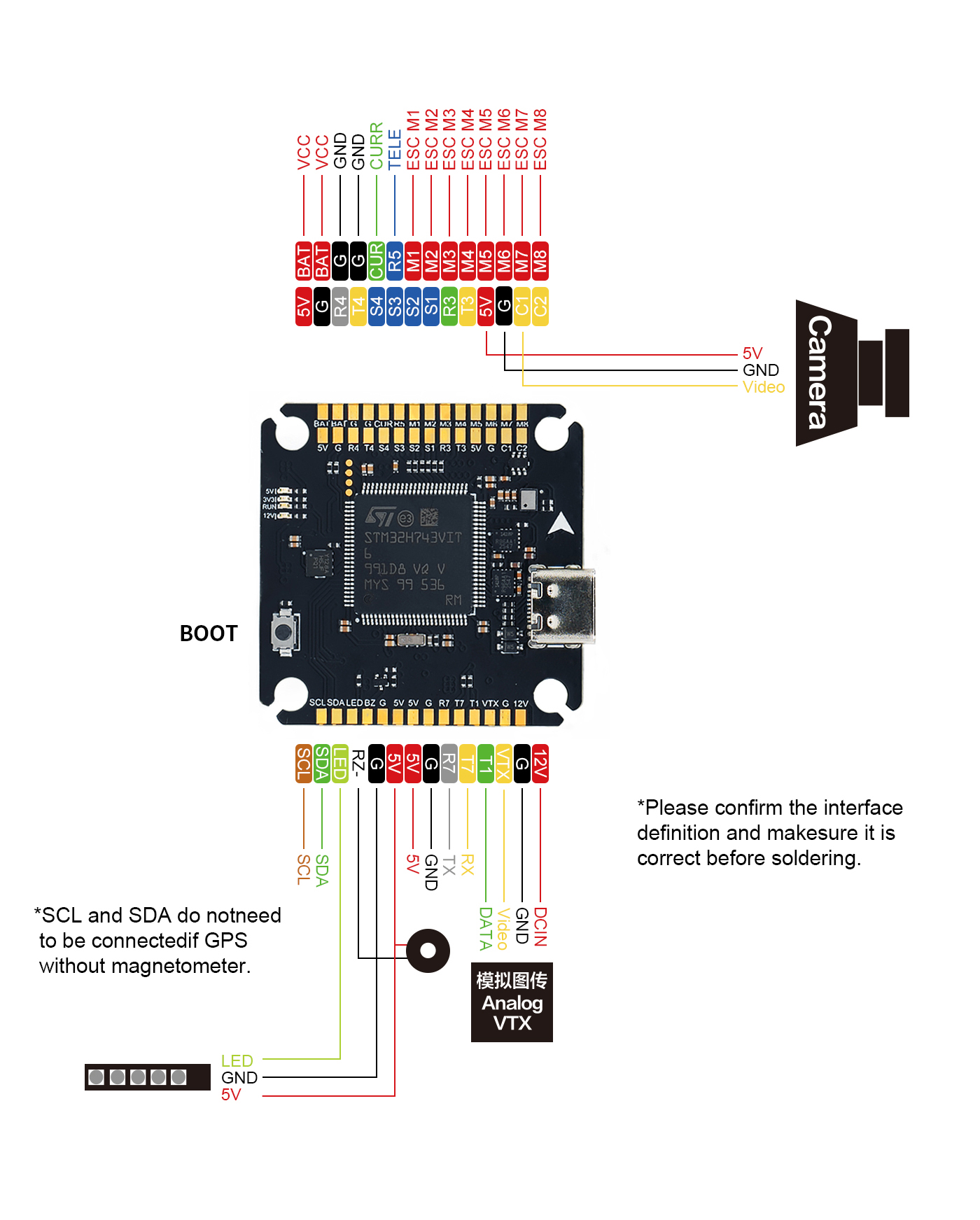

- True plug-and-play design, no soldering required. Supports direct connection with DJI HD Air Unit, analog camera, GPS module and other common FPV peripherals.
- Upgraded dual independent BEC system, perfectly supports direct plug-and-play connection of DJI O3 / O4 Air Unit series.
- H743 flight controller supports up to 8-channel motor output, easily supports X8 drone configuration and large-load long-range flight.
- Equipped with dedicated status indicator lights, users can quickly check the real-time working status of the flight controller and ESC.
- Officially compatible with INAV and mainstream flight firmware, with strong scalability.
*Function

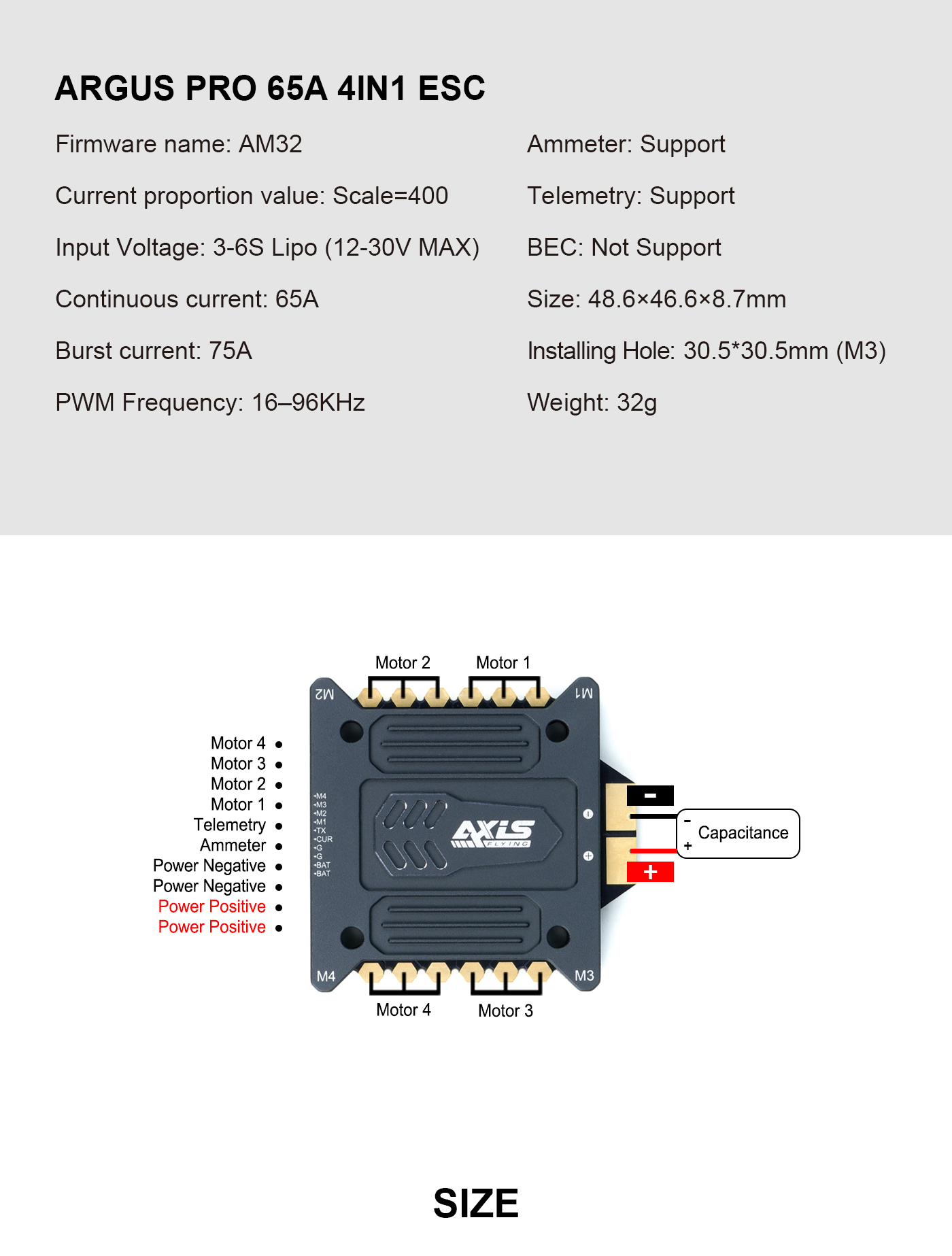

- 96KHz 65A BLHELI32 3-6S ESC / STM32H743 32-bit High-performance FC (4-8S wide voltage support)
- High-precision ICM42688P gyroscope
- Built-in 16MB Blackbox Flash for flight data recording
- 7 UART Ports for richer peripheral expansion
- Dual BEC output: 5V@2.5A / 12V@2A
- Full ESC current sensor support, accurate current telemetry
- Compatible with HD digital VTX & analog VTX system
- Supports RGB LED strip & buzzer alarm
- Supports GPS & barometer (DPS368) altitude hold
- Full X8 PWM layout support
- Complete plug-and-play peripheral compatibility
*Specs

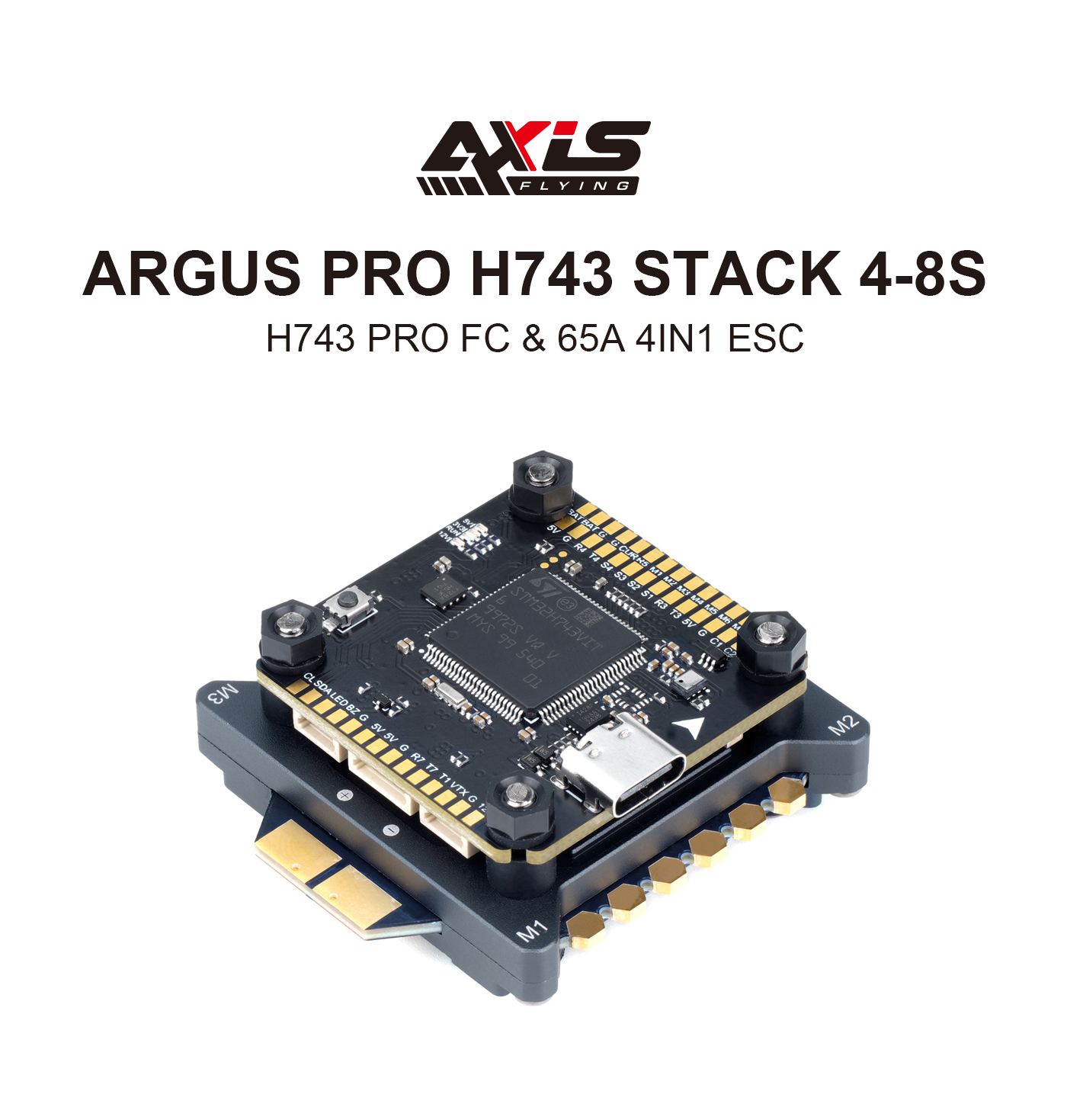

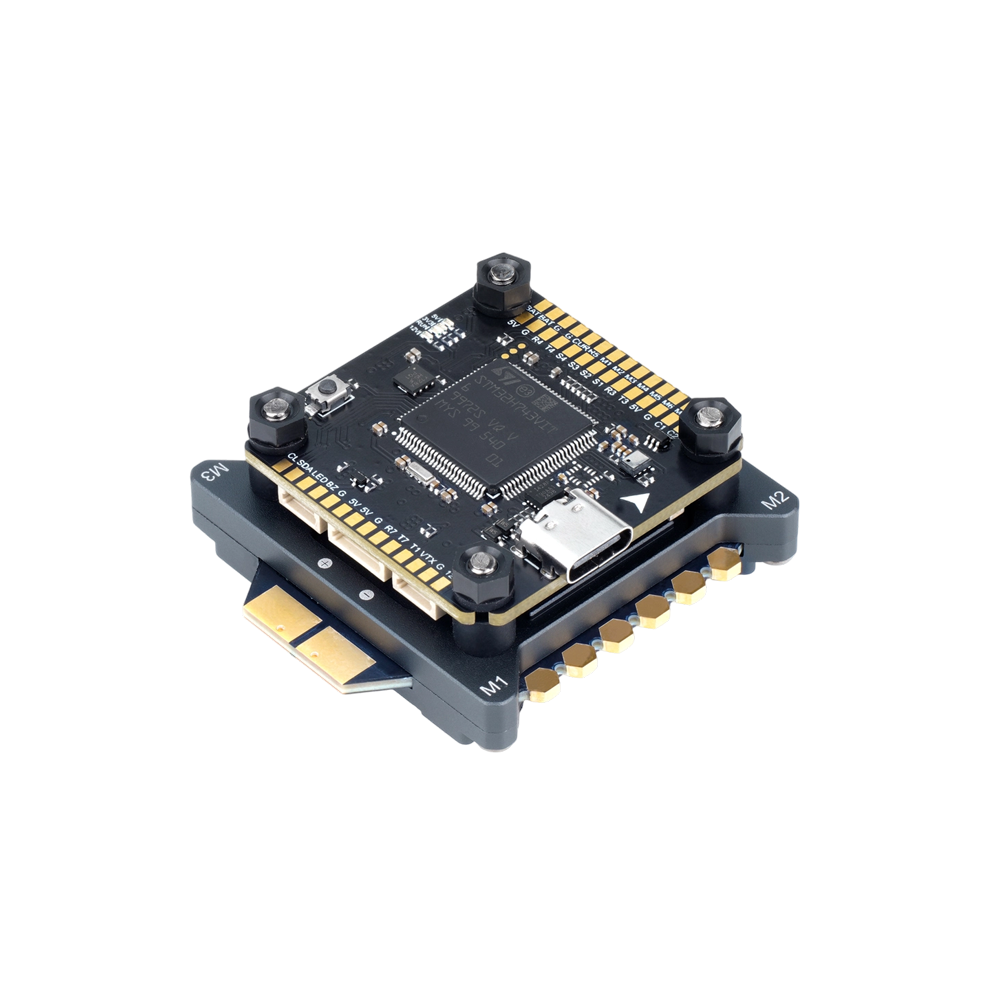

Argus PRO H743 65A STACK 4-8S

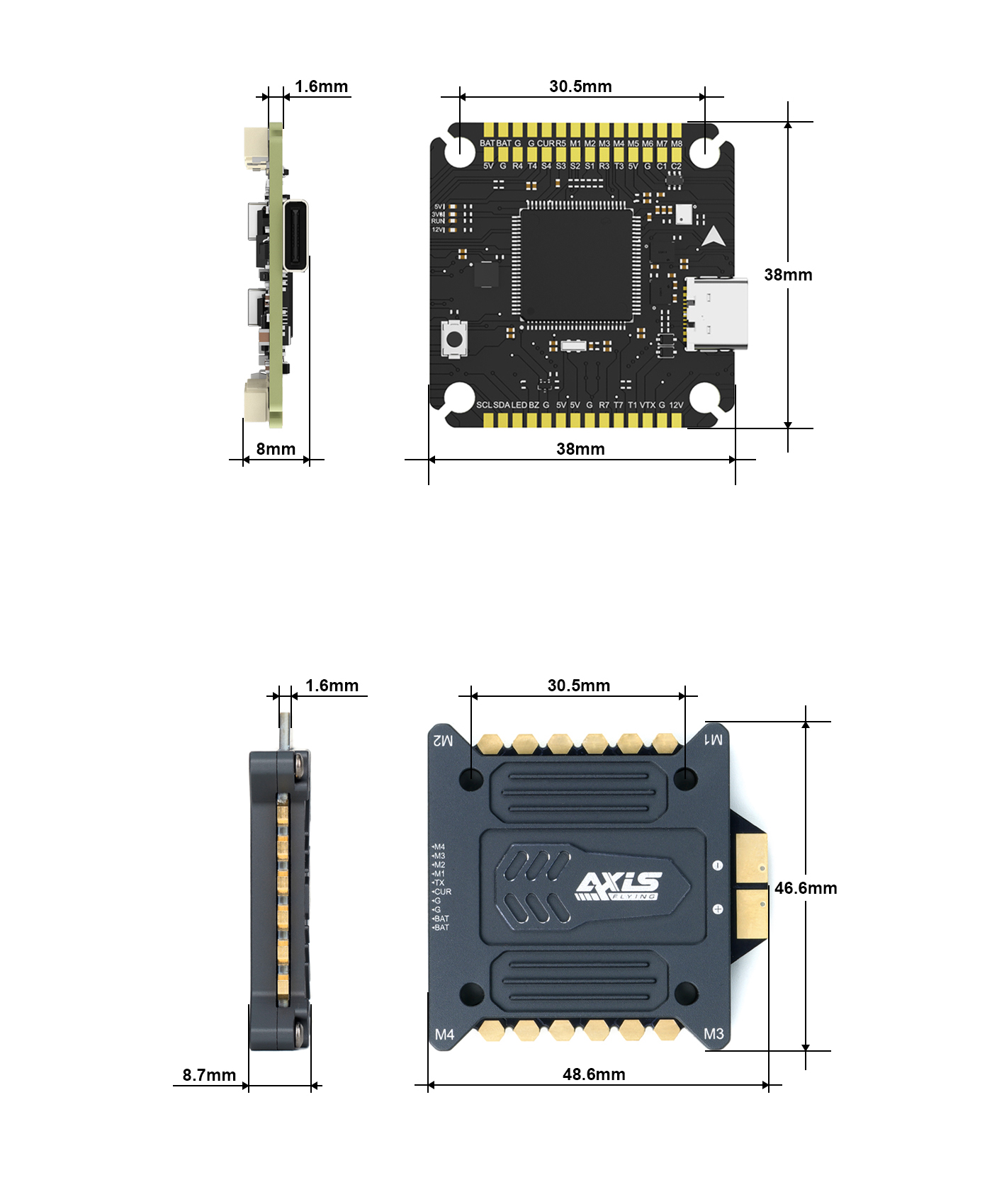

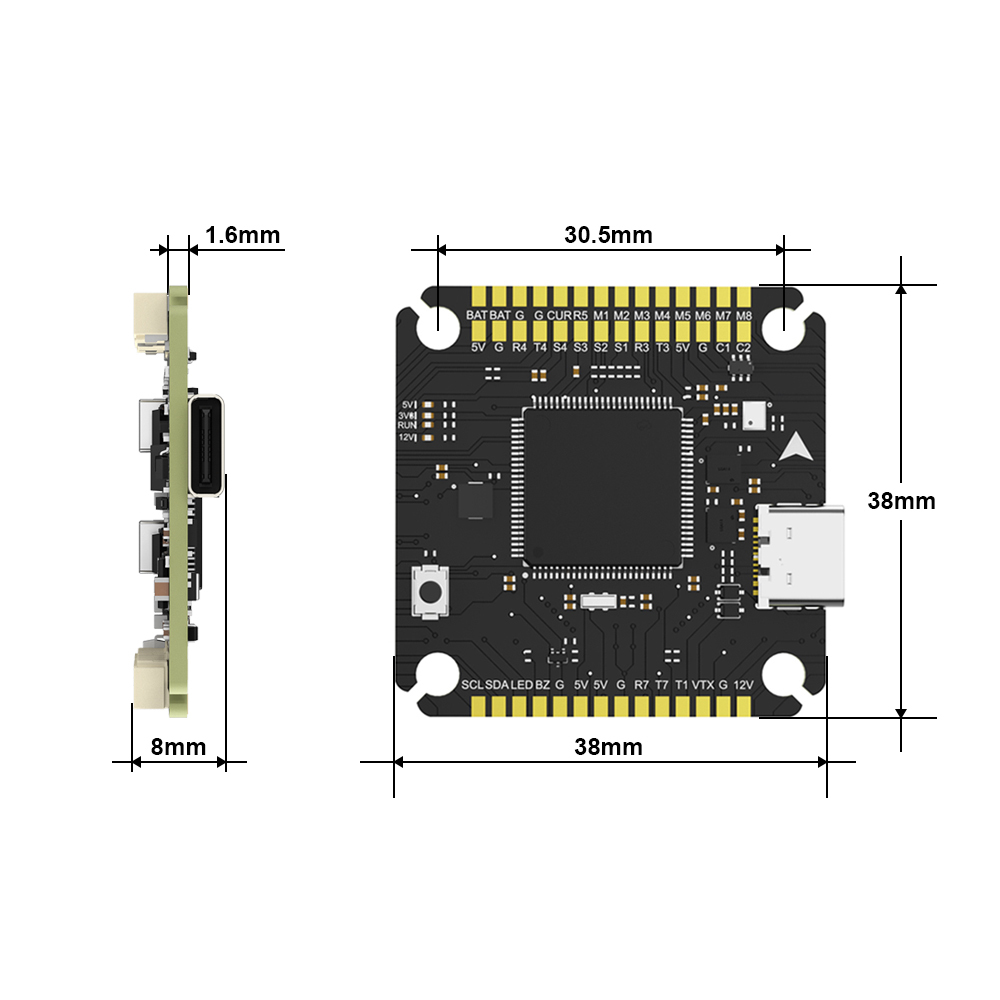

- FC Size: 38*38*8mm / Weight: 9g

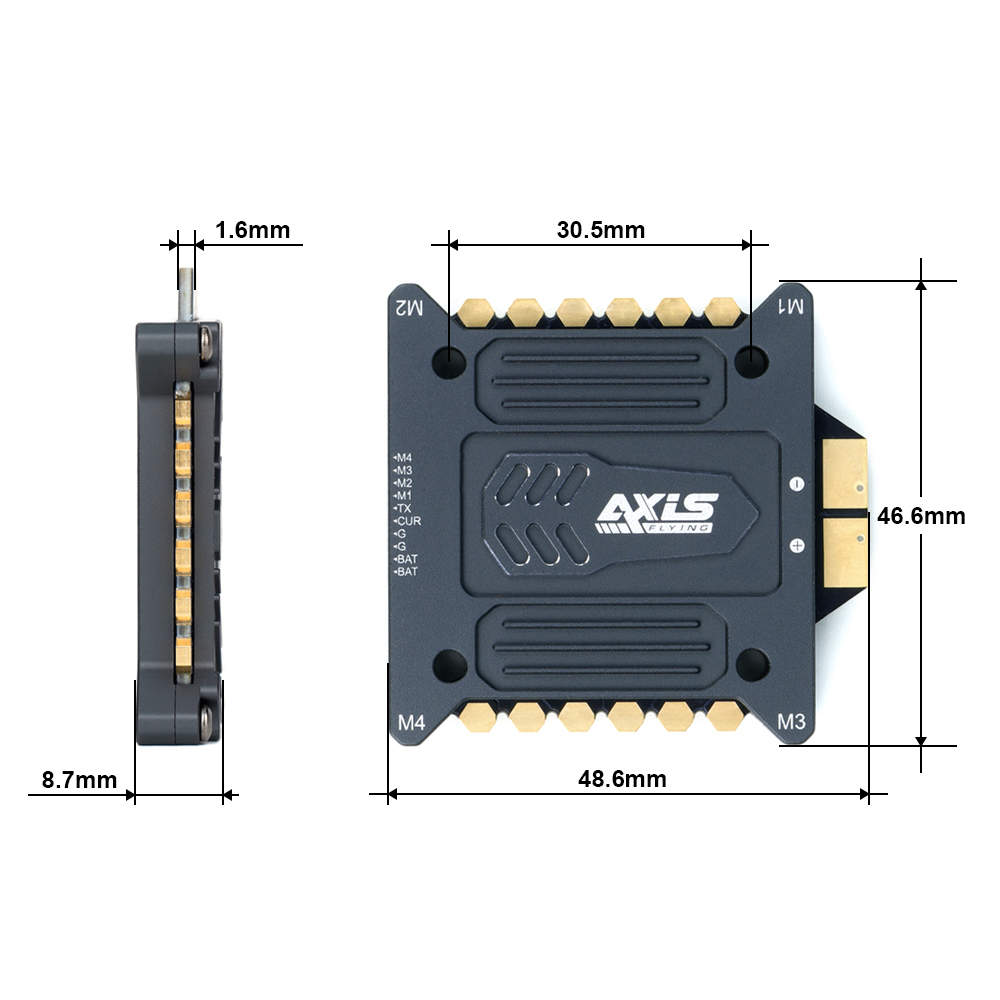

- ESC Size: 48.6*46.6*8.7mm / Weight: 32g

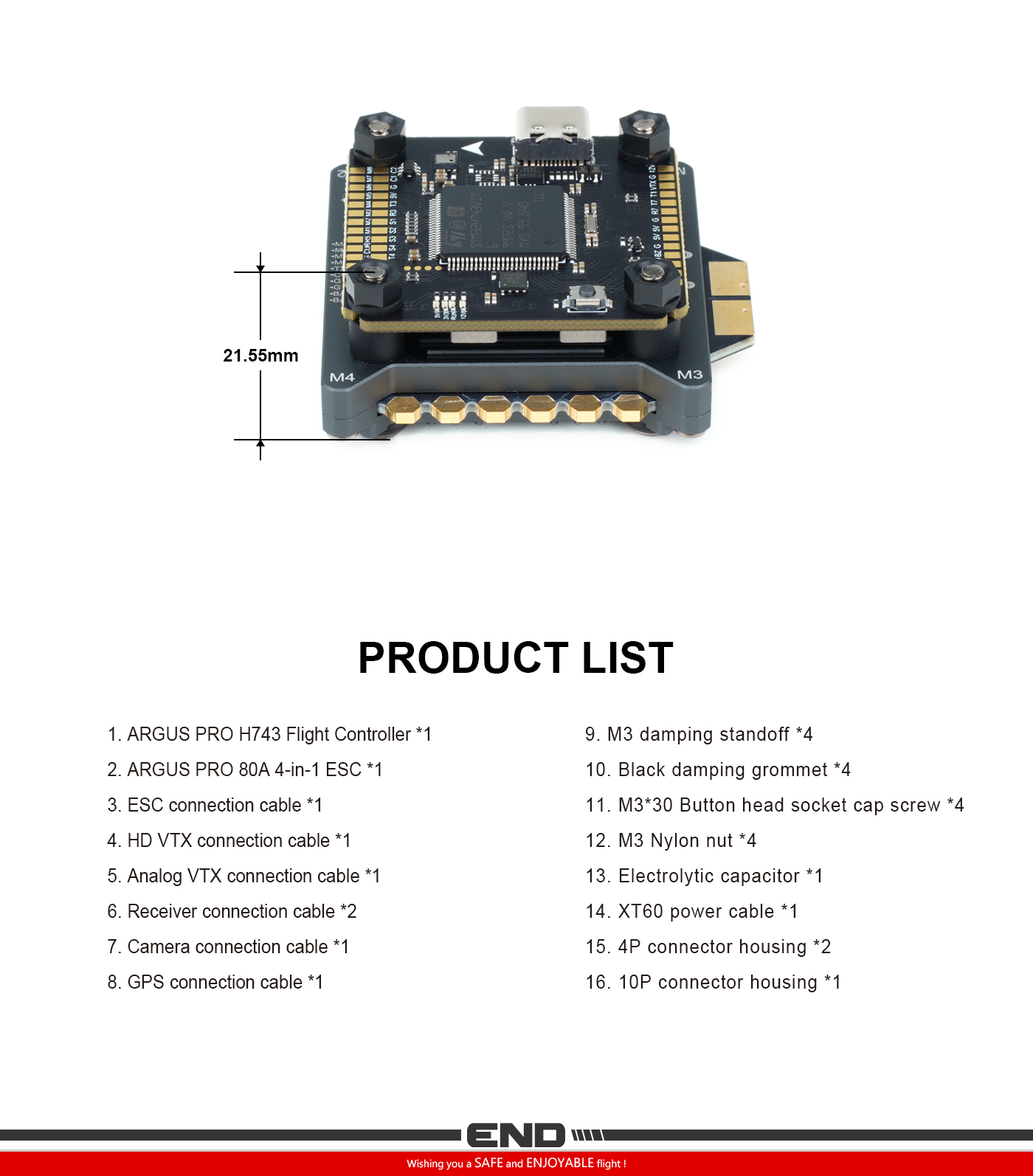

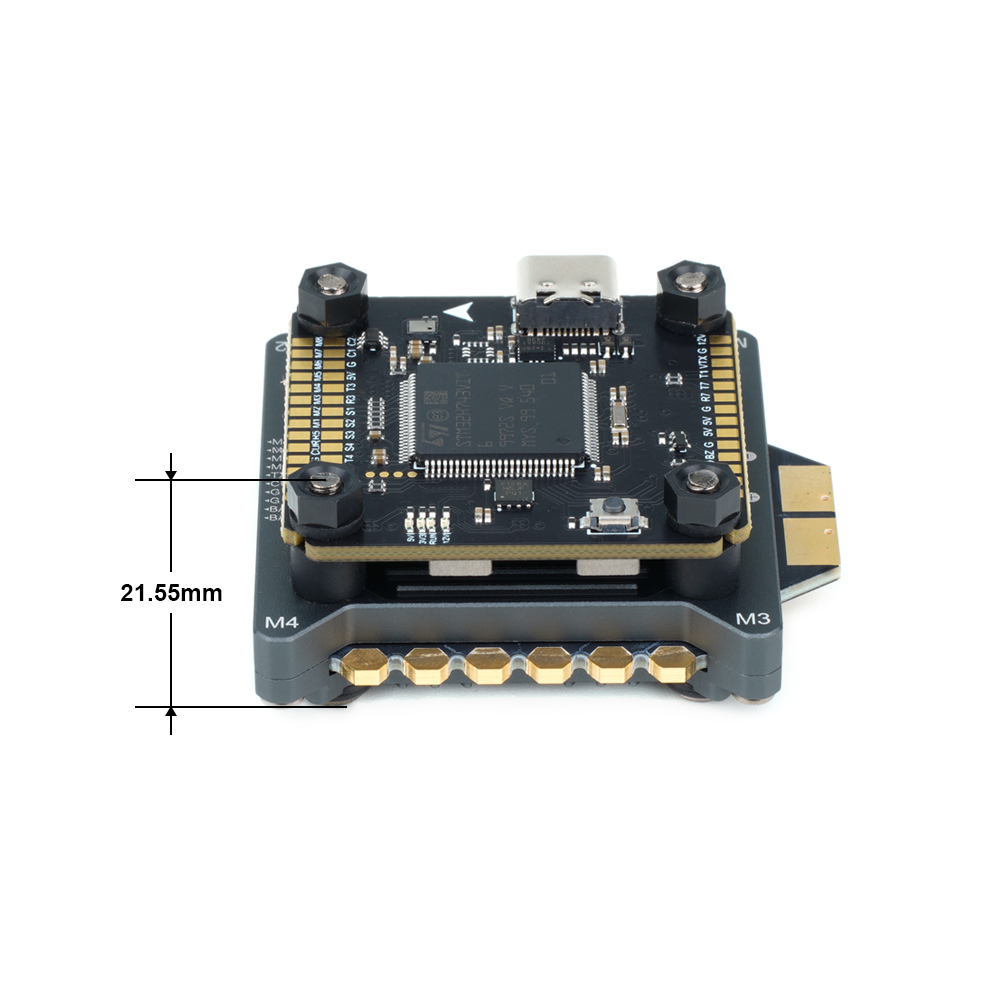

- Stack Total Weight: 41g
- Mounting Holes: M3 30.5*30.5mm standard mounting hole spacing
