*Feature

• Dustproof and waterproof IP54, with splashproof function, it is forbidden to put it into water or use it underwater!
• CNC Full aluminum cover wrapped, enlarge the radiating surface, rapid heat dissipation, more stable work
• High-quality and large-size MOSFETs are selected, with low internal resistance and low heat generation, plus CNC heat dissipation aluminum cover. Even if the throttle is used for a long time under heavy load, it is not afraid of overheating, which brings more stable power performance for long-range & heavy-lift drones.

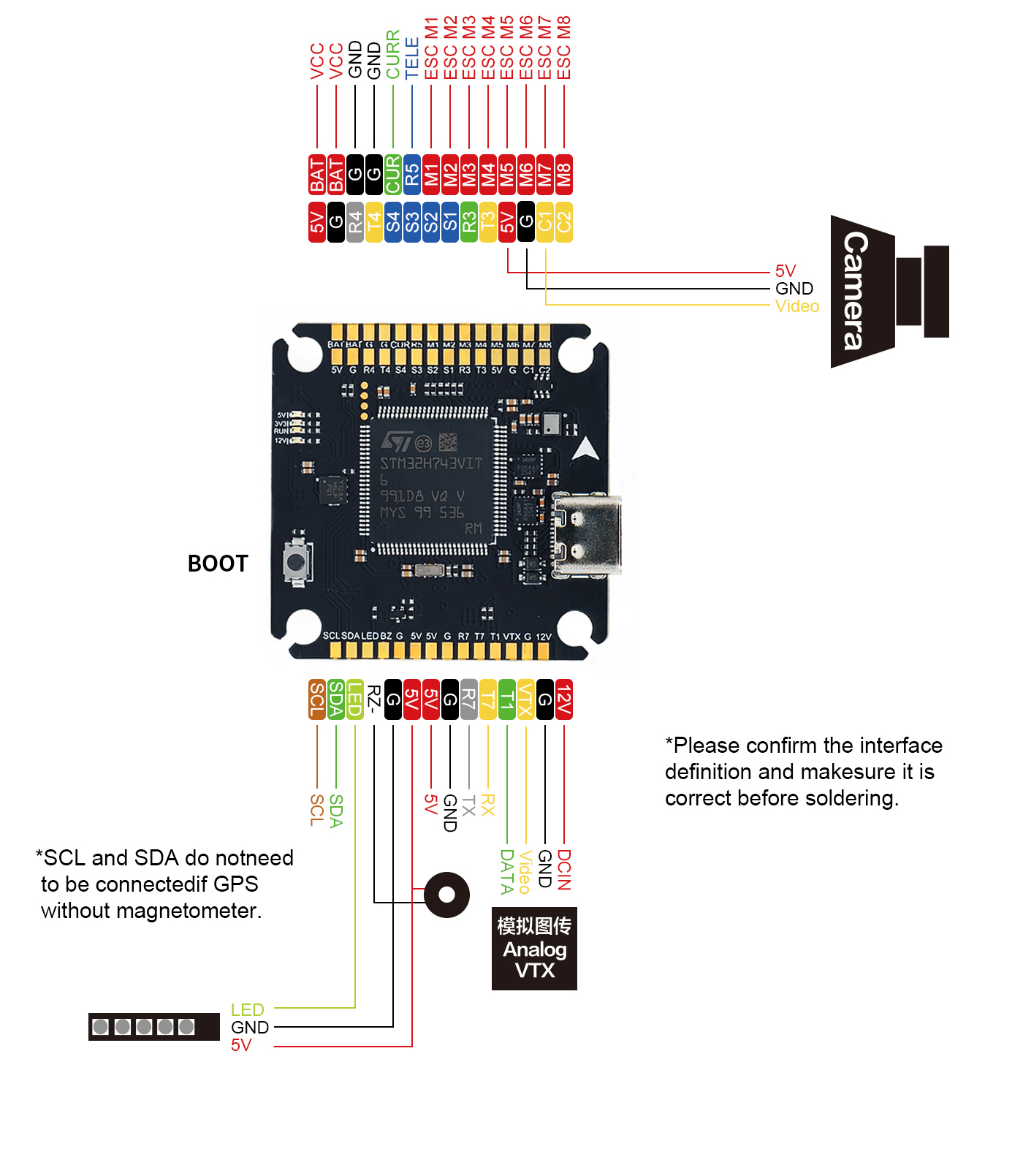

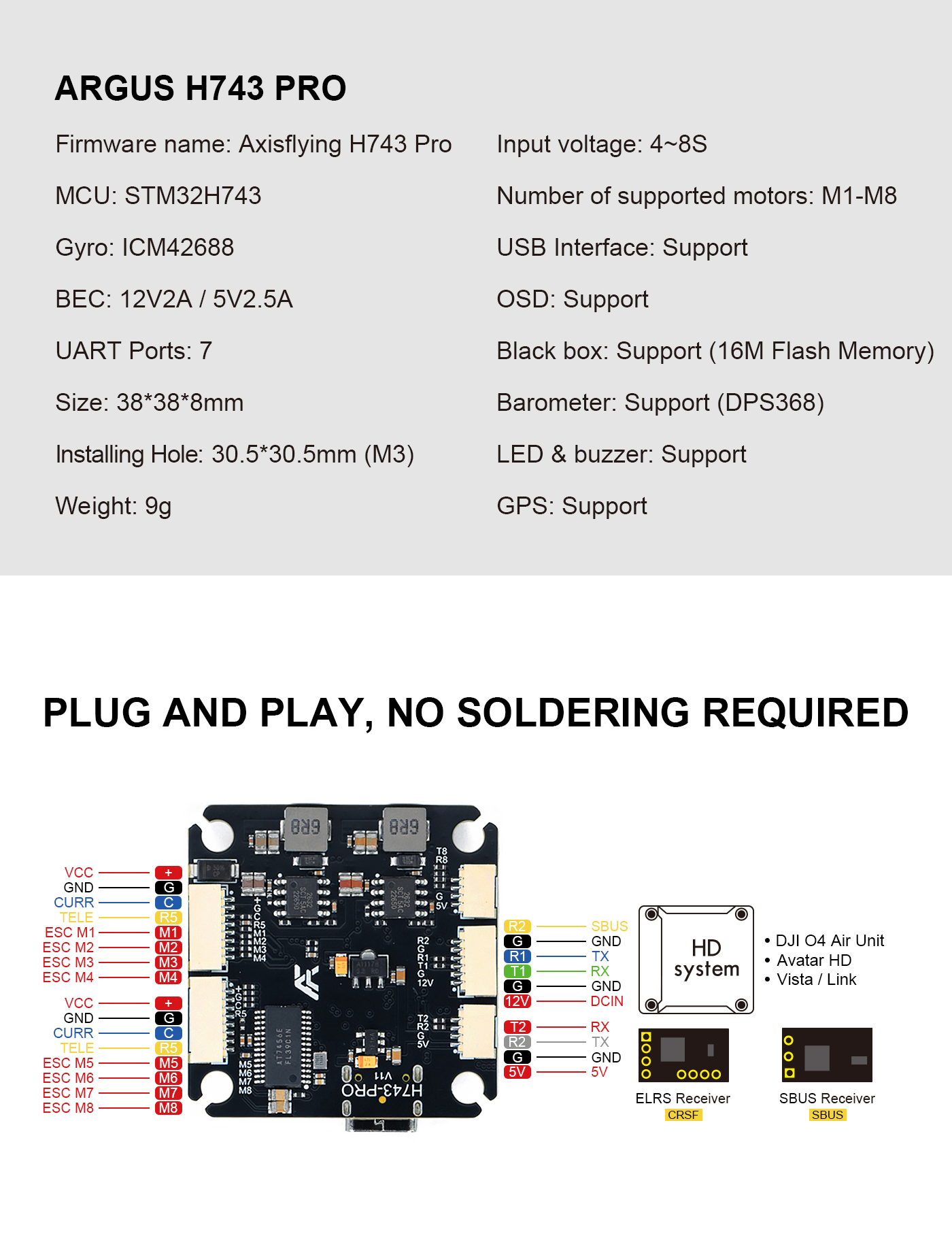

• No welding, more peace of mind. With this FC, HD Air unit, analog camera, GPS and other common peripherals all support direct plug-in
• Integrated dual BEC, support DJI O3 / O4 Air Unit air unit direct connection
• The FC supports up to 8 motor outputs, easily build your X8 drone
• Quickly check the working status of the FC by turning on and off the corresponding status indicator light
• The FC supports INAV now.
• ESC supports temperature protection and real-time current telemetry for flight safety monitoring

*Function

• 100A BL-heli 32bit / 8BIT 4-8S ESC / STM32H743 32-bit FC
• ICM 42688P high precision gyroscope
• Blackbox Flash 16MB
• UART ports: 7
• BEC :5V @2.5A and 12V@2A
• ESC SENSOR Supported, built-in ammeter with scale value 200
• HD/Analog VTX Supported
• RGB LED Strip / Beeper Supported
• GPS & DPS368 barometer Supported
• X8 PWM Supported
• Plug and Play Support
• ESC with over-temperature protection

*Specs

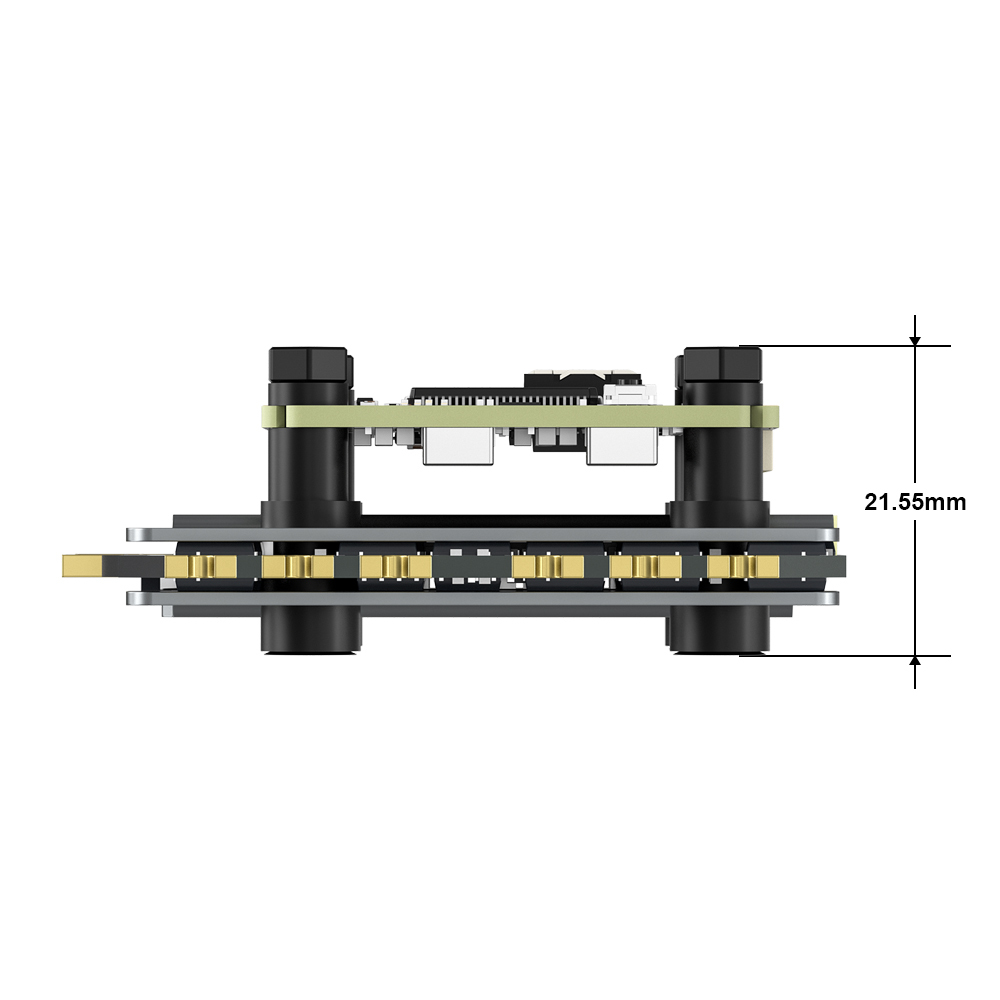

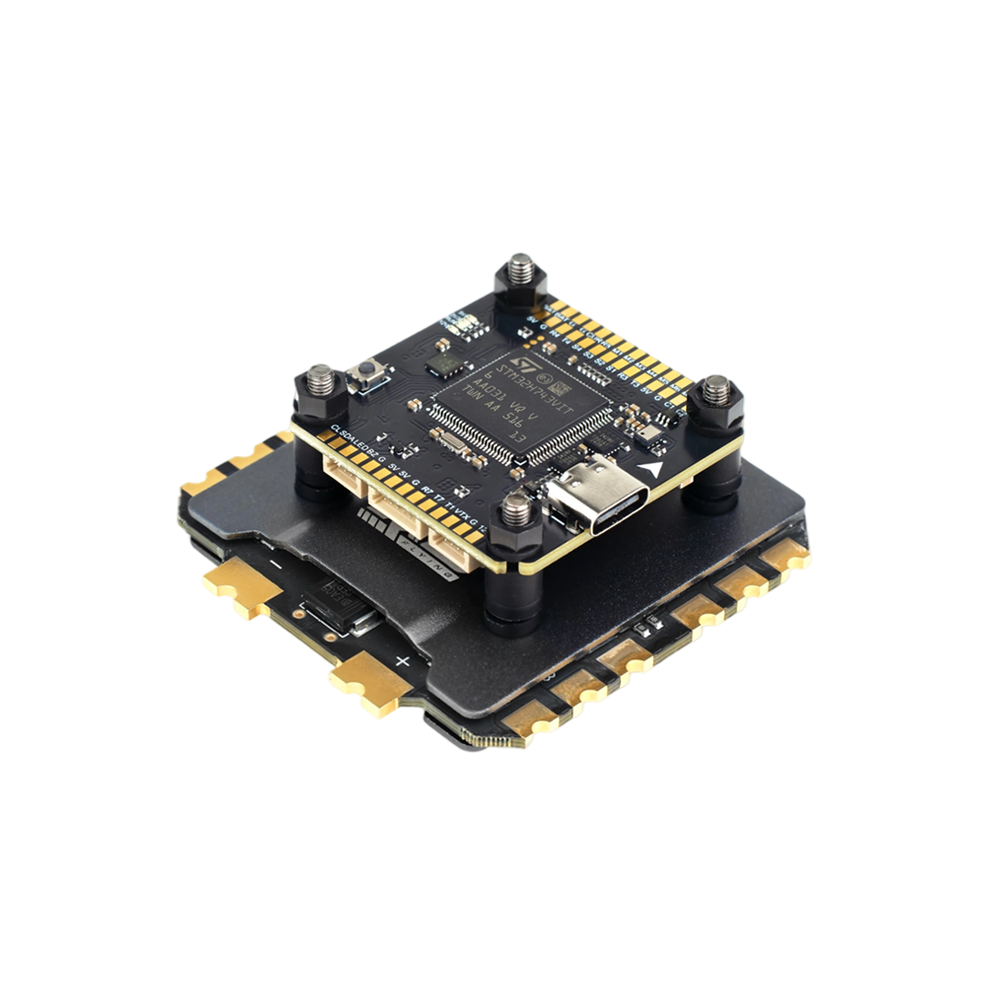

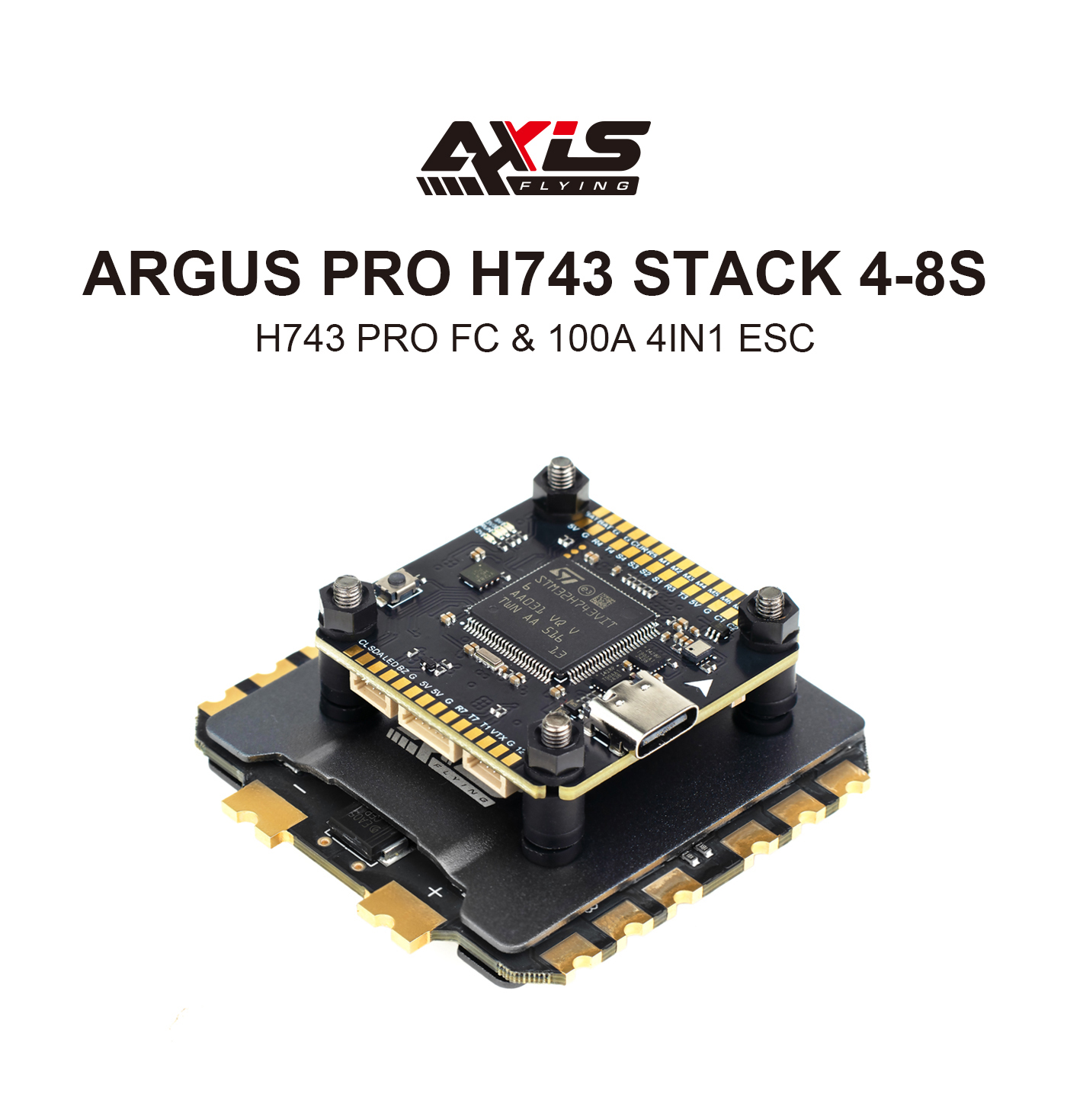

Argus PRO H743 100A STACK 4-8S

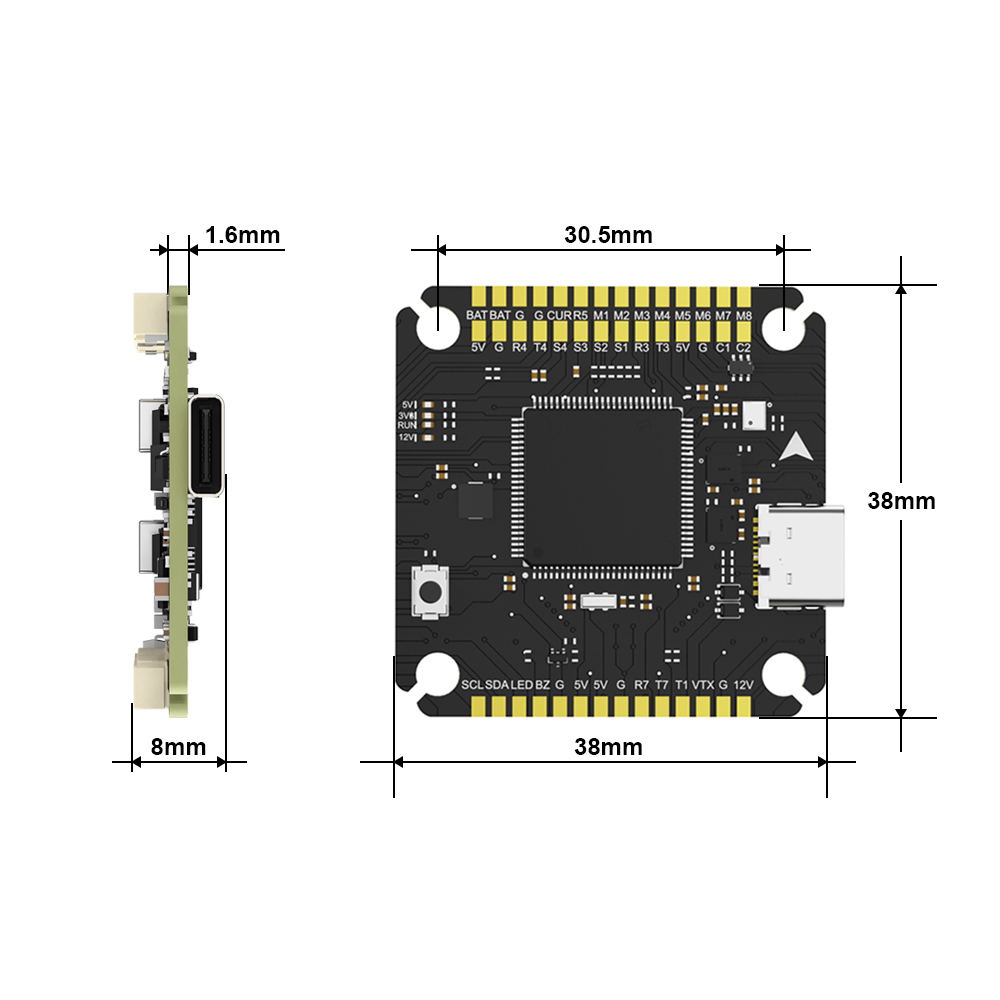

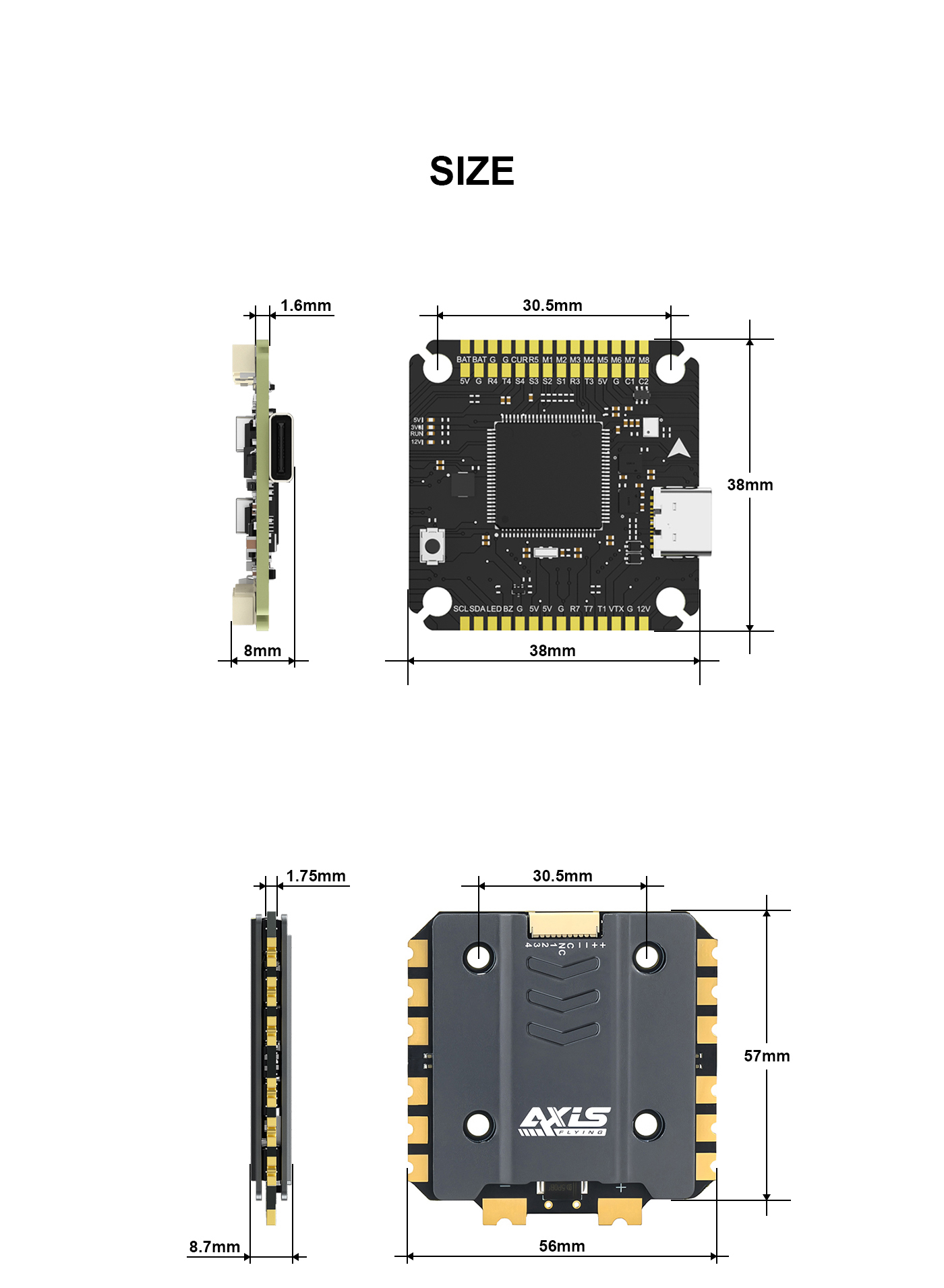

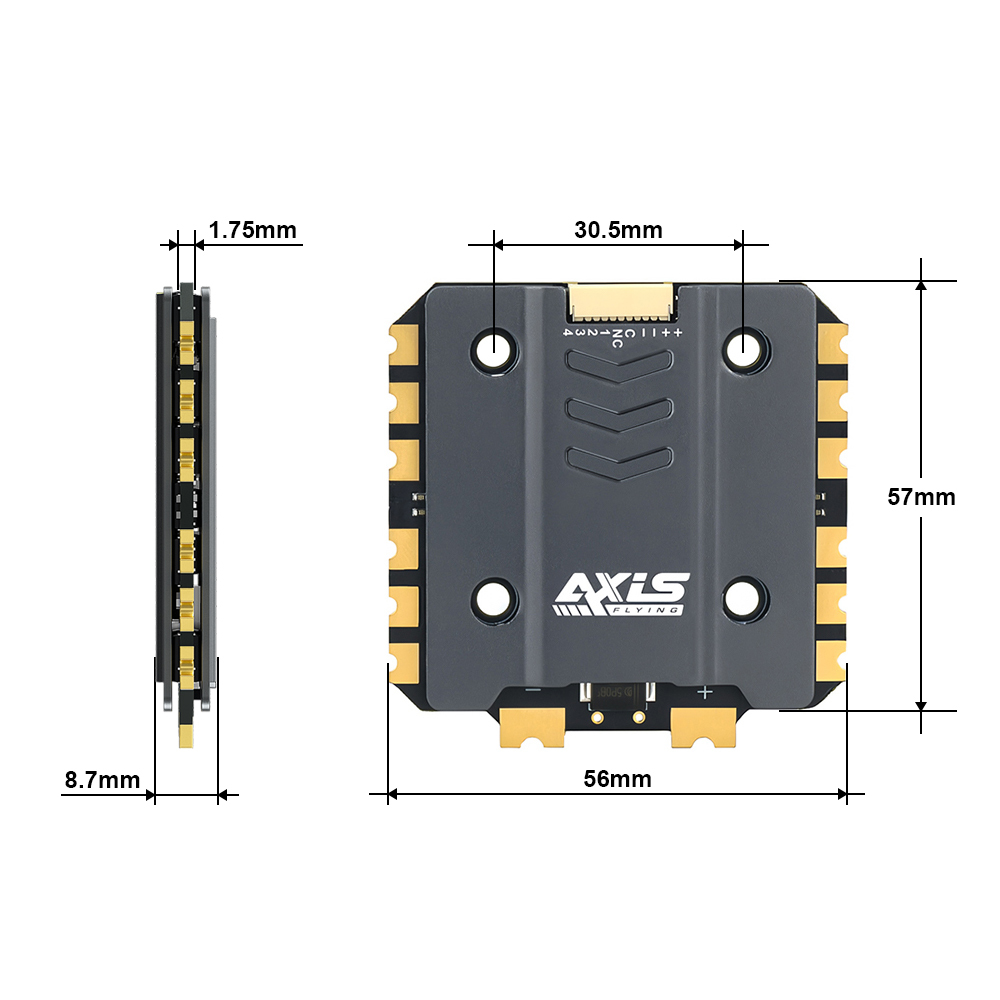

• FC Size: 38388mm / Weight: 9g

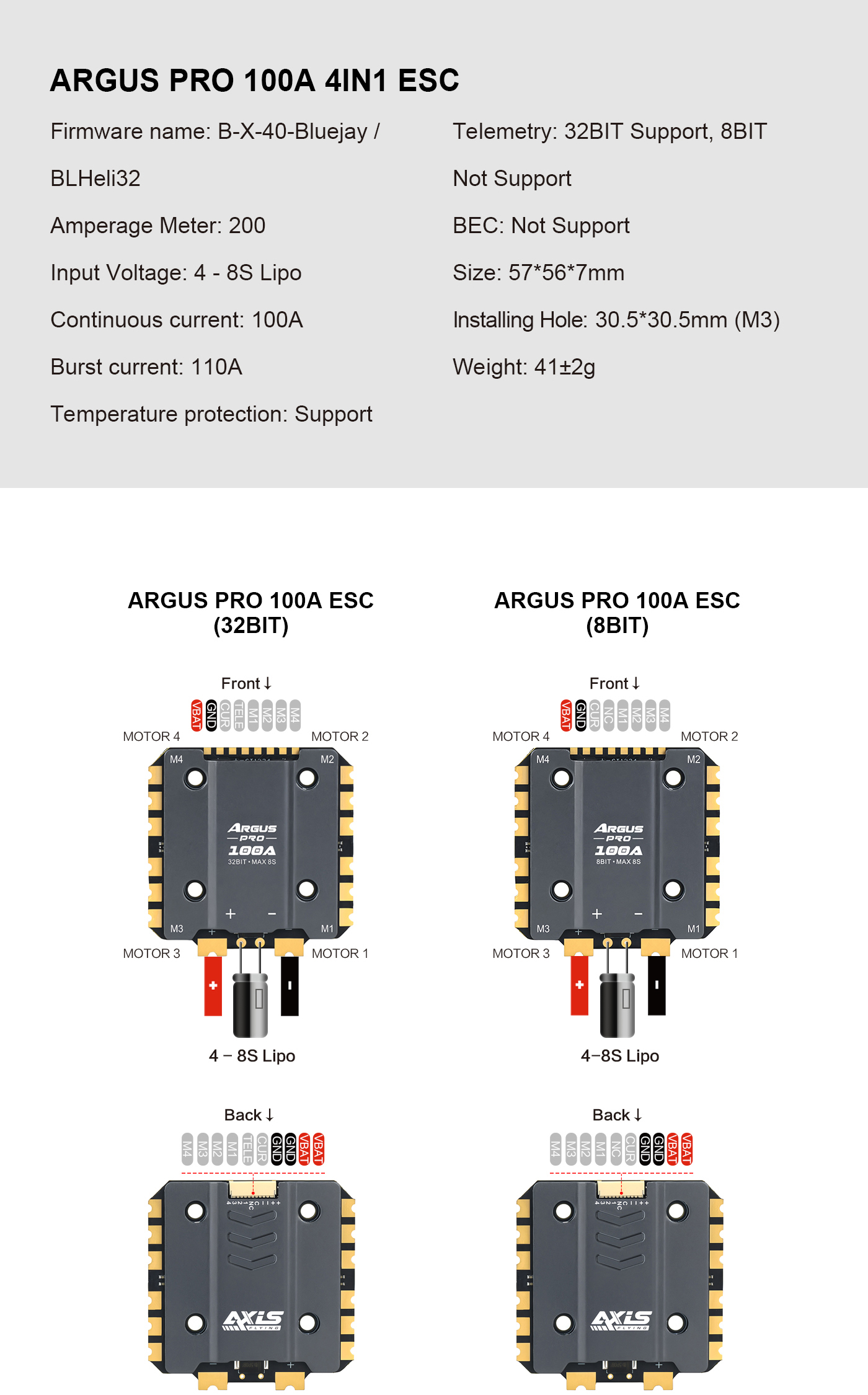

• ESC Size: 57567mm / Weight: 41±2g
• Mounting Holes: M3-30.5*30.5mm
• FC Input Voltage: 4~8S Lipo
• ESC Input Voltage: 4~8S Lipo
• ESC Continuous Current: 100A
• ESC Burst Current: 110A
• ESC Firmware: B-X-40-Bluejay / BLHeli32 (32BIT version); 8BIT version without telemetry function
