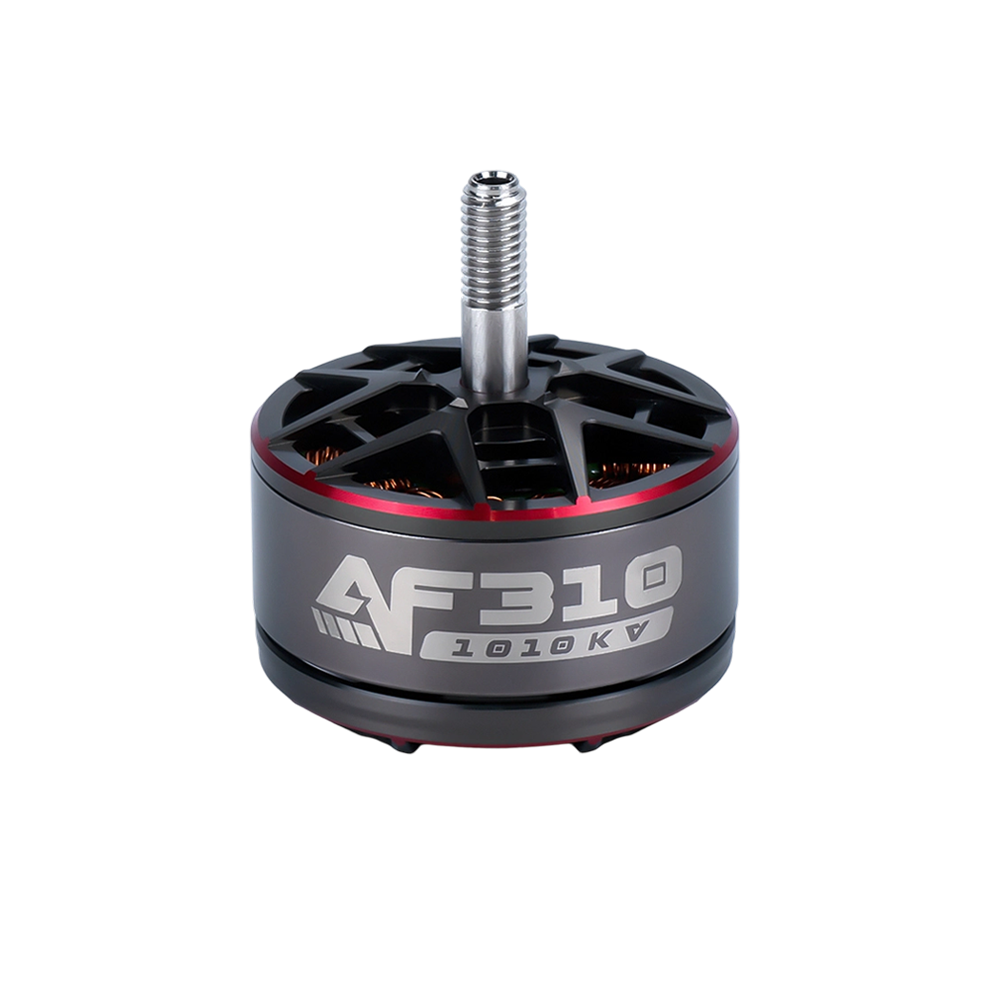

Motor AF310 4-6s
Motor AF310 4-6s

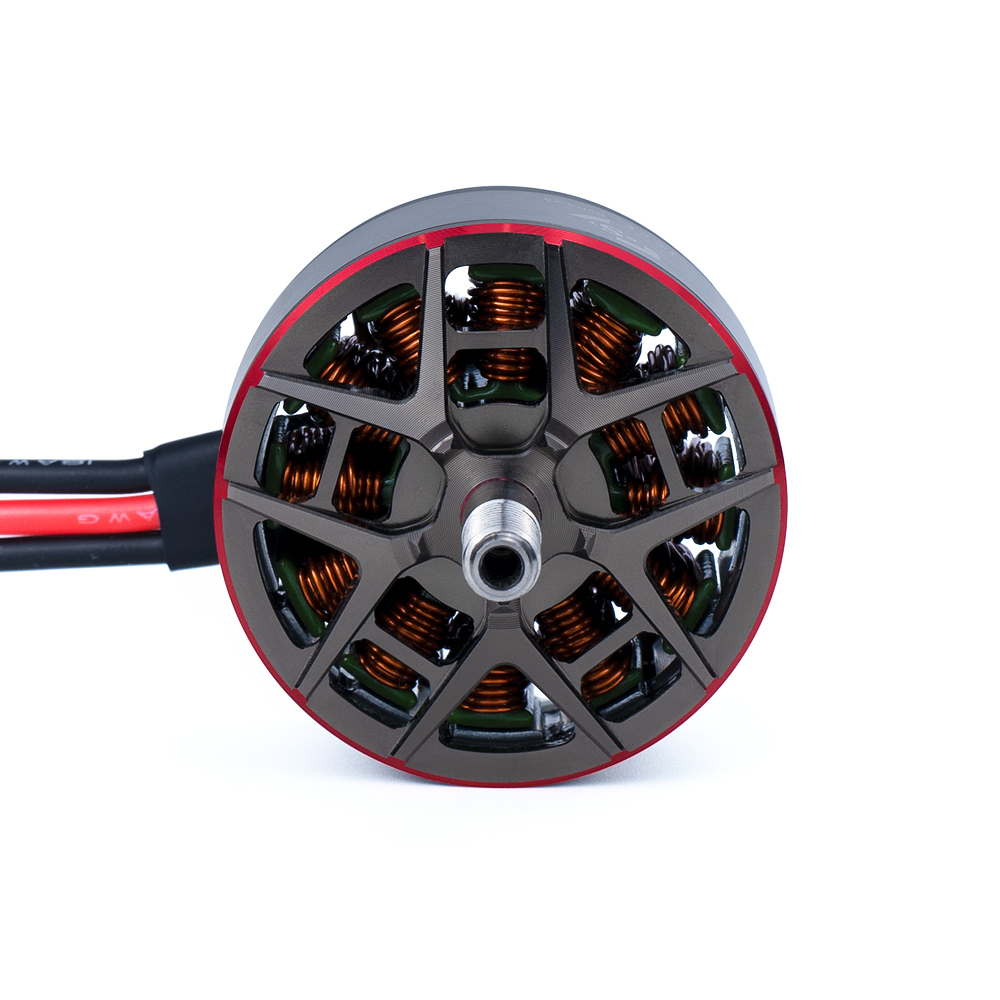

brushless top quality fpv motor AF310 3010
brushless top quality fpv motor AF310 3010
brushless top quality fpv motor AF310 3010
Motor AF310 4-6s
Motor AF310 4-6s
brushless top quality fpv motor AF310 3010
brushless top quality fpv motor AF310 3010
brushless top quality fpv motor AF310 3010
Motor AF310 4-6s
For 7/8/9 inch long range/ heavy lift & cinematic drones /1010KV 1210KV
SKU: A02010029
Sufficient stock available, DHL delivery in 3-7 days (excluding drone assembly time).
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV
    1010KV
    1210KV
Need Help?
Need Help?
Our experts are online 24/7 to help you choose the right drone and gear
Chat Now
Motor AF310 4-6s
Motor AF310 4-6s
Motor AF310 4-6s
$32.90
Quantity
-
+
Reward points
Total
1 * $32.9 = $32.9
Starting at $27.22/mo or as low as 0% APR with  Learn more
Learn more
Free shipping on select items over $200
Global Support
Payment Method
  • Paypal
  • ApplePay
  • GooglePay
Motor AF310 4-6s
Motor AF310 4-6s
brushless top quality fpv motor AF310 3010
brushless top quality fpv motor AF310 3010
brushless top quality fpv motor AF310 3010
Motor AF310 4-6s
Motor AF310 4-6s
brushless top quality fpv motor AF310 3010
brushless top quality fpv motor AF310 3010
brushless top quality fpv motor AF310 3010
  • Description
Description

- AF series motor are axisflying highest quality line with Premium performance,the highest standard.
- AF310 motor designs for X8 cinelifter to take off heavy payload.  It has more torque , power and efficiency than 2810 motor.
- High Torque output : The thrust you want, comes on right away.
- High Power: Easily does all kinds of fpv freestyle movements
- High Efficiency: 30% flight time increased compared to 28XX size

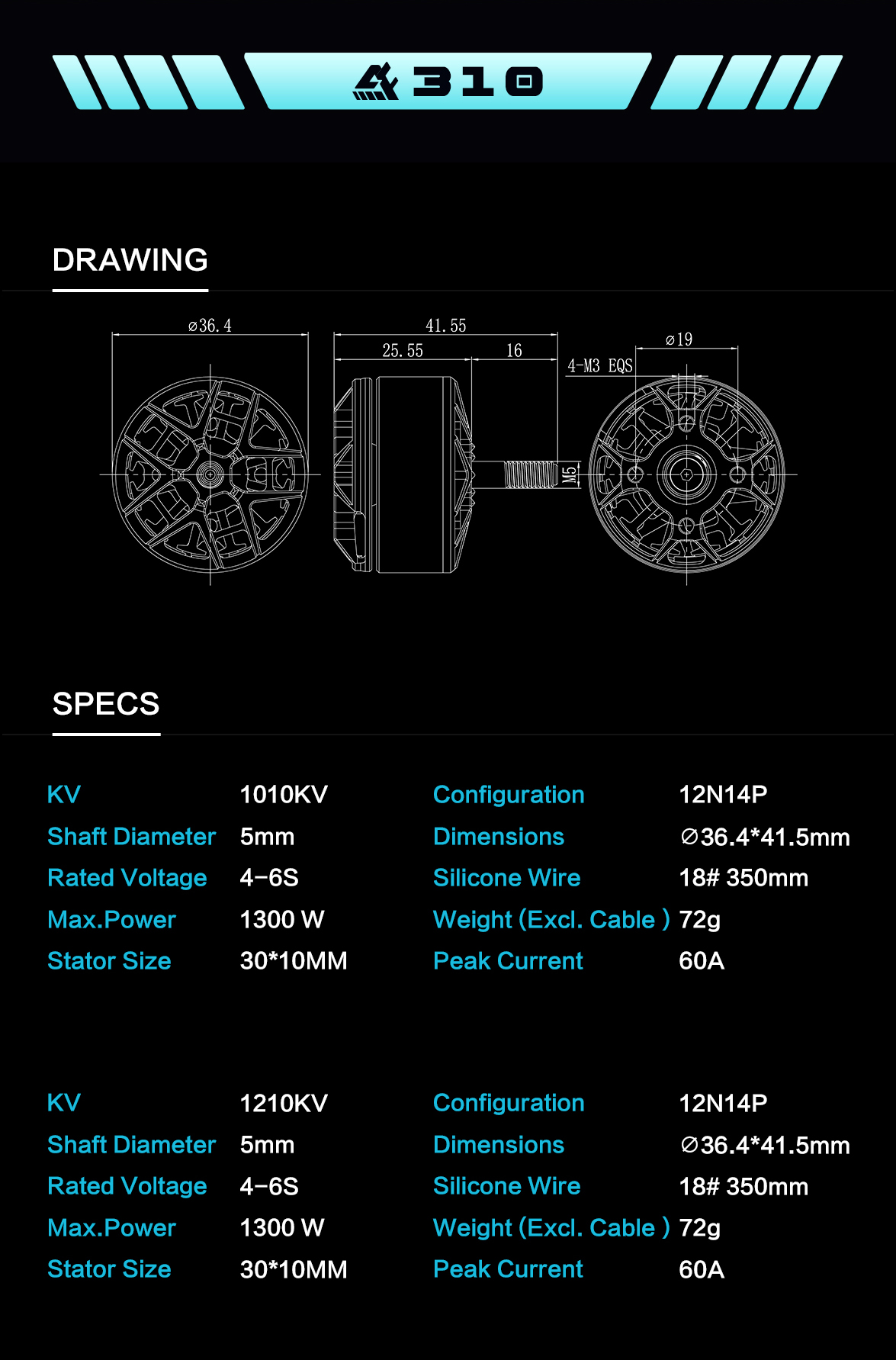

Specifications

1010KV is mian for 8inch, 9inch @6S
1210KV is mian for 7inch @6S
Configuration: 12N14P / N52H arc magnet
Motor stator size: 3010
Motor mounting hole size: 4*M3 (Φ19mm)
Motor cables: AWG 18#, 350MM
Motor dimensions (Dia *Len): Φ36.4*41.6MM  / M5 shaft
Motor weight (excluding 150MM cables) : 72g

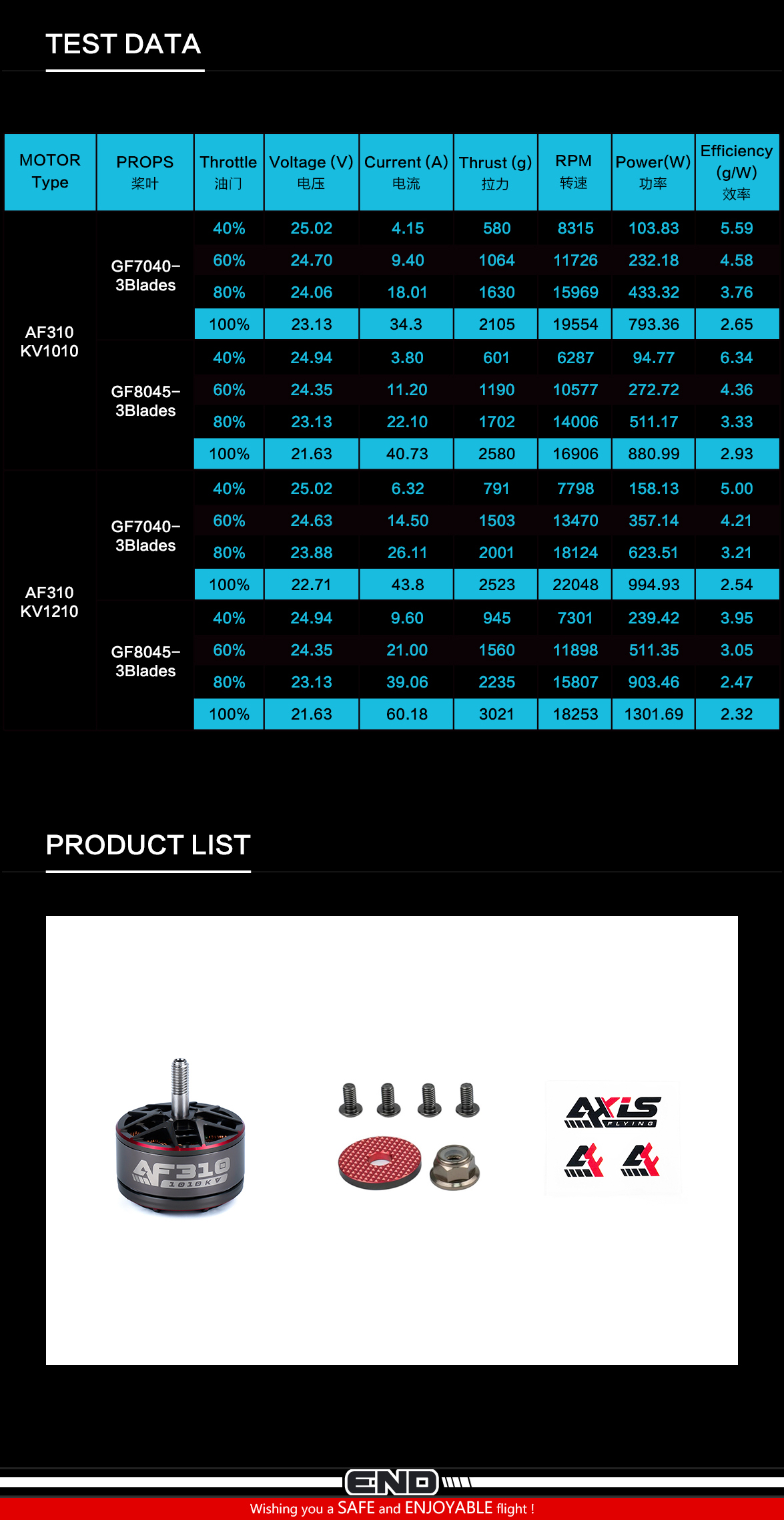

The motor is very powerful that can get over 3KG and most current is about 60A


Package

1* AF310 motor
4* M3*8 screws for motor
1* M3*4 screw for lock shaft
1* M5 Flanged Nylon Insert lock
1* Press plate
