Feature

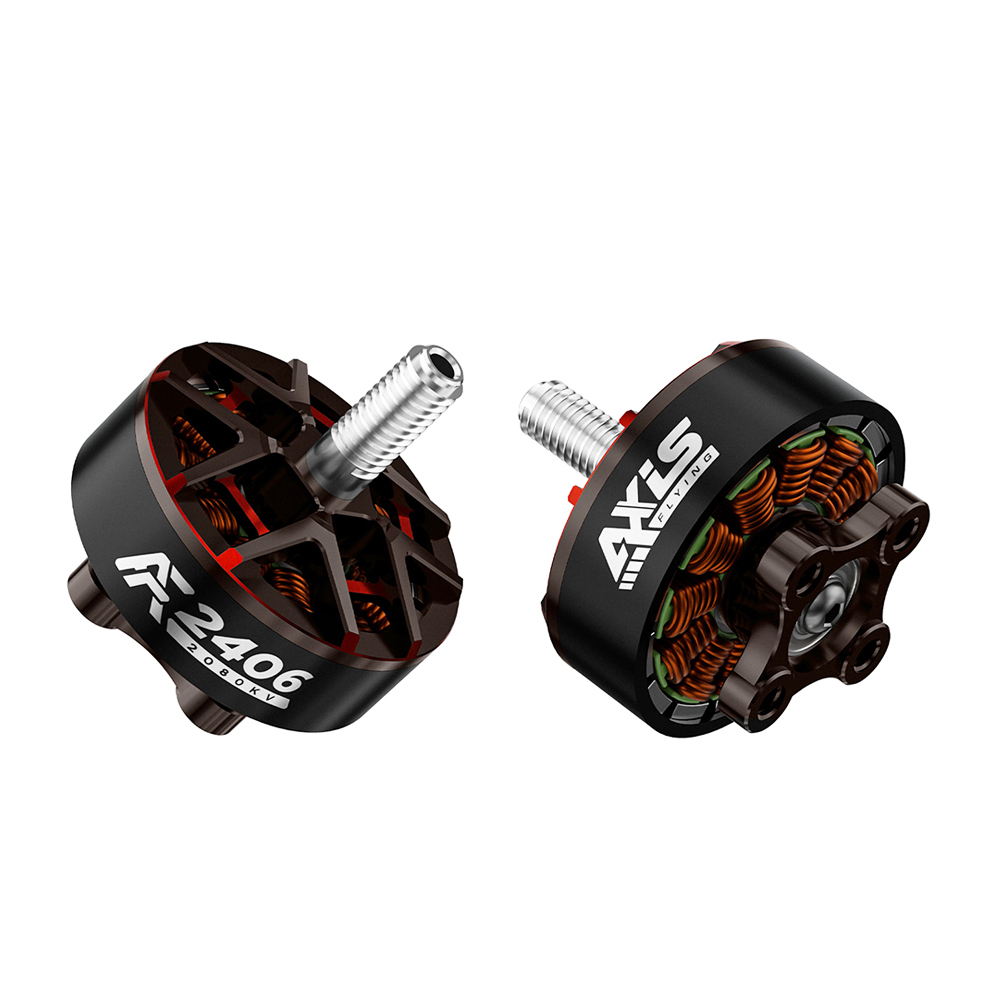

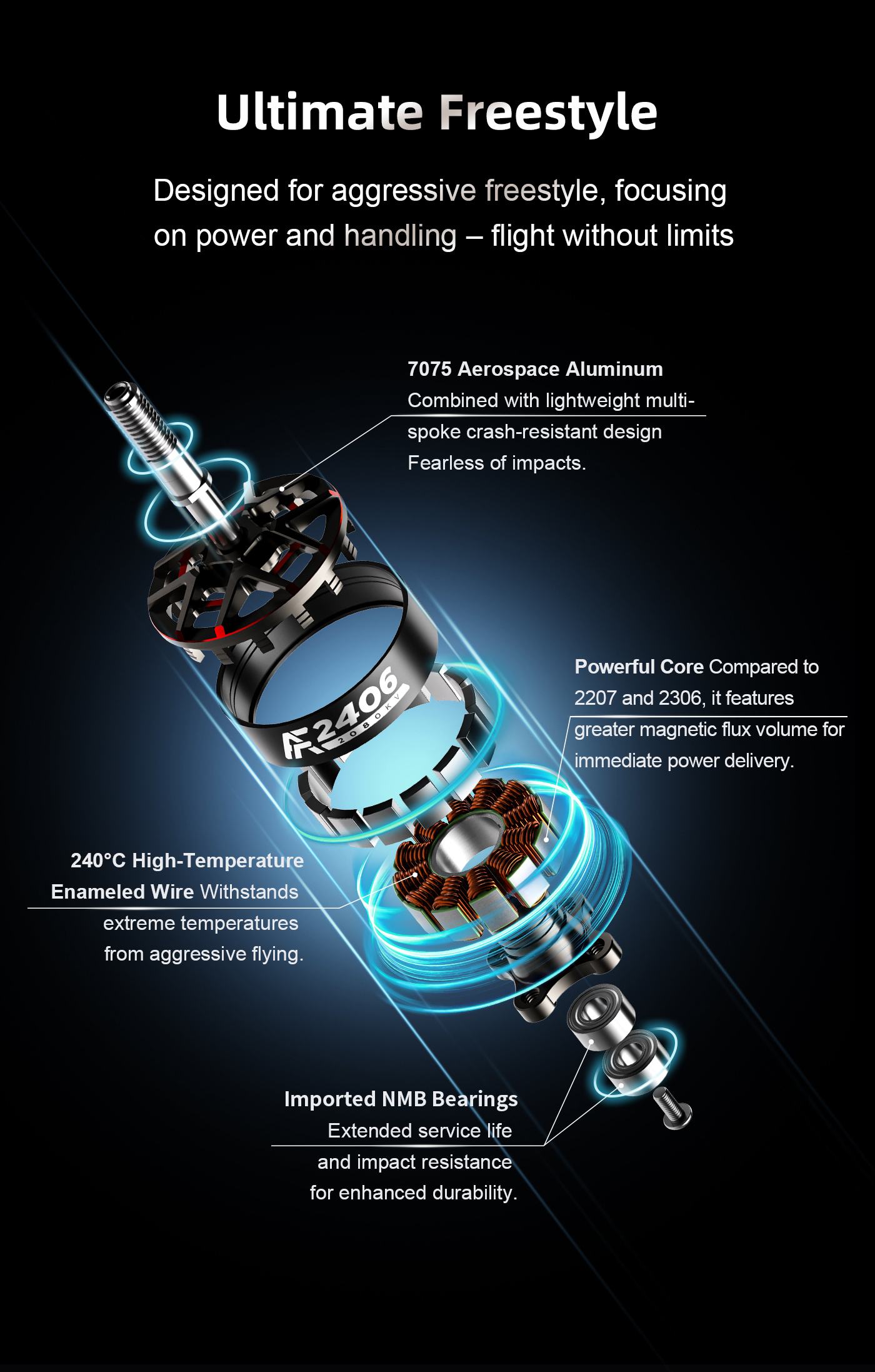

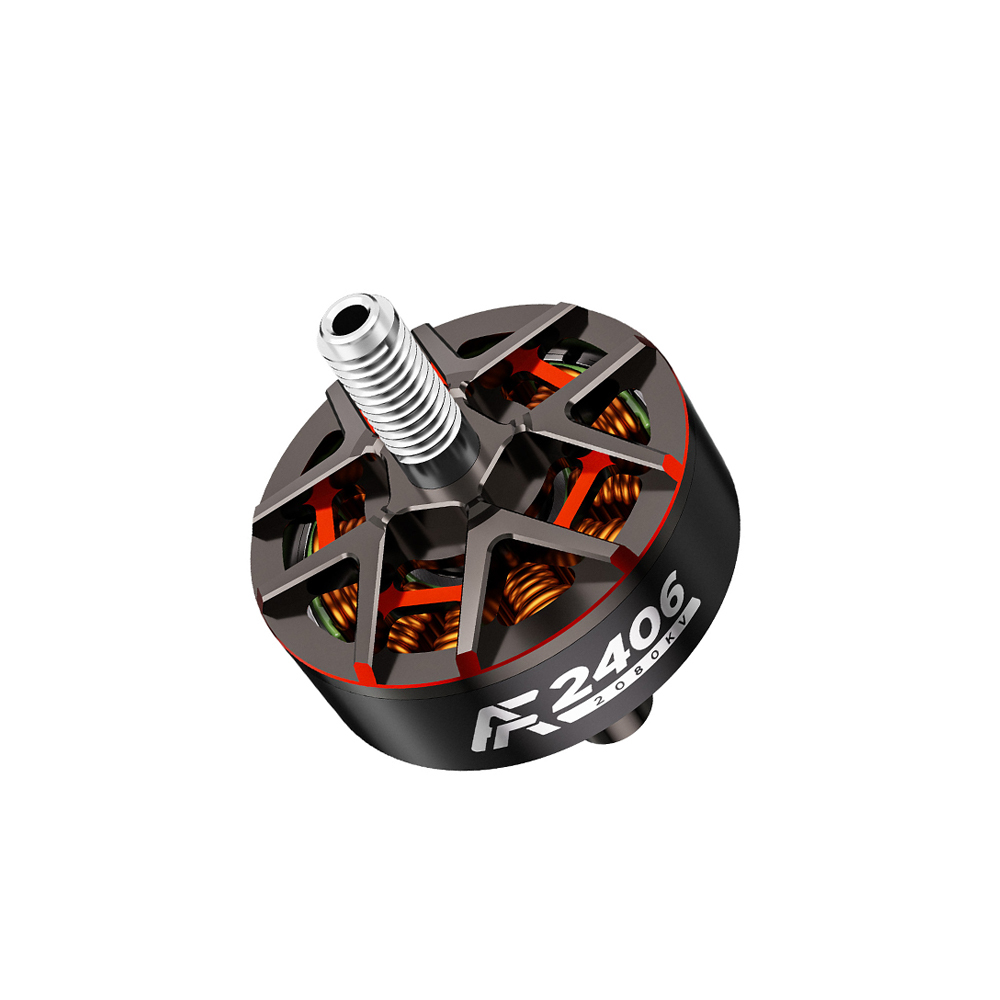

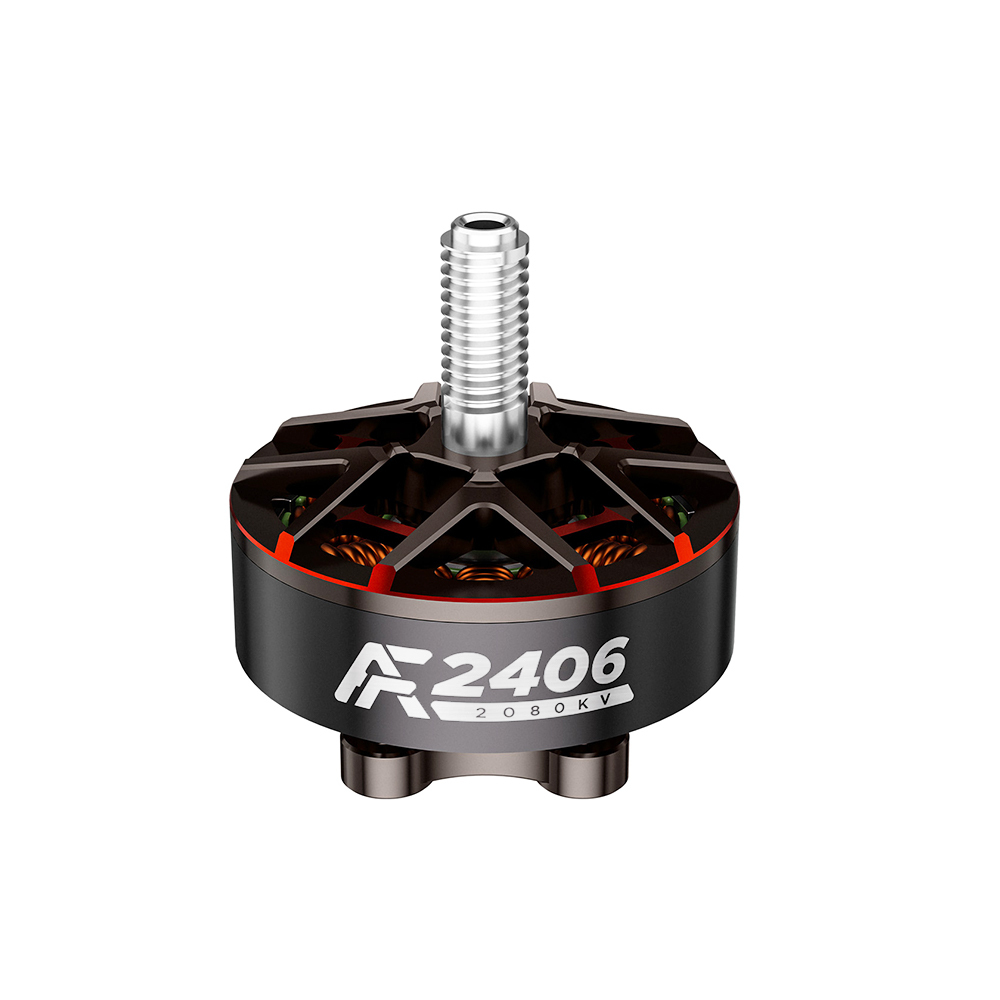

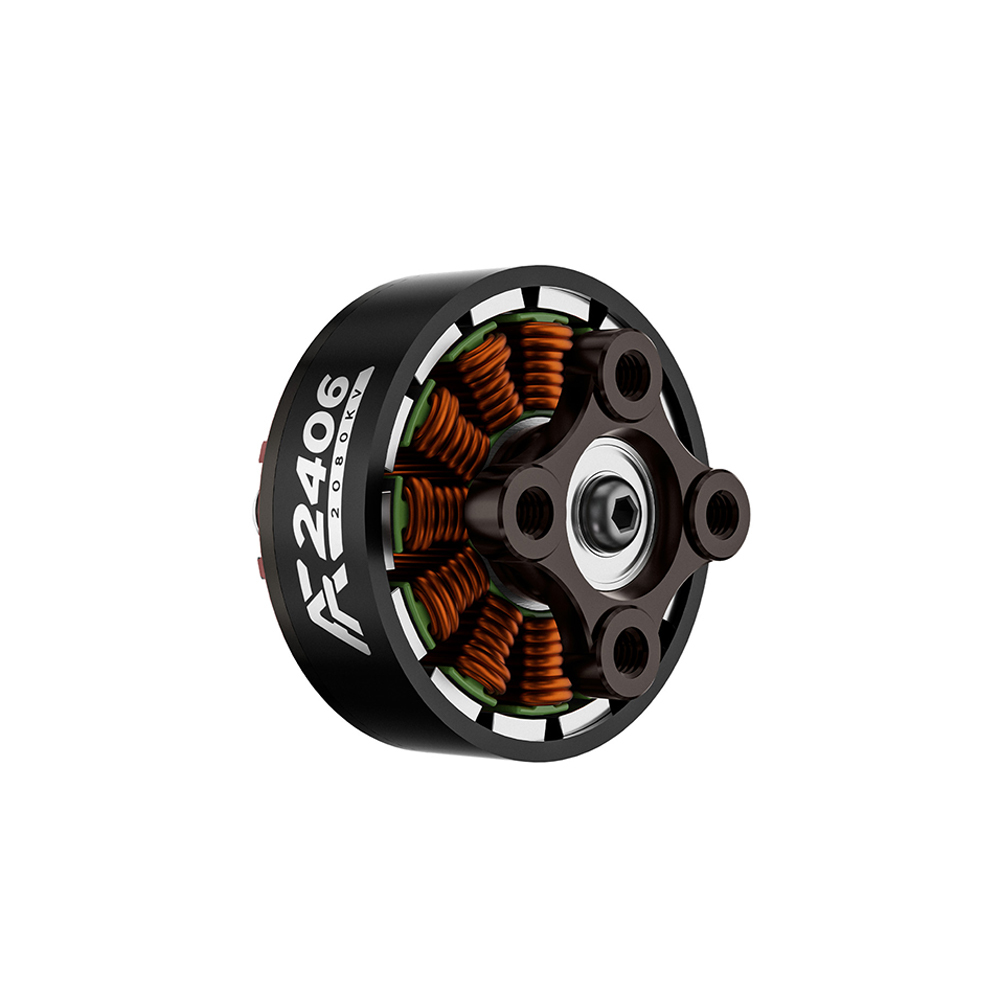

• AF2406 is a 5-inch dedicated motor for freestyle & BANDO flight, solving throttle lag & weak low-torque pain points.
• 12N14P design with larger magnetic flux for instant power and smooth throttle response.

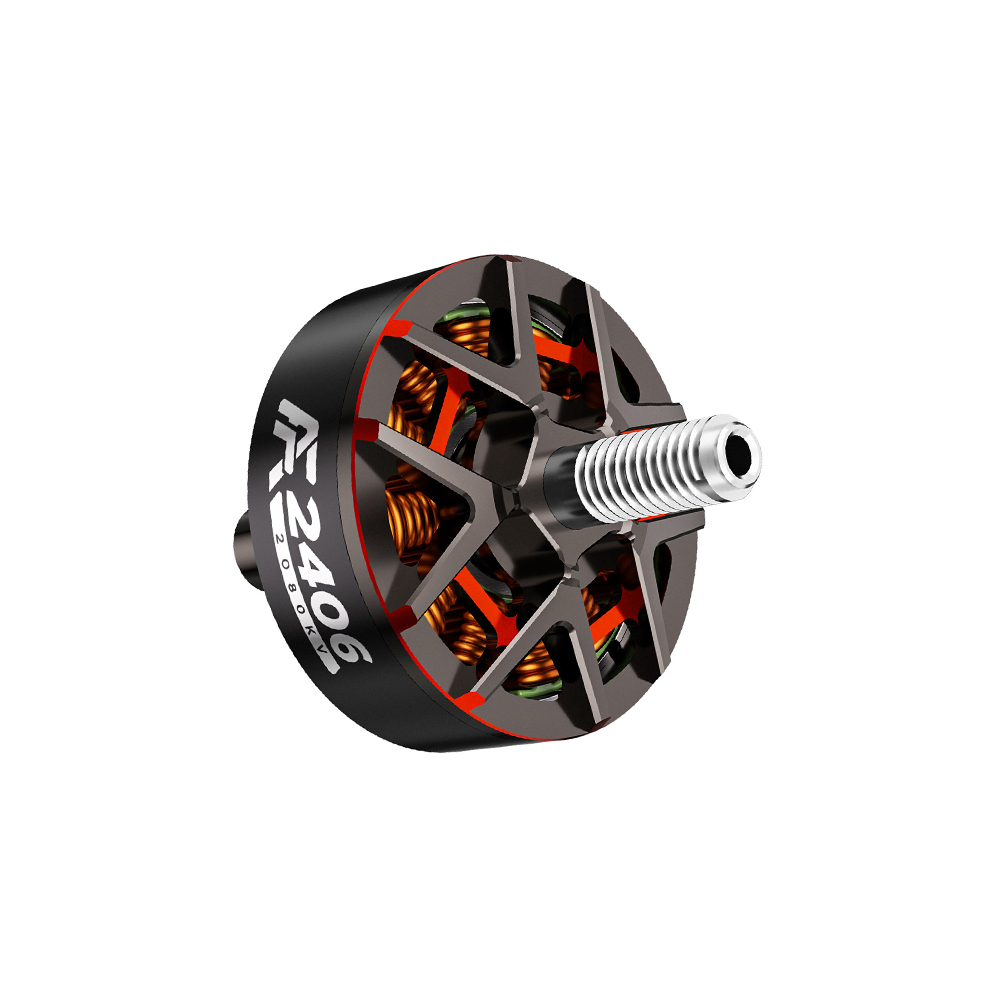

• 7075 aerospace aluminum with lightweight multi-spoke structure, crash-resistant and durable.
• 240°C high-temperature enameled wire for stable performance under extreme load.
• Imported NMB bearings for longer service life and better impact resistance.
• Perfect power-to-weight ratio for flying smoothly with GoPro and HD systems.

Recommended Configuration

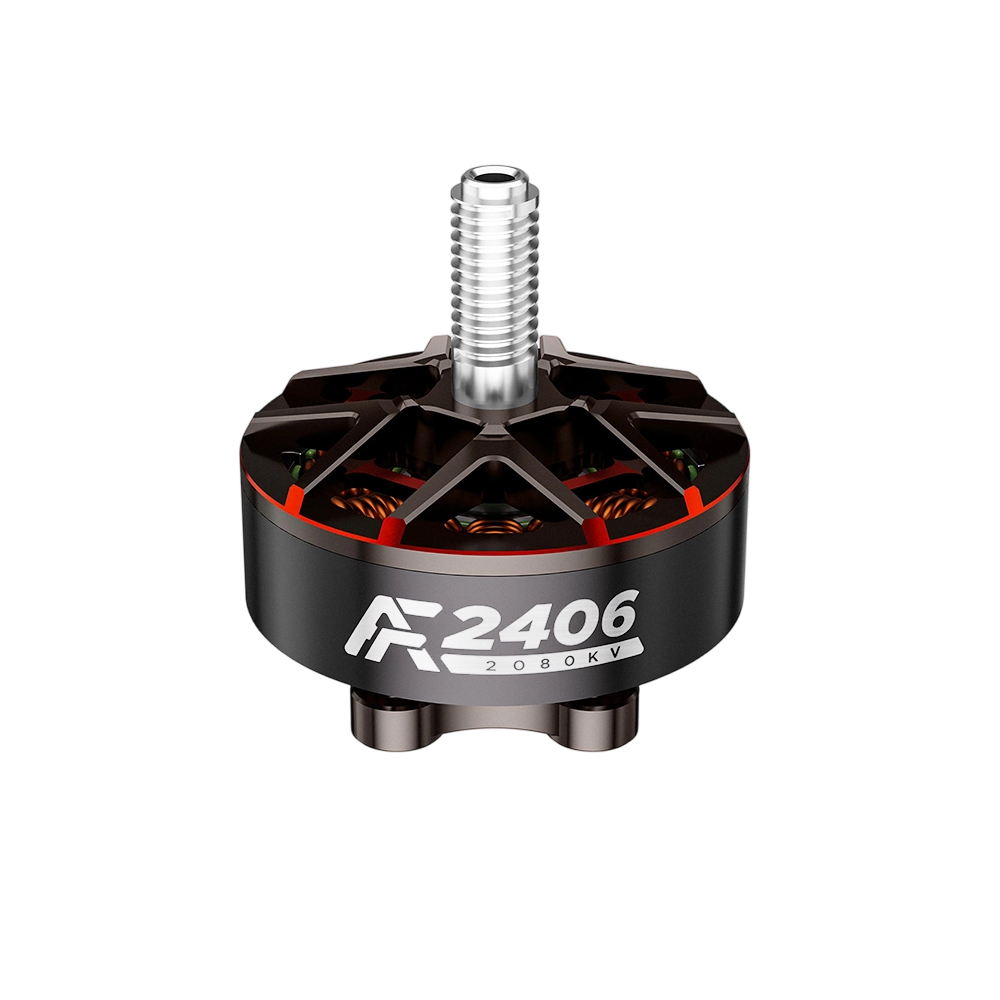

• Motor: Axisflying AF2406 2080KV
• Voltage: 6S LiPo
• Props: GF 51366 V3 / GF 51466 V2 / HQ P3.5
• Application: 5-inch FPV, freestyle, BANDO flight

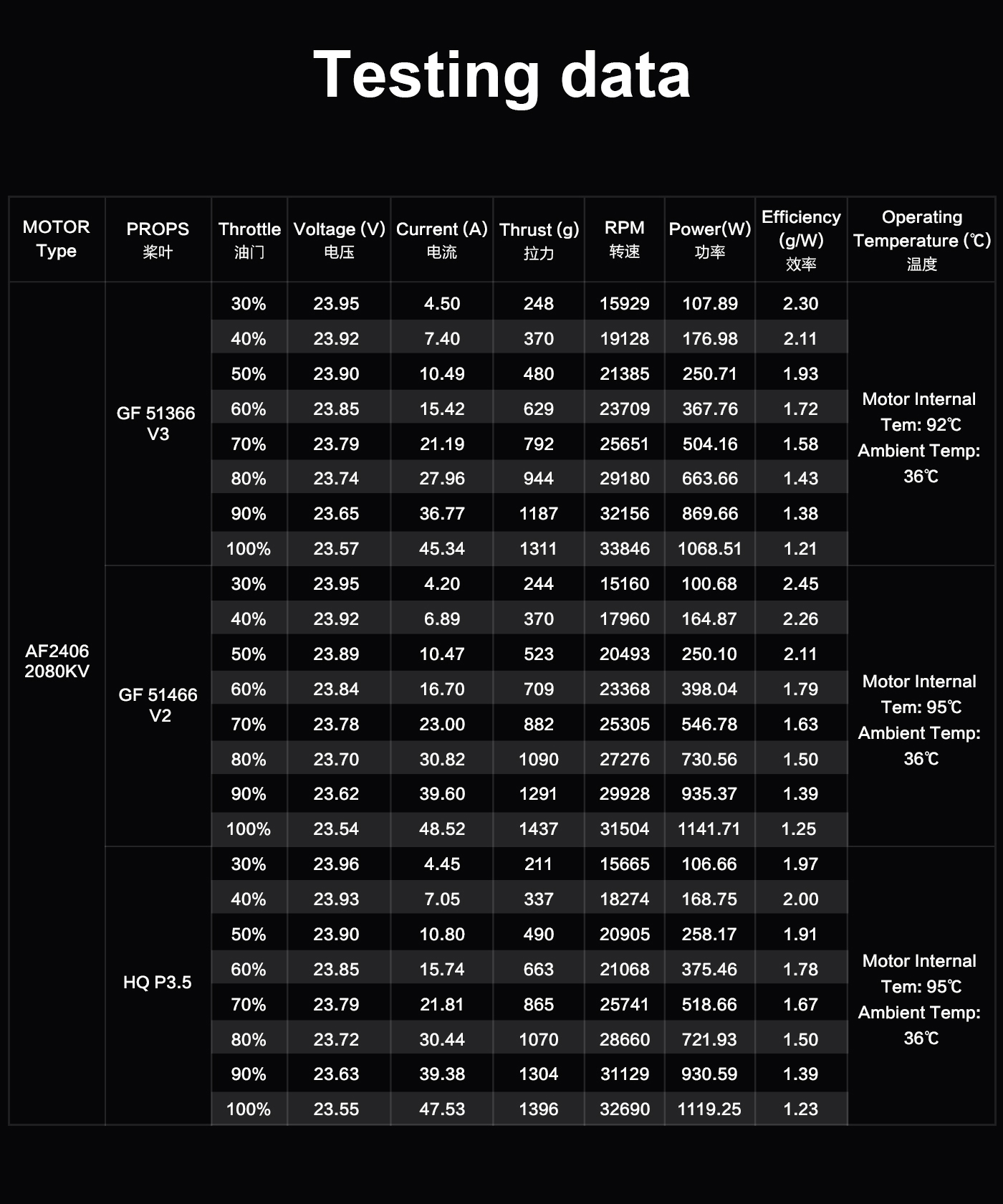

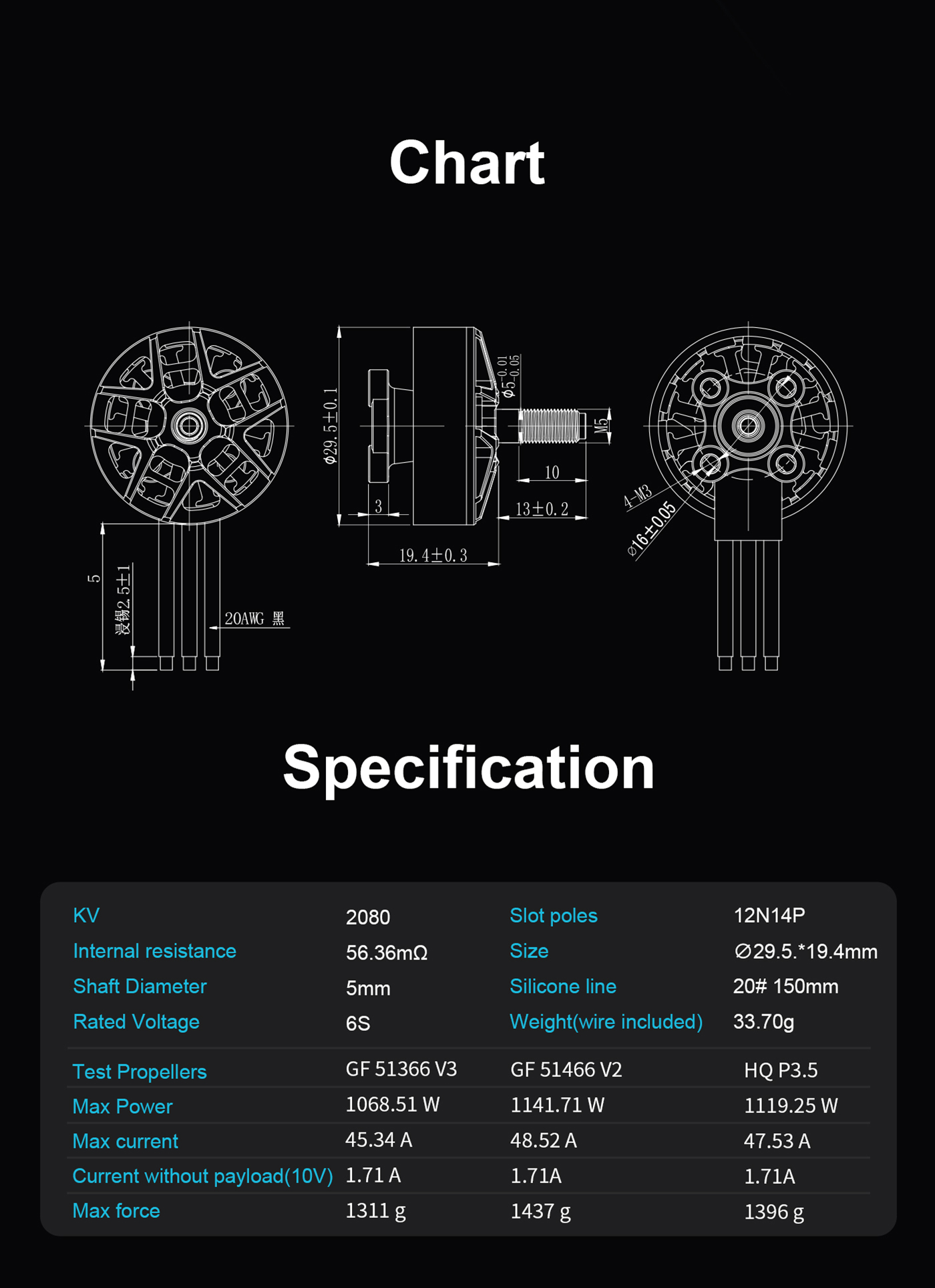

Specifications

• Model: AF2406
• KV: 2080KV
• Slot-Pole: 12N14P
• Internal Resistance: 56.36mΩ
• Shaft Diameter: 5mm
• Wire: 20AWG silicone wire, 150mm
• Mount: 4-M3
• Size: Φ16×9mm
• Weight (with wire): 33.70g
• No-load Current (10V): 1.71A
• Max Power: 1141.71W
• Max Current: 48.52A
• Max Thrust: 1437g
• Operating Temperature: -20°C ~ 80°C

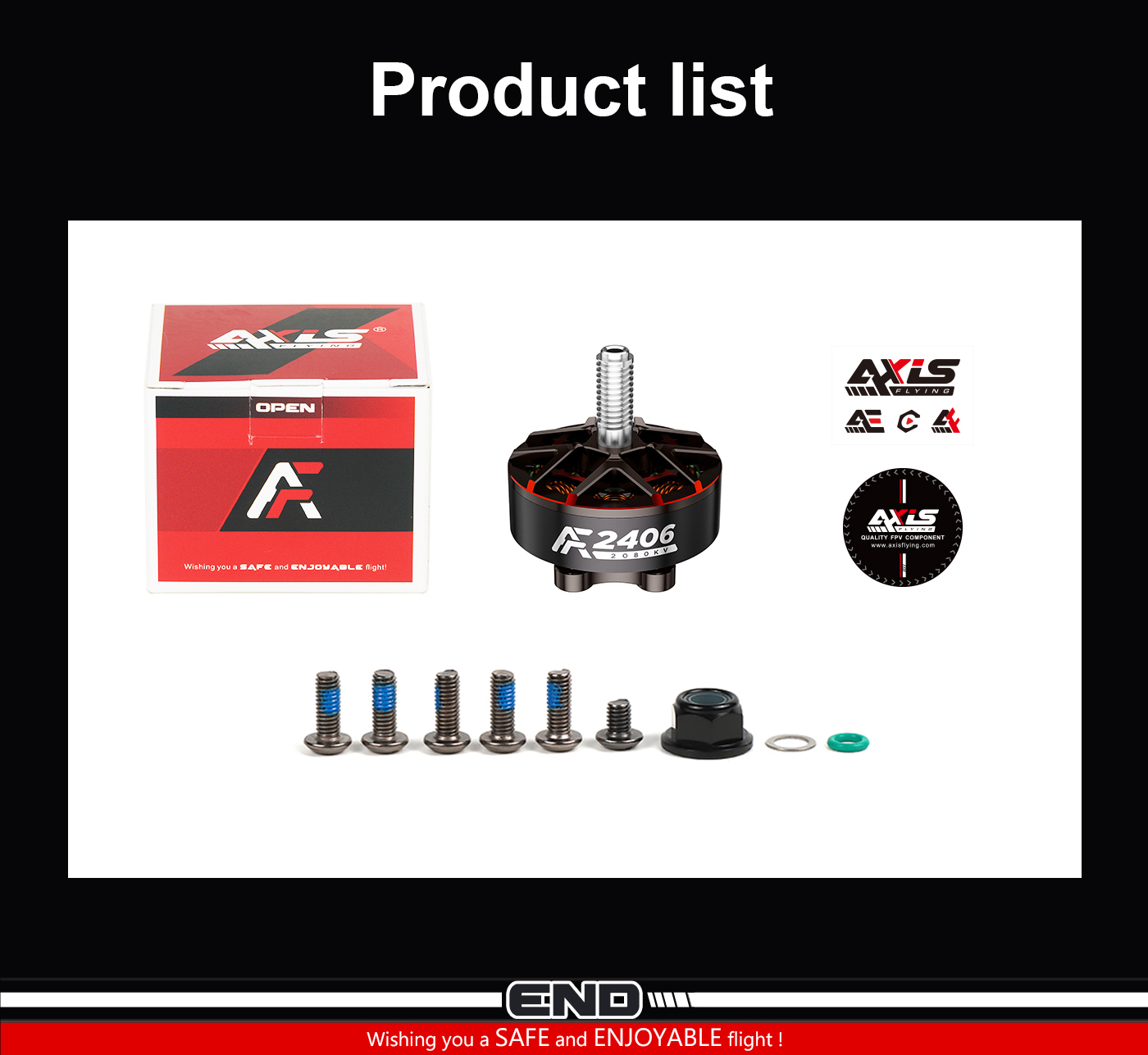

Package Contents

1. AF2406 Brushless Motor ×1
2. Mounting Screws ×1 set
3. sticker×1

US Tariff Information

• Tariff: 10% + Section 301 additional duty (as of May 2026)
• Type 86 ($800 duty-free) is terminated; all commercial shipments are dutiable.
