Foreword

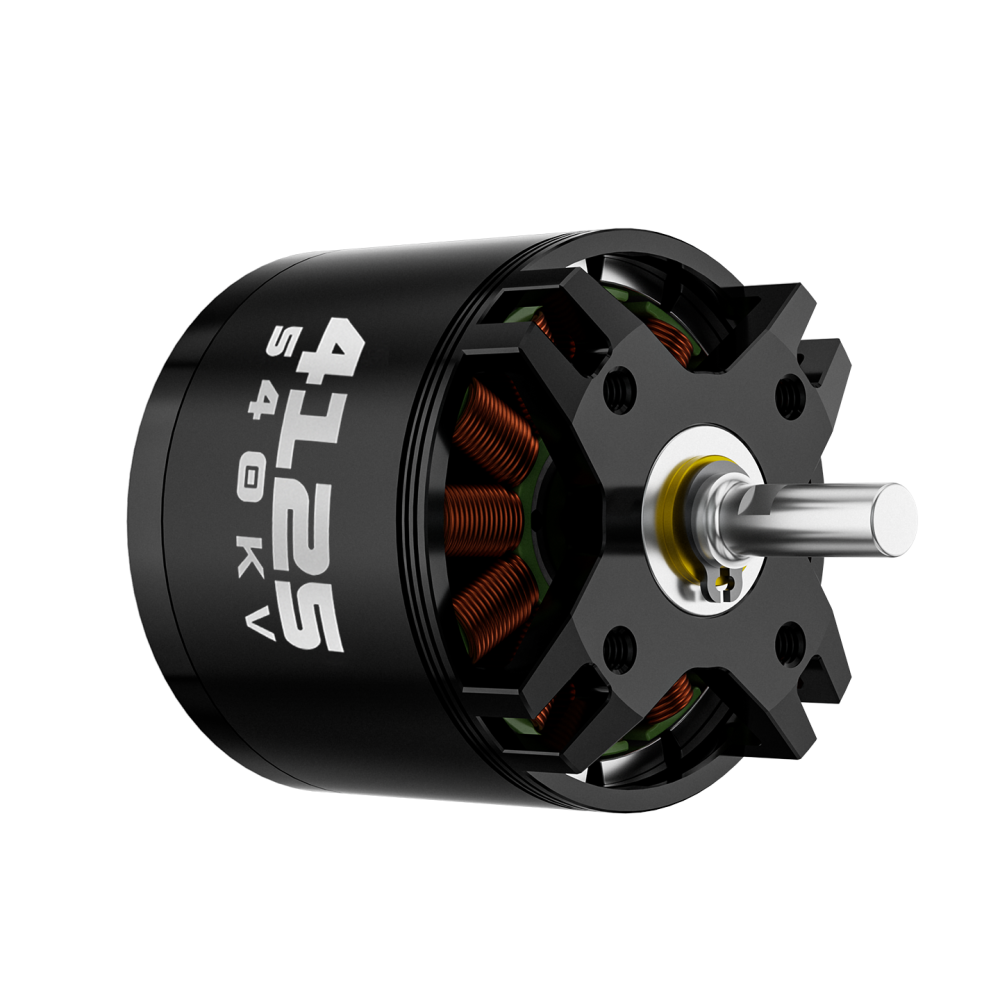

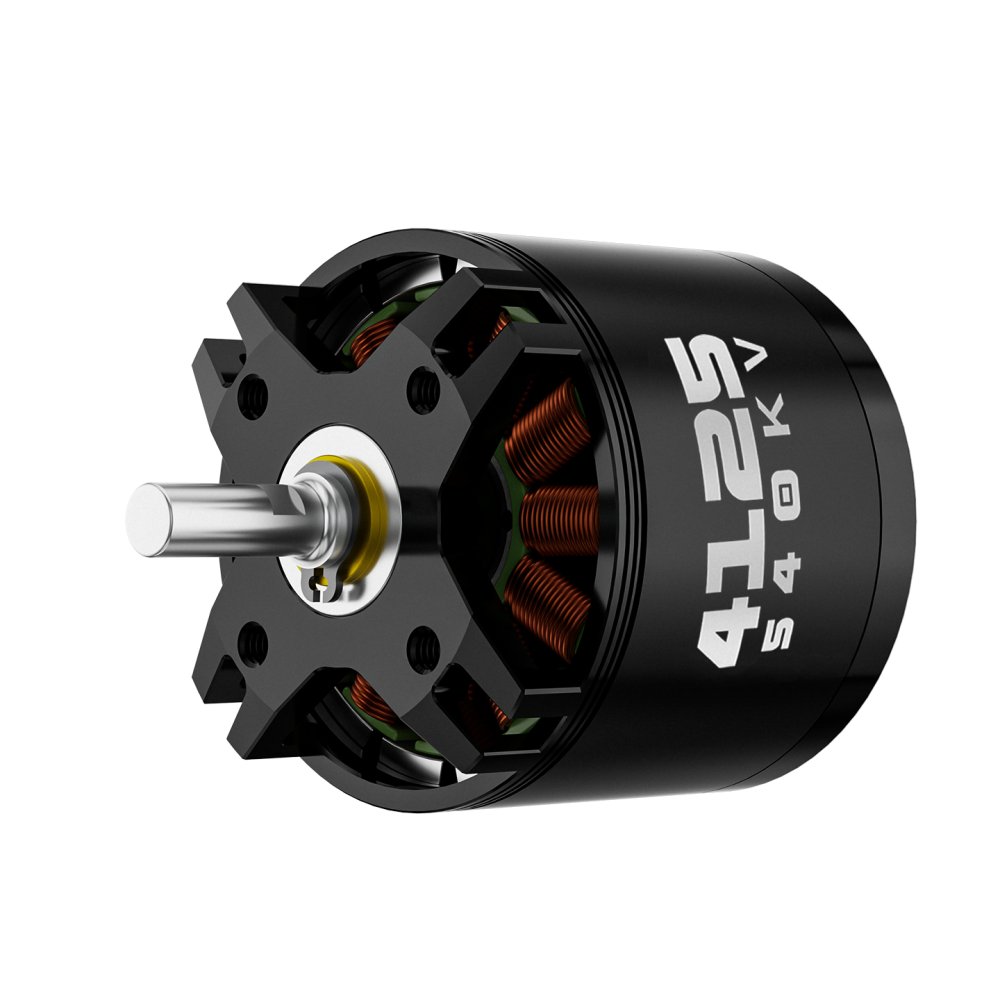

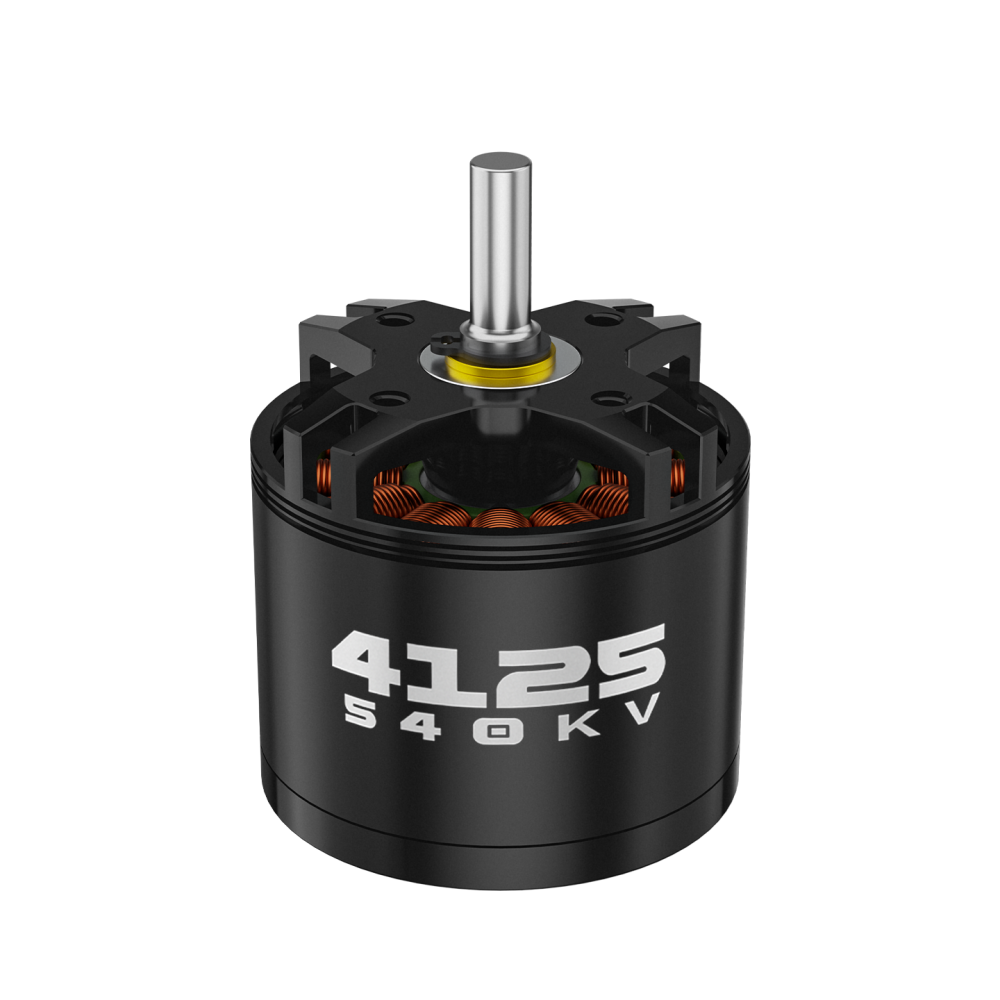

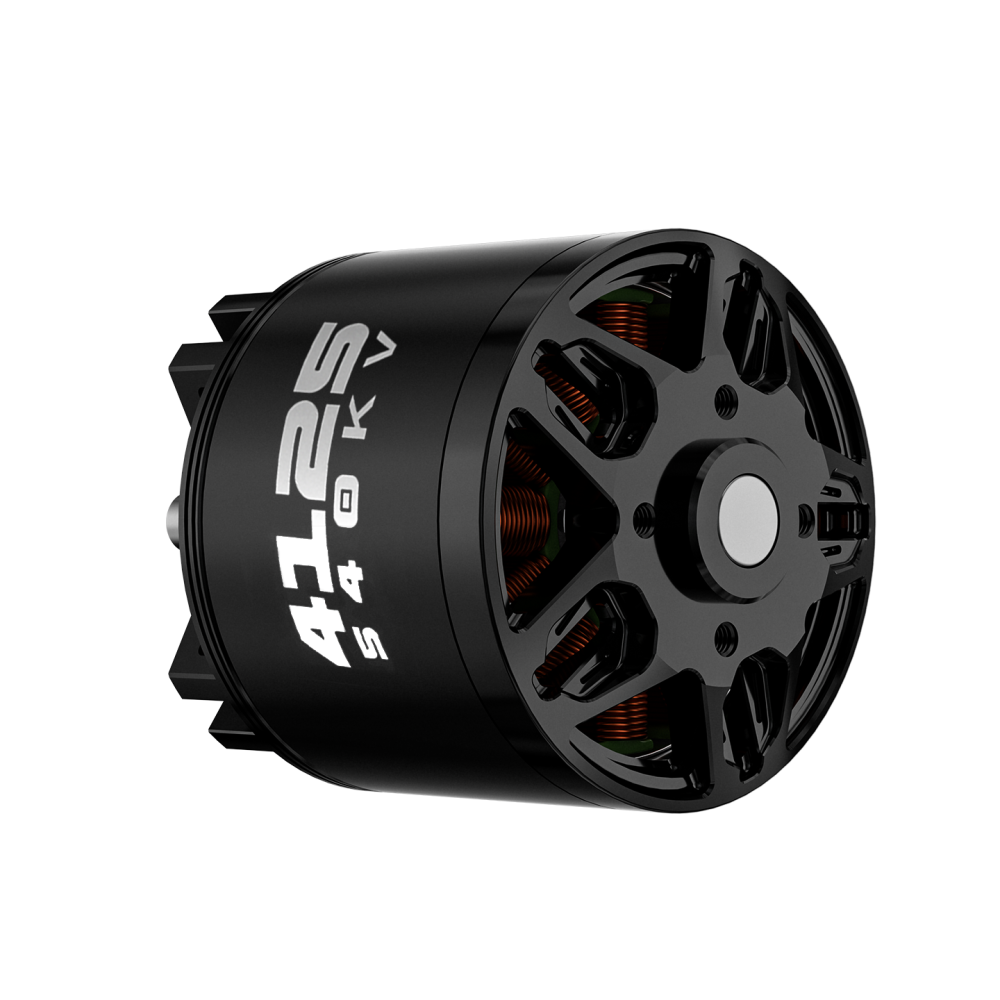

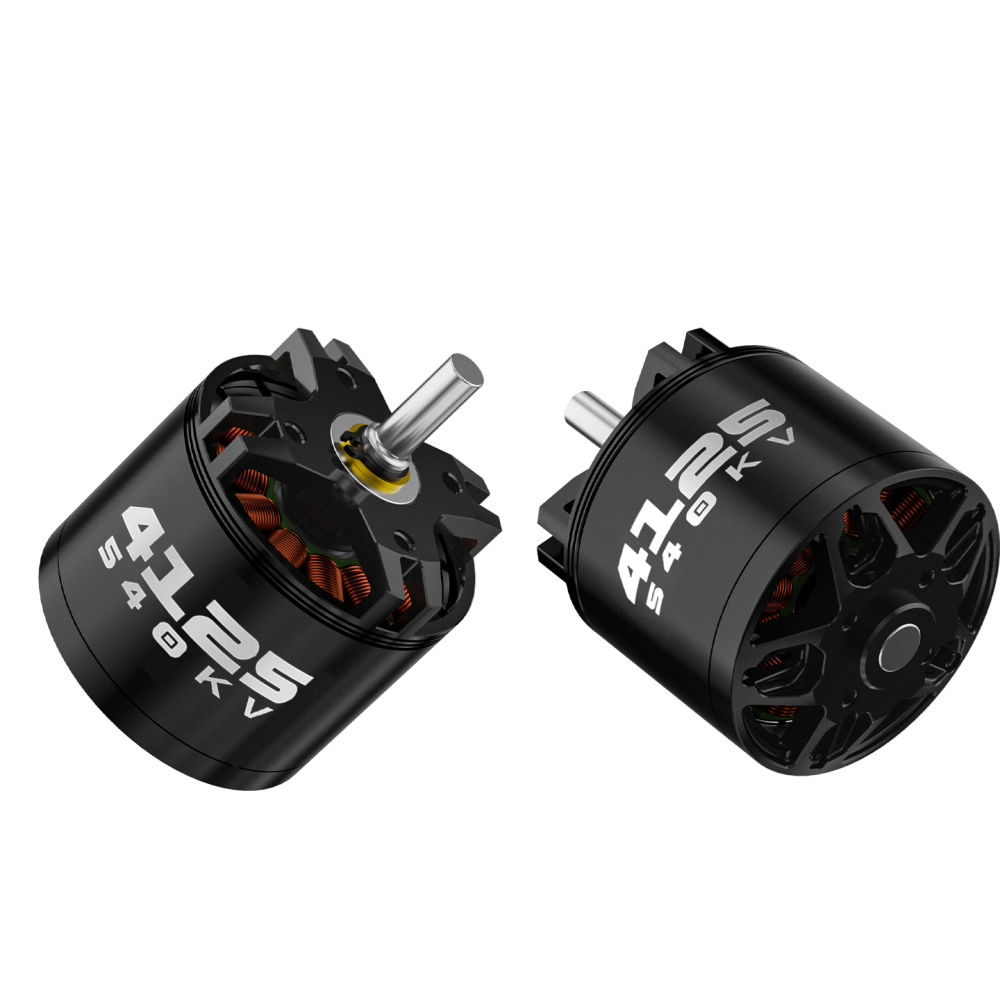

Axisflying AZ4125 is a high-power, high-torque brushless motor designed for 10‑inch long‑range, cinematic and heavy‑loading FPV drones & fixed‑wing aircraft. It delivers instant response, high RPM and massive thrust for professional heavy‑lift missions.

Feature

  • AZ series professional heavy‑load motor for 10‑inch FPV & fixed‑wing drones
  • Instant response & high RPM for maximum burst force
  • Outstanding operation stability under full load
  • High‑temperature enameled wire for reliable long‑time use
  • Imported high‑speed bearings for long service life
  • High efficiency & low heat for extended flight endurance
  • Perfect for heavy‑loading, long‑range & cinematic shooting

Recommended Configuration

  • Motor: Axisflying AZ4125 540KV
  • Voltage: 6S LiPo
  • Props: EOLO 15×8 / EOLO 16×8
  • Application: 10‑inch long‑range, cinematic, heavy‑loading drones, fixed‑wing aircraft

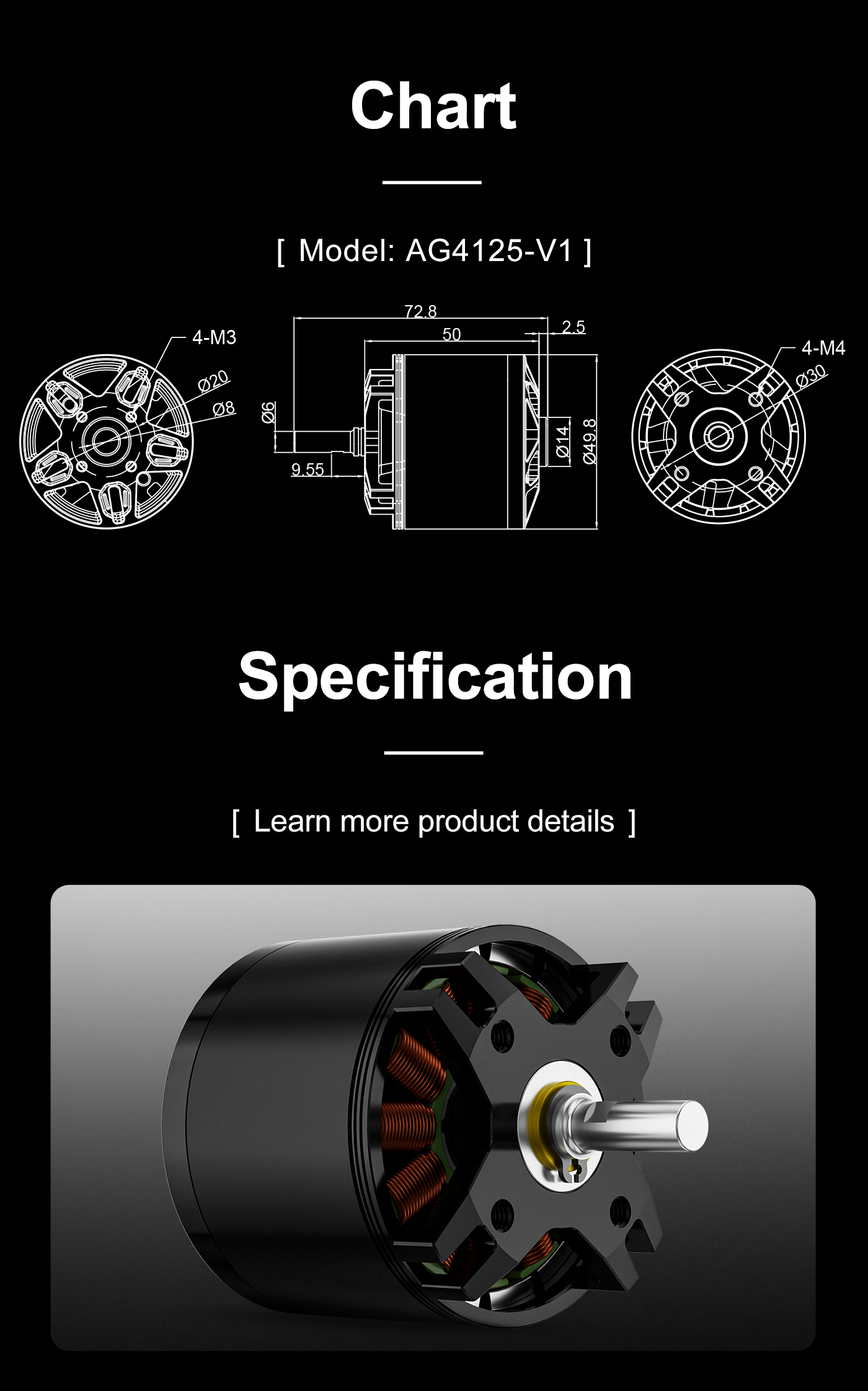

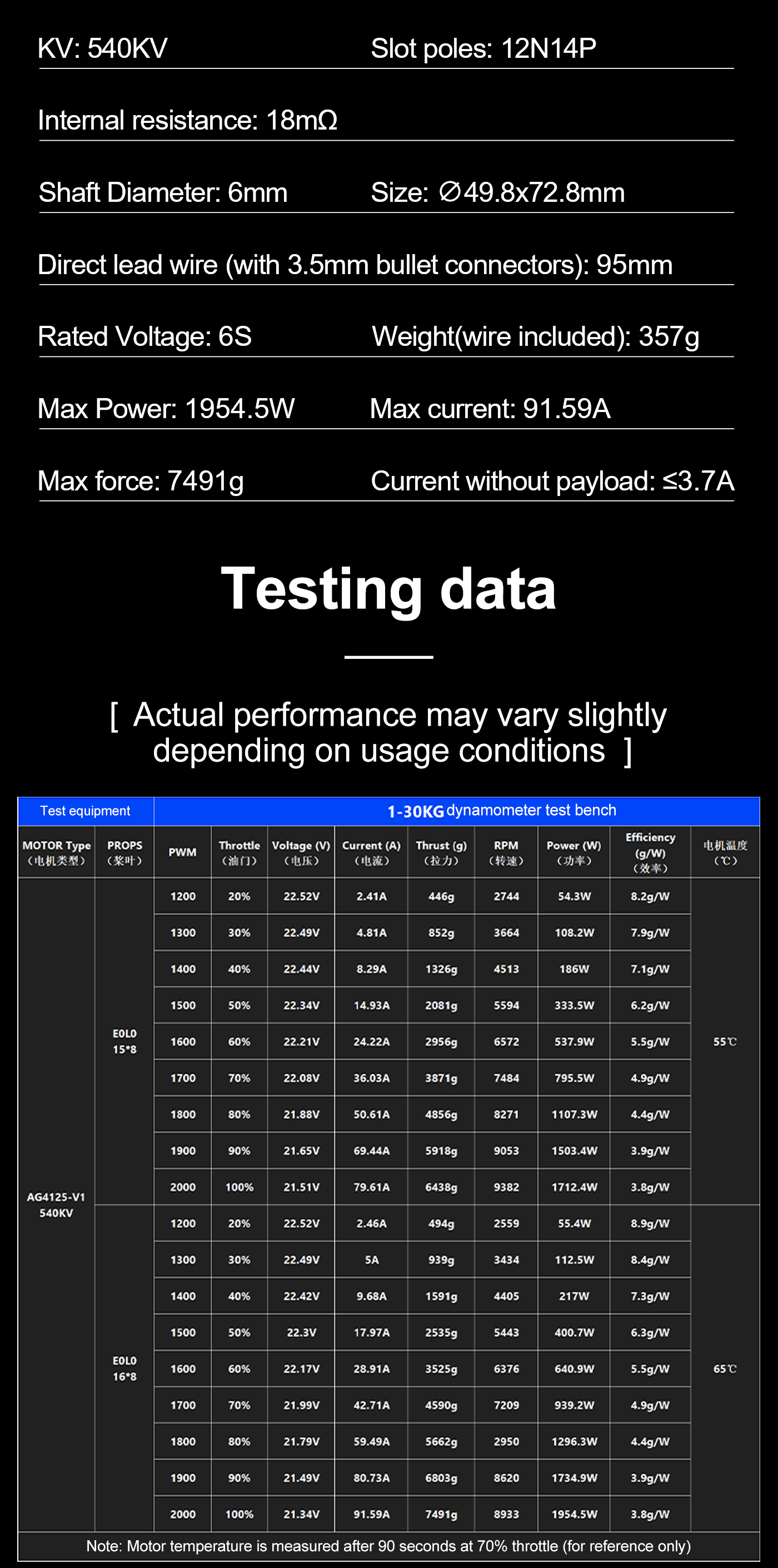

Specifications

  • Model: AZ4125 (AG4125-V1)
  • KV: 540KV
  • Configuration: 12N14P
  • Internal Resistance: 18mΩ
  • Size: Φ49.8×72.8mm
  • Shaft Diameter: 6mm
  • Silicone Wire: 95mm (with 3.5mm bullet connectors)
  • Rated Voltage: 6S
  • Weight (with wire): 357g
  • Max Power: 1954.5W
  • Peak Current: 91.59A
  • Max Thrust: 7491g
  • Idle Current: 3.7A
  • Mount: 4×M3 / 4×M4

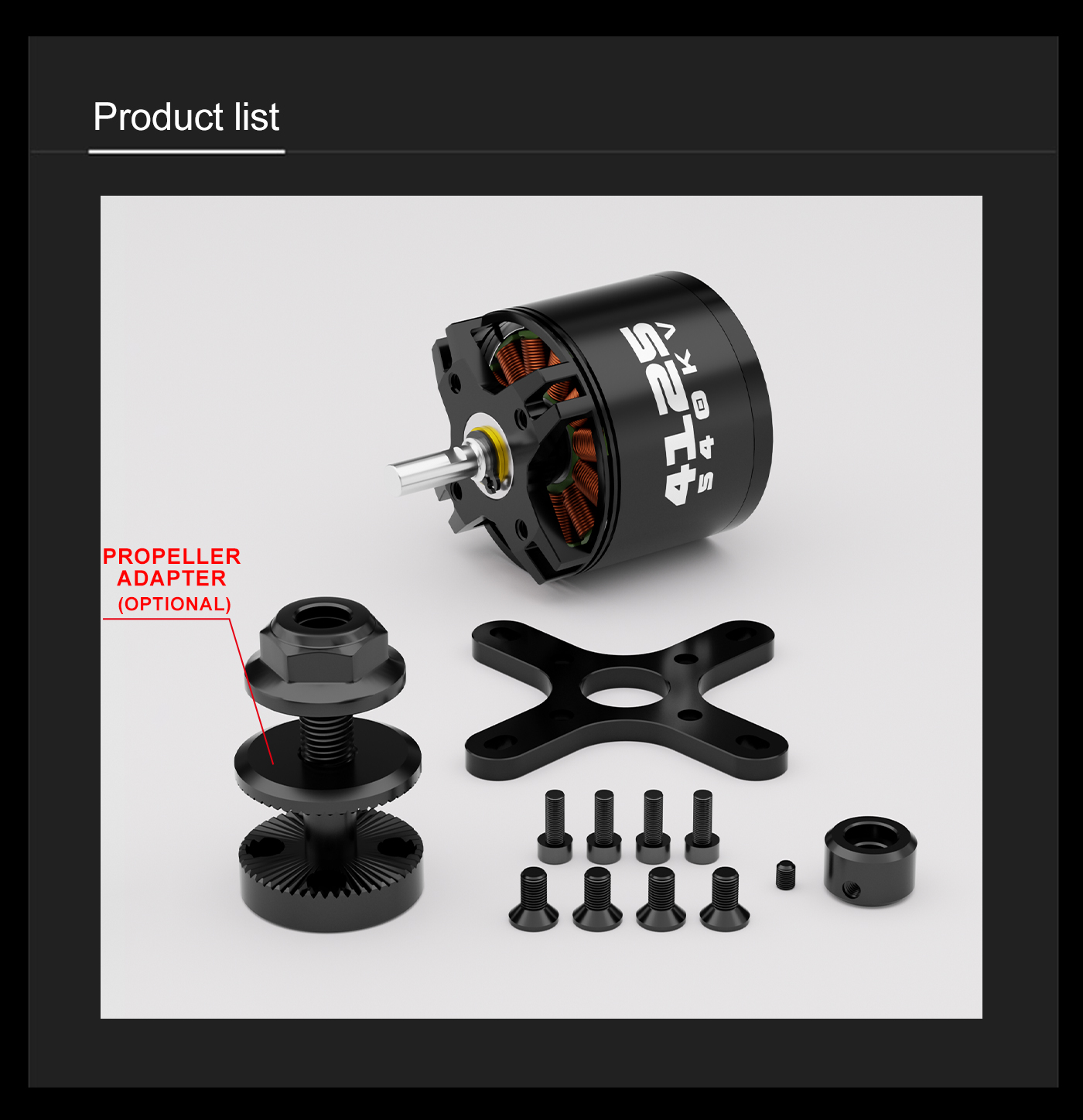

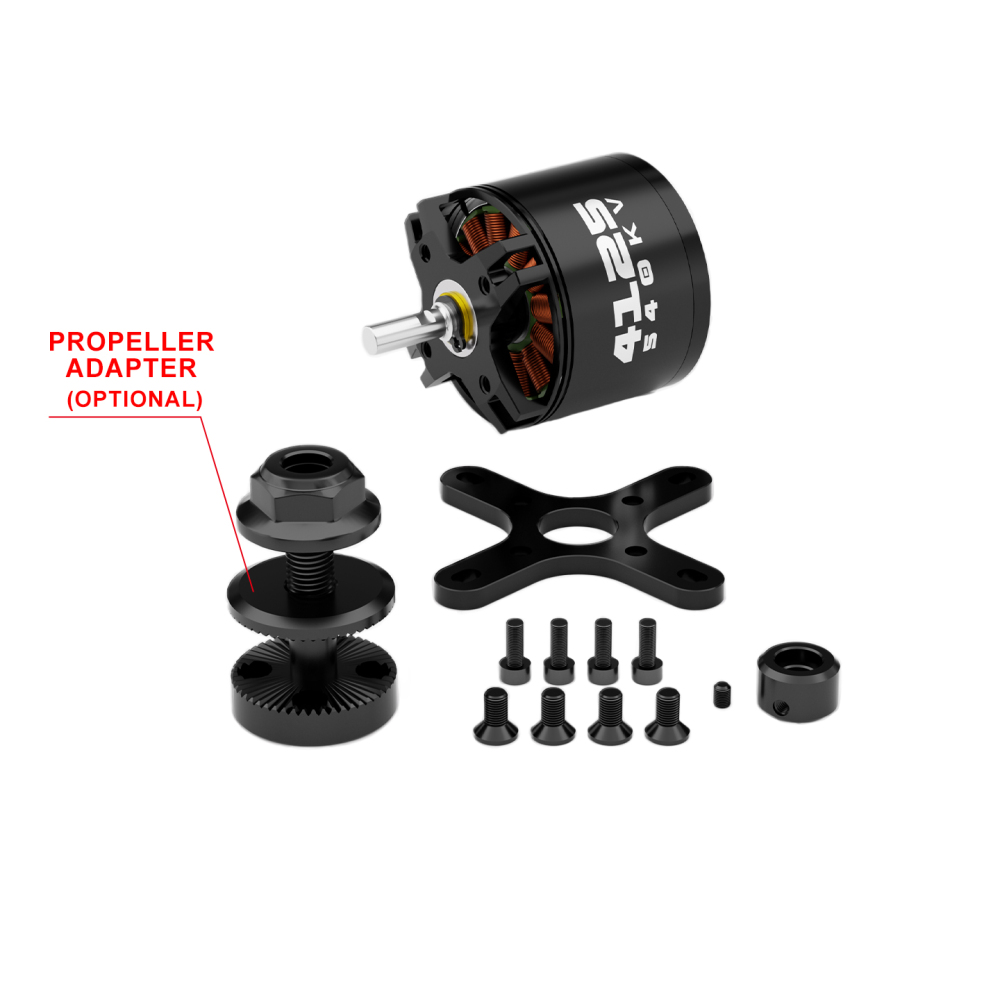

Package Contents

  1. AZ4125 540KV Brushless Motor ×1
  2. Mounting screws & accessories set ×1
  3. Propeller adapter (optional)

US Tariff Information


  • Tariff: 30% + Section 301 additional duty (as of May 2026)
  • Type 86 ($800 duty‑free) is terminated; all commercial shipments are dutiable.
Frequently Bought Together
more
Frequently Bought Together
FAQ
Are Axisflying products universal for most FPV drones?
Yes, all Axisflying parts are standard size and universal, compatible with most mainstream FPV models for easy assembly and replacement.
Do you provide after-sales support and technical guidance?
Sure. We offer professional technical support, installation tips and after-sales service to solve your usage problems.
Do I need to pay import duties or taxes?
 Import duties, taxes and customs clearance fees are not included in the product price. They are the buyer’s responsibility and vary by country/region, local tax policy and order value.
We can provide commercial invoice, packing list, CE/RoHS certificates to help with customs clearance. For detailed rates, please check with your local customs office.
Where can I download product manuals and printable documents?
All user manuals, quick guides, specification sheets and printable files are available in the Support / Download Center on our official website.
