Foreword

Feature

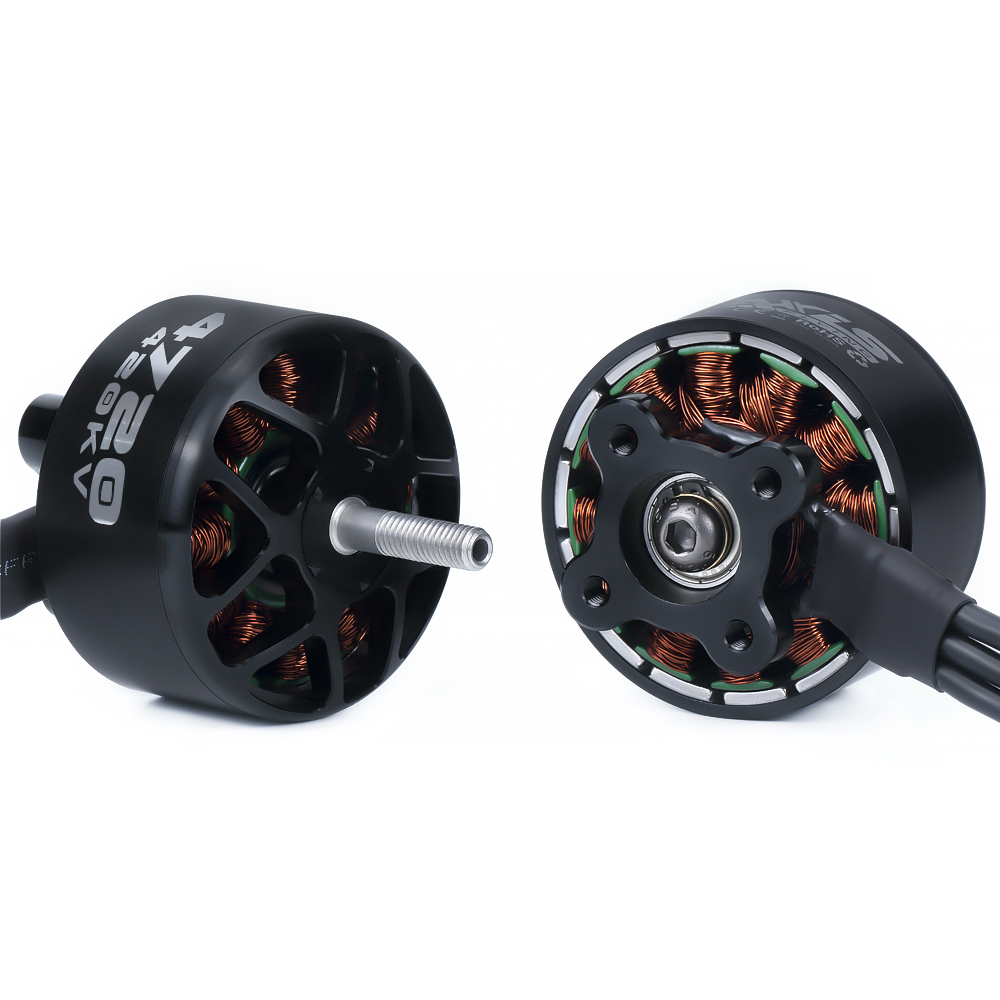

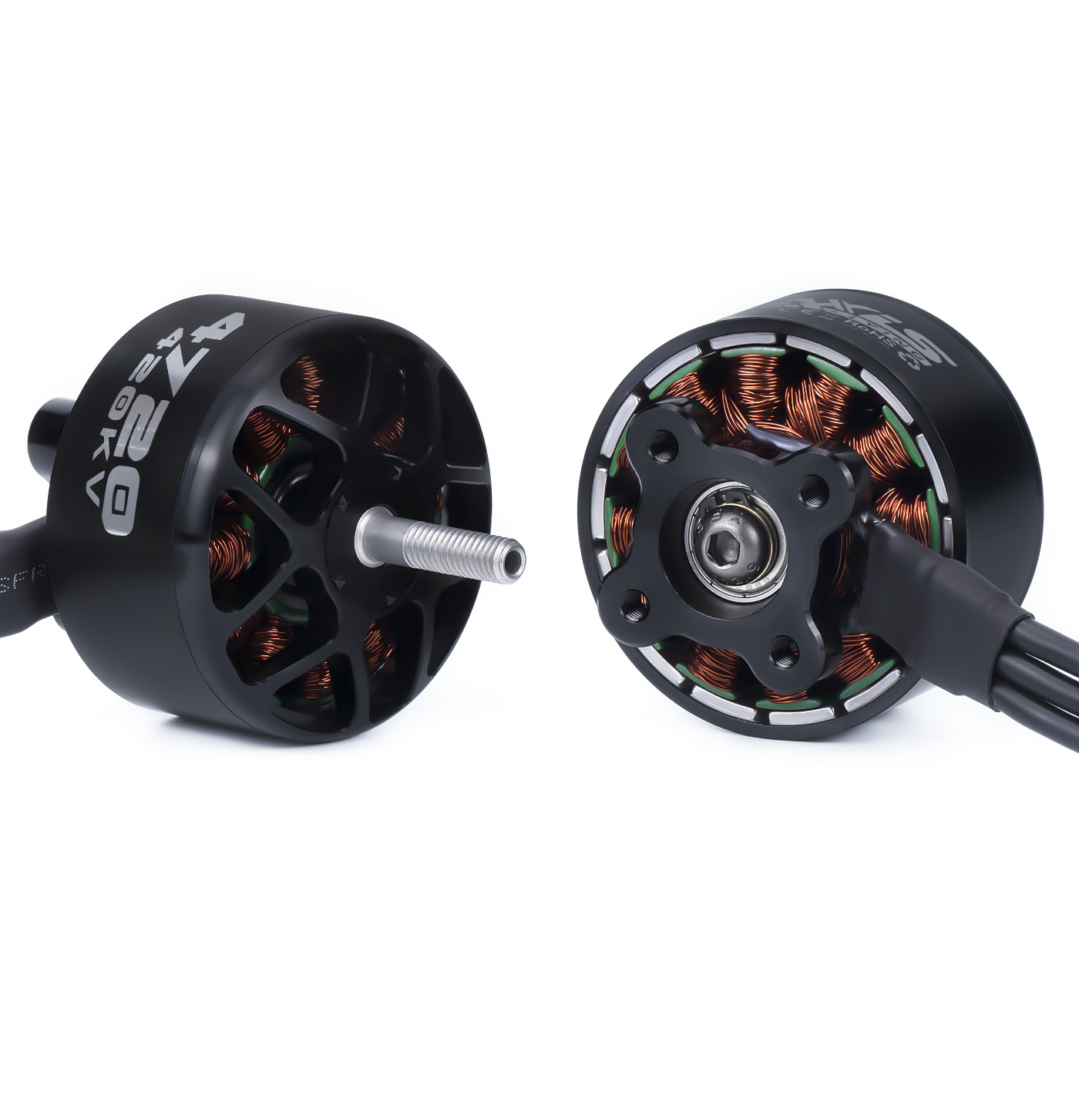

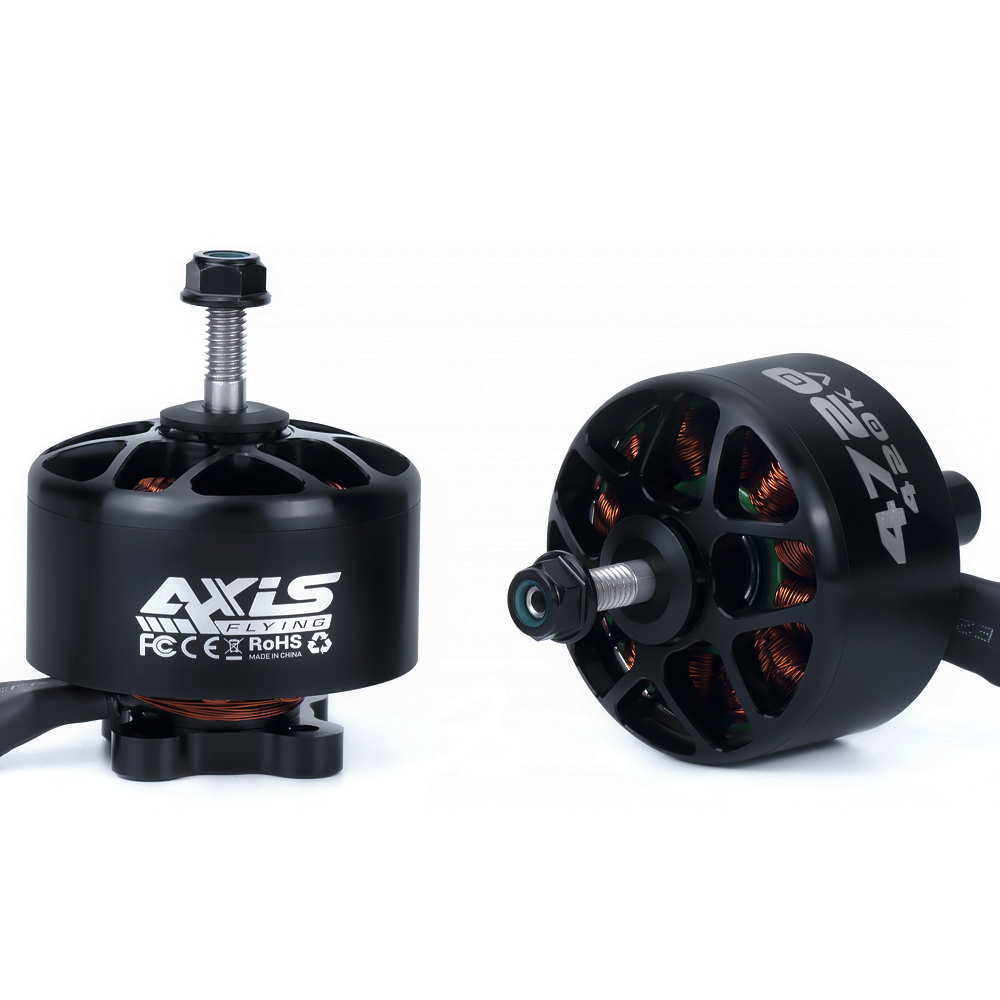

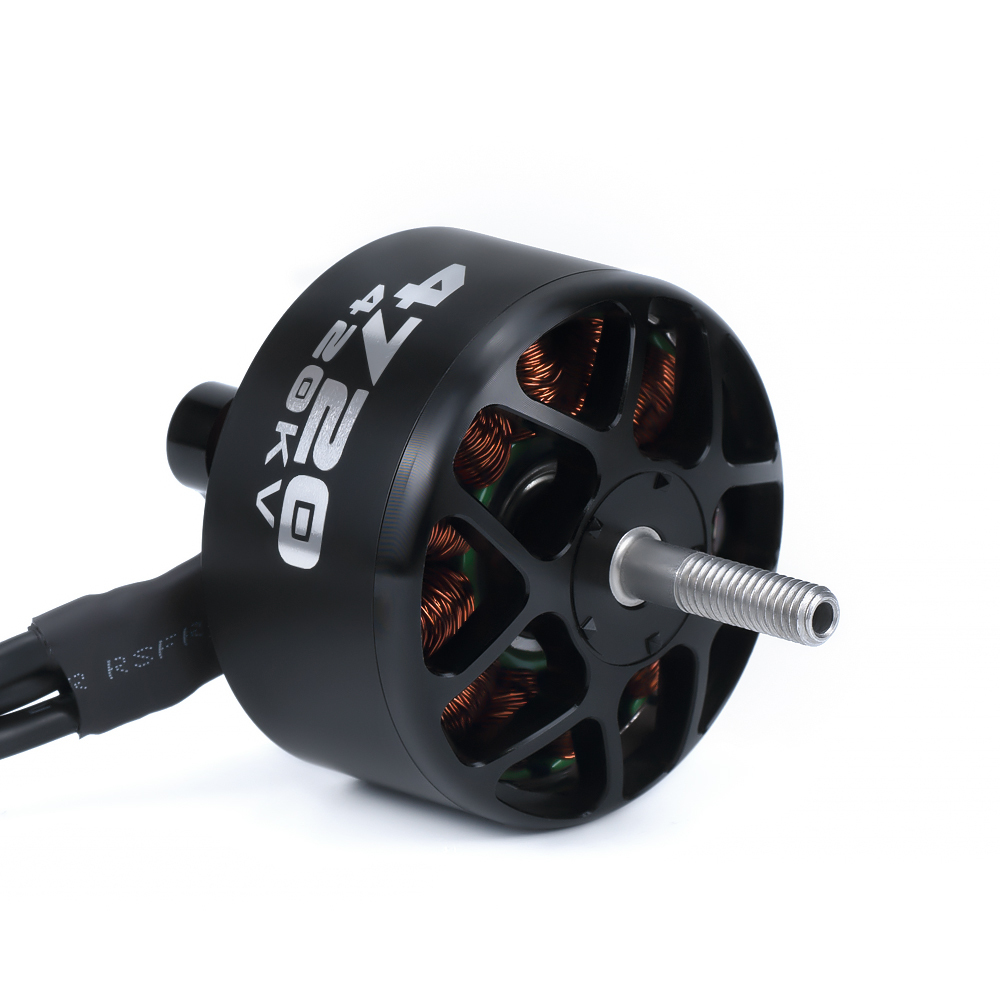

• AZ series professional heavy‑load motor, designed for 15‑inch FPV drones
• Perfect for long‑range, cinematic shooting and heavy‑loading missions
• 12N14P structure with high‑strength arc magnets for super torque
• High‑temperature enameled wire, stable under high power & long flight
• Imported high‑speed bearings, long service life & strong durability
• Large‑current wiring design for efficient power output
• High efficiency & low heat, ideal for large‑frame long‑endurance flight

Recommended Configuration

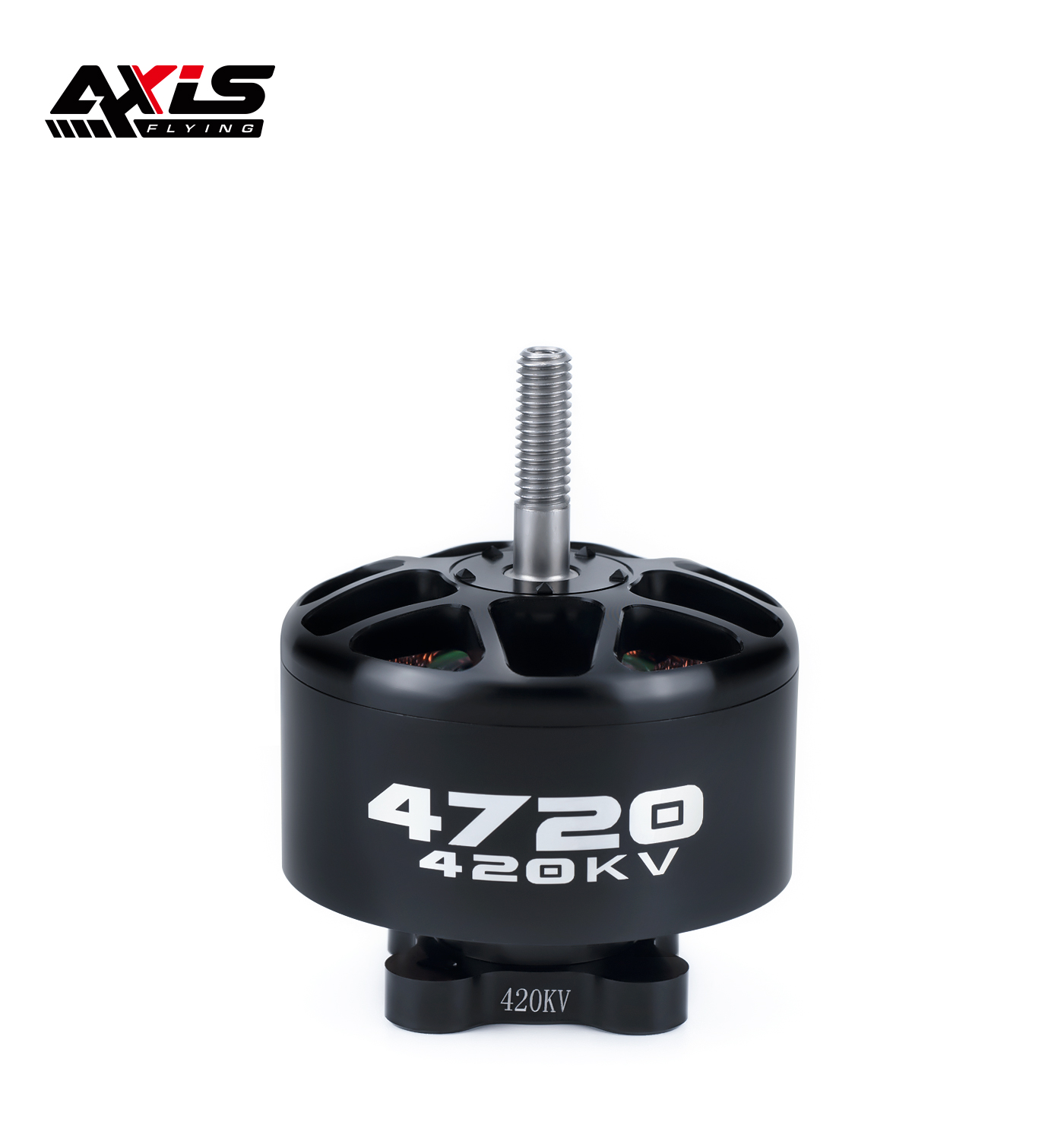

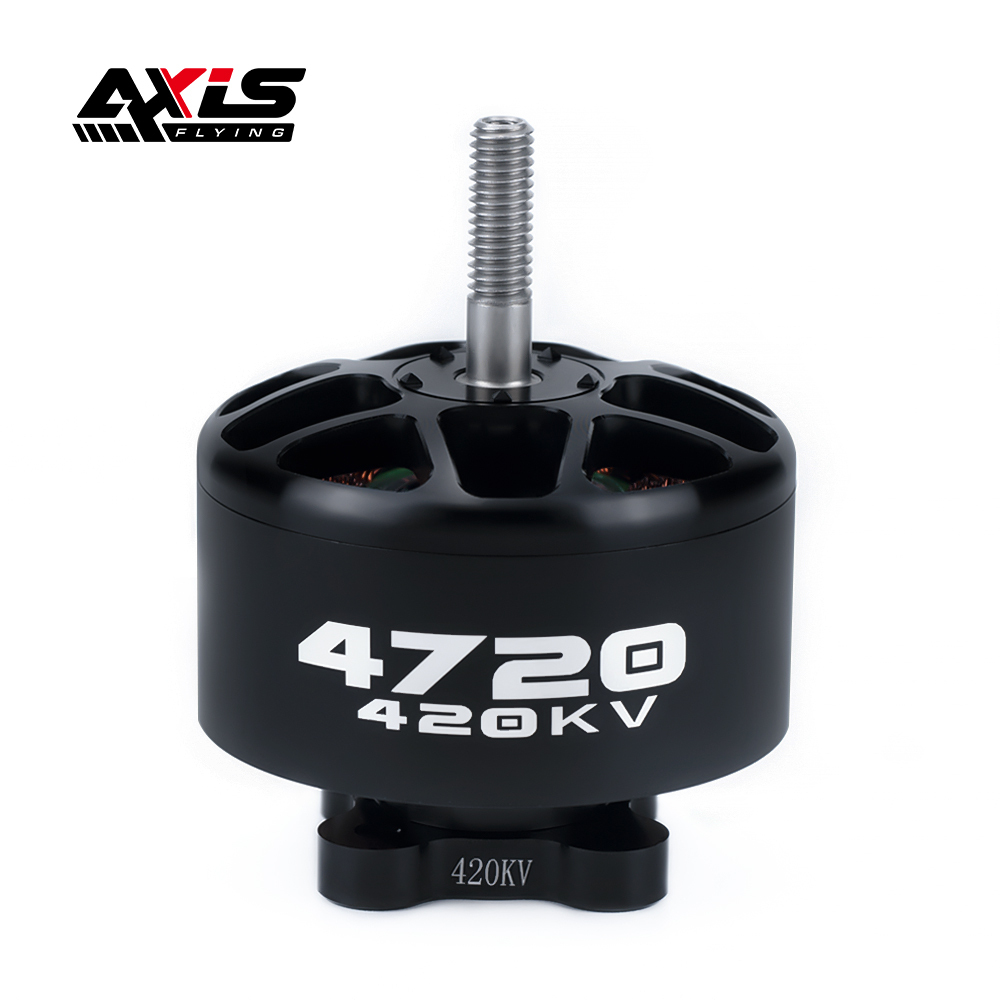

• Motor: Axisflying AZ4720 420KV
• Voltage: 6–8S LiPo
• Props: HQ15×7‑3 / HQ13×9‑3
• Application: 15‑inch long‑range, cinematic, heavy‑loading drones

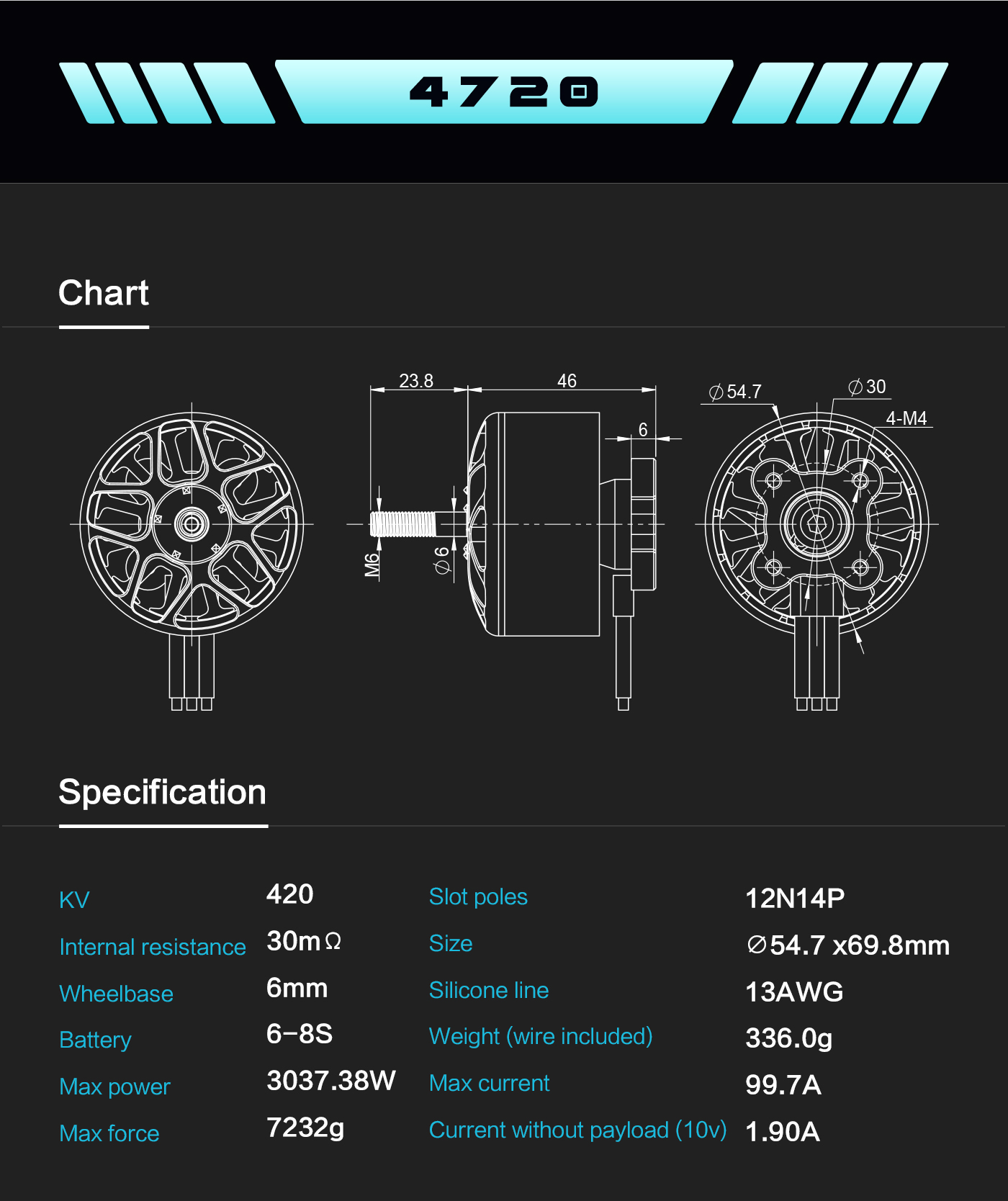

Specifications

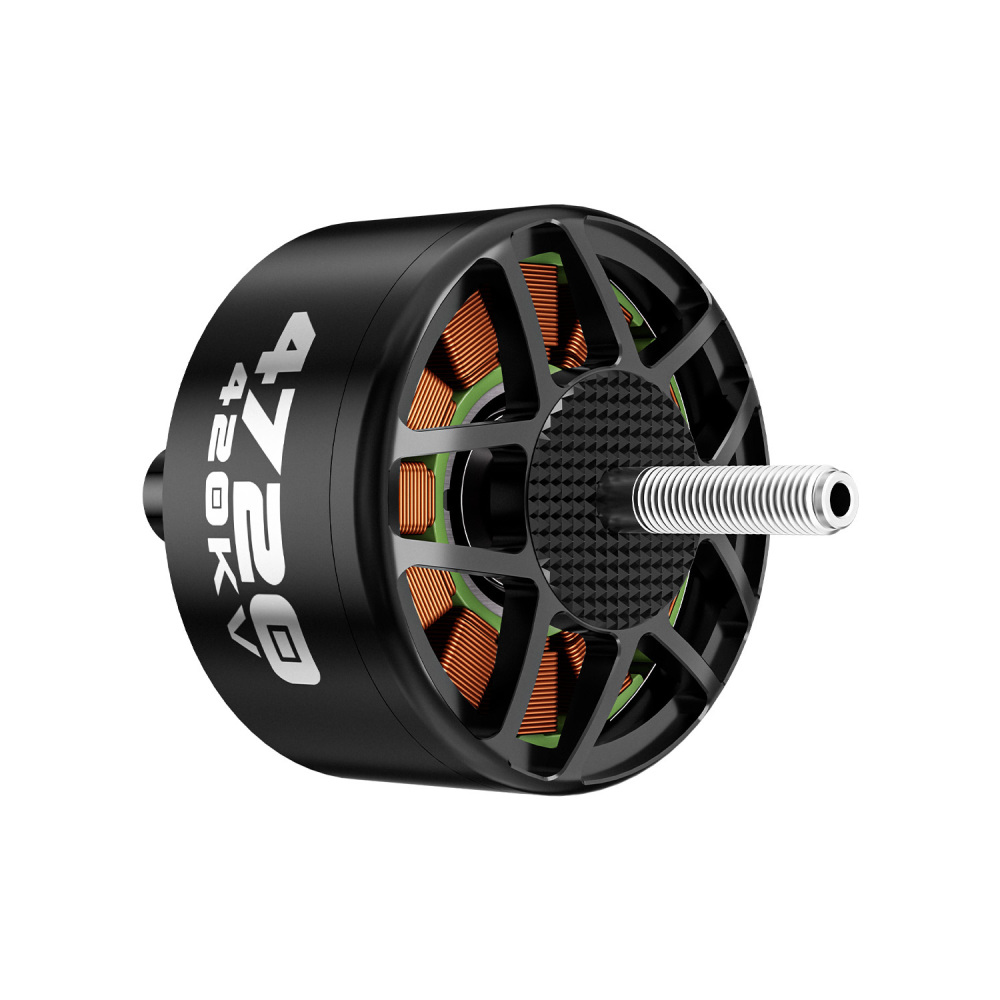

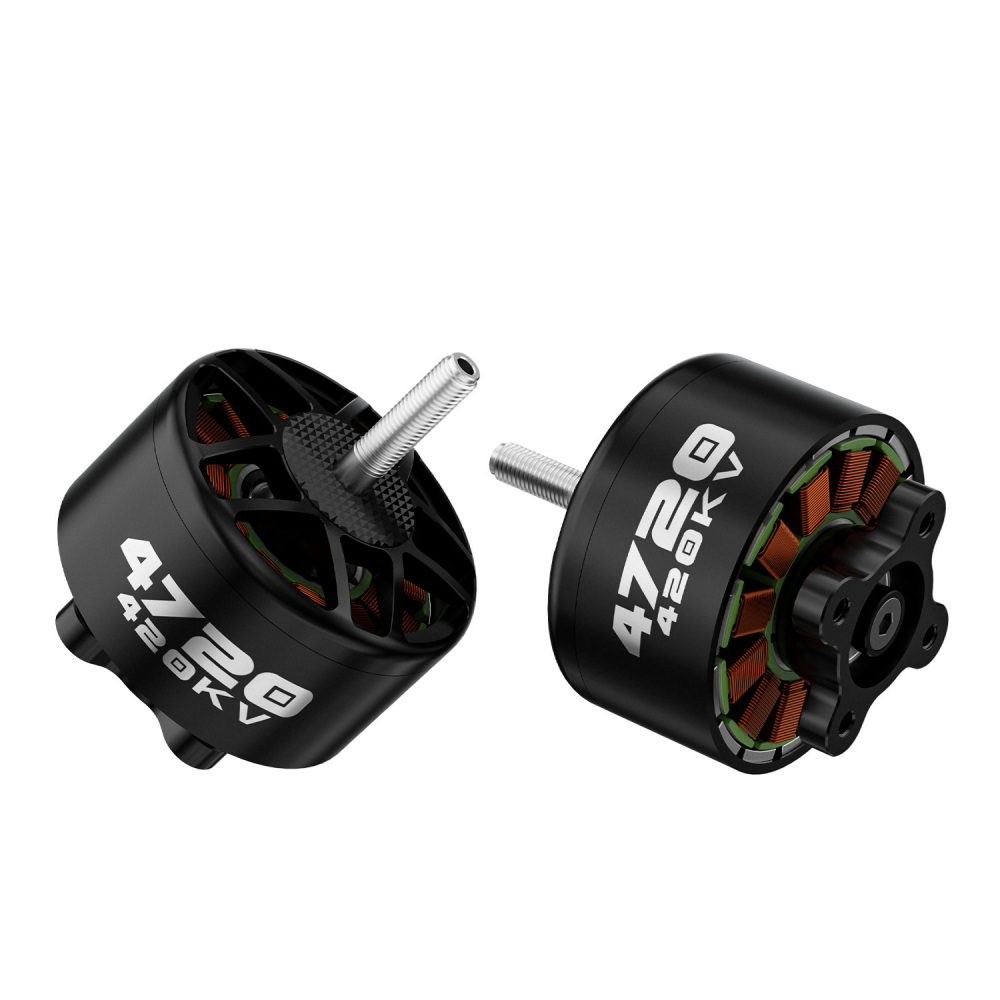

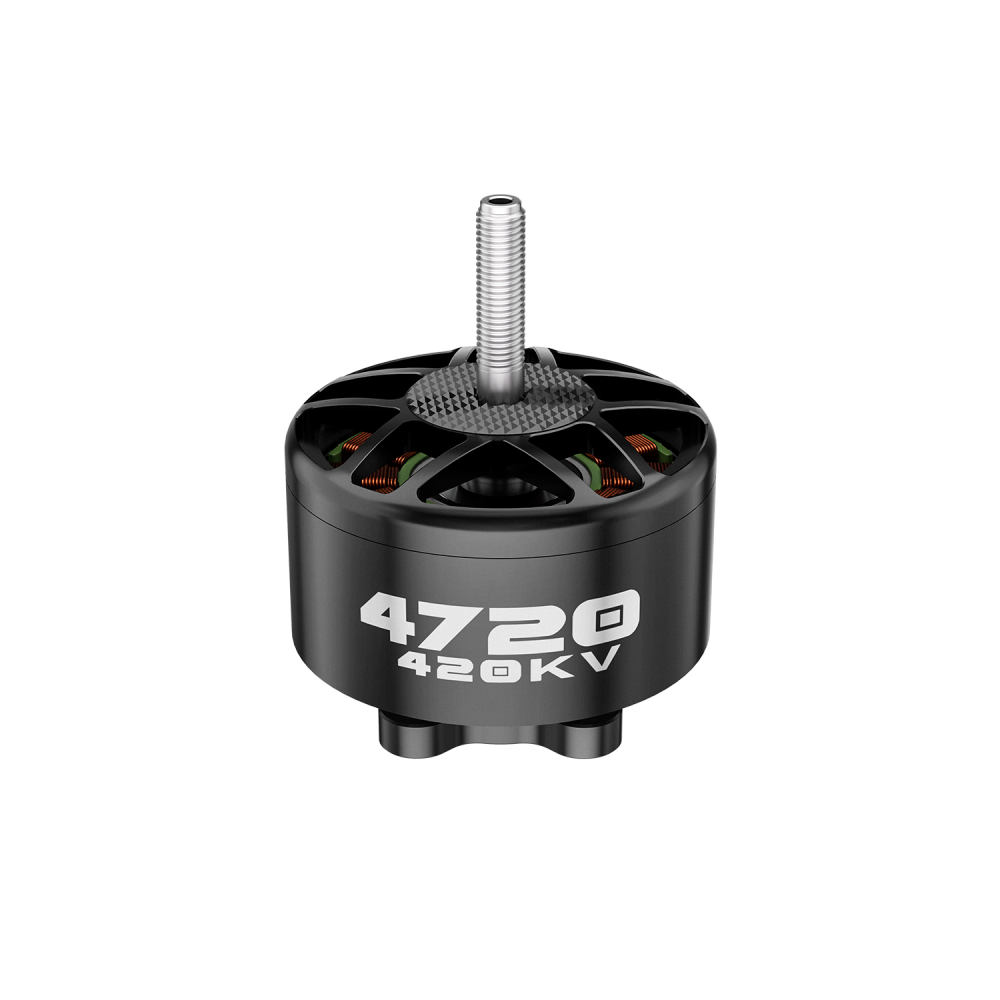

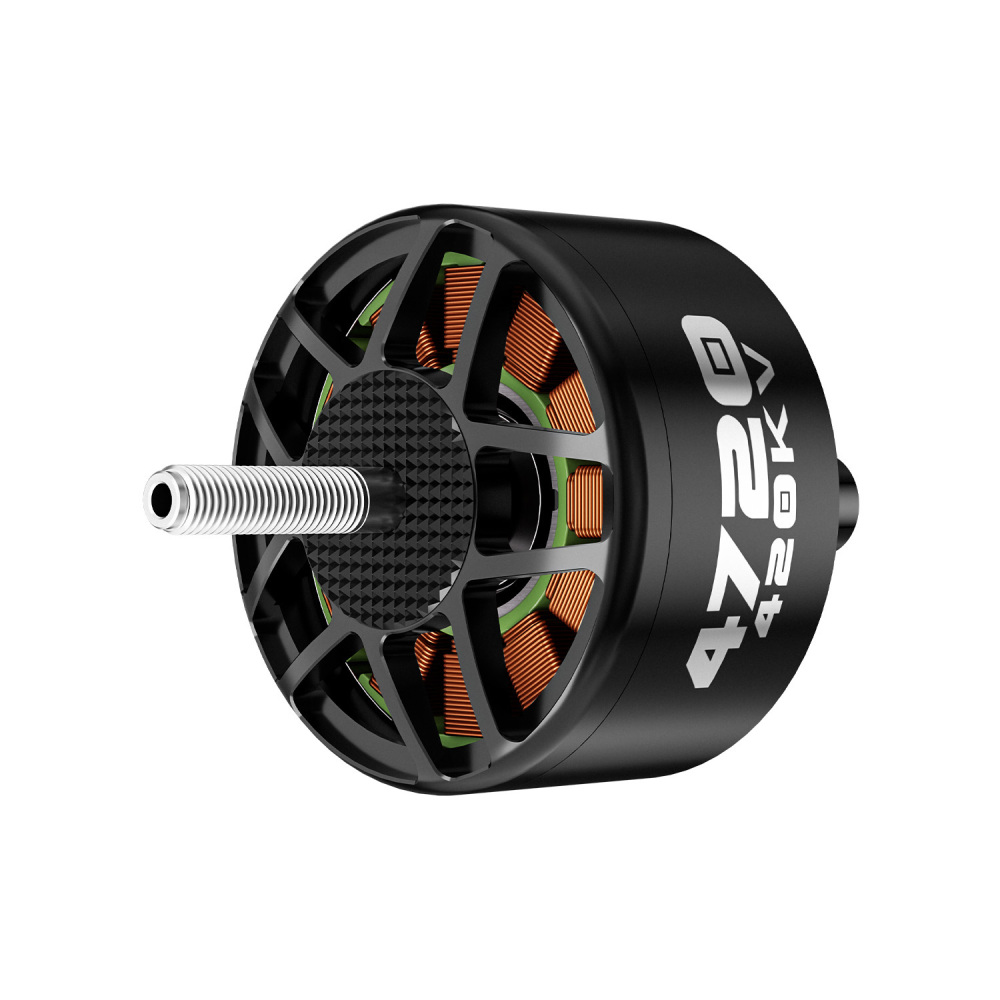

• Model: AZ4720
• KV: 420KV
• Configuration: 12N14P
• Internal Resistance: 30mΩ

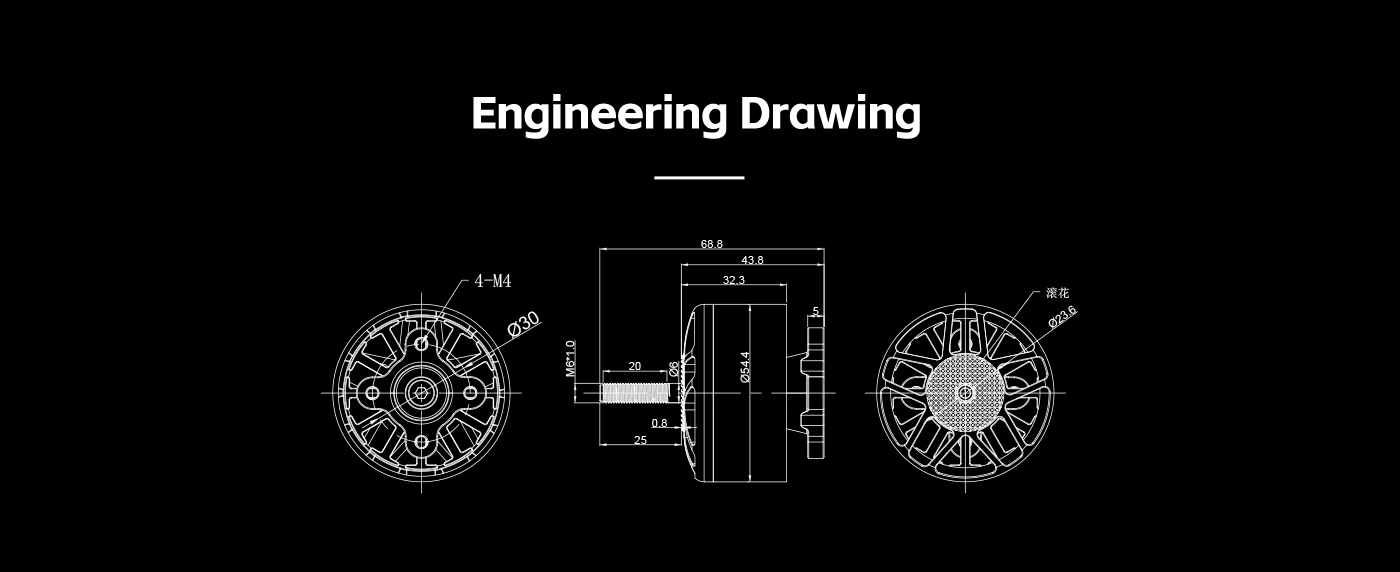

• Size: Φ54.7×69.8mm
• Shaft Diameter: 6mm
• Silicone Wire: 13AWG
• Rated Voltage: 6–8S
• Weight (with wire): 336.0g

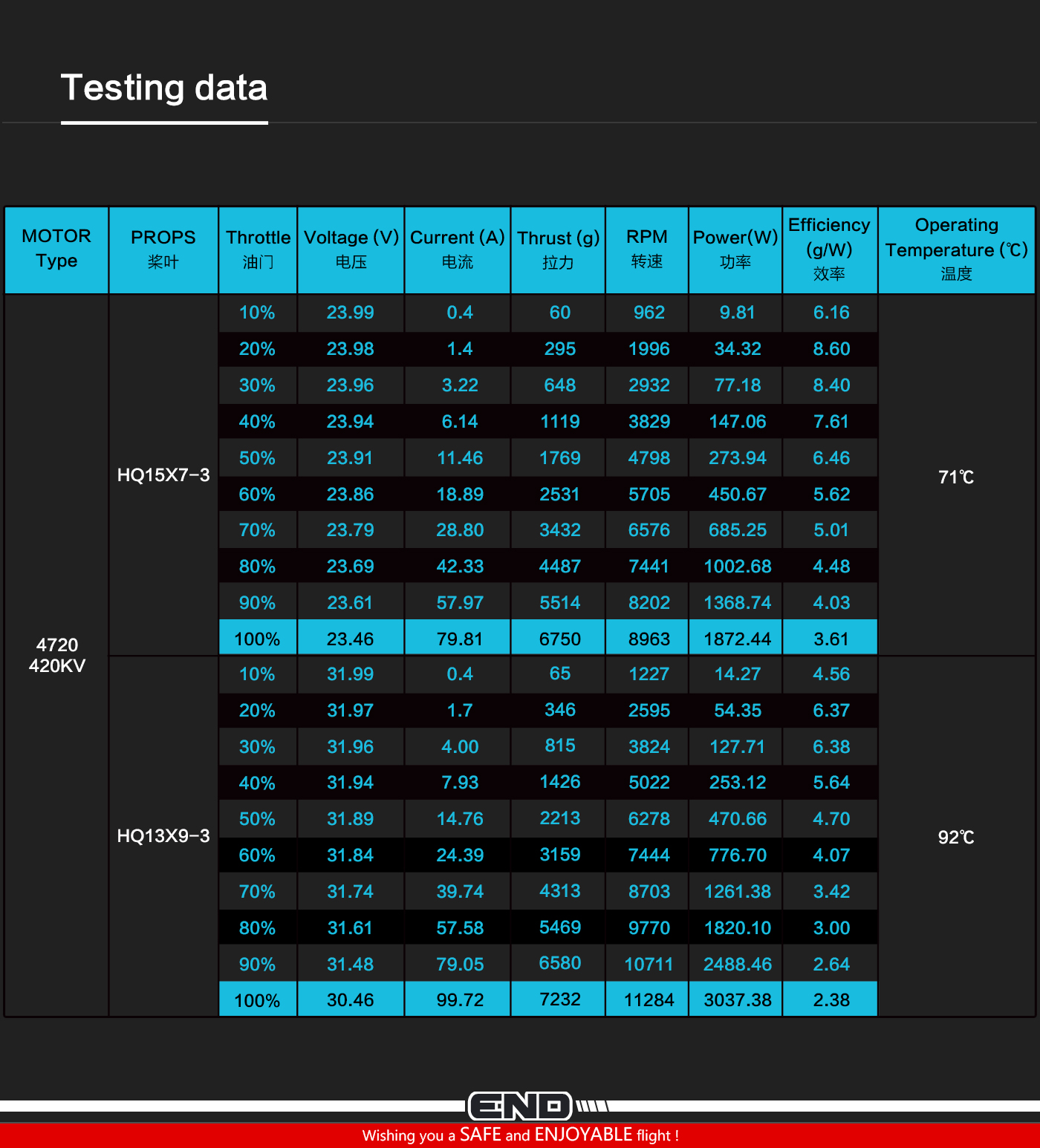

• Max Power: 3037.38W
• Peak Current: 99.7A
• Max Thrust: 7232g
• Idle Current (10V): 1.90A

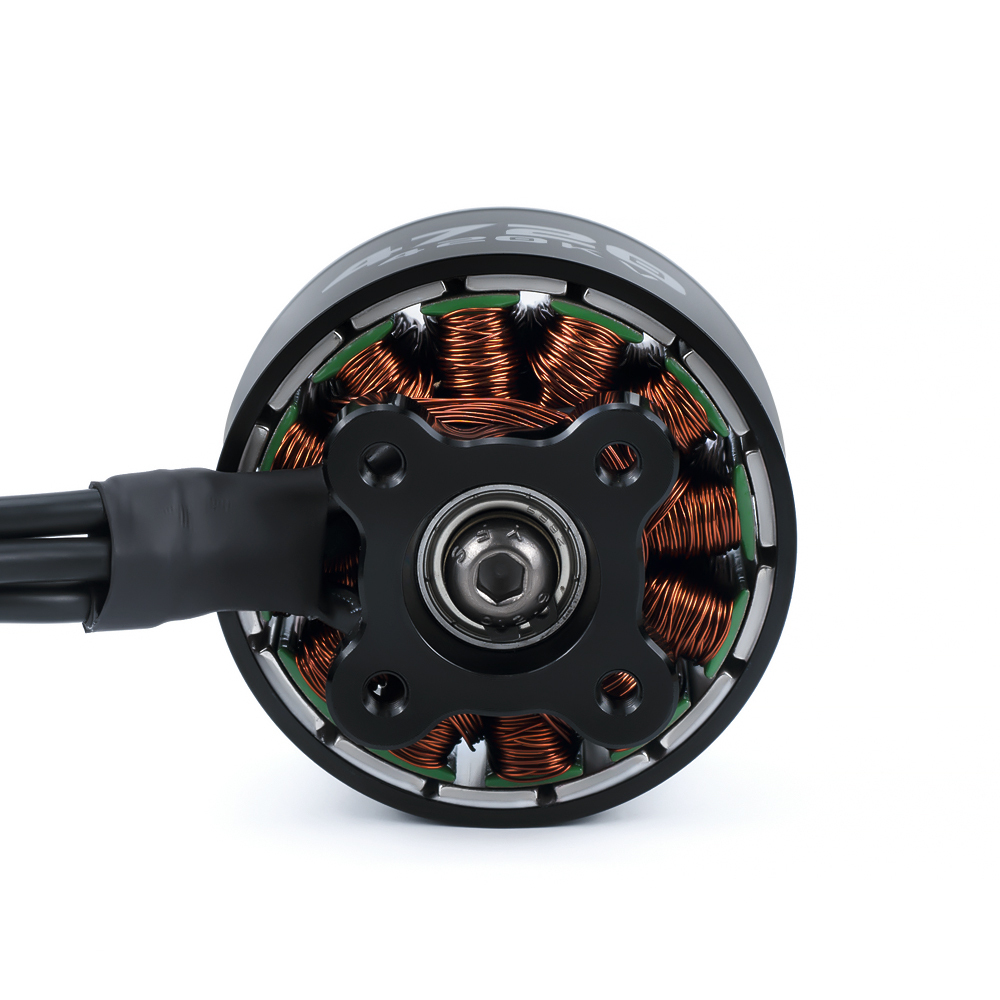

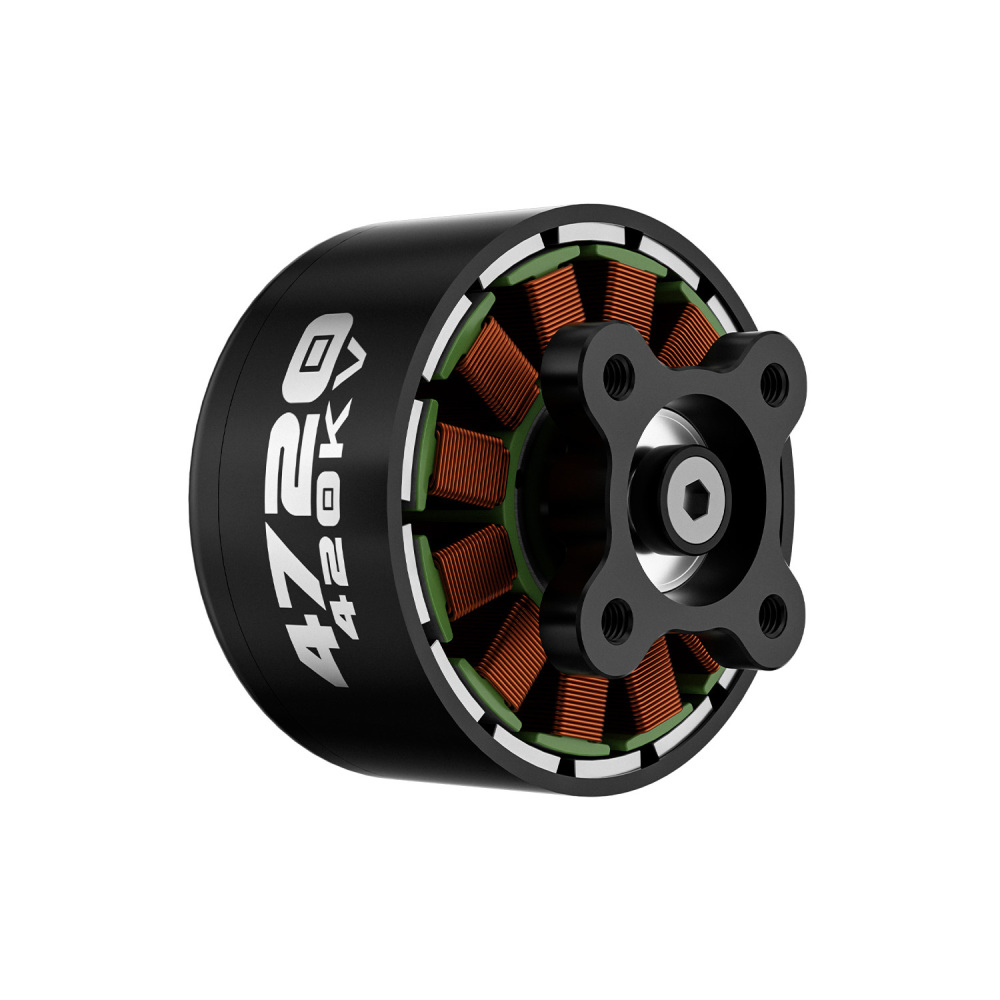

• Mount: 4×M4

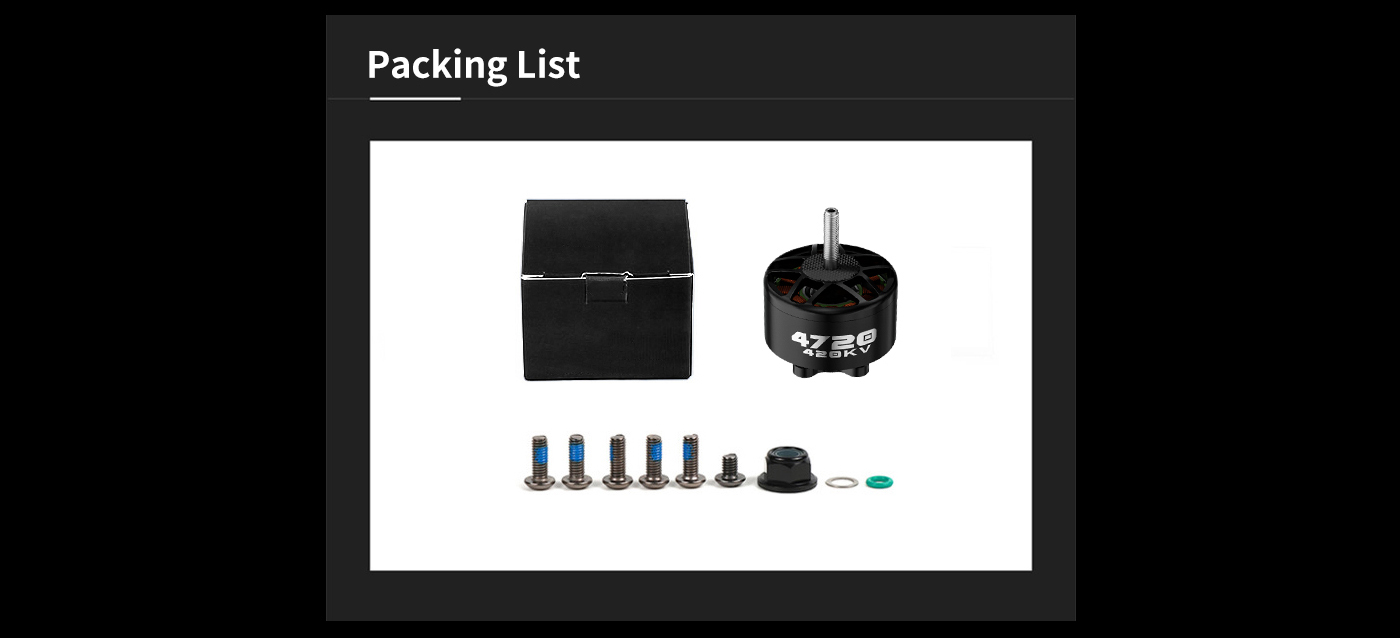

Package Contents

1. AZ4720 420KV Brushless Motor ×1
2. Mounting screws & accessories set ×1
