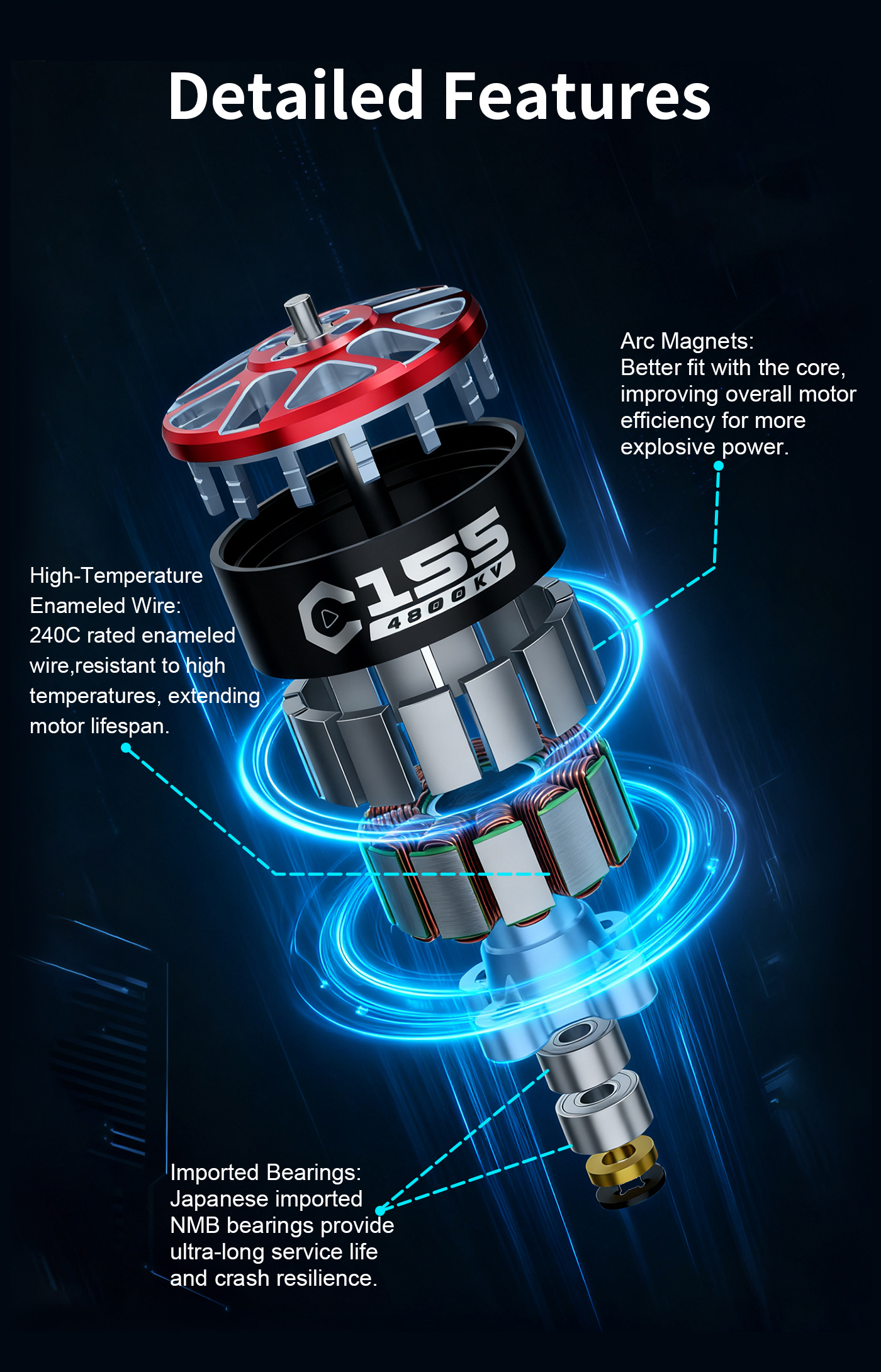

Feature

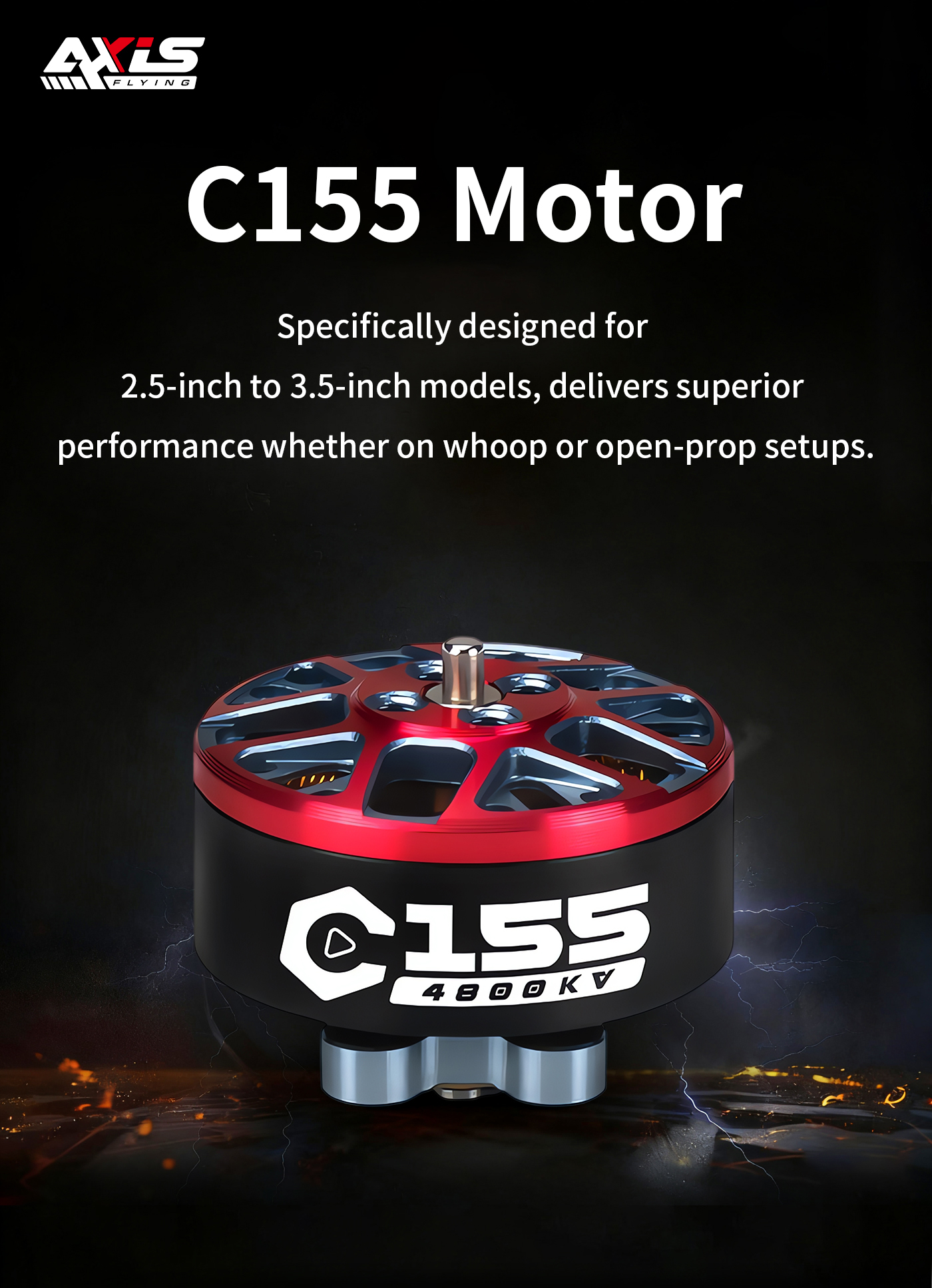

• C155 is specially designed for 2.5–3.5 inch Cinewhoop & cinematic drones.

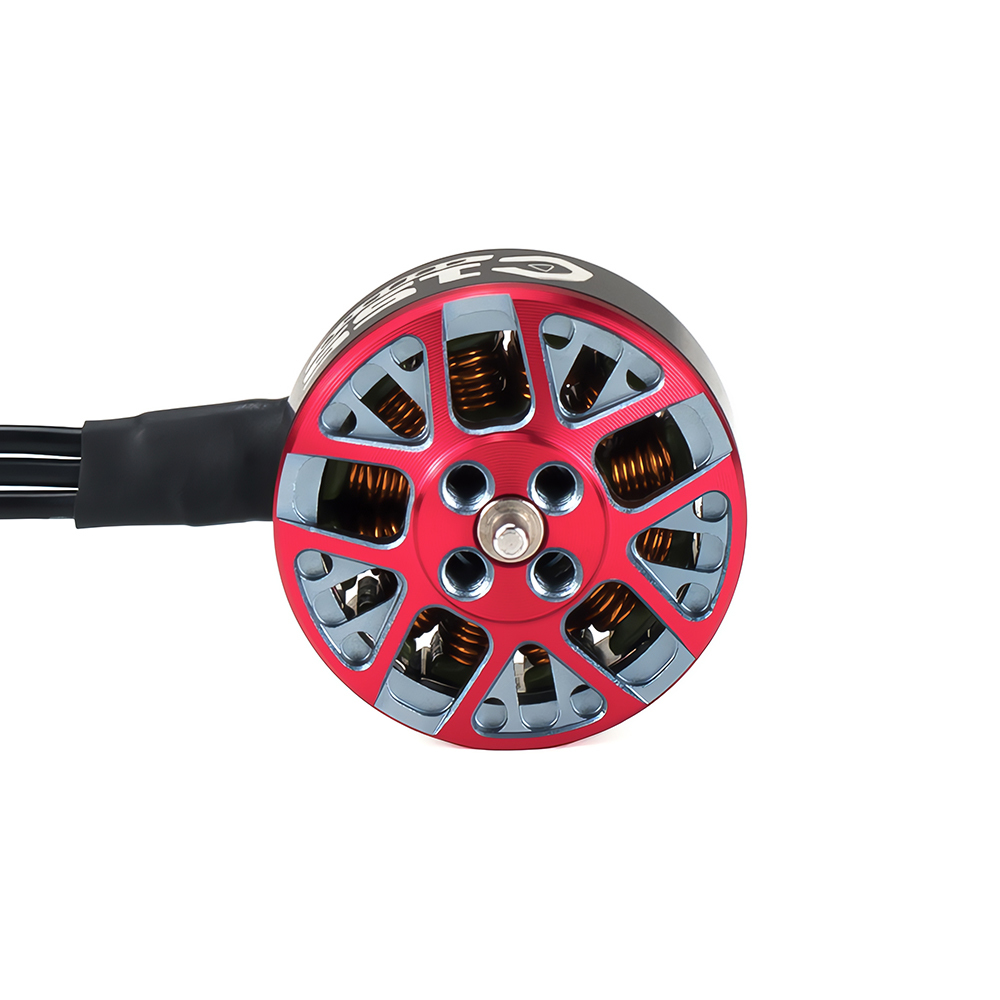

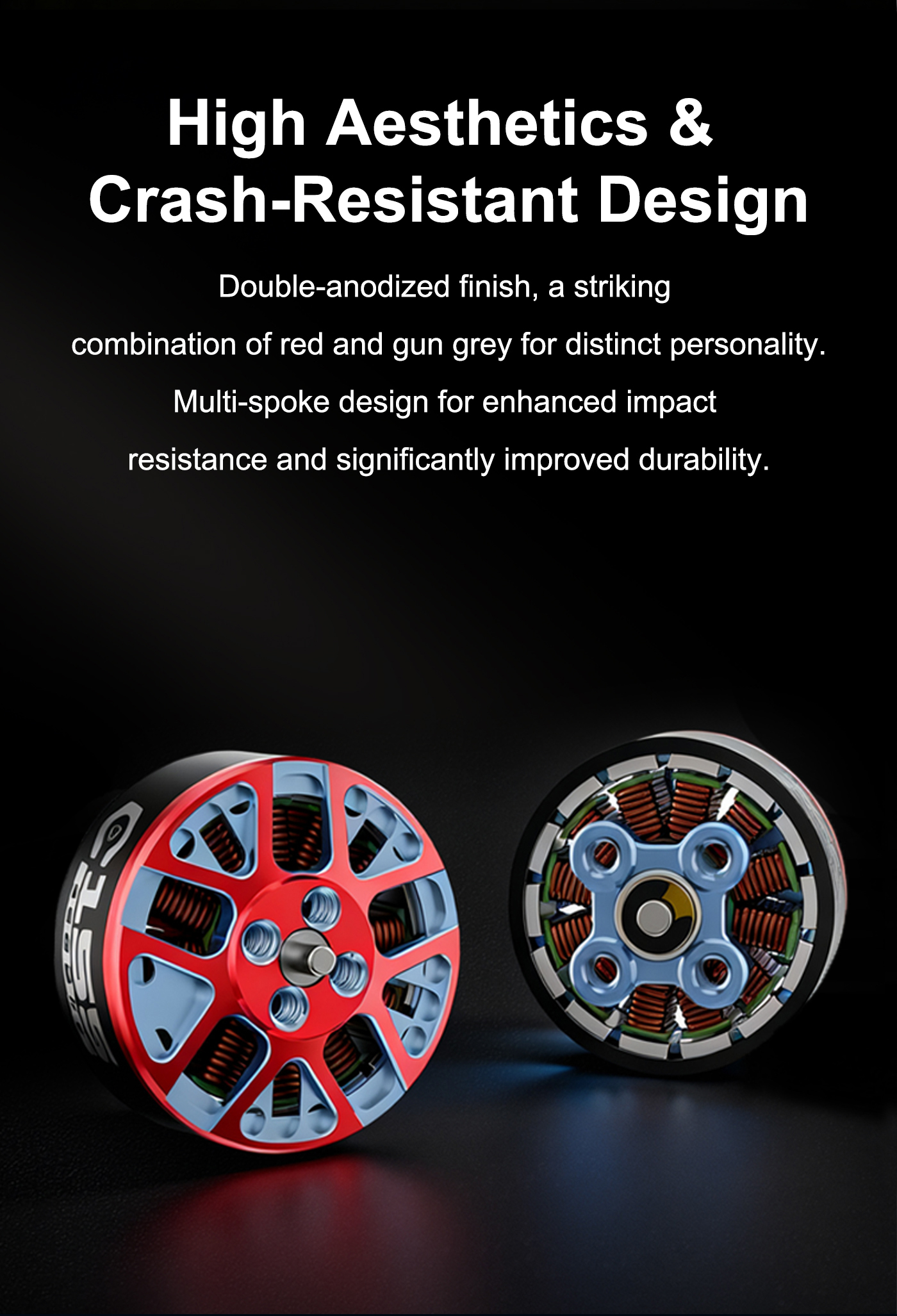

• Multi-spoke crash-resistant structure for enhanced durability.
• Arc magnets for higher efficiency and stronger explosive power.
• 240°C high-temperature enameled wire for extended lifespan.
• Japanese imported NMB bearings for ultra-long service life.
• Dual-anodized red & gun grey finish for high aesthetics.
• Lightweight body, ideal for small whoop and open-prop builds.

Recommended Configuration

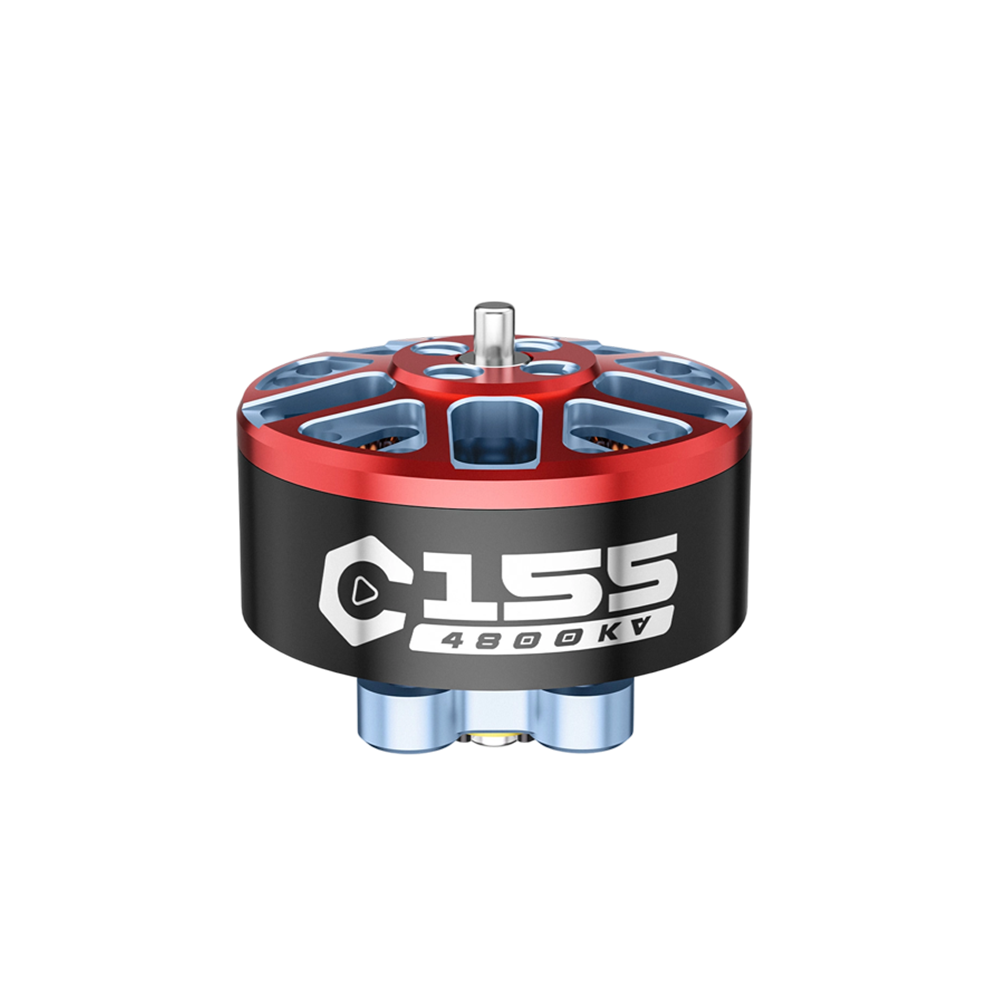

• Motor: Axisflying C155 4800KV
• Voltage: 3–4S LiPo
• Props: 2520 / 3028 / D63 / T3.5×2.5×3
• Application: 2.5–3.5 inch Cinewhoop, cinematic drones

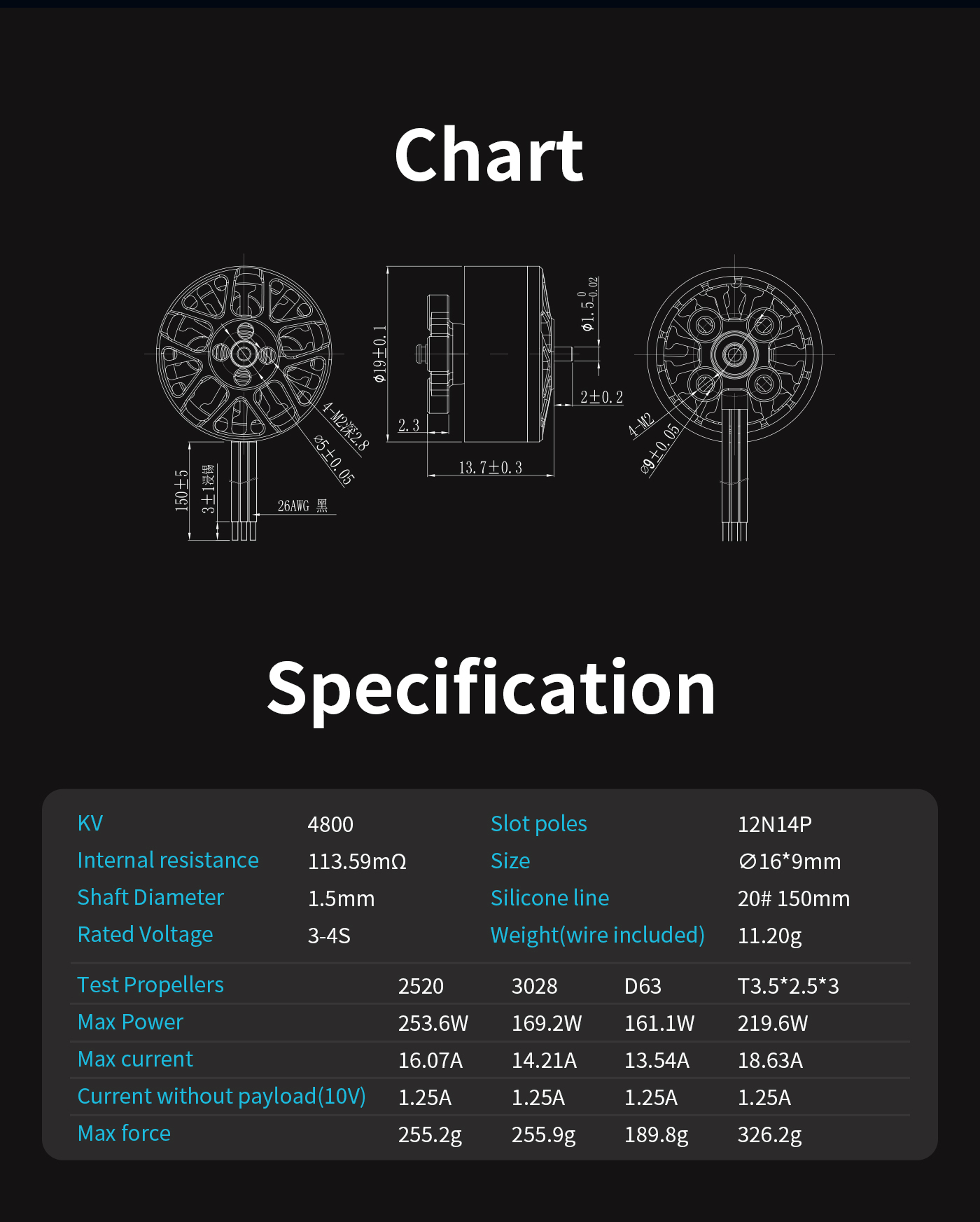

Specifications

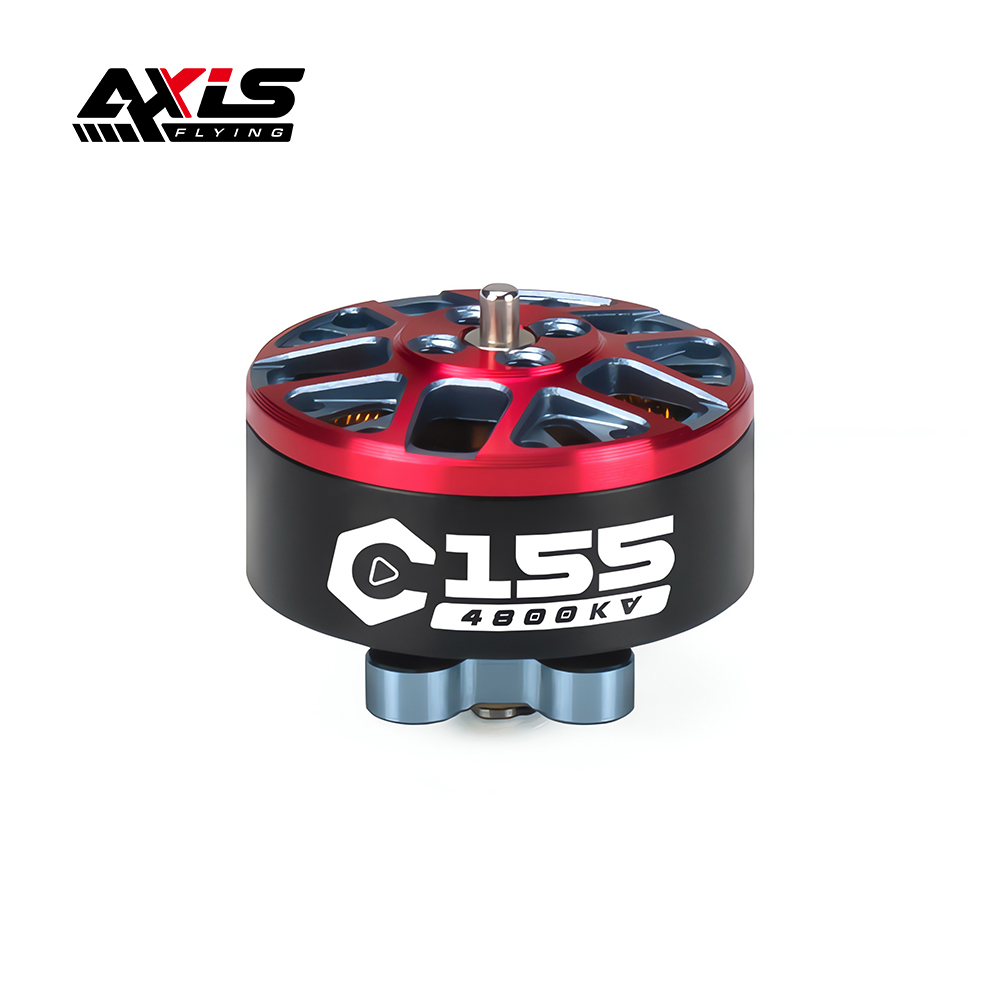

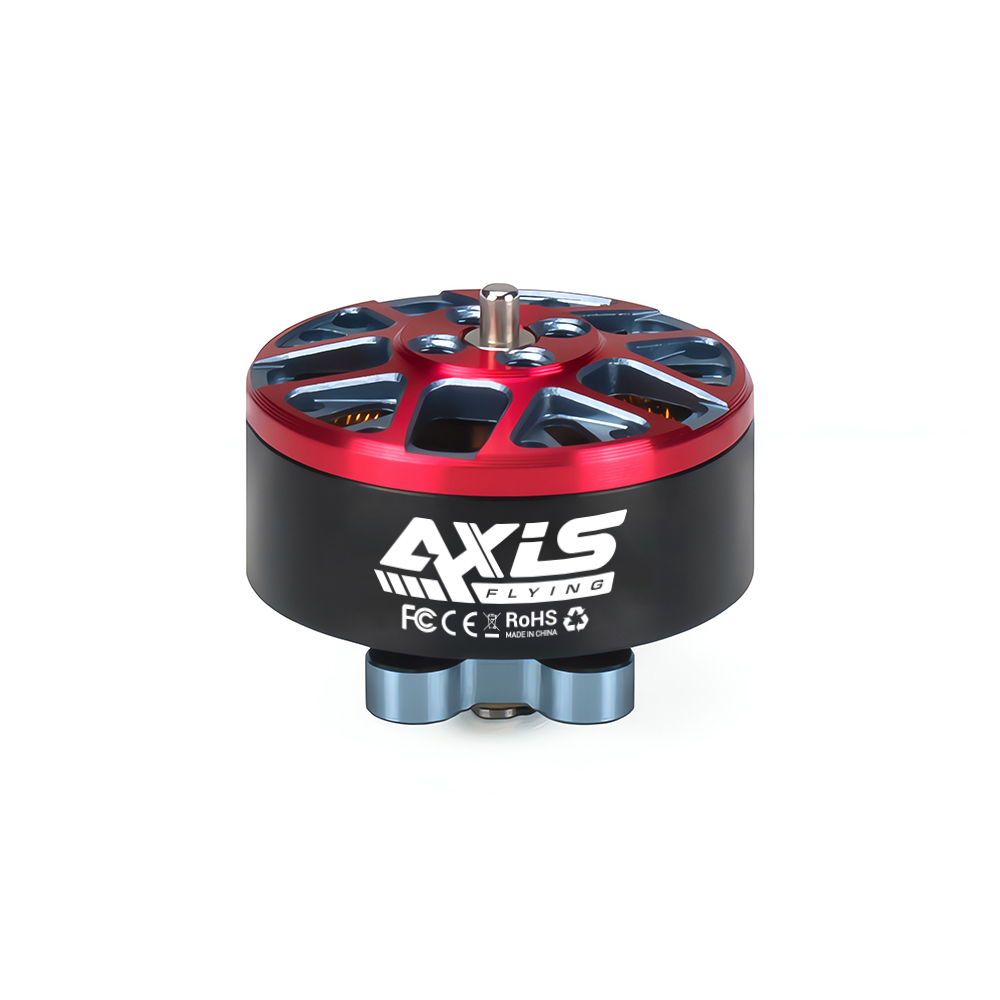

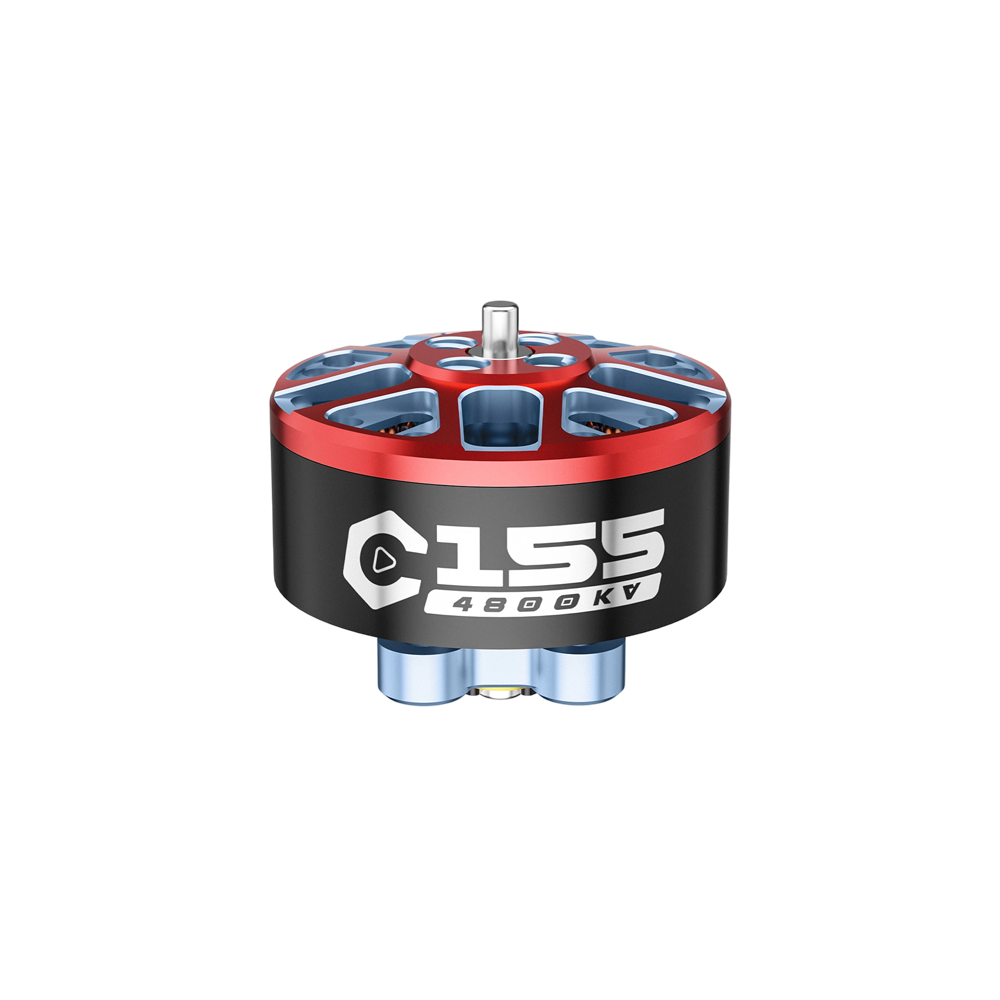

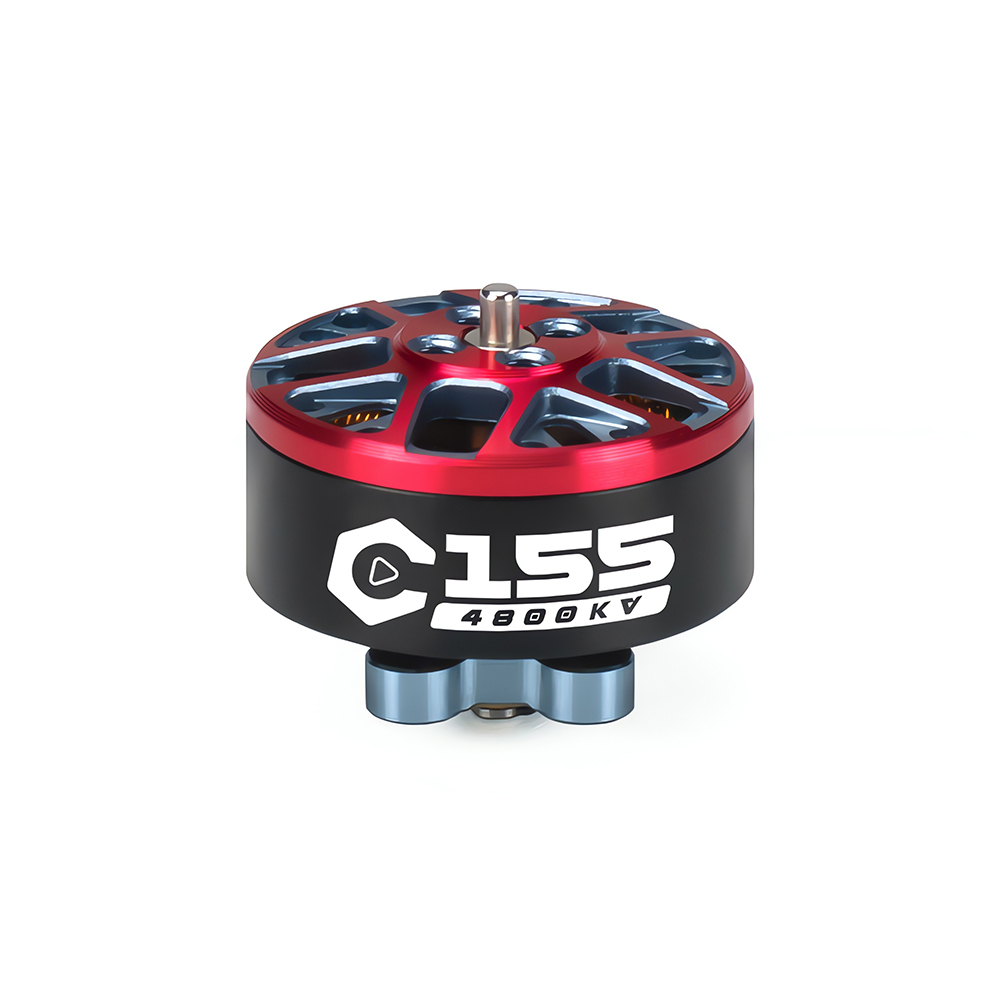

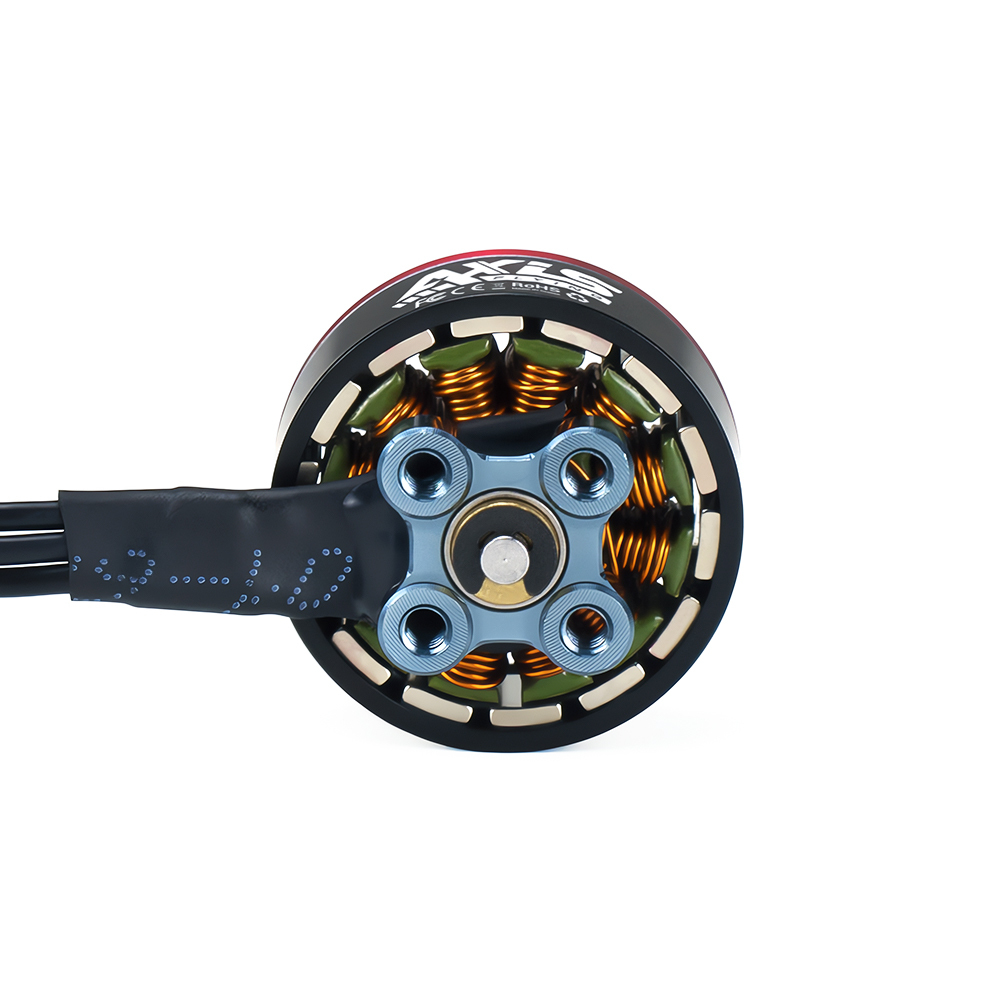

• Model: C155
• KV: 4800KV
• Slot poles: 12N14P
• Internal resistance: 113.59mΩ
• Size: Φ16×9mm
• Shaft Diameter: 1.5mm
• Silicone line: 20# 150mm
• Rated Voltage: 3–4S
• Weight (wire included): 11.20g
• Mount: 4-M2
• No-load Current (10V): 1.25A
• Max Power: 253.6W
• Max Current: 16.07A
• Max Thrust: 326.2g

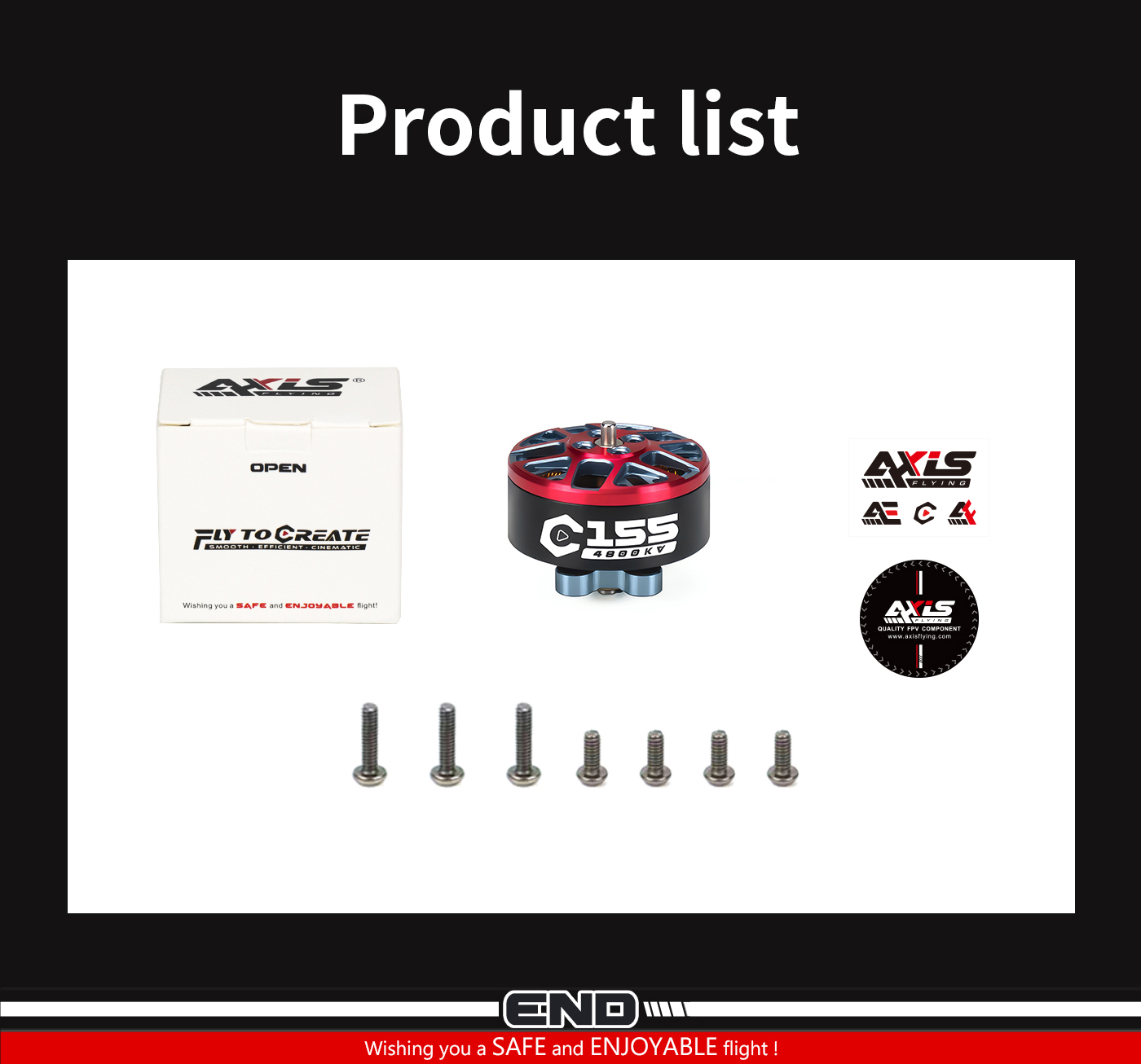

Package Contents

1. C155 Brushless Motor ×1
2. Mounting Screws ×1 set
3. Washer & Lock Nut Set ×1
