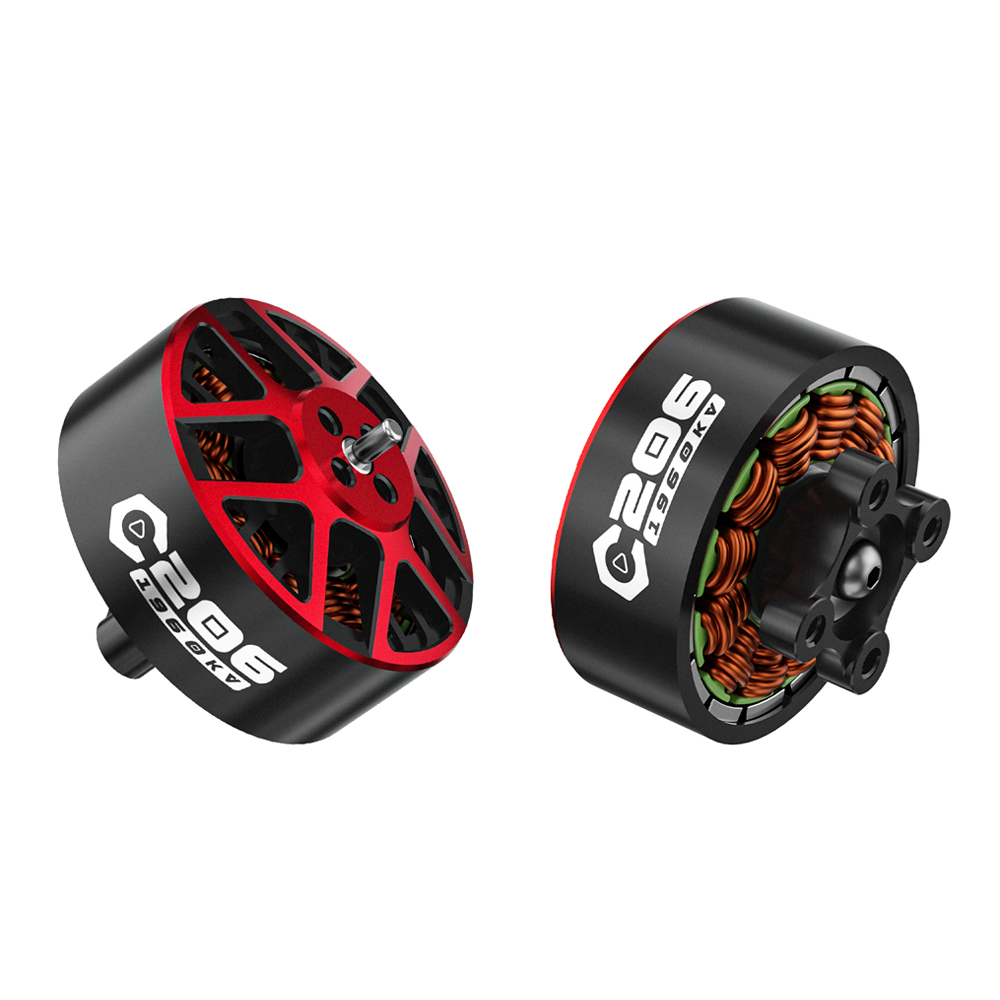

Foreword

Feature

• C206 is specially designed for 3.5-inch C35 frame & Cinewhoop drones.
• 12N14P structure provides strong torque and delicate throttle control.
• Smooth linear power output for stable and professional cinematic shooting.
• Light weight and high efficiency, easy to carry GoPro cameras.
• IP53 bearing shield design for better durability and crash resistance.
• Compatible with 6S LiPo, matched with 3.5-inch cine propellers.

Recommended Configuration

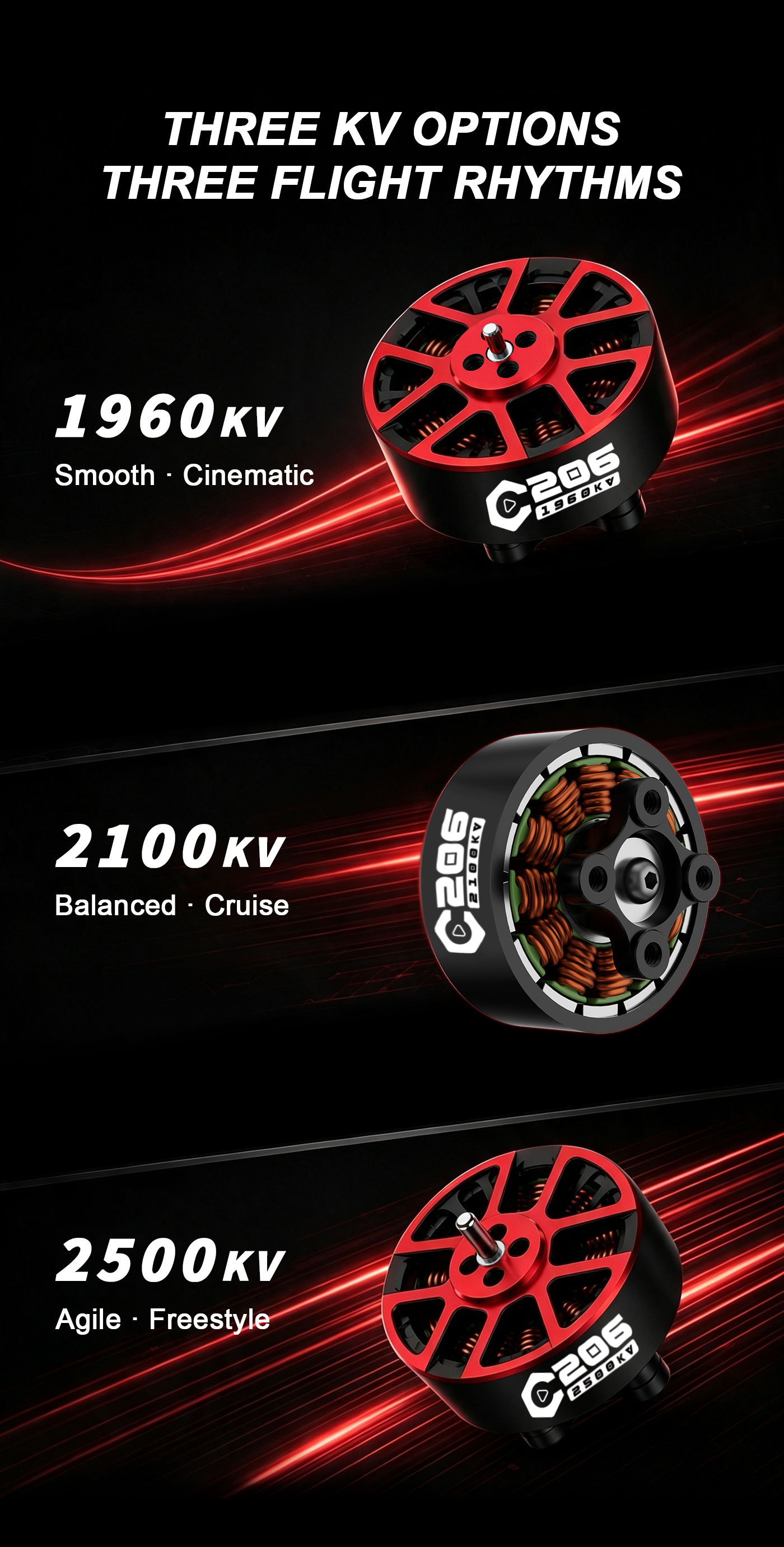

• Motor: Axisflying C206 1960KV / 2500KV
• Voltage: 6S LiPo

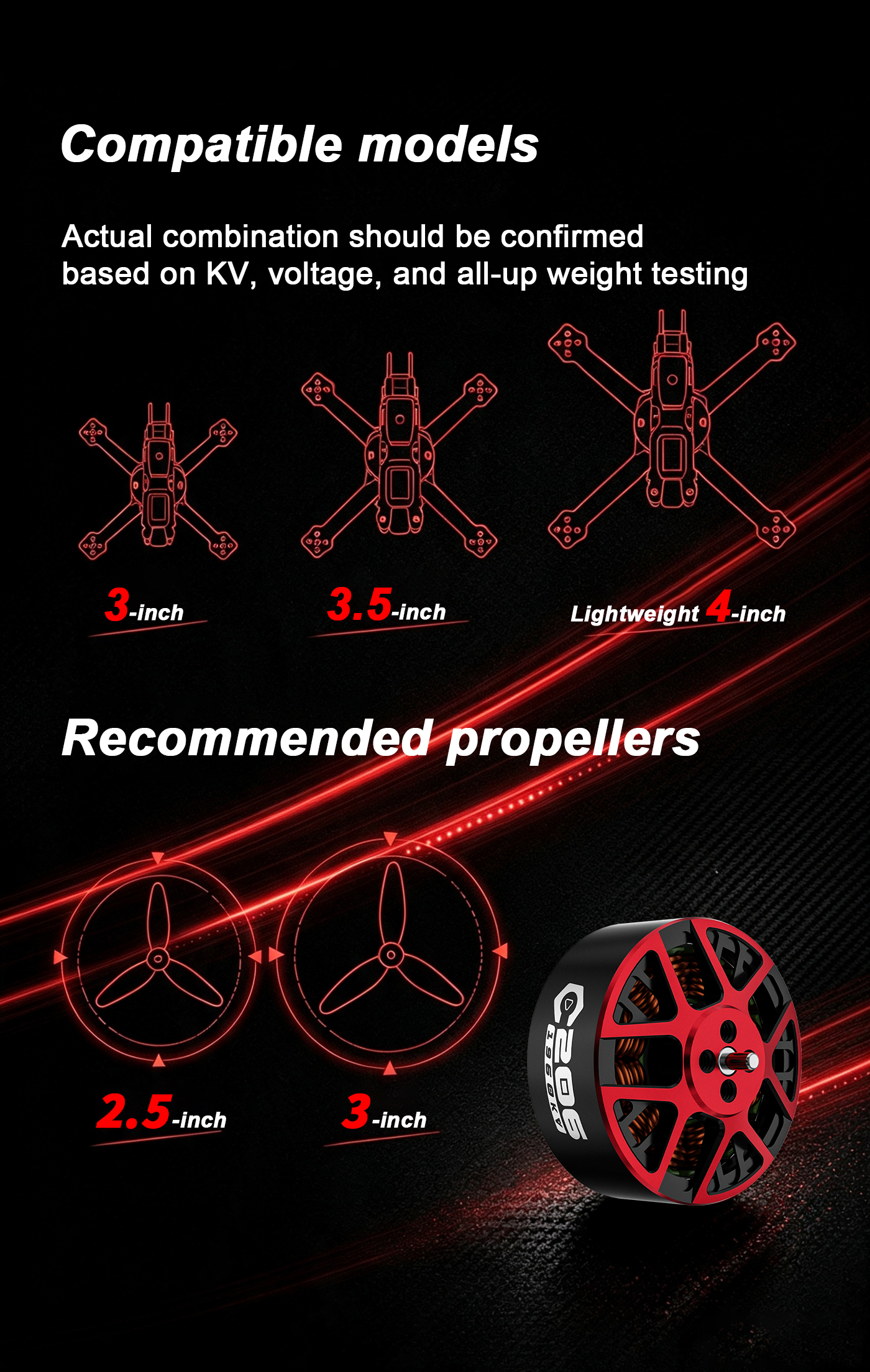

• Props: GF D90-3P / HQ T90-4P / HQ D90MM×3
• Application: 3.5-inch Cinewhoop, C35 frame, cinematic FPV

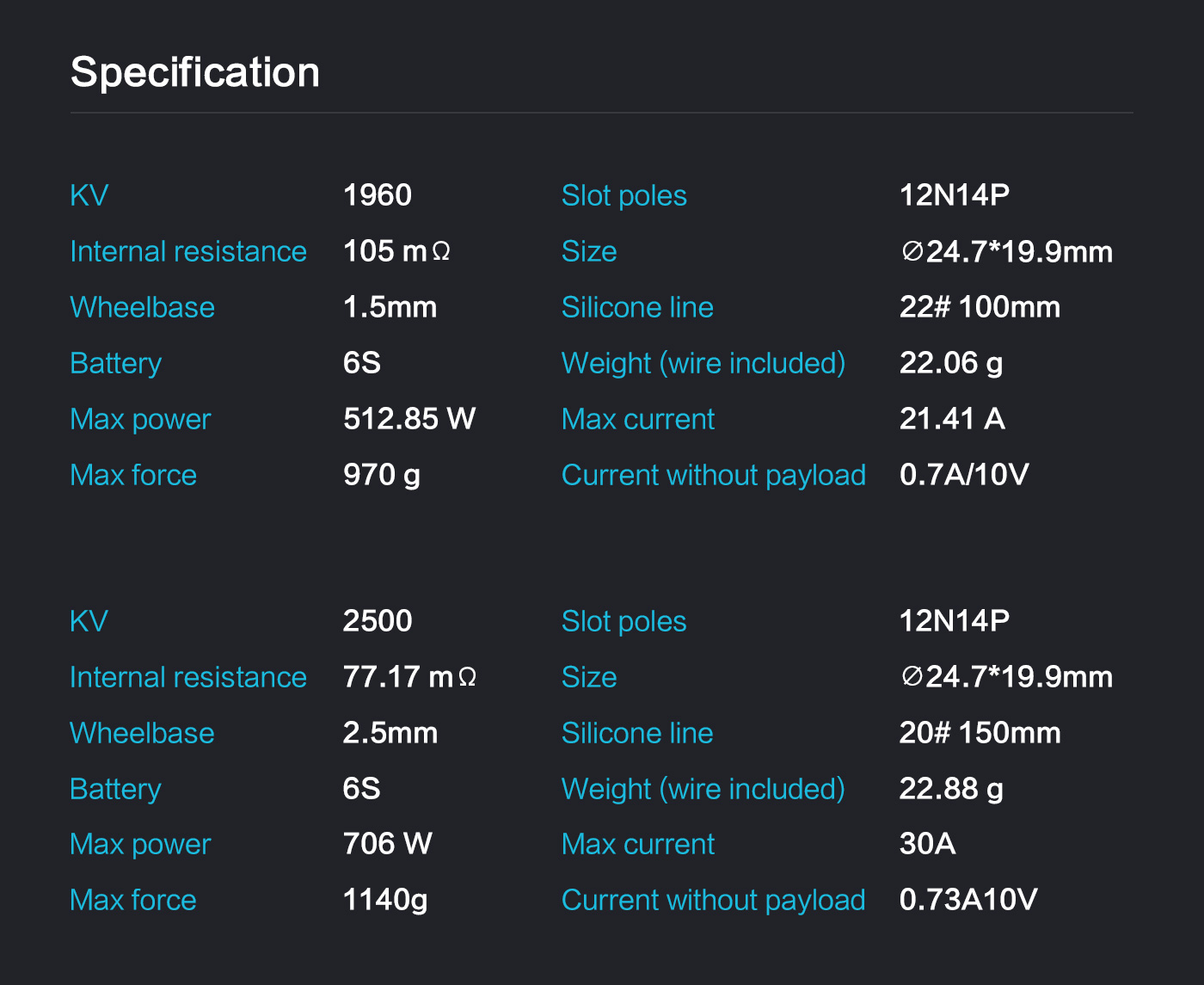

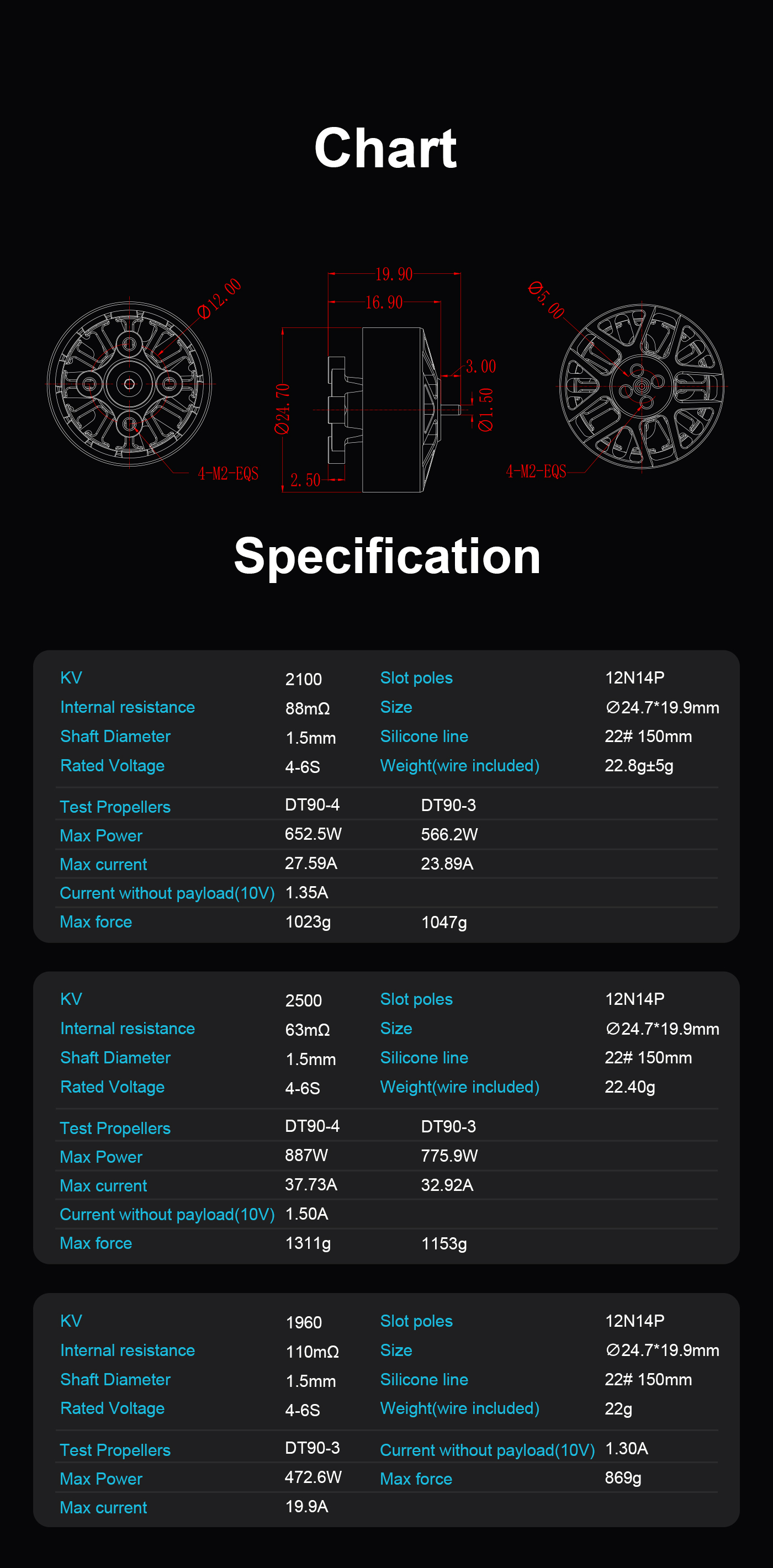

Specifications

C206 1960KV

• KV: 1960KV
• Configuration: 12N14P
• Internal Resistance: 105mΩ
• Stator: 2006
• Shaft Diameter: 1.5mm
• Silicone Wire: 22# 100mm

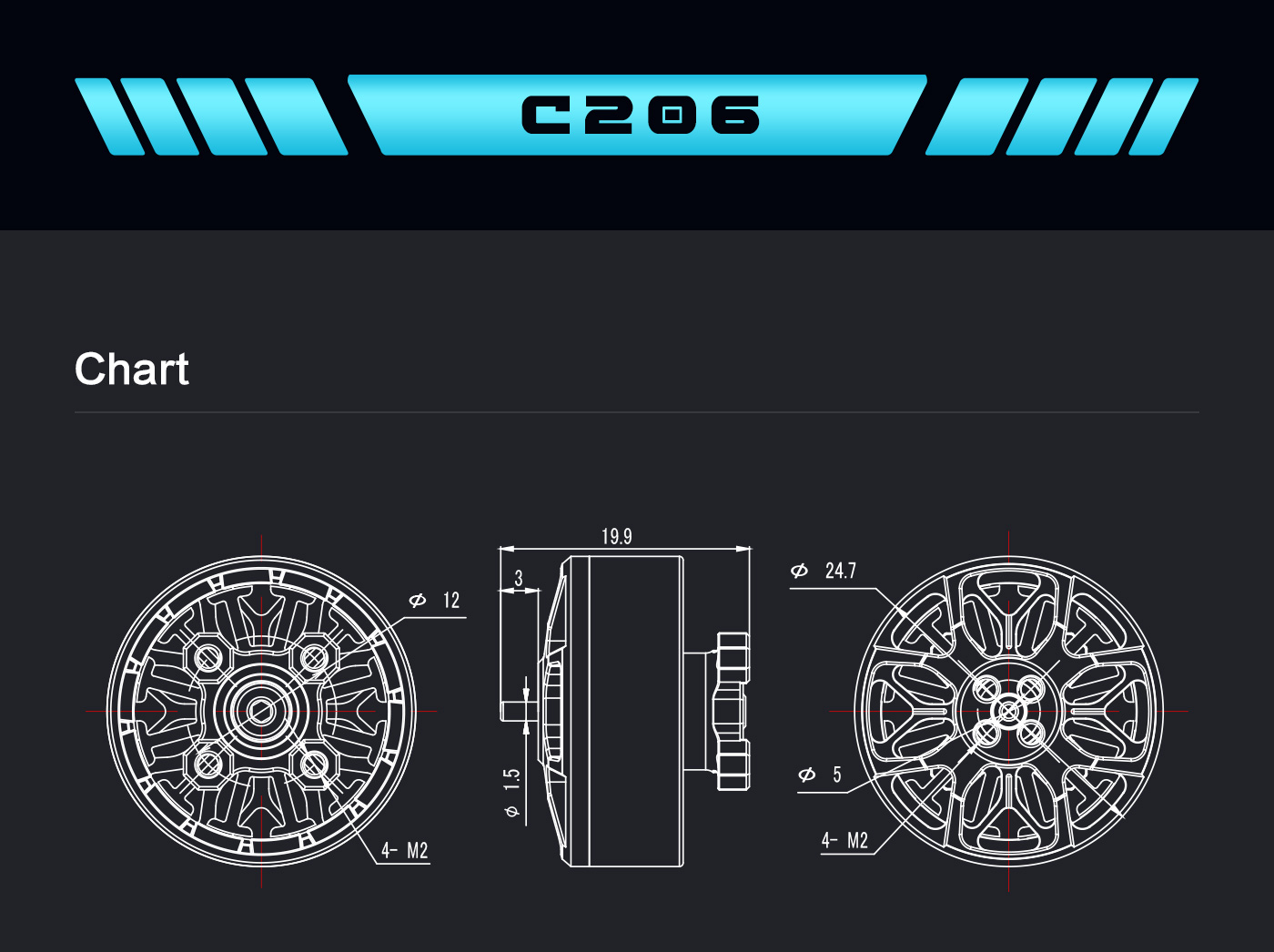

• Size: Φ24.7×19.9mm

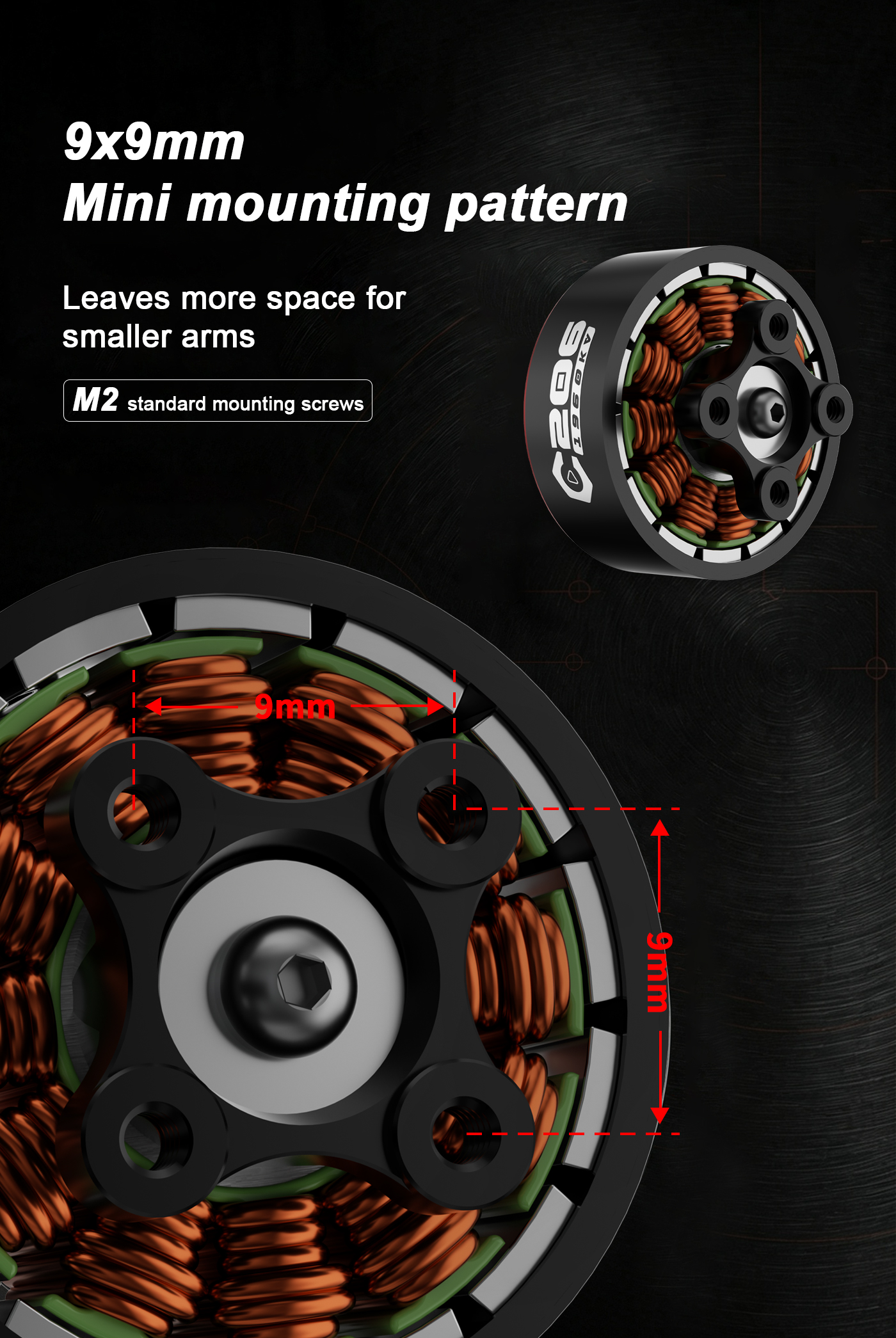

• Mount: 4×M2

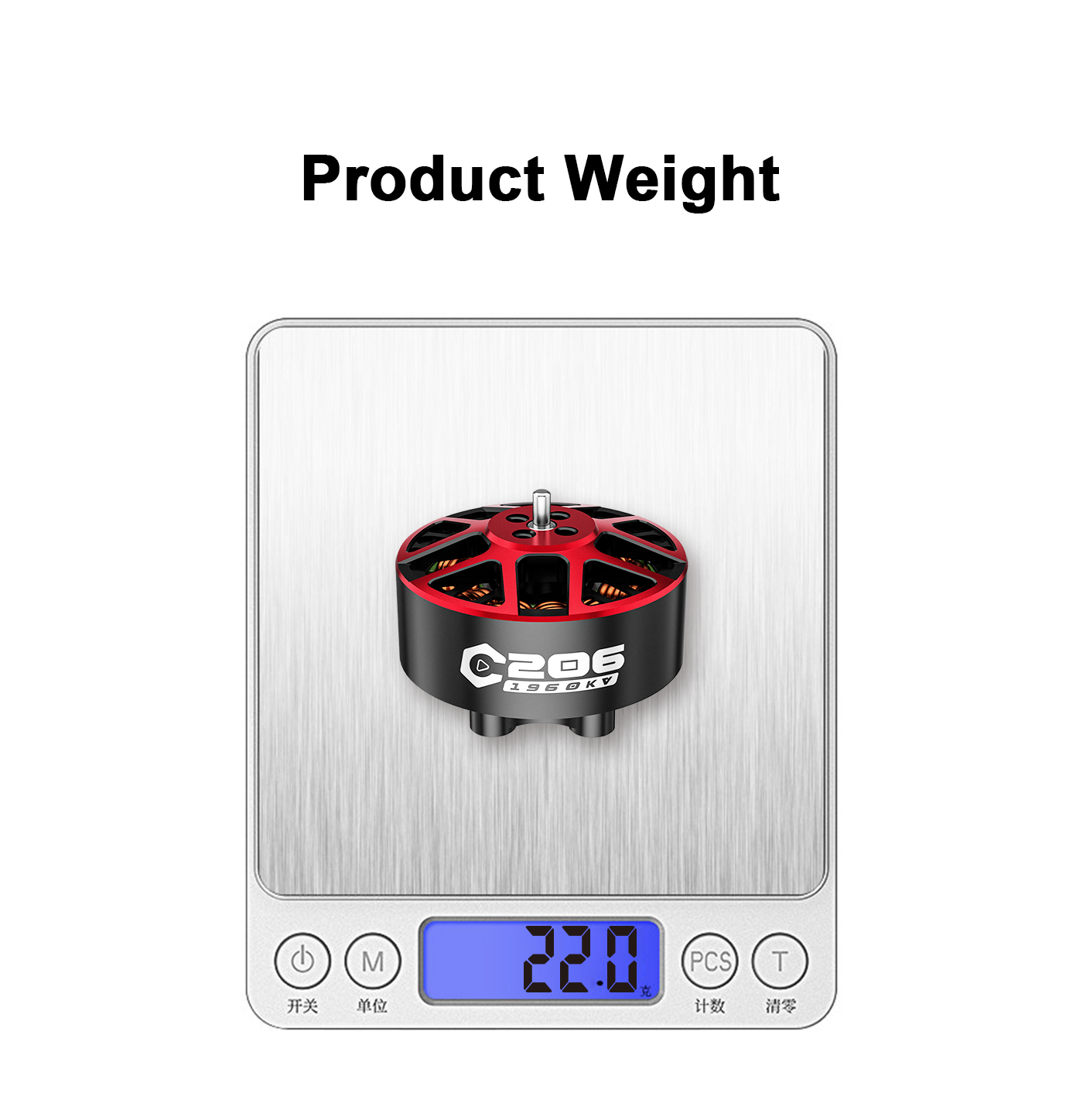

• Weight (with wire): 22.06g

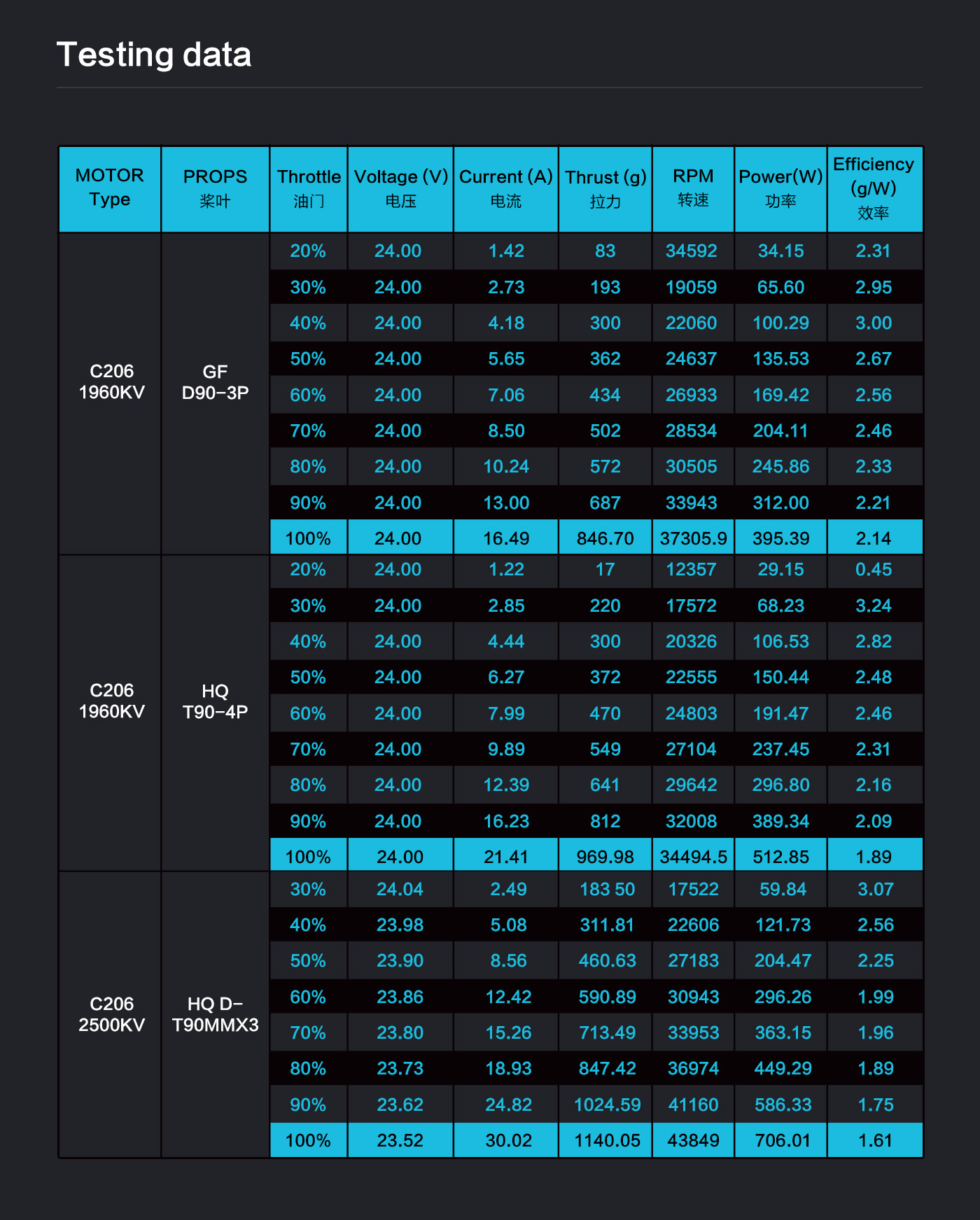

• Max Power: 512.85W
• Max Current: 21.41A
• Max Thrust: 970g
• No-load Current: 0.7A/10V

C206 2500KV

• KV: 2500KV
• Configuration: 12N14P
• Internal Resistance: 77.17mΩ
• Stator: 2006
• Shaft Diameter: 2.5mm
• Silicone Wire: 20# 150mm
• Size: Φ24.7×19.9mm
• Mount: 4×M2
• Weight (with wire): 22.88g
• Max Power: 706W
• Max Current: 30A
• Max Thrust: 1140g
• No-load Current: 0.73A/10V

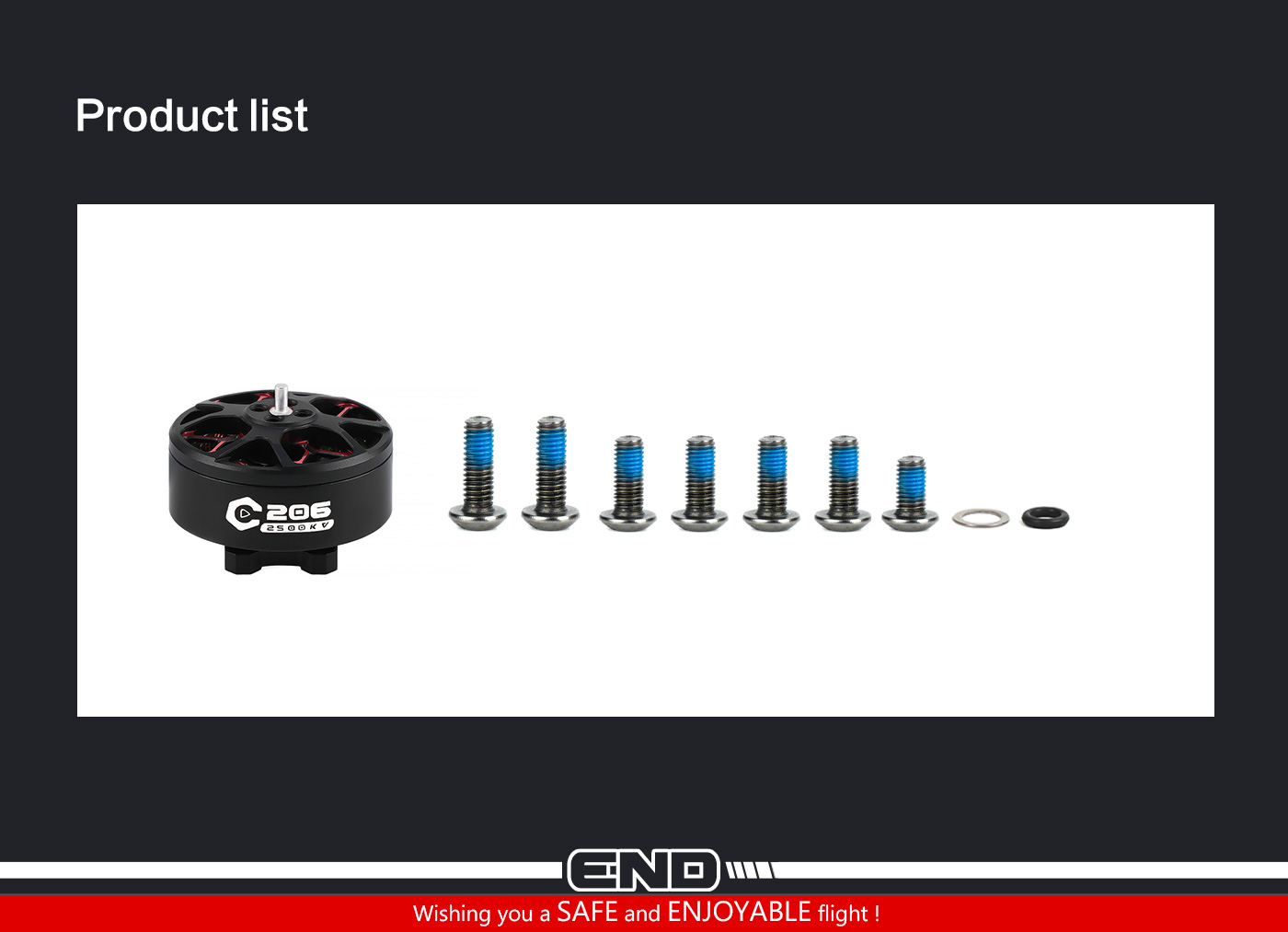

Package Contents

1. C206 Brushless Motor ×1
2. M2×5 Mounting Screws ×4
3. Shaft Lock Screw ×1
4. Washer & Lock Nut Set ×1
