Feature

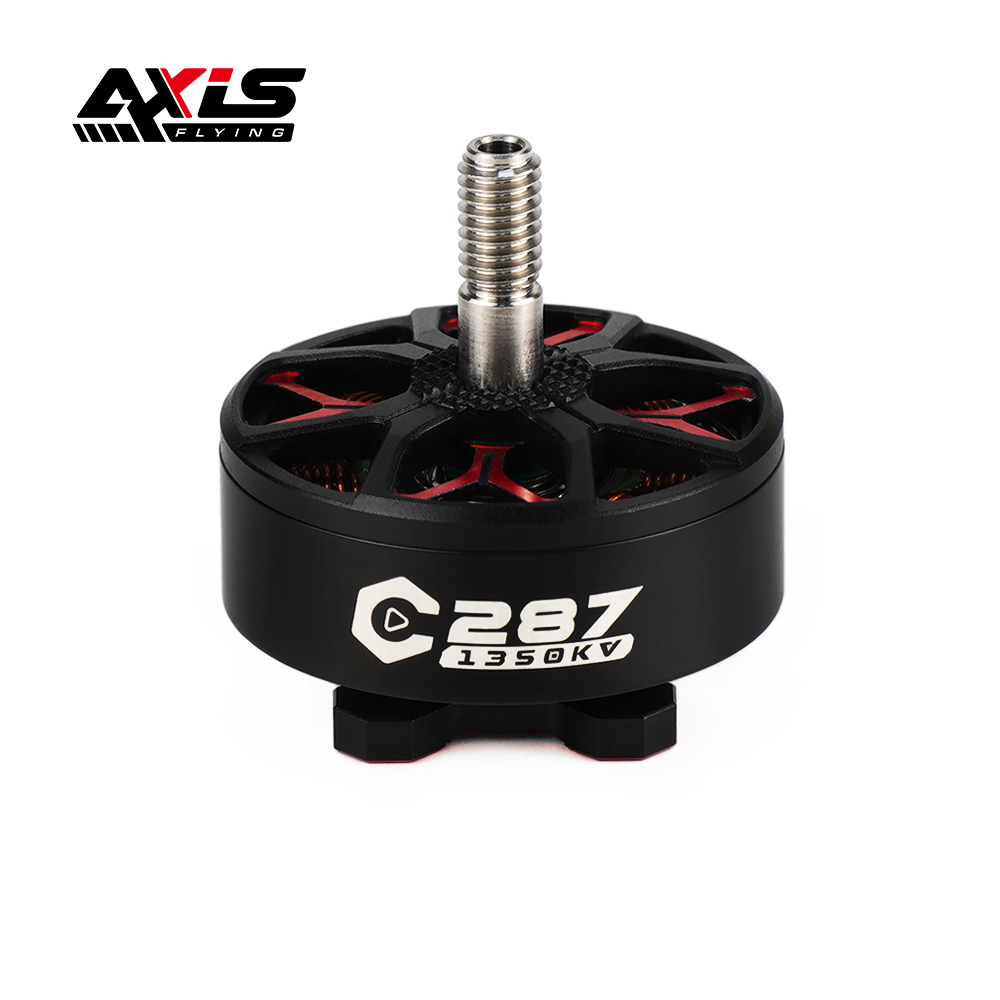

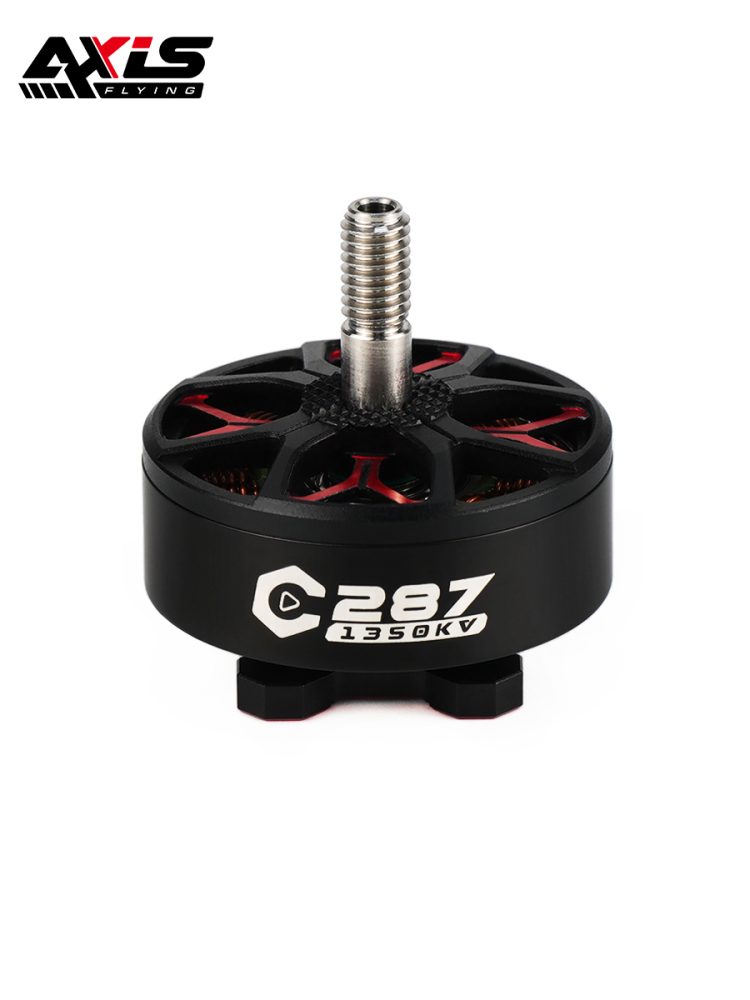

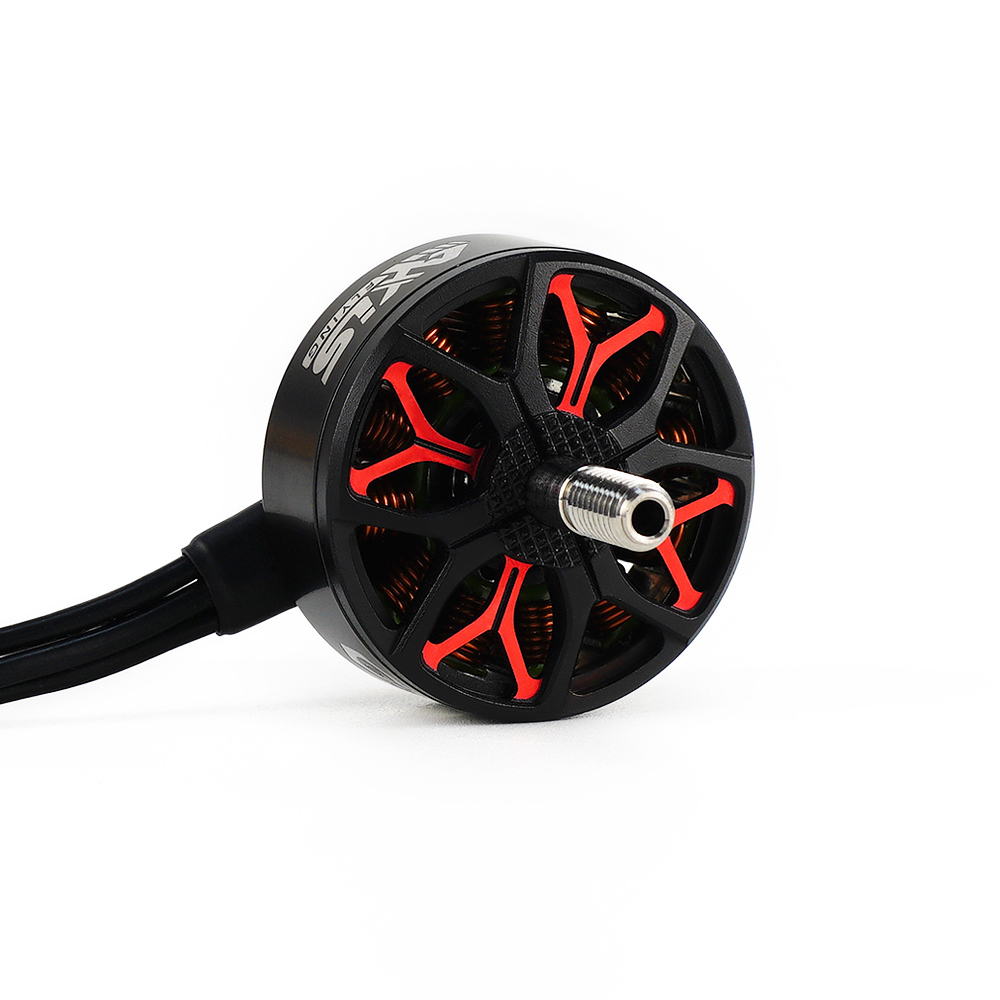

• C287 is a high‑performance cinematic motor with ultra‑smooth control, high torque and high efficiency.
• Designed for 6–7 inch long‑range drones, Cinelifter X8 and 5‑inch Cinewhoop quads.
• 12N14P structure with N52H arc magnets for stable and powerful output.

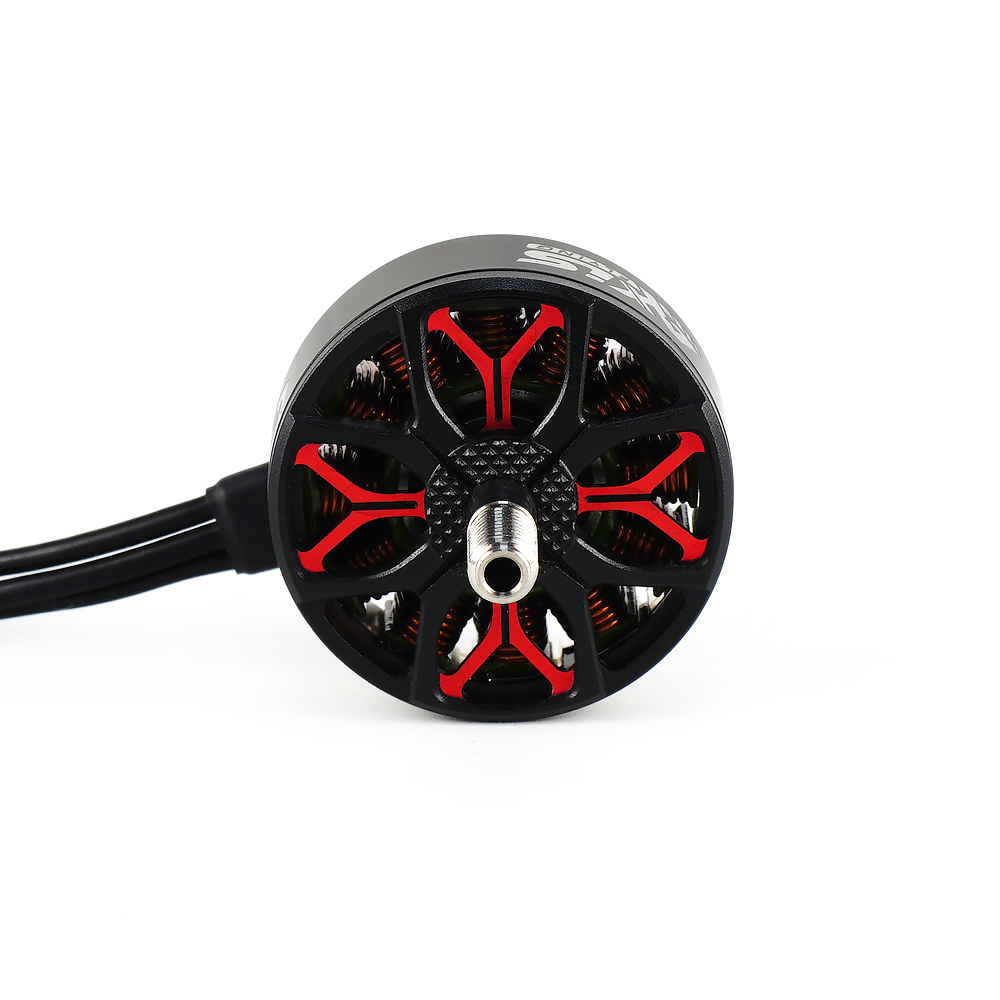

• Upper & lower staggered rib design, stronger and more durable.
• Wire outlet fixed with glue for safer and more reliable wiring.
• Perfect balance of smoothness, responsiveness and efficiency for professional cinematic shooting.

Recommended Configuration

• Motor: Axisflying C287 1350KV / 1750KV
• Voltage: 4–6S LiPo
• Props: HQJ75 (7inch)
• Application: 6–7inch LR, Cinelifter X8, 5inch Cinewhoop

Specifications

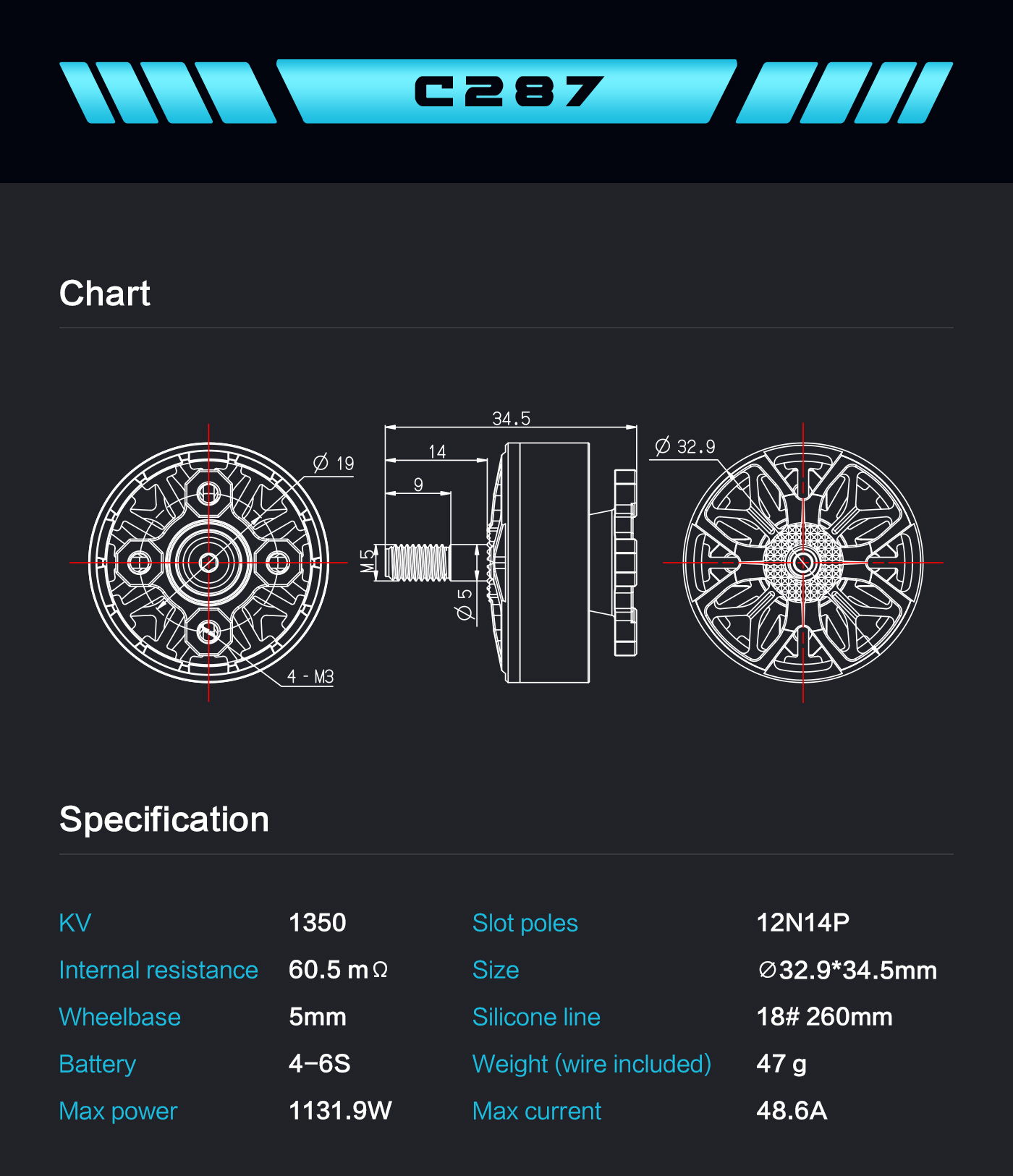

C287 1350KV

• KV: 1350KV
• Configuration: 12N14P
• Internal Resistance: 60.5mΩ
• Stator: 2807.5
• Shaft Diameter: 5mm
• Wire: 18AWG, 260mm
• Size: Φ32.9×34.5mm

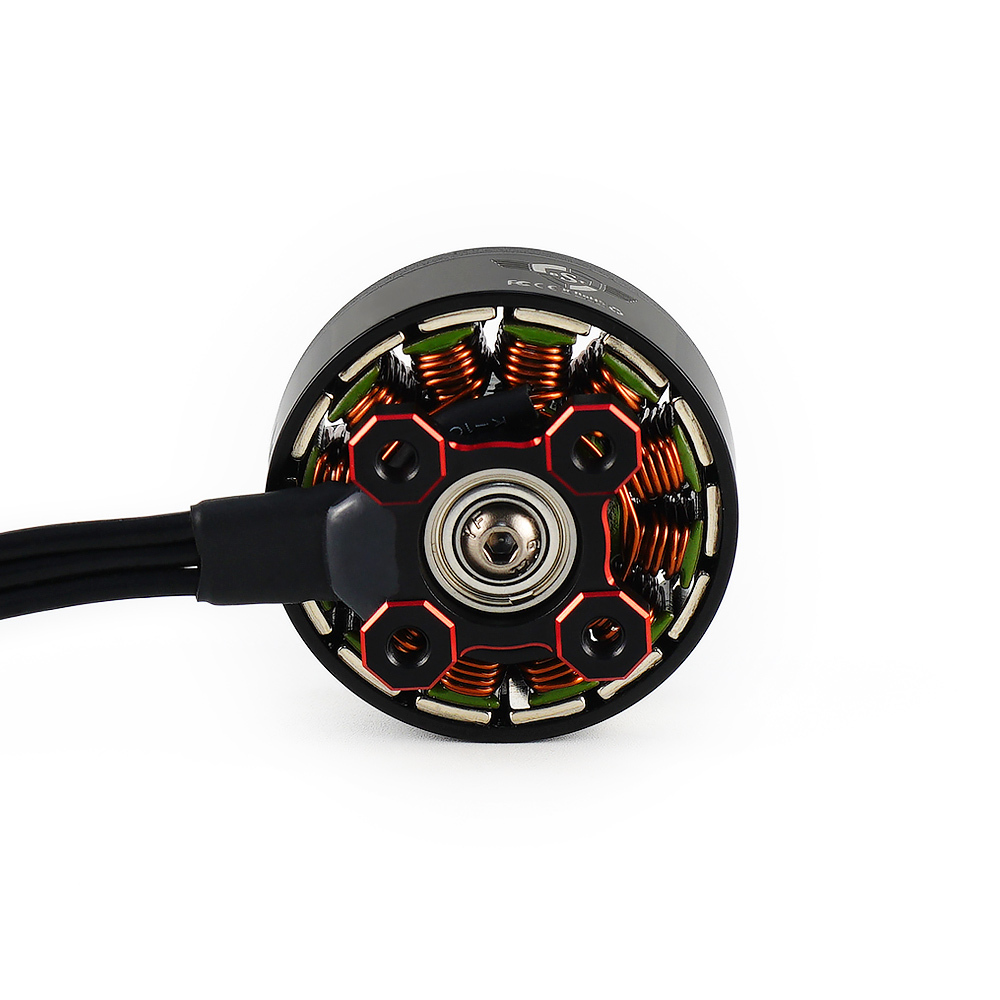

• Mount: 4×M3 (Φ19mm)
• Weight (excl. cable): 47g
• Max Power: 1131.9W
• Peak Current: 48.6A
• Max Thrust: 2303g

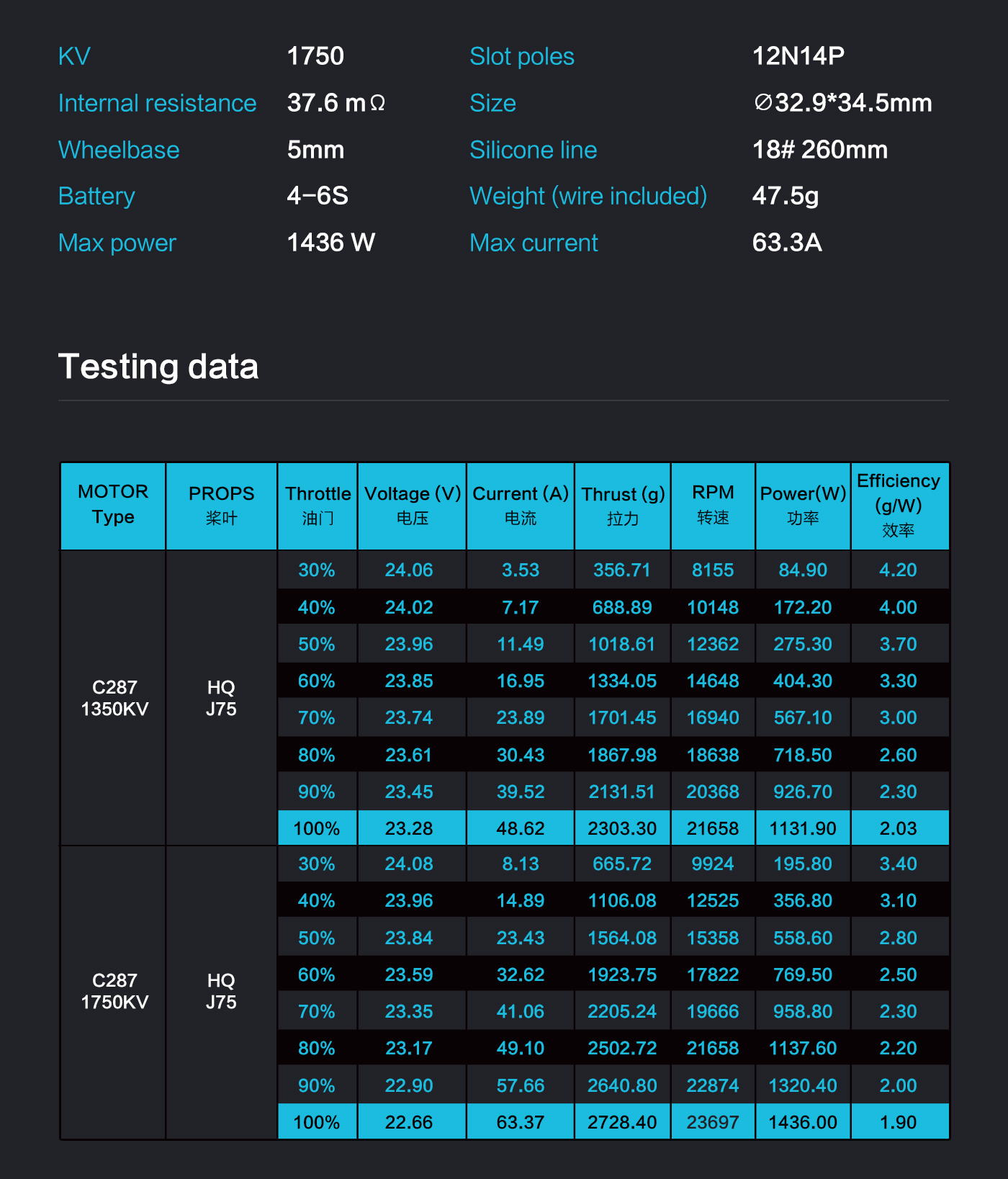

C287 1750KV

• KV: 1750KV
• Configuration: 12N14P
• Internal Resistance: 37.6mΩ
• Stator: 2807.5
• Shaft Diameter: 5mm
• Wire: 18AWG, 260mm
• Size: Φ32.9×34.5mm
• Mount: 4×M3 (Φ19mm)
• Weight (excl. cable): 47.5g
• Max Power: 1436W
• Peak Current: 63.3A
• Max Thrust: 2728g

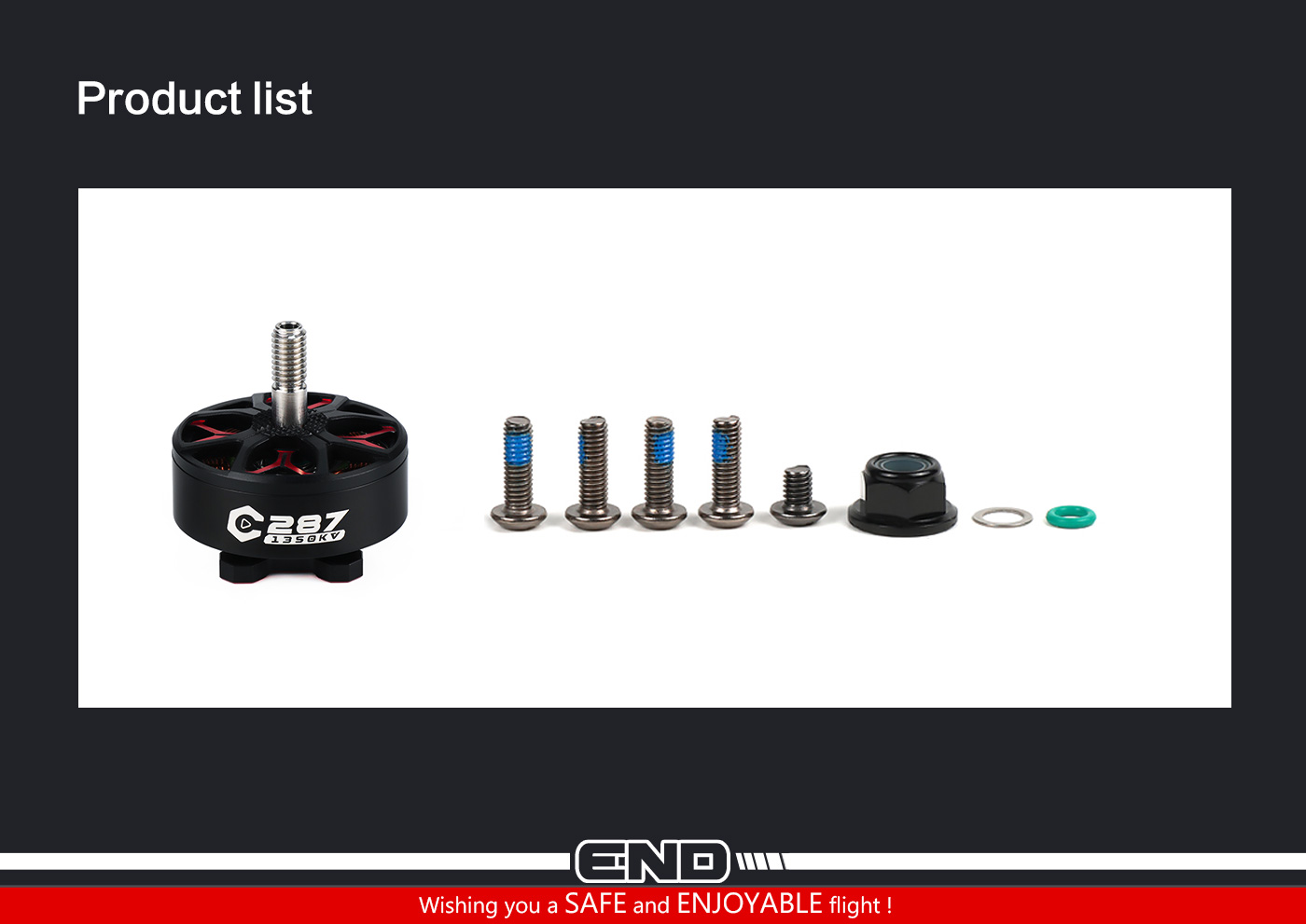

Package Contents

1. C287 Brushless Motor ×1
2. M3×8 Screws ×4
3. M3×4 Shaft Lock Screw ×1
4. M5 Flanged Nylon Insert Lock Nut ×1
5. O‑ring ×1
6. Washer ×1
