Foreword

Feature

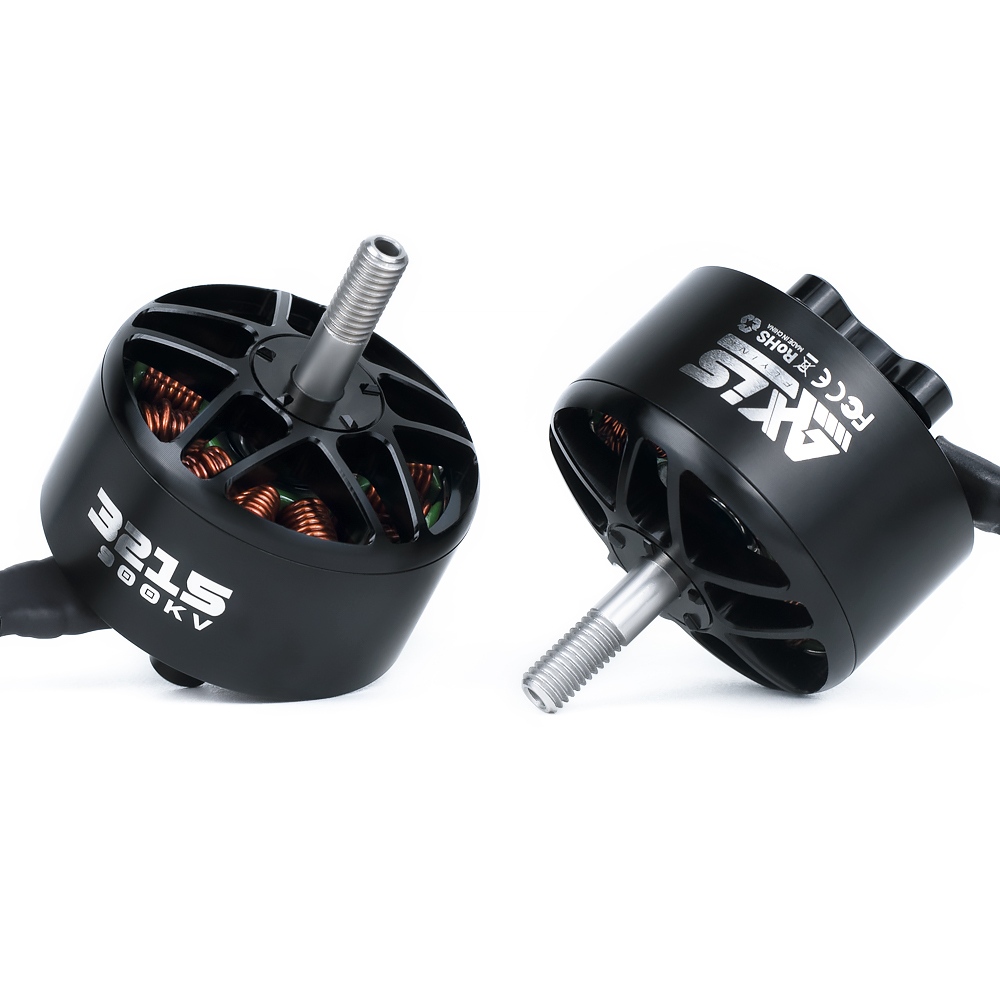

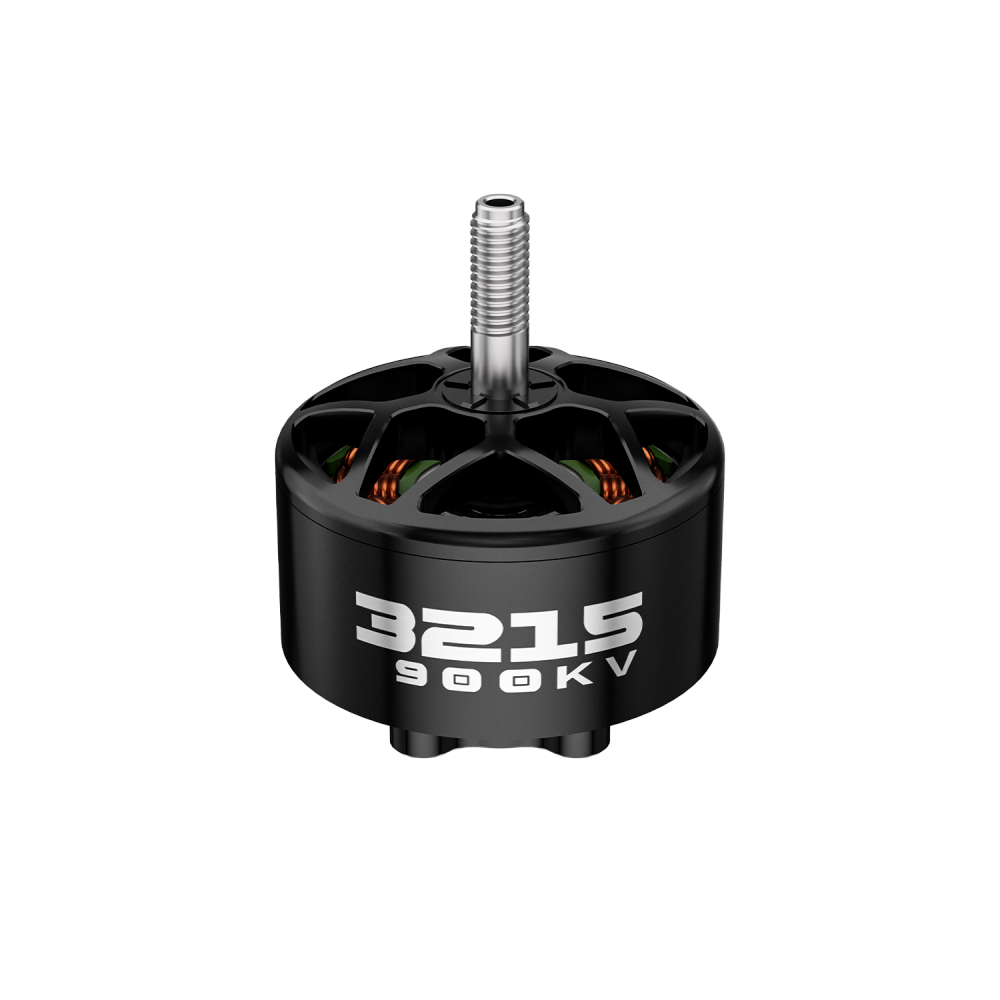

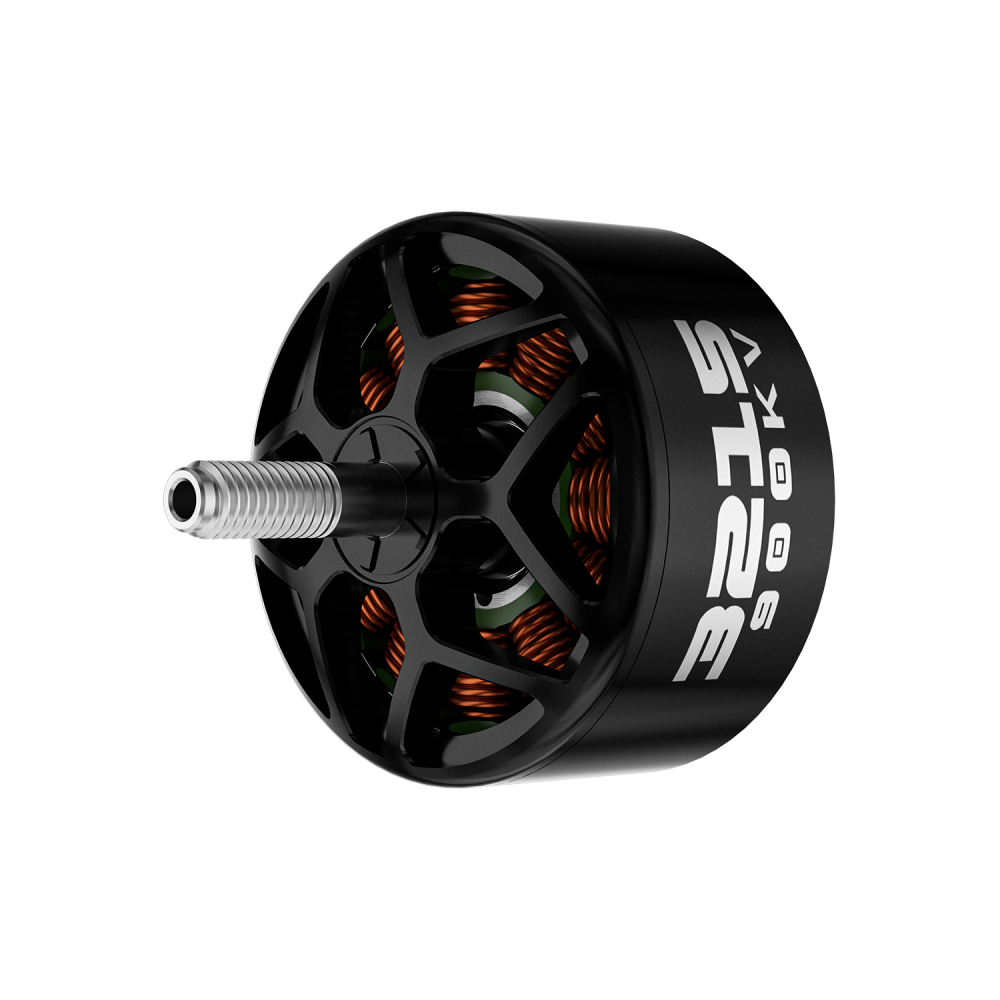

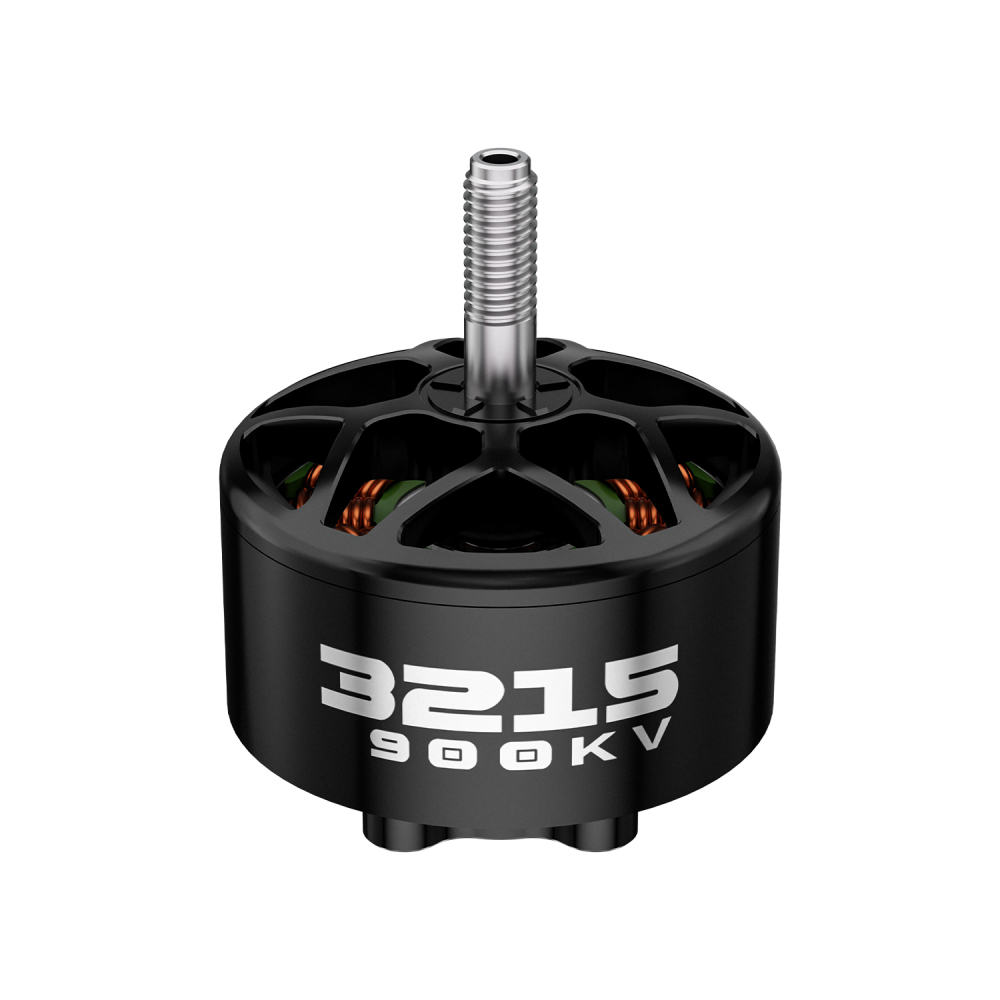

• AZ series professional power motor for 13‑inch FPV drones
• Ideal for long‑range, cinematic shooting and heavy‑load flight

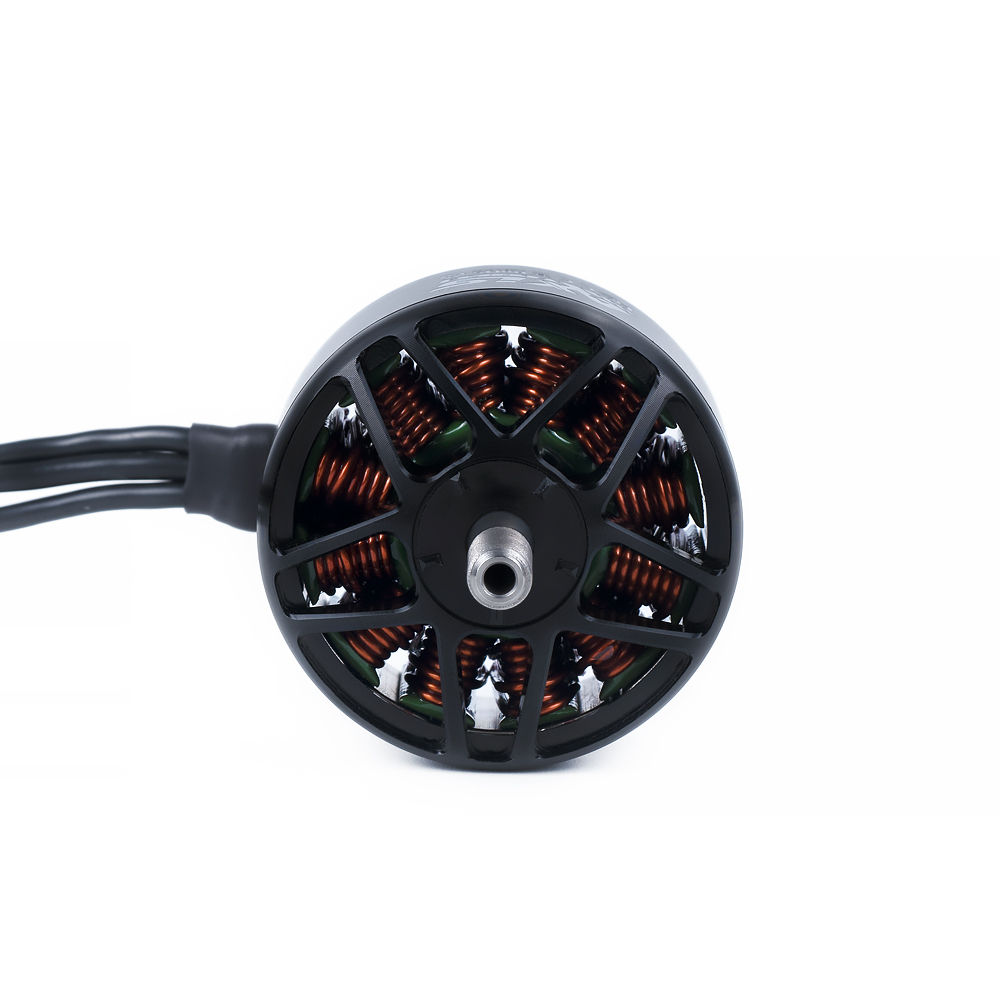

• 12N14P structure with high‑strength arc magnets for stable output
• High‑temperature enameled wire for reliable long‑time operation
• Imported bearings for long service life and crash resistance
• High efficiency and low heat for extended flight time
• Compatible with 4–6S and 6S power systems

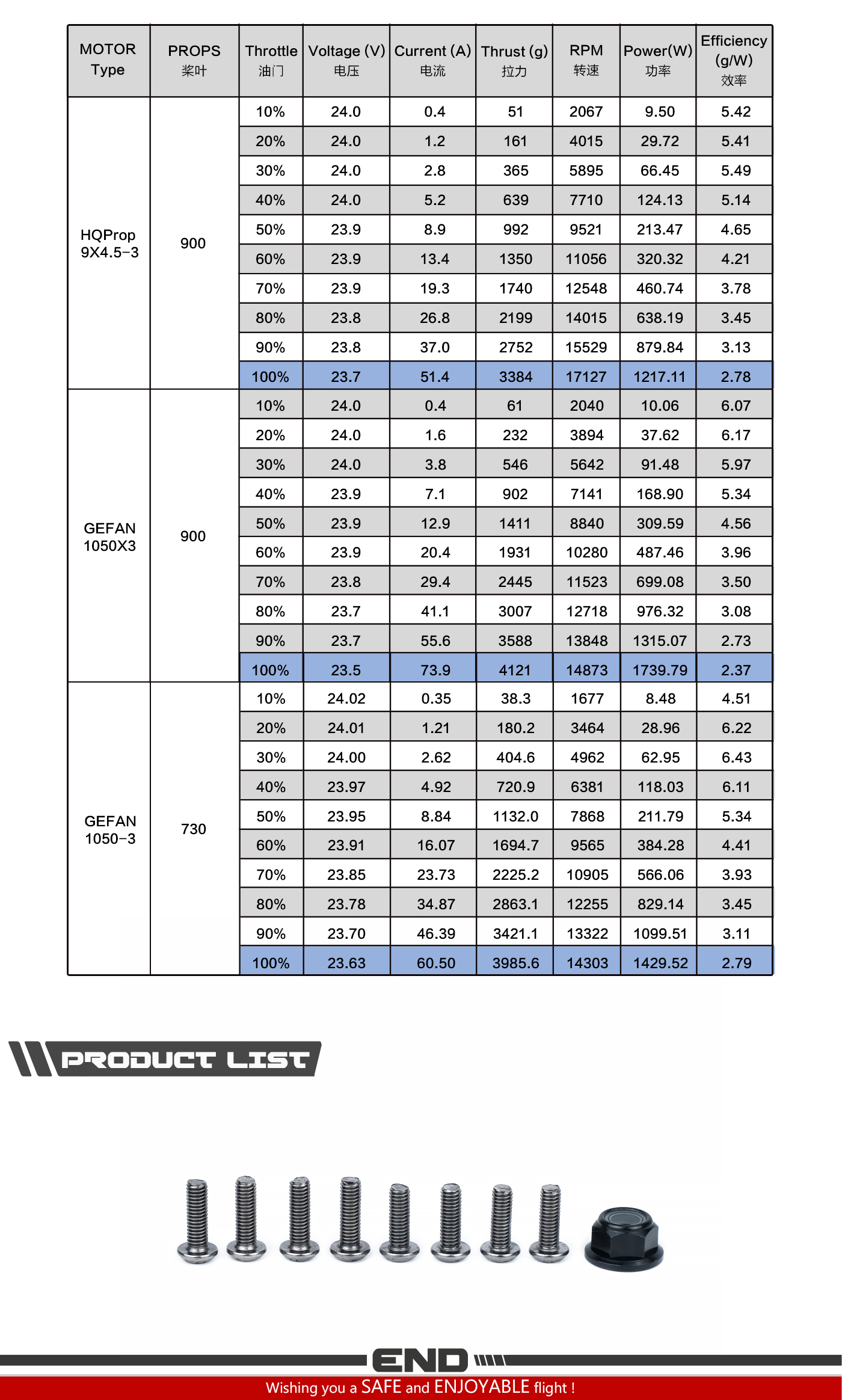

Recommended Configuration

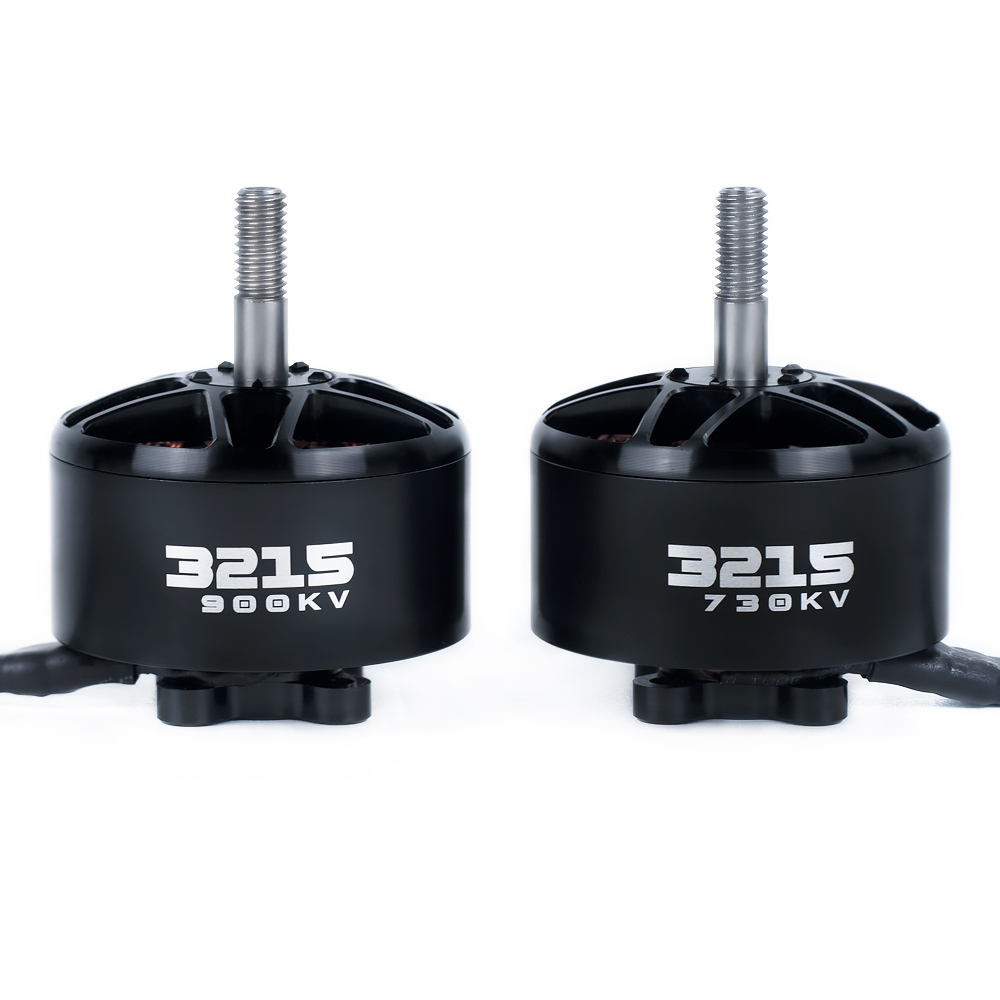

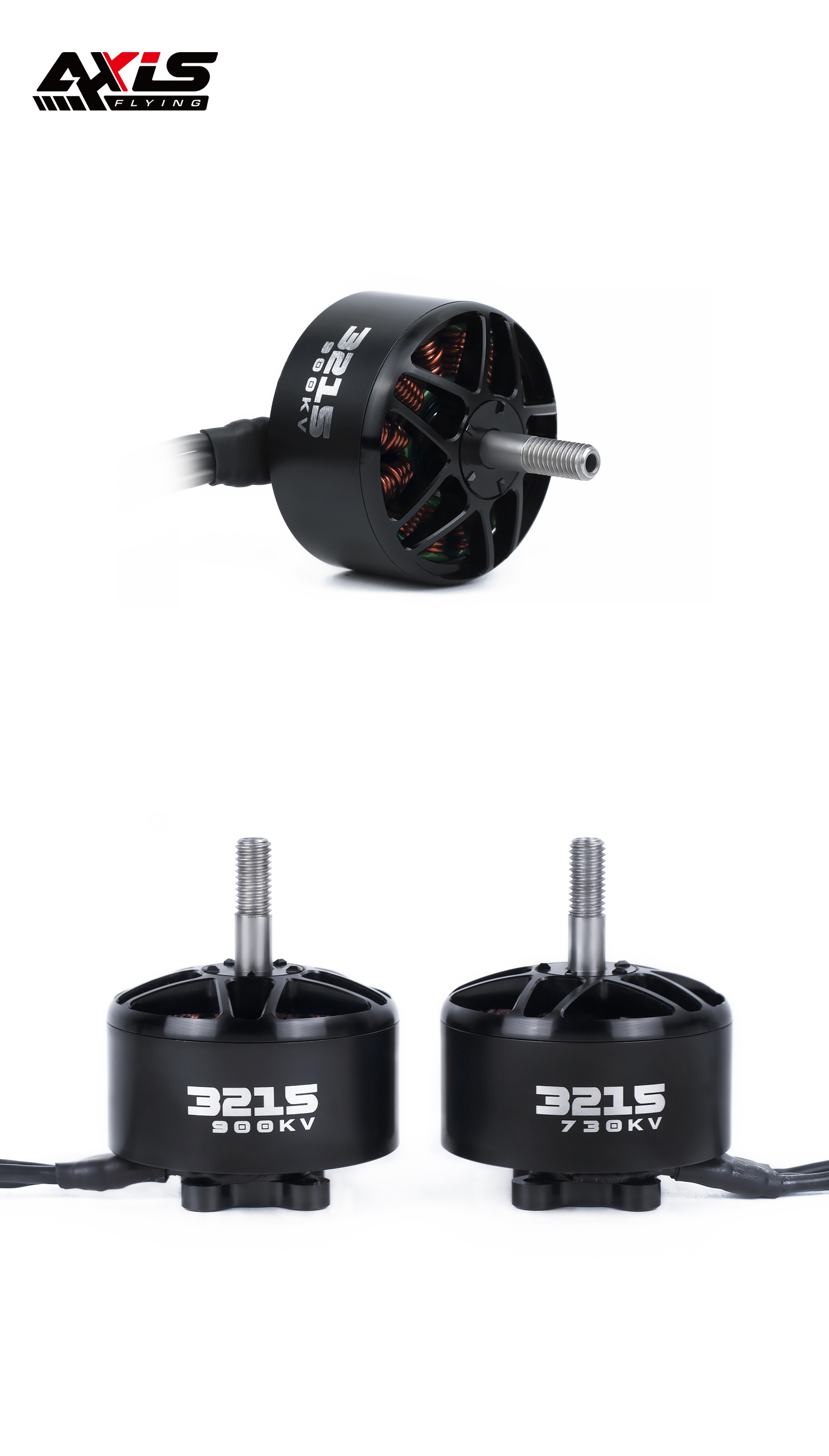

• Motor: Axisflying AZ3215 730KV / 900KV
• Voltage: 730KV for 6S; 900KV for 4–6S
• Props: HQ 9×4.5‑3 / Gemfan 1050‑3 / Gemfan 1050X3
• Application: 13‑inch long‑range, cinematic, heavy‑loading drones

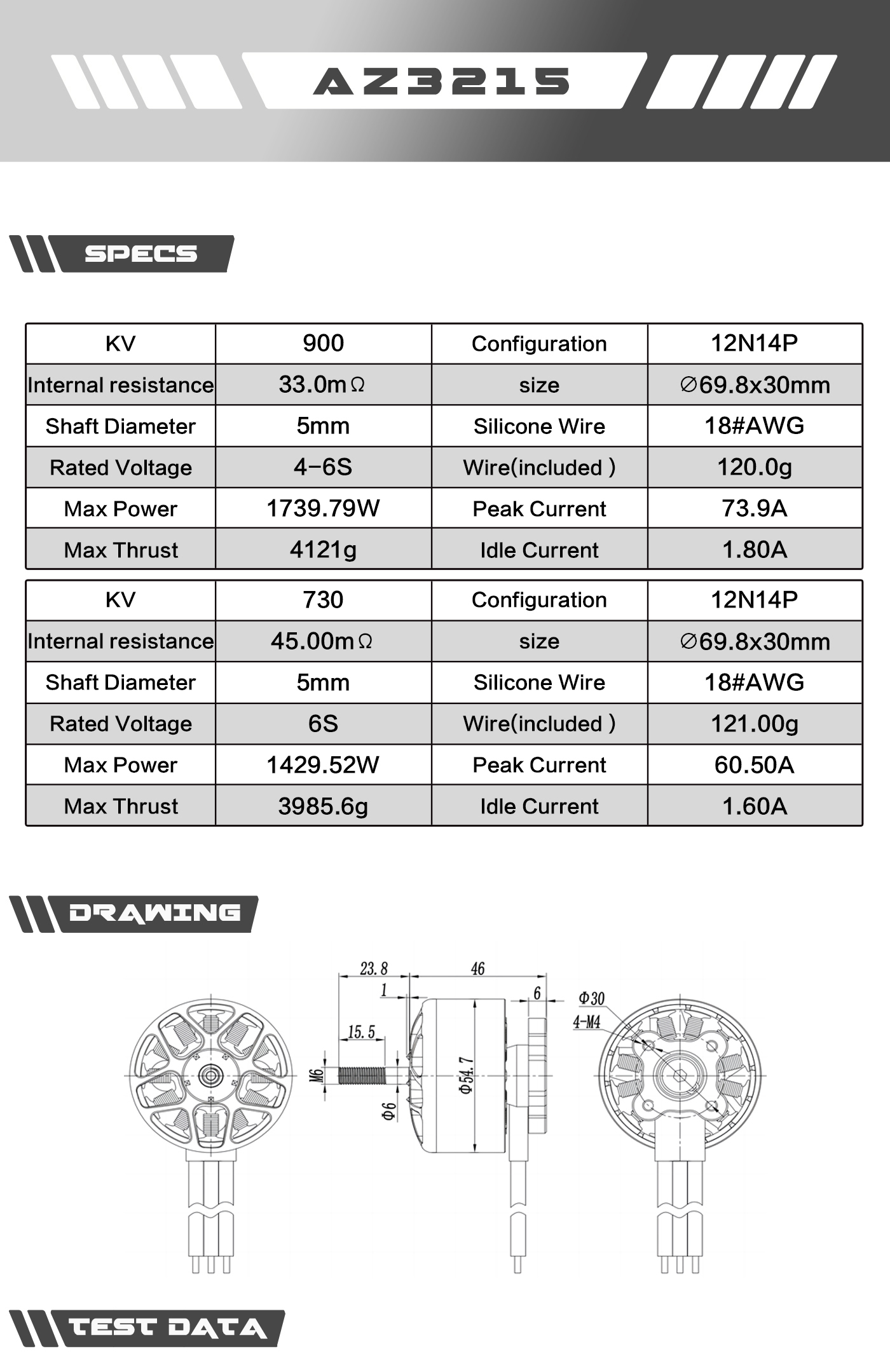

Specifications

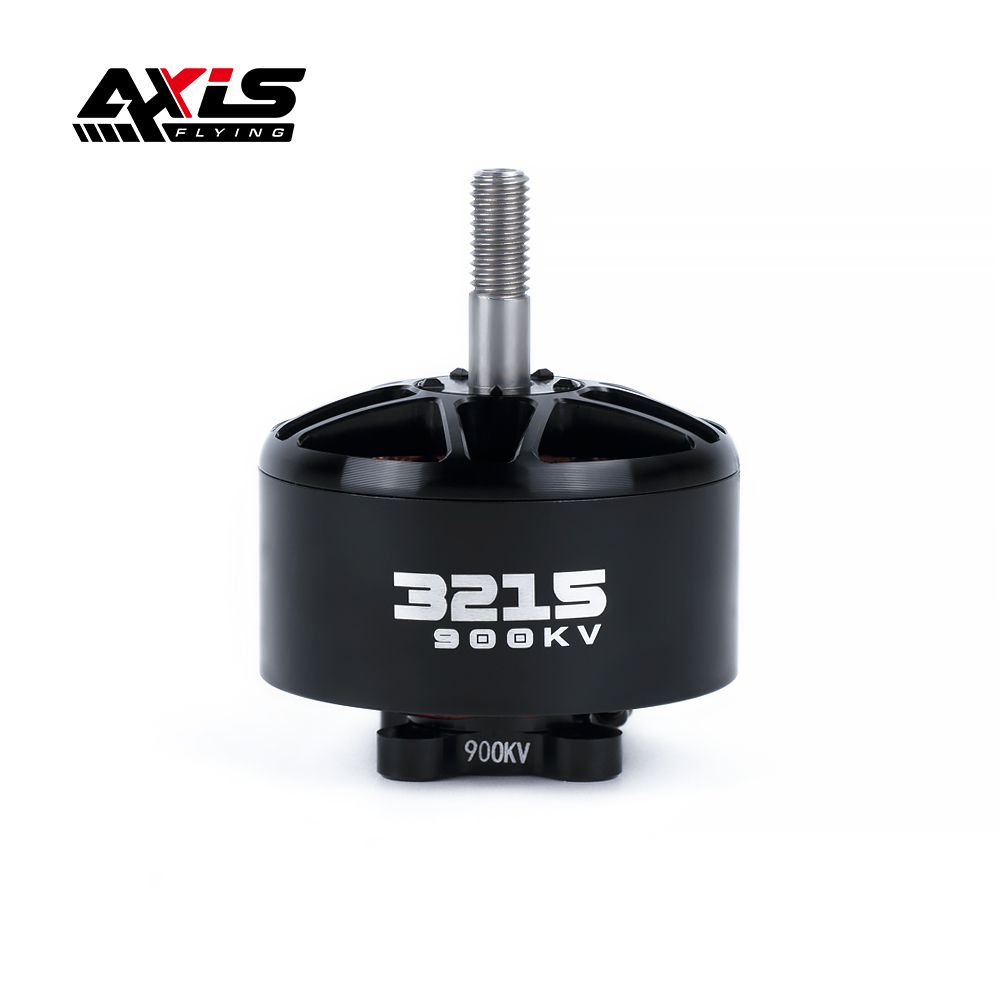

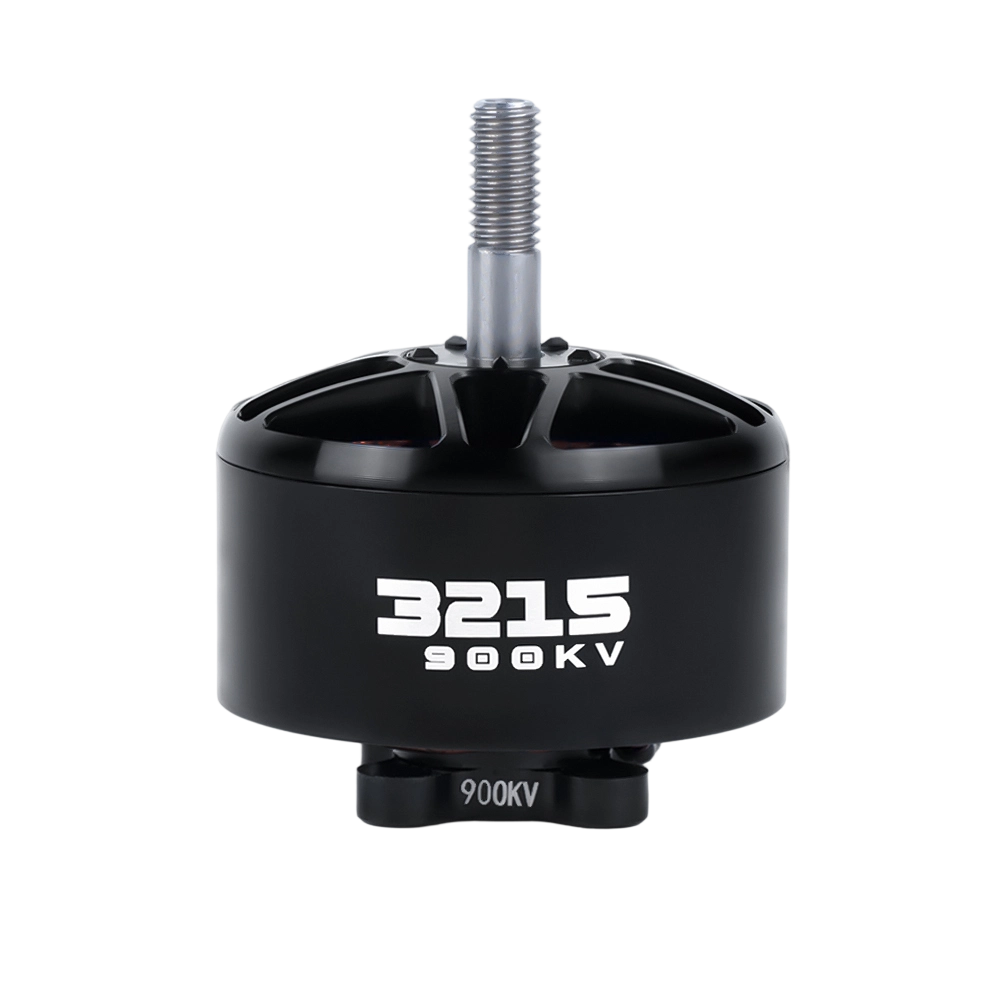

AZ3215 – 900KV

• KV: 900KV
• Configuration: 12N14P
• Internal Resistance: 33.0mΩ
• Size: Φ69.8×30mm
• Shaft Diameter: 5mm
• Silicone Wire: 18AWG (included)
• Rated Voltage: 4–6S
• Weight (with wire): 120.0g
• Max Power: 1739.79W
• Peak Current: 73.9A
• Max Thrust: 4121g
• Idle Current (10V): 1.80A
• Mount: 4×M3

AZ3215 – 730KV

• KV: 730KV
• Configuration: 12N14P
• Internal Resistance: 45.00mΩ
• Size: Φ69.8×30mm
• Shaft Diameter: 5mm
• Silicone Wire: 18AWG (included)
• Rated Voltage: 6S
• Weight (with wire): 121.00g
• Max Power: 1429.52W
• Peak Current: 60.50A
• Max Thrust: 3985.6g
• Idle Current (10V): 1.60A
• Mount: 4×M3

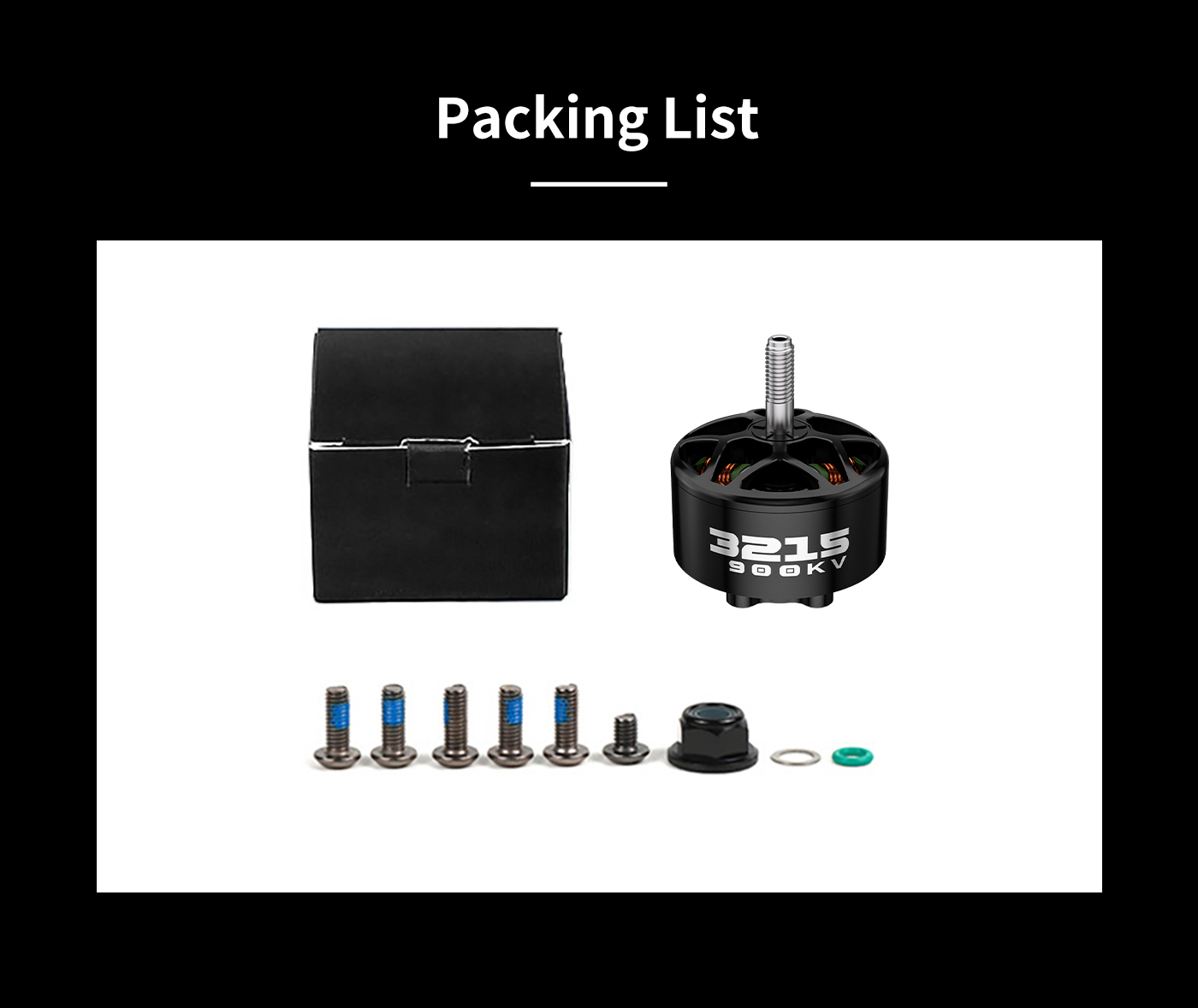

Package Contents

1. AZ3215 Brushless Motor ×1
2. Mounting screws & accessories set ×1
