Motor C246 4-6s
Freestyle / sbang / cinematic shooting
SKU: A02010011
The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.
Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.
The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.
*Forword
- The C246 motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.
- We've designed the C series motors with the contribution of the cinematic FPV experts: Antoine DG (@Escape_fpv) and Fry (@Fry_fpv). Their cinematic knowledge and ideas led us today to introduce you to these top-grade cinematic motors.
- We want to thank David and Jasonfpv who helped us with their repeated testing and feedback to accelerate the presence of Axisflying in the growing cinematic FPV market.
*Bearing Shield Technology
- An IP53 rating dustproof and waterproof bearing placement design.
- BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .
- Increased thrust effciency and say goodbye to crush motor bearings
*Specs
- 1650KV is for 6inch props @6S of cinematic shooting

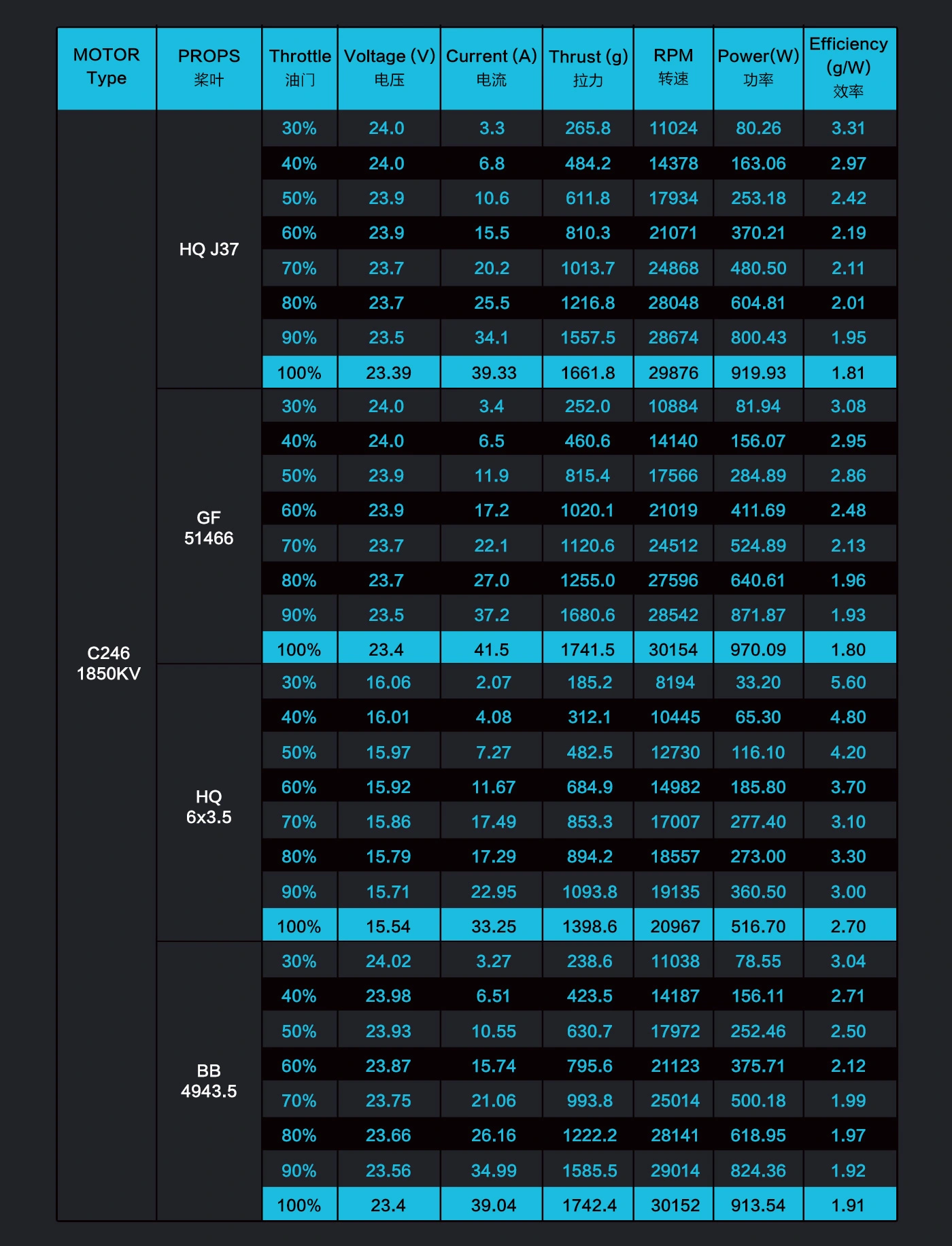

- 1850KV is for 5inch props @6S of speed cinematic shooting (such as motorcycle race)

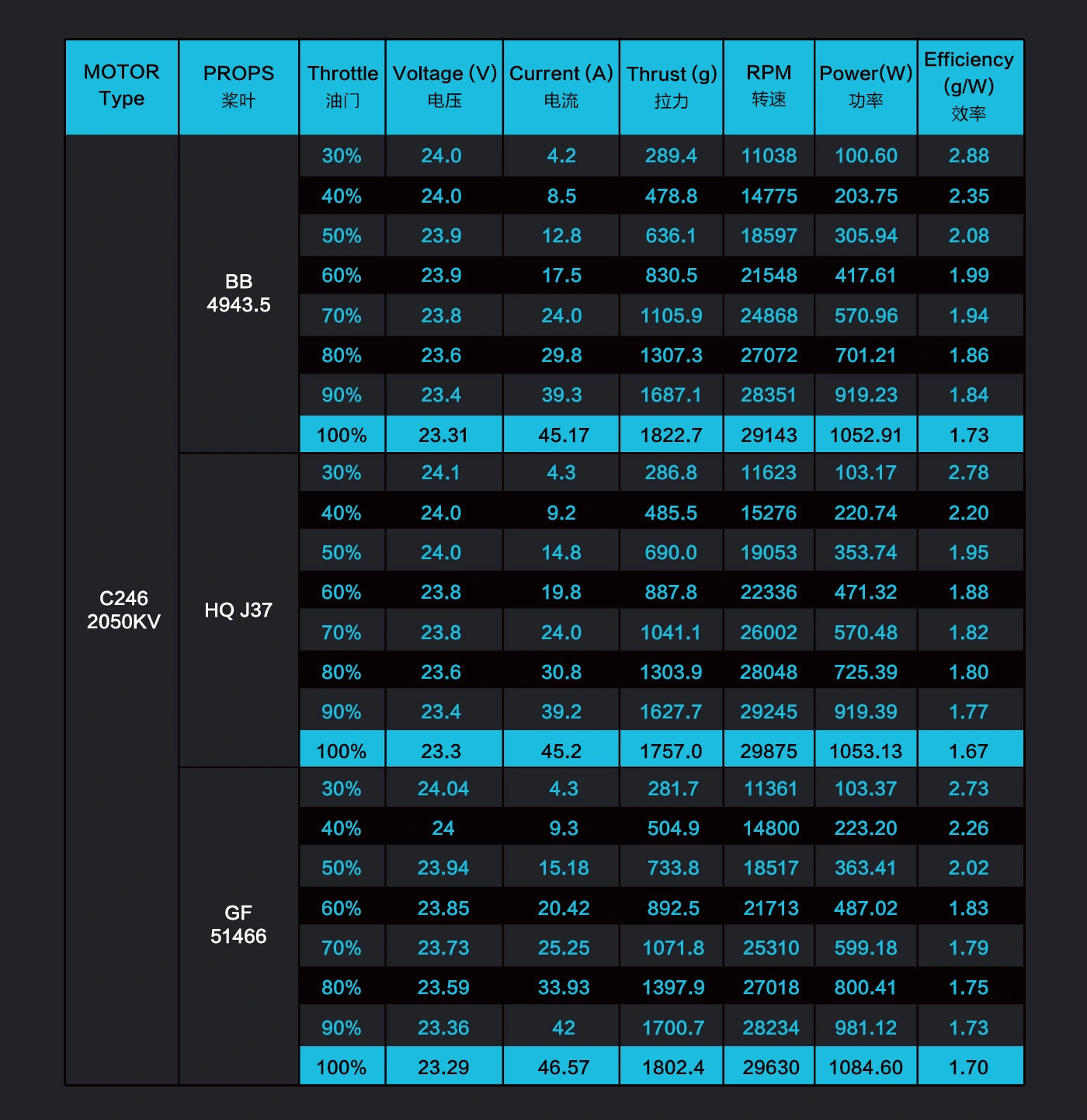

- 2050KV is for 5inch props @6S of sbang freestyle
- Configuration: 12N14P / N52H arc magnet
- Motor stator size: 2406
- Motor mounting hole size: 4*M3 (Φ16mm)
- Motor cables: AWG 20#, 150MM

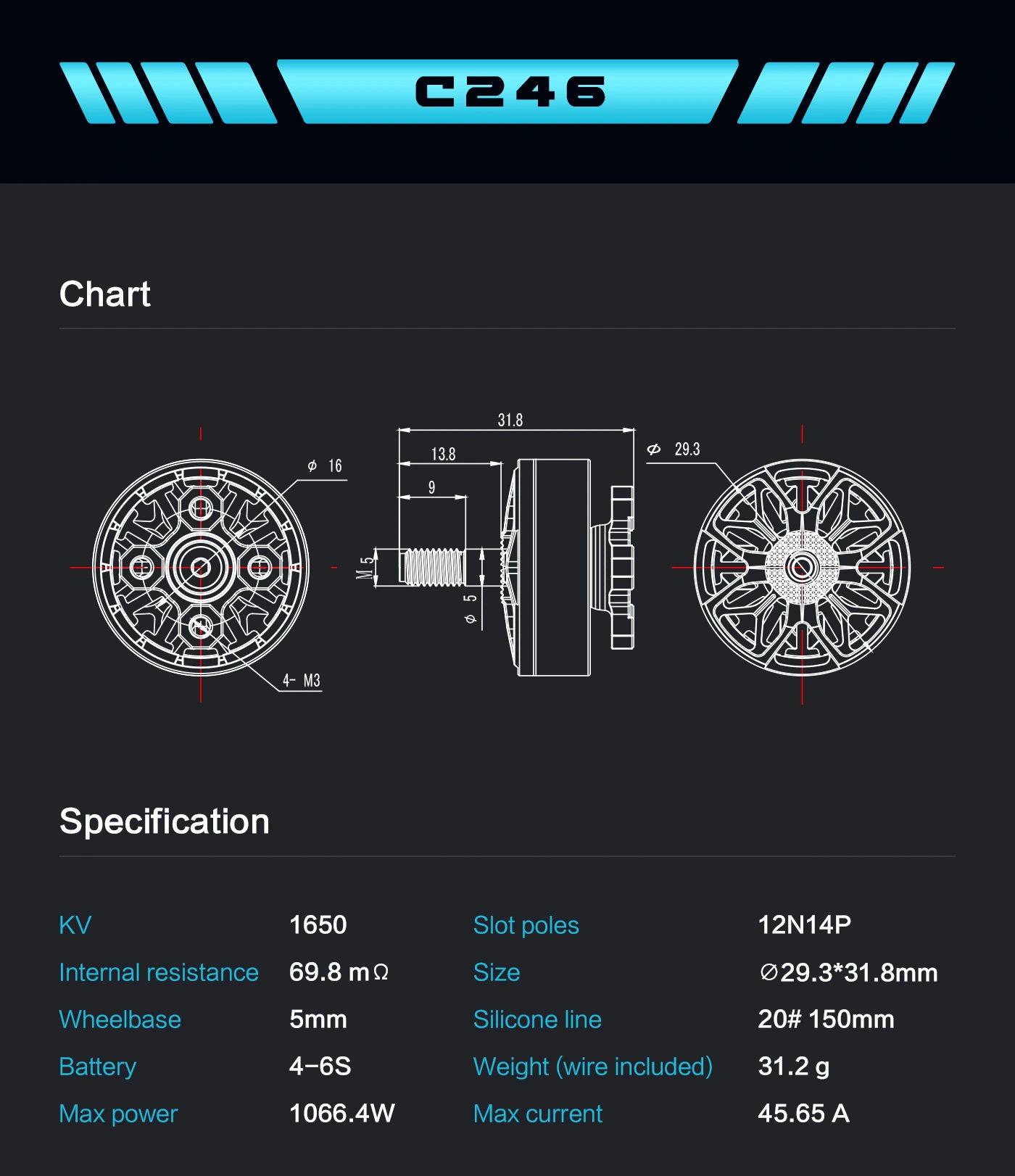

- Motor dimensions (Dia *Len): Φ29.3*31.8MM / M5 shaft
- Motor weight (including 150MM cables) : 31g
- The motor is very powerful that can get over 2KG and most current is about 45A

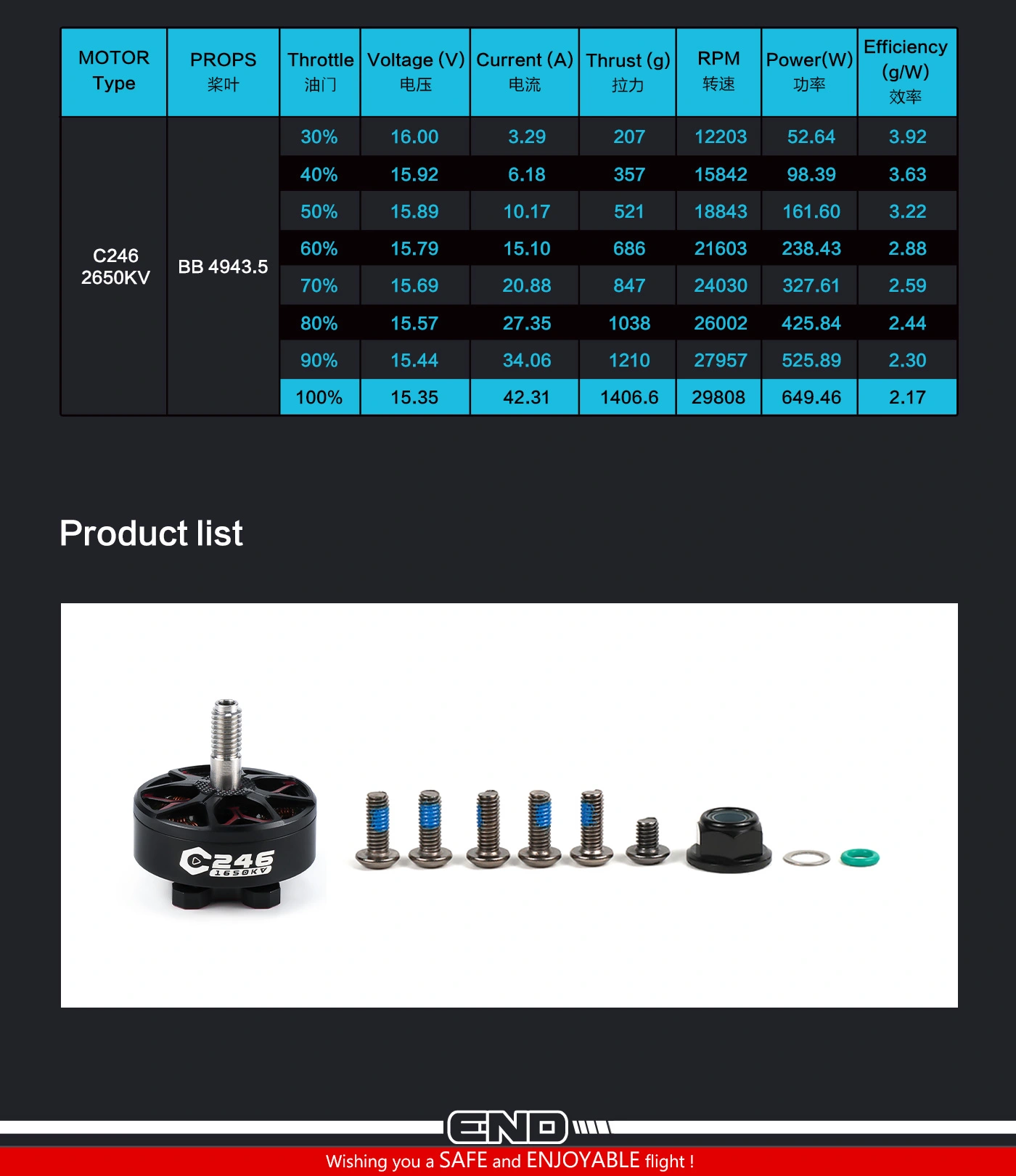

*Package
- 1* C246 motor
- 4* M3*8 screws for motor
- 1* M3*4 screw for lock shaft
- 1* M5 Flanged Nylon Insert lock
- 1* O-ring
- 1* Washer
