Foreword

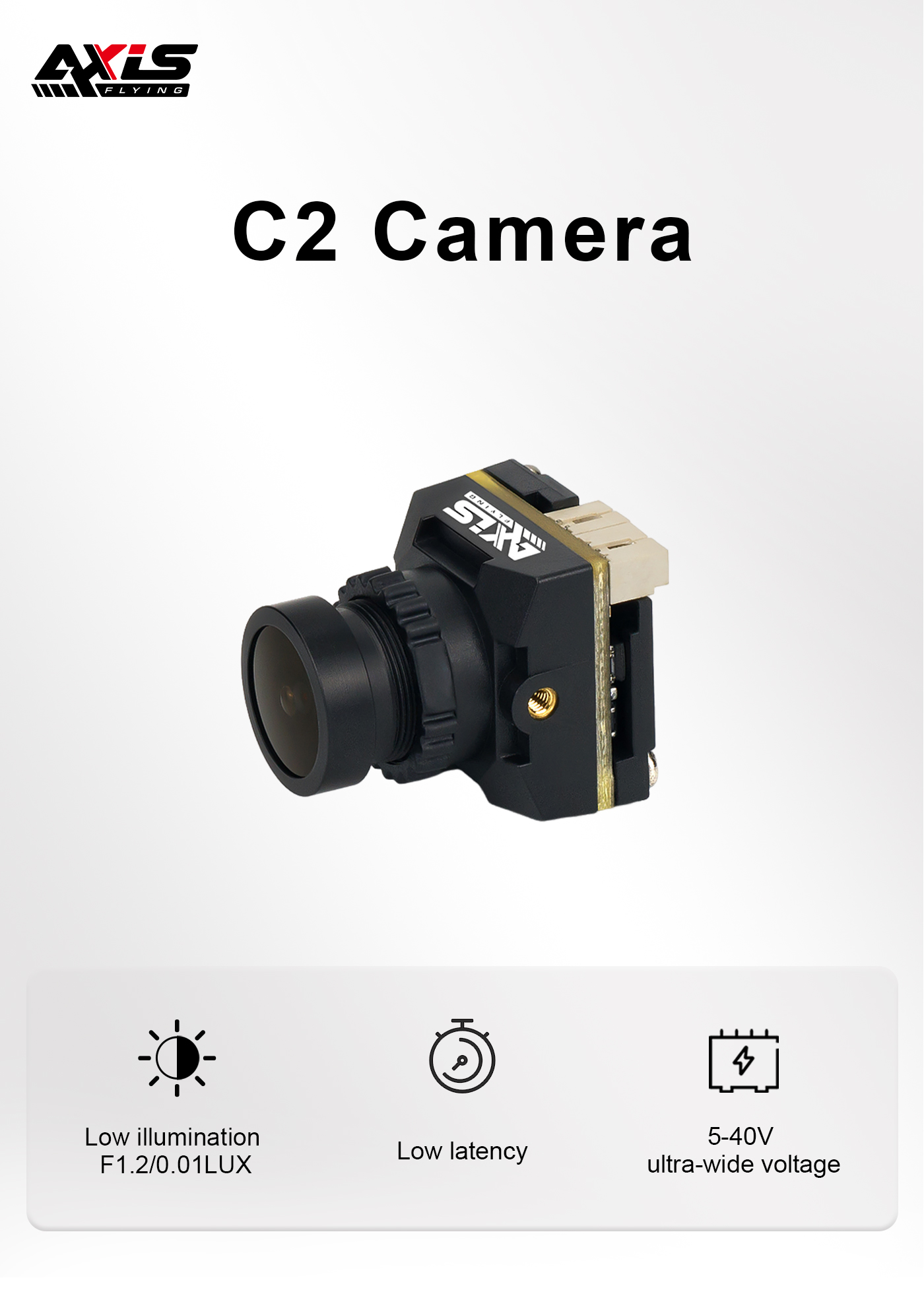

Feature

• 1200TVL high resolution, clear and delicate image
• F1.2 large aperture, low illumination 0.05Lux
• Ultra‑wide voltage input: 5–40V, compatible with most drones
• Low latency design, smooth for racing and freestyle
• 16:9 golden ratio, more immersive FPV experience
• Auto electronic shutter & auto white balance
• 2D noise reduction, clearer image in flight
• Mini 19×19mm size, easy to install on various frames
• No complicated OSD, plug‑and‑play for beginners

Recommended Configuration

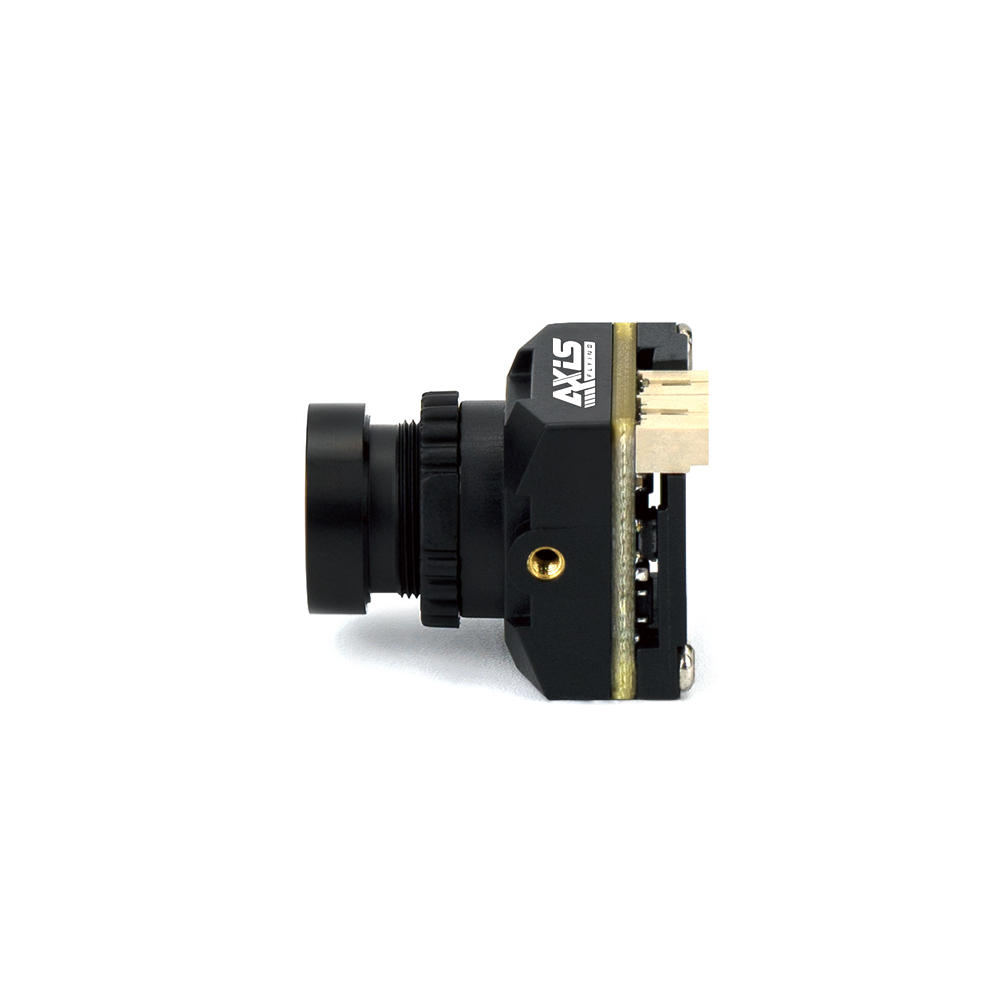

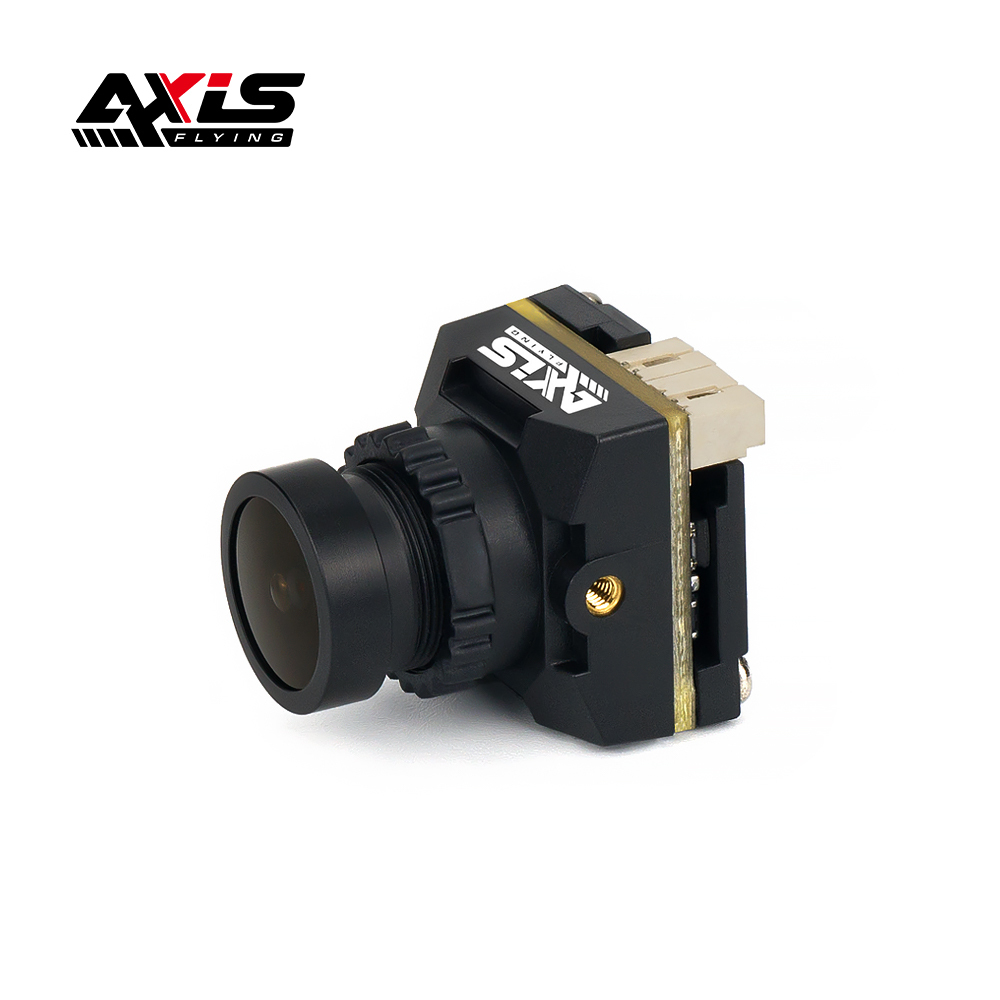

• Model: Axisflying C2 Camera
• Sensor: 1/4" CMOS
• Resolution: 1200TVL
• Input Voltage: 5–40V
• Video Format: PAL / NTSC selectable
• Application: DIY FPV, training drones, entry‑level racing

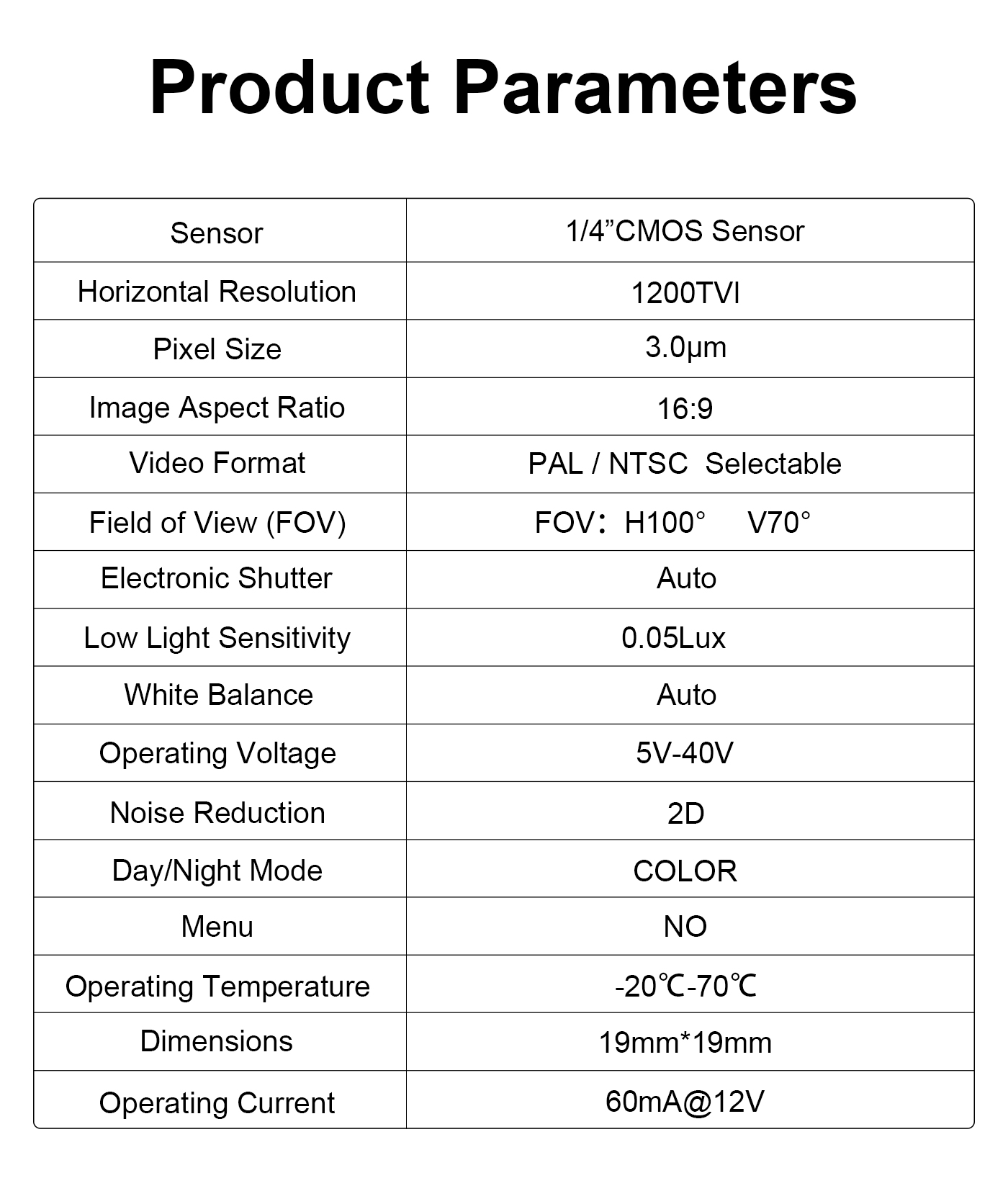

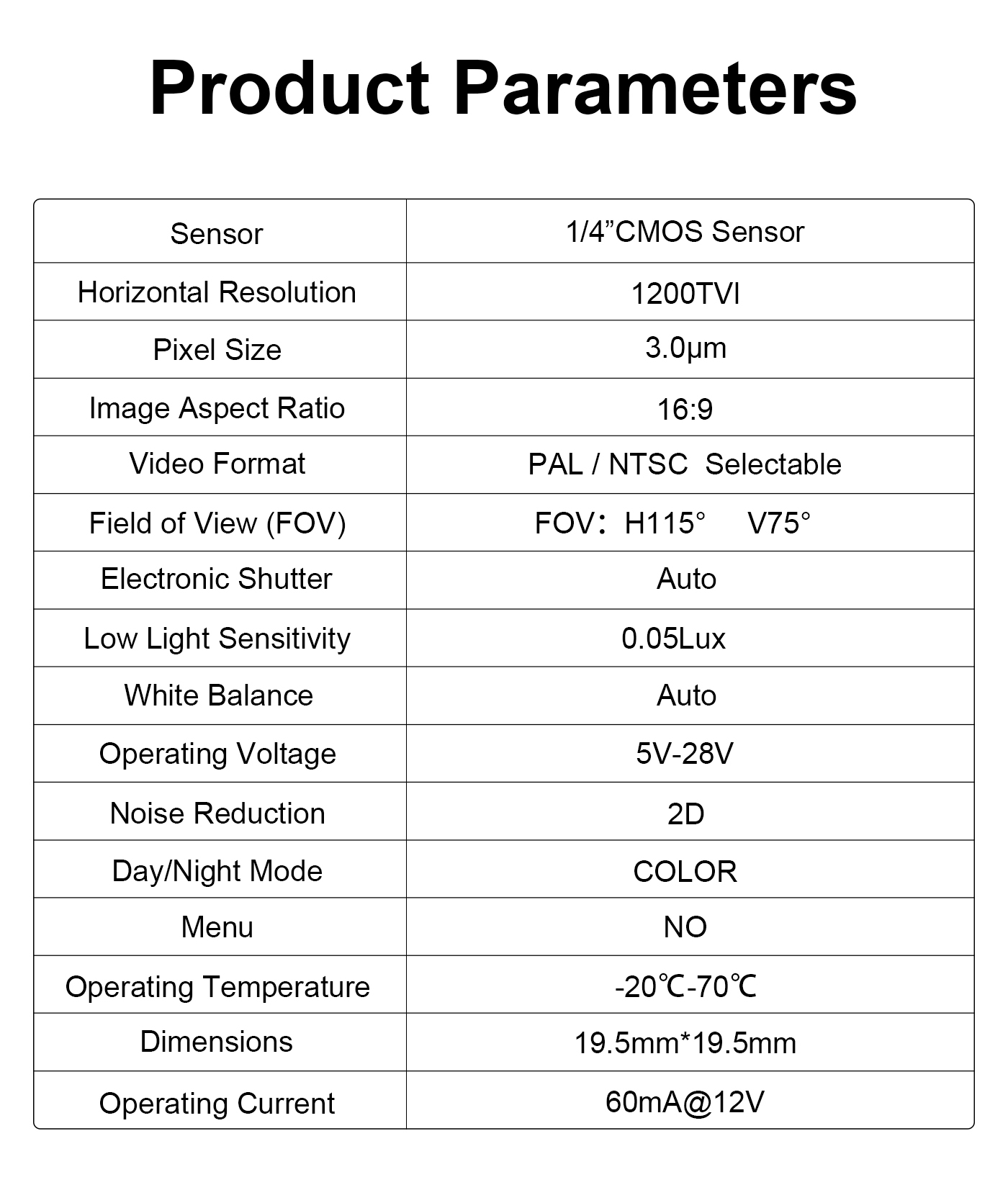

Specifications

• Sensor: 1/4" CMOS Sensor
• Horizontal Resolution: 1200TVL
• Pixel Size: 3.0μm
• Image Ratio: 16:9
• Video Format: PAL / NTSC selectable
• FOV: H100°, V70°
• Electronic Shutter: Auto
• Low Illumination: 0.05Lux (F1.2)
• White Balance: Auto
• Operating Voltage: 5–40V
• Current: 60mA@12V
• Noise Reduction: 2D
• Day/Night Mode: Color
• Menu: No
• Operating Temp: -20°C ~ 70°C

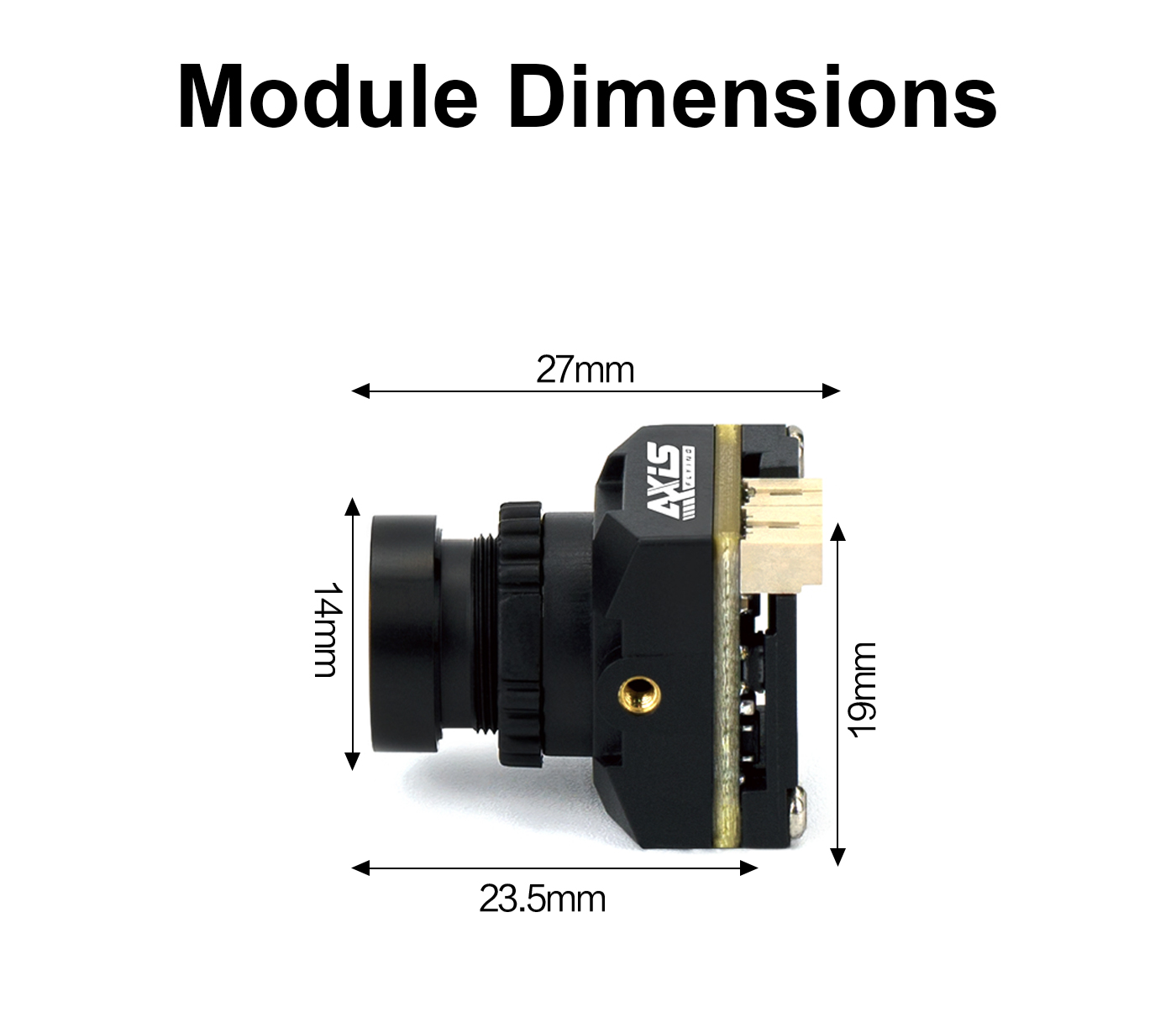

• Size: 19×19mm
• Output: CVBS

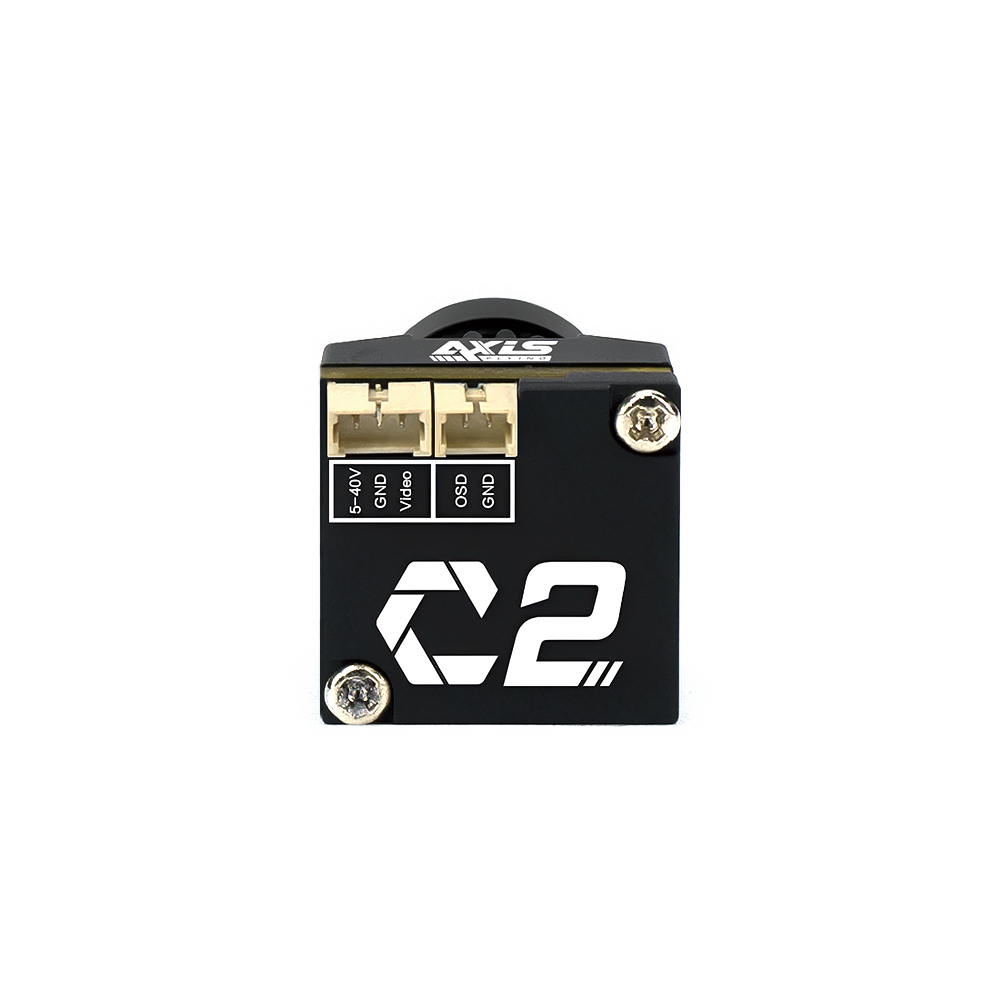

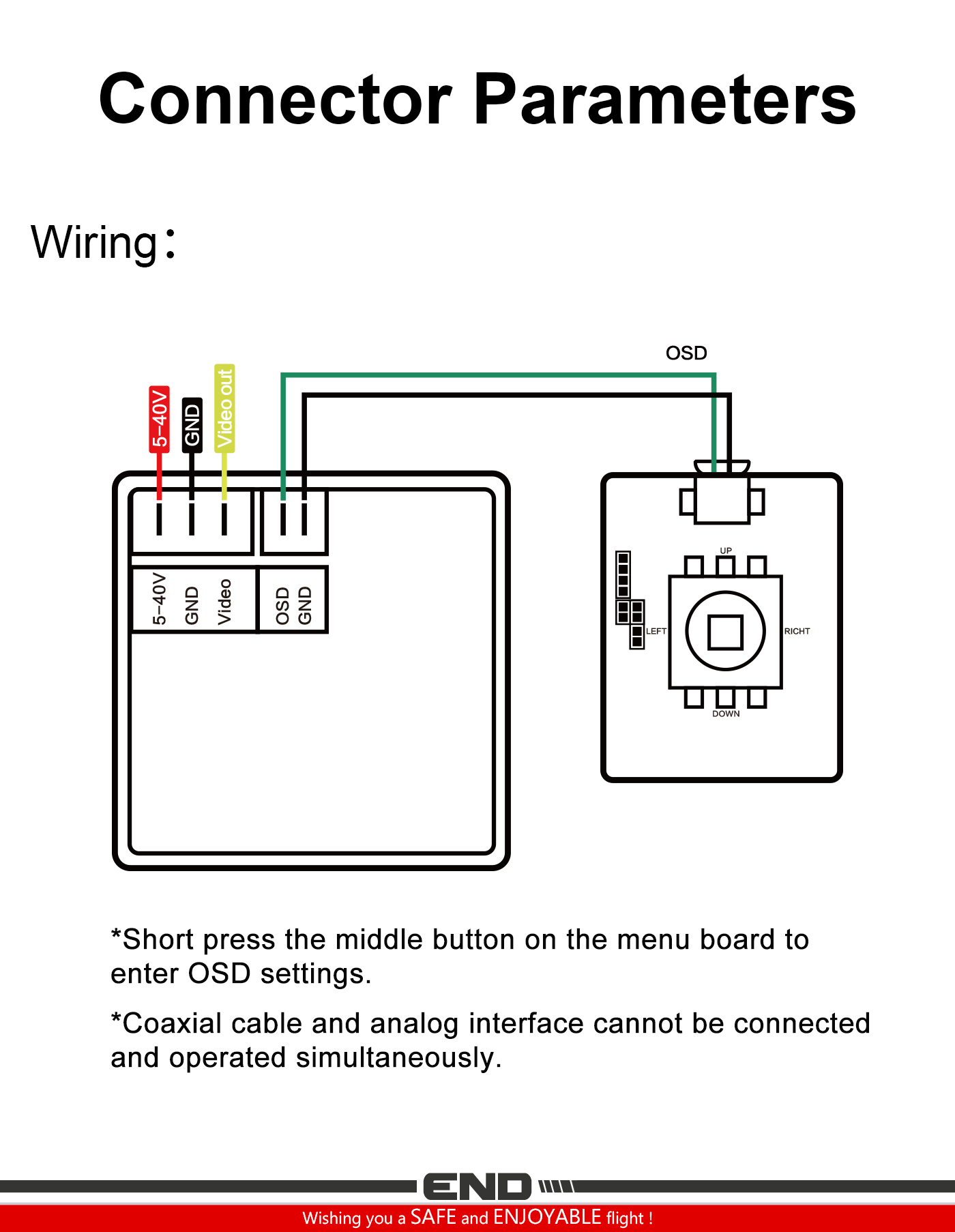

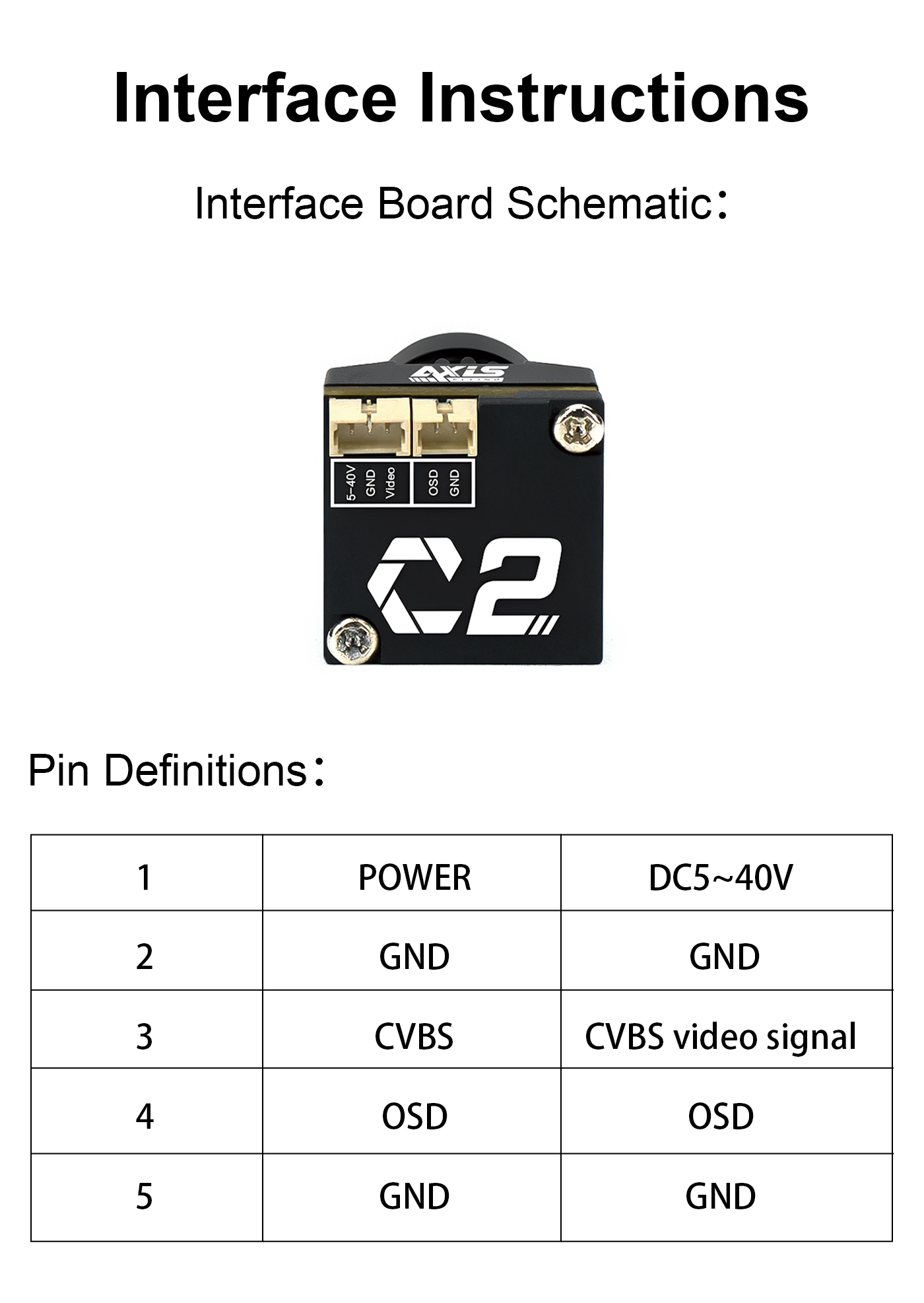

Pin Definition

1. POWER: DC 5–40V
2. GND: Ground
3. CVBS: Video signal
4. OSD: OSD control
5. GND: Ground

Package Contents

1. C2 FPV Camera ×1
2. Connecting cable ×1
3. Mounting accessories ×1 set
