Foreword
Axisflying focuses on user experience and carefully studies user sore points. In the field of freestyle and long‑flight FPV, we continuously absorb user feedback and summarise product design experience. Axisflying combines lightweight structure, reliable protection and high‑efficiency power system to bring the MANTA series with outstanding performance and innovative design.
Feature

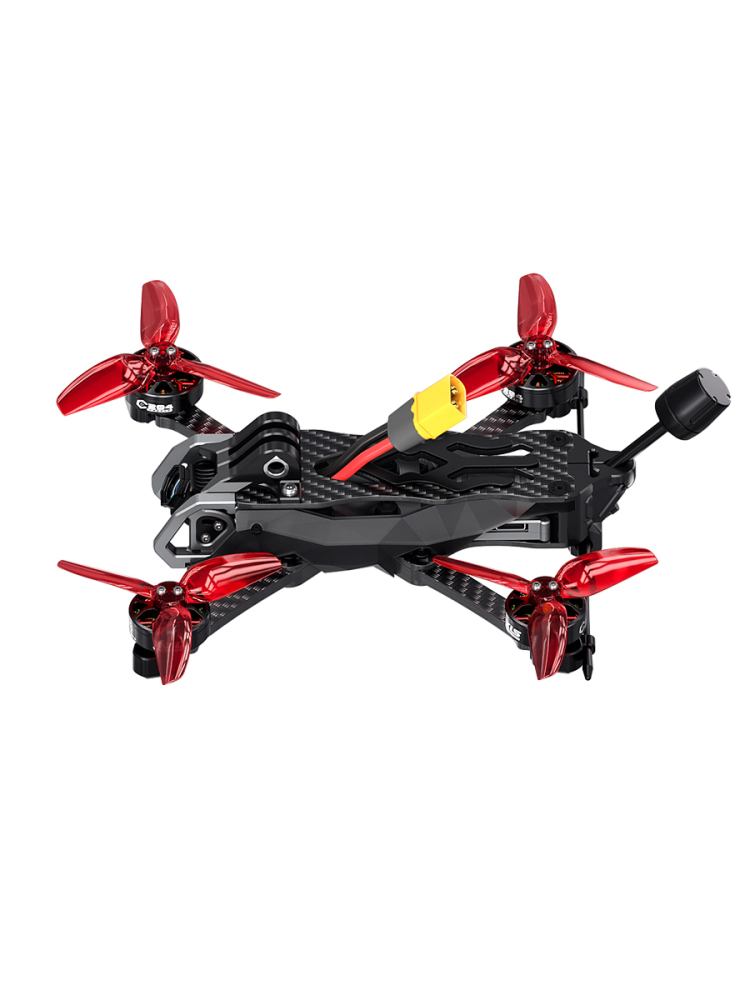

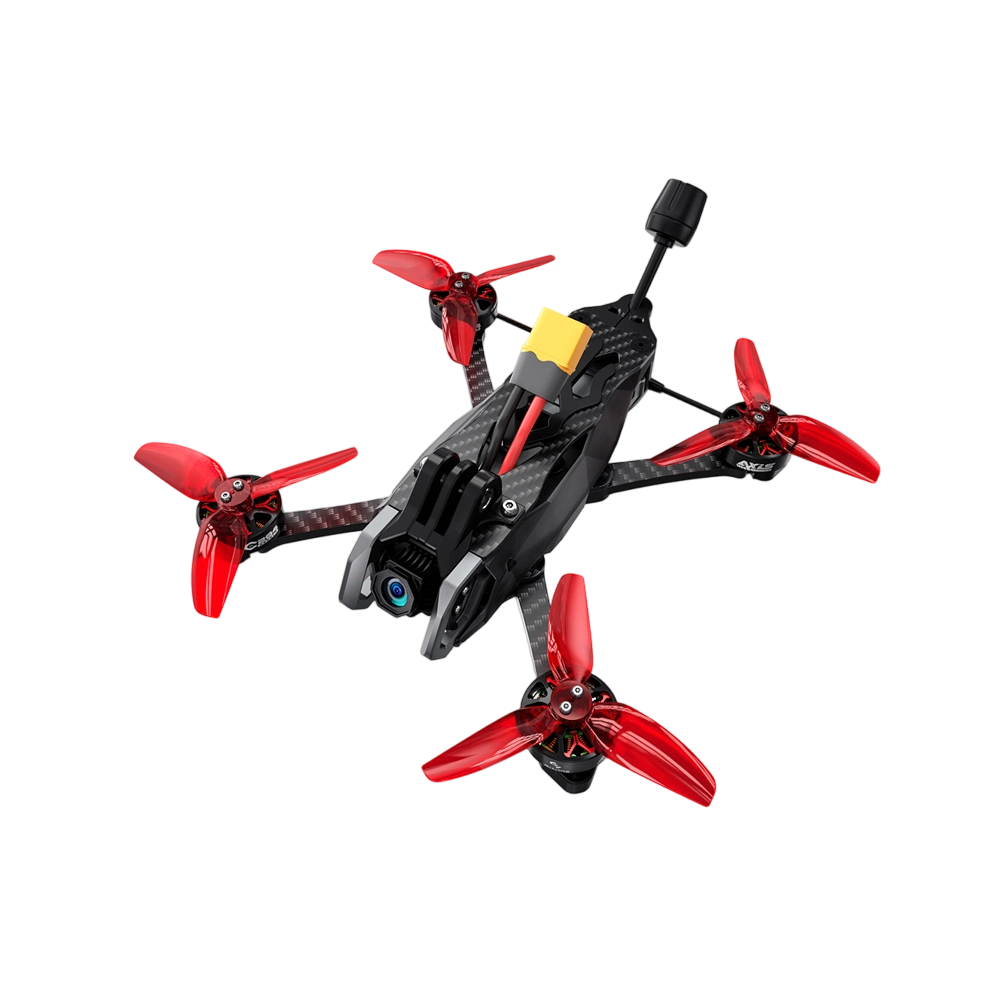

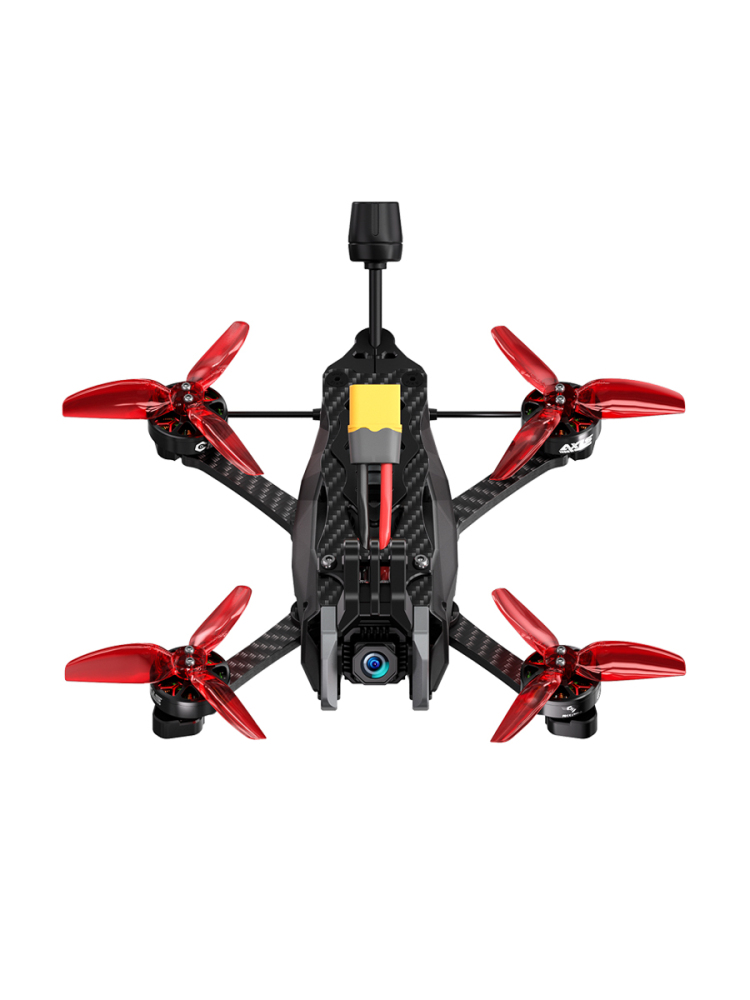

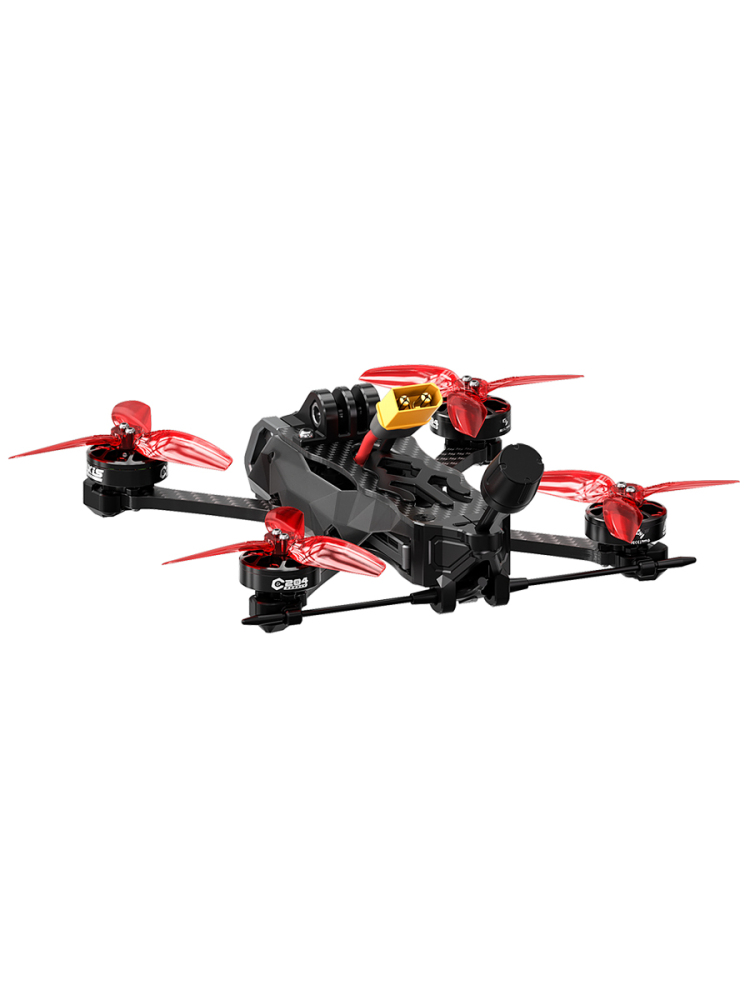

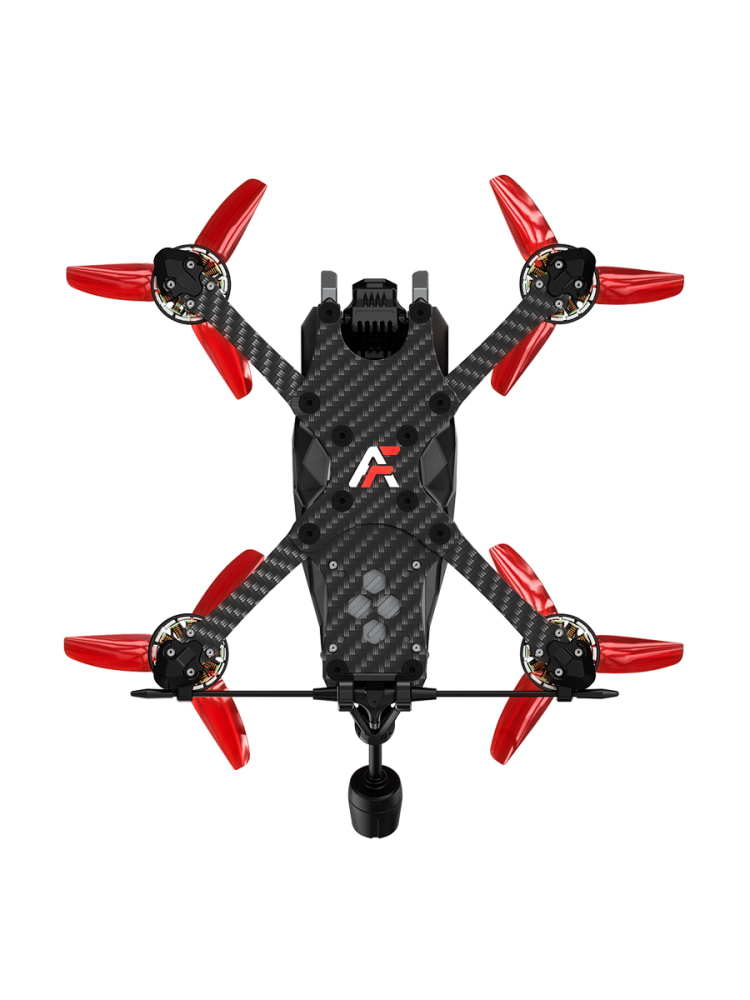

- MANTA 30 is a 3‑inch ultra‑light FPV drone, designed for extended flight time and agile handling, equipped with DJI O4 Lite HD system.
- Ultra‑low profile frame design with only 2 aluminum standoffs, compact structure and centralized center of gravity.
- Full electronics protection with debris‑proof side panels, effectively safeguard the AIO flight controller.
- Built‑in BZ121 GPS module integrated into GoPro mount, zero interference with VTX antenna, enhanced signal stability.
- Adopts Axisflying Argus F745 AIO flight controller, paired with 40A 6S ESC, strong computing power and stable output.
- Equipped with C204‑2650KV motors, high efficiency and strong power, perfect match for 3‑inch propellers.
- Factory‑tuned PID and filters, smooth and responsive control, no overheating during long‑time flight.
- Symmetrical antenna layout improves signal coverage and transmission reliability.
- Ultra‑light weight design, easy to carry and suitable for outdoor freestyle and daily long‑flight flying.
Recommended configuration
Motor: Axisflying C204‑2650KV
Battery: 6S 650–850mAh LiHV / LiPo
Stack: Axisflying Argus F745 AIO
Props: 3‑inch propellers
VTX: DJI O4 AIR UNIT (O4 Lite)
Receiver: Axisflying ELRS 2.4G / 915M / TBS Nano RX
GPS: BZ121
Specifications
Name: Axisflying MANTA 30
Wheelbase: 160mm
Structure: Compact 3‑inch FPV frame
Weight: 225±10g
Top plate thickness: 2mm
Center plate thickness: 2mm
Bottom plate thickness: 2mm
Arm thickness: 4mm
Flight controller: Axisflying Argus F745 AIO
Gyro: ICM‑42688‑P
ESC: 40A 6S compatible
VTX: DJI O4 AIR UNIT (O4 Lite)
Motor: C204‑2650KV
Prop size: 3‑inch
Antenna: DJI O4 5.8G‑L
Battery connector: XT60
Input voltage: 6S
Recommended battery: 6S 650–850mAh LiHV/LiPo
Package Contents
- MANTA 30 FPV Quadcopter ×1
- Propellers (2L + 2R) ×1 set
- Battery strap ×2
- Battery pad ×2
- GoPro mount (Practical Version) ×1
- M1.5 hex screwdriver ×1
- M2 hex screwdriver ×1
- M3 hex screwdriver ×1
- RTF manual ×1
- Stickers ×2
