Foreword

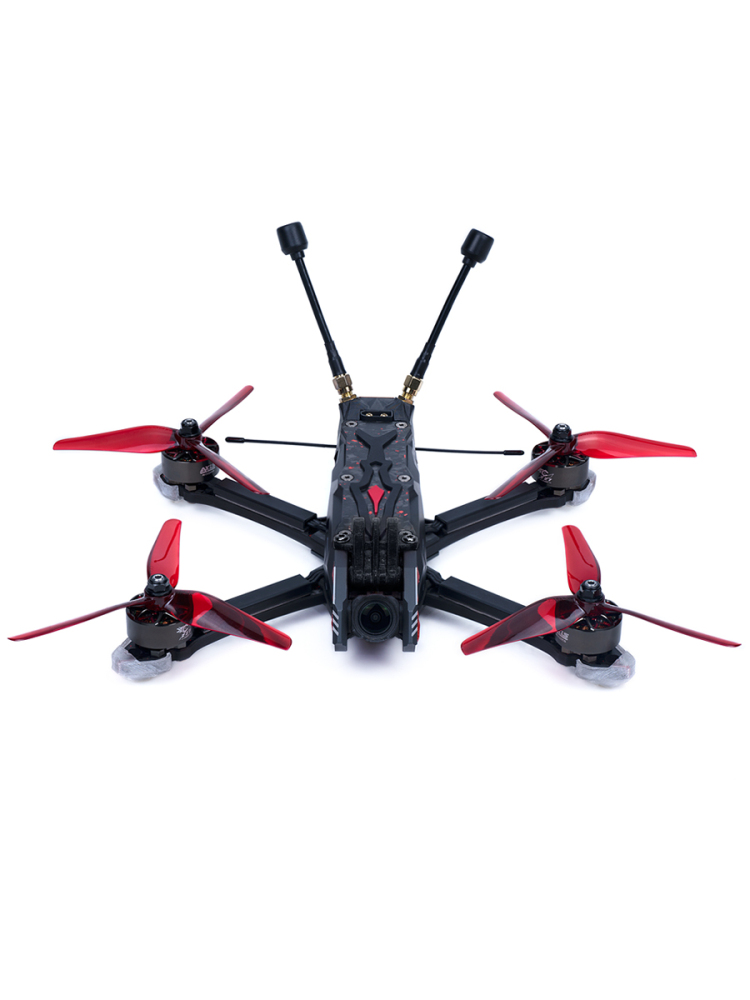

Axisflying focuses on user experience and carefully studies user sore points. In the field of freestyle and cinematic filming, we continuously absorb user feedback and summarise product design experience. Axisflying combines forged carbon fiber, high-performance electronic system, personalized LED lighting and GPS positioning module to create the MANTA 5 PRO, a high-performance 5-inch FPV drone for professional pilots.
Feature

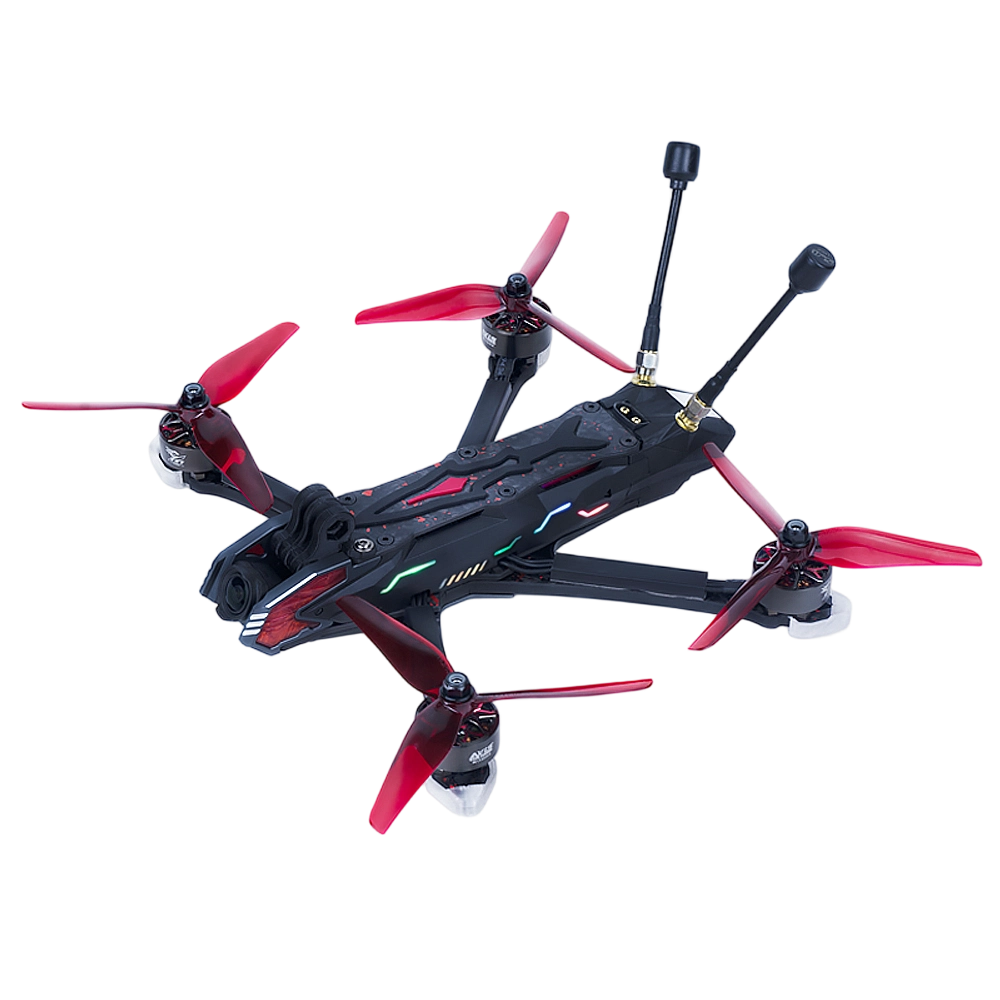

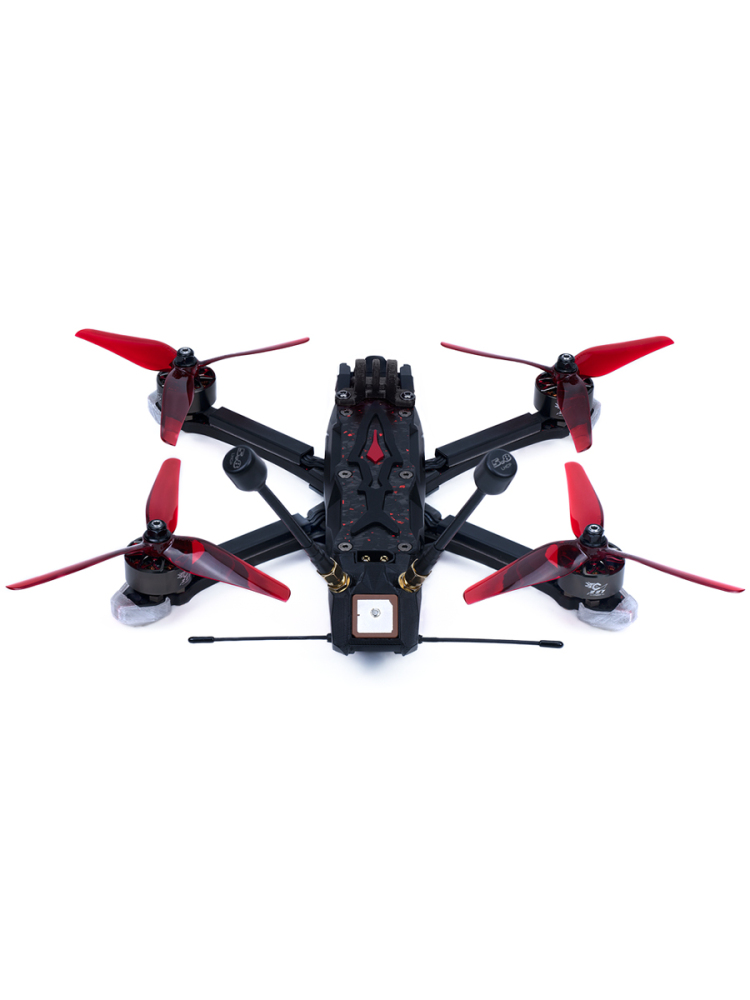

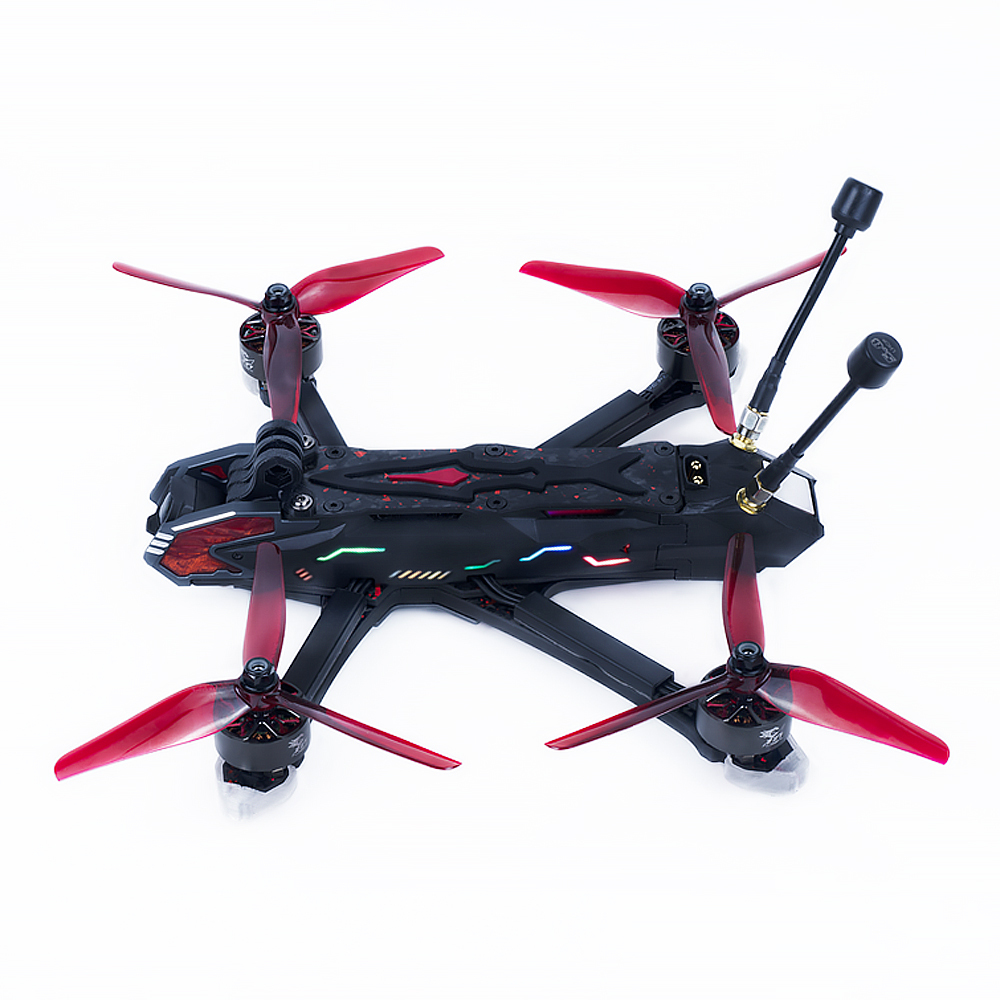

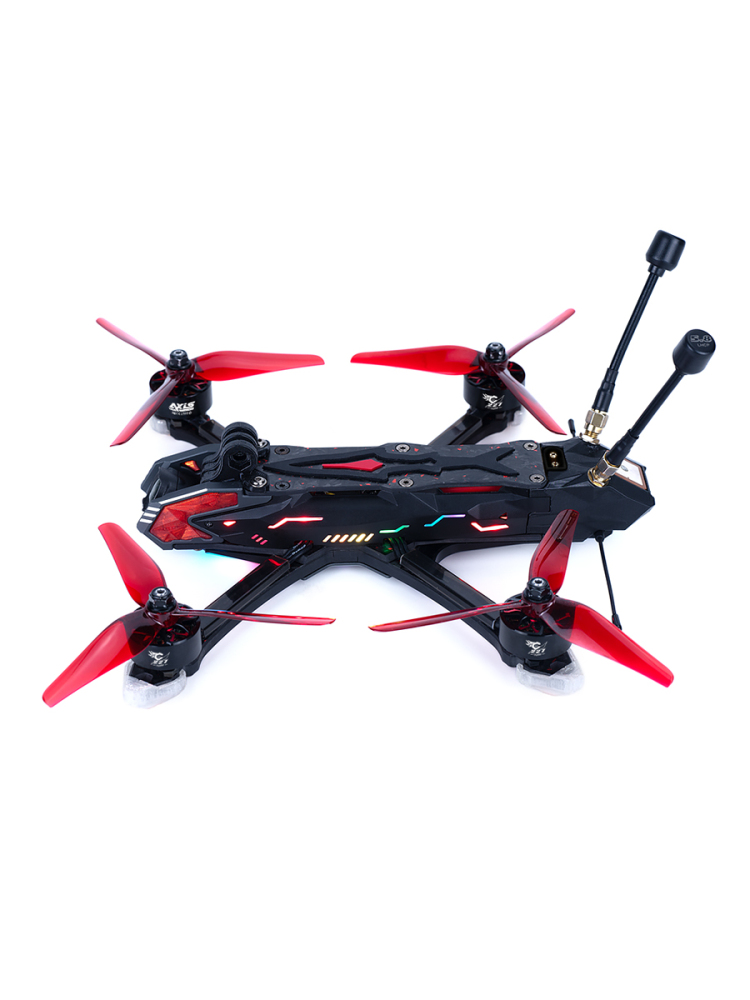

- MANTA 5 PRO is a 5-inch high-performance FPV drone, available in DC / Squashed X versions, ideal for freestyle and cinematic shooting.

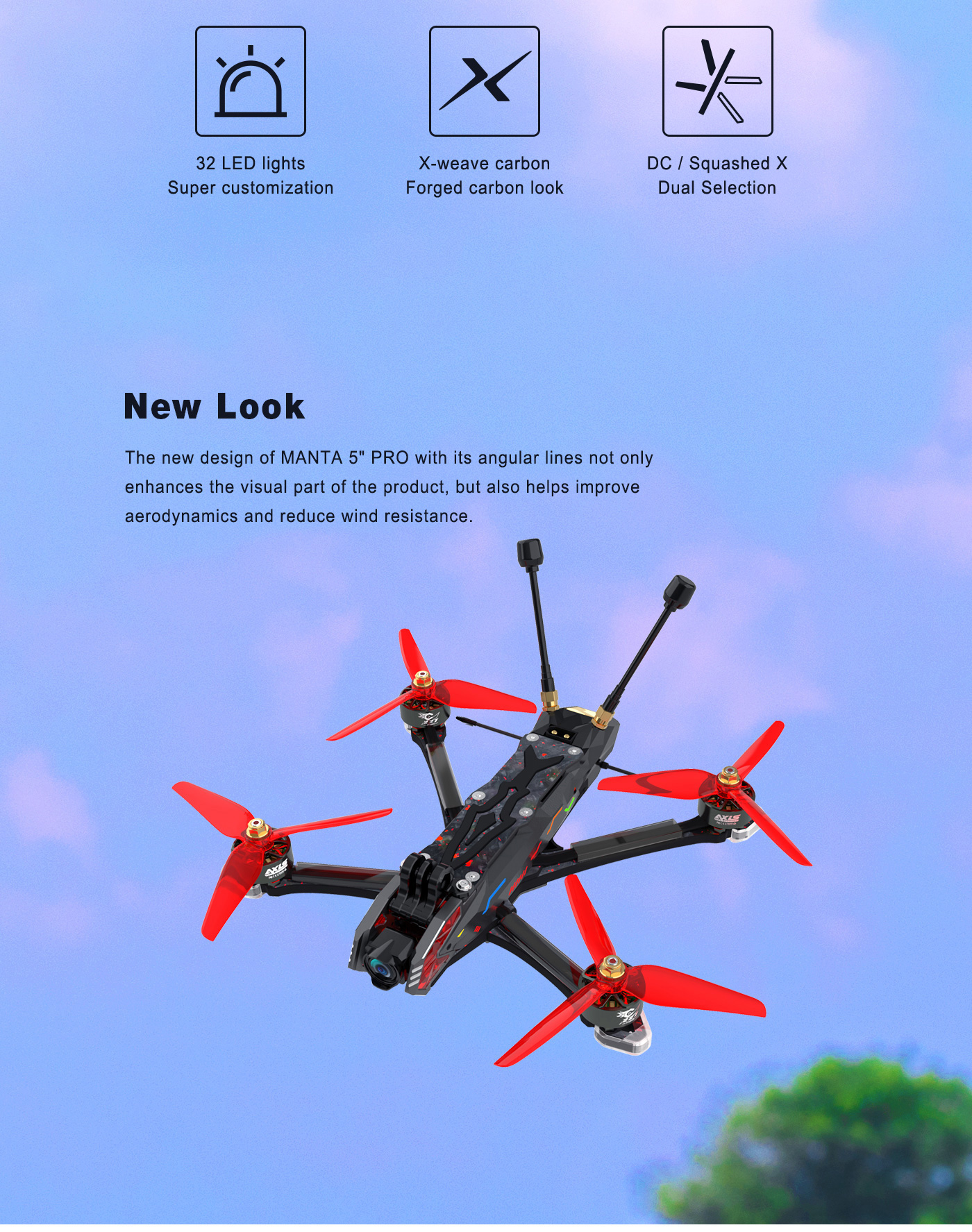

- Aerodynamic design ensures stable performance at speeds up to 180km/h, with lower drag and better agility.

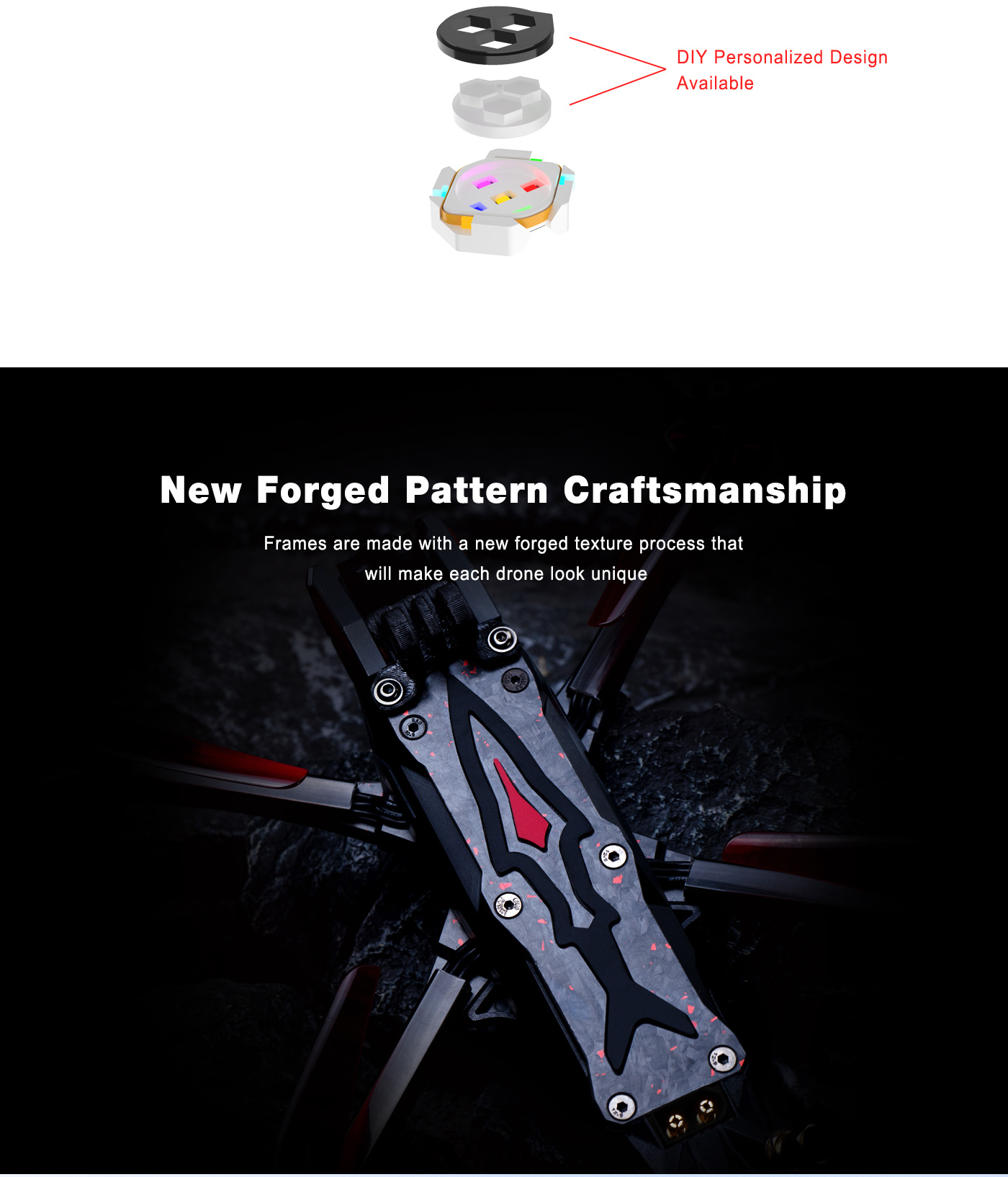

- New forged texture carbon fiber plate, with high strength and unique appearance, impact-resistant and durable.

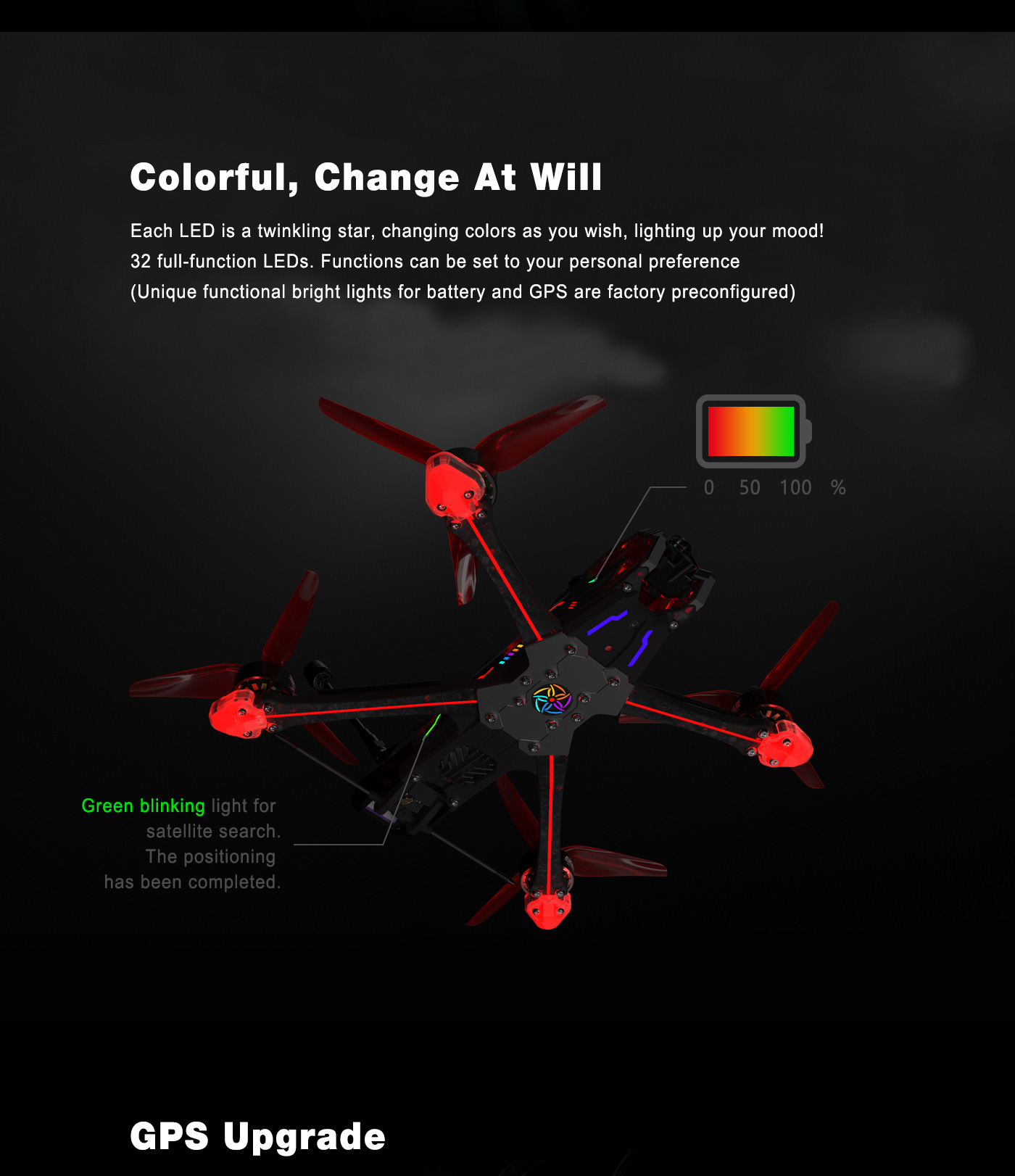

- Equipped with 34 customizable LEDs, practical for indicating battery level and GPS 3D lock status, stylish and functional.

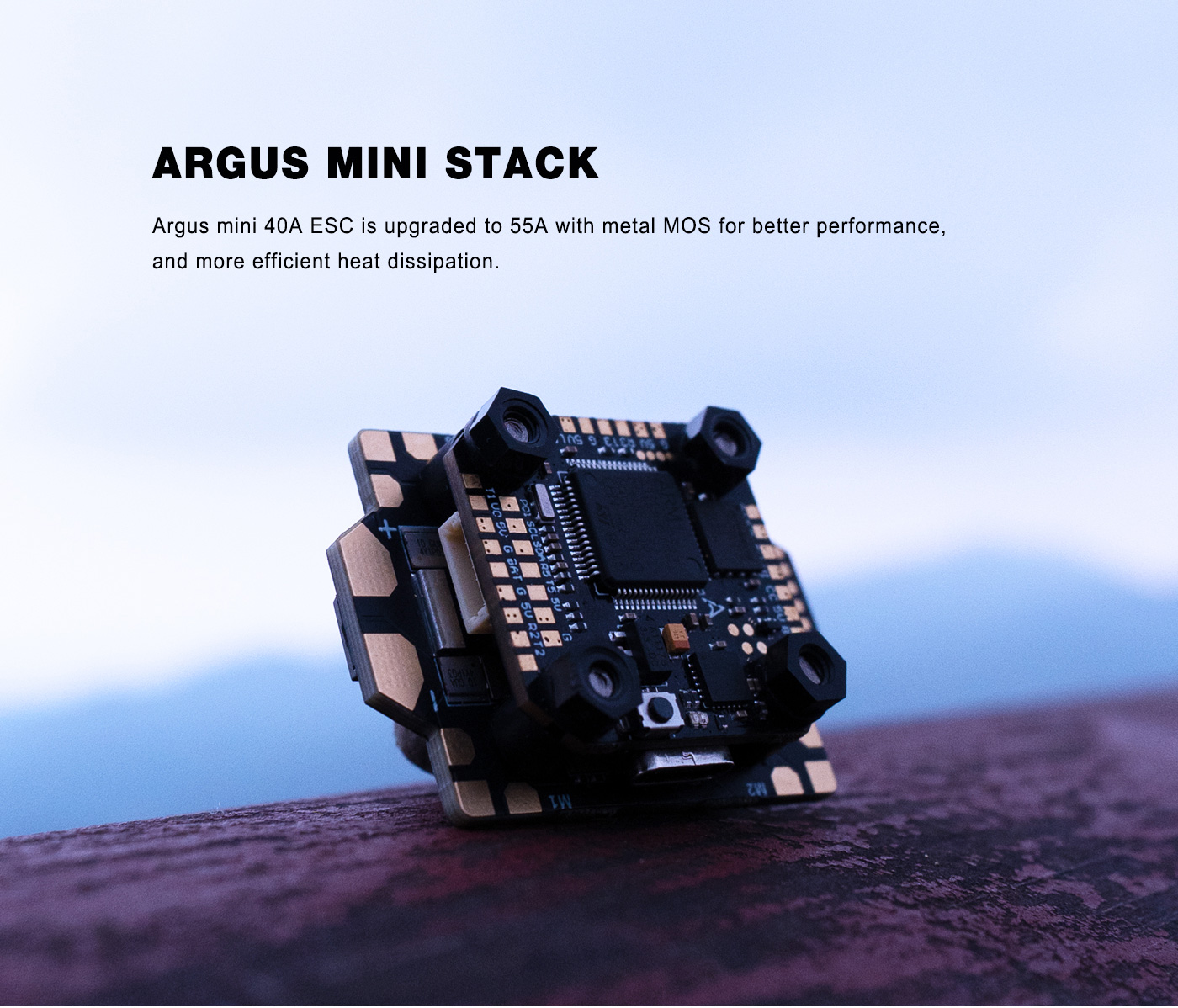

- Upgraded Argus Mini stack: F722-Mini flight controller + 55A 32-bit mini ESC, strong power and efficient heat dissipation.

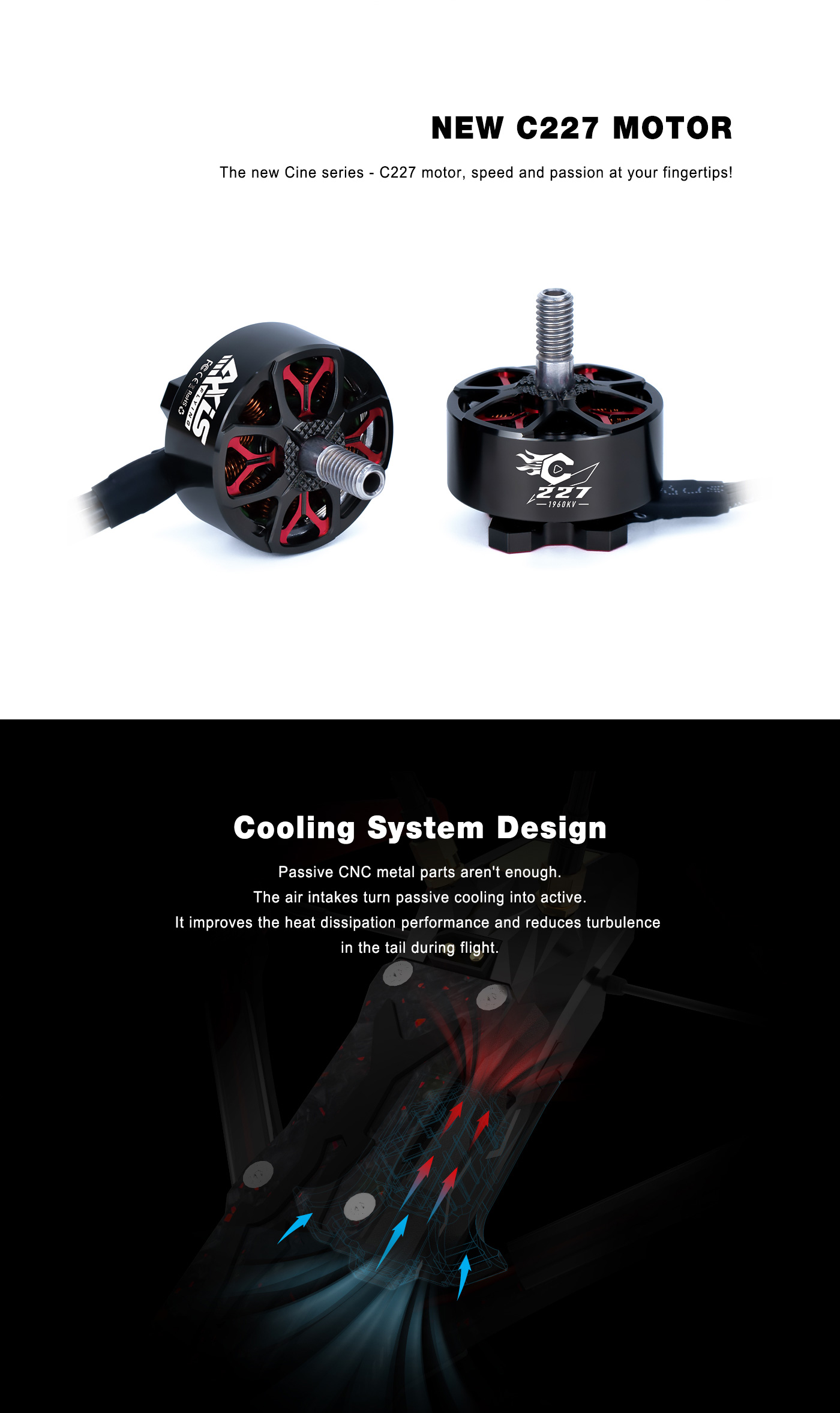

- New C227-1960KV motor, smooth, stable and powerful, perfect match for 5.1-inch propellers.
- Built‑in latest UBX M10 GPS module with high sensitivity ceramic antenna, fast satellite search and strong anti-interference.
- Compatible with DJI O4 PRO HD digital system, providing high‑definition and low‑latency flight image.

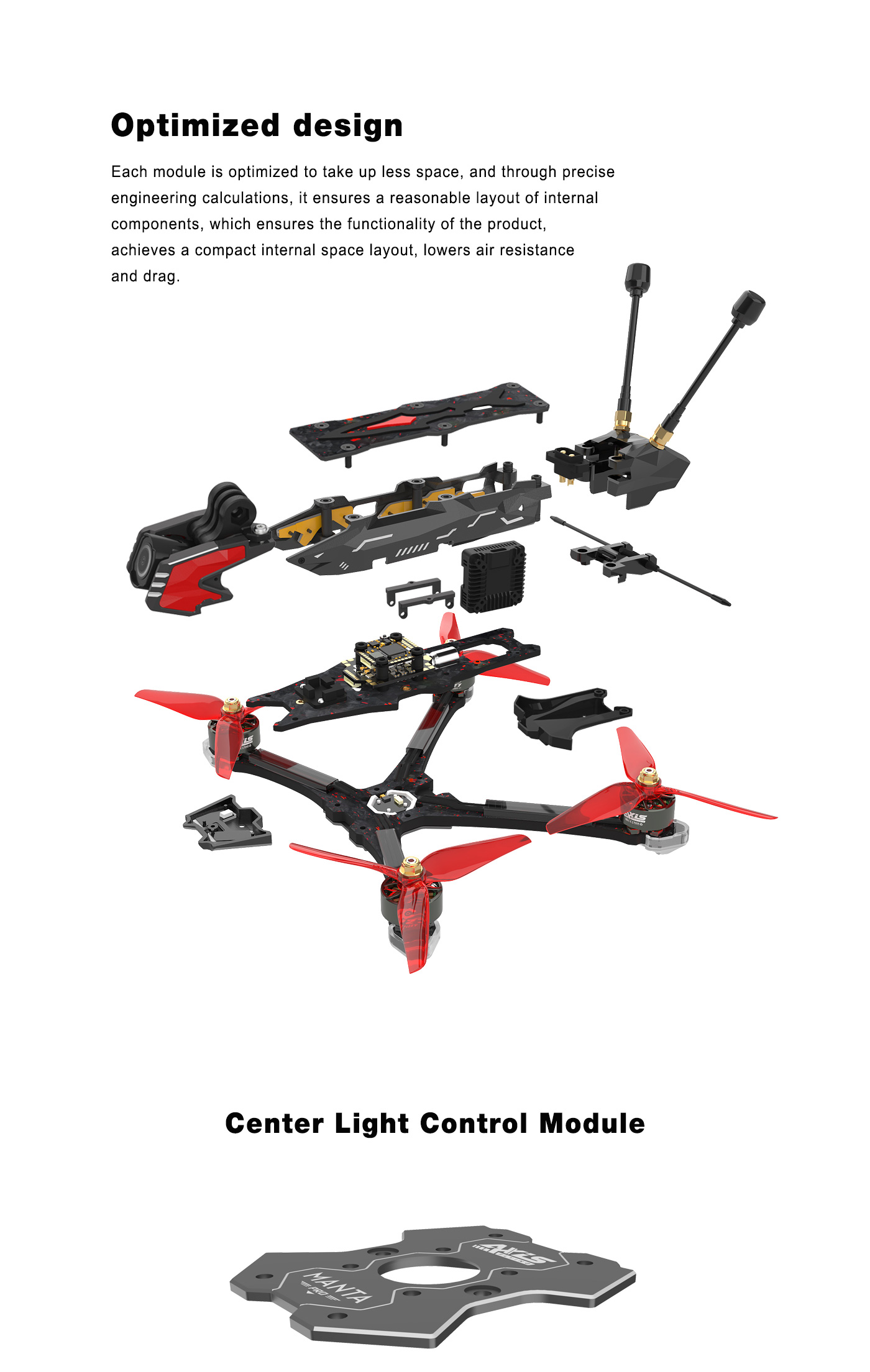

- Optimized internal layout and active cooling design, ensuring stable operation of electronic equipment.
- Compact structure, centralized center of gravity, suitable for high‑speed flight and complex environment maneuver.
Recommended configuration
Motor: Axisflying C227-1960KV
Battery: 6S 1300–1800mAh LiHV / LiPo
Stack: Axisflying F722-Mini + 55A 32Bit Mini ESC
Props: 5.1
3.83 (max 5.1 inch)
VTX: DJI O4 PRO
Receiver: TBS Nano RX / ELRS 2.4G
GPS: UBX M10

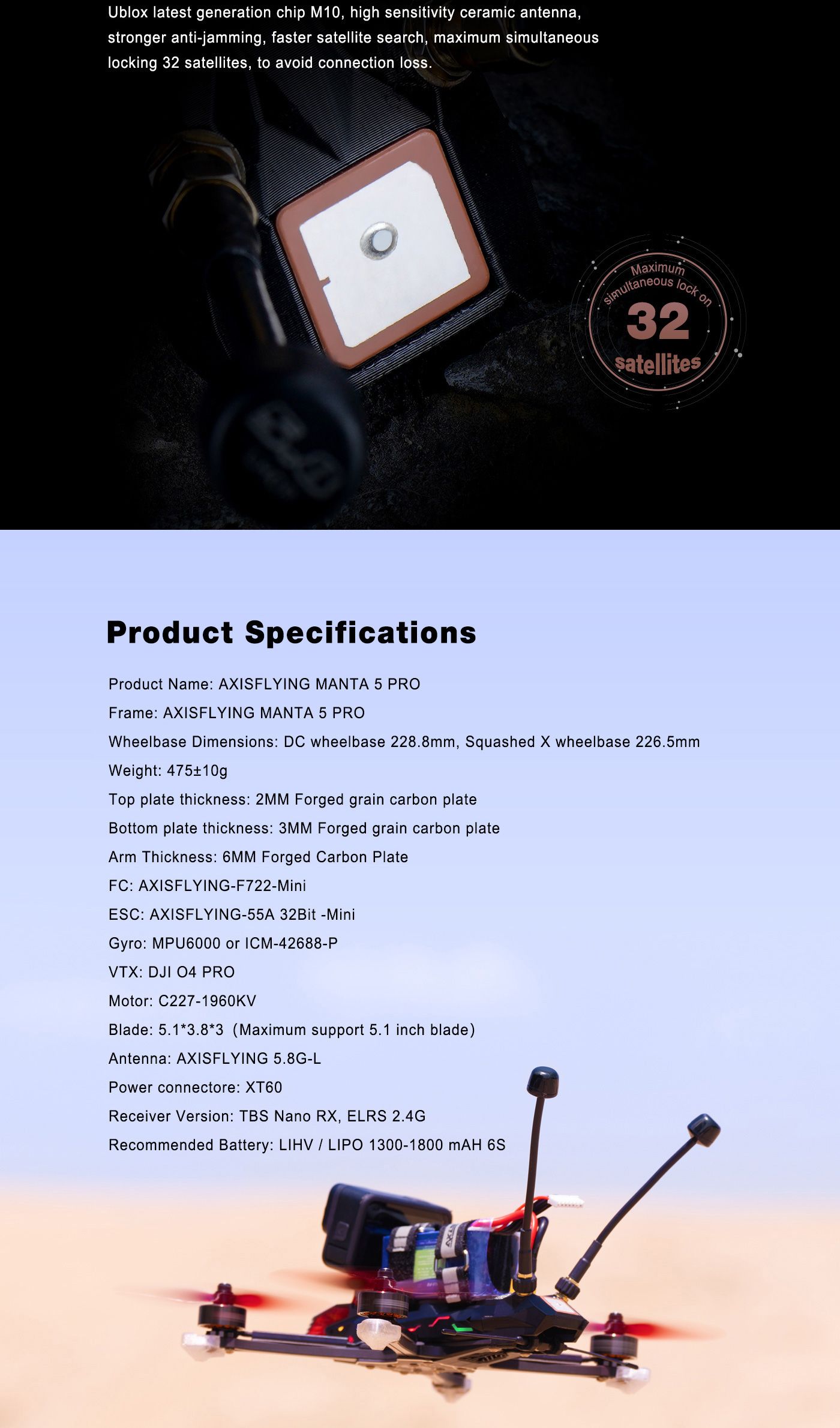

Specifications

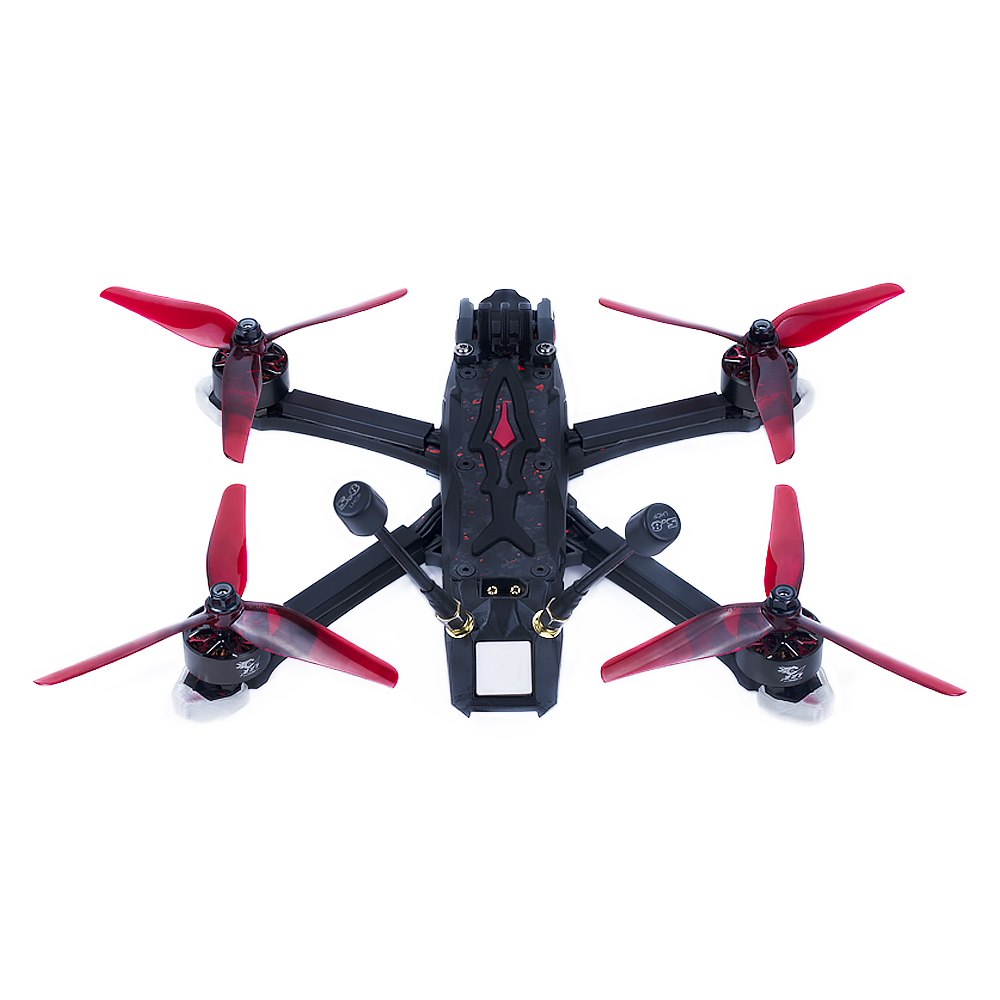

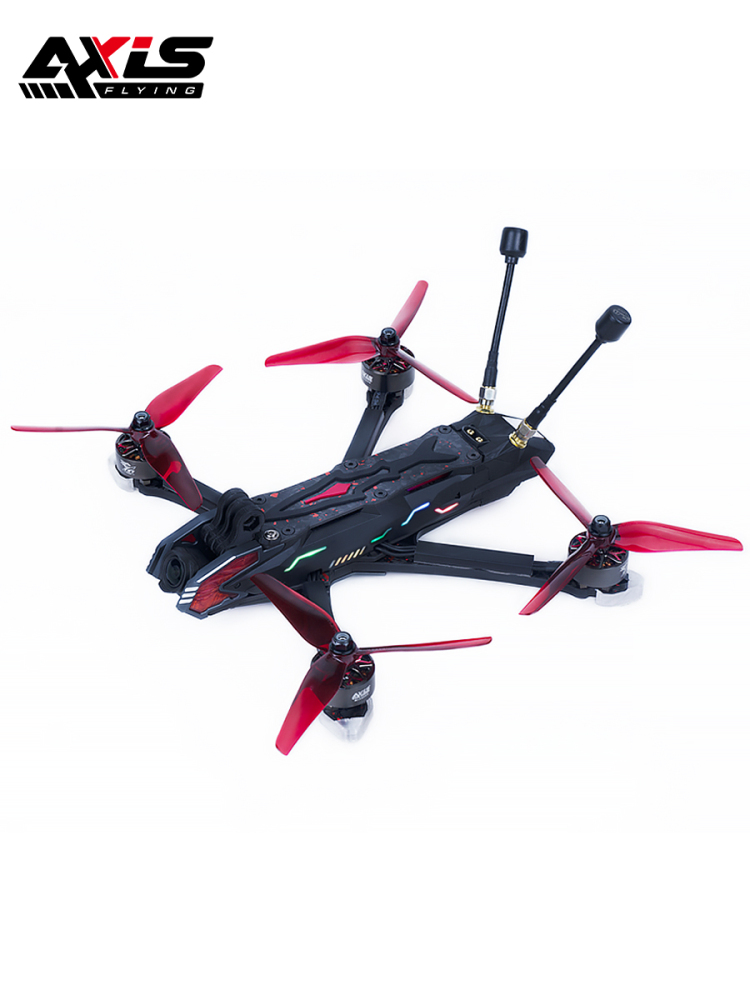

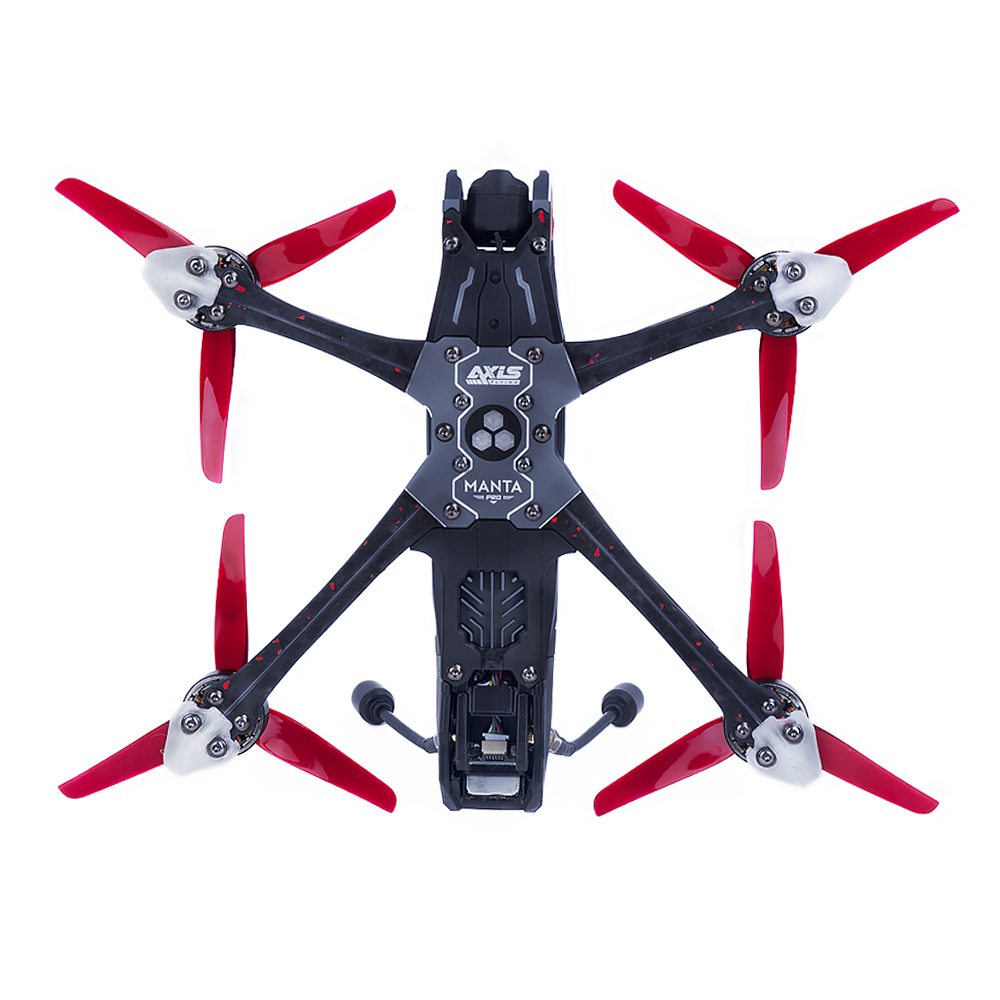

Name: Axisflying MANTA 5 PRO
Frame: Axisflying MANTA 5 PRO

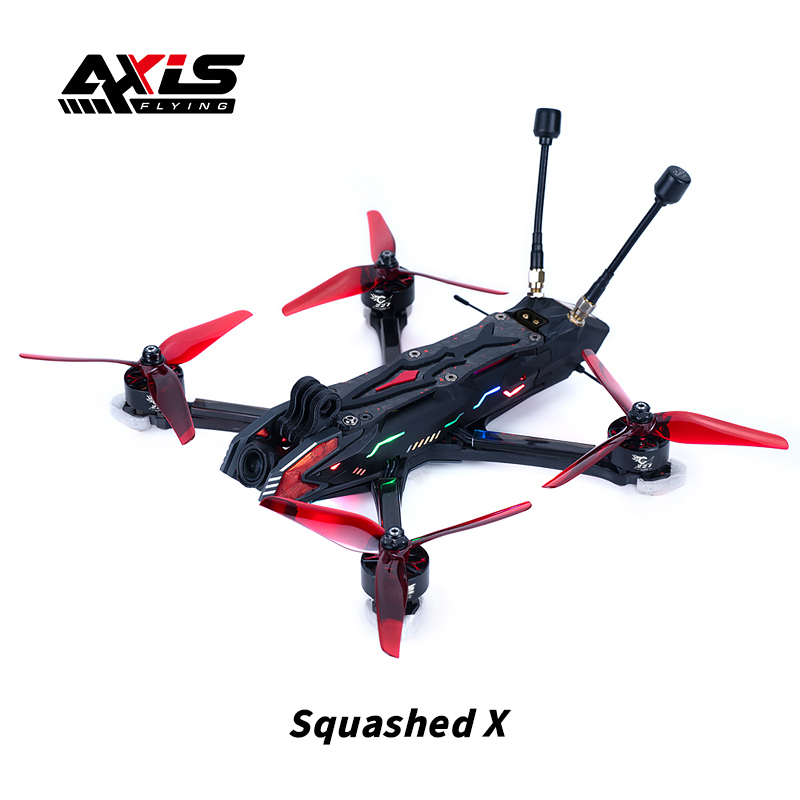

Structure: DC / Squashed X
Wheelbase: DC 228.8mm / Squashed X 226.5mm
Weight: 475±10g
Top plate thickness: 2mm forged carbon
Bottom plate thickness: 3mm forged carbon
Arm thickness: 6mm forged carbon
Flight controller: AXISFLYING-F722-Mini
ESC: AXISFLYING-55A 32Bit-Mini
Gyro: MPU6000 / ICM-42688-P
VTX: DJI O4 PRO
Motor: C227-1960KV
Prop size: Max 5.1 inch
Antenna: AXISFLYING 5.8G-L
Battery connector: XT60
Input voltage: 6S
LED: 34 customizable LEDs
GPS: UBX M10
Package Contents
- MANTA 5 PRO FPV Drone ×1
- Propellers ×2 bags
- VTX antenna ×2
- Screwdriver set (1.6 / M2 / M3) ×3
- Spare battery anti-slip sticker ×1
- Spare battery straps ×2
- GoPro fixing screws (with nuts) ×1
- User manual ×1
