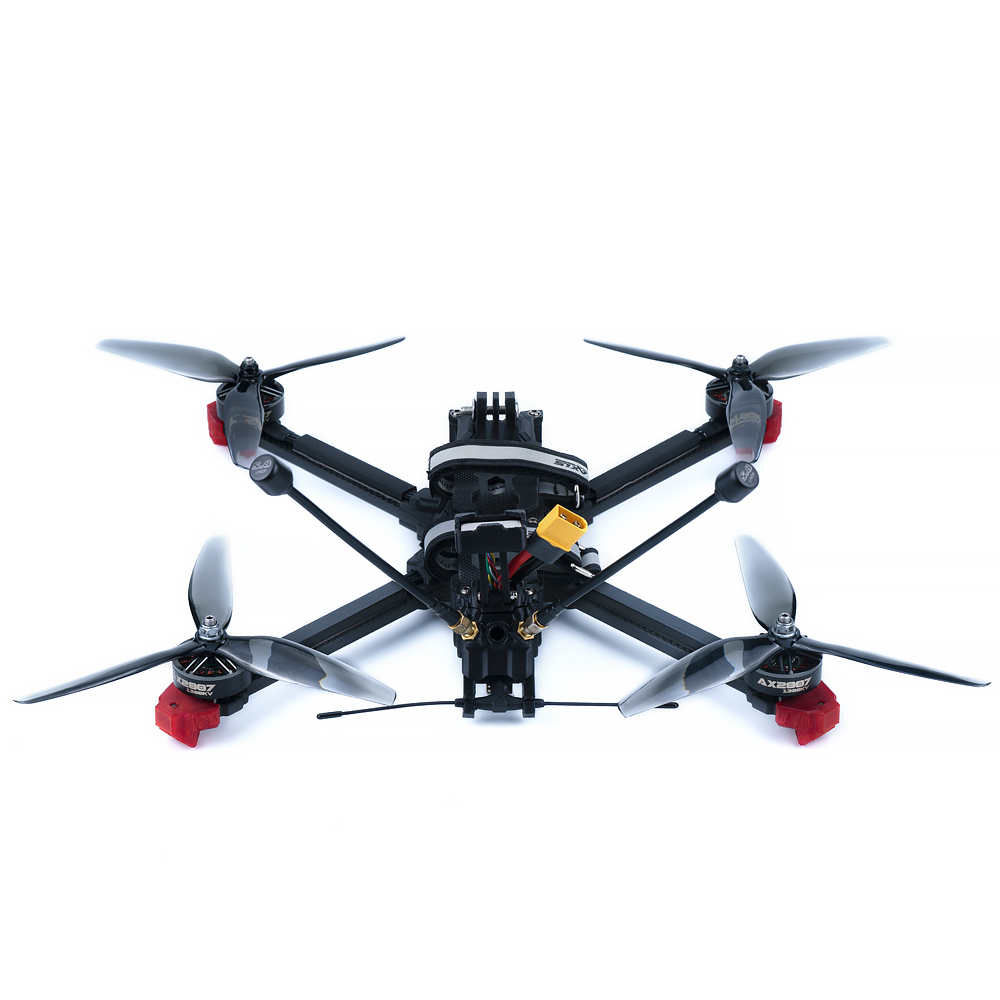

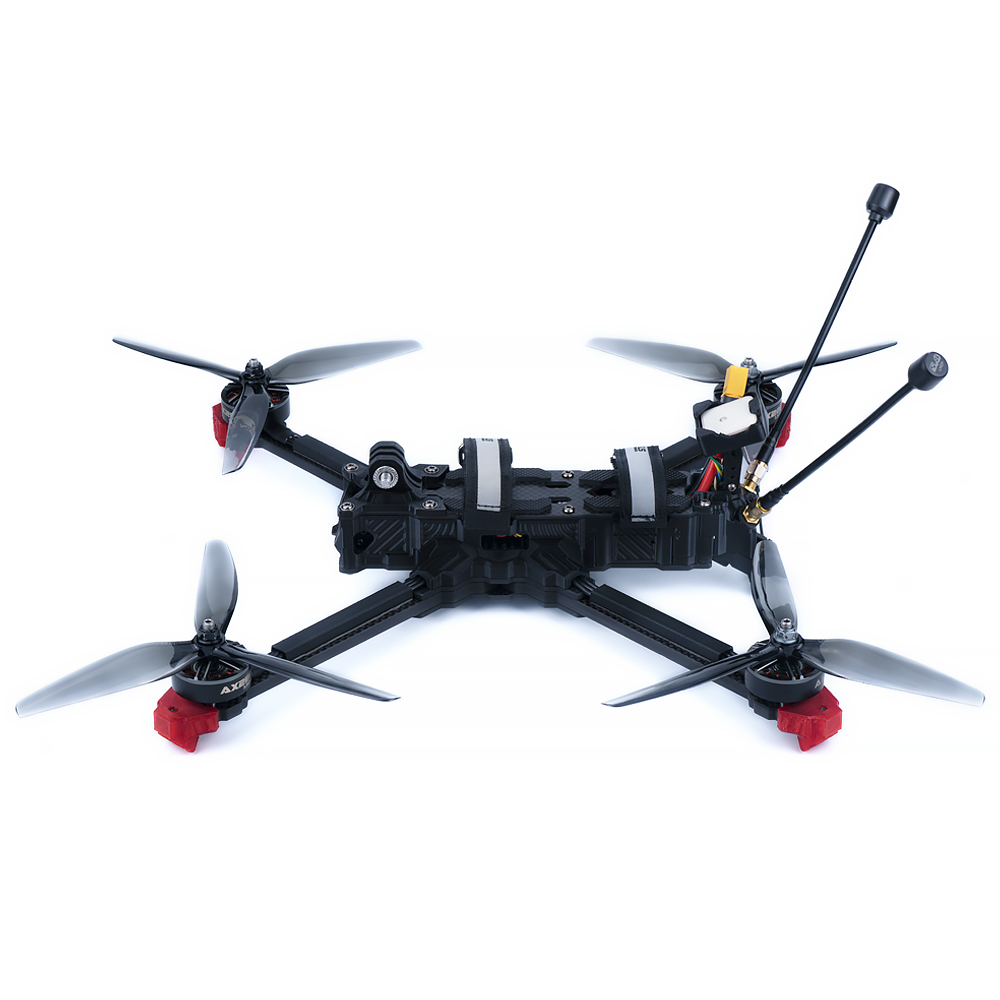

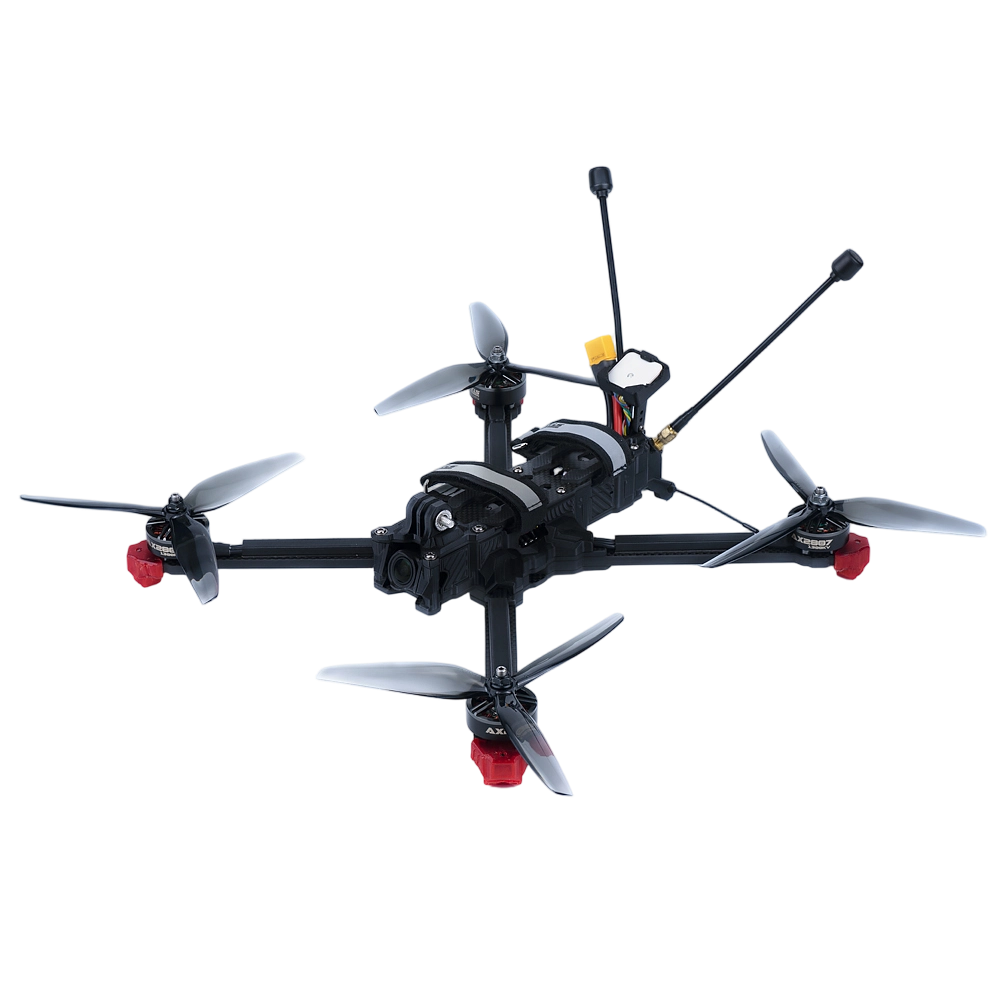

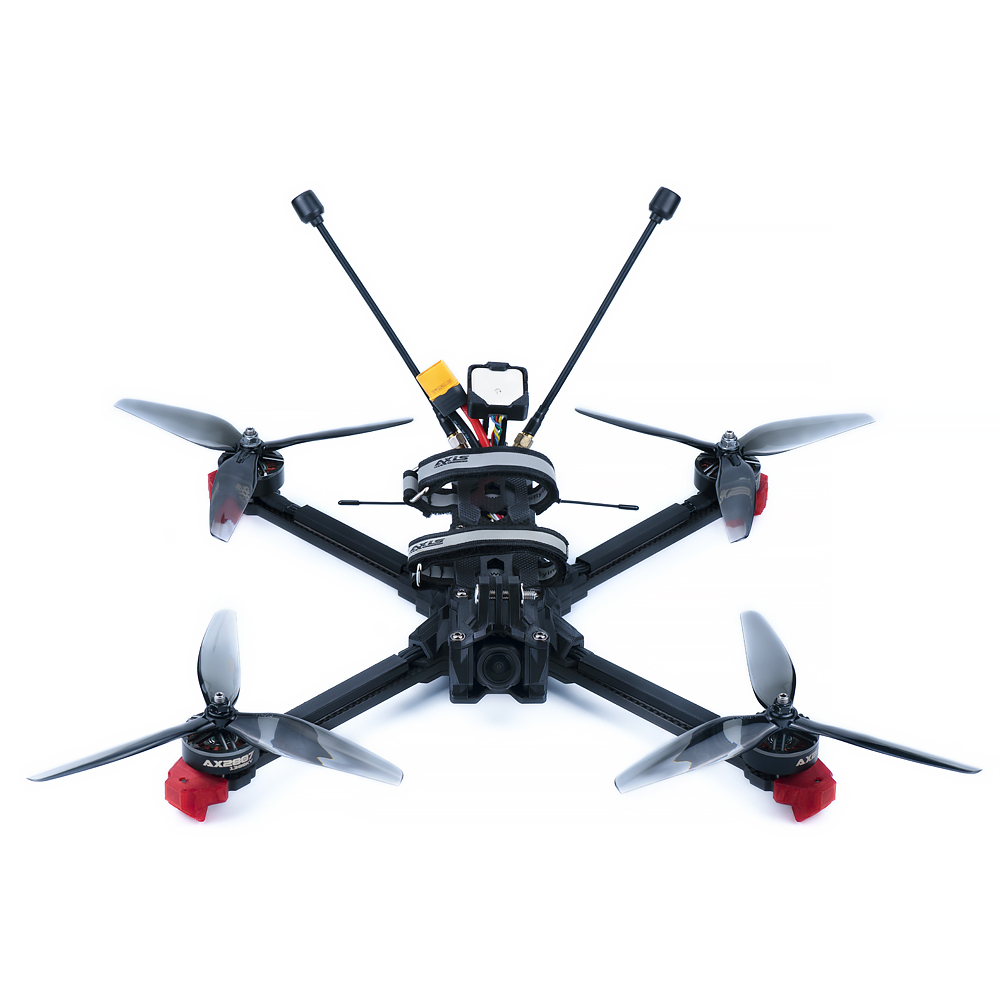

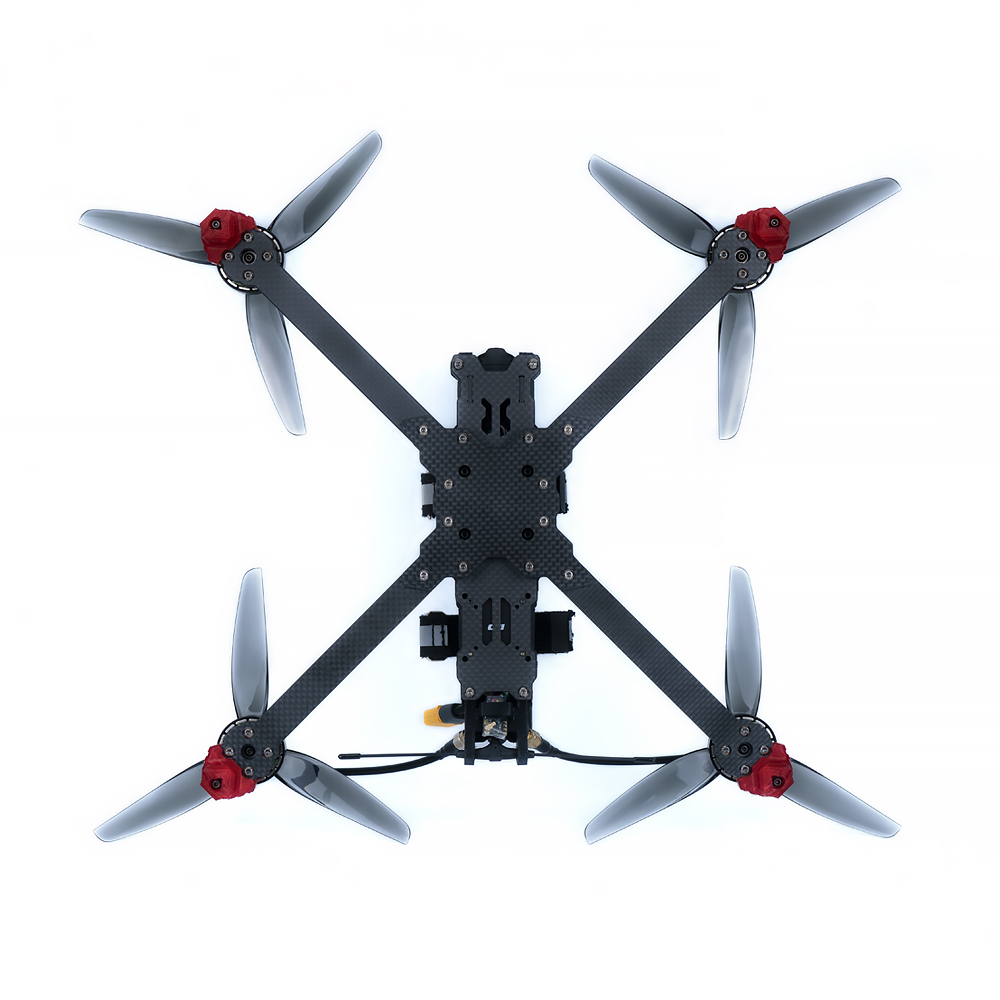

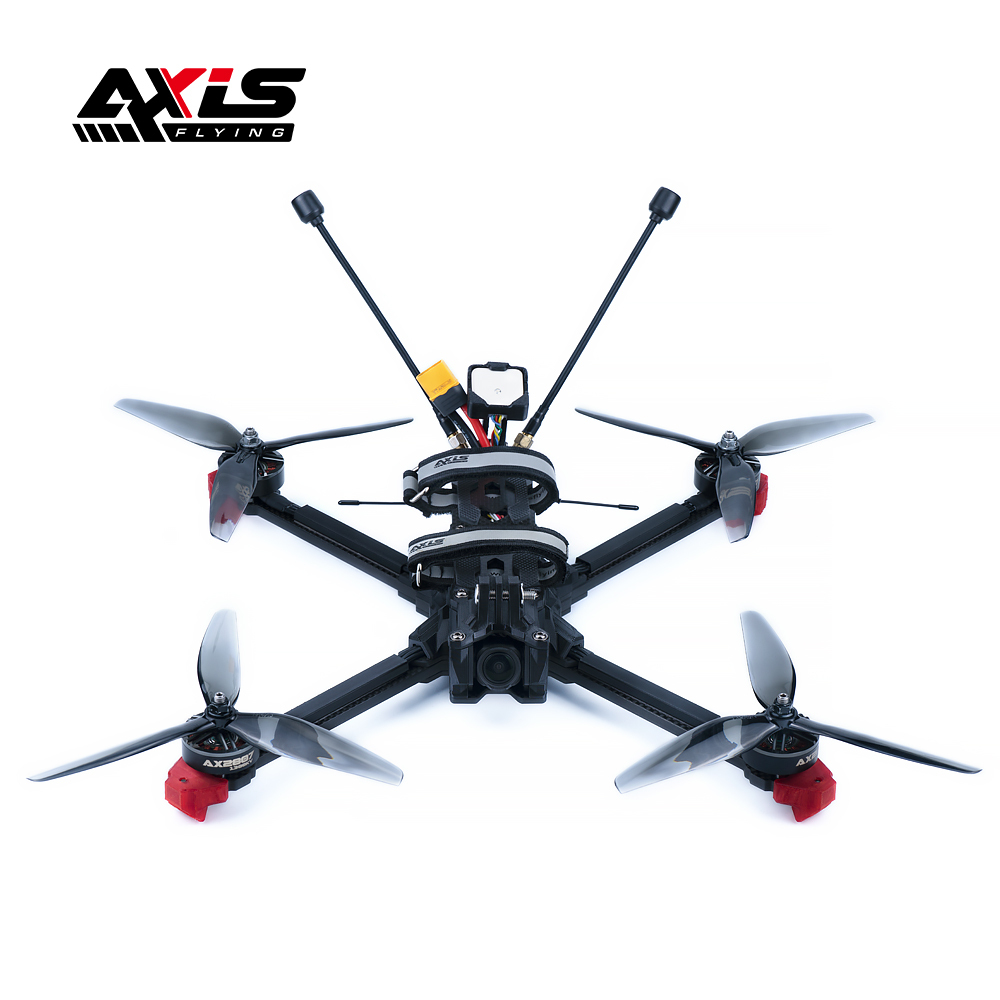

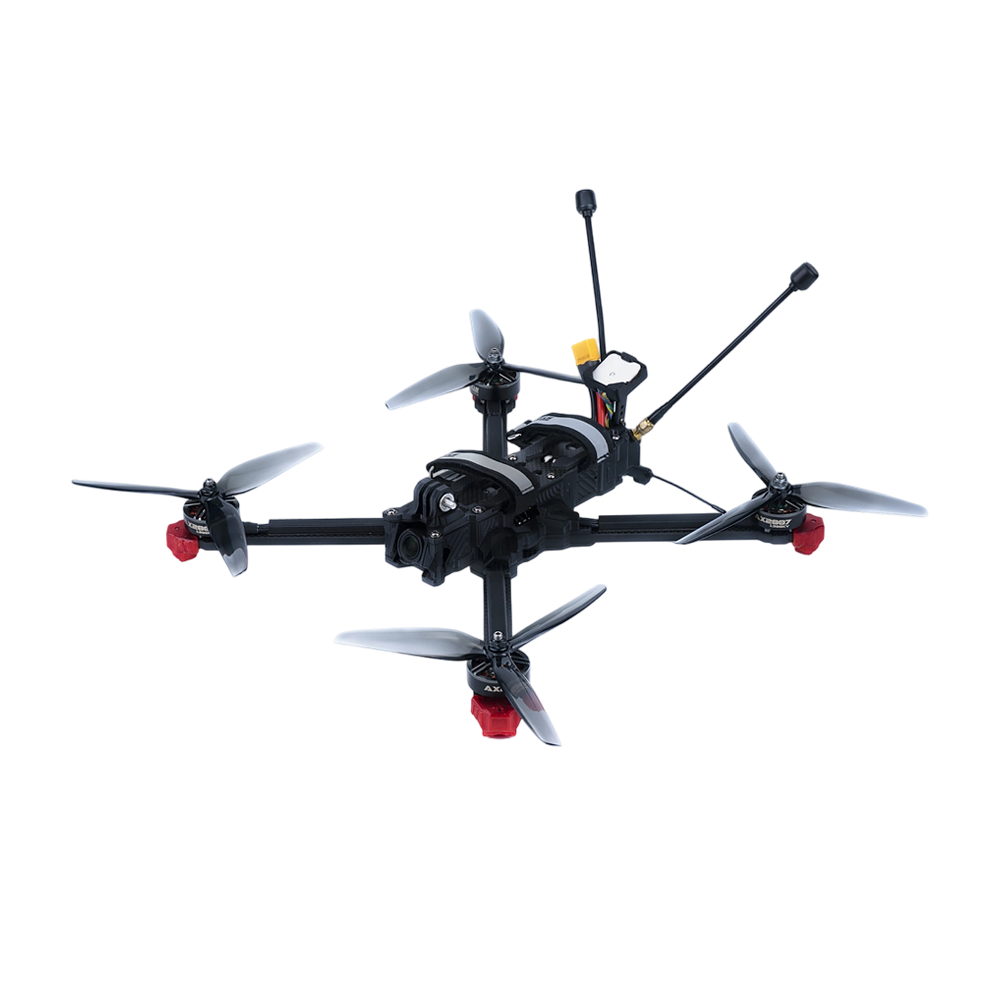

MANTA 7”X Lite
True X Structure / Stable Flight
SKU: True X Analog 5.8G 3w vtx

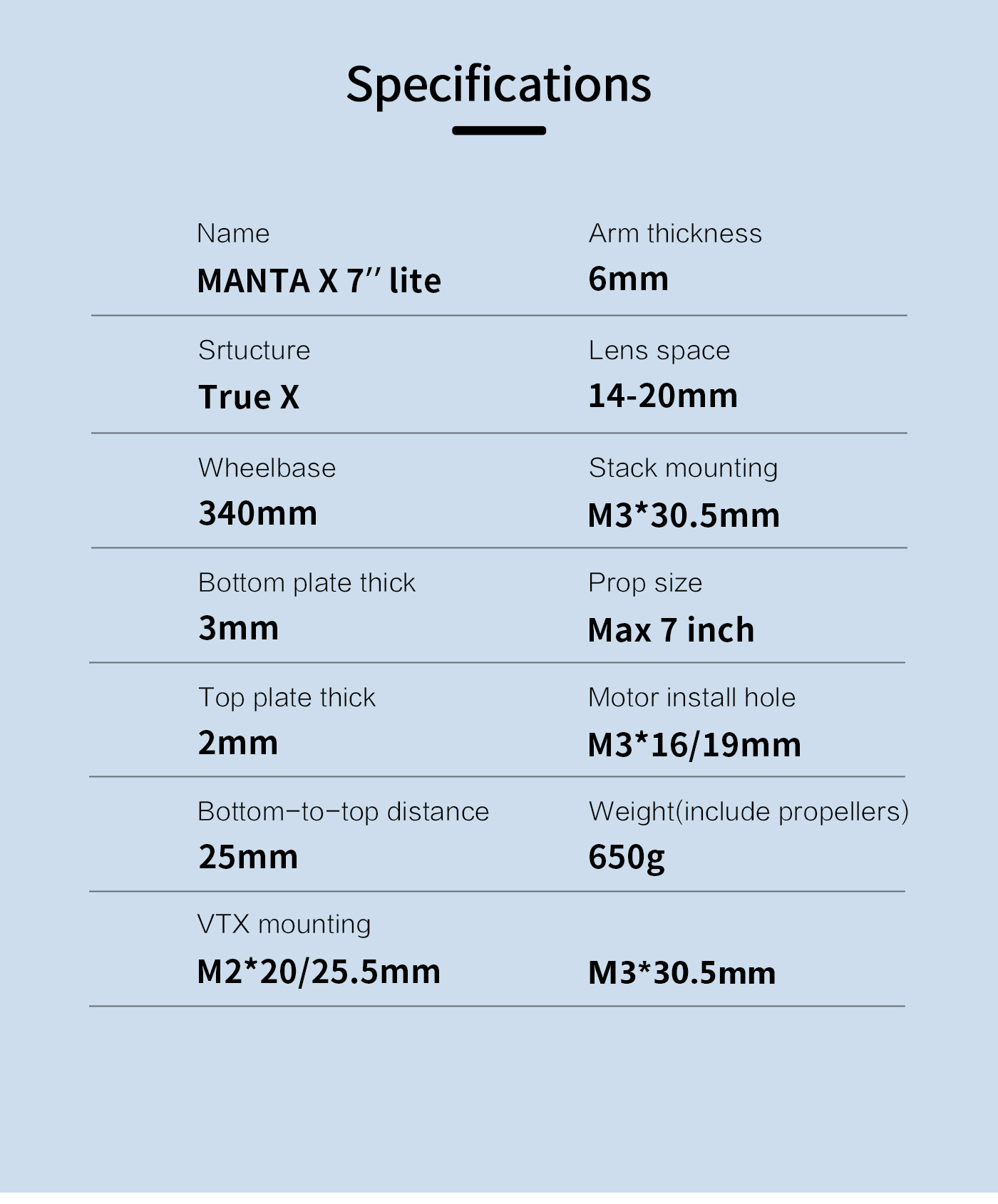

| Parameter | Specification |
|---|---|
| Model | MANTA 7”X Lite |
| Brand | Axisflying |
| Frame Geometry | True X |
| Wheelbase | 340mm |
| Frame Material | T700 Forged Carbon Fiber + CNC Aluminum |
| Arm Thickness | 6mm |
| Weight (with props) | ~650g |
| Payload | 1.5–2kg |
| Motor | AX/AZ2807 1350KV |
| ESC | Argus 55A/60A 4-in-1 |
| Flight Controller | Axisflying F405/F722 |
| Recommended Battery | 6S 5600–6000mAh LiPo |
| Flight Time | 25min (no load) / 10–15min (full load) |
| Max Range | 15–20km |
| Max Speed | 140km/h |
| VTX | 5.8G 2.5W/3W (optional 1.2G/3.3G) |
| Mounting | 20×20mm/25.5×25.5mm (stack); M3 (motor) |
| Features | Quick-release arms, HD camera compatible, GPS reserved |
