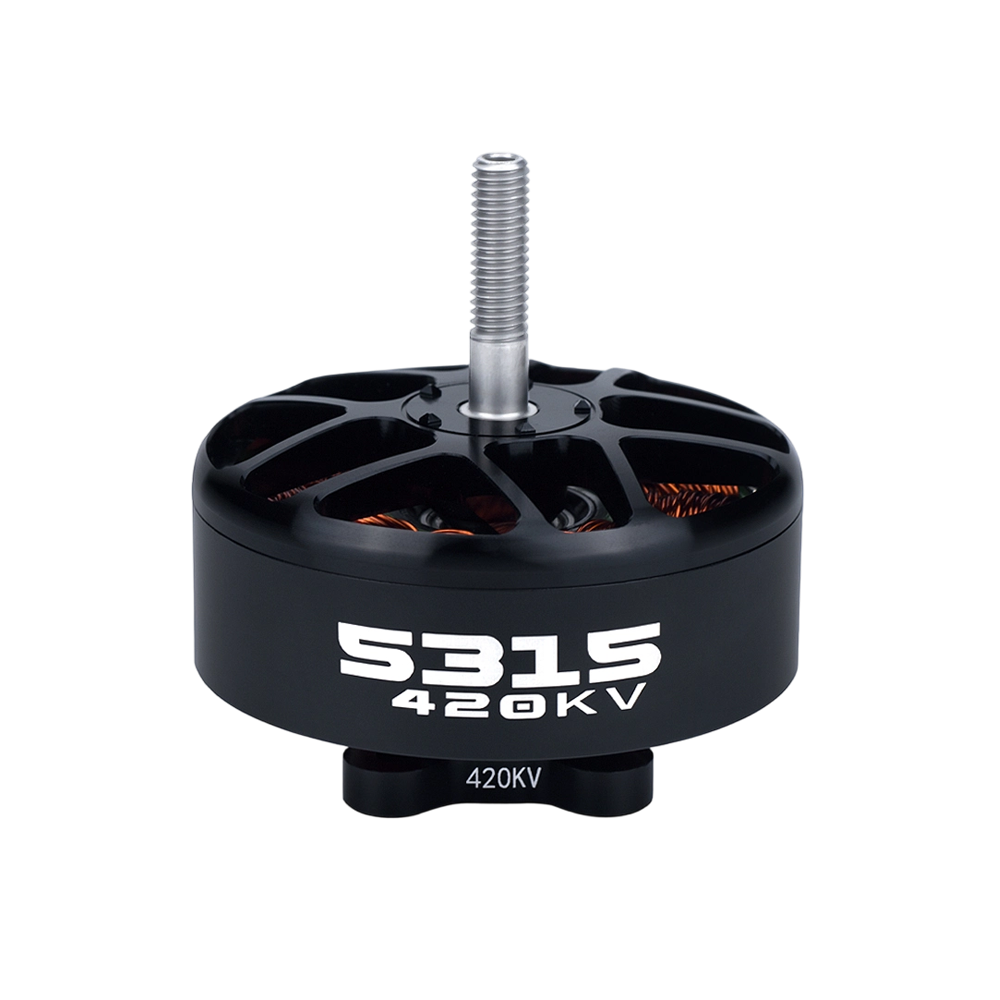

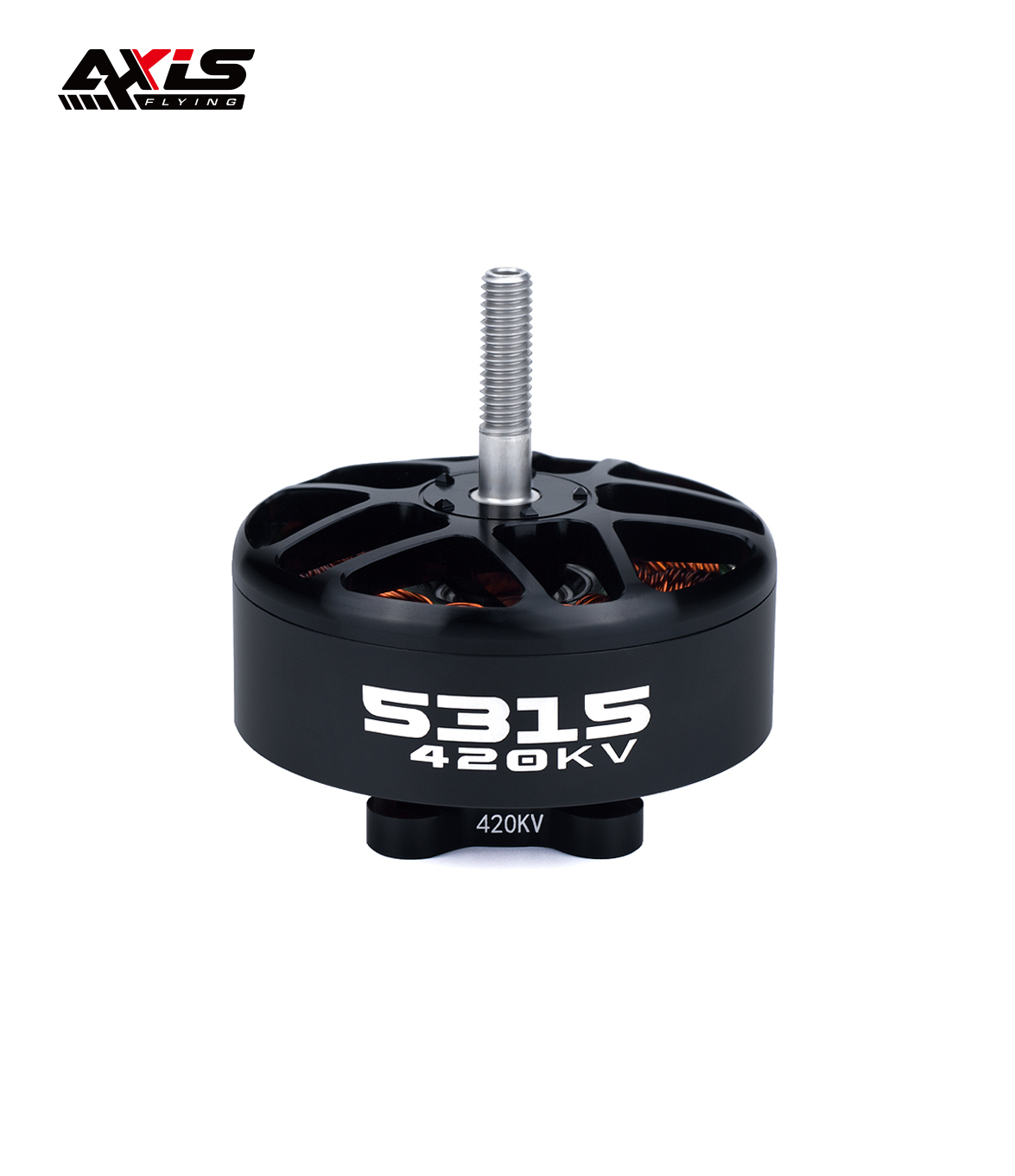

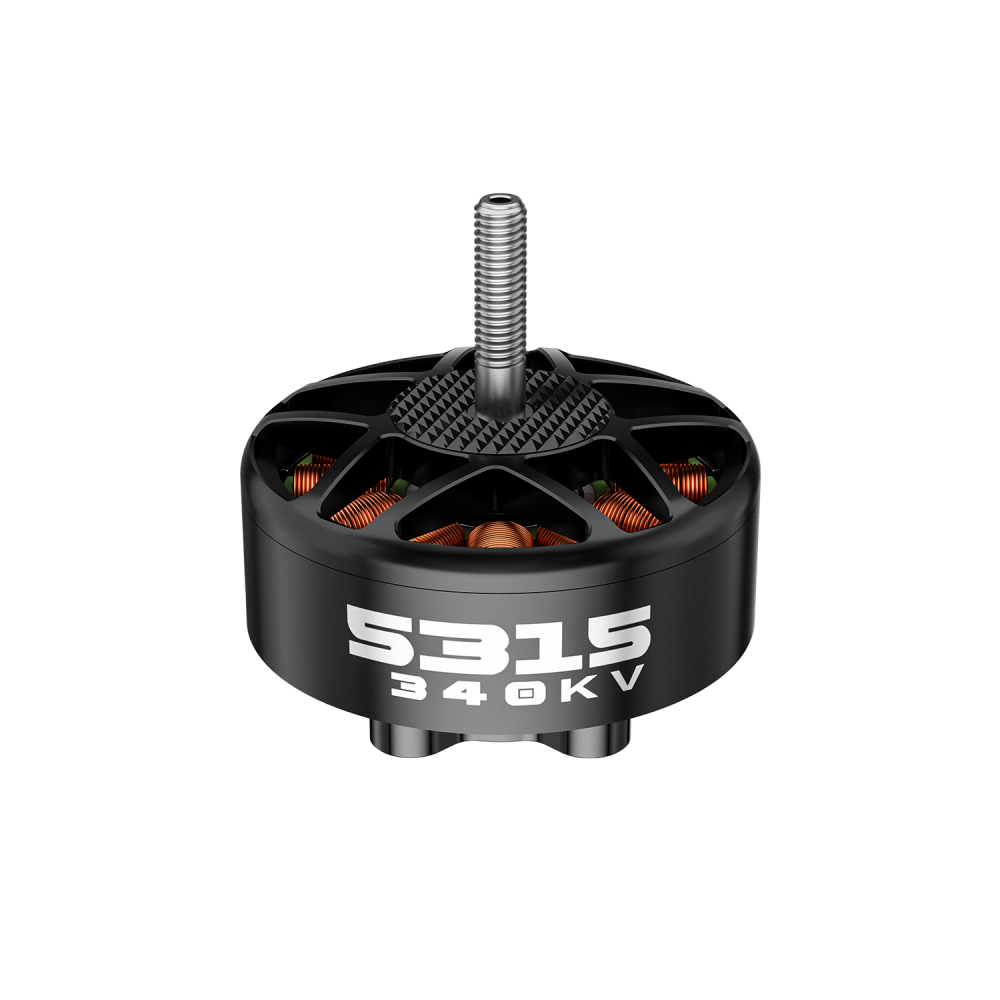

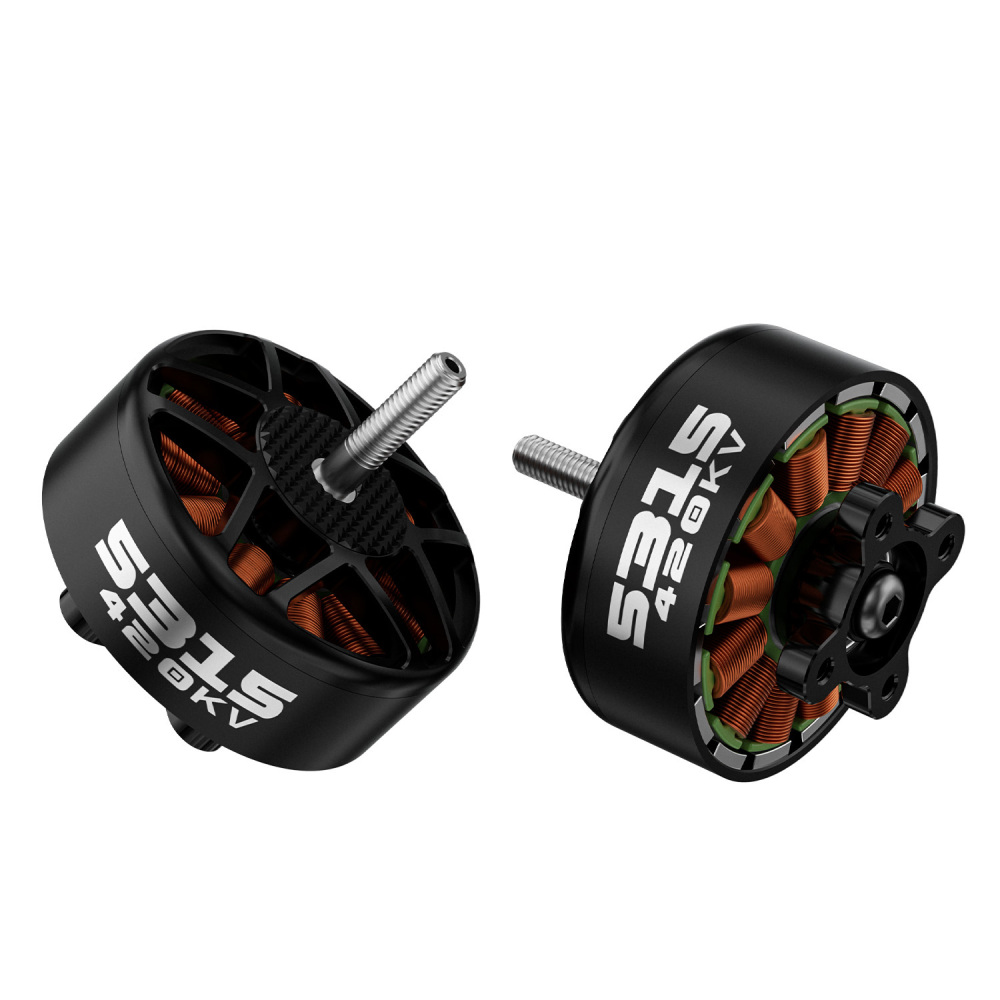

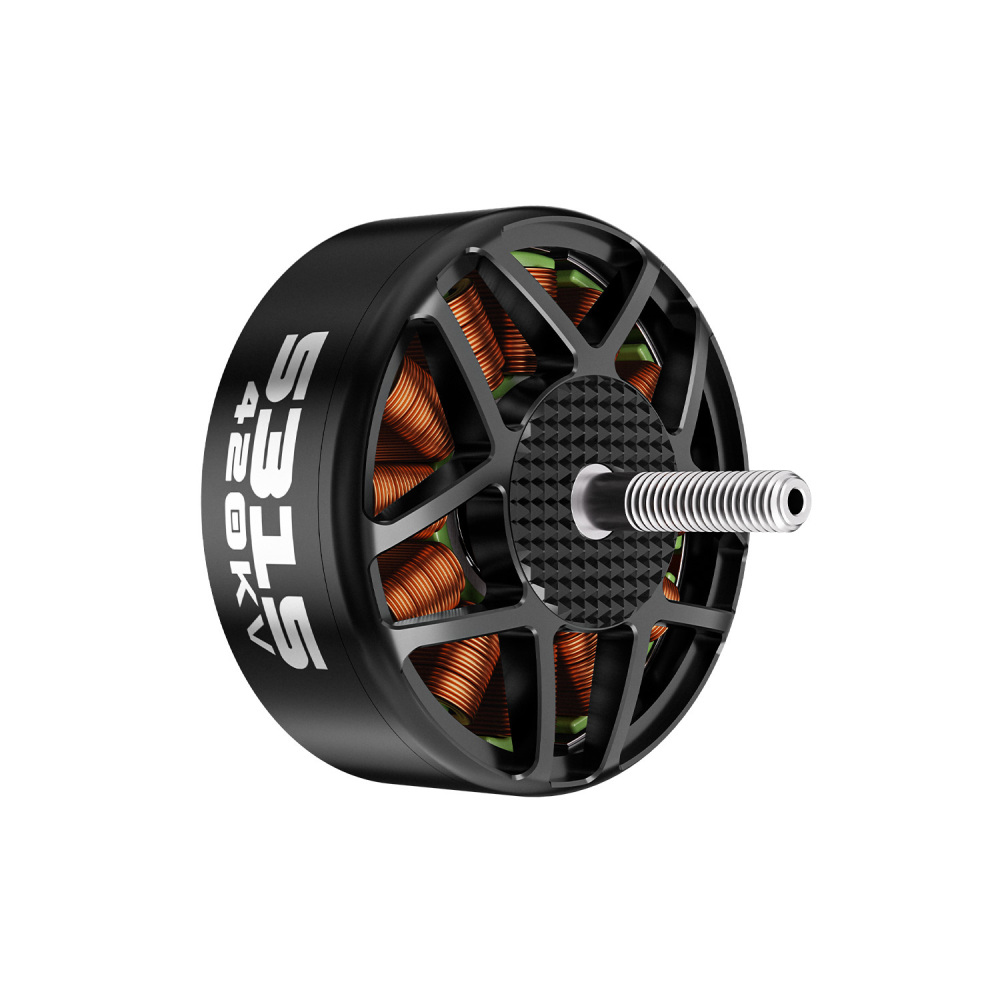

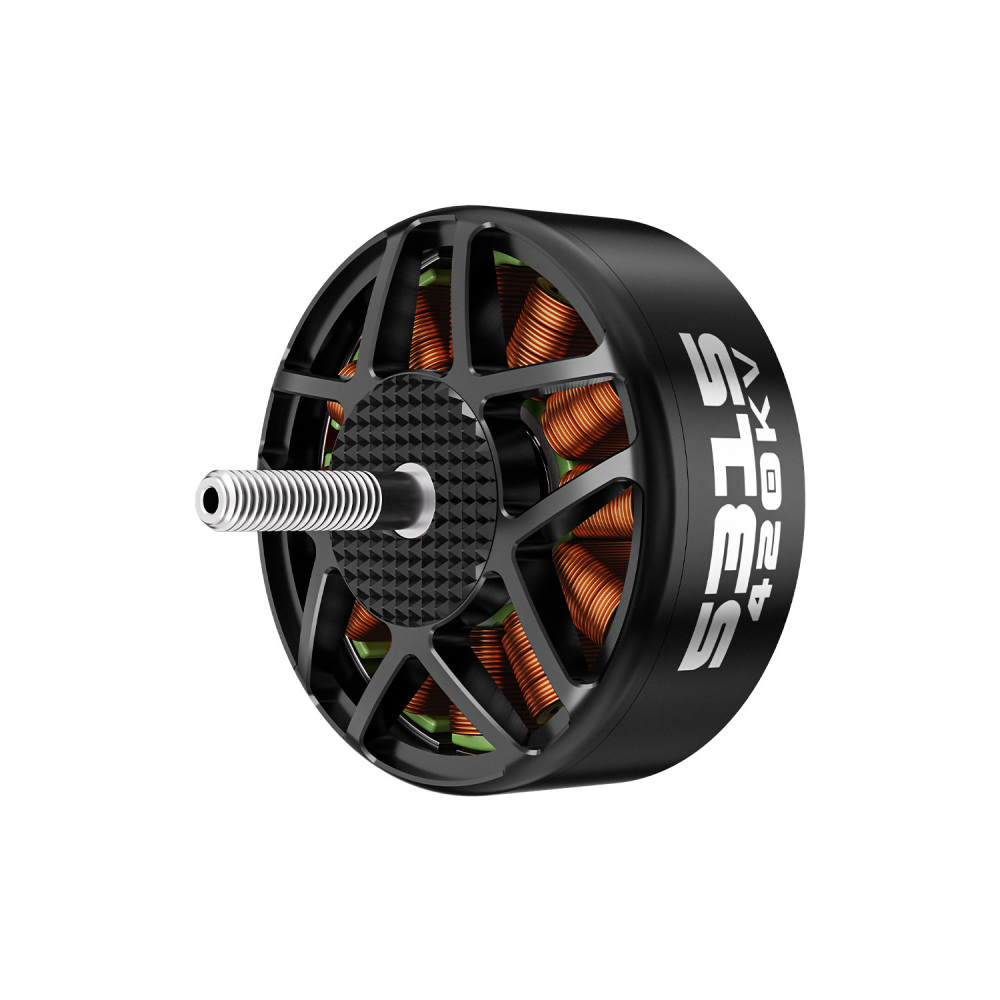

Motors AZ5315 6-8s
For 15-inch FPV Drone / Cinematic / Long Range / 380kv 420kv
SKU: A02010022
Sufficient stock available, DHL delivery in 3-7 days (excluding drone assembly time).
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV
    420KV
    420KV*4pcs
Need Help?
Need Help?
Our experts are online 24/7 to help you choose the right drone and gear
Chat Now
Motors AZ5315 6-8s
Motors AZ5315 6-8s
Motors AZ5315 6-8s
$75.00
Quantity
-
+
Reward points
Total
1 * $75 = $75
Starting at $27.22/mo or as low as 0% APR with  Learn more
Learn more
Free shipping on select items over $200
Global Support
Payment Method
  • Paypal
  • ApplePay
  • GooglePay
Motors AZ5315 6-8s
5315 Brushless Motors For 15-inch
5315 Brushless Motors For 15-inch
5315 Brushless Motors For 15-inch
5315 Brushless Motors For 15-inch
5315 Brushless Motors For 15-inch
Motors AZ5315 6-8s
5315 Brushless Motors For 15-inch
5315 Brushless Motors For 15-inch
5315 Brushless Motors For 15-inch
5315 Brushless Motors For 15-inch
5315 Brushless Motors For 15-inch
  • Description

Foreword

With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new AZ series high-load brushless motor.

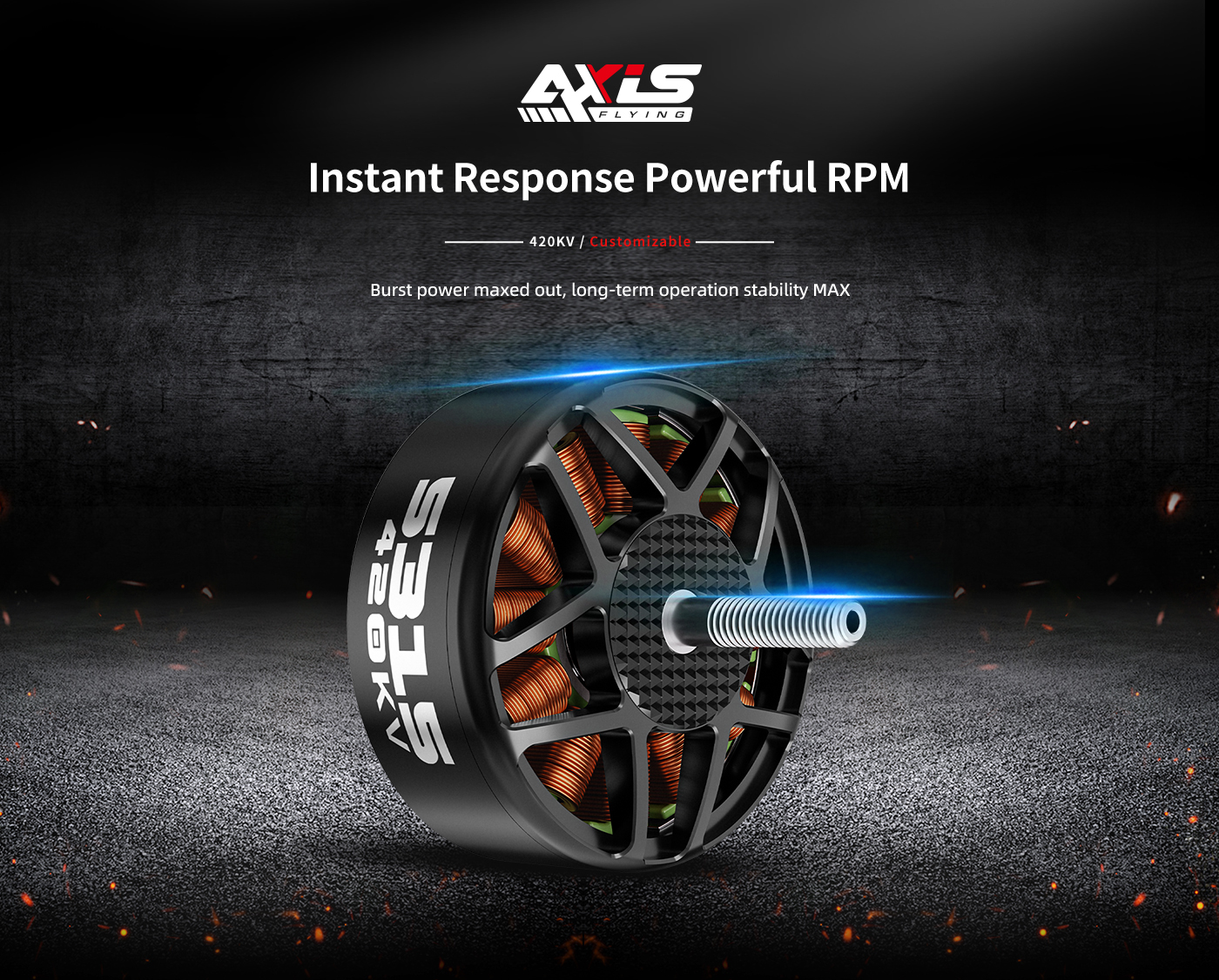

The AZ5315 is professionally developed for 15‑inch long‑range, cinematic and heavy‑loading FPV drones, delivering super high torque, massive thrust and high efficiency to meet professional heavy‑load flight requirements.

Feature

  • AZ series professional heavy‑load motor, designed for 15‑inch FPV drones
  • Perfect for long‑range, cinematic shooting and heavy‑loading missions

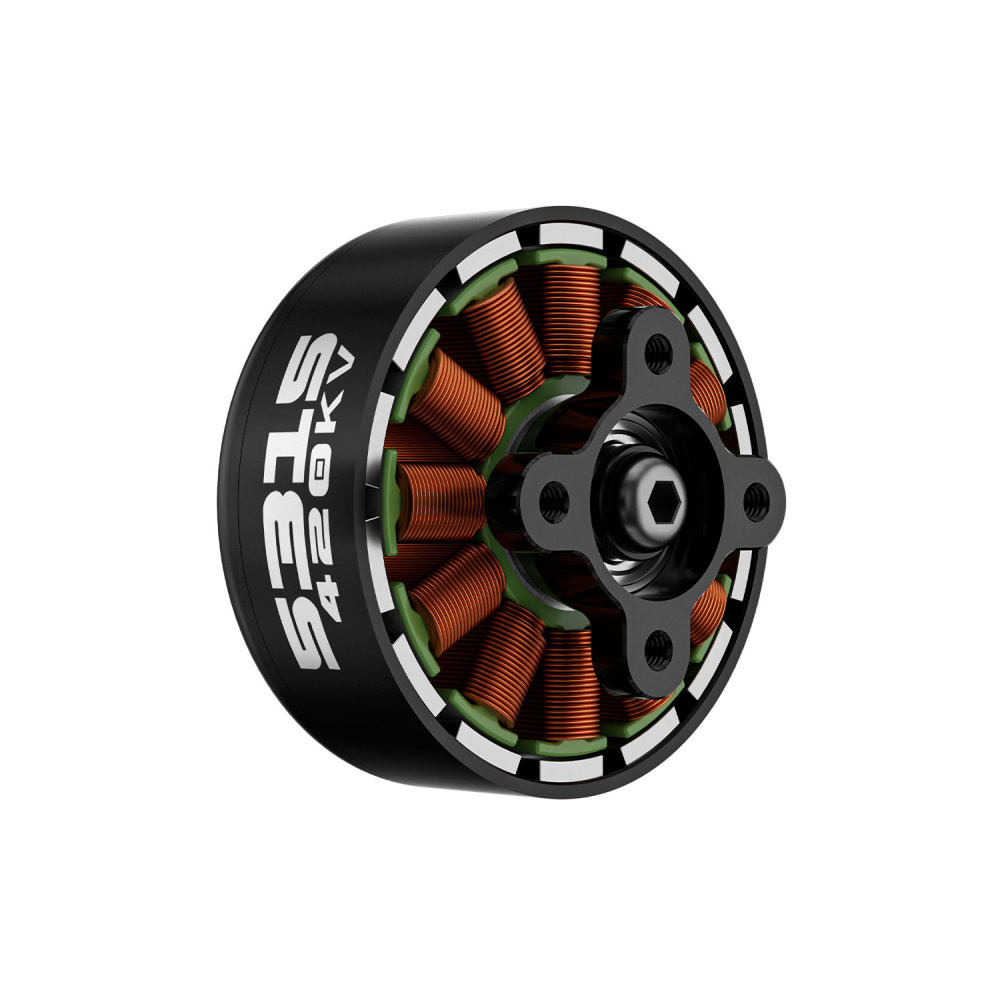

  • 12N14P structure with high‑strength arc magnets for super torque
  • High‑temperature enameled wire, stable under high power & long flight
  • Imported high‑speed bearings, long service life & strong durability
  • Large‑current wiring design for efficient power output
  • High efficiency & low heat, ideal for large‑frame long‑endurance flight

Recommended Configuration

  • Motor: Axisflying AZ5315 420KV
  • Voltage: 6–8S LiPo
  • Props: HQ15X7-3 / GF1308-3

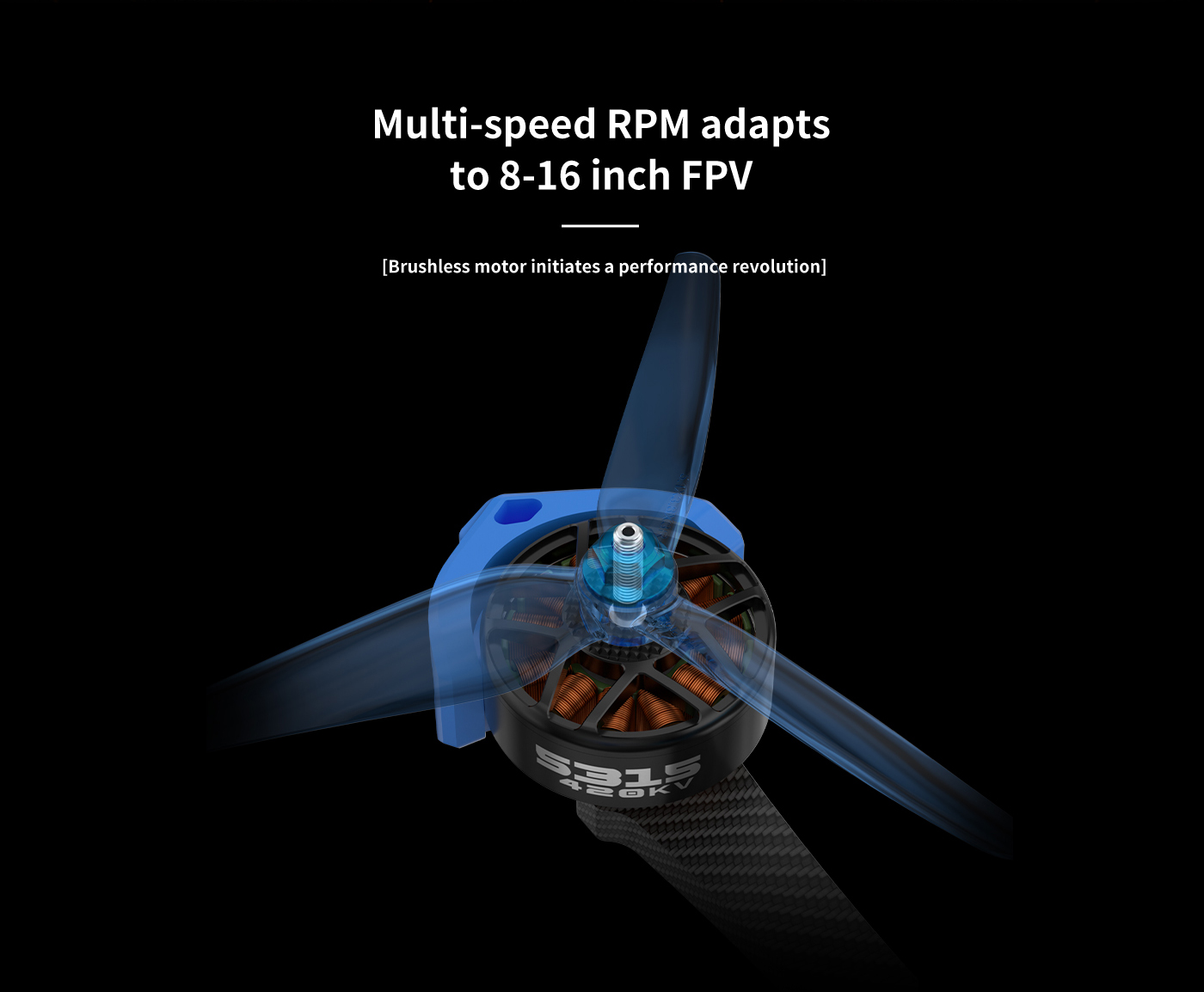

  • Application: 15‑inch long‑range, cinematic, heavy‑loading drones

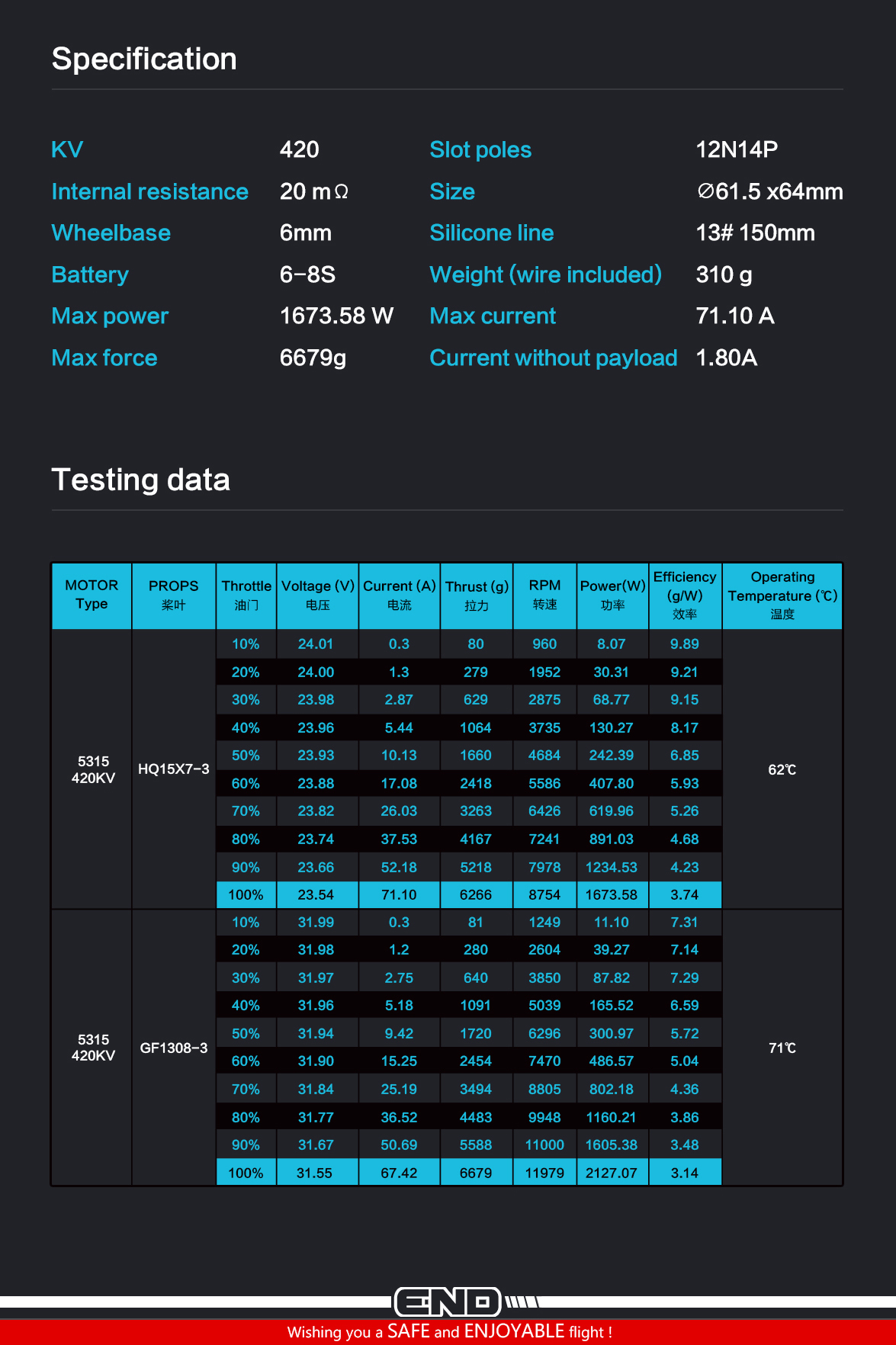

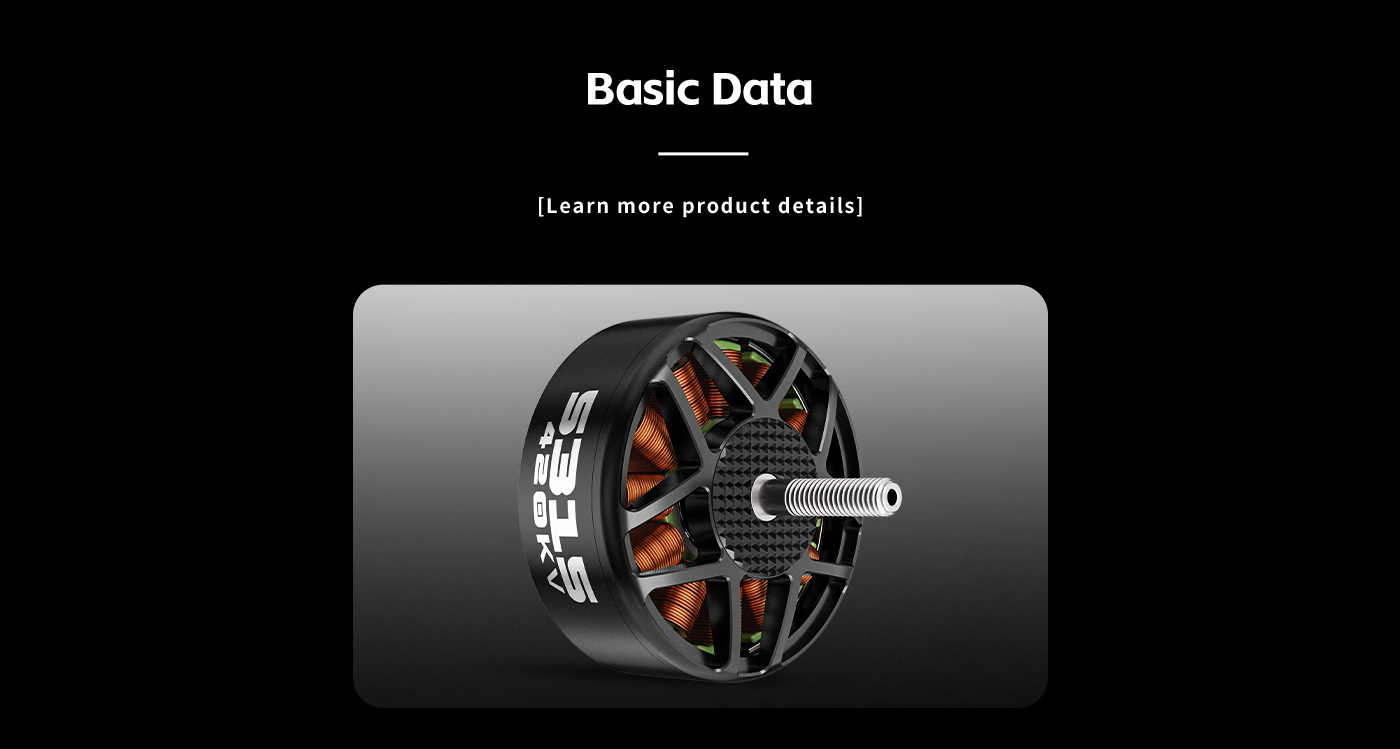

Specifications

  • Model: AZ5315
  • KV: 420KV
  • Configuration: 12N14P
  • Internal Resistance: 20mΩ

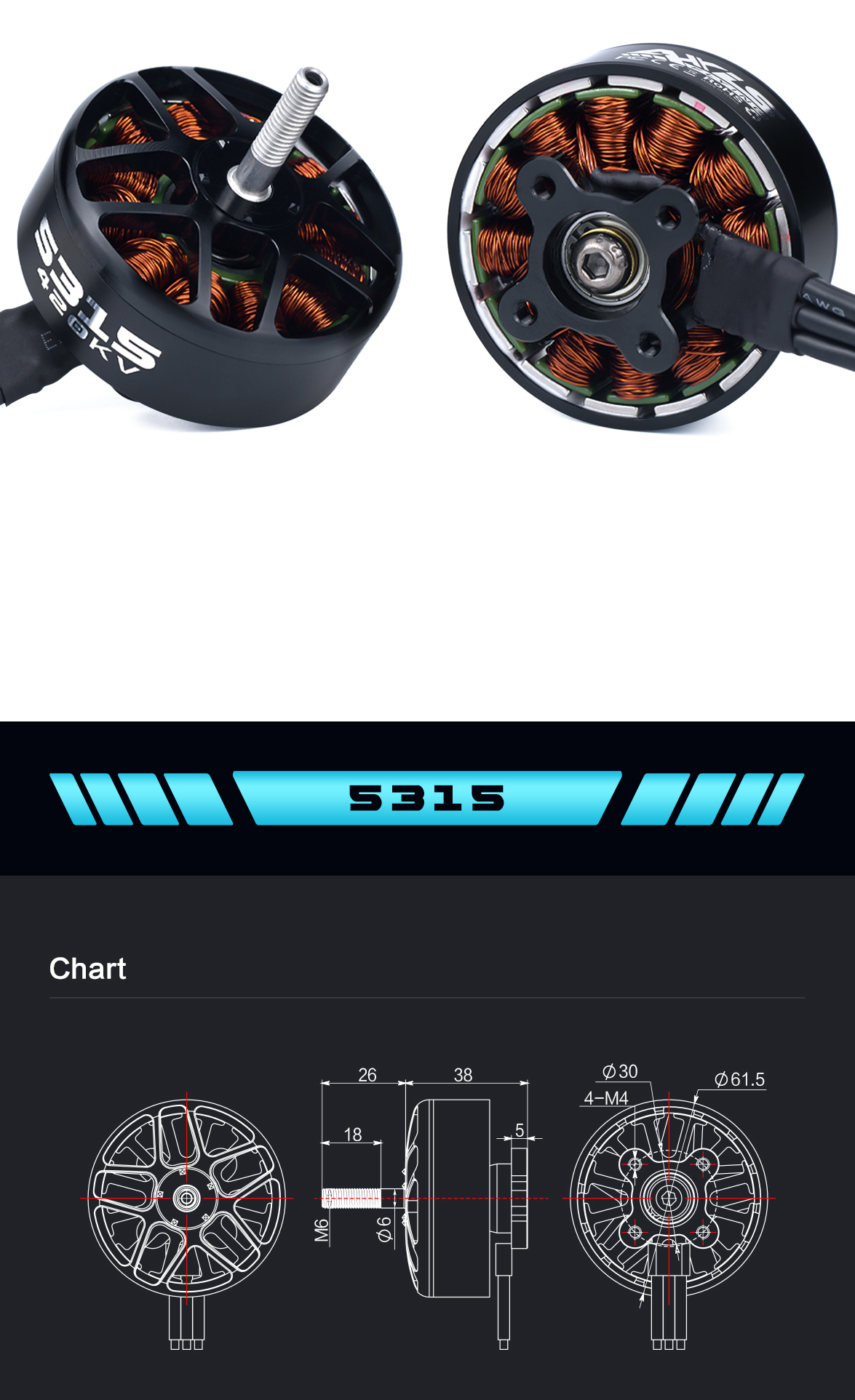

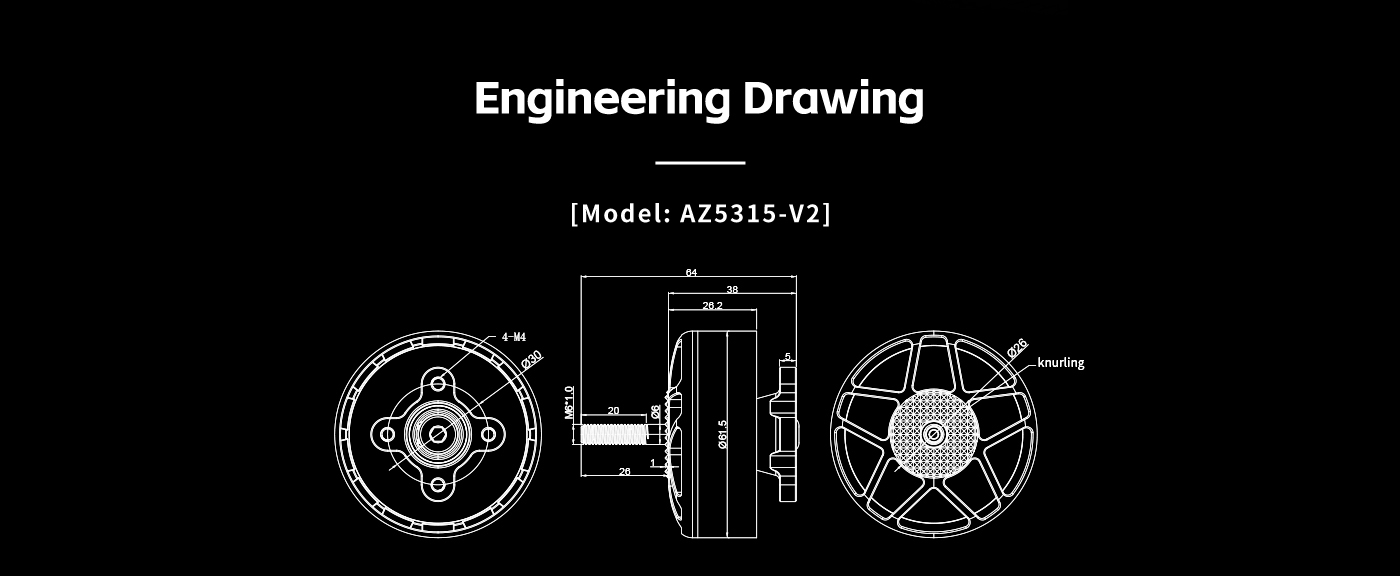

  • Size: Φ61.5×64mm
  • Shaft Diameter: 6mm
  • Silicone Wire: 13AWG 150mm
  • Rated Voltage: 6–8S
  • Weight (with wire): 310g
  • Max Power: 1673.58W
  • Peak Current: 71.10A
  • Max Thrust: 6679g
  • Idle Current (10V): 1.80A
  • Mount: 4×M4
  • Prop Nut: M6

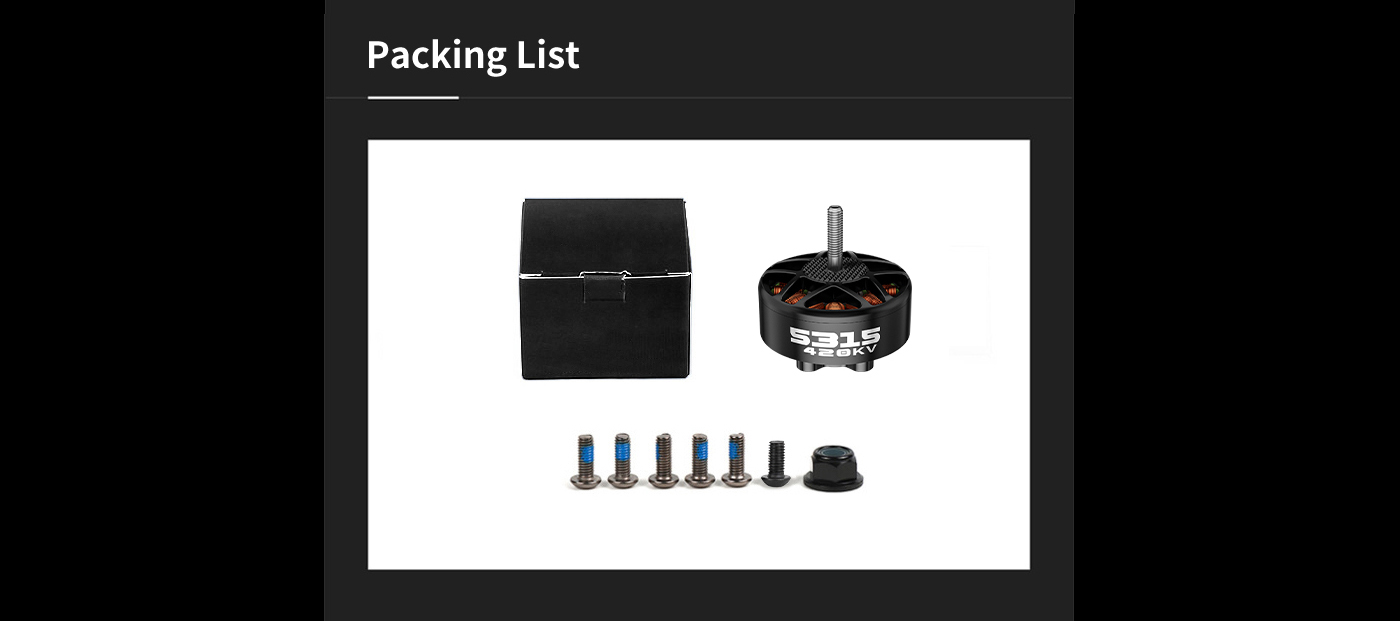

Package Contents

  1. AZ5315 420KV Brushless Motor ×1
  2. Mounting screws & accessories set ×1

US Tariff Information

Tariff: 30% + Section 301 additional duty (as of May 2026)
  • Type 86 ($800 duty‑free) is terminated; all commercial shipments are dutiable.
Frequently Bought Together
more
Frequently Bought Together
FAQ
Are Axisflying products universal for most FPV drones?
Yes, all Axisflying parts are standard size and universal, compatible with most mainstream FPV models for easy assembly and replacement.
Do you provide after-sales support and technical guidance?
Sure. We offer professional technical support, installation tips and after-sales service to solve your usage problems.
Do I need to pay import duties or taxes?
 Import duties, taxes and customs clearance fees are not included in the product price. They are the buyer’s responsibility and vary by country/region, local tax policy and order value.
We can provide commercial invoice, packing list, CE/RoHS certificates to help with customs clearance. For detailed rates, please check with your local customs office.
Where can I download product manuals and printable documents?
All user manuals, quick guides, specification sheets and printable files are available in the Support / Download Center on our official website.
