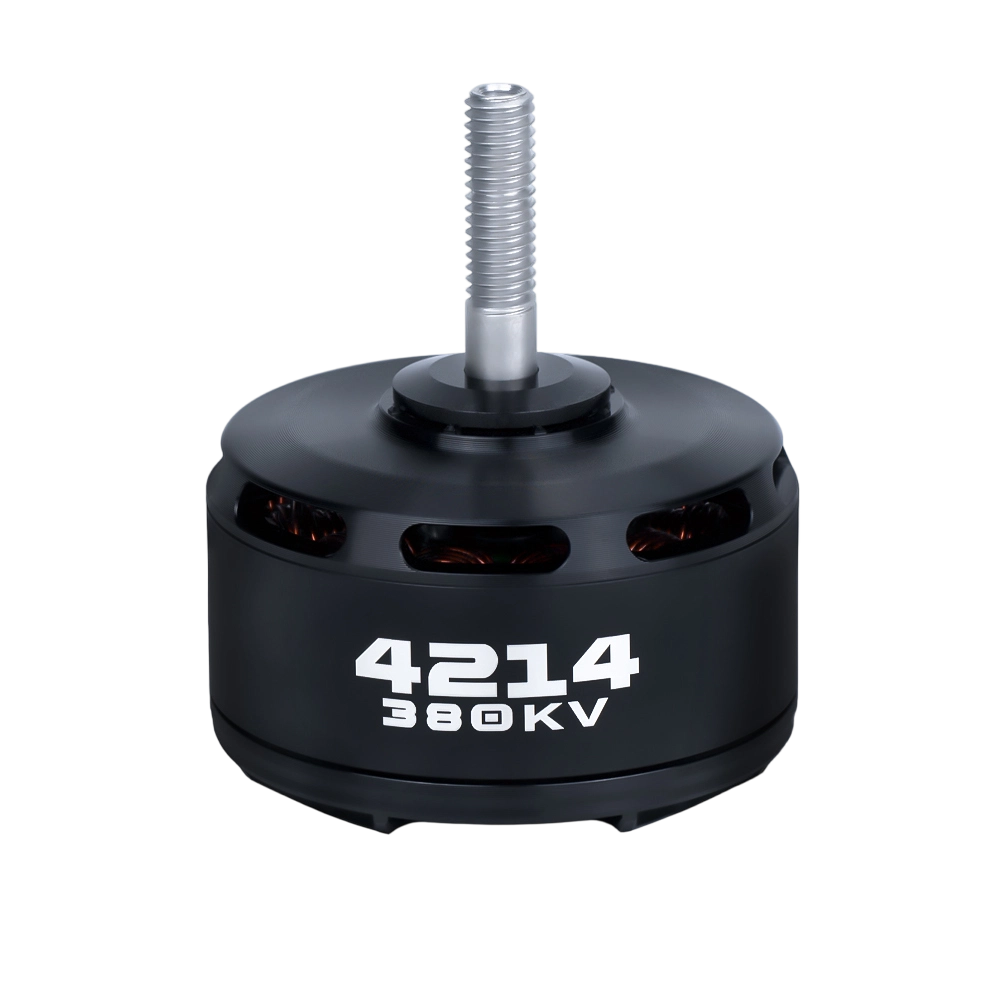

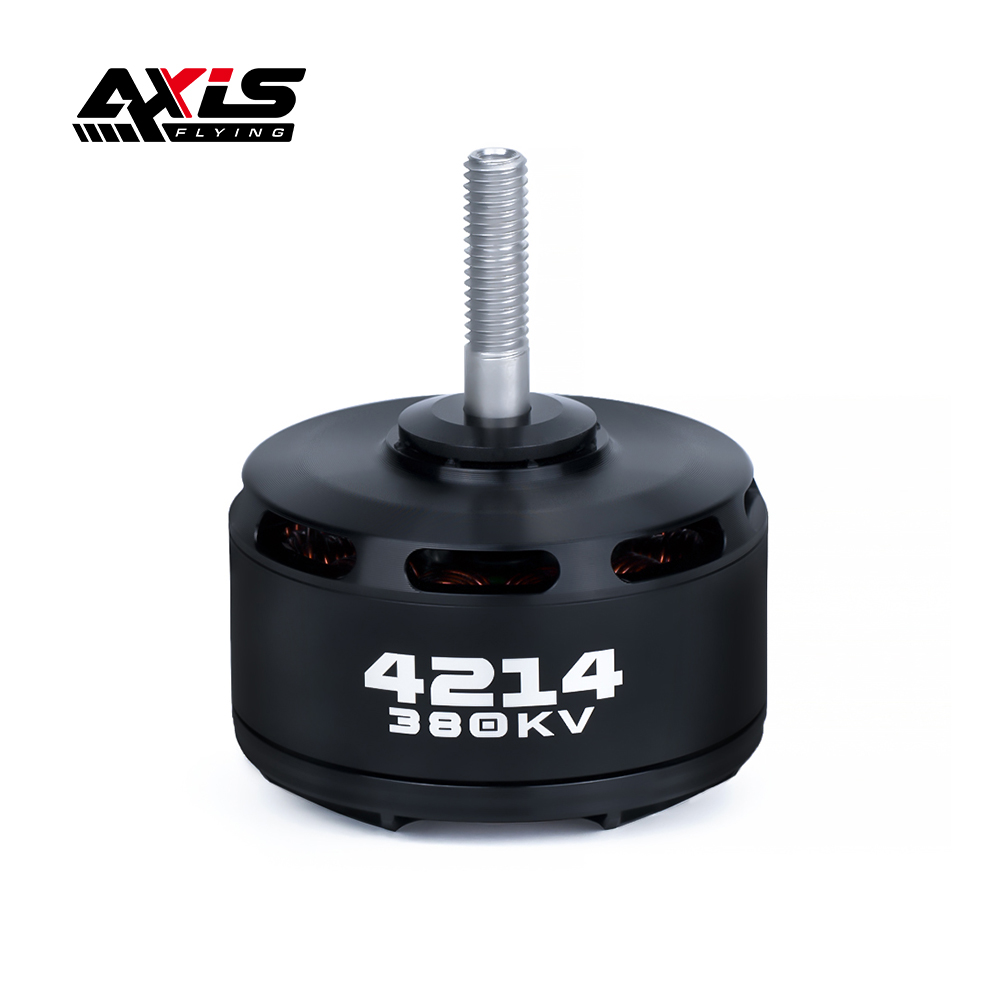

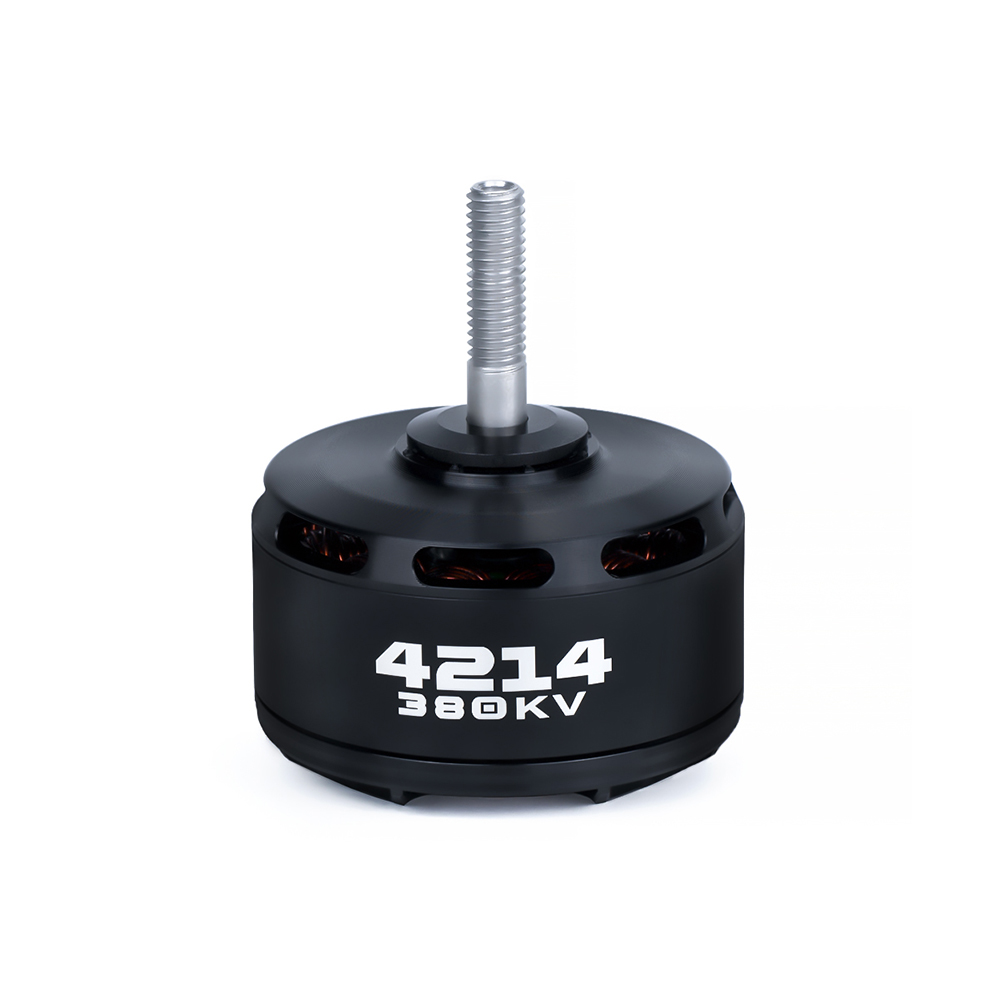

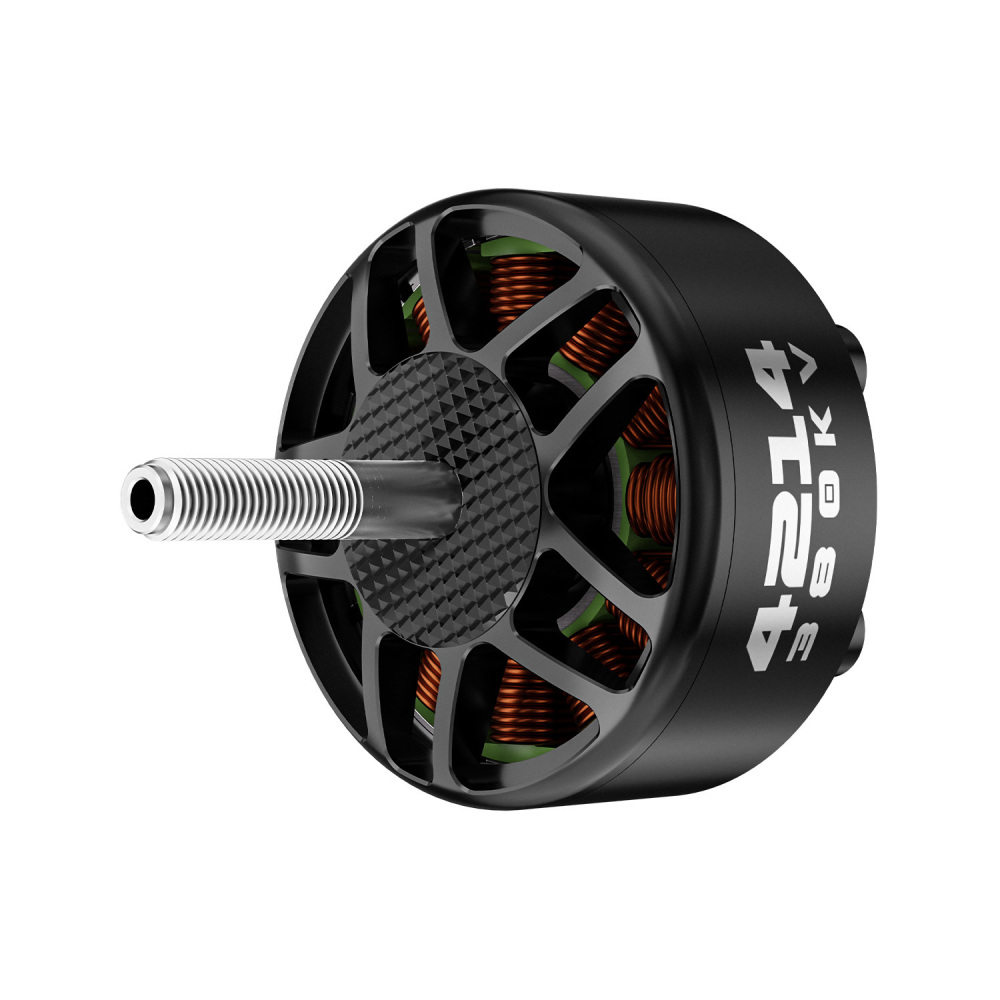

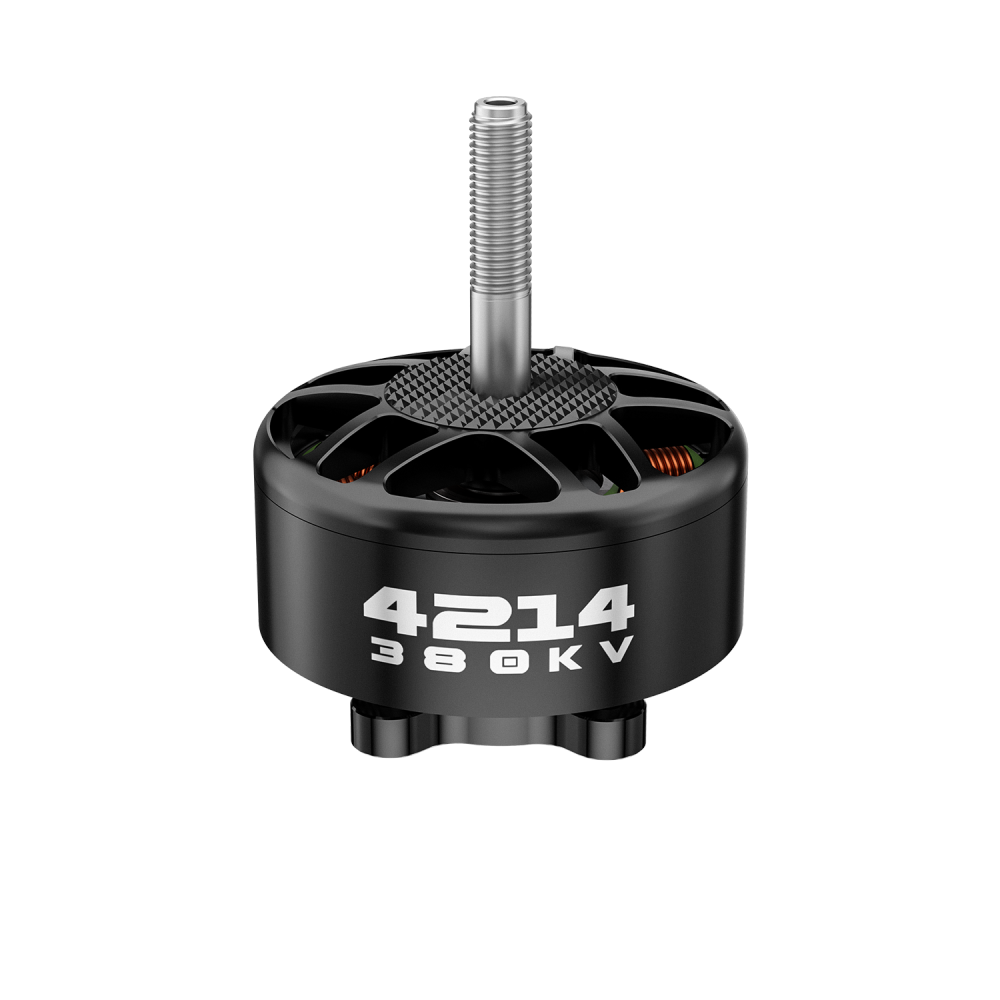

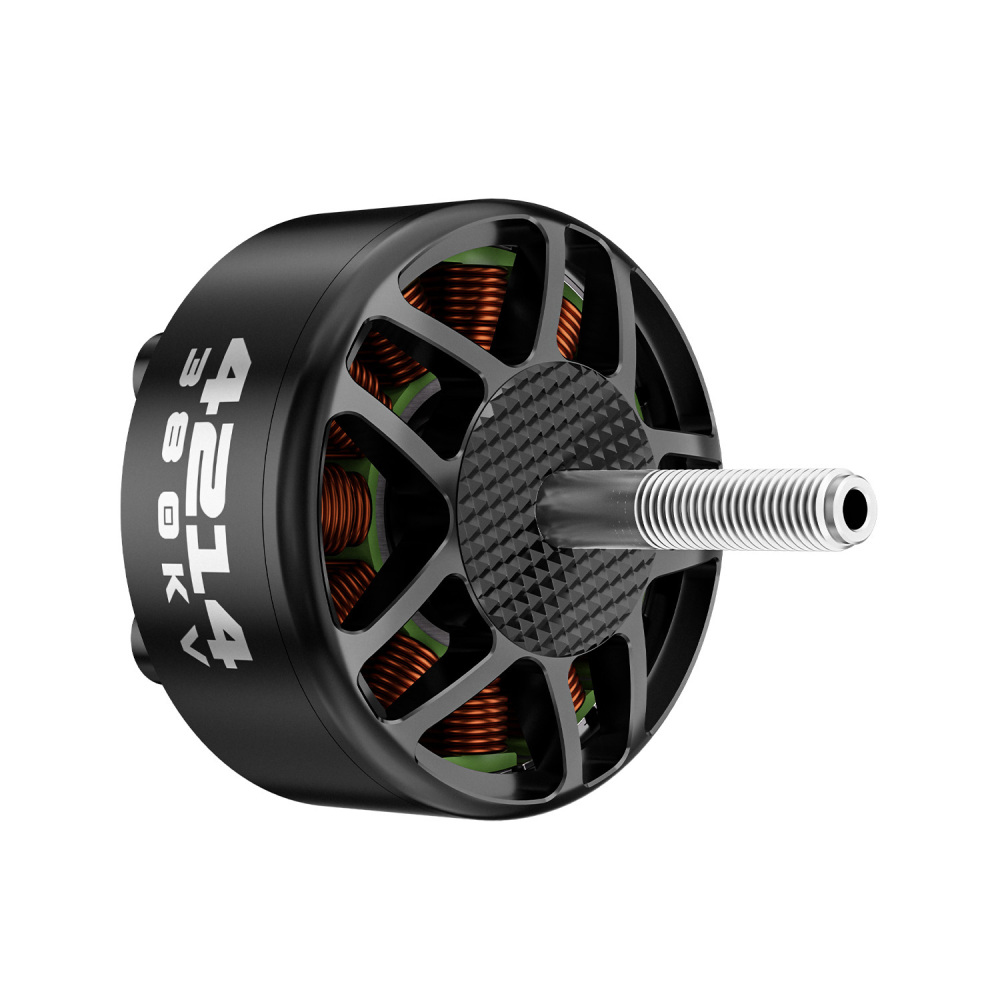

Motor AZ4214 6-12s
Motor AZ4214 6-12s
Motor AZ4214 6-12s
Motor AZ4214 6-12s
Motor AZ4214 6-12s
Motor AZ4214 6-12s
Motor AZ4214 6-12s
380KV /Long Range / cinematic /heavy‑loading drones
SKU: A02010086
Sufficient stock available, DHL delivery in 3-7 days (excluding drone assembly time).
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • KV
    380KV
    380KV*4pcs
Need Help?
Need Help?
Our experts are online 24/7 to help you choose the right drone and gear
Chat Now
Motor AZ4214 6-12s
Motor AZ4214 6-12s
Motor AZ4214 6-12s
$42.00
Quantity
-
+
Reward points
Total
1 * $42 = $42
Starting at $27.22/mo or as low as 0% APR with  Learn more
Learn more
Free shipping on select items over $200
Global Support
Payment Method
  • Paypal
  • ApplePay
  • GooglePay
Motor AZ4214 6-12s
Motor AZ4214 6-12s
Motor AZ4214 6-12s
Motor AZ4214 6-12s
Motor AZ4214 6-12s
Motor AZ4214 6-12s
  • Description

Foreword

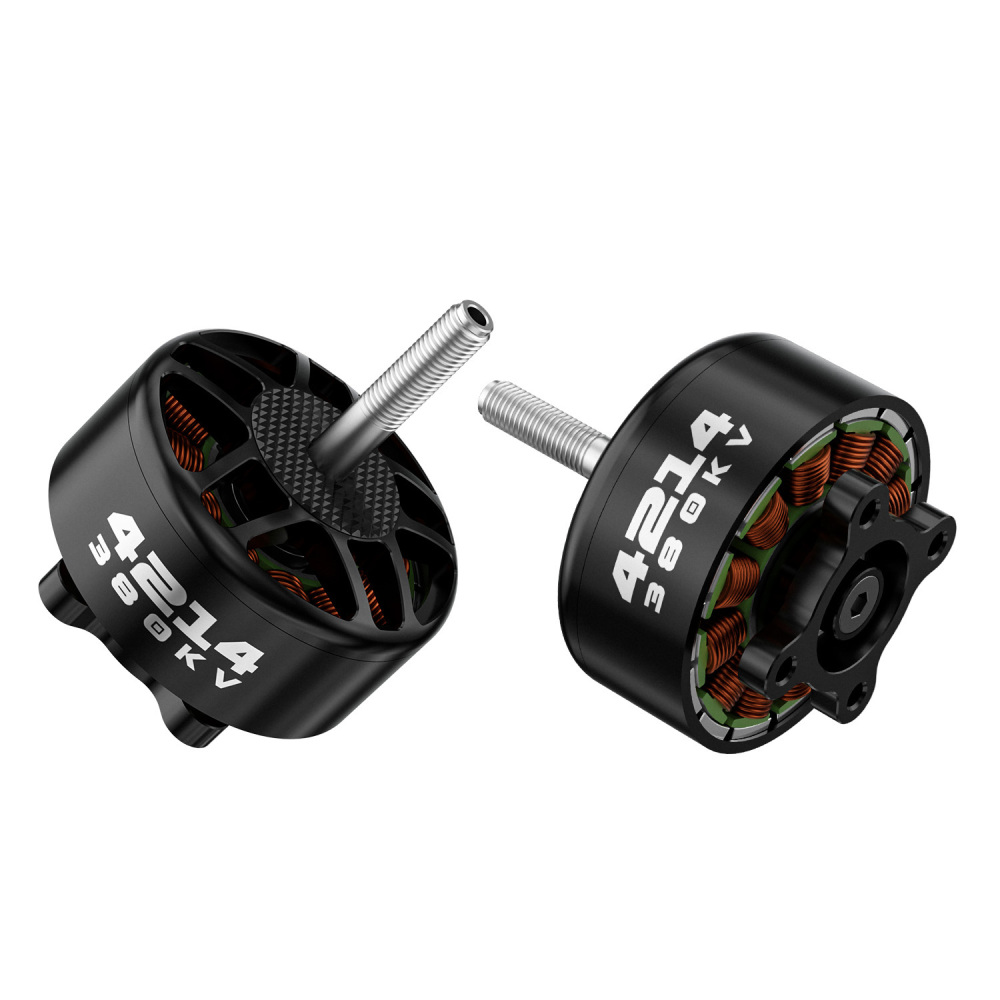

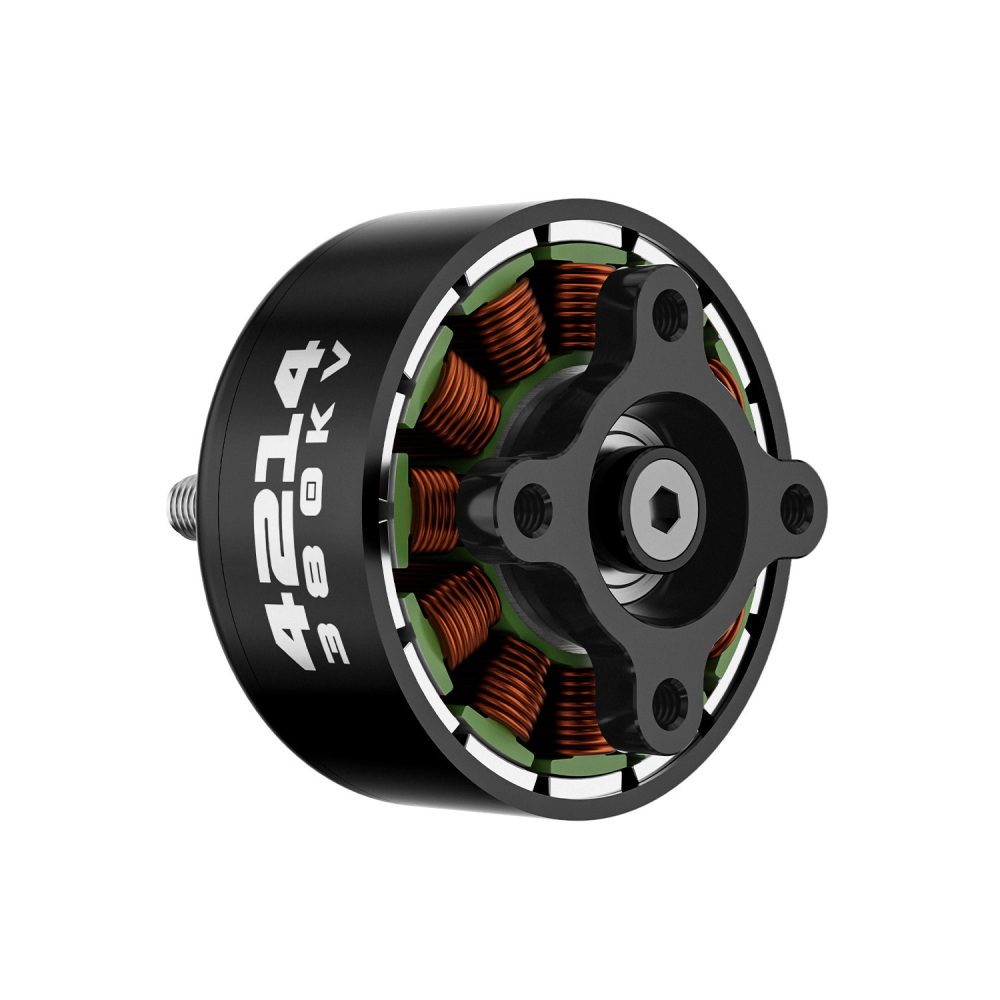

Axisflying AZ4214 is a high-load, high-efficiency brushless motor built for 13‑inch long‑range, cinematic and heavy‑loading FPV drones. It delivers massive thrust, stable output and low heat for professional large‑frame aerial missions.

Feature

  • AZ series professional heavy‑load motor for 13‑inch FPV drones
  • Ideal for long‑range, cinematic shooting and heavy‑load flight
  • 12N14P structure with high‑strength arc magnets
  • High‑temperature enameled wire for stable long‑time operation
  • Imported high‑speed bearings for long service life
  • High efficiency & low heat for extended endurance
  • Wide voltage input for flexible power matching

Recommended Configuration

  • Motor: Axisflying AZ4214 380KV
  • Voltage: 6–12S LiPo
  • Props: Gemfan 1308 / 1310 / HQ 13×9×3 V2
  • Application: 13‑inch long‑range, cinematic, heavy‑loading drones

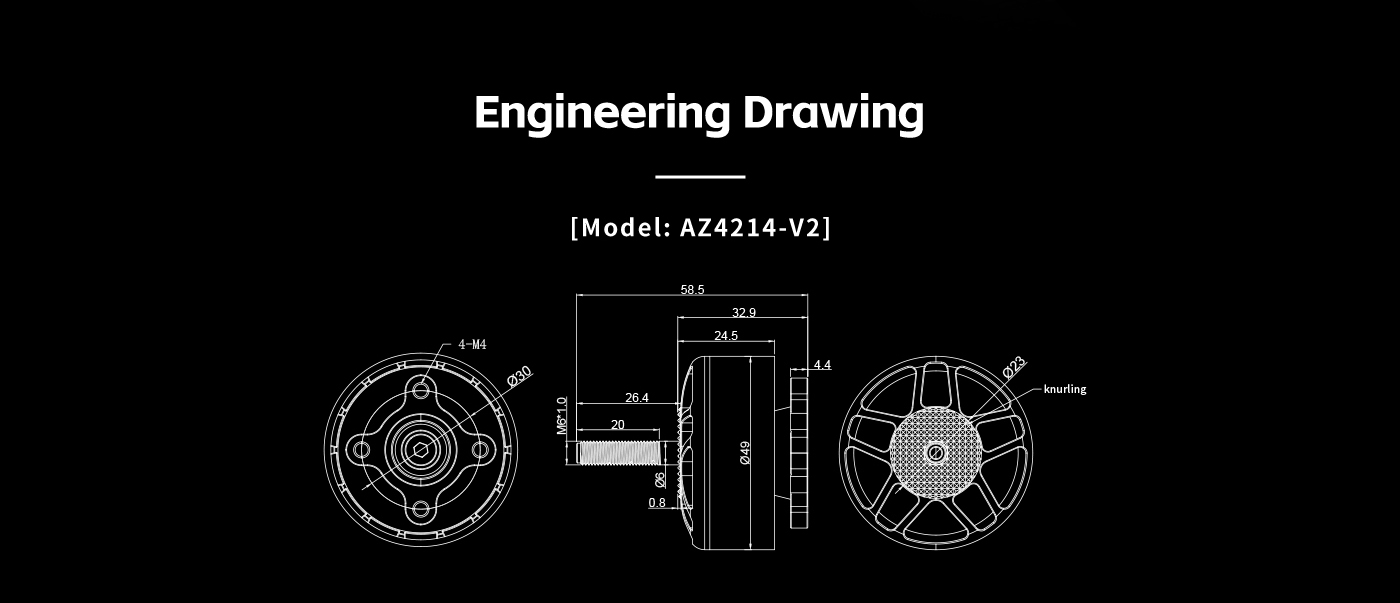

Specifications

  • Model: AZ4214
  • KV: 380KV
  • Configuration: 12N14P
  • Internal Resistance: 54mΩ
  • Size: Φ49×32.5mm
  • Shaft Diameter: 6mm
  • Silicone Wire: 14# 800mm (included)
  • Rated Voltage: 6–12S
  • Weight (with wire): 246g
  • Max Power: 1616.9W
  • Peak Current: 65A
  • Max Thrust: 4582.4g
  • Idle Current (10V): 1.0A
  • Mount: 4×M4
  • Prop Nut: M6

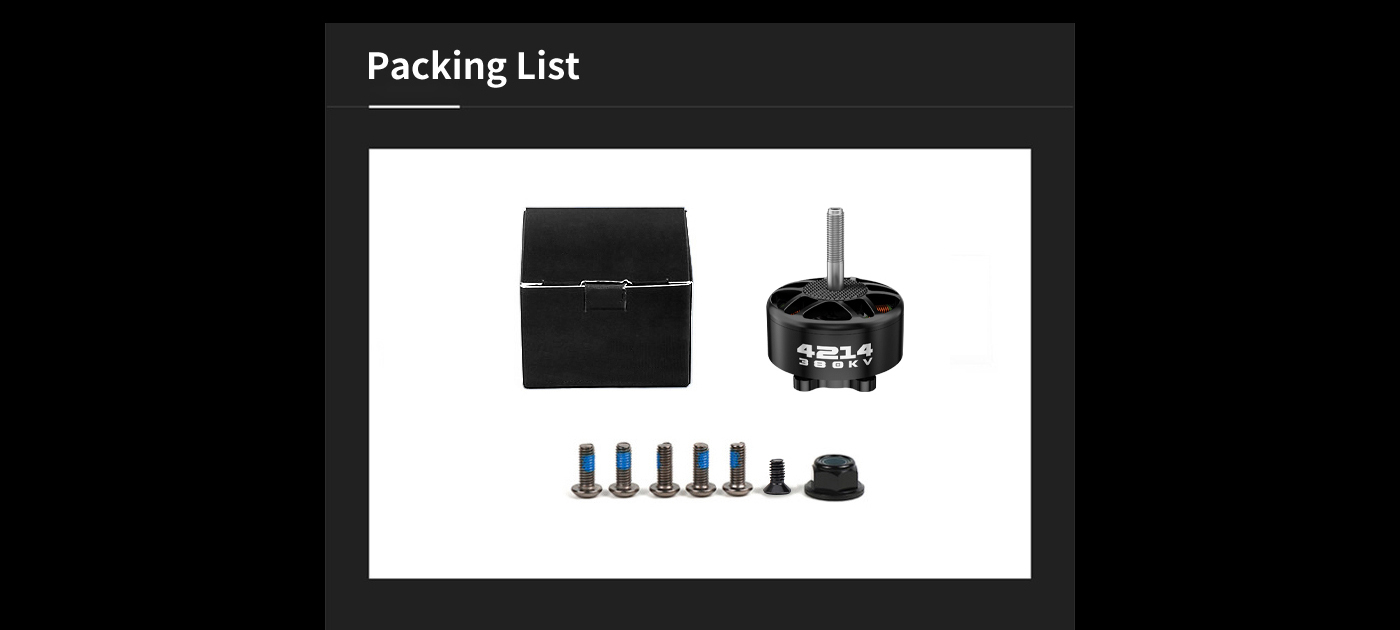

Package Contents

  1. AZ4214 380KV Brushless Motor ×1
  2. Mounting screws & accessories set ×1

US Tariff Information

  • HS Code (US HTS): 8501.32.00
  • Tariff: 10% + Section 301 additional duty (as of May 2026)
  • Type 86 ($800 duty‑free) is terminated; all commercial shipments are dutiable.
Frequently Bought Together
more
Frequently Bought Together
FAQ
Are Axisflying products universal for most FPV drones?
Yes, all Axisflying parts are standard size and universal, compatible with most mainstream FPV models for easy assembly and replacement.
Do you provide after-sales support and technical guidance?
Sure. We offer professional technical support, installation tips and after-sales service to solve your usage problems.
Do I need to pay import duties or taxes?
 Import duties, taxes and customs clearance fees are not included in the product price. They are the buyer’s responsibility and vary by country/region, local tax policy and order value.
We can provide commercial invoice, packing list, CE/RoHS certificates to help with customs clearance. For detailed rates, please check with your local customs office.
Where can I download product manuals and printable documents?
All user manuals, quick guides, specification sheets and printable files are available in the Support / Download Center on our official website.
