MOTOR AG 4130 12S

Fixed-wing/ Long Range / Loading

Sufficient stock available, DHL delivery in 3-7 days (excluding drone assembly time).

Received successfully

Coupon Code

CONTINUE SHOPPING

Need Help?

Our experts are online 24/7 to help you choose the right drone and gear

Chat Now

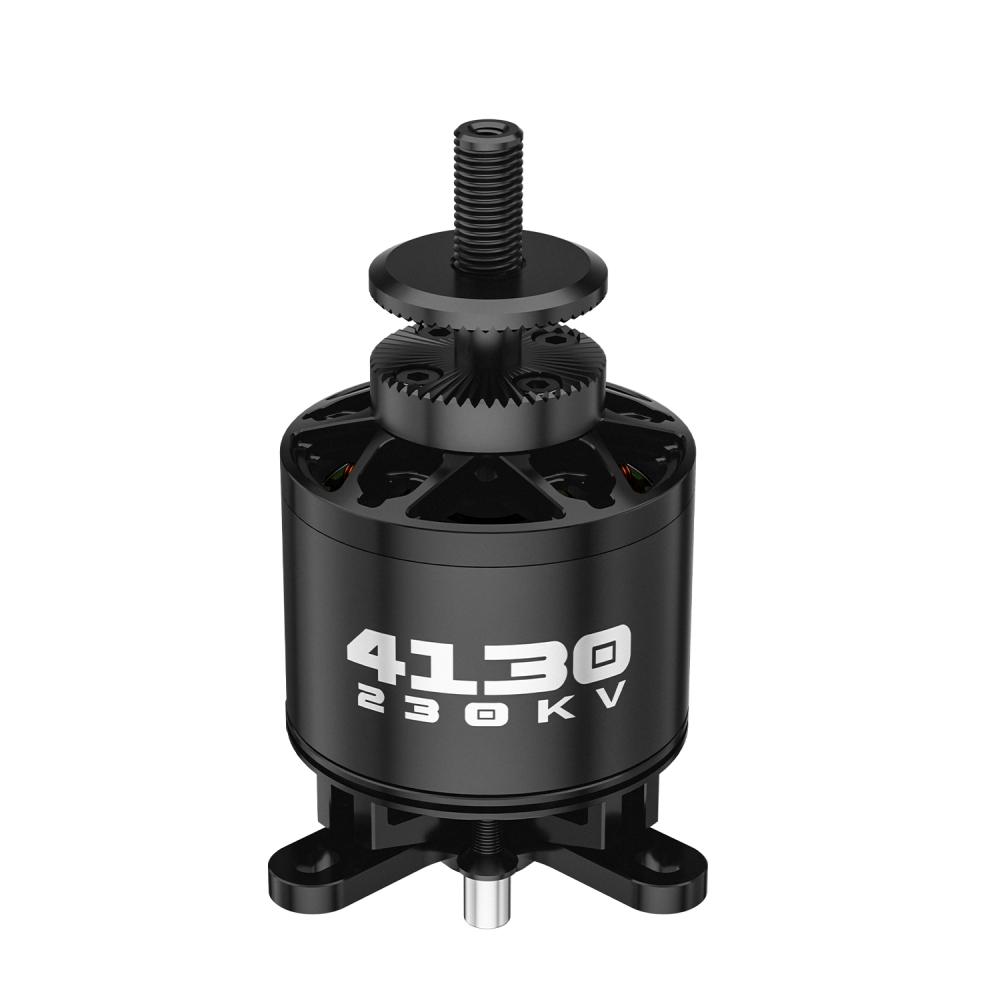

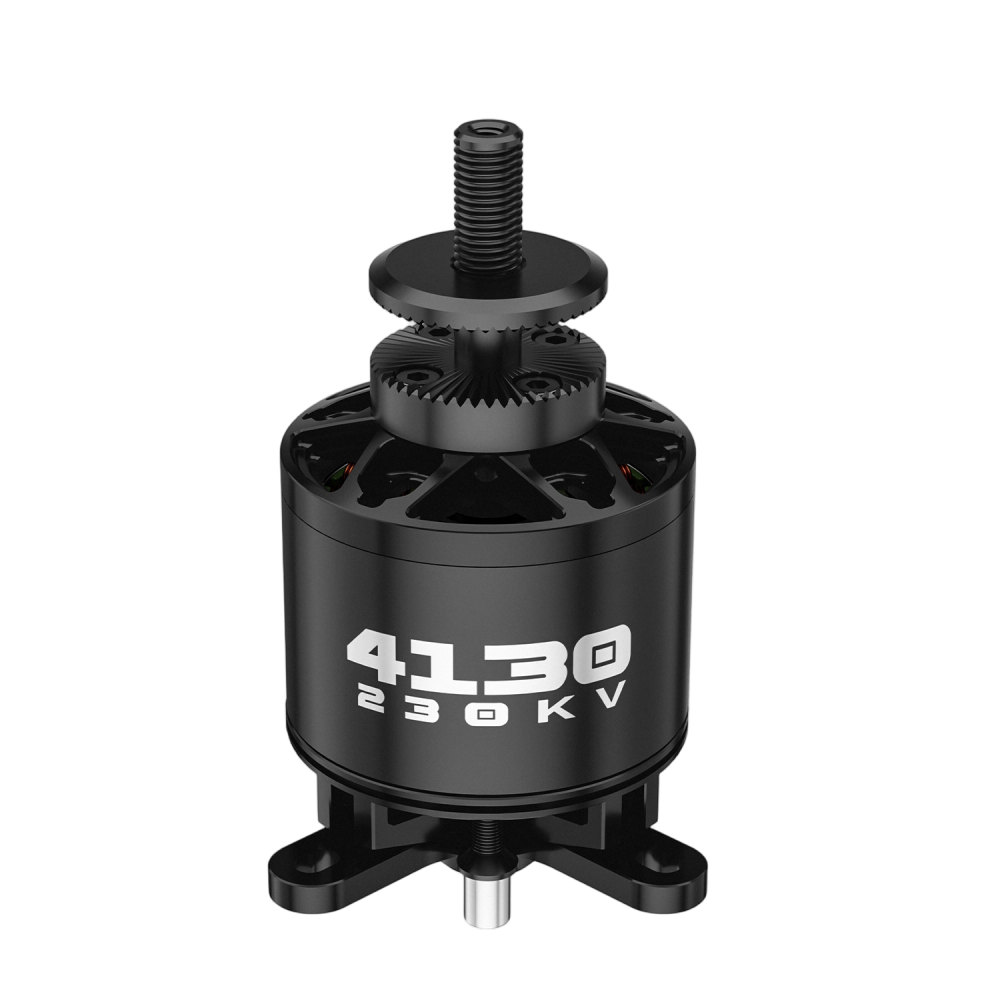

MOTOR AG 4130 12S

$89.90

Quantity

Reward points

Total

1 * $89.9 = $89.9

Starting at $27.22/mo or as low as 0% APR with

Learn more

Free shipping on select items over $200

Global Support

Payment Method

Description

Foreword

Axisflying focuses on user experience and solves user pain points. In high-power fixed-wing and large-model flight, we provide stable and powerful power solutions. AG4130 brushless motor adopts high-temperature resistant copper wire, high-performance magnetic steel, and professional structure design, bringing strong thrust and high efficiency for large fixed-wing aircraft.

Feature

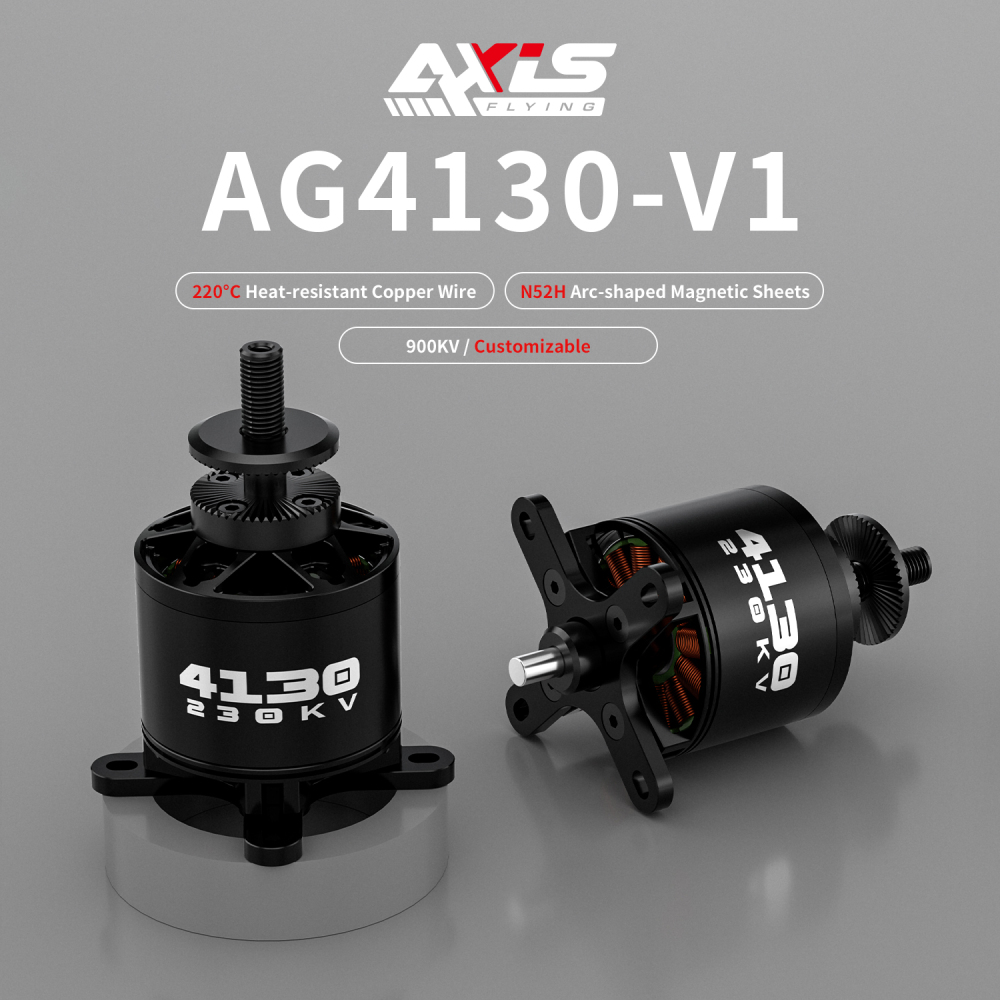

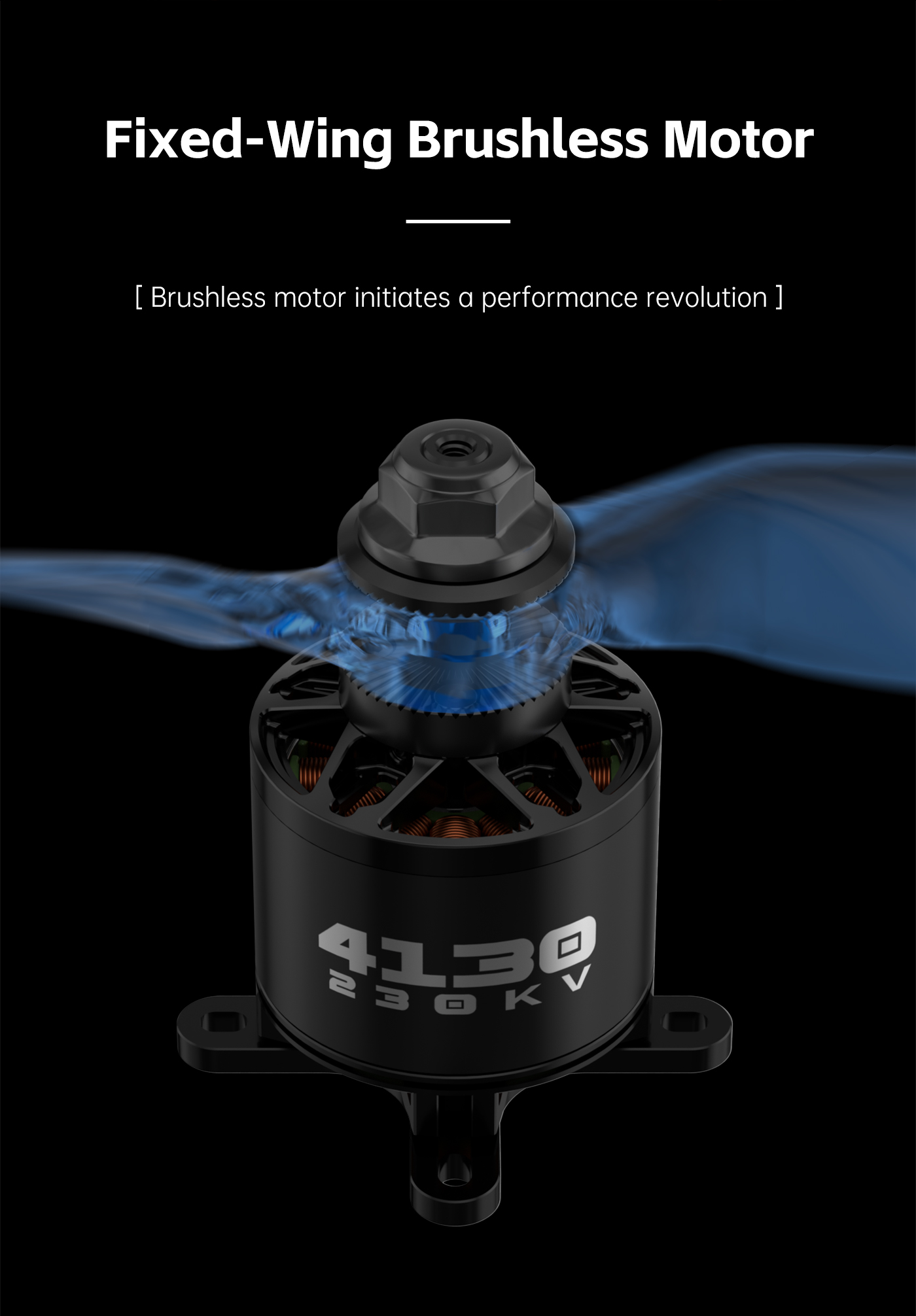

AG4130-V1 is a high-power brushless motor for large fixed‑wing aircraft, with strong thrust and high efficiency.
Adopts 220°C heat-resistant copper wire and N52H arc-shaped magnetic sheets for stable performance.
12N14P design, low internal resistance, strong overload capacity, suitable for long-term high-load operation.
6mm hardened shaft, strong structure, durable and not easy to bend.
Supports 12S high voltage, maximum power up to 2200.6W, maximum thrust up to 9338g.
Standard 4.0mm terminals, easy wiring, compatible with mainstream high-voltage ESCs.
KV 230 (customizable), suitable for large fixed-wing, aerial survey, and long‑endurance models.

Recommended Configuration

Motor: AG4130-V1 230KV

Voltage: 12S

Props: 1507 / 1710 / 1808

ESC: ≥60A high-voltage ESC

Battery: 12S LiPo / LiHV

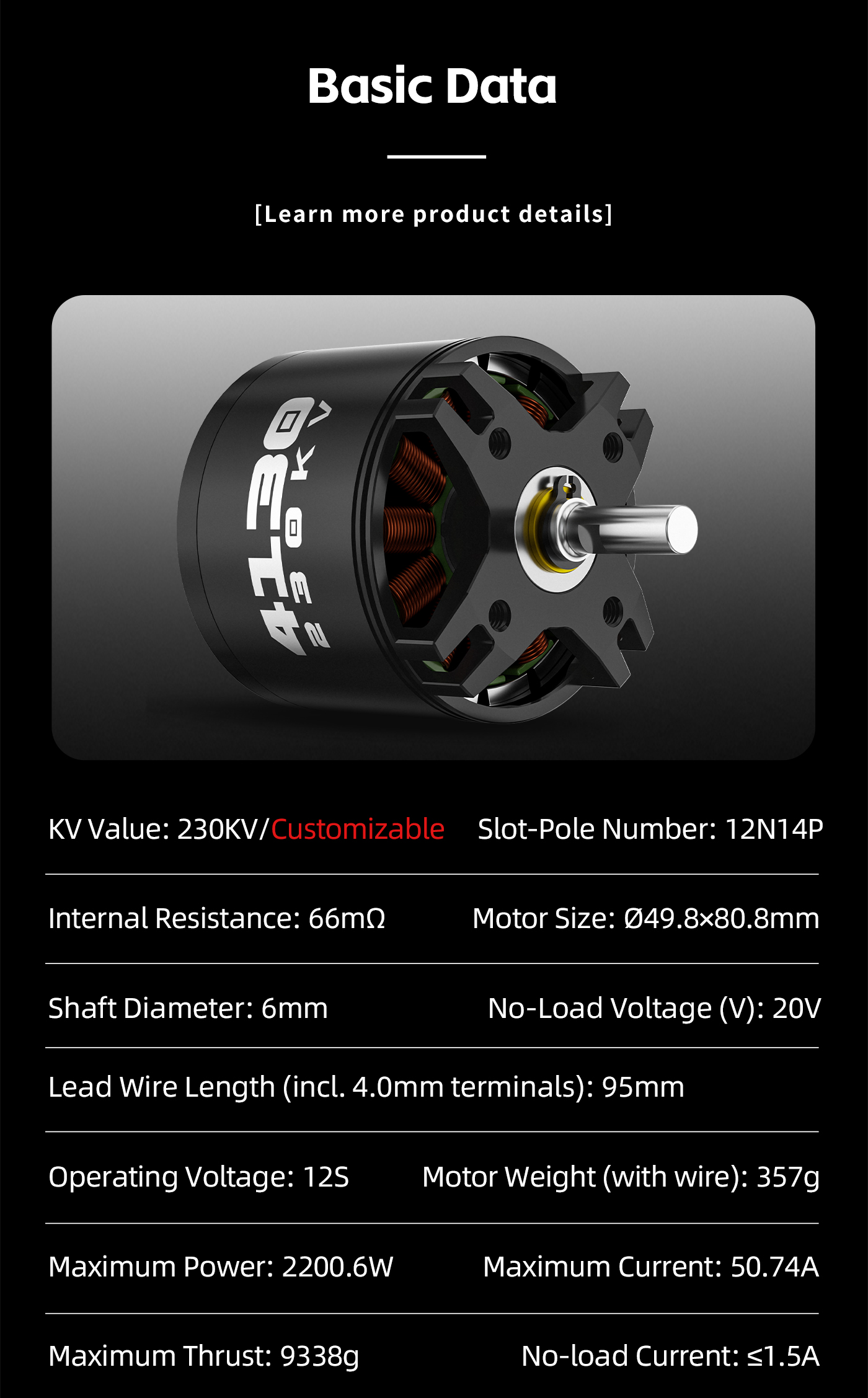

Specifications

Name: AG4130-V1 Brushless Motor

KV: 230KV (customizable)

Slot-Pole: 12N14P

Internal Resistance: 66mΩ

Shaft Diameter: 6mm

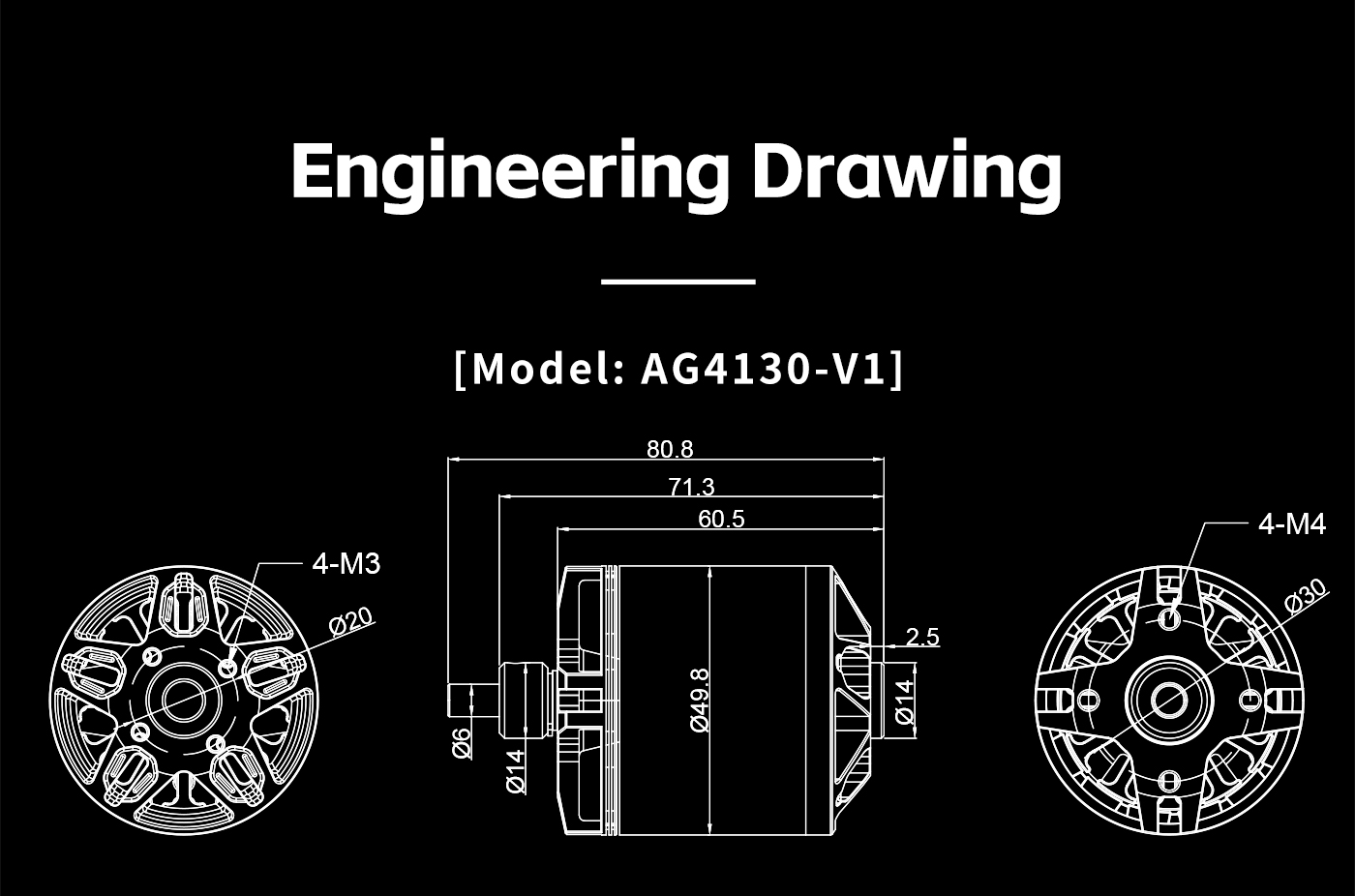

Motor Size: Φ49.8×80.8mm

Lead Length: 95mm (with 4.0mm terminals)

Operating Voltage: 12S

Weight (with wire): 357g

Max Power: 2200.6W

Max Current: 50.74A

Max Thrust: 9338g

No-load Current: 1.5A @20V

Material: 220°C copper wire, N52H magnetic sheets

US Tariff Information

Tariff Rate: 10% + Section 301 additional duty (as of May 2026)
Type 86 ($800 duty-free) is terminated; all shipments are dutiable.
Batteries shipped separately; DHL/FedEx/UPS require complete declaratio

FAQ

Are Axisflying products universal for most FPV drones?

Yes, all Axisflying parts are standard size and universal, compatible with most mainstream FPV models for easy assembly and replacement.

Do you provide after-sales support and technical guidance?

Sure. We offer professional technical support, installation tips and after-sales service to solve your usage problems.

Do I need to pay import duties or taxes?

Import duties, taxes and customs clearance fees are not included in the product price. They are the buyer’s responsibility and vary by country/region, local tax policy and order value.

We can provide commercial invoice, packing list, CE/RoHS certificates to help with customs clearance. For detailed rates, please check with your local customs office.

Where can I download product manuals and printable documents?

All user manuals, quick guides, specification sheets and printable files are available in the Support / Download Center on our official website.
